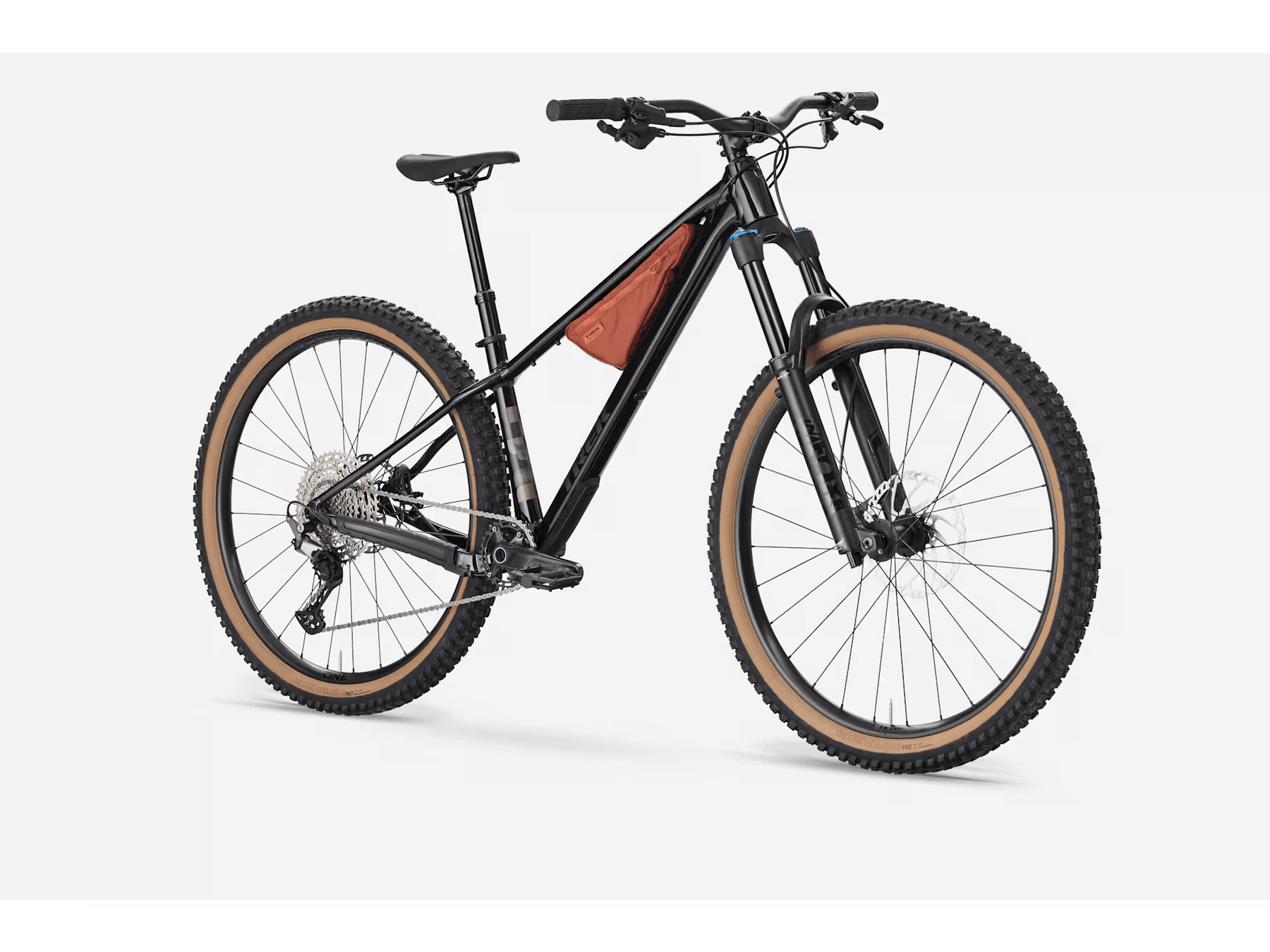

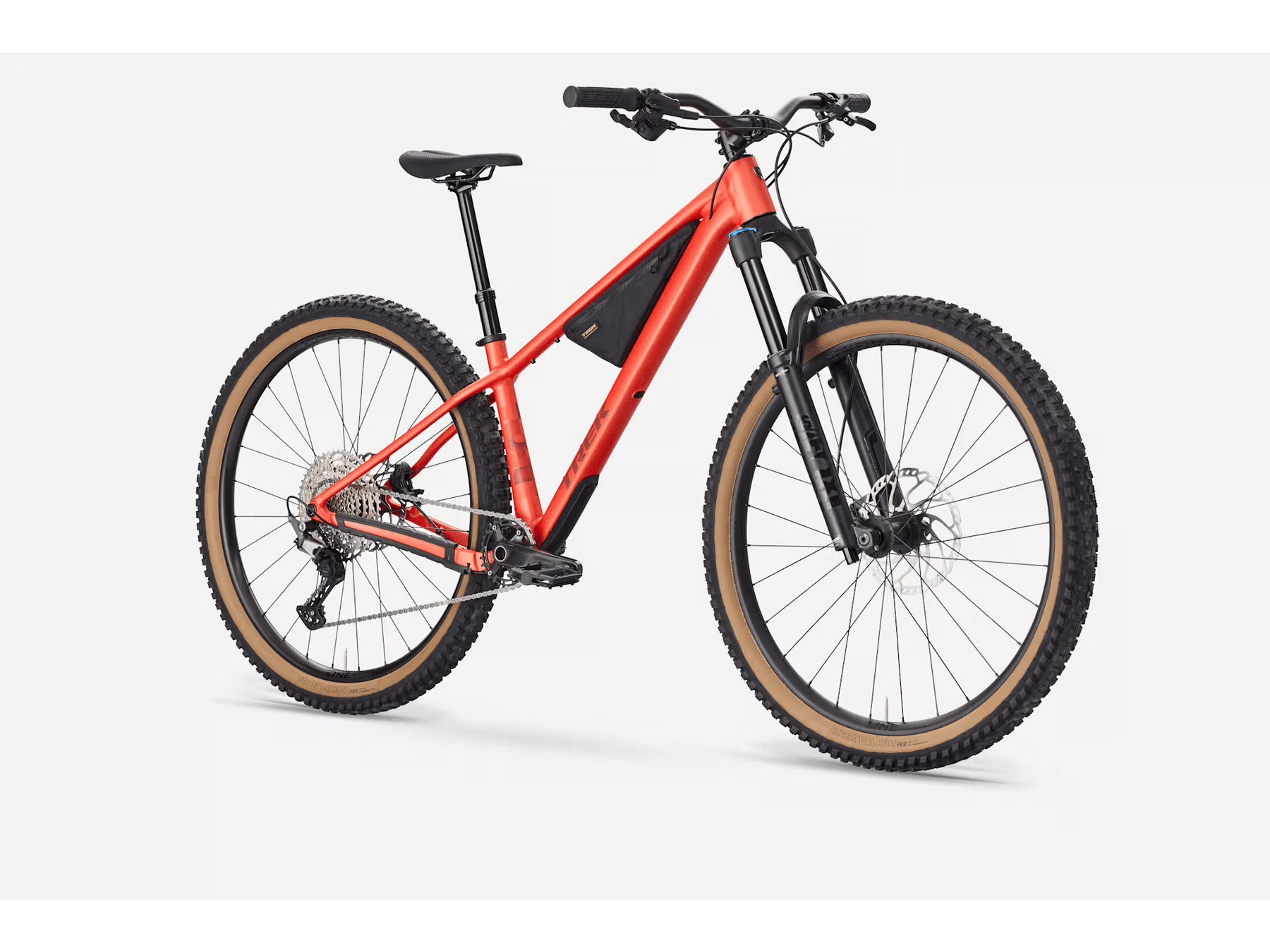

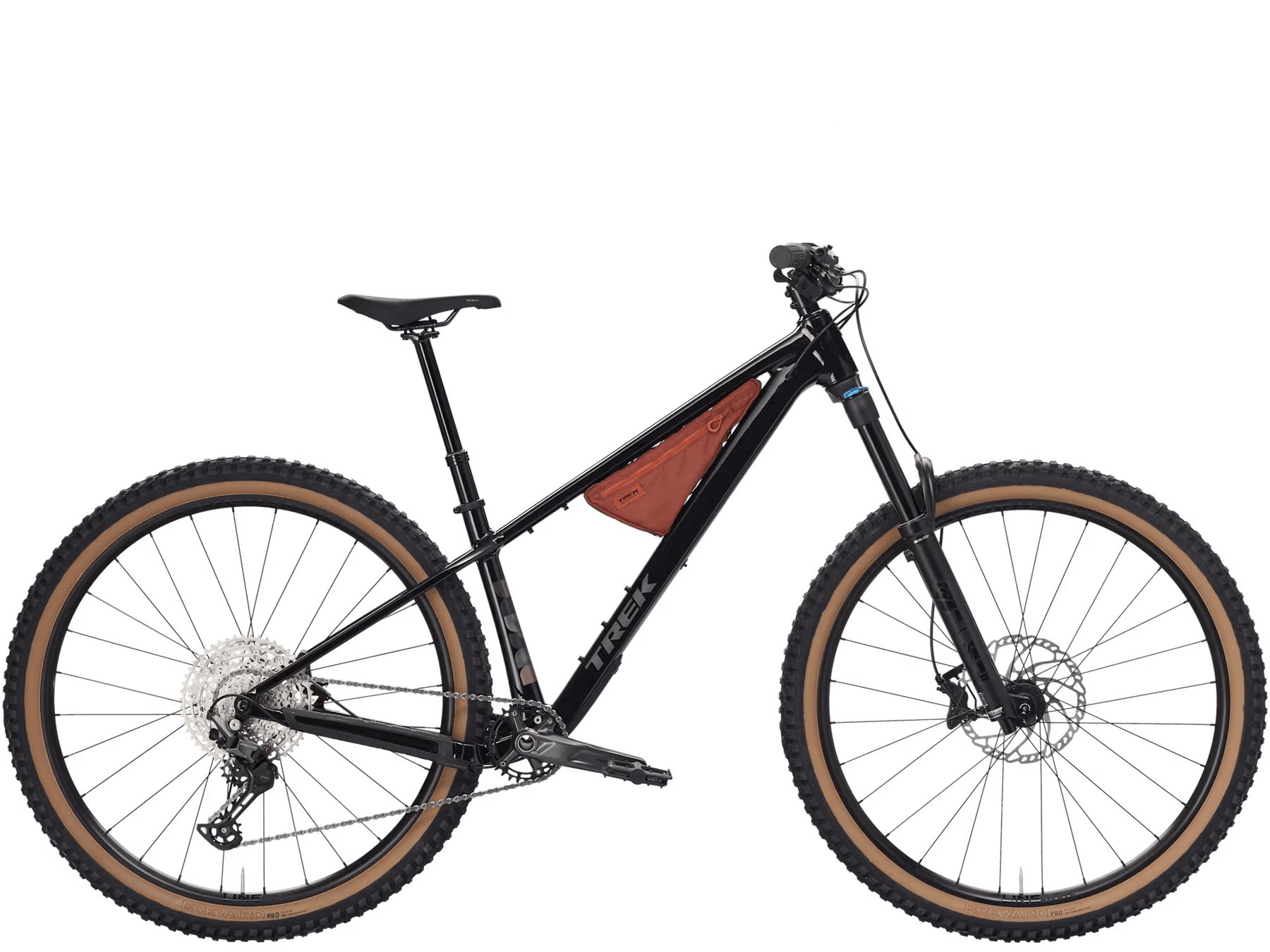

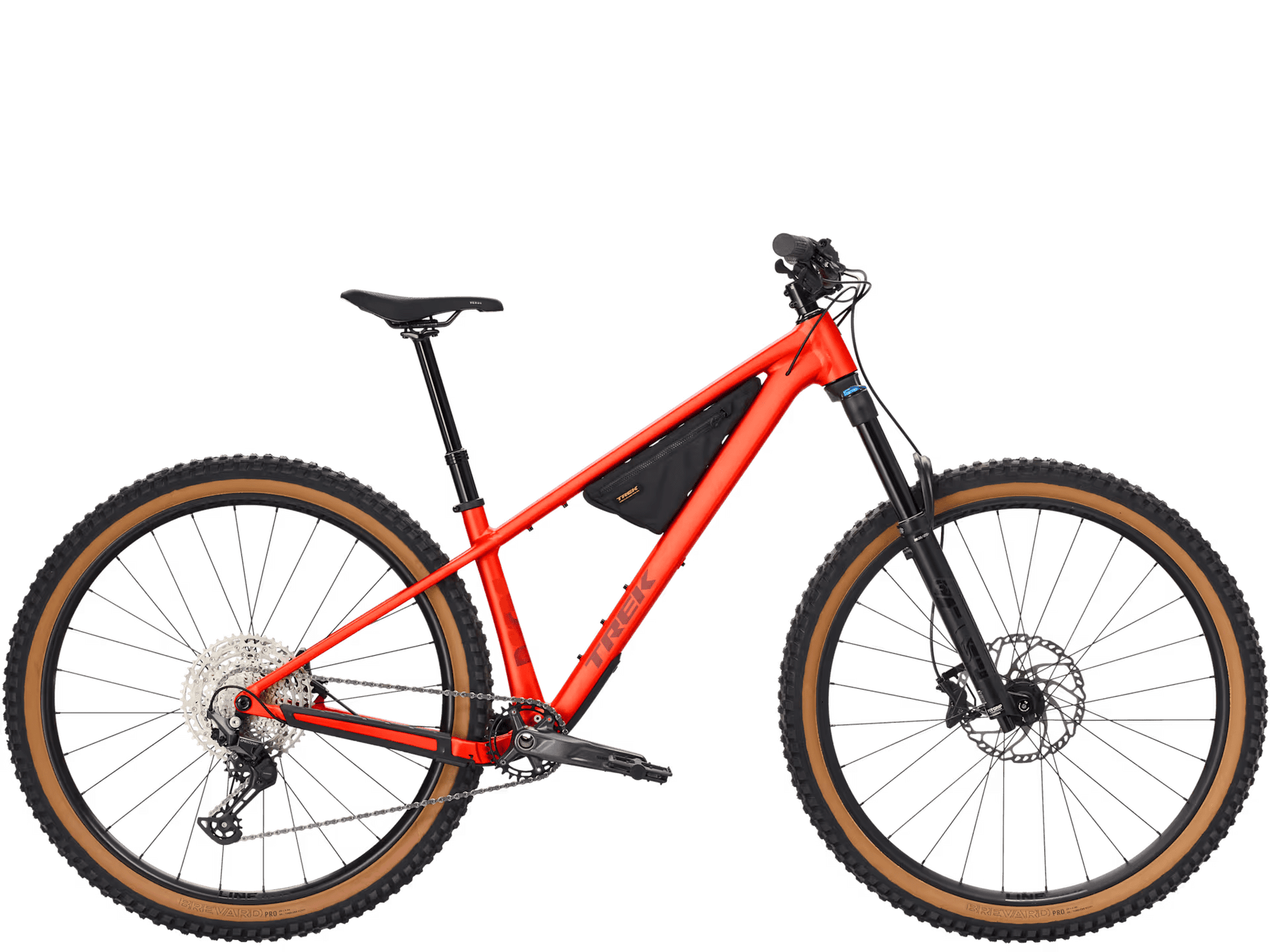

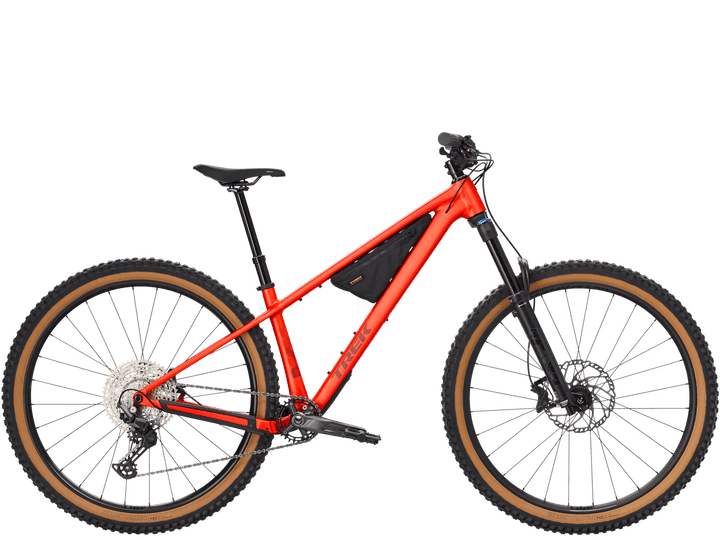

Roscoe 8 Gen 4

What is different compared to previous versions?

• Roscoe Gen 4 has updated geometry for improved standover clearance and longer dropper post insertion. Instead of a 130mm post being fully buried in the seat tube on a medium, most medium riders can now run a 170mm dropper post.
• A new, steeper seat tube angle keeps handling balanced and pedaling efficient.
• Roscoe’s new frame comes in five sizes instead of six. Because of the increased standover clearance, the reduced size run doesn’t limit rider fit, providing a bike for the same range of rider heights.
• A new bolt-on downtube guard improves durability and frame protection.

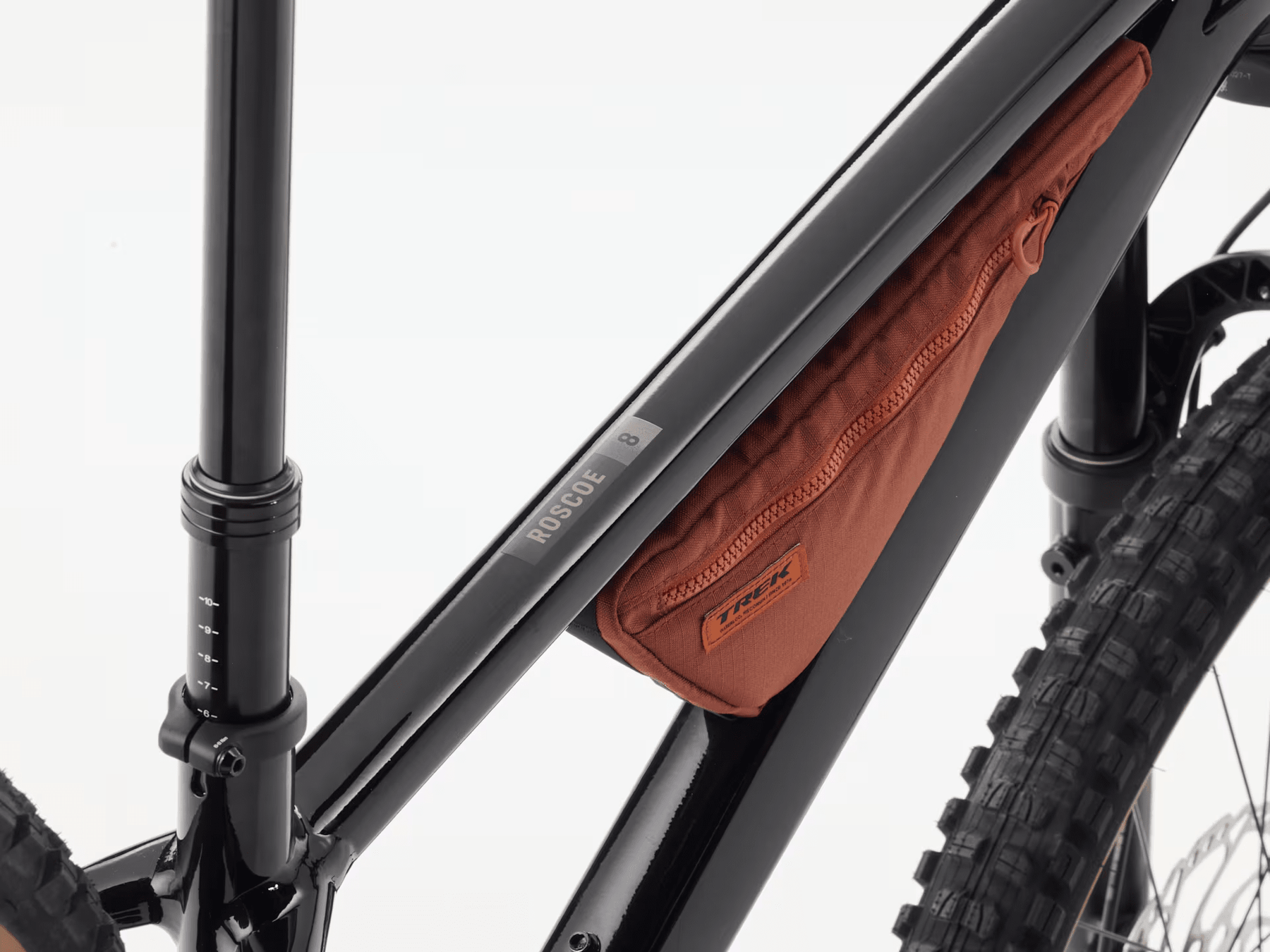

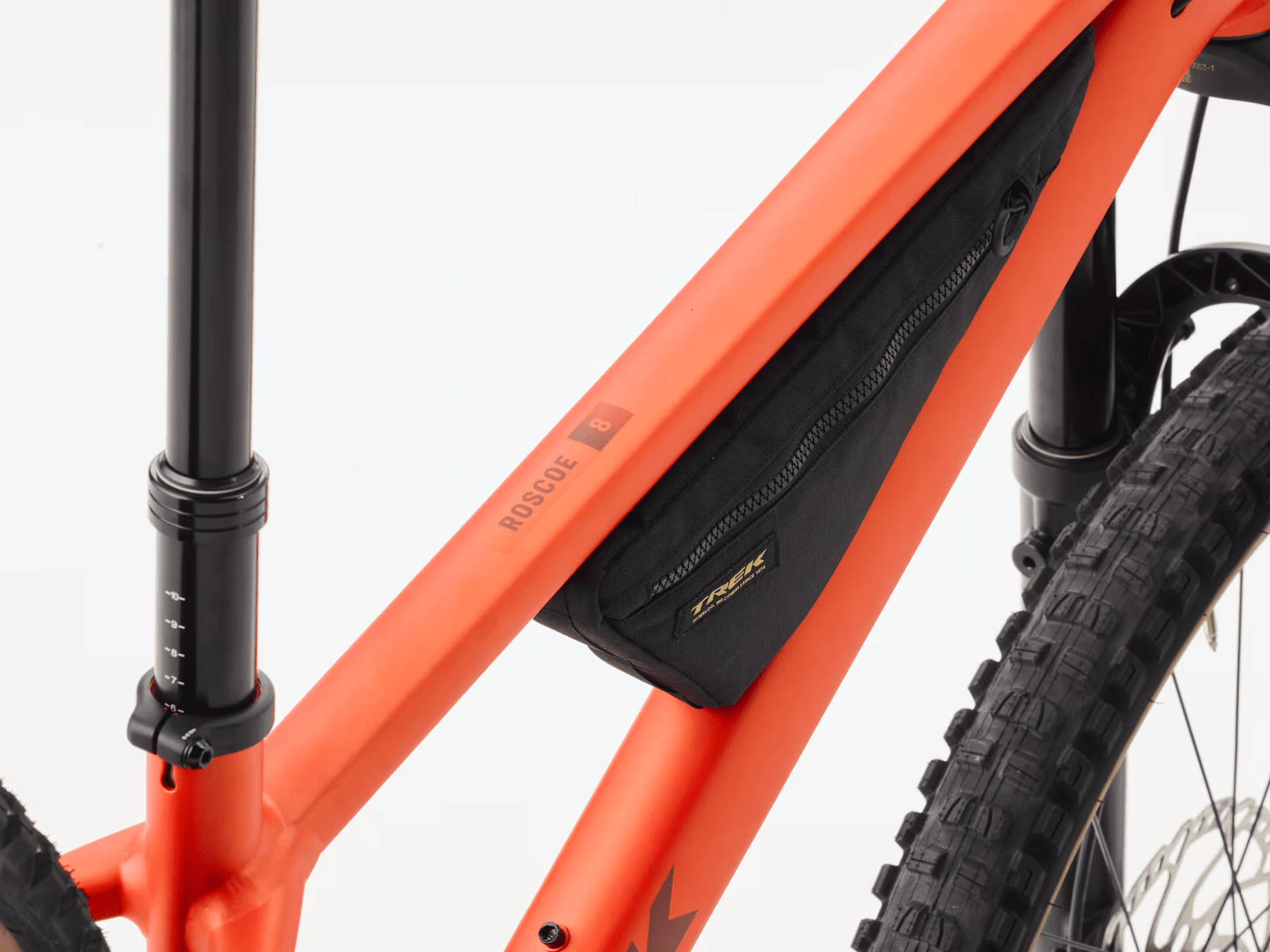

• Additional mounts are available under the top tube to store a tube, tool, or another bottle cage on larger sizes (when a frame bag is not installed).
• New zero-stack press-in headset cups allow for aftermarket angle-adjust compatibility
• All frame sizes feature one set of water bottle mounts on the downtube. To allow for improved dropper post insertion, there are no water bottle mounts on the seat tube.
• Increased fork travel to 150mm

Frameset

• Frame: Alpha Platinum Aluminum, tapered head tube, ZS headset, internal derailleur & dropper post routing, ISCG 05, threaded BB, UDH, 148x12mm thru axle

• *Fork

1. Size: S - Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
2. Size: M, ML, L, XL - Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel

• Max compatible fork travel: 160mm

Wheels

• Hub front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
• Hub rear: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Rim: Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve

• *Tire:

1. Size: S - Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
2. Size: M, ML, L, XL - Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"

• Tire part: Bontrager TLR sealant, 180 ml/6 oz
• Rim strip: Bontrager TLR
• Max tire size: Frame: 29x2.60", Fork: See manufacturer

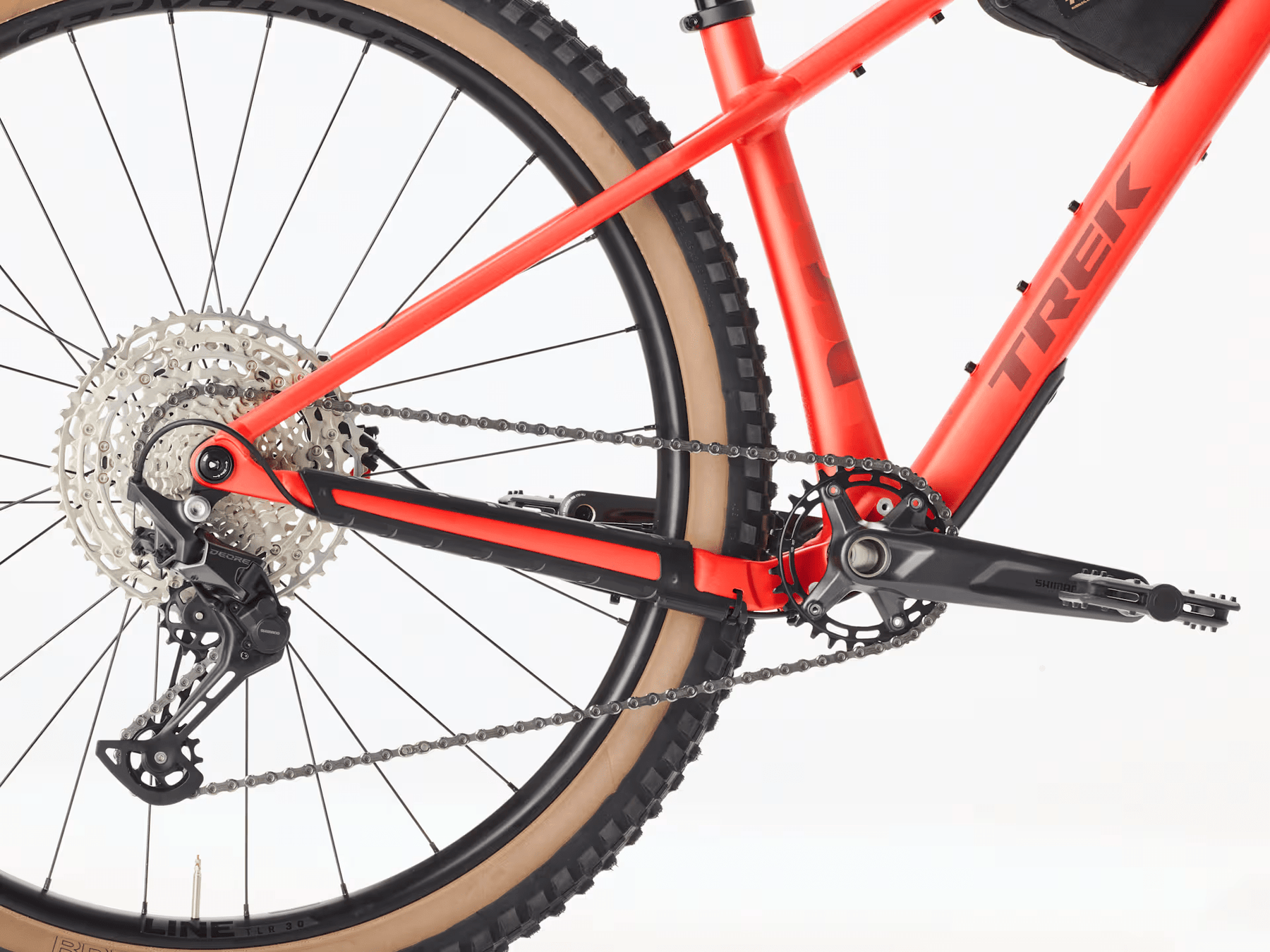

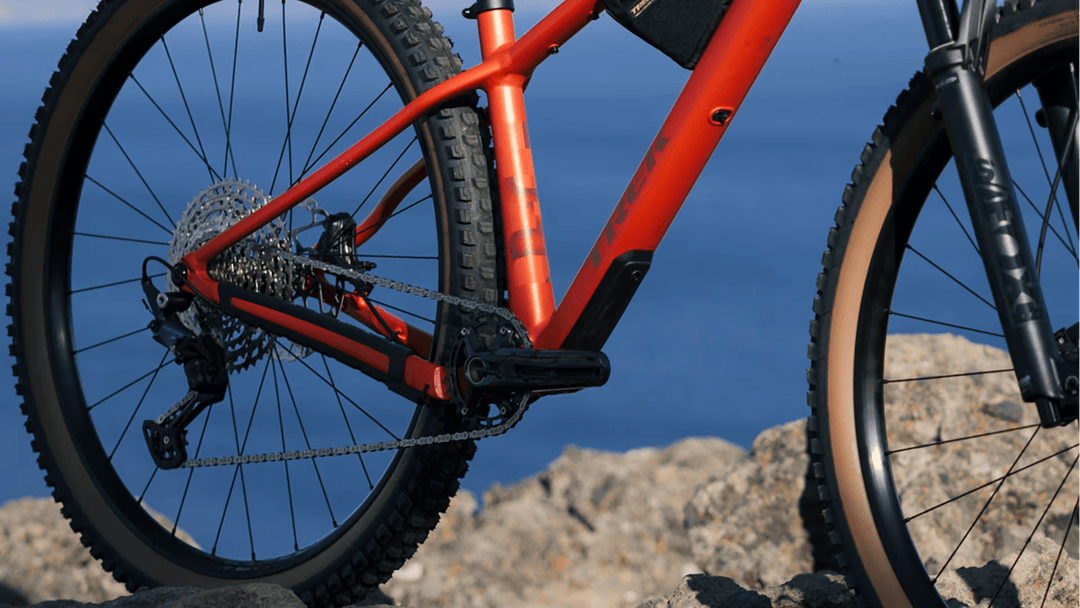

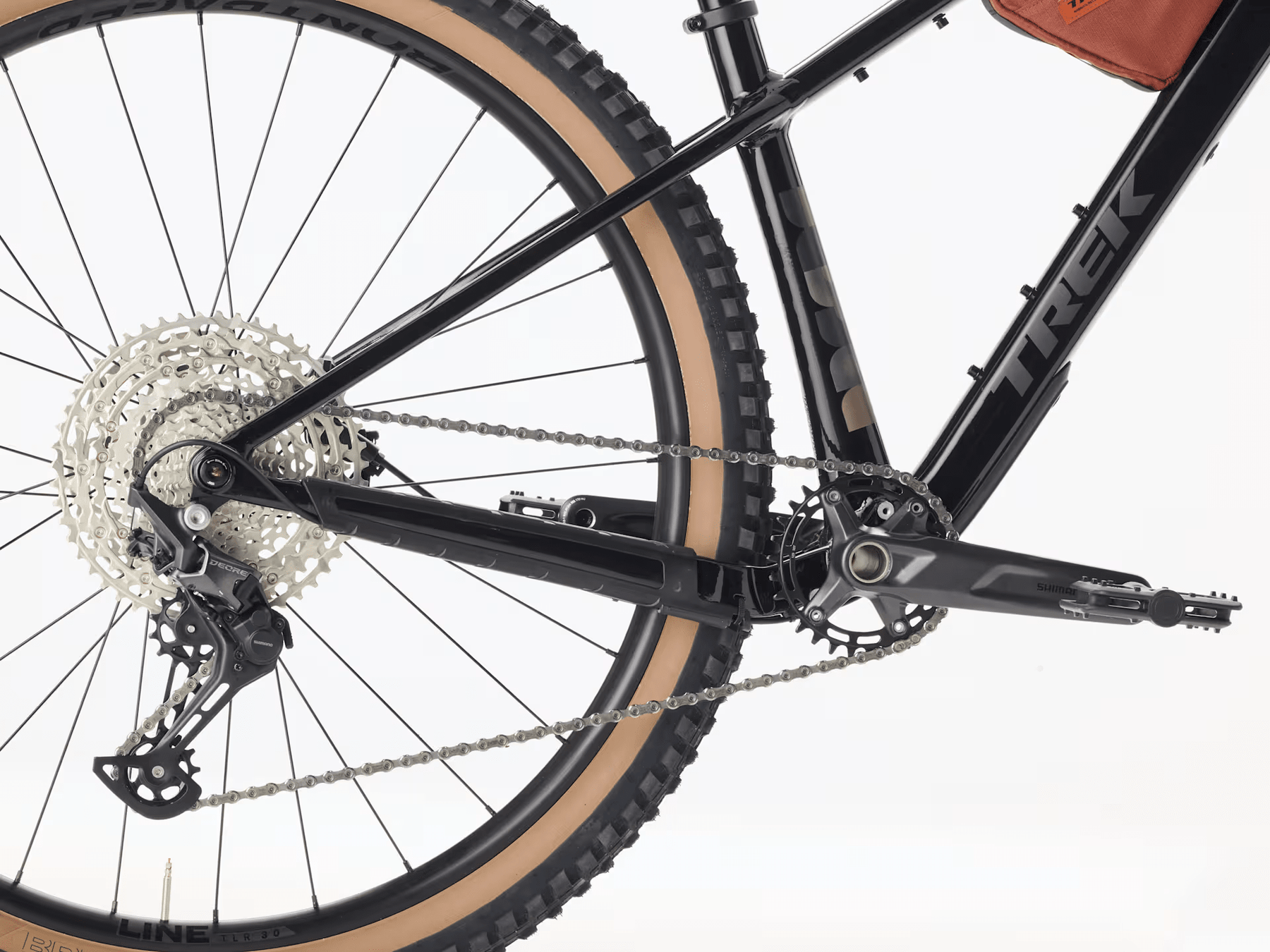

Drivetrain

• Shifter: Shimano Deore M6100, 12 speed
• Rear derailleur: Shimano Deore M6100, long cage
• Crank: Shimano MT512, 30T ring, 55mm chainline, 170mm length
• Bottom bracket: Shimano BB-MT501 BSA
• Cassette: Shimano Deore M6100, 10-51, 12 speed
• Chain: Shimano Deore M6100, 12 speed
• Max chainring size: 1x: 34T, min 28T

Components

• Saddle: Bontrager Verse P3, steel rails

• *Seatpost:

1. Size: S - TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
2. Size: M, ML - TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length
3. Size: L, XL - TranzX JD-YSI34, 200mm travel, internal routing, 31.6mm, 565mm length

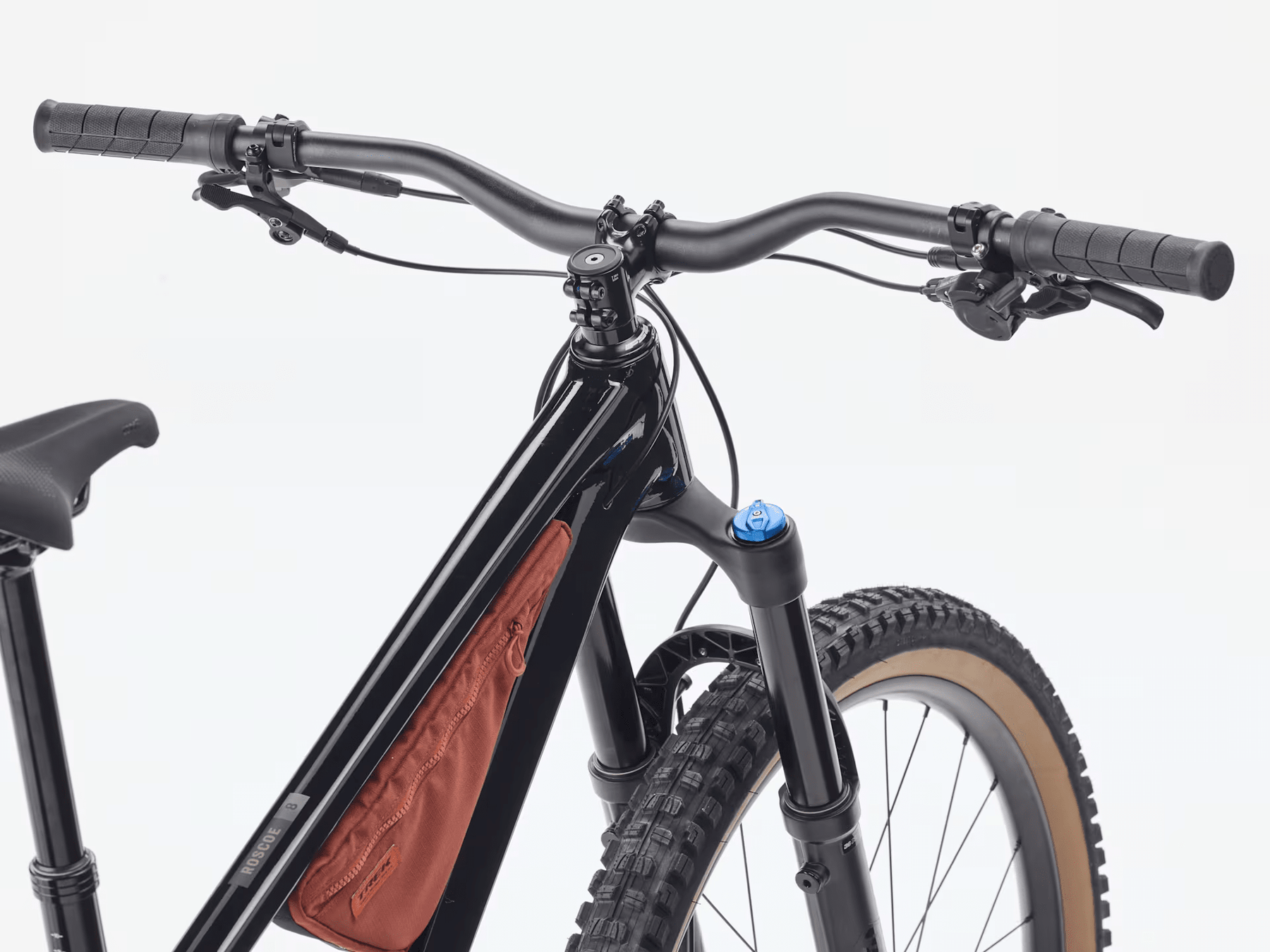

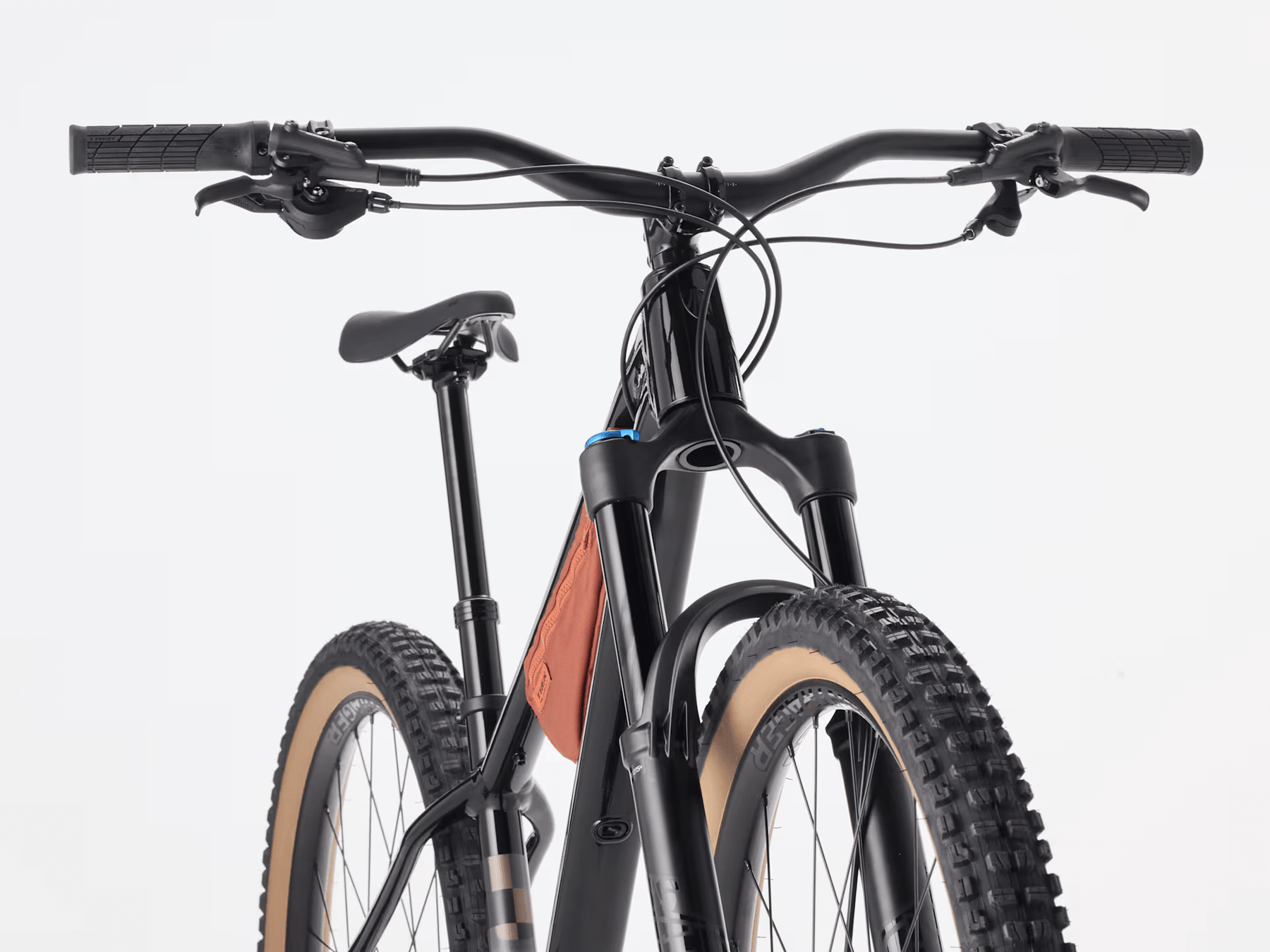

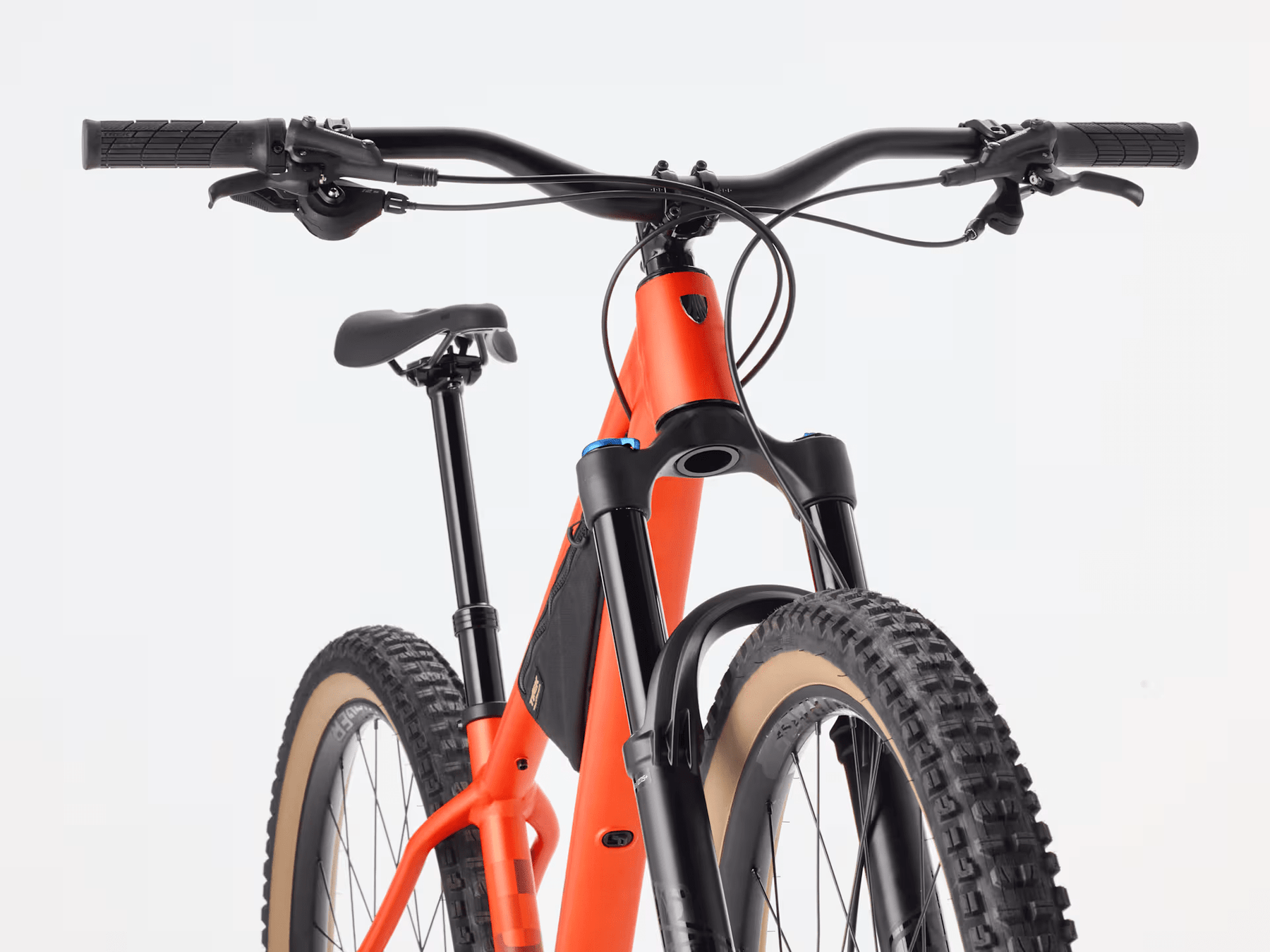

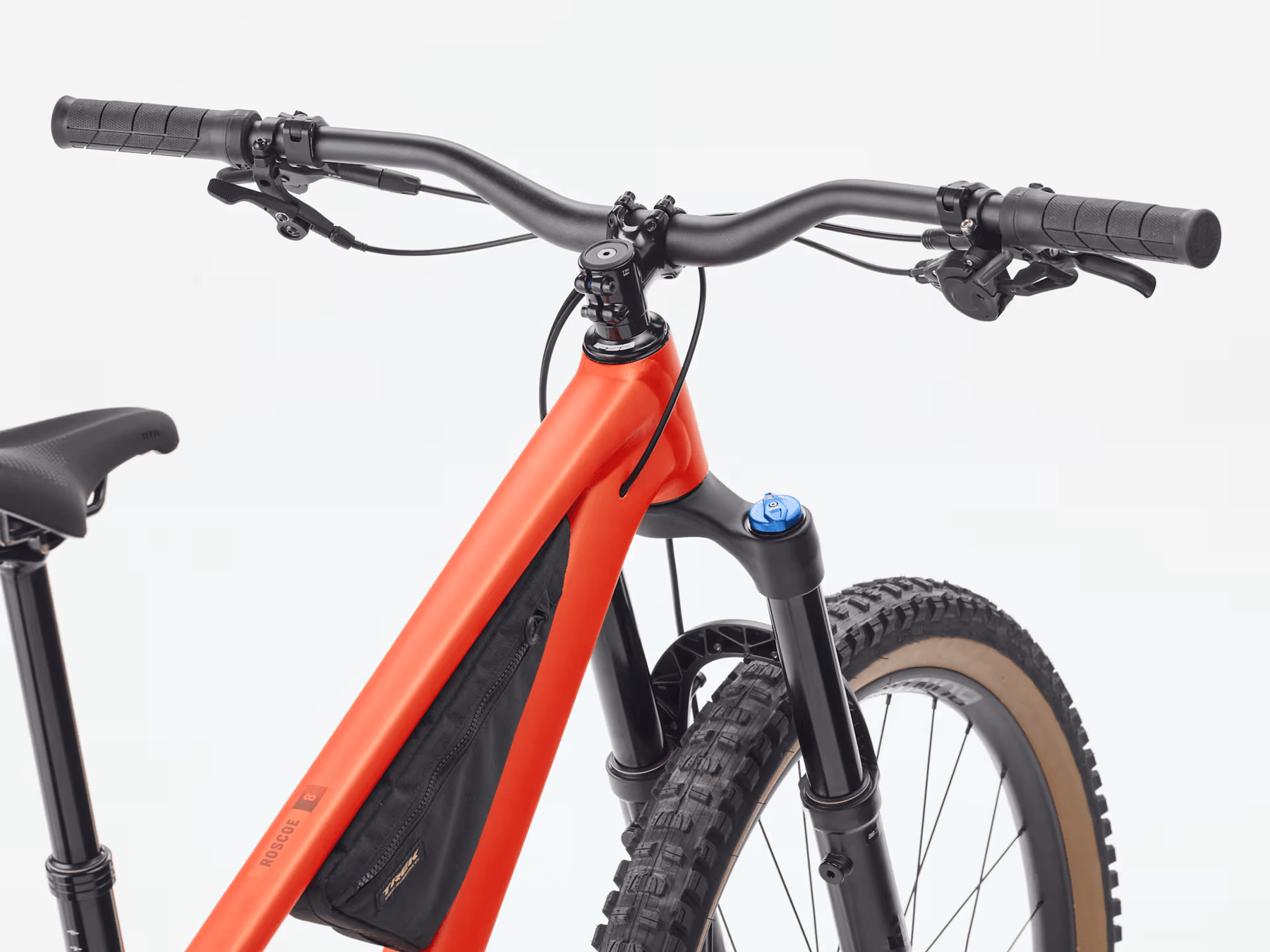

• *Handlebar

1. Size: S - Bontrager alloy, 31.8mm, 15mm rise, 750mm width
2. Size: M, ML, L, XL - Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width

• Grips: Trek Line Comp, nylon lock-on

• *Stem:

1. Size: S - Bontrager Comp, 31.8mm, 7 degree, 35mm length
2. Size: M, ML, L, XL - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length

• Headset: FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
• Brake: Shimano M6120 4-piston hydraulic disc

• *Brake rotor:

1. Size: S, M, ML, L, XL - Shimano RT66, 6-bolt, 180mm
2. Size: S, M, ML, L, XL - Shimano RT66, 6-bolt, 203mm

• Rotor size: Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight

• Weight: MD - 14.18 kg / 31.27 lbs (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

*Subject to change without notice
