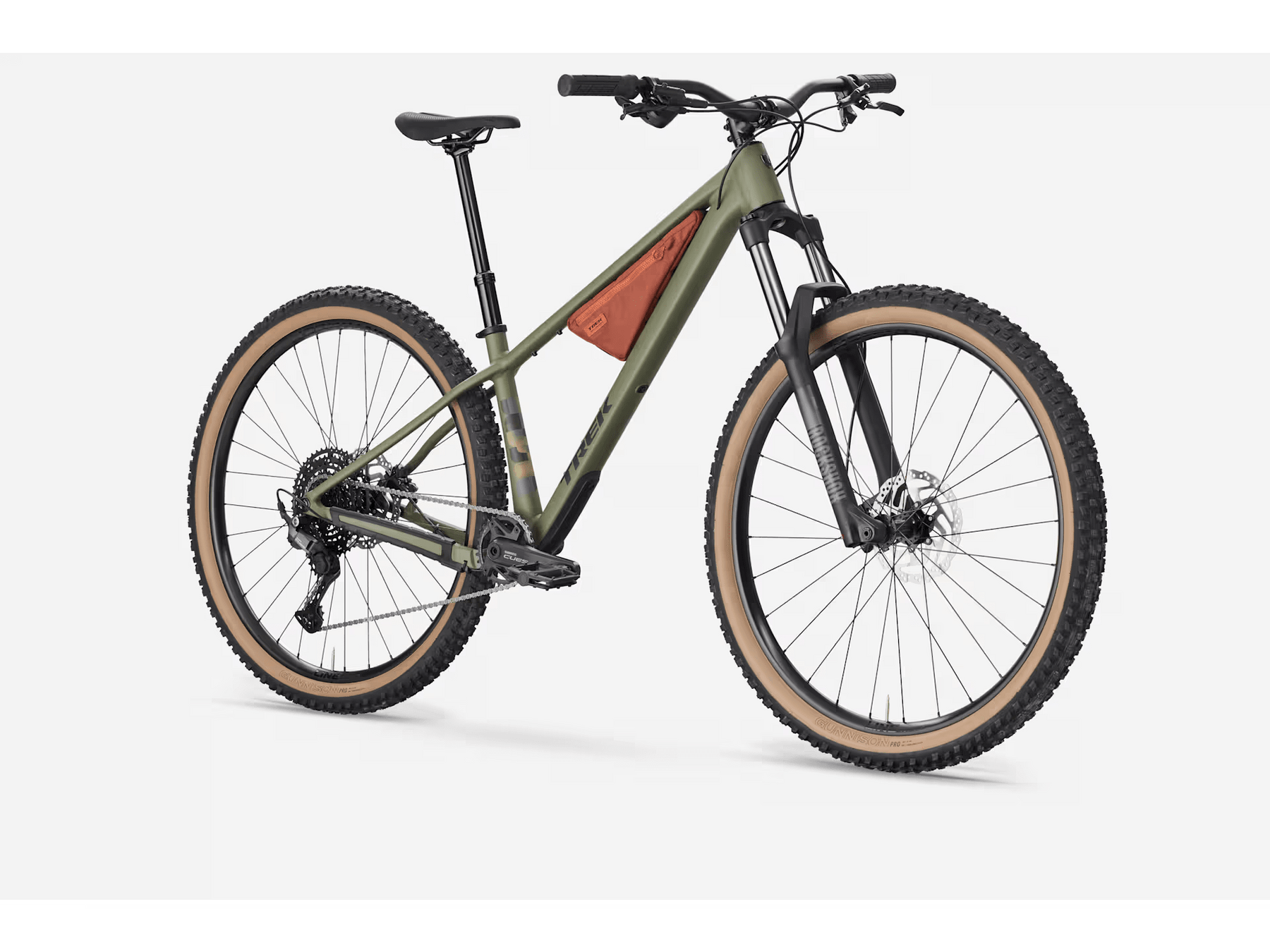

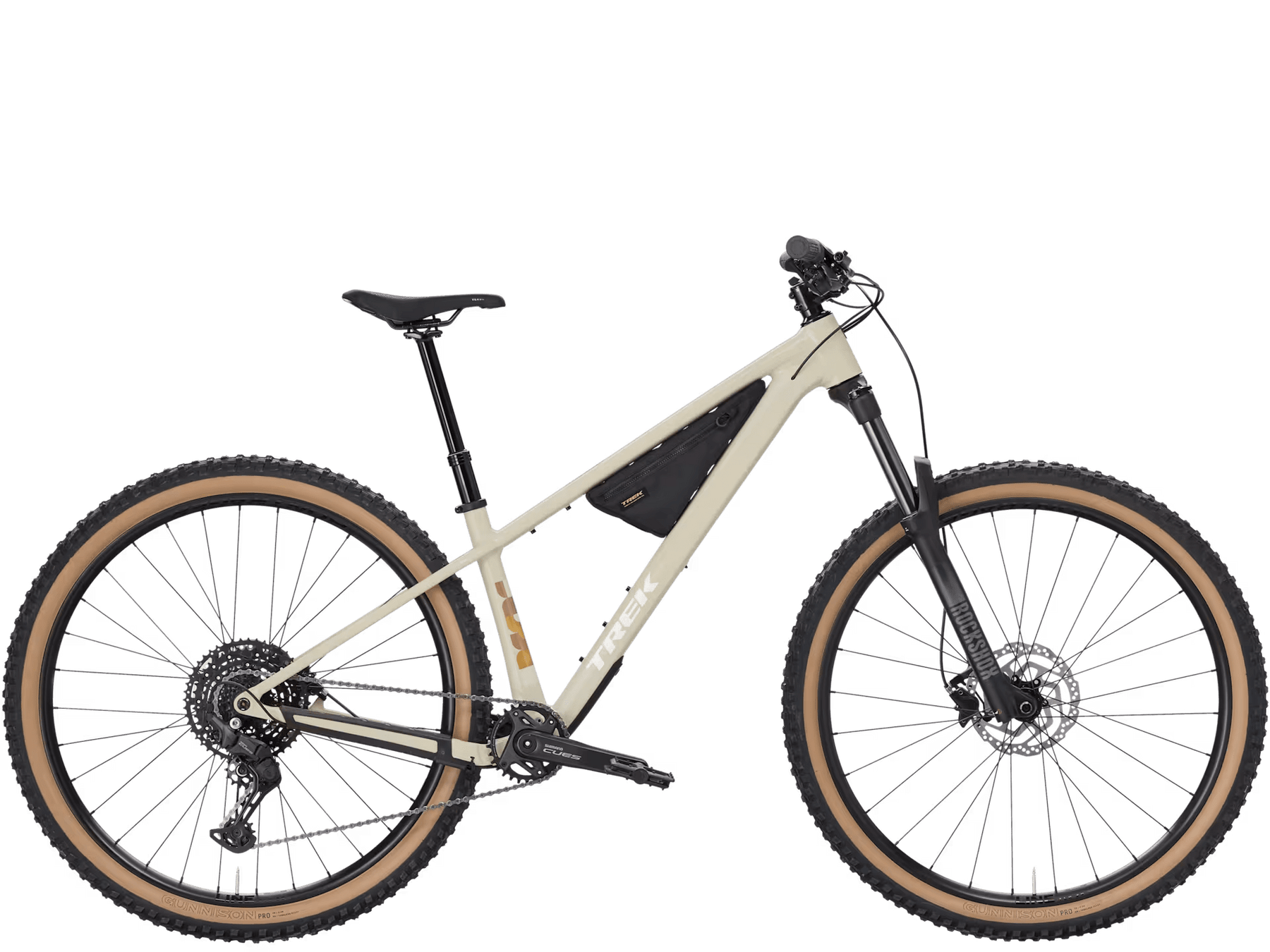

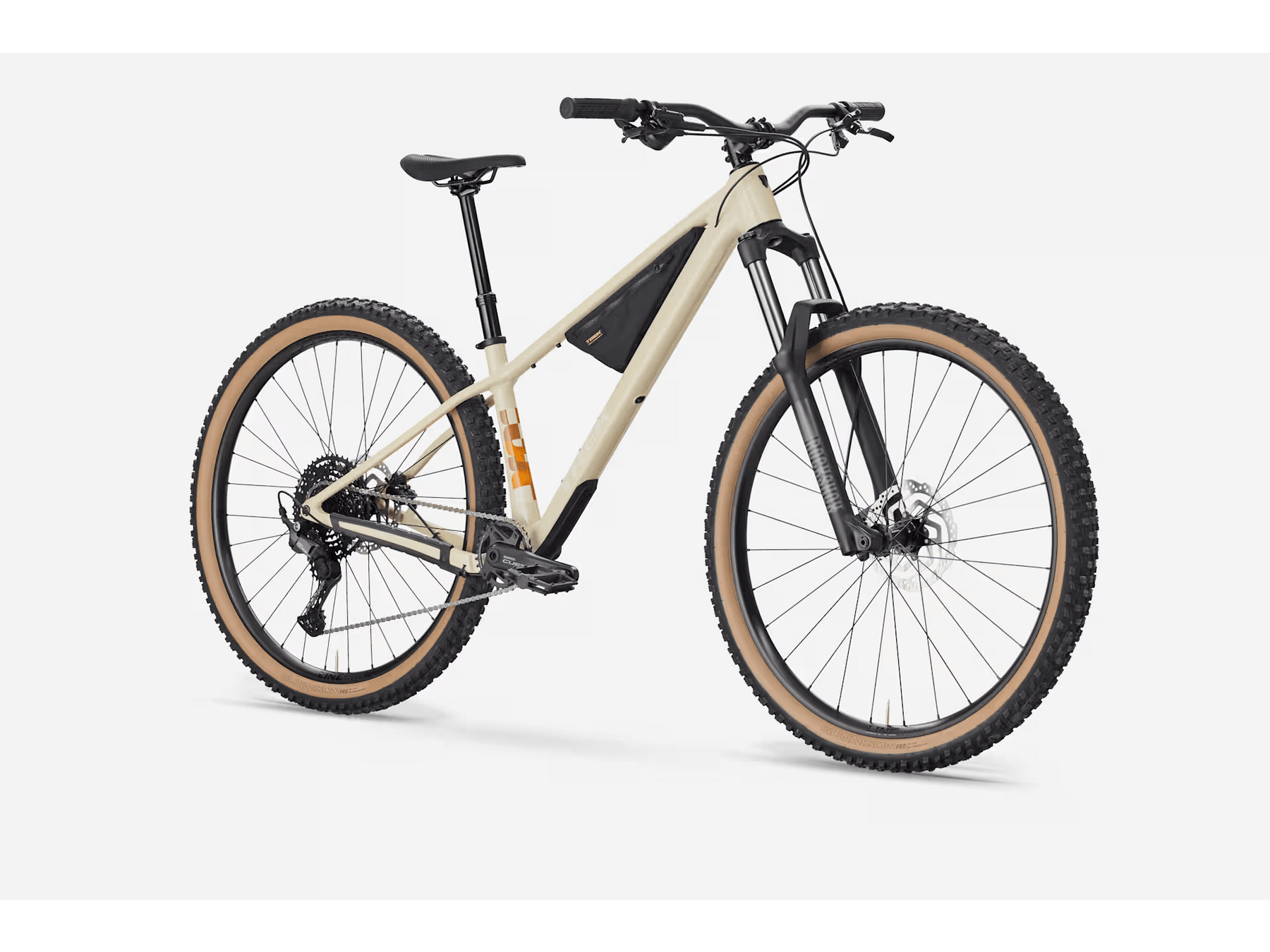

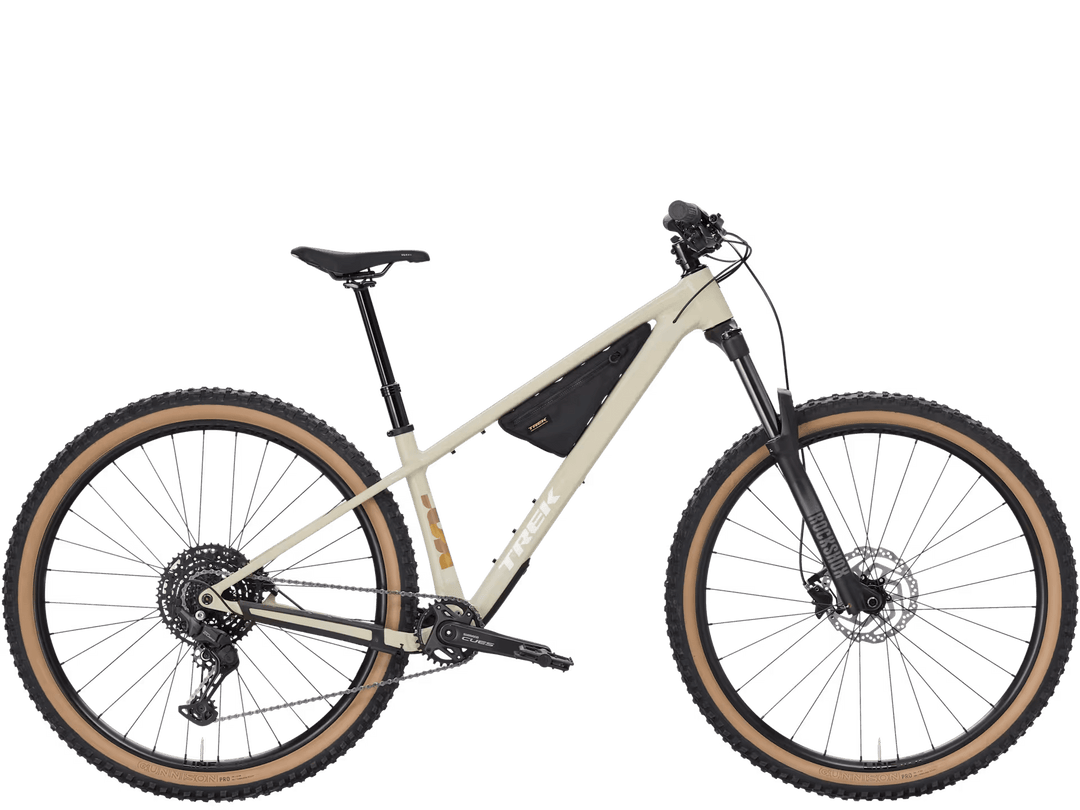

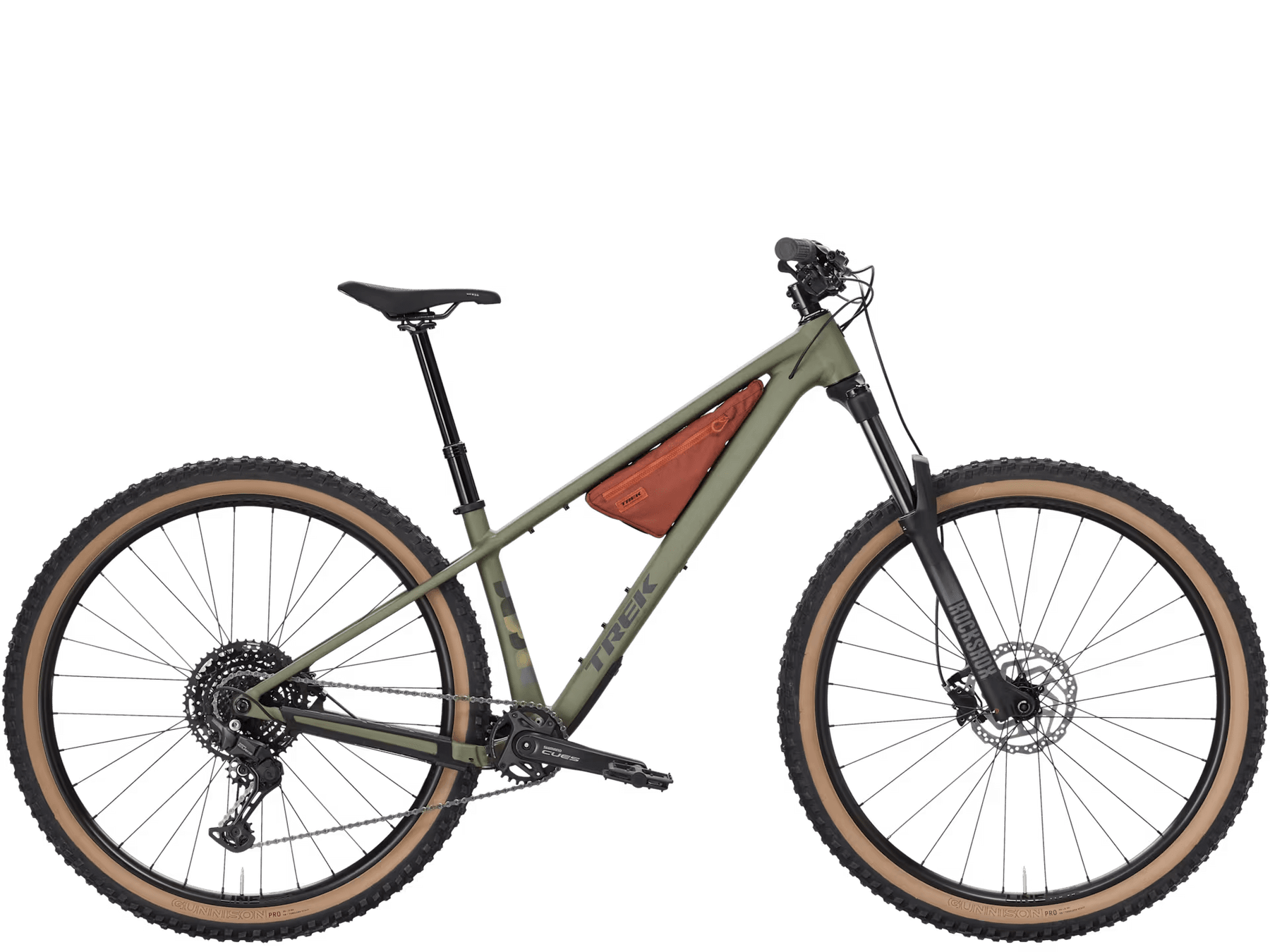

Roscoe 7 Gen 4

What is different compared to previous versions?

• Roscoe Gen 4 has updated geometry for improved standover clearance and longer dropper post insertion. Instead of a 130mm post being fully buried in the seat tube on a medium, most medium riders can now run a 170mm dropper post.
• A new, steeper seat tube angle keeps handling balanced and pedaling efficient.
• Roscoe’s new frame comes in five sizes instead of six. Because of the increased standover clearance, the reduced size run doesn’t limit rider fit, providing a bike for the same range of rider heights.
• A new bolt-on downtube guard improves durability and frame protection.

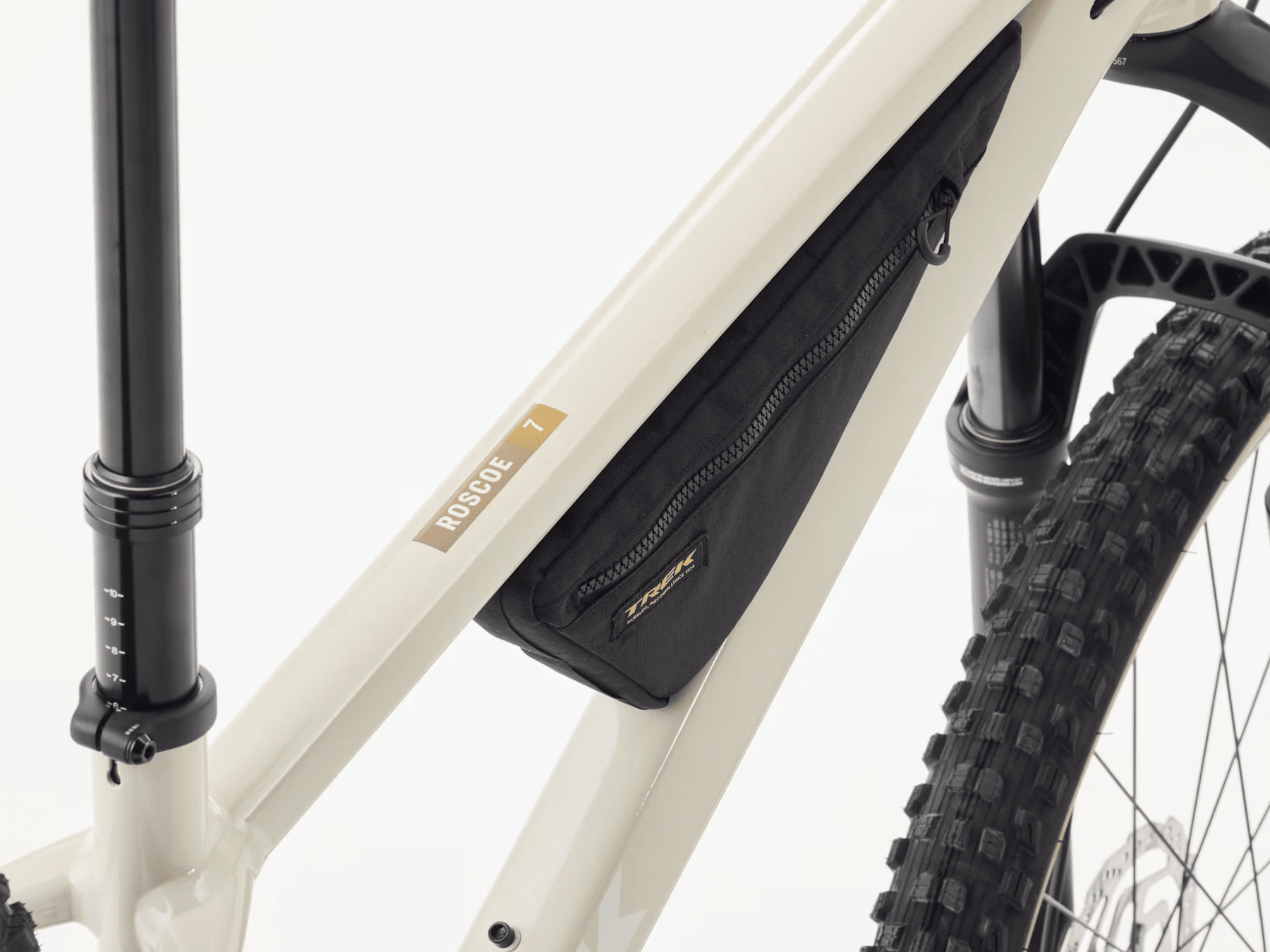

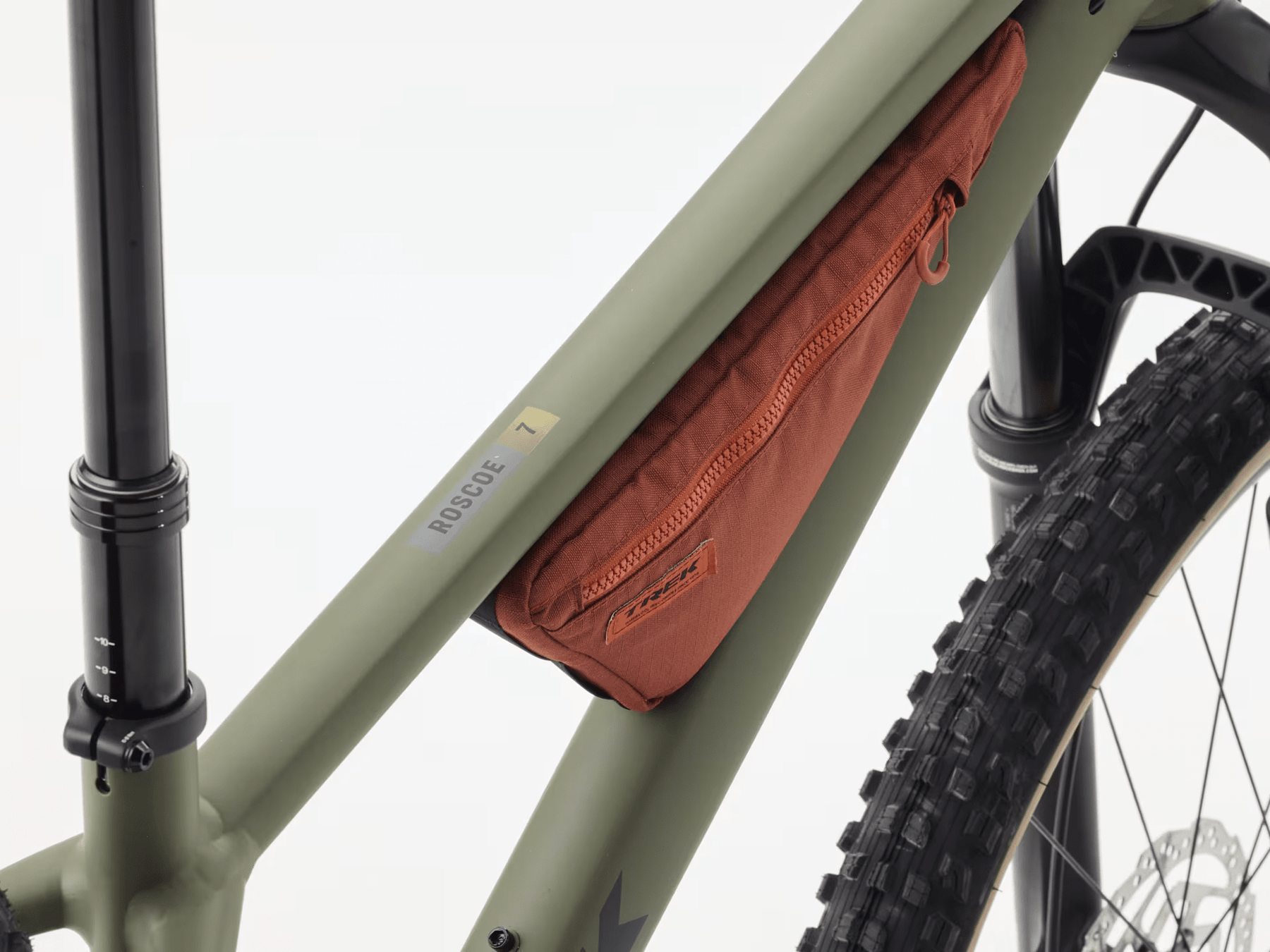

• Additional mounts are available under the top tube to store a tube, tool, or another bottle cage on larger sizes (when a frame bag is not installed).
• New zero-stack press-in headset cups allow for aftermarket angle-adjust compatibility
• All frame sizes feature one set of water bottle mounts on the downtube. To allow for improved dropper post insertion, there are no water bottle mounts on the seat tube.
• Increased fork travel to 150mm

Frameset

• Frame: Alpha Platinum Aluminum, tapered head tube, ZS headset, internal derailleur & dropper post routing, ISCG 05, threaded BB, UDH, 148x12mm thru axle
• Fork: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
• Max compatible fork travel: 160mm

Wheels

• Hub front: Shimano TC500 alloy, centerlock, 110x15mm thru axle
• Hub rear: Shimano TC500 alloy, centerlock, 148x12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever

• *Rim:

1. Size: S, M, ML, L, XL - Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
2. Size: S, M, ML, L, XL - Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve

• *Tire:

1. Size: S - Bontrager Gunnison Pro XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40''
2. Size: M, ML, L, XL - Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40''

• Rim strip: Bontrager TLR
• Max tire size: Frame: 29x2.60", Fork: See manufacturer

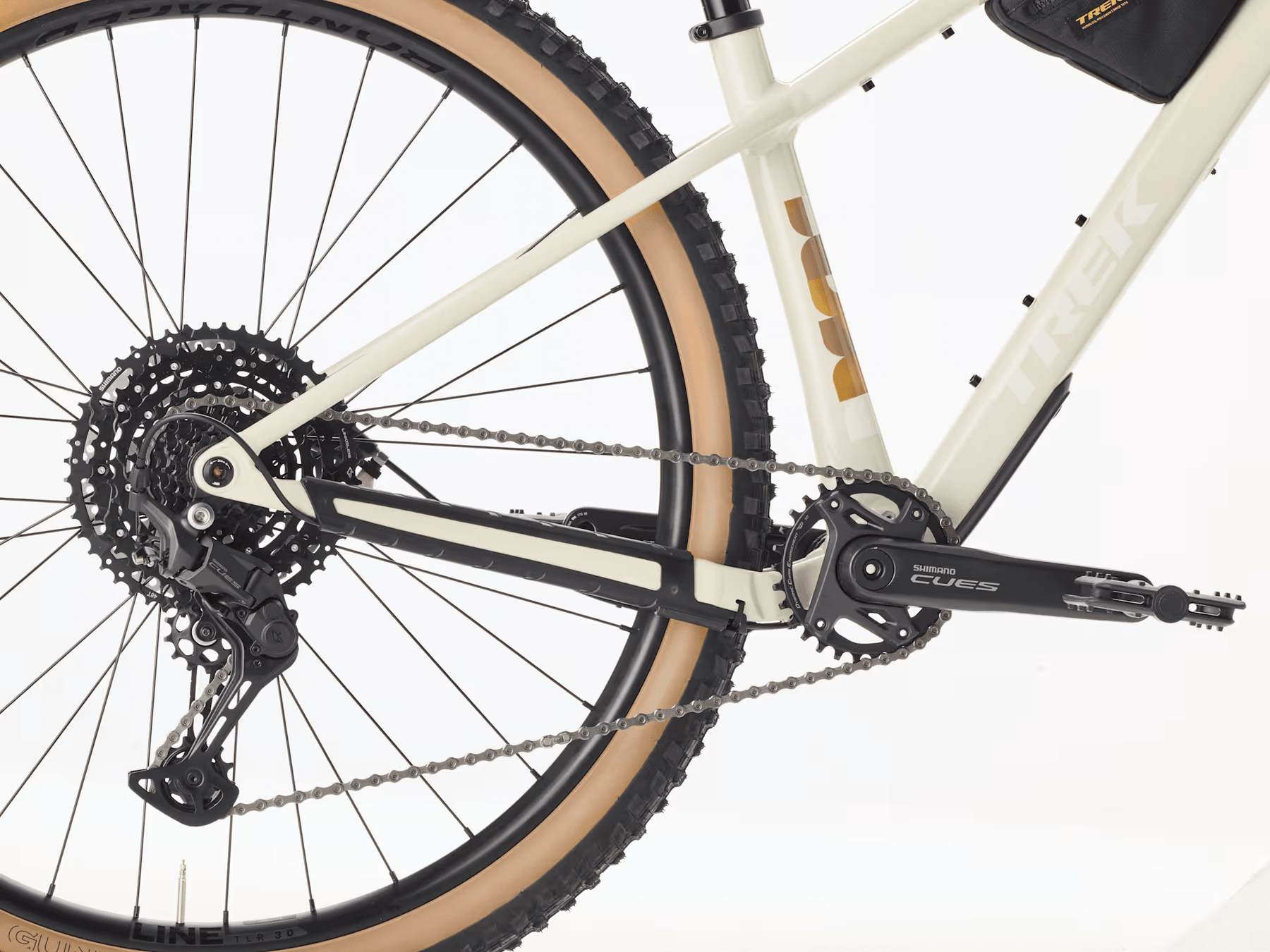

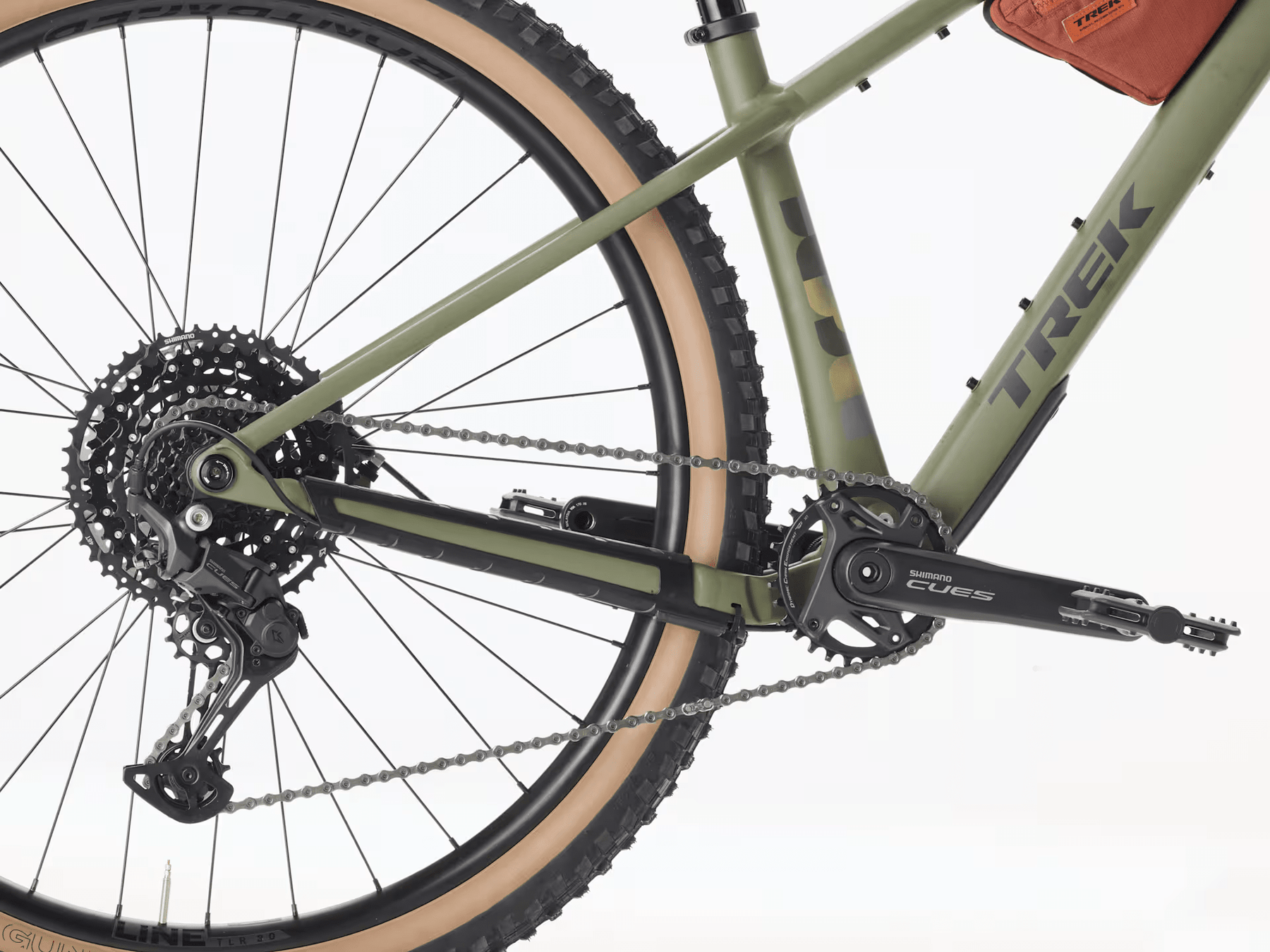

Drivetrain

• Shifter: Shimano U6000, 10 speed
• Rear derailleur: Shimano CUES U6000 GS
• Crank: Shimano CUES U6000, 30T, 55mm chainline, 170mm length
• Bottom bracket: Shimano BB-MT501 BSA
• Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
• Chain: Shimano LG500
• Pedal: VP-536 nylon platform
• Max chainring size: 1x: 34T, min 28T

Components

• Saddle: Bontrager Verse P3, steel rails

• *Seatpost:

1. Size: S - TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
2. Size: M, ML - TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length
3. Size: L, XL - TranzX JD-YSI34, 200mm travel, internal routing, 31.6mm, 565mm length

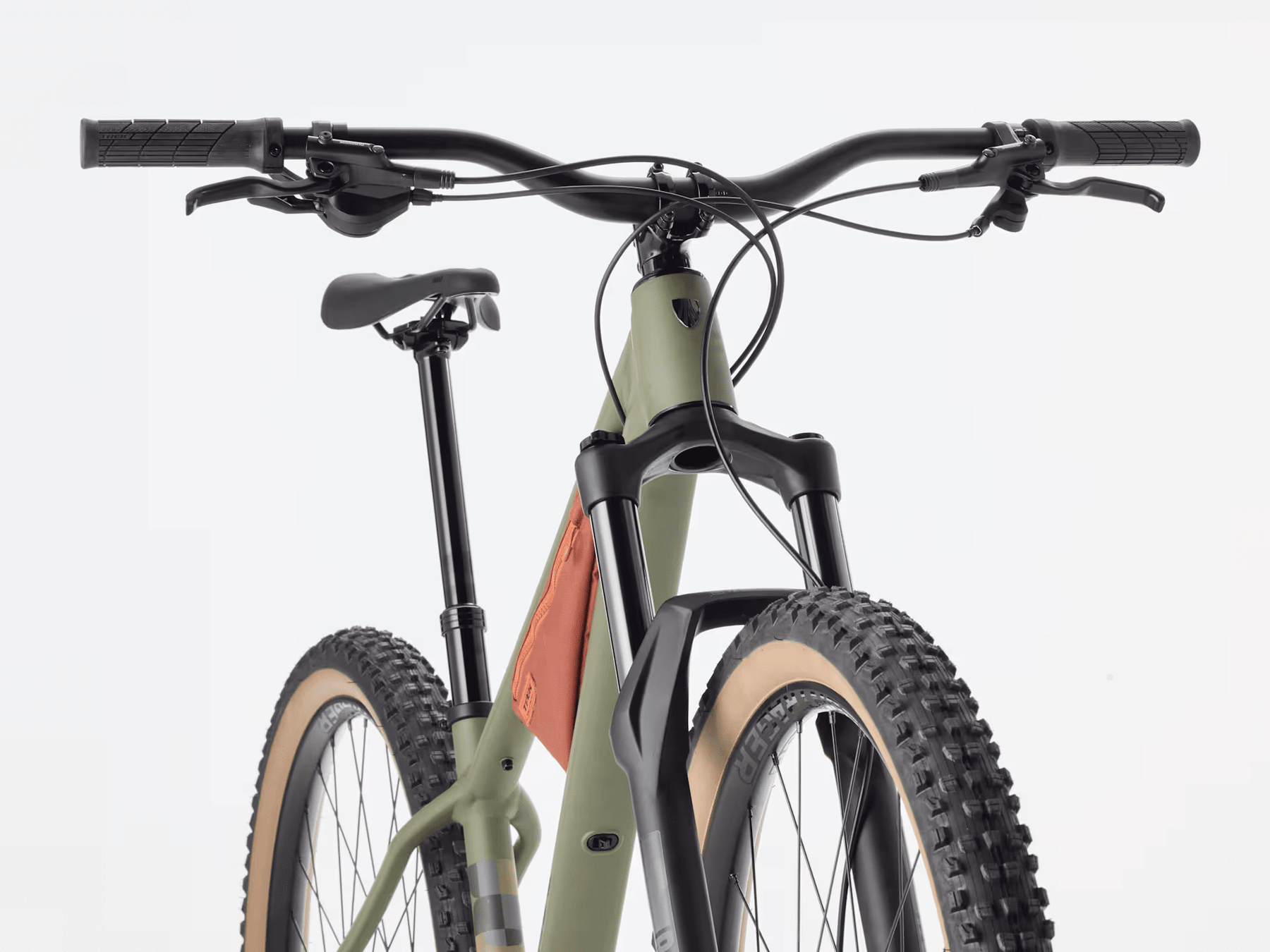

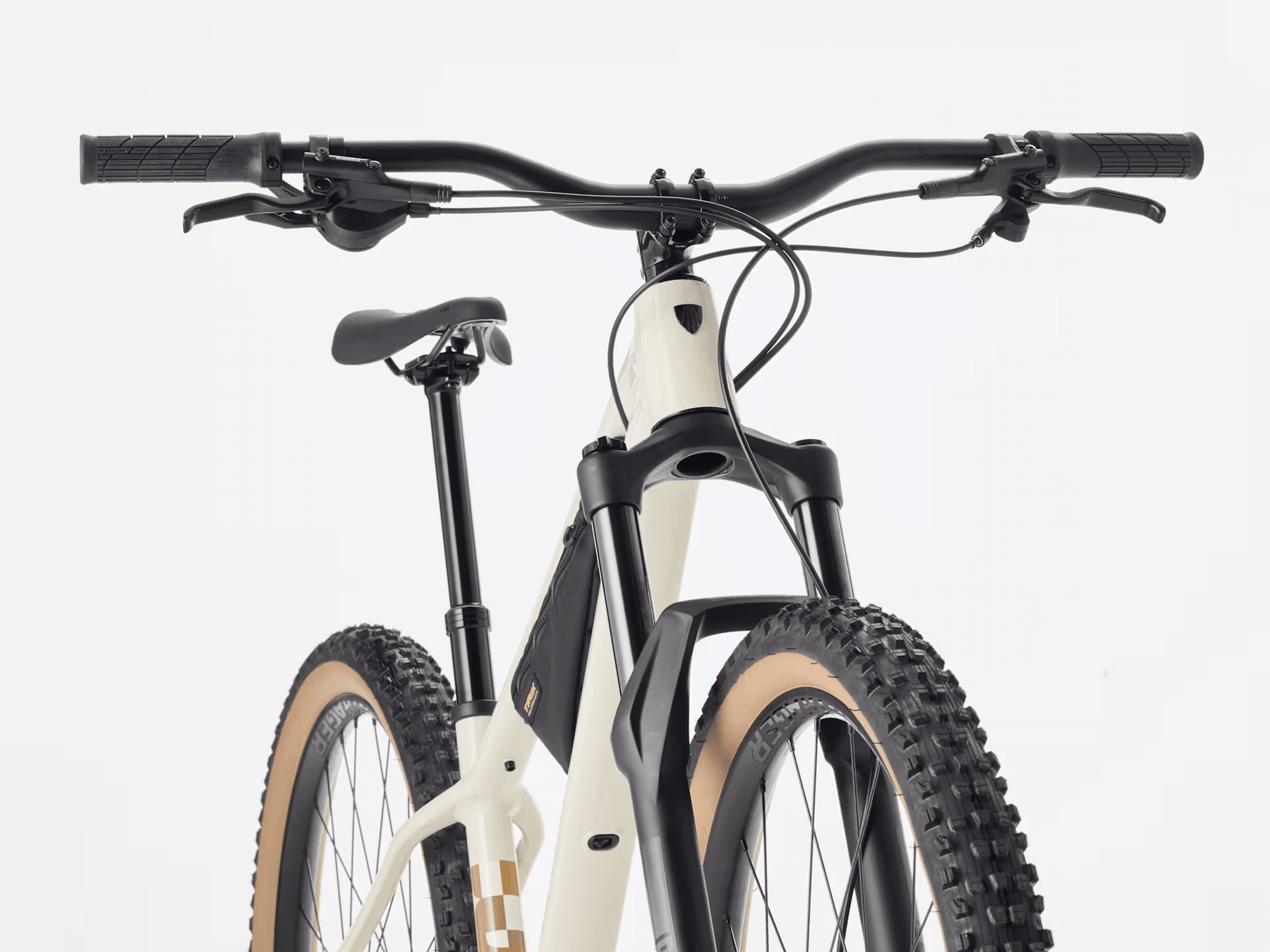

• *Handlebar:

1. Size: S - Bontrager alloy, 31.8mm, 15mm rise, 750mm width
2. Size: M, ML, L, XL - Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width

• Grips: Trek Line Comp, nylon lock-on

• *Stem:

1. Size: S - Bontrager Comp, 31.8mm, 7 degree, 35mm length
2. Size: M, ML, L, XL - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length

• Headset: FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
• Brake: Shimano MT200 hydraulic disc
• Brake rotor: Shimano RT10, CenterLock, 180 mm
• Brake Set: Shimano MT200 hydraulic disc
• Rotor size: Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight

• Weight: MD - 32.04 lbs / 14.53 kg (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

*Subject to change without notice
