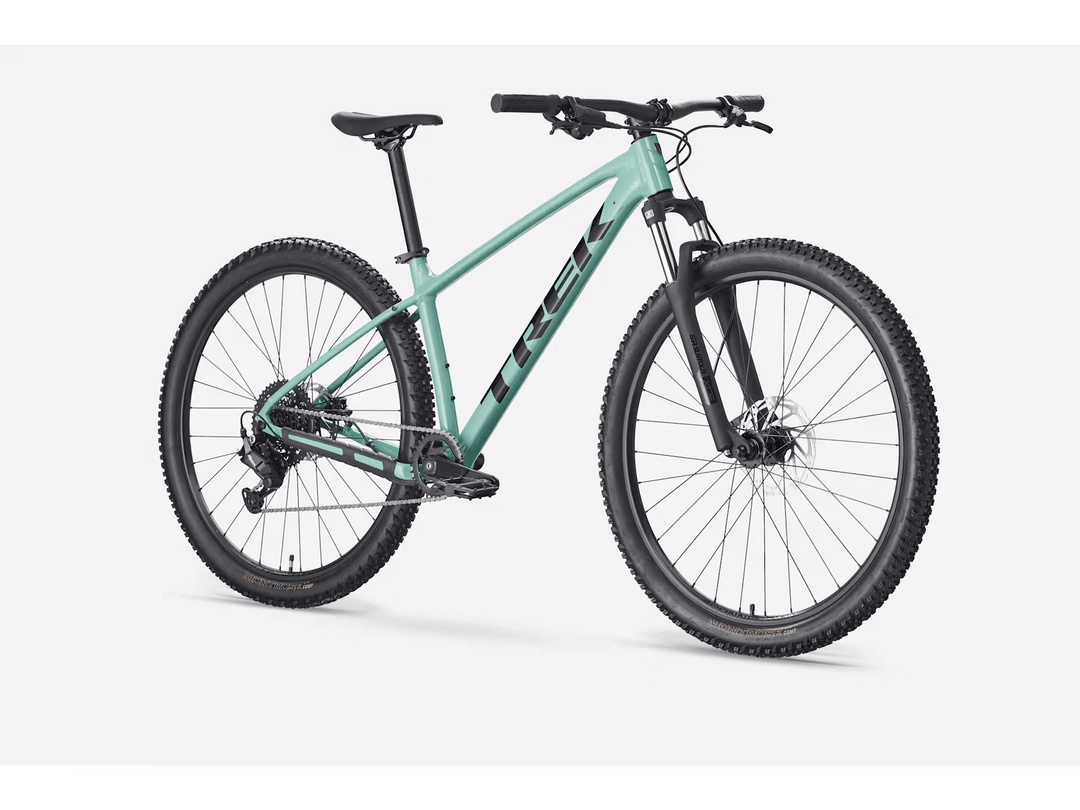

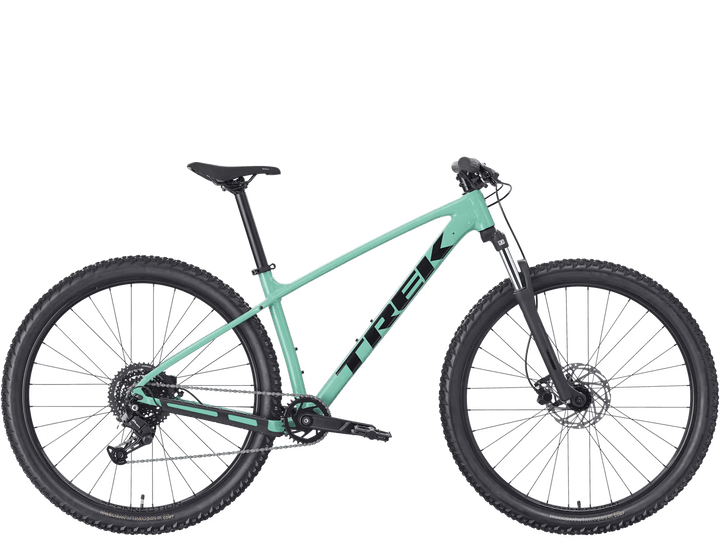

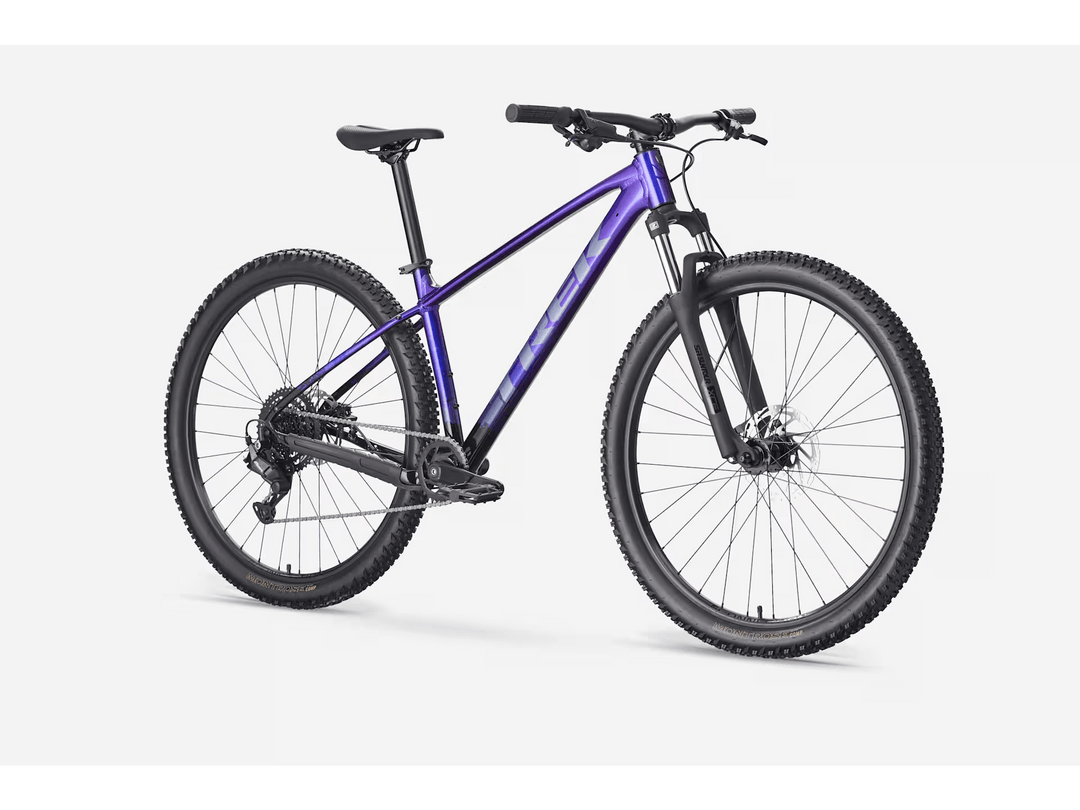

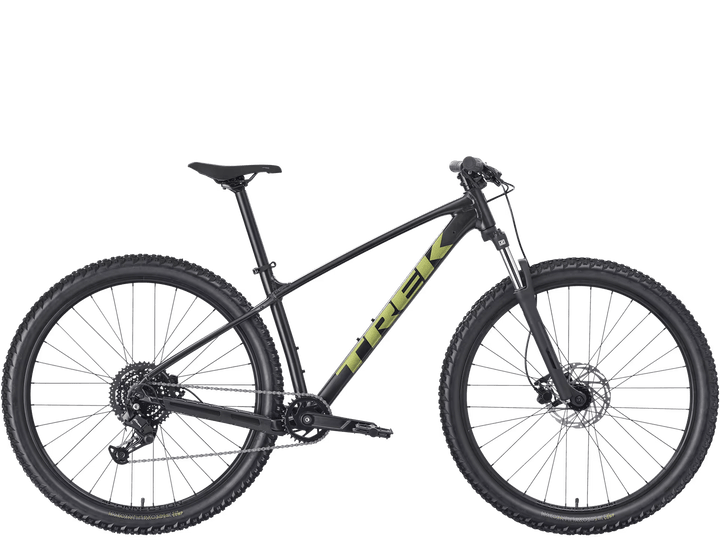

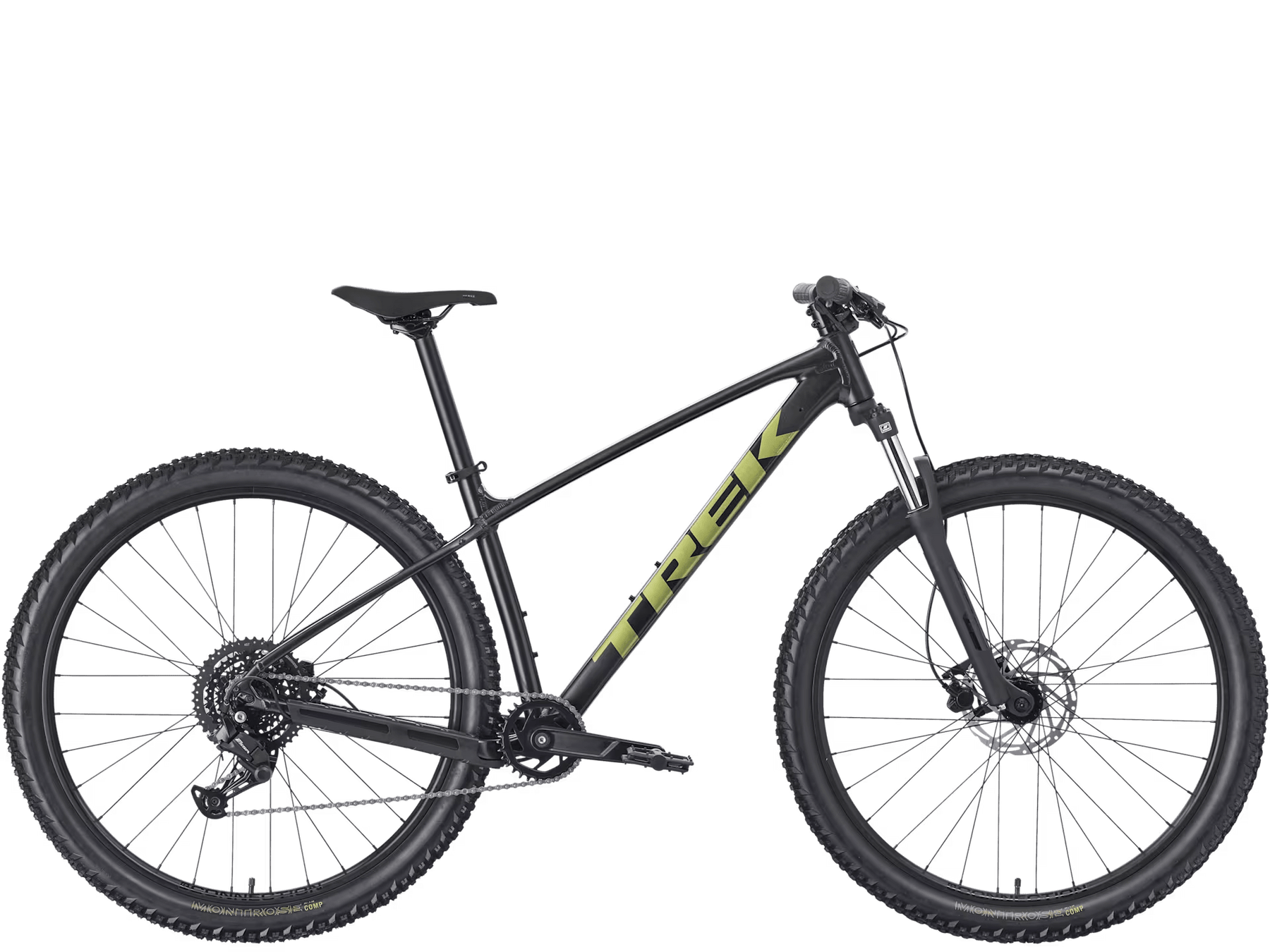

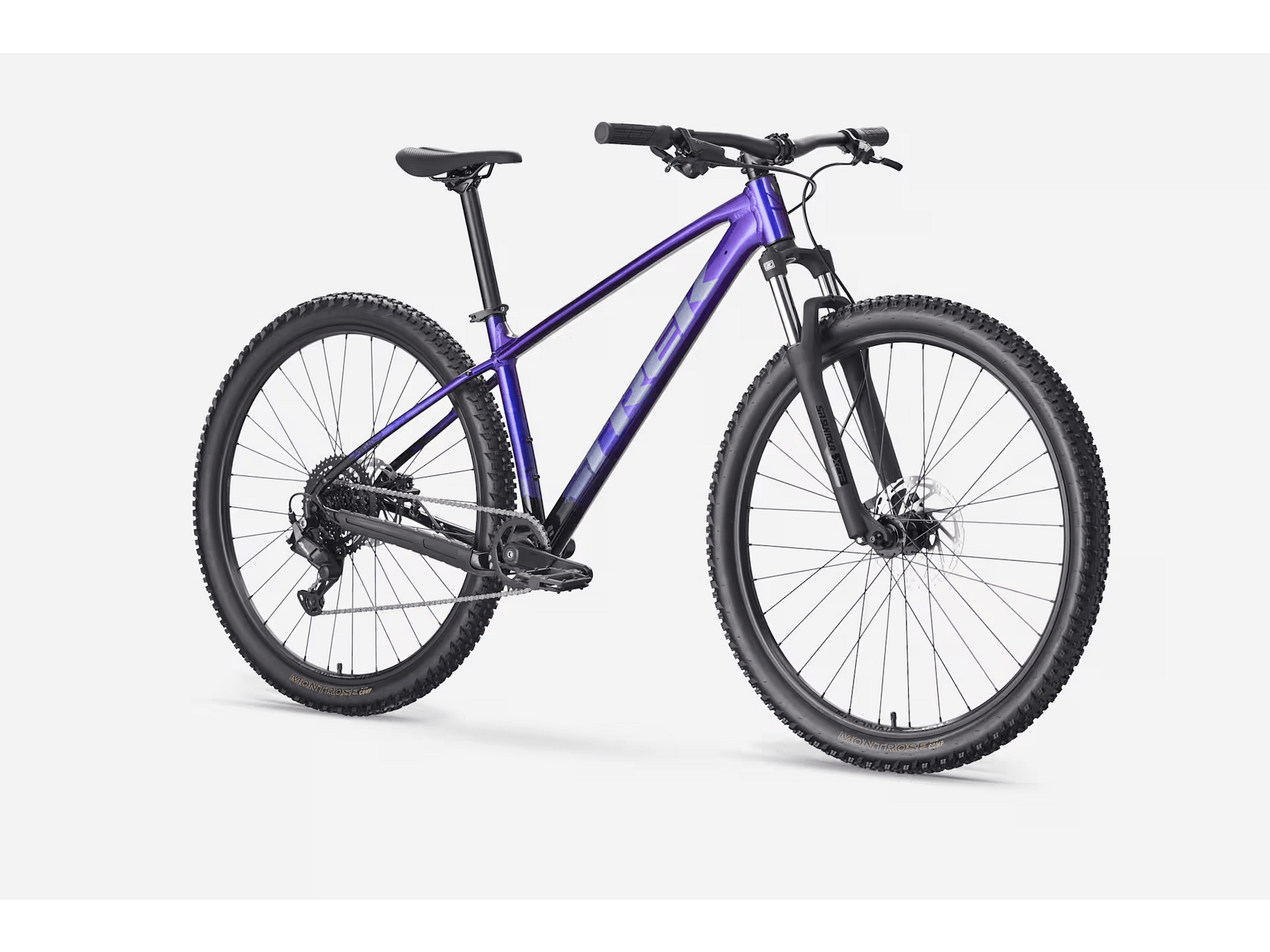

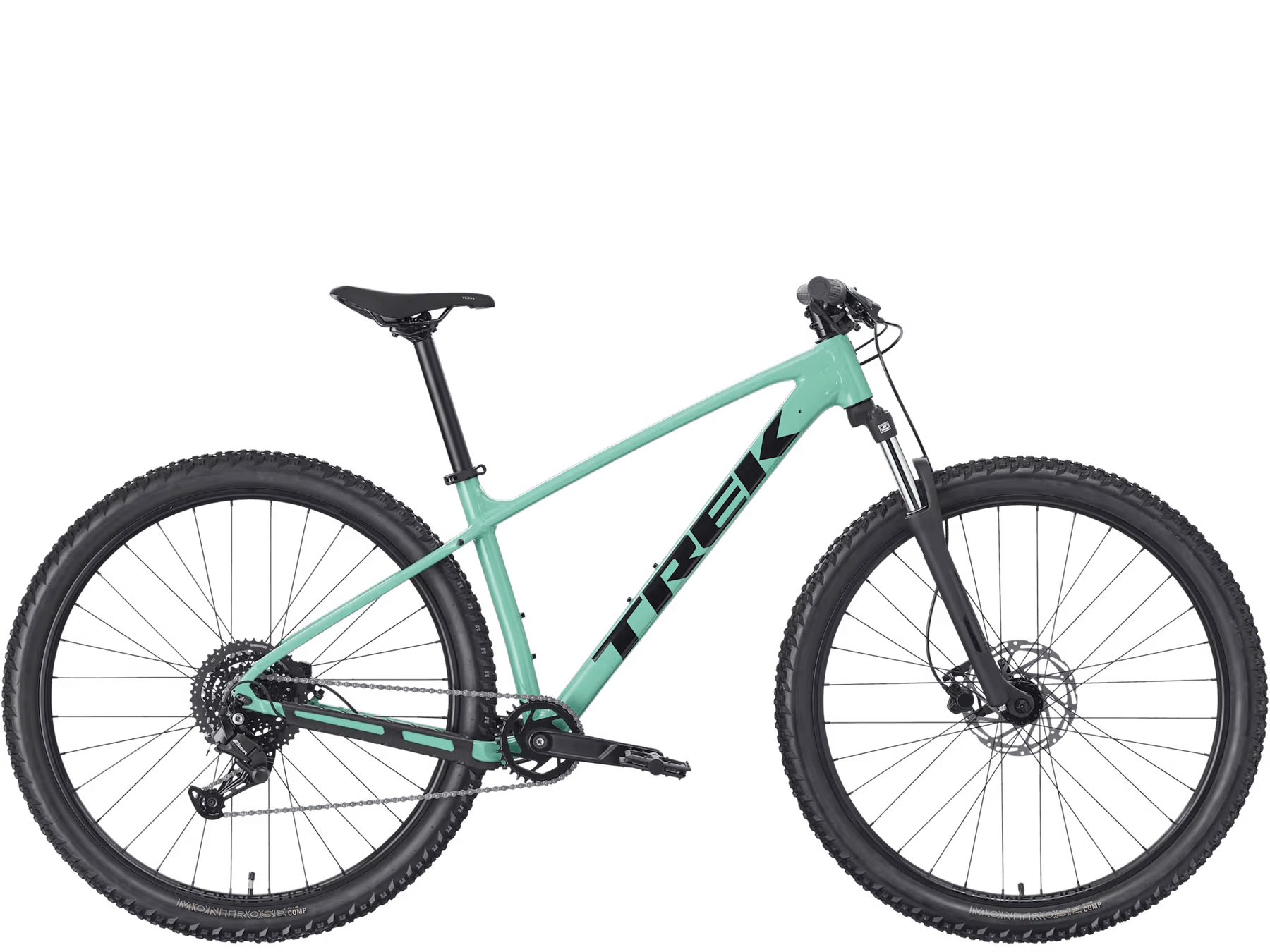

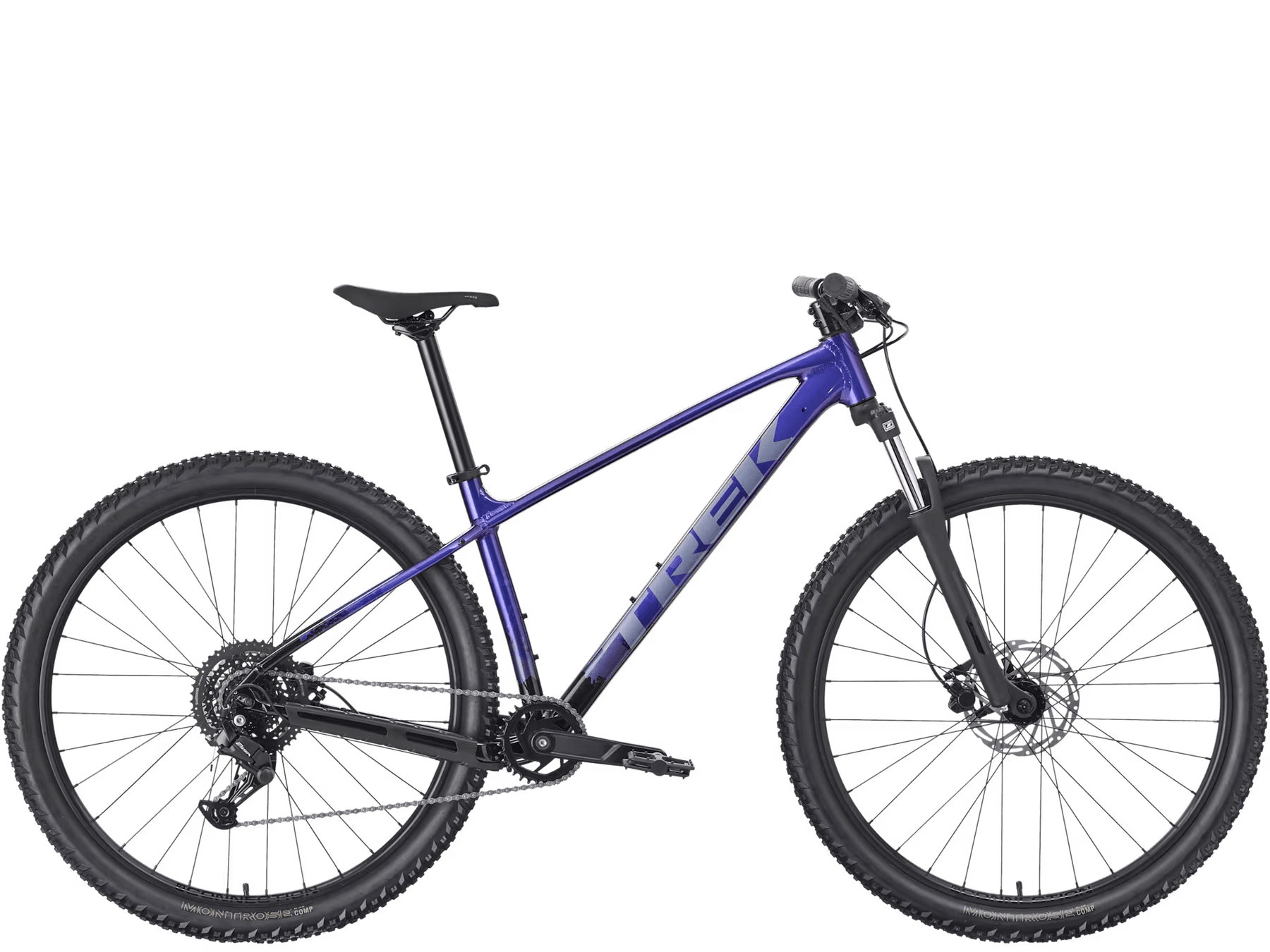

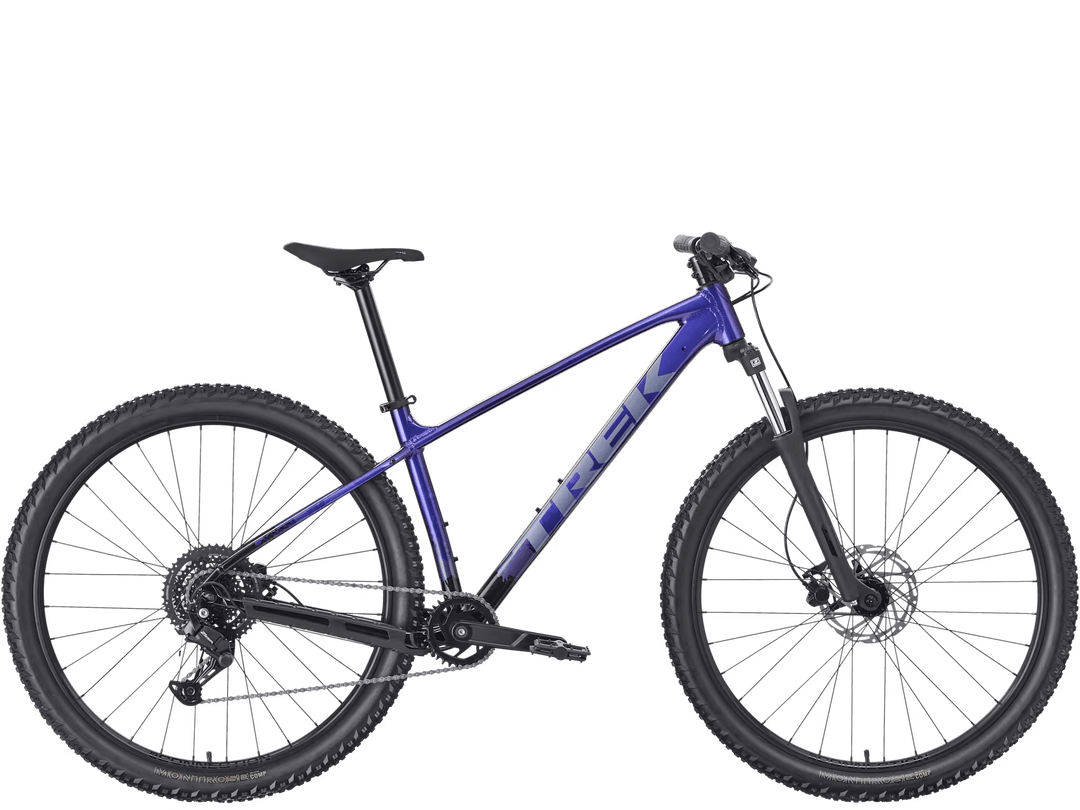

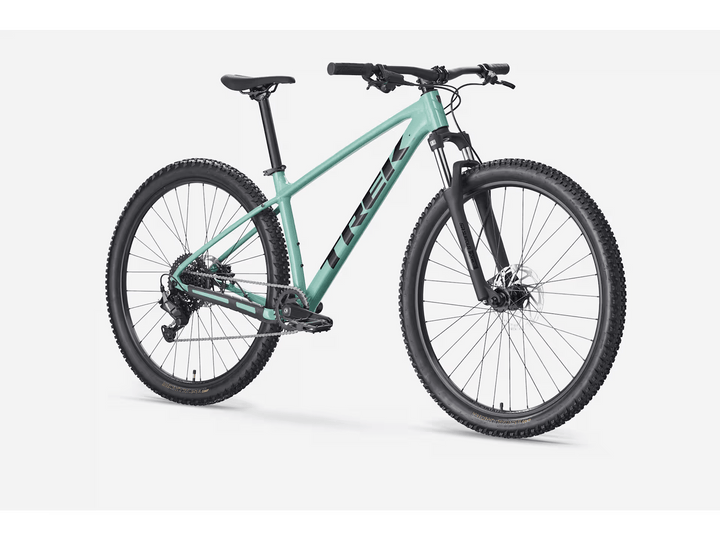

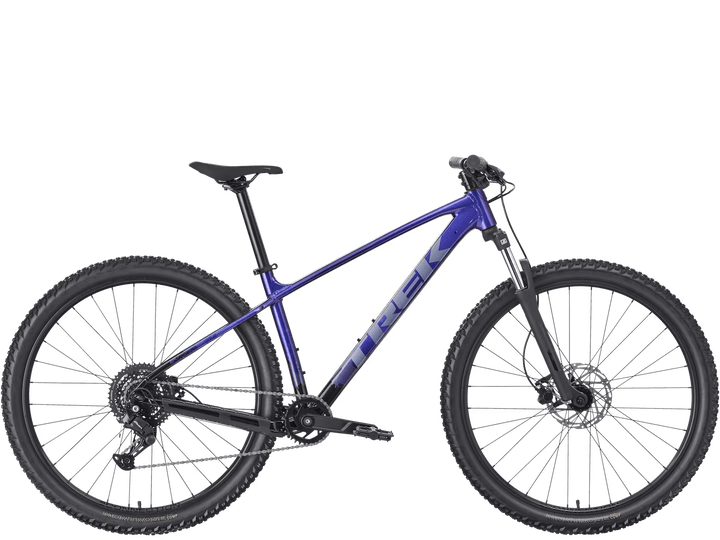

Marlin 4 Gen 3

• Includes mounts for a rack and kickstand
• The Bontrager Montrose Comp XR Tire is a fast-rolling MTB tire that offers grip, speed, and durability for versatile performance on hardpacked dirt MTB trails
• Internal shift cable and brake hose routing helps your cables last longer by protecting them from the elements
• Dependable 8-speed Shimano ESSA shifting


Frameset

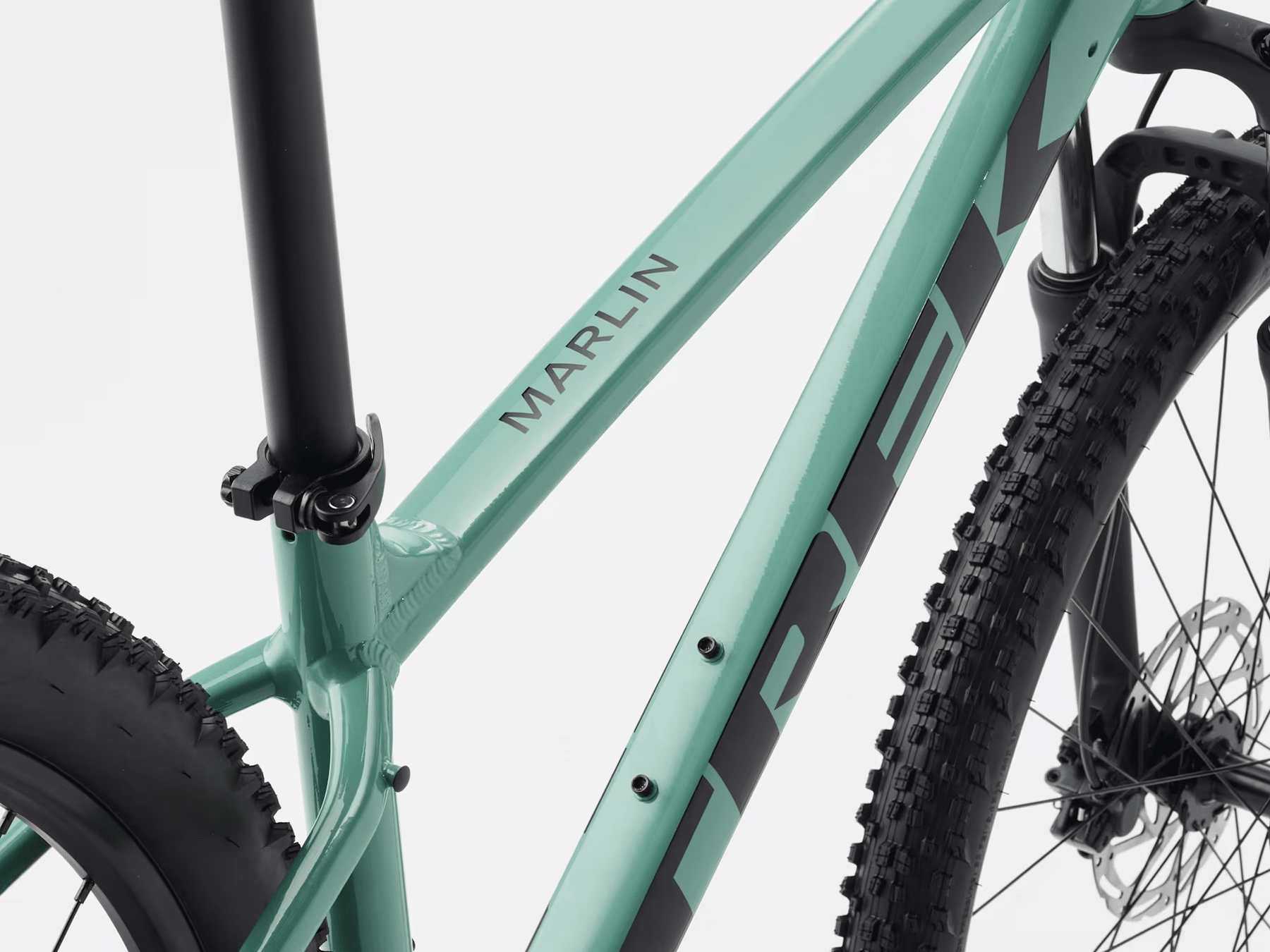

• *Frame:

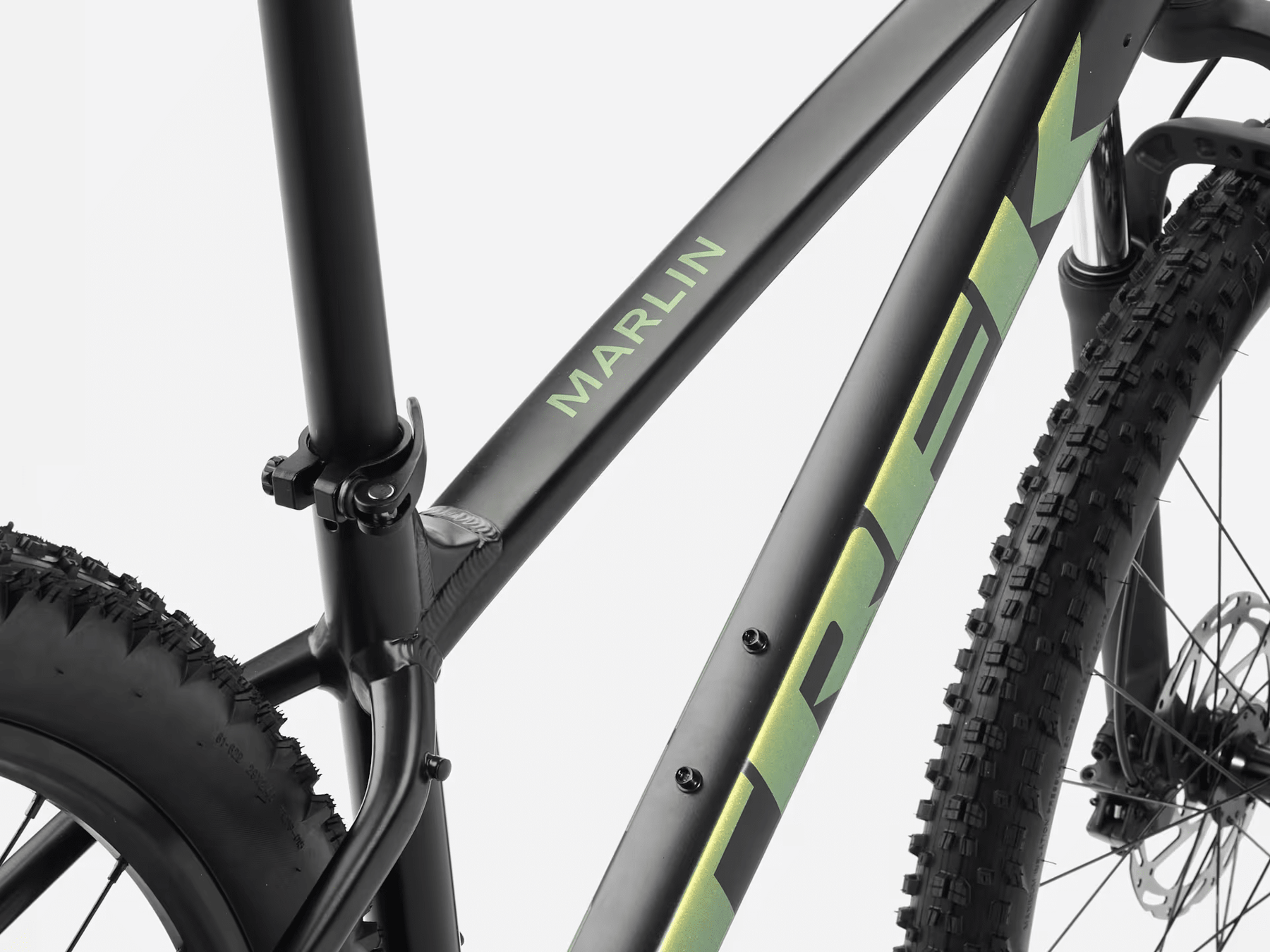

1. Size: XXS , XS - Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSke
2. Size: S , M , ML , L , XL - Alpha Silver Aluminum, internal derailleur & dropper post routing, rack
   and kickstand mount, 135x5mm ThruSkew

• *Fork:

1. Size: XXS - SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 42mm offset for 26" wheel, 100mm QR, 100mm travel
2. Size: XS - SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
3. Size: S - SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
4. Size: M , ML , L , XL - SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel

Wheels

• Hub front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
• Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
• Skewer rear: 173x5mm QR
• Rim: Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve

• *Tire:

1. Size: XXS - Bontrager Montrose Comp, wire bead, 30 tpi, 26x2.35''
2. Size: XS , S - Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"
3. Size: M , ML , L , XL - Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40"

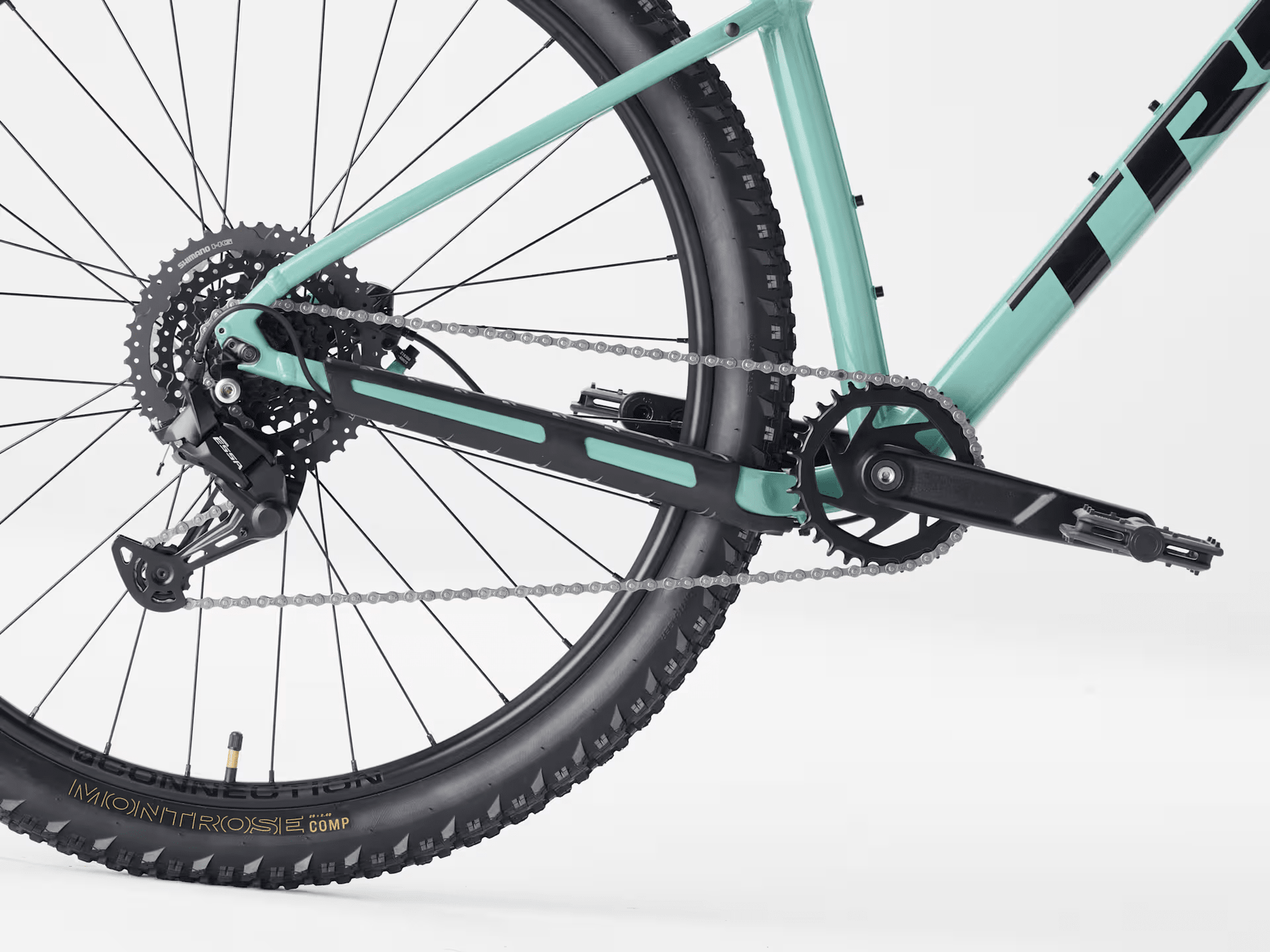

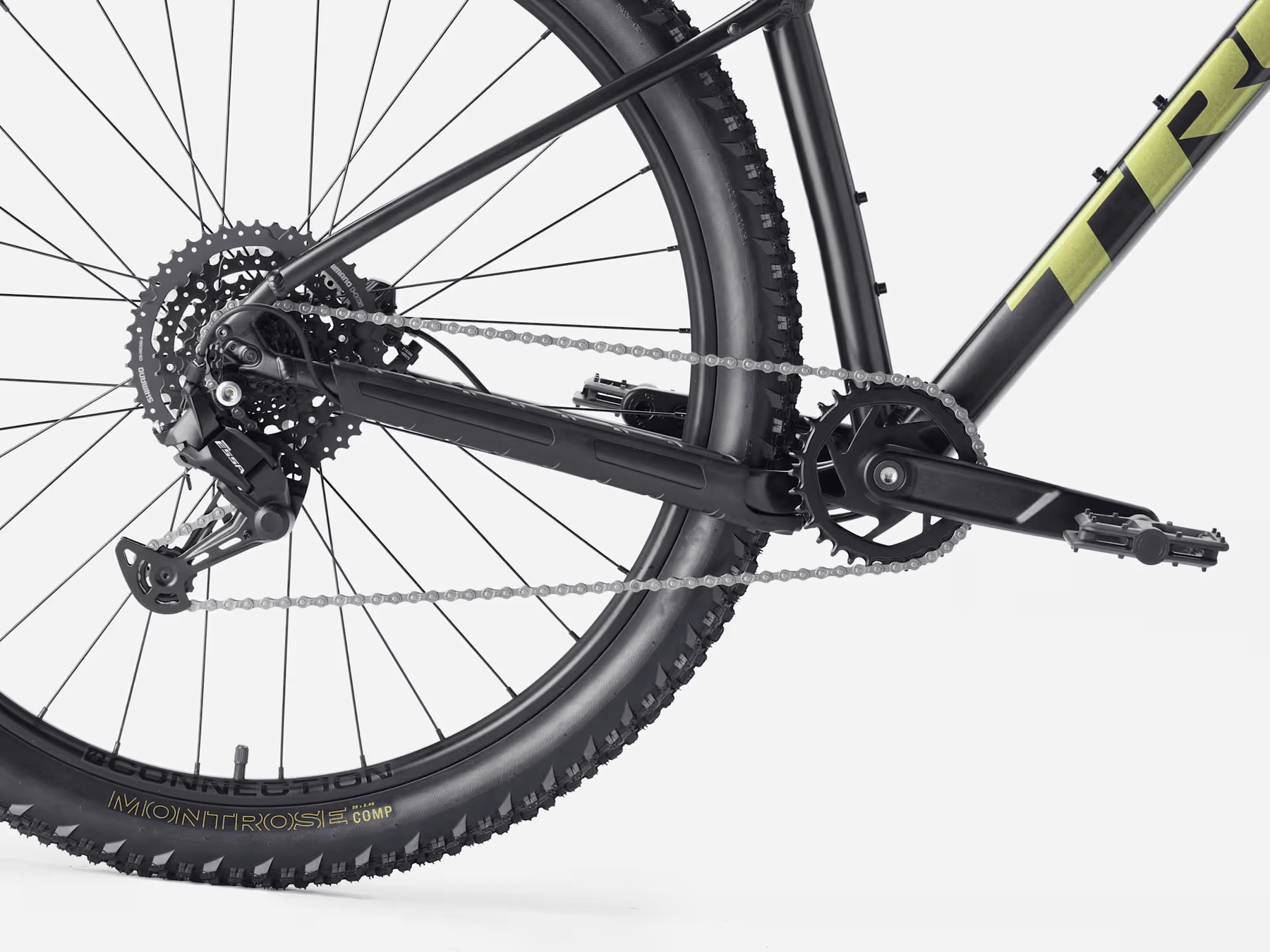

Drivetrain

• Shifter: Shimano M315, 8 speed
• Rear derailleur: Shimano ESSA U2000

• *Crank:

1. Size: XXS , XS - ProWheel alloy, 32T narrow-wide steel ring, 160mm length
2. Size: S , M , ML - ProWheel alloy, 32T narrow-wide steel ring, 170mm length
3. Size: L , XL - ProWheel alloy, 32T narrow-wide steel ring, 175mm length

• Cassette: Shimano HG300, 11-45, 8 speed
• Chain: KMC Z8.3, 8 speed
• Pedal: nylon platform

Components

• Saddle: Bontrager Verse Short, stainless steel rails

• *Seatpost:

1. Size: XXS - Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
2. Size: XS , S , M - Bontrager alloy, 31.6mm, 12mm offset, 330mm length
3. Size: ML , L , XL - Bontrager alloy, 31.6mm, 12mm offset, 400mm length

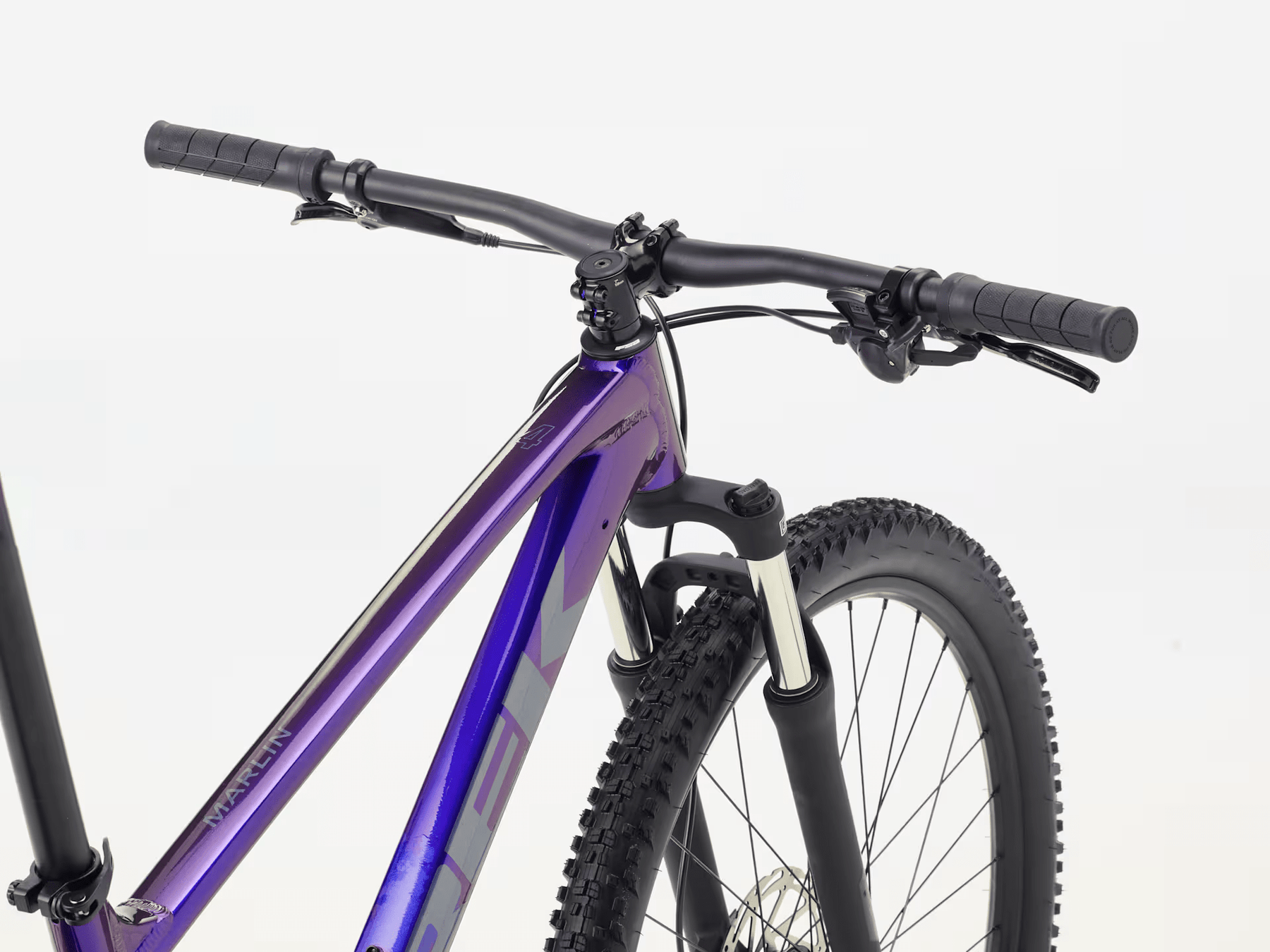

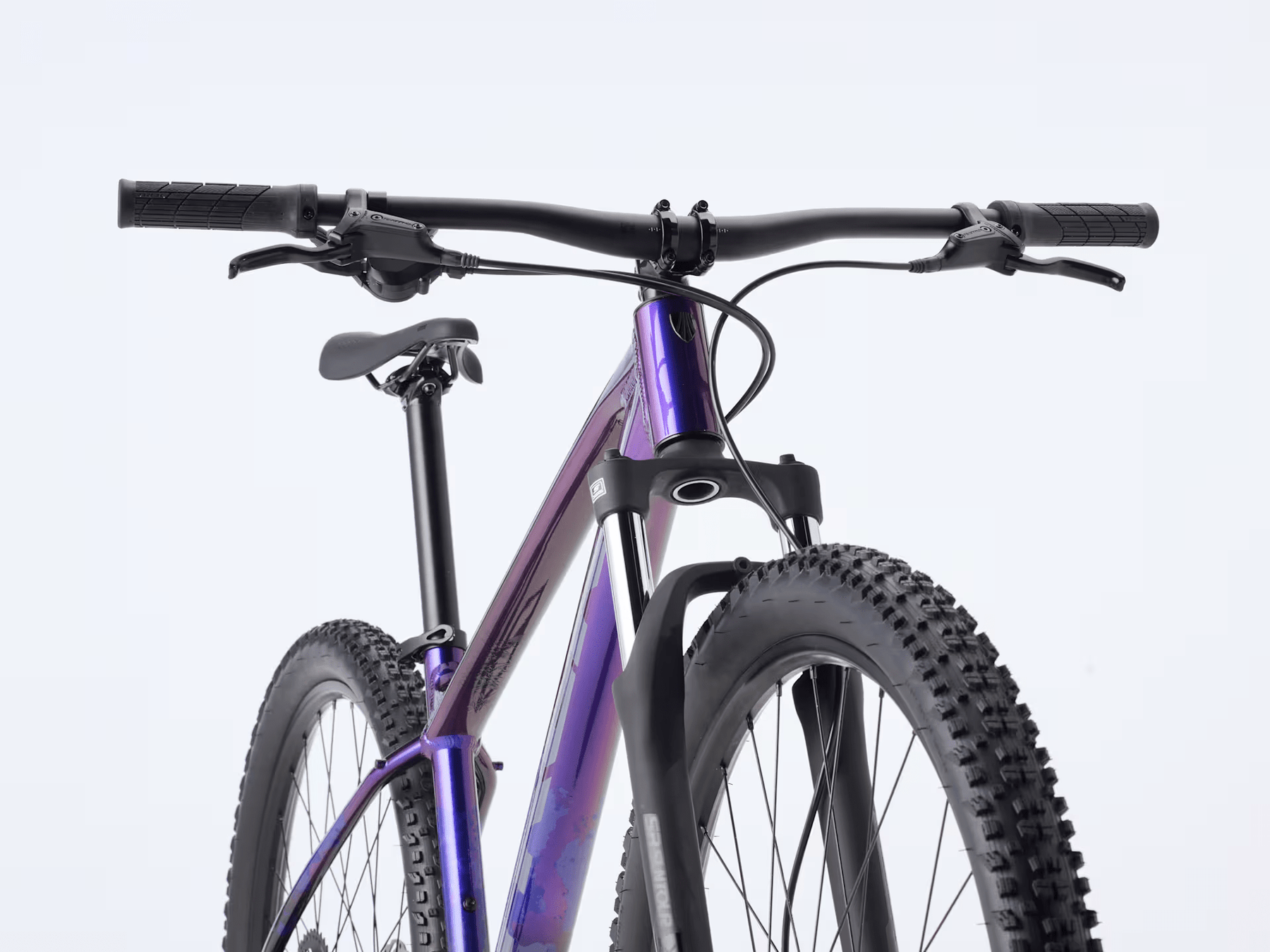

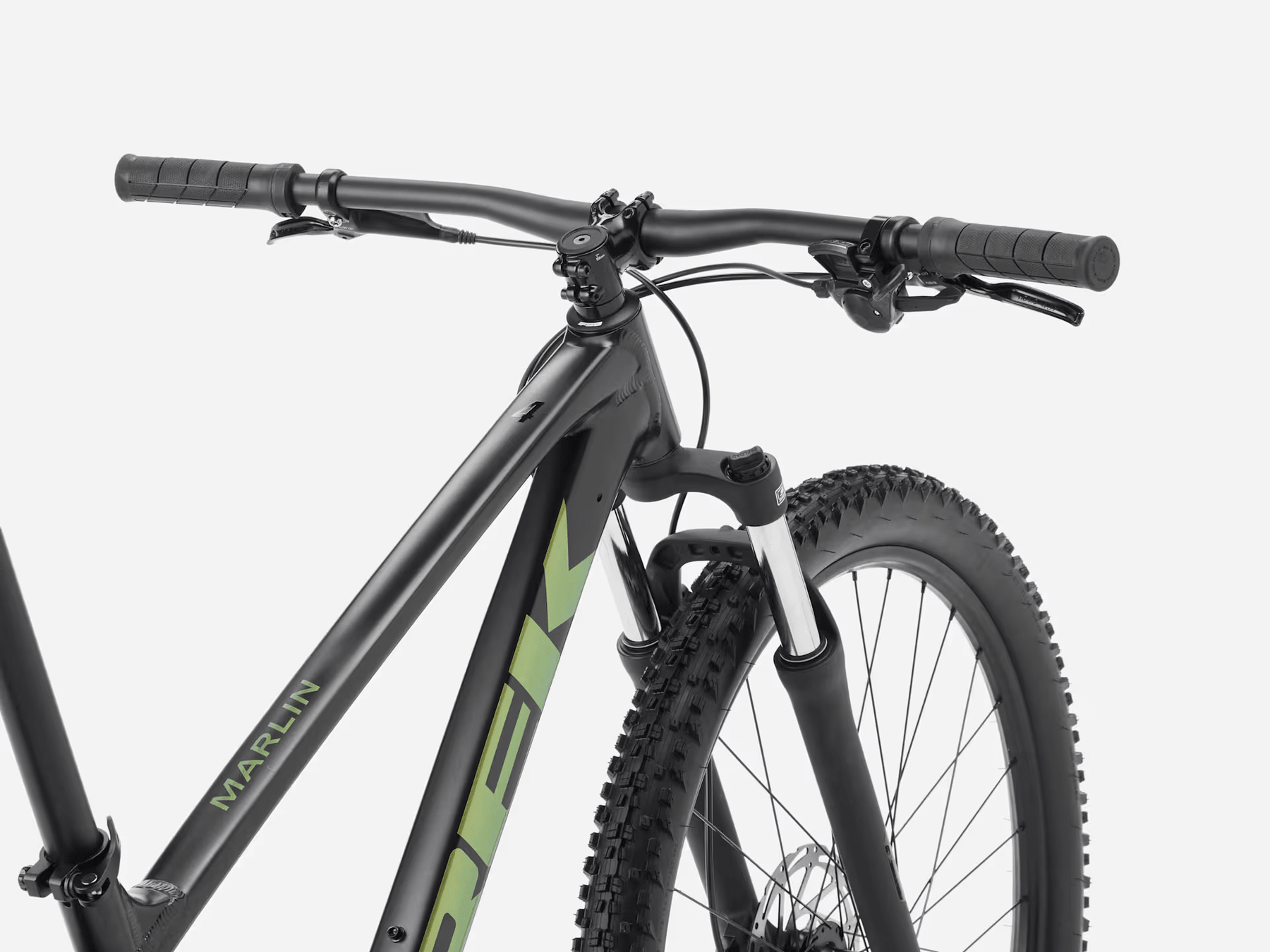

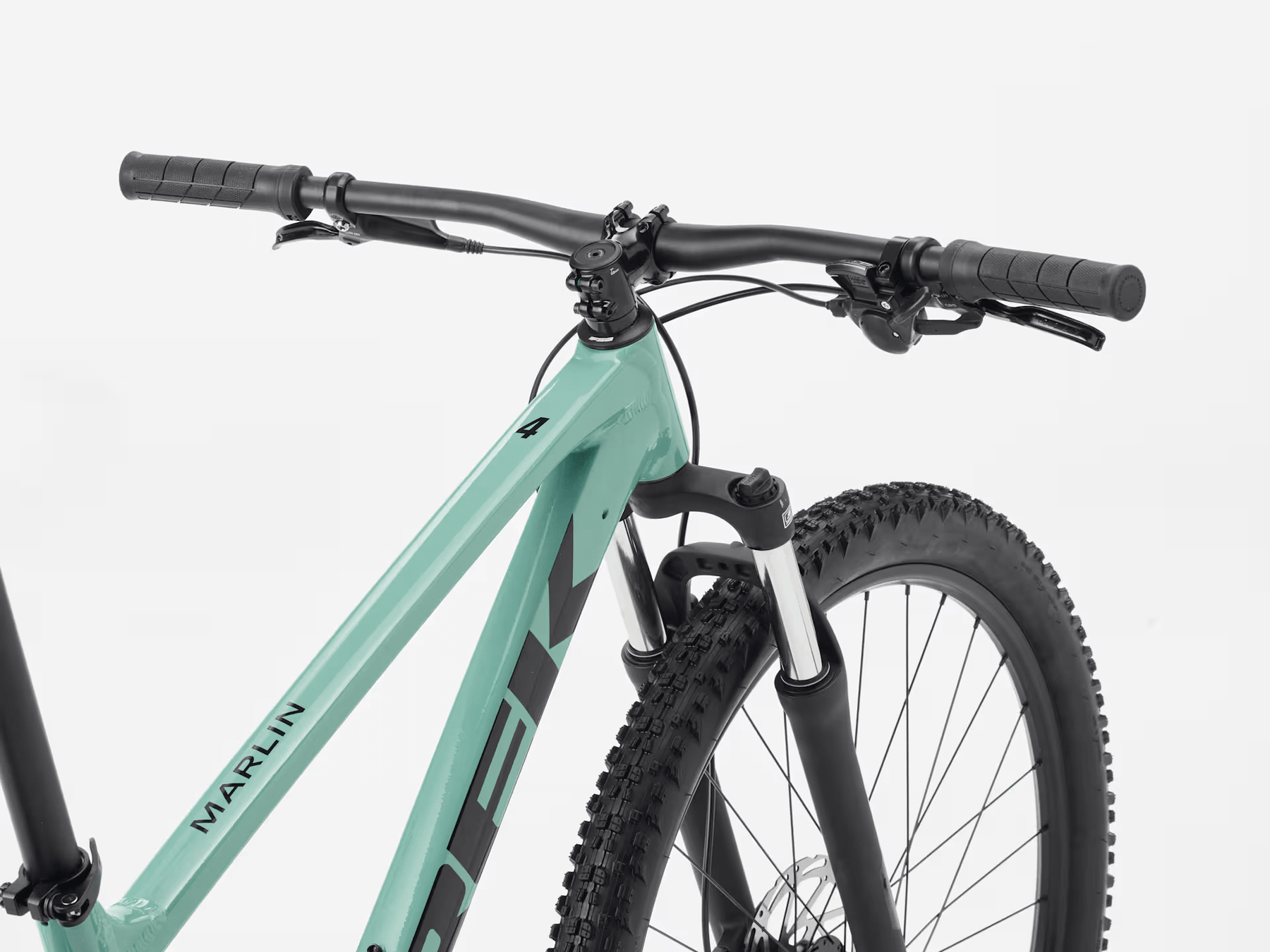

• *Handlebar:

1. Size: XXS , XS - Bontrager alloy, 31.8mm, 5mm rise, 690mm width
2. Size: S - Bontrager alloy, 31.8mm, 15mm rise, 720mm width
3. Size: M , ML , L , XL - Bontrager alloy, 31.8mm, 15mm rise, 750mm width

• Grips: Trek Line Comp, nylon lock-on

• *Stem:

1. Size: XXS , XS , S - Bontrager Comp, 31.8mm, 7 degree, 35mm length
2. Size: M , ML , L - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
3. Size: XL - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length

• Headset: Semi-integrated, 1-1/8''

• *Brake:

1. Size: XXS , XS , S - Tektro HD-M276 hydraulic disc
2. Size: M , ML , L , XL - Tektro HD-M275 hydraulic disc

• *Brake rotor:

1. Size: XXS , XS , S , M , ML , L , XL - Tektro, 6-bolt, 160mm
2. Size: M , ML , L , XL - Tektro, 6-bolt, 180mm

Weight

• Weight: M - 14.90 kg / 32.85 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

 *Subject to change without notice
