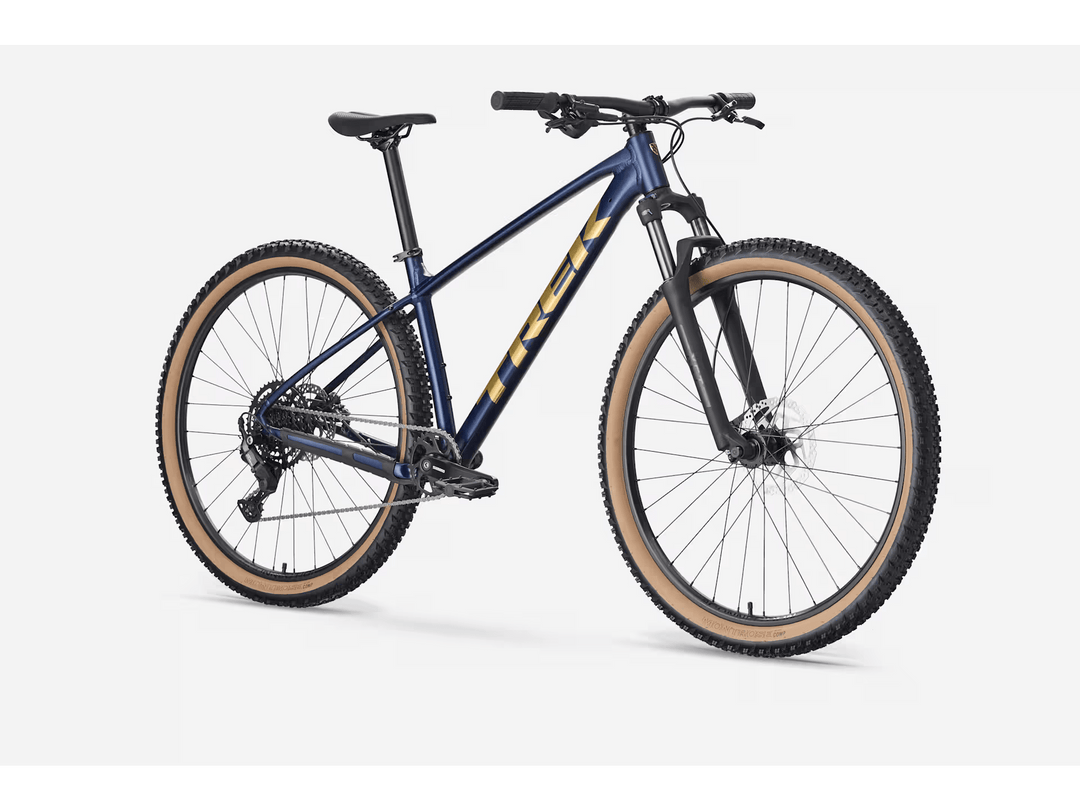

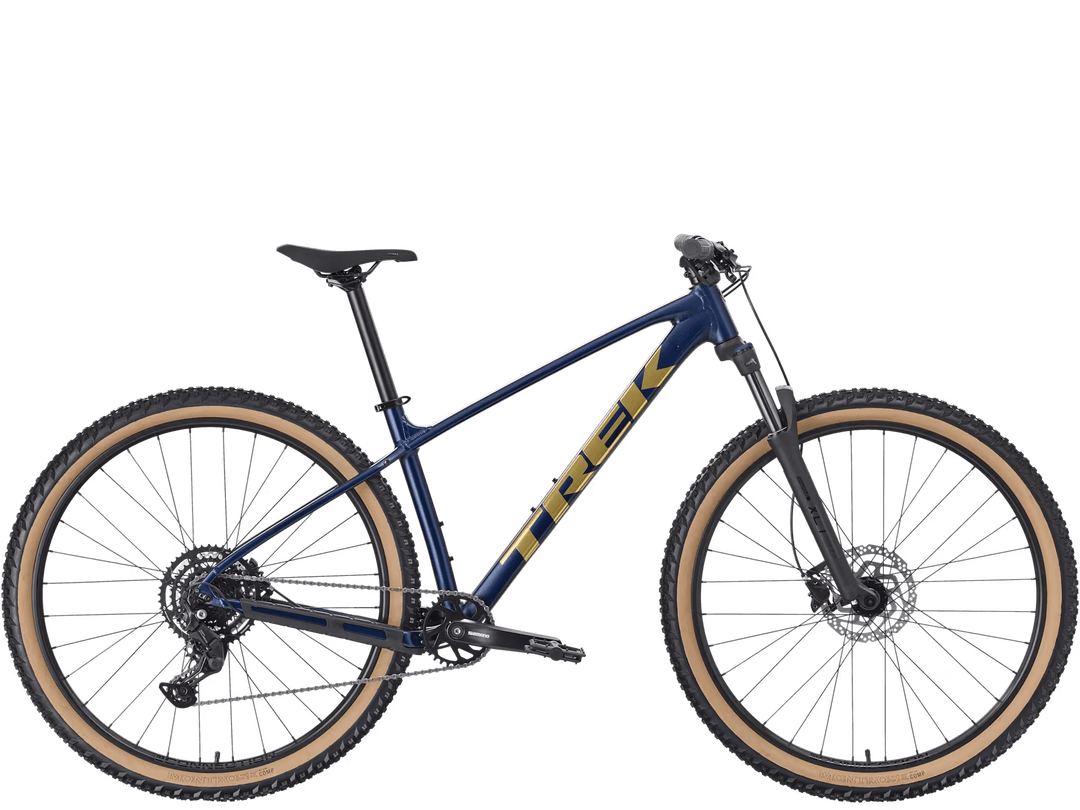

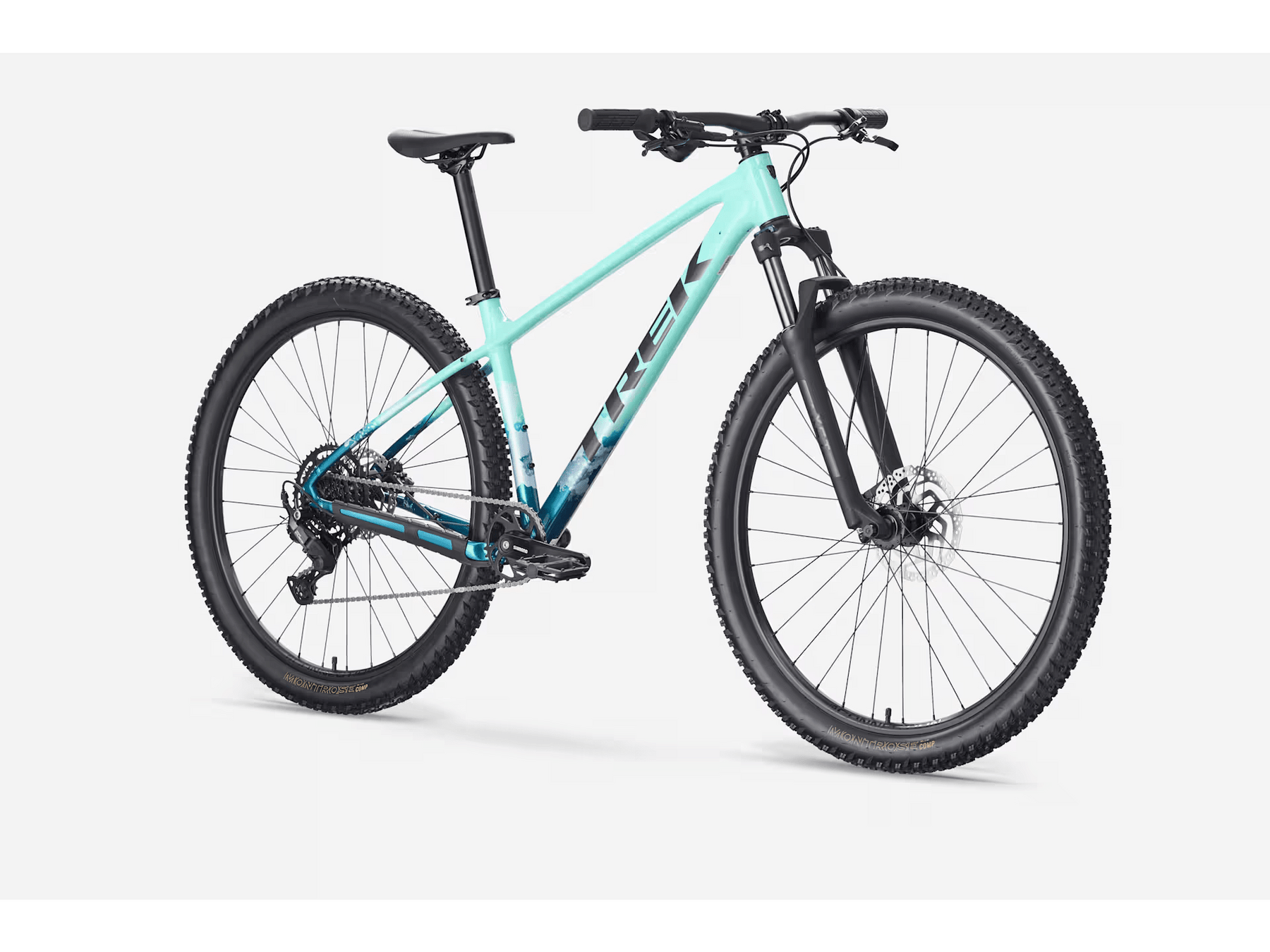

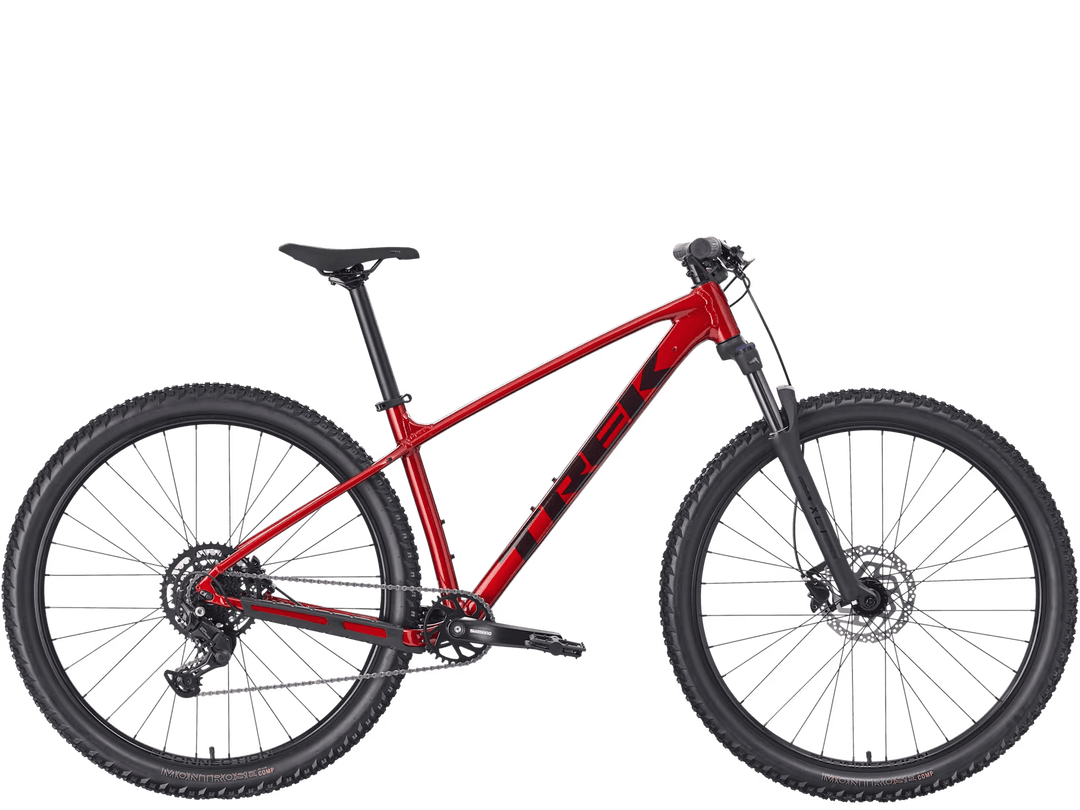

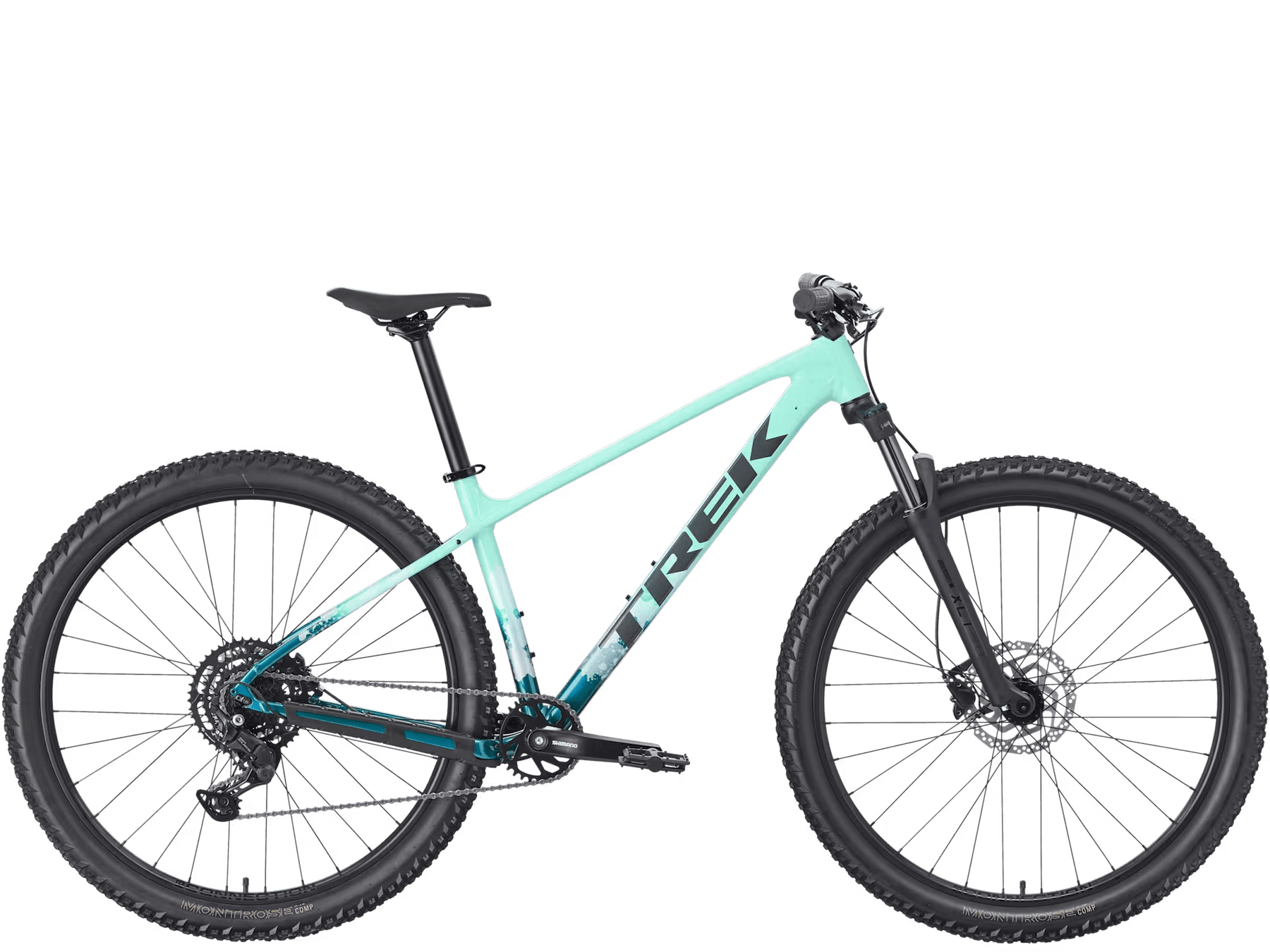

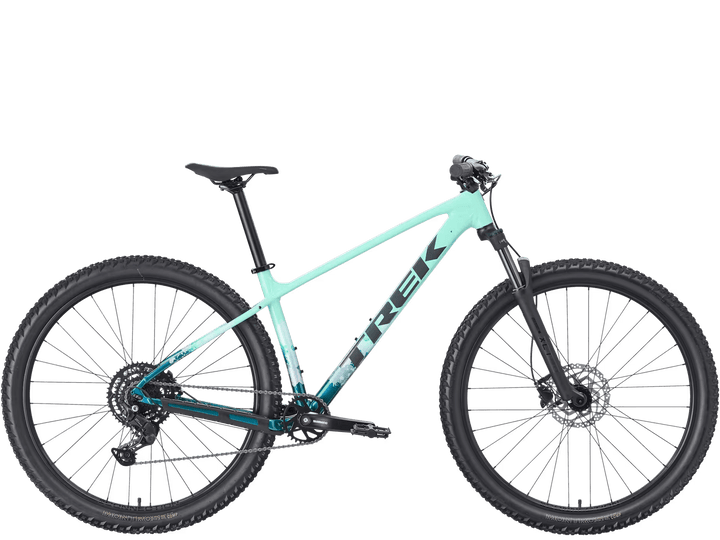

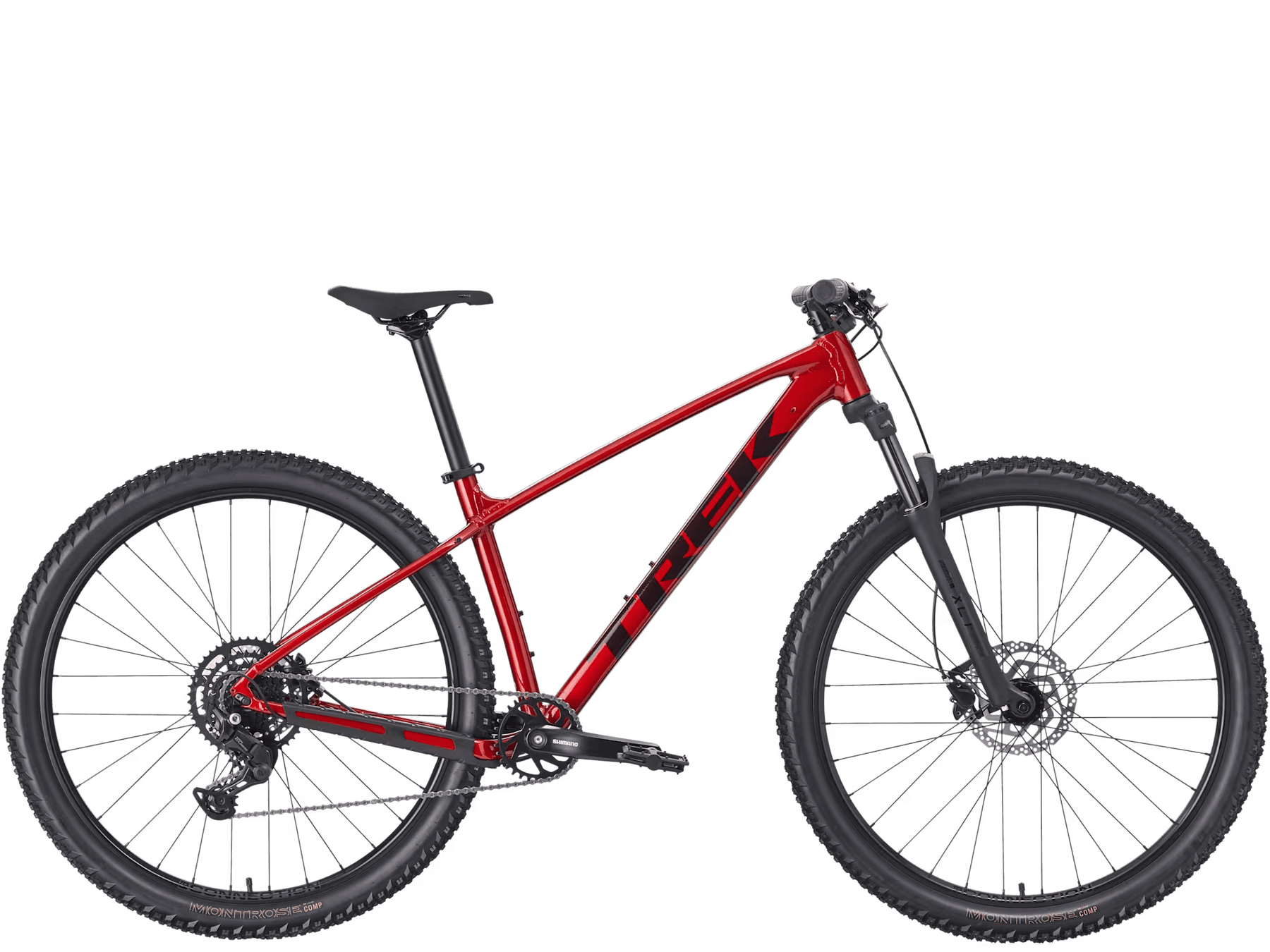

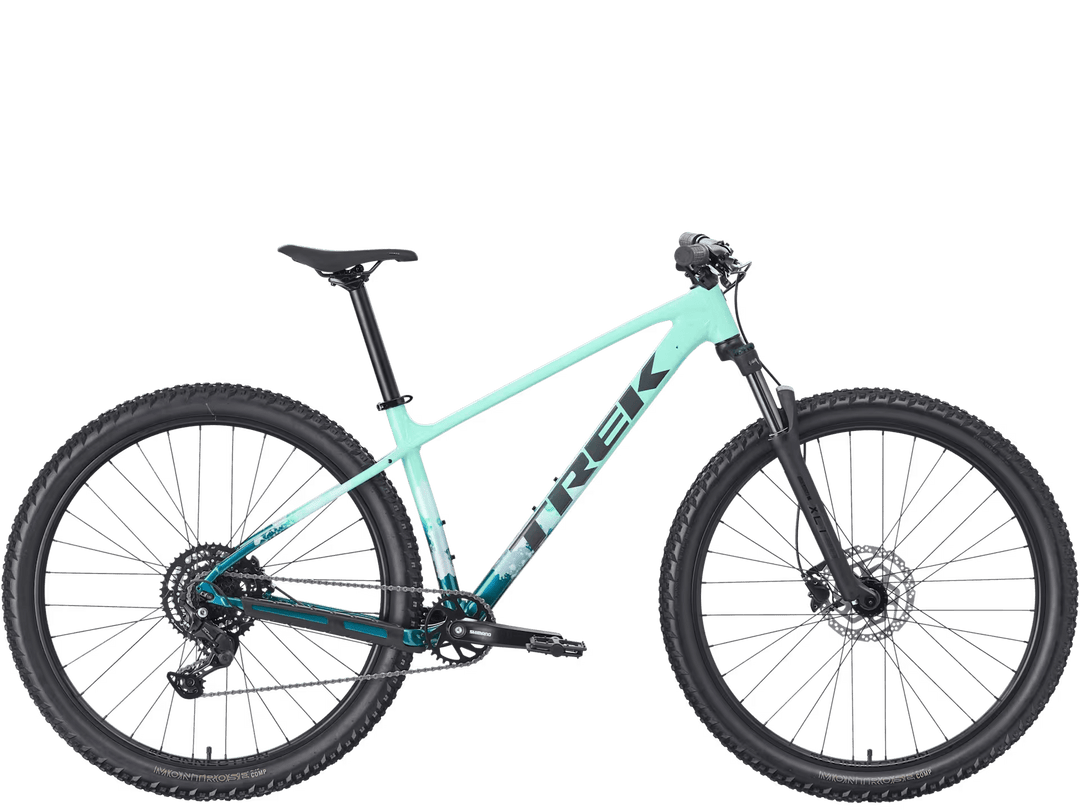

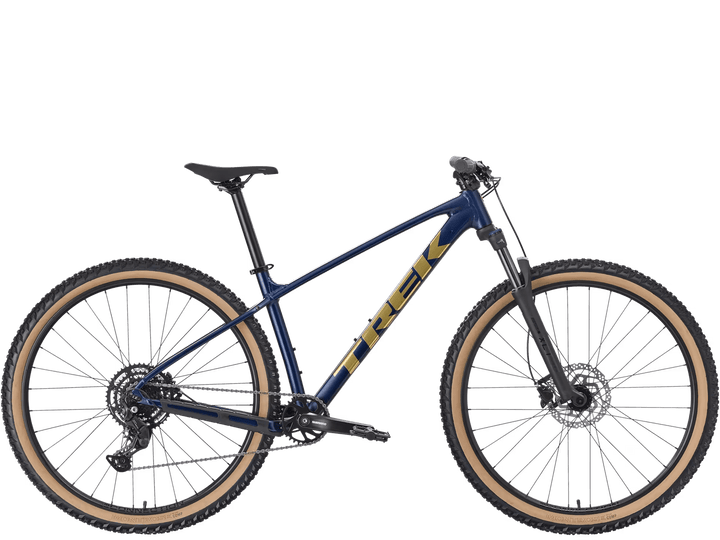

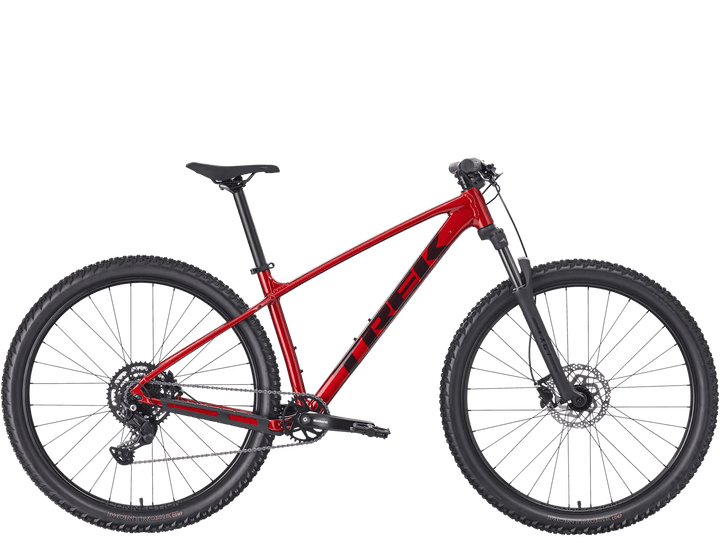

Marlin 5 Gen 3

• Marlin Gen 3 gives you serious trail capability, with big tire clearance and slack, confidence-boosting geometry that keeps you stable from singletrack to city
• Fender mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
• Its ThruSkew system is safer, simpler, and stronger, plus it makes removing the rear wheel easy for flat fixes in a pinch
• Internal routing makes it easy to add a dropper post that lets you lower your saddle on the fly for more confident descending
• Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount

• Wheel size:


1. Sizes X-Small – Small: 27.5-inch
2. Sizes Medium – XX-Large: 29-inch

Frameset

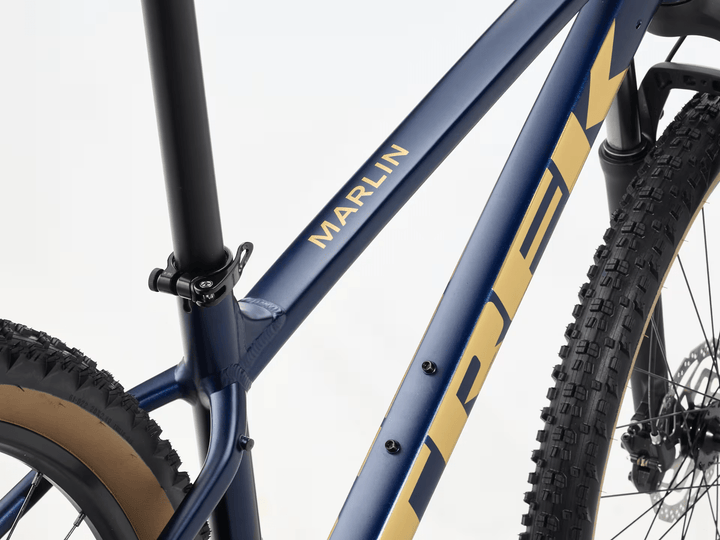

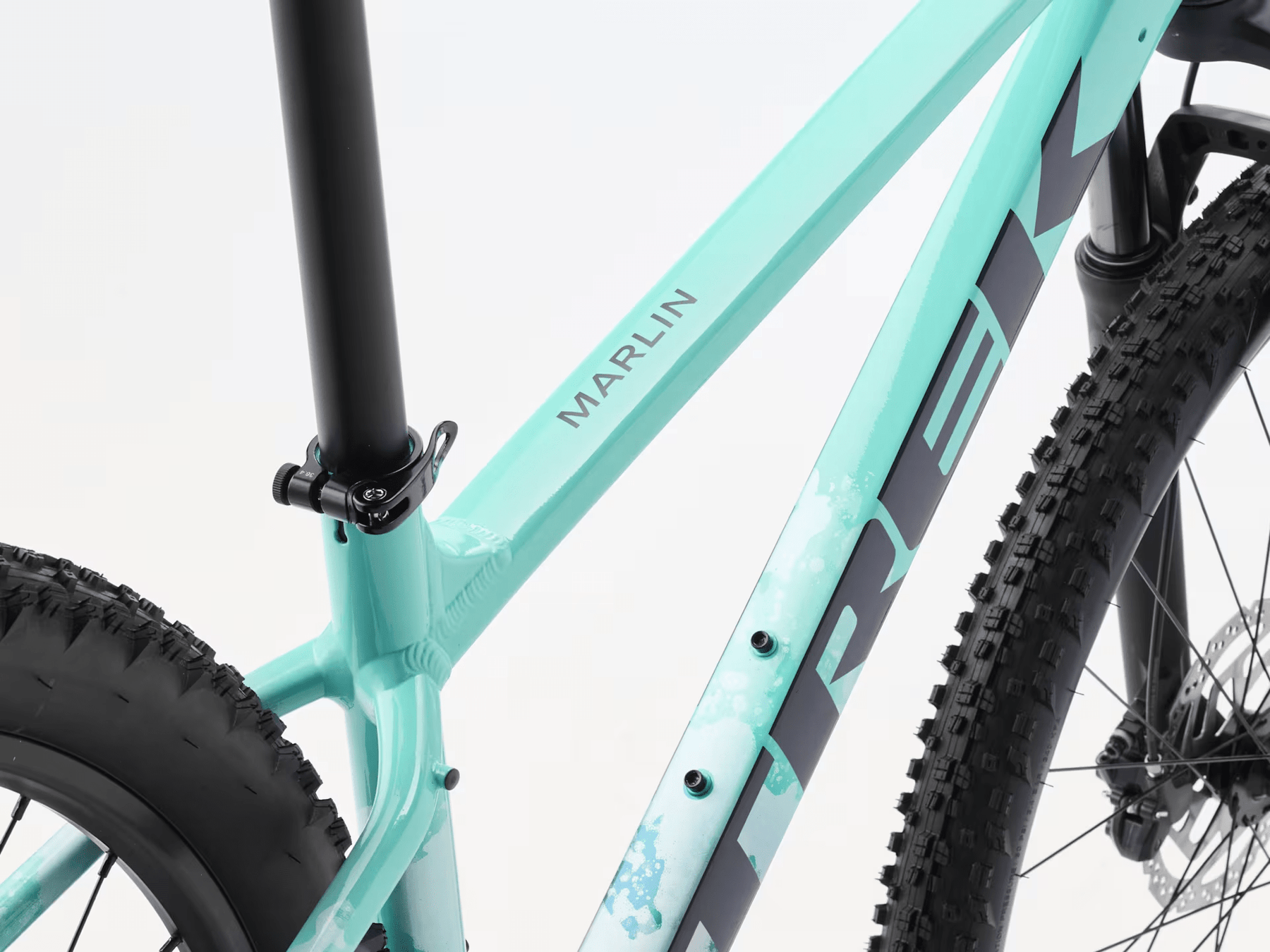

• *Frame:

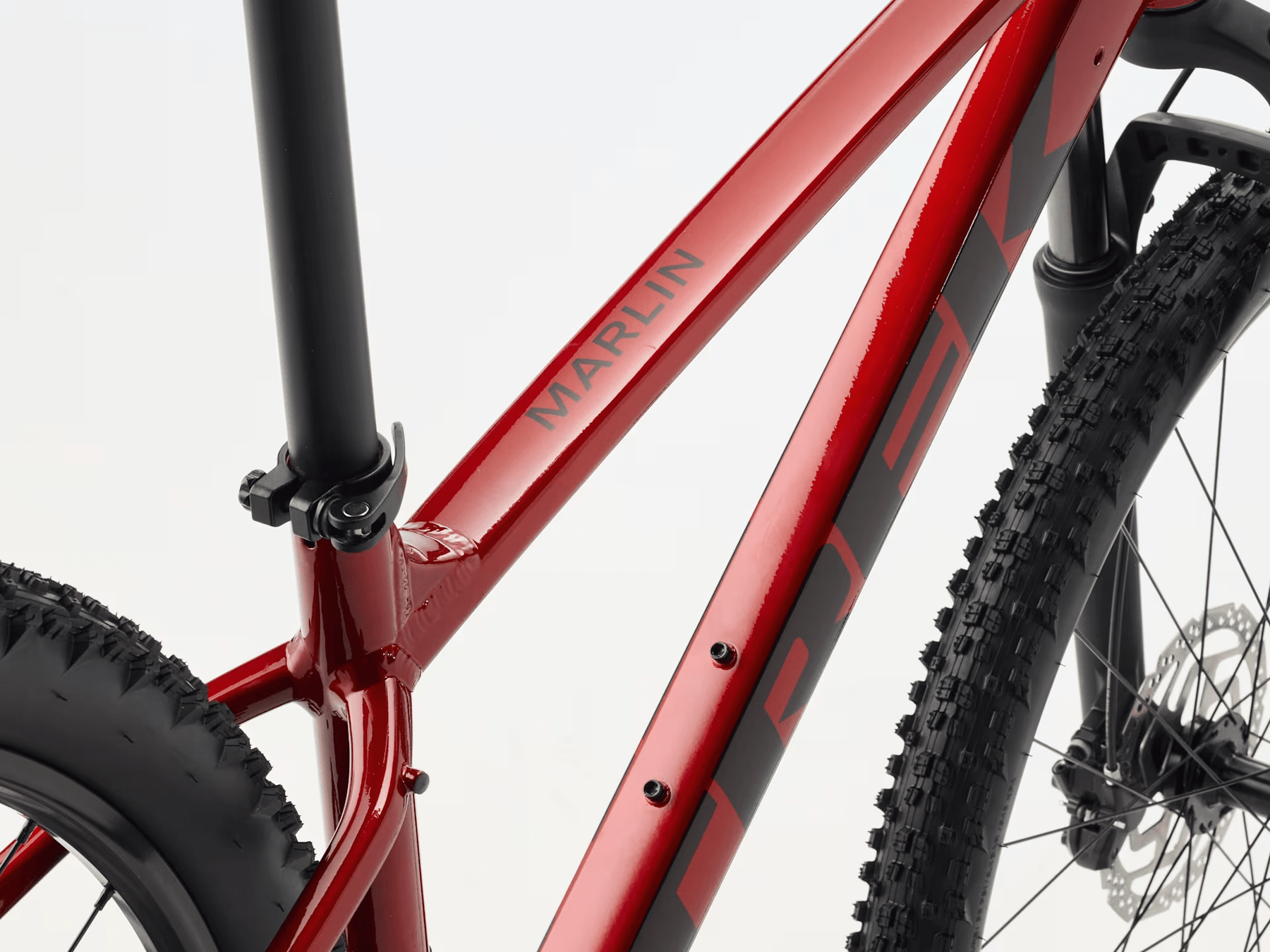

1. Size: XS - Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
2. Size: S , M , ML , L , XL , XXL - Alpha Silver Aluminum, internal derailleur & dropper
   post routing, rack and kickstand mount, 135x5mm ThruSkew

• *Fork:

1. Size: XS - SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
2. Size: S - SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
3. Size: M , ML , L , XL , XXL - SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Wheels

• Hub front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
• Skewer front: Trek Thru-Skew
• Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
• Skewer rear: 173x5mm QR
• Rim: Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
• Spokes: 14g stainless steel, black

• *Tire:

1. Size: XS , S - Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''
2. Size: M , ML , L , XL , XXL - Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''

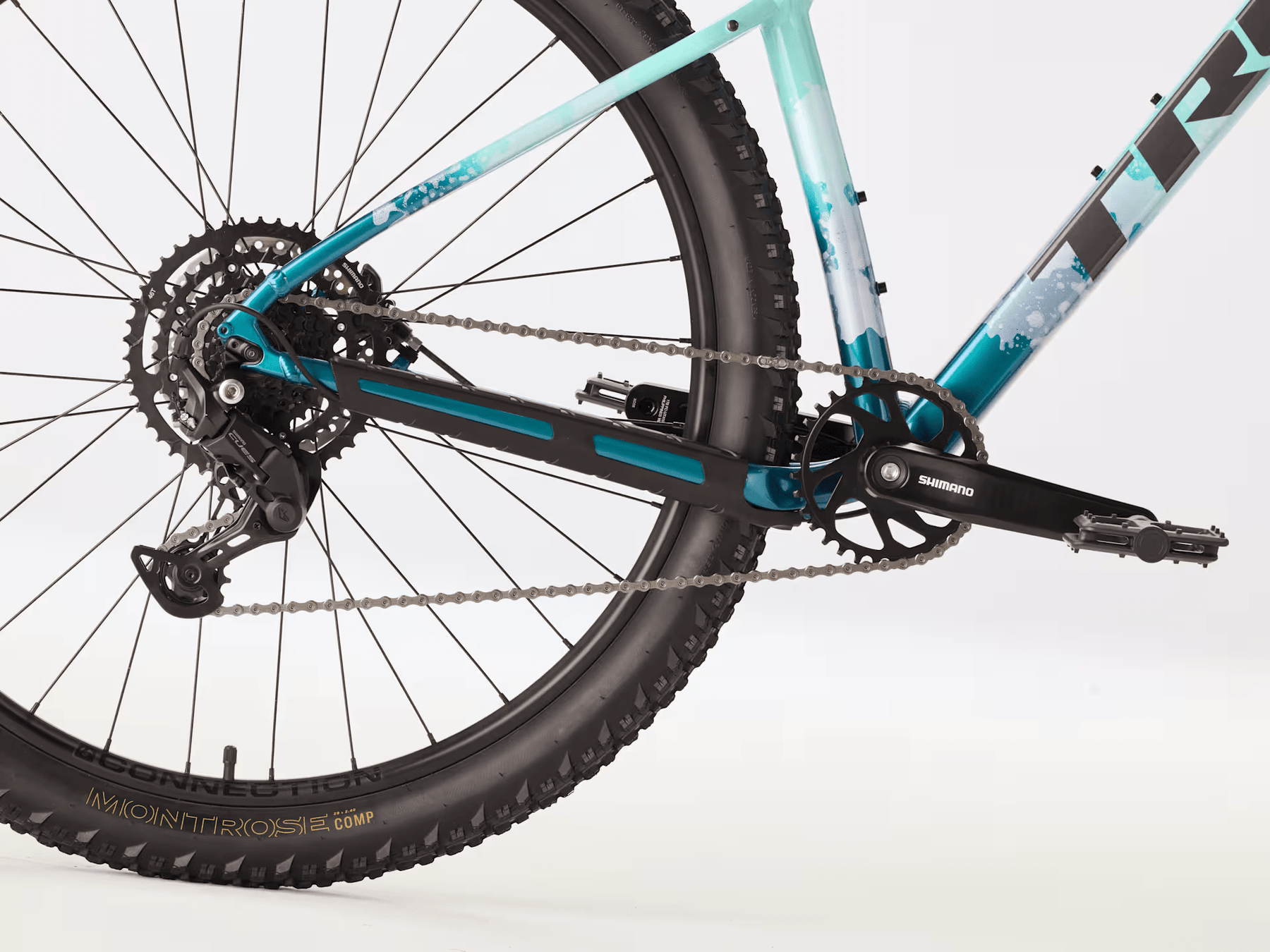

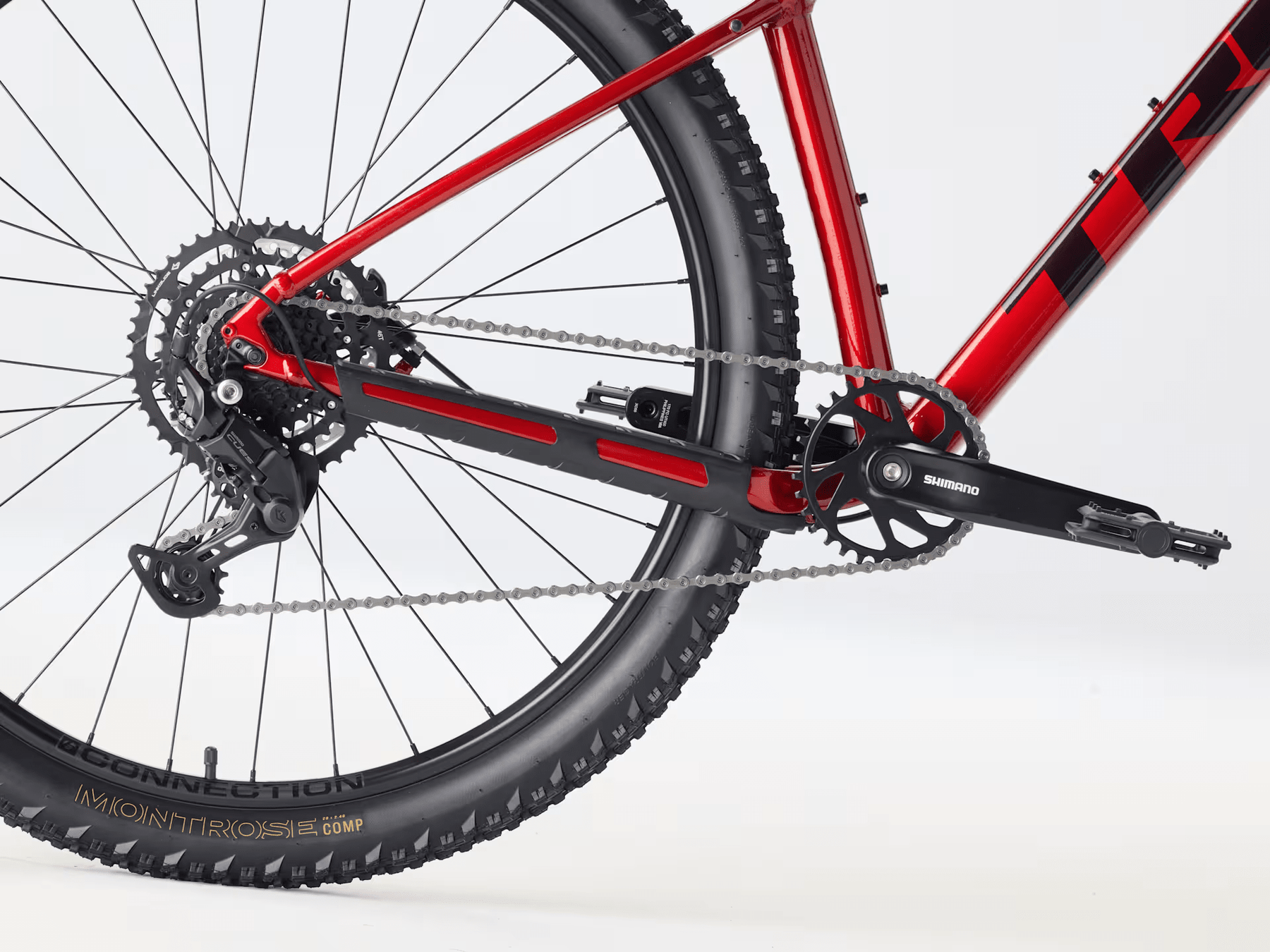

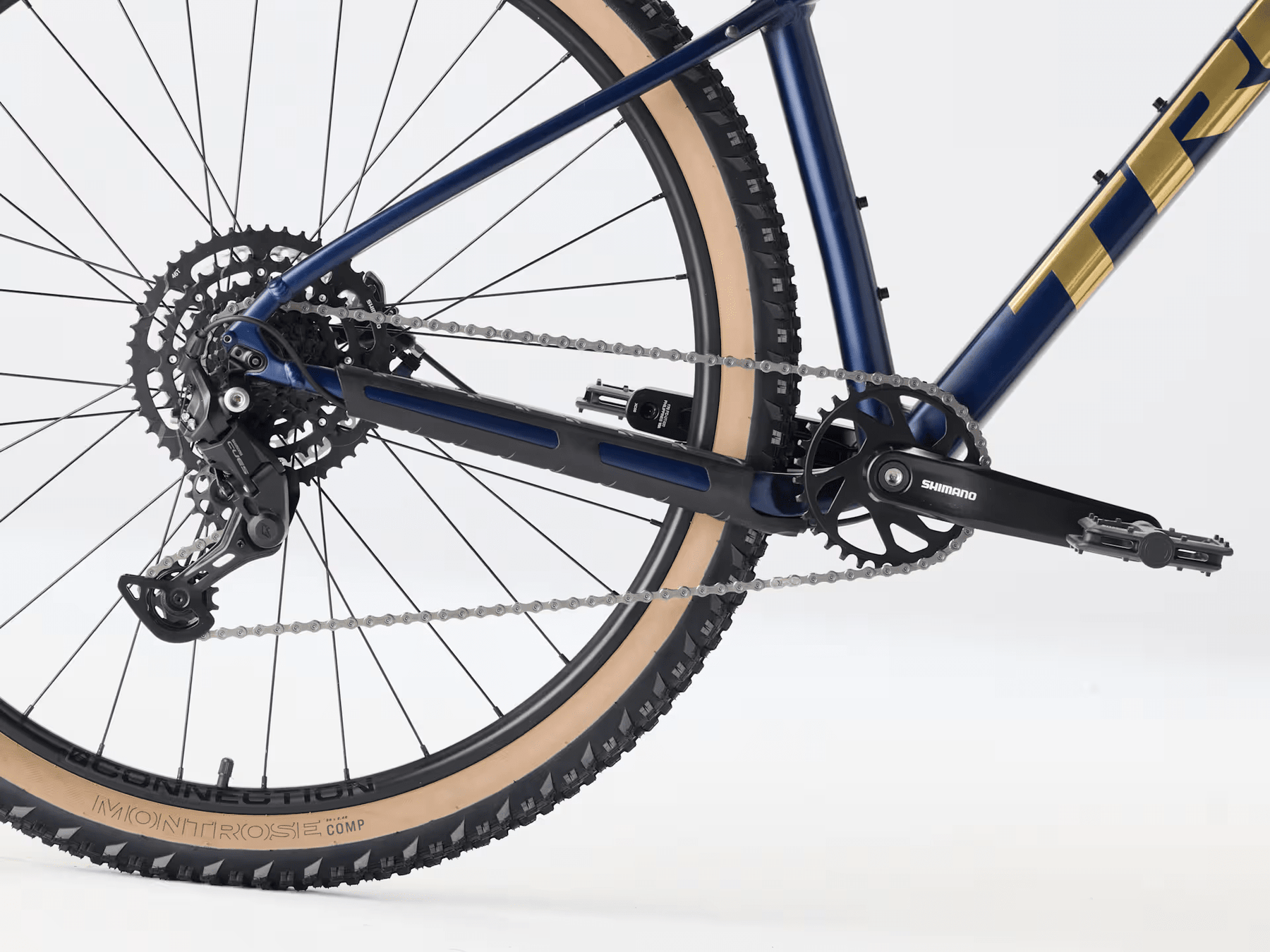

Drivetrain

• Shifter: Shimano U4000, 9 speed
• Rear derailleur: Shimano CUES U4000

• *Crank:

1. Size: XS , S , M , ML - Shimano CUES U4001, 32T, 52mm chainline, 170mm length
2. Size: L , XL , XXL - Shimano CUES U4001, 32T, 52mm chainline, 175mm length

• Bottom bracket: Shimano, 73mm, threaded cartridge, 122.5mm spindle
• Cassette: Shimano LINKGLIDE LG300, 11-46, 9 speed
• Chain: Shimano LG500
• Pedal: VP-536 nylon platform

Components

• Saddle: Bontrager Verse Short, stainless steel rails

• *Seatpost:

1. Size: XS , S , M - Bontrager alloy, 31.6mm, 12mm offset, 330mm length
2. Size: ML , L , XL , XXL - Bontrager alloy, 31.6mm, 12mm offset, 400mm length

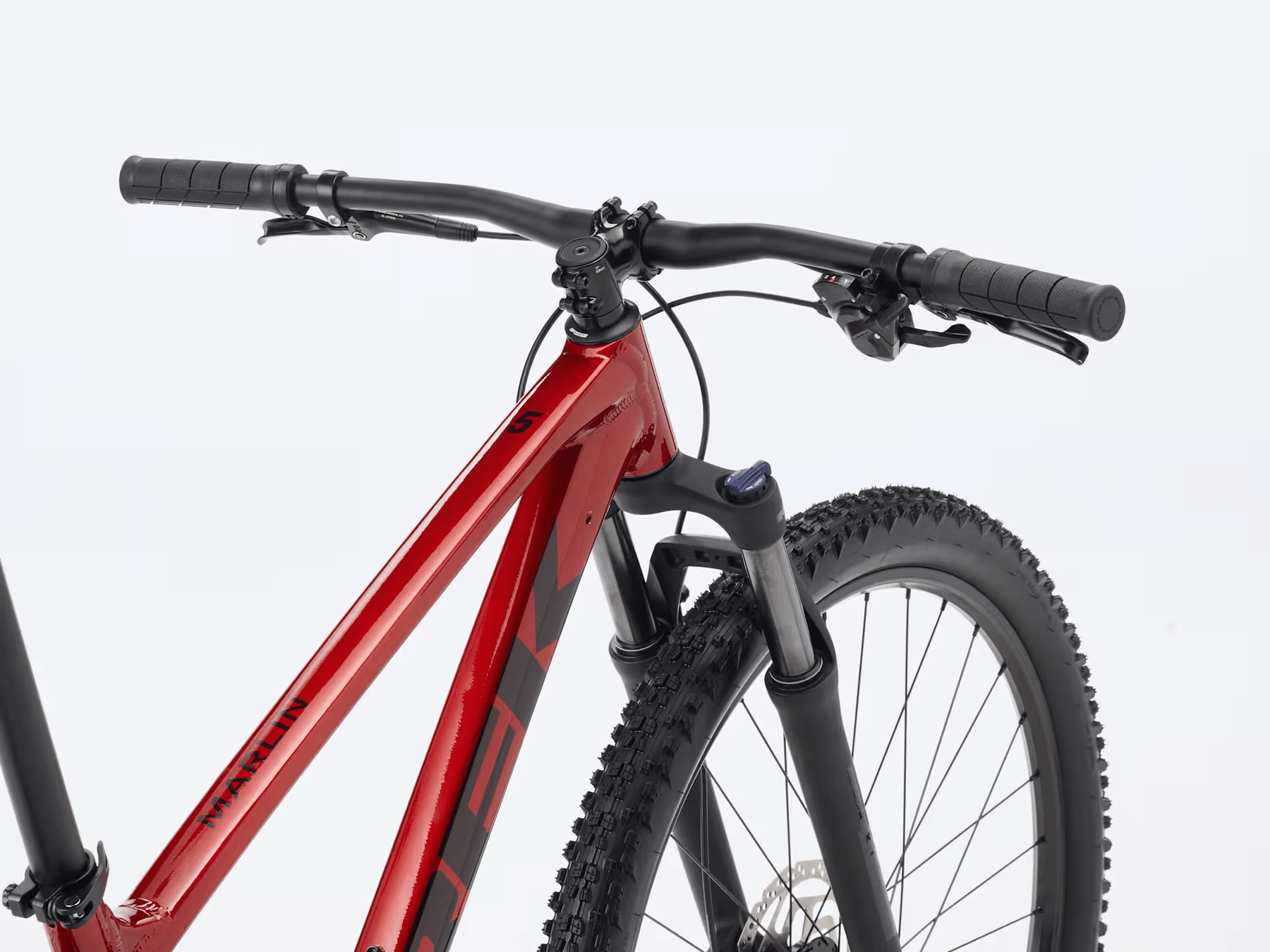

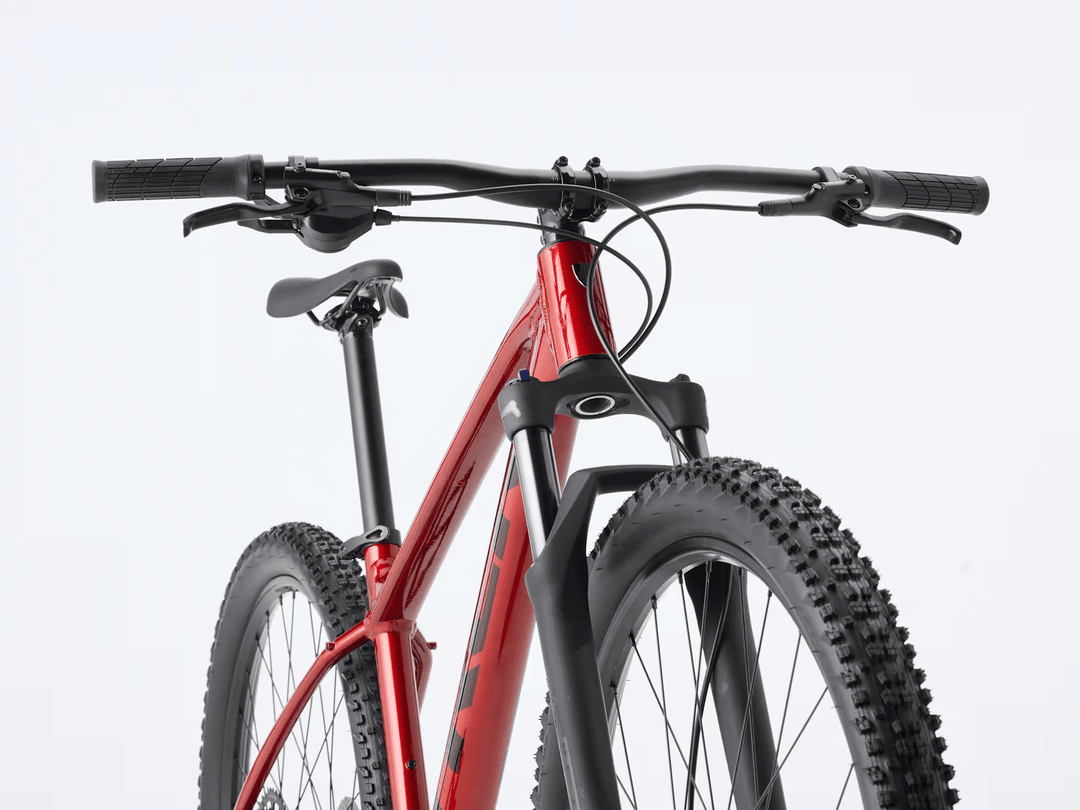

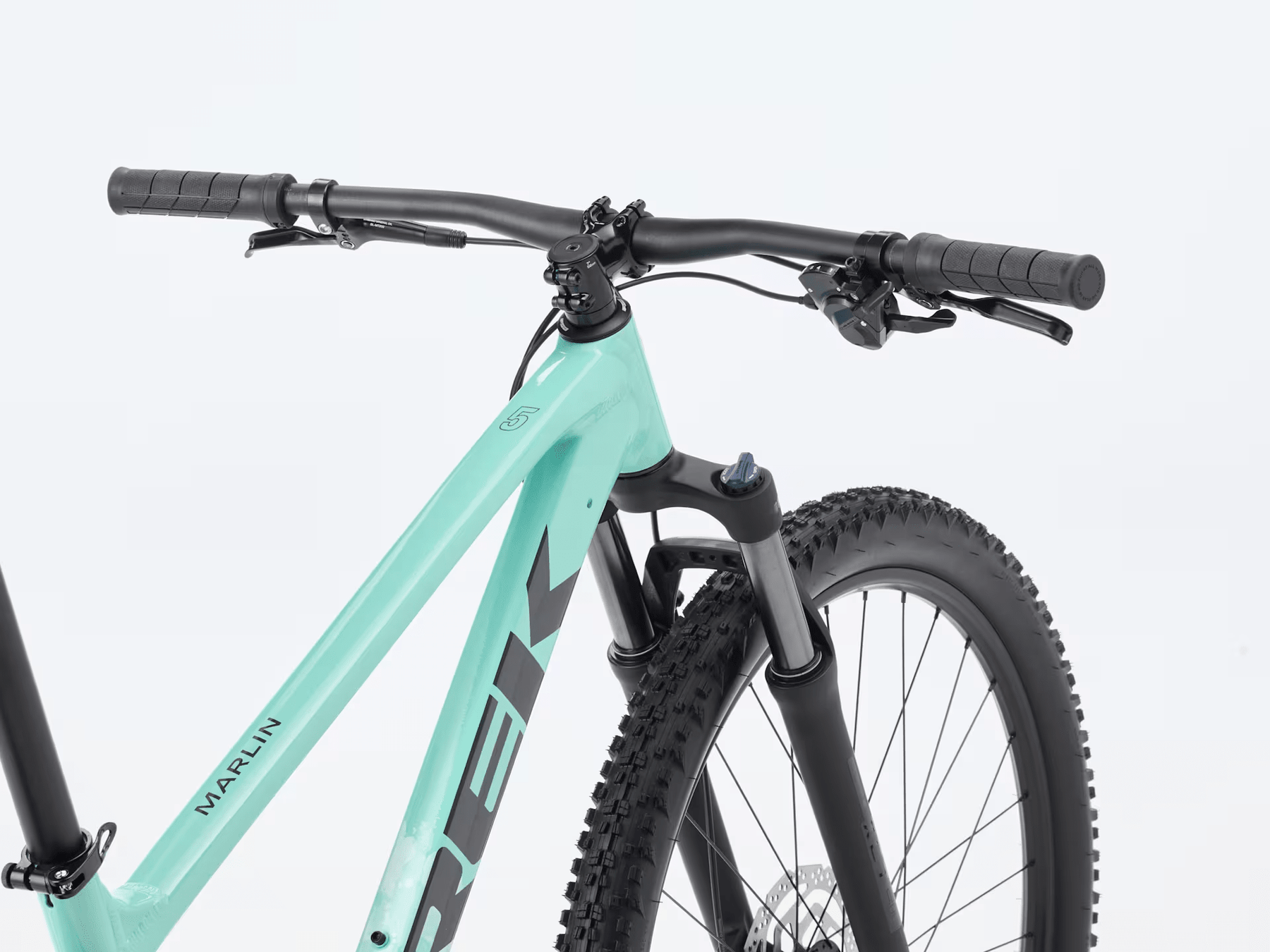

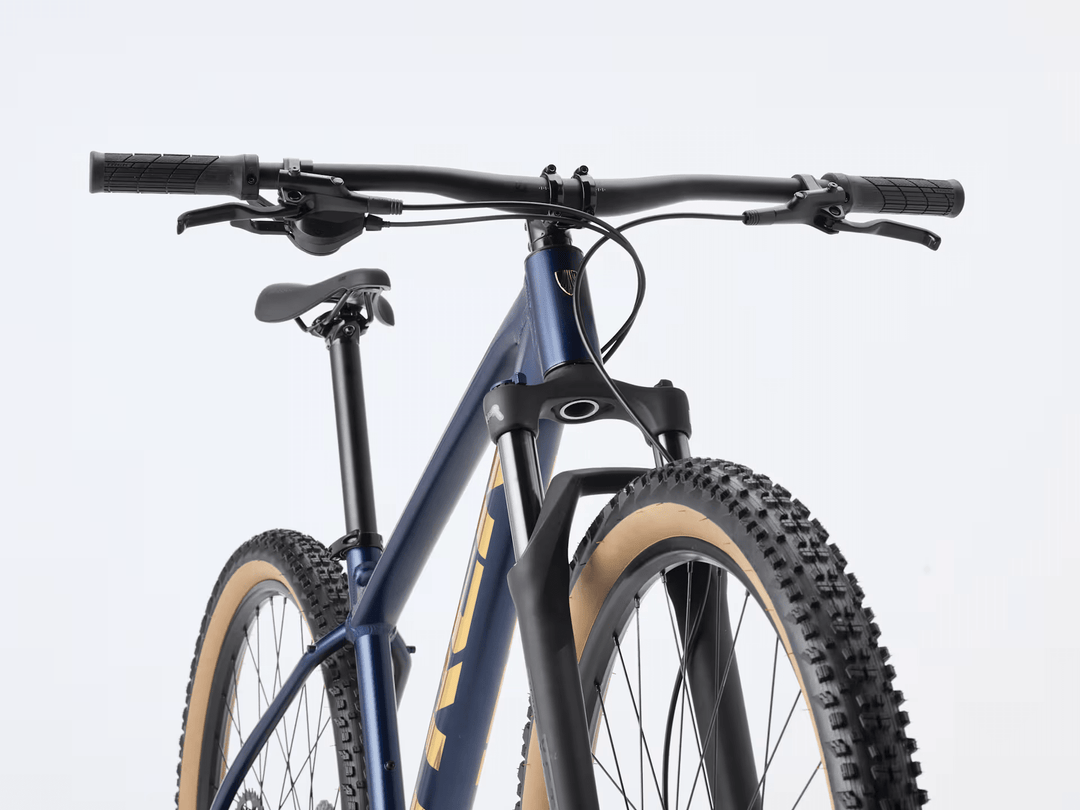

• *Handlebar

1. Size: XS - Bontrager alloy, 31.8mm, 5mm rise, 690mm width
2. Size: S - Bontrager alloy, 31.8mm, 15mm rise, 720mm width
3. Size: M , ML , L , XL , XXL - Bontrager alloy, 31.8mm, 15mm rise, 750mm width

• Grips: Trek Line Comp, nylon lock-on

• *Stem:

1. Size: XS , S - Bontrager Comp, 31.8mm, 7 degree, 35mm length
2. Size: M , ML , L - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
3. Size: XL - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
4. Size: XXL - Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length

• Headset: Semi-integrated, 1-1/8"
• Brake: Shimano MT200 hydraulic disc

• *Brake rotor

1. Size: XS , S , M , ML , L , XL , XXL - Shimano RT26, 6-bolt, 160mm
2. Size: M , ML , L , XL , XXL - Shimano RT26, 6-bolt, 180mm

• Brake Set: Shimano MT200 hydraulic disc

Weight

• Weight: MD - 33.29 lbs / 15.10 kg
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

*Subject to change without notice
