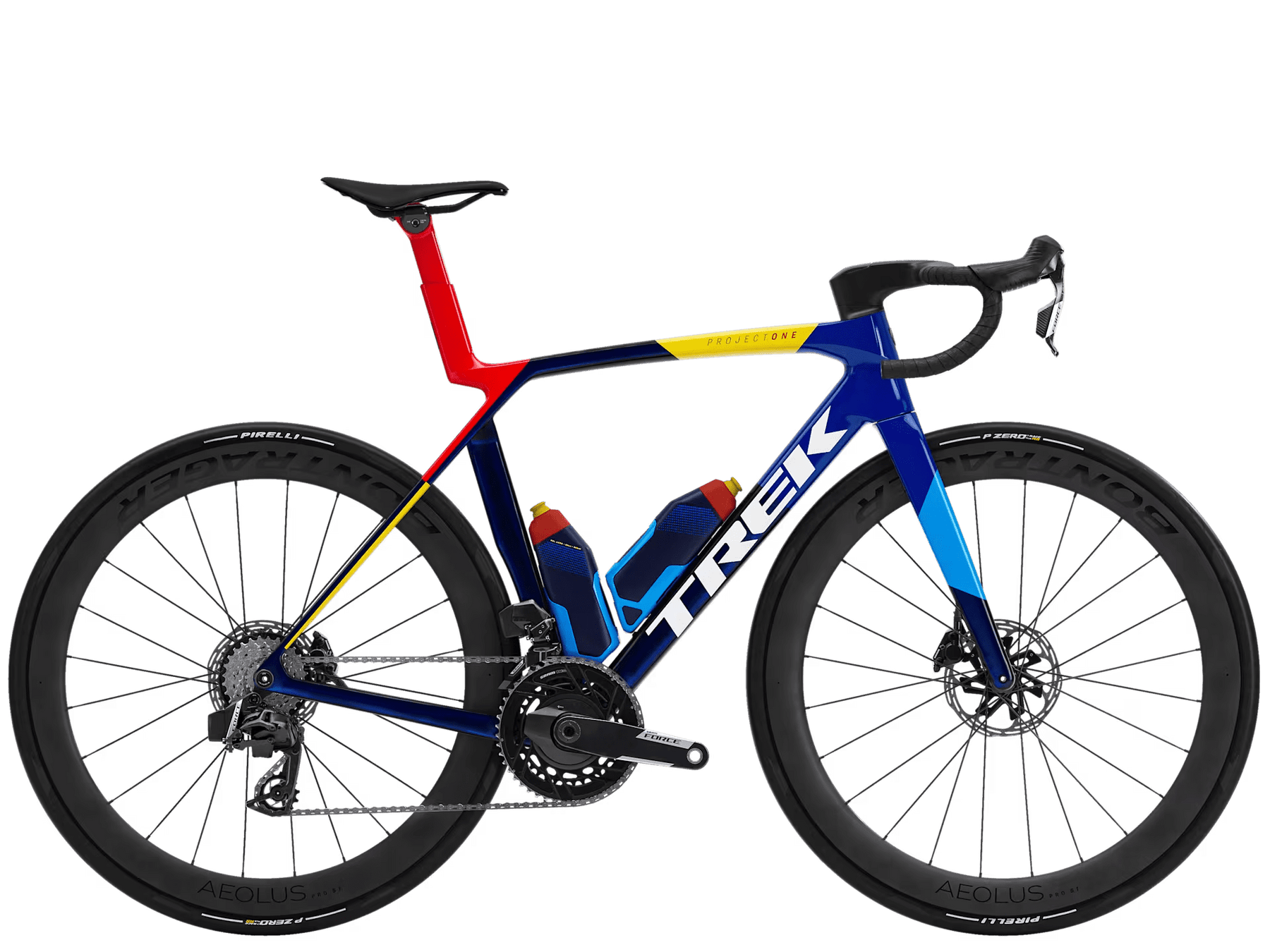

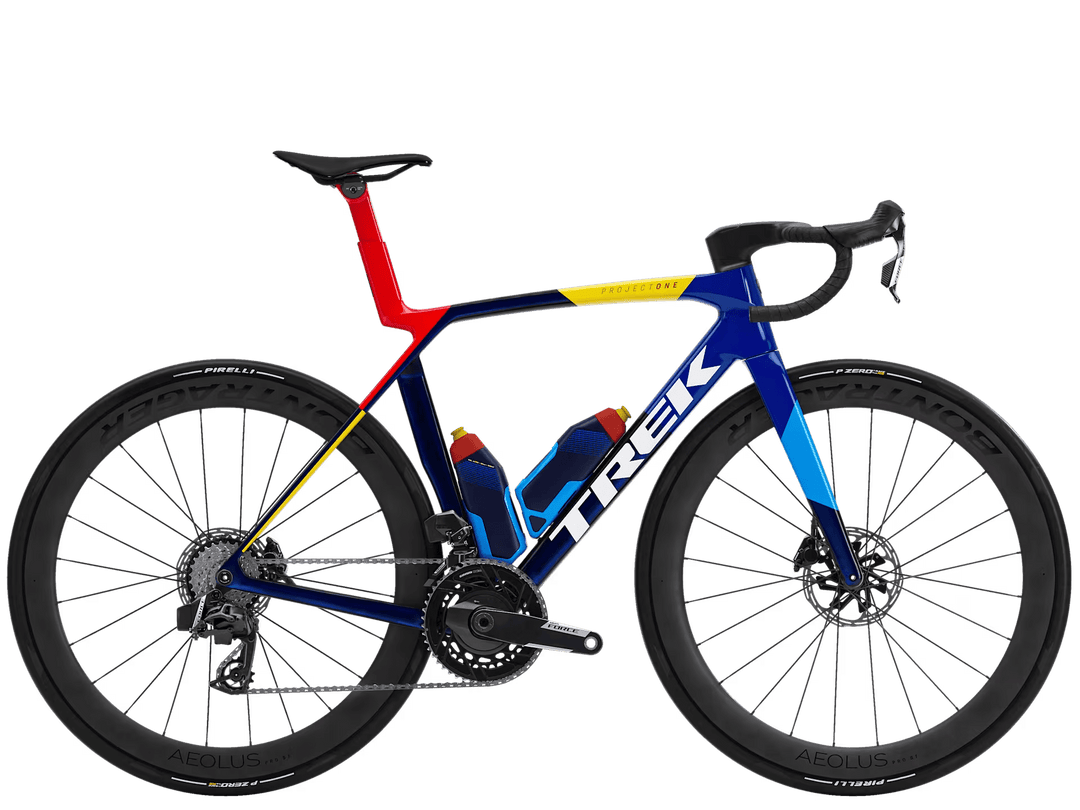

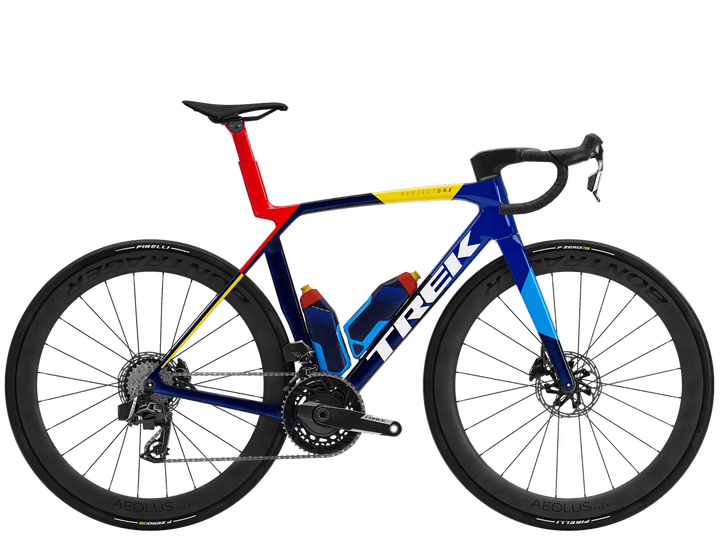

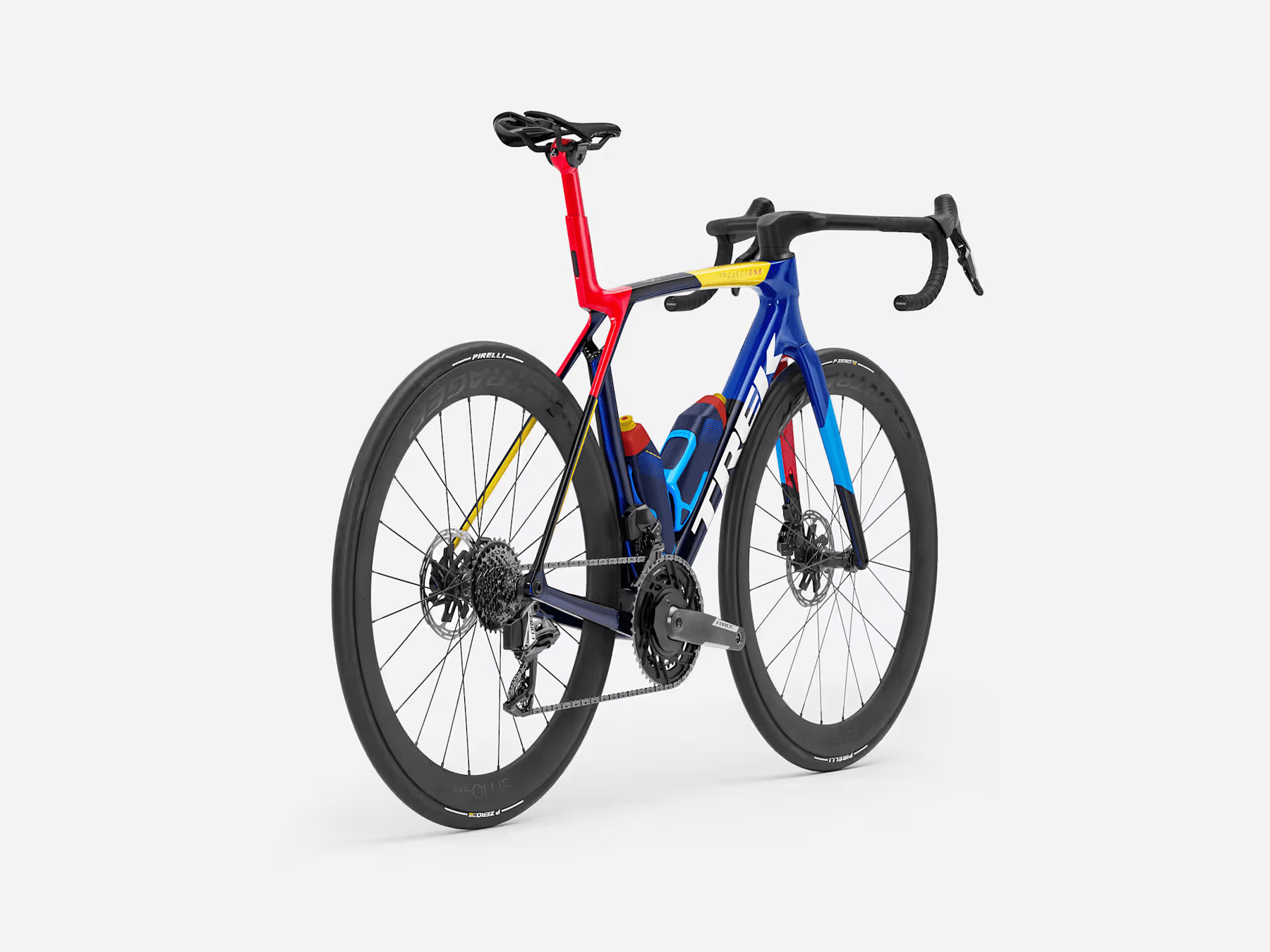

Madone SLR 7 AXS Gen 8

• Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimize aerodynamics around the whole bike
• It's crafted from Trek's highest-level 900 Series OCLV carbon that's mind-bogglingly light, stiff where you need the power, and compliant where you crave comfort
• Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents
• You get clean, wireless shifting that's ultra-precise and programmable, thanks to SRAM Force AXS E1 and a power meter for watching your output and getting the most from training
• RSL Aero Bottles and Cages make the whole rider system faster to give you even more aerodynamic gains

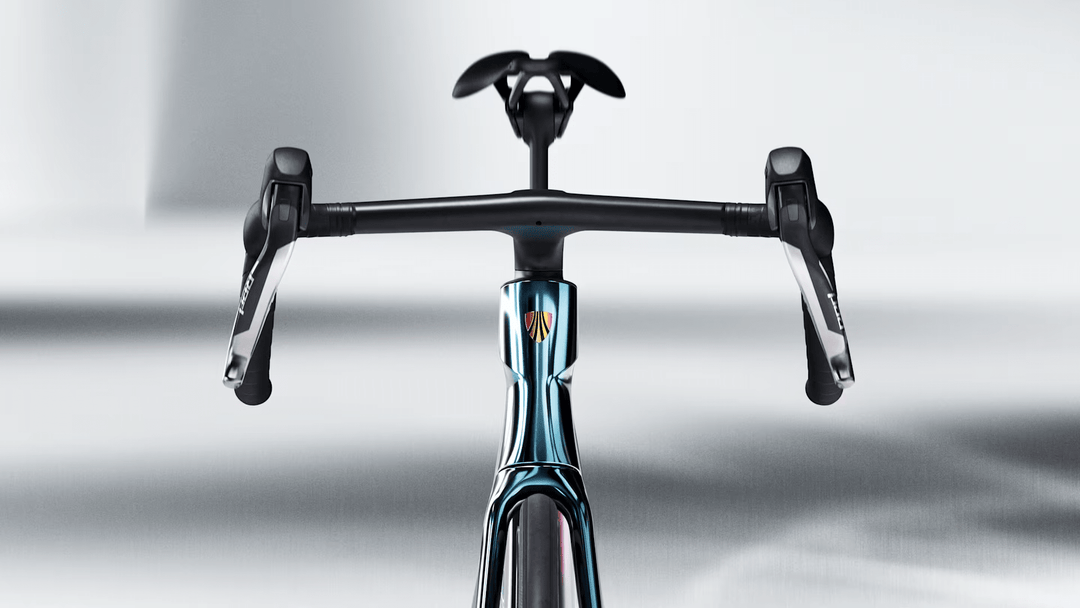

• New Blendr system on bar/stem makes it easy to add and remove a daytime running light

Frameset

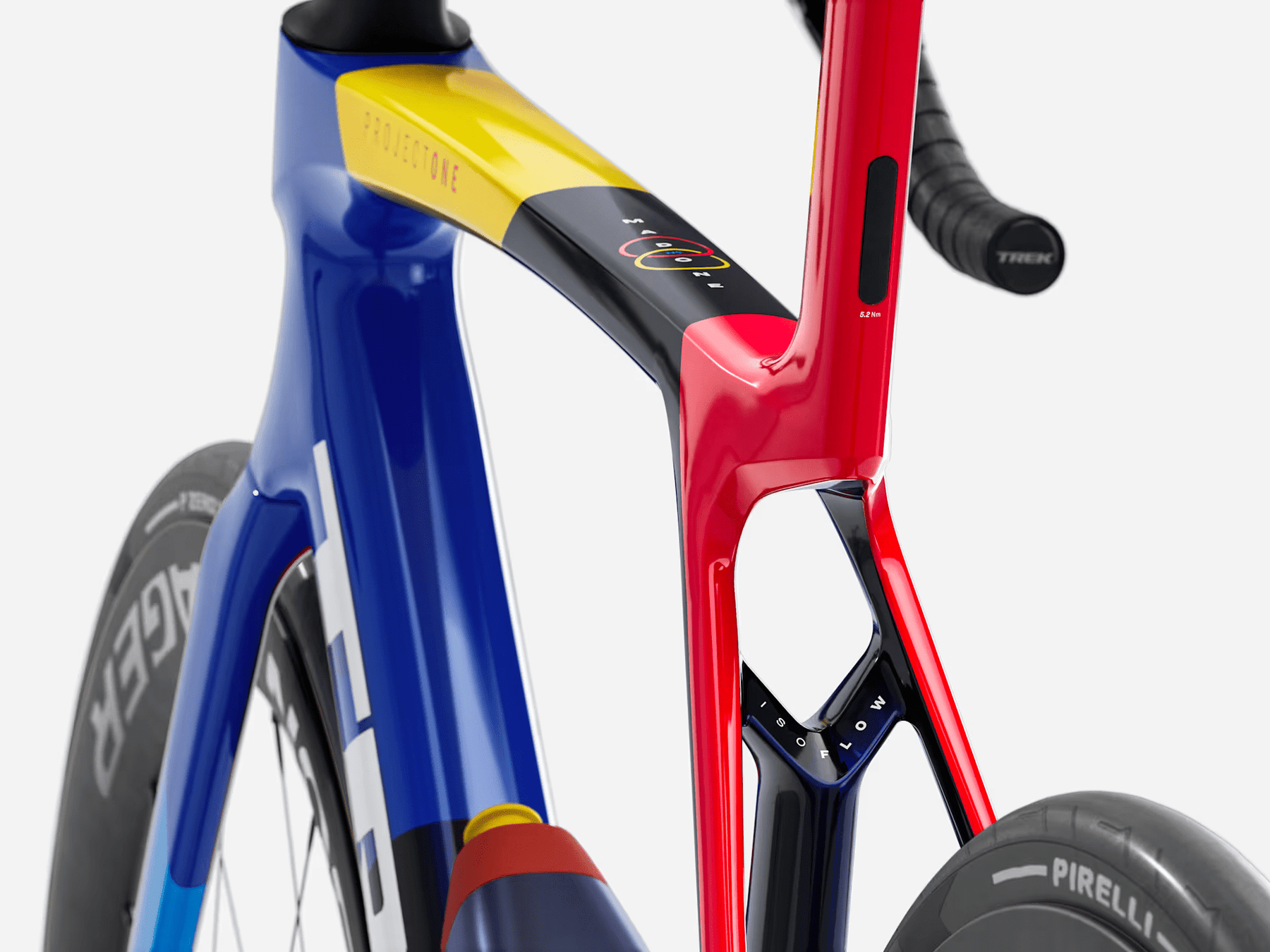

• Frame with Fork: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
• Fork: Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight

• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system

• Battery: SRAM eTap battery pack (with charger)

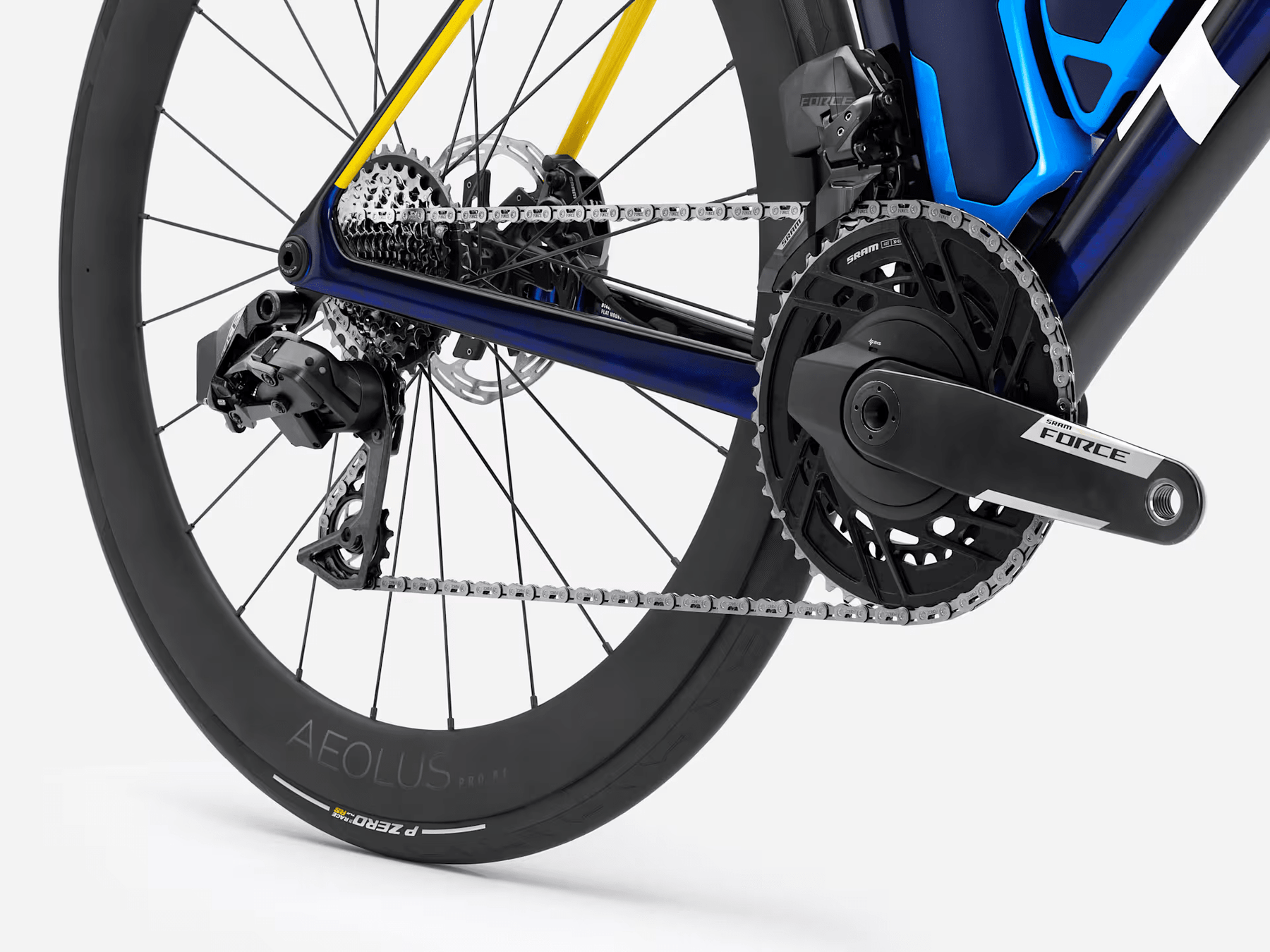

Drivetrain

• Shifter: SRAM Force AXS, 12 speed
• Front derailleur: SRAM Force AXS, braze-on
• Rear derailleur: SRAM Force AXS, 36T max cog

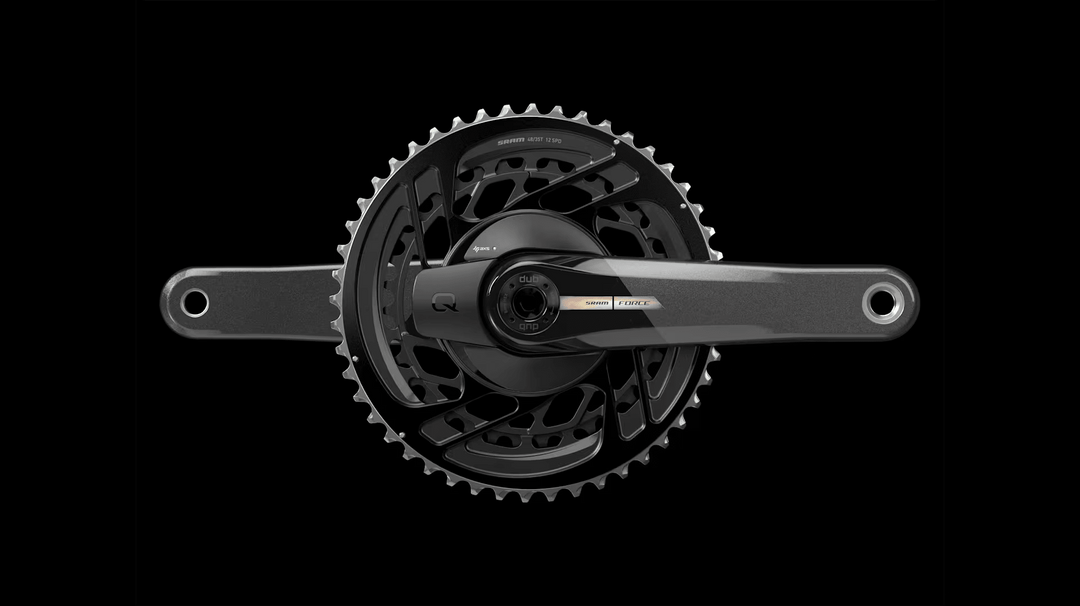

• *Crank

1. Size: XS, S - SRAM Force AXS with power meter, 48/35, DUB, 165mm length
2. Size: M, ML - SRAM Force AXS with power meter, 48/35, DUB, 170mm length
3. Size: L, XL - SRAM Force AXS with power meter, 48/35, DUB, 172.5mm length

• Bottom bracket: SRAM DUB, T47 threaded, internal bearing
• Cassette: SRAM Force XG-1270, 10-33, 12 speed
• Chain: SRAM Force E1, 12/13 speed
• Max chainring size: 1x: 54T, 2x: 56/43

Wheels

• Wheel front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
• Wheel rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru axle
• Skewer front: Bontrager Switch chamfered thru axle, removable lever
• Skewer rear: Bontrager Switch chamfered thru axle, removable lever

• *Tire

1. Size: XS, S, M, ML, L, XL - Bontrager Aeolus RSL RD, Tubeless Ready, cotton construction, aramid bead, 170 tpi, 700x28mm
2. Size: XS, S, M, ML, L, XL - Pirelli P Zero Race TLR RS, 120 tpi, tubeless compatible, 700x28mm

• Tube: Pirelli P Zero SmarTube, TPU
• Max tire size: 32mm (as measured, see manual for details)

Components

• Saddle: Bontrager Aeolus Pro, carbon rails, 145mm width
• Seatpost: Madone aero carbon seatpost, 0mm offset, short length

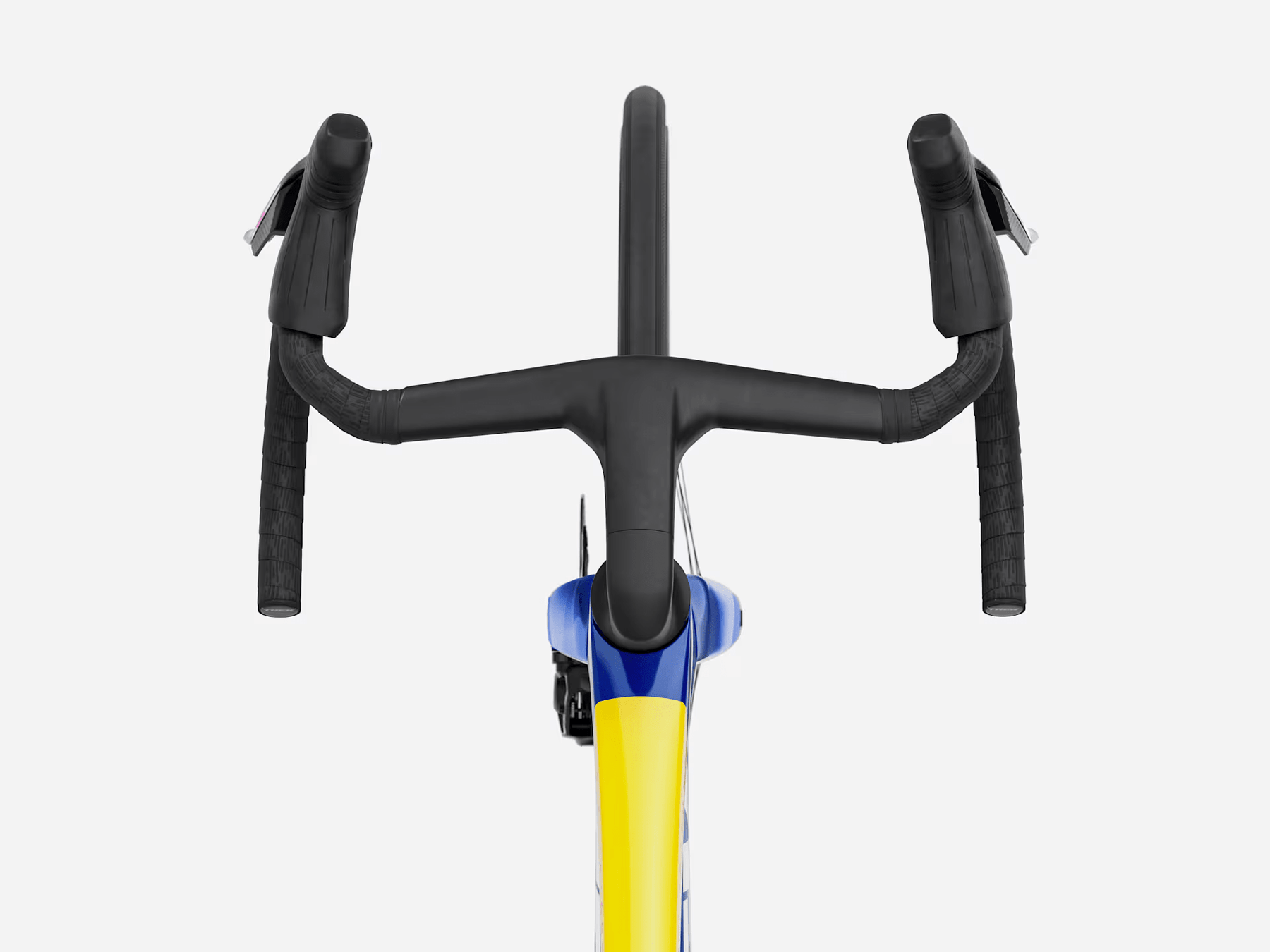

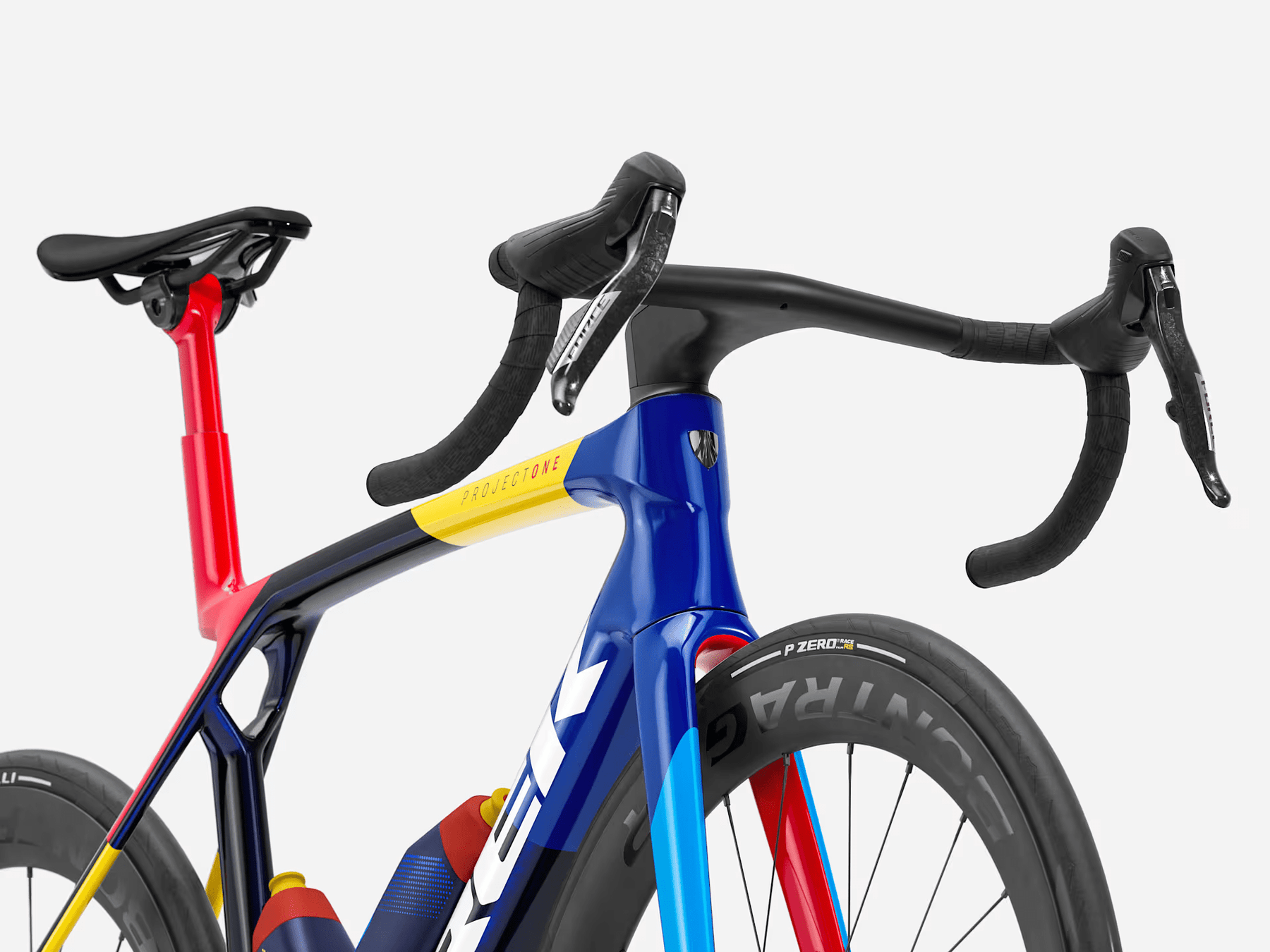

• *Handlebar/stem (integrated)

1. Size: XS - Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 80mm stem length
2. Size: S - Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 90mm stem length
3. Size: M - Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length
4. Size: ML, L - Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 100mm stem length
5. Size: XL - Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length

• Handlebar tape: Trek EcoTack
• Brake: SRAM Force AXS hydraulic disc, flat mount
• Brake rotor: SRAM CenterLine X, centerlock, round edge, 160mm
• Rotor size: Max brake rotor sizes: 180mm front, 160mm rear

* Subject to change without notice.
