Trek

Madone SL 5 Gen 8

UPC: 197216237686

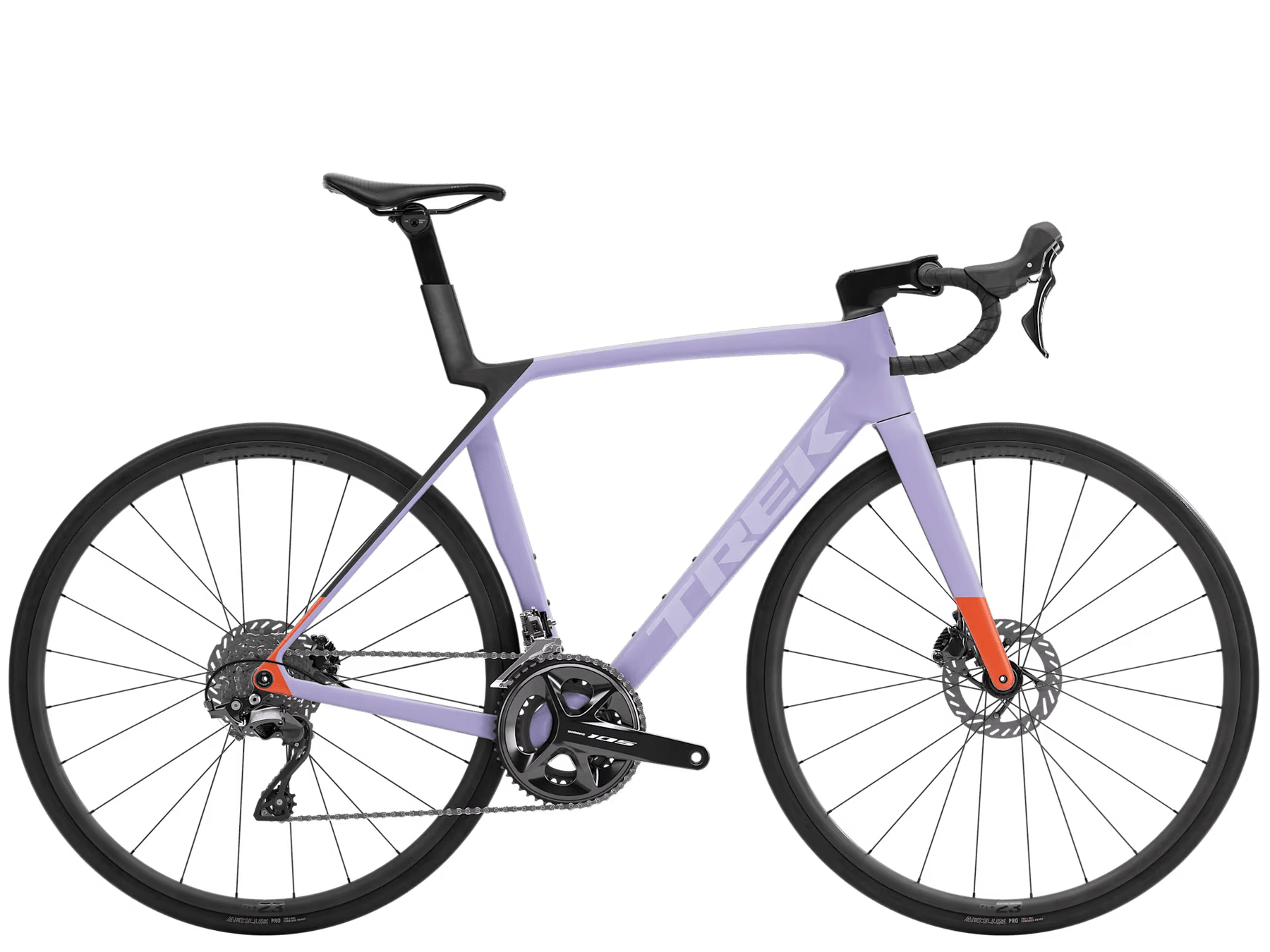

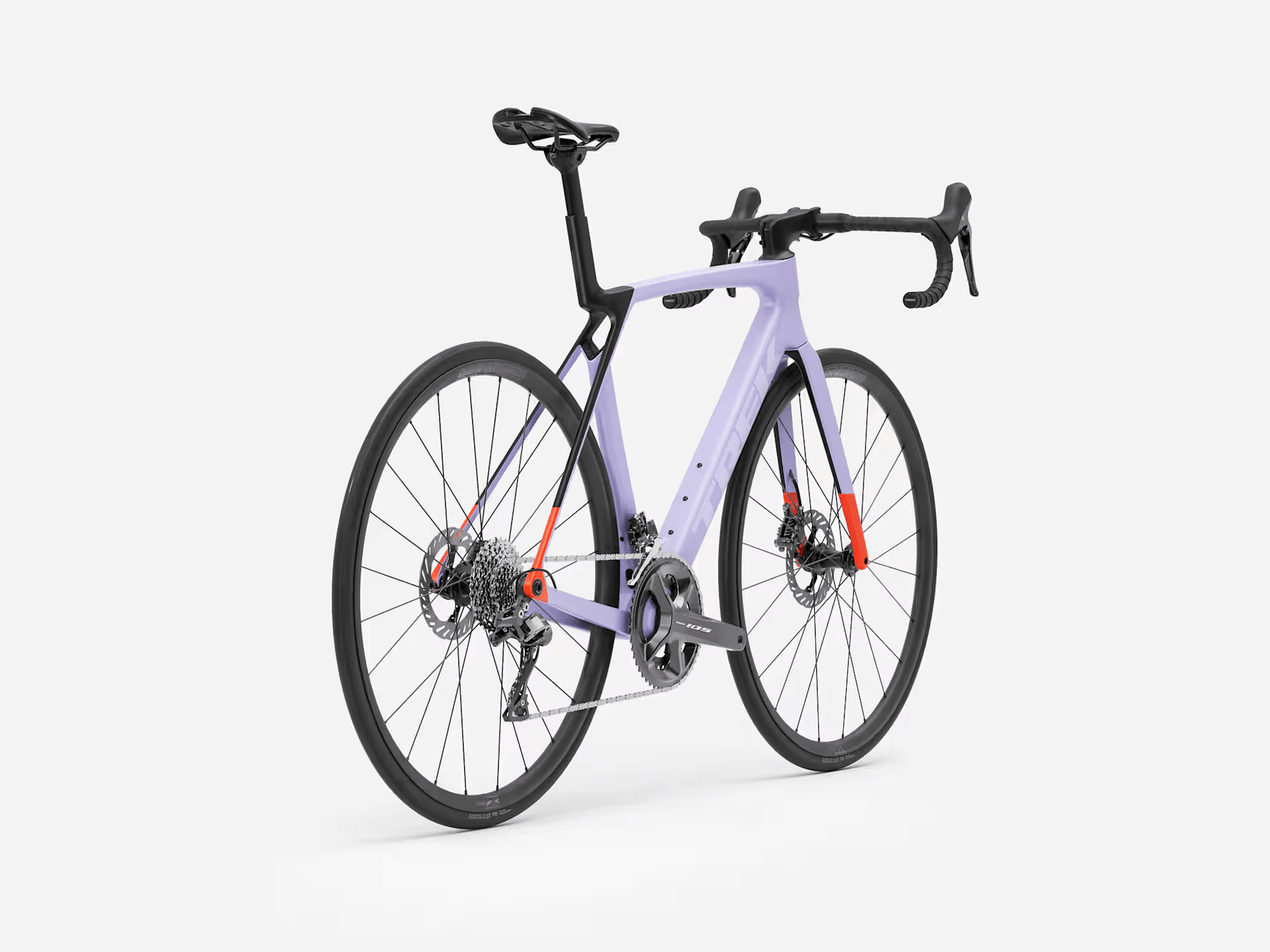

Colour — Matte Lavender Haze/Deep Smoke
Size
Price
Save
/
Size chart
 Size  Rider Height  Inseam
 XS

143 - 158 cm

4'8" - 5'2"



67 - 74 cm

26" - 29"
 S

158 - 162 cm

5'2" - 5'4"



74 - 76 cm

29" - 30"
 M

162 - 173 cm

5'4" - 5'8"



76 - 81 cm

30" - 32"
 M/L

173 - 179 cm

5'8" - 5'10"



81 - 84 cm

32" - 33"
 L

179 - 188 cm

5'10" - 6'2"



84 - 88 cm

33" - 35"
 XL

188 - 213 cm

6'2" - 7'0"



88 - 100 cm

35" - 39"

Pairs well with
Frame:
500 Series OCLV Carbon
Fork:
Madone Gen 8 full carbon
Tires:
Bontrager Aeolus Pro, 700x28mm
Wheels:
Bontrager Paradigm 23
Rear Derailleur:
Shimano 105 R7100
Brakes:
Shimano 105 hydraulic disc
Saddle:
Bontrager Aeolus Elite

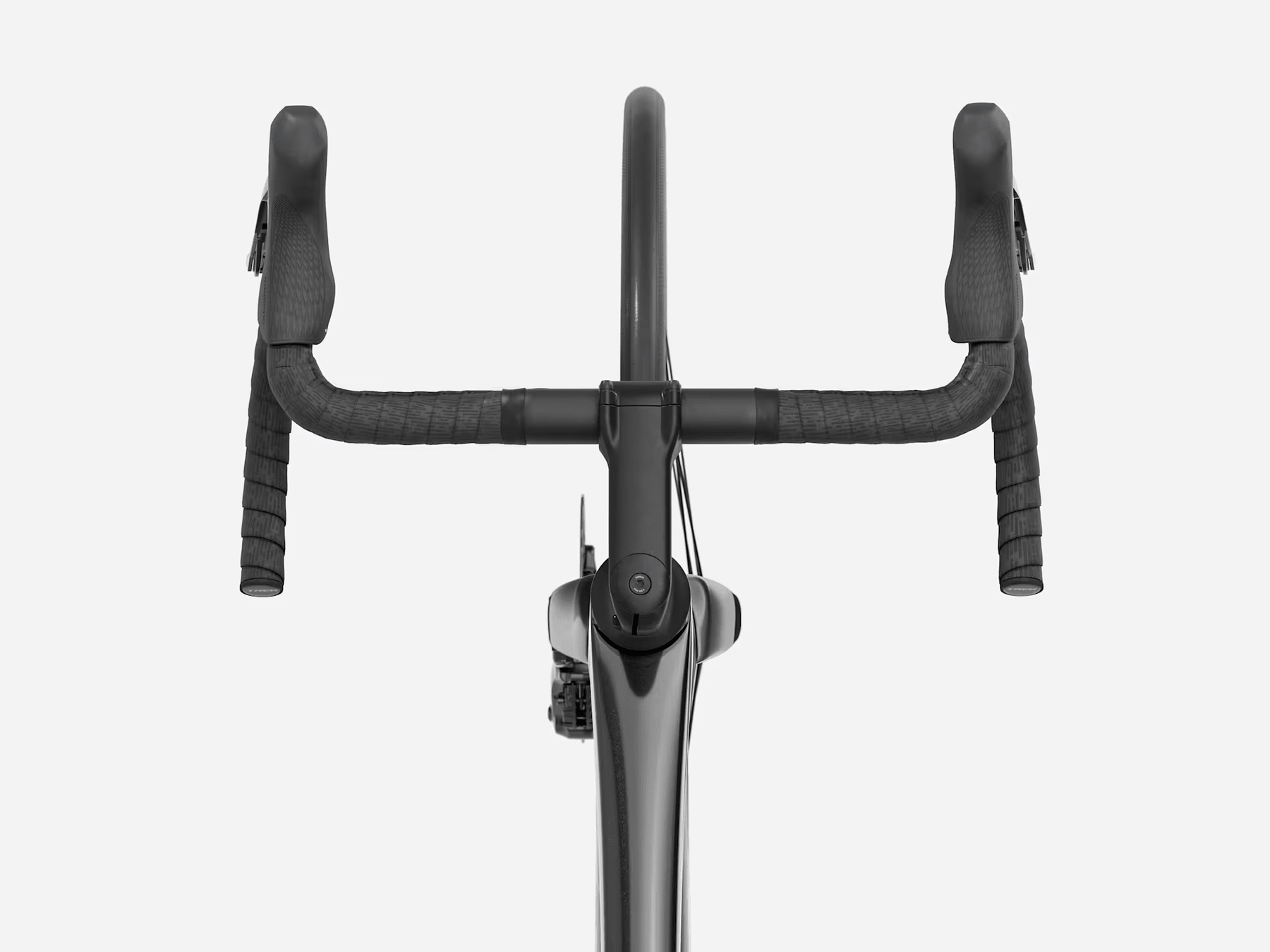

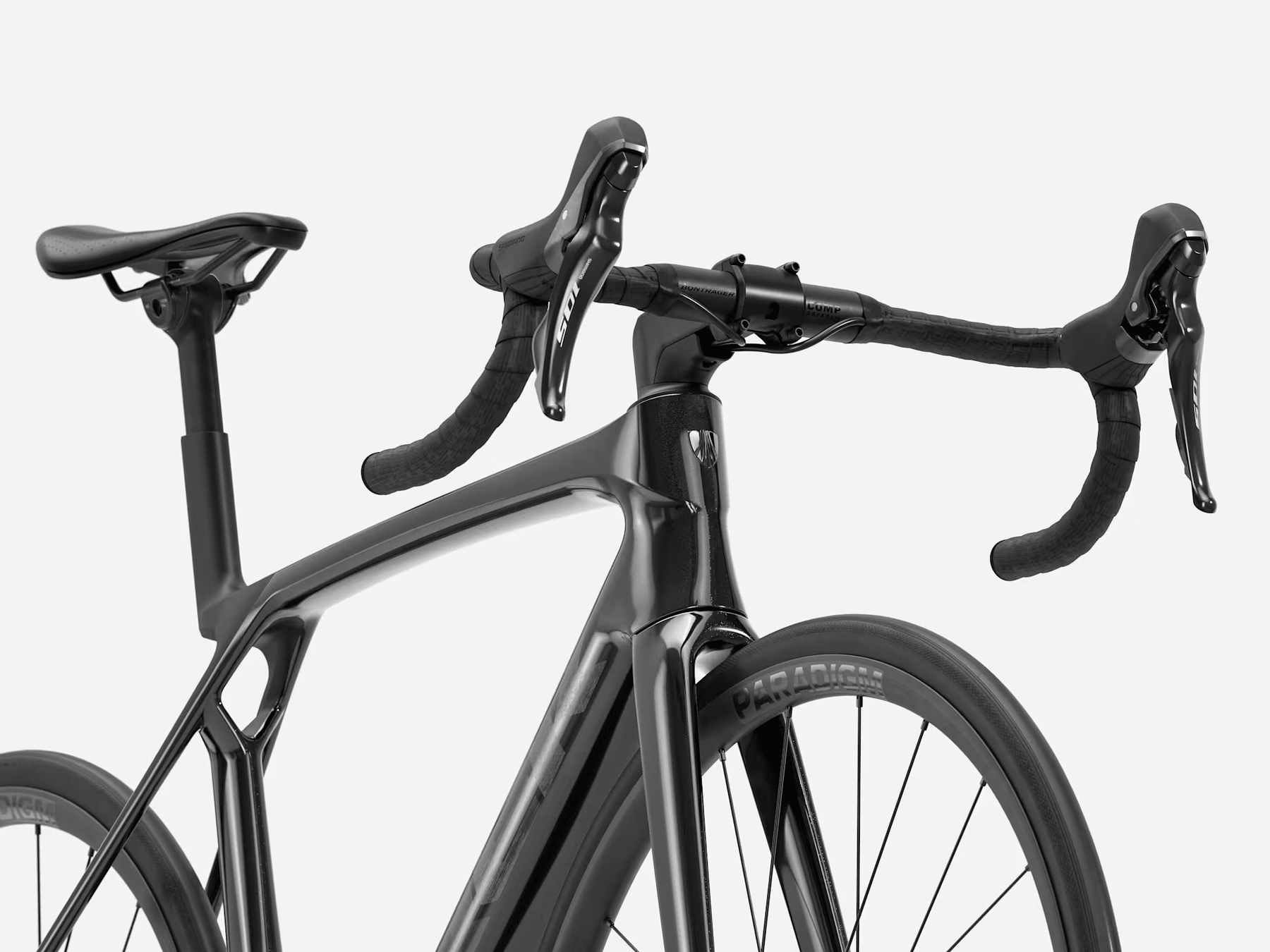

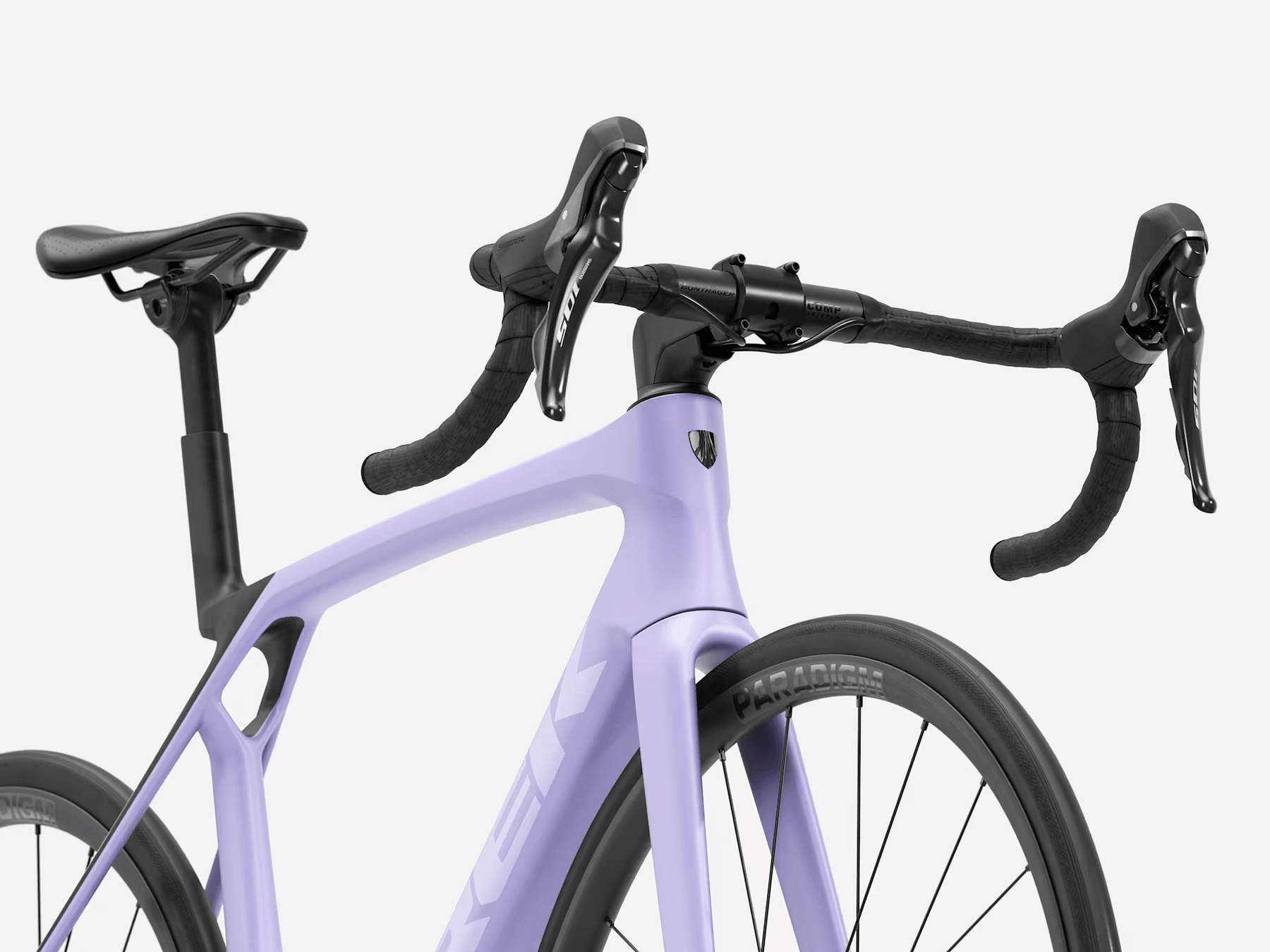

Stem / Handlebar:
Trek RCS Pro / Bontrager Comp
Tire Clearance:
32mm (as measured)
Sizes:
XS, SM, MD, ML, LG, XL
Weight (lbs/kg):
ML - 19.05 lbs / 8.64 kg (with tubes)
  • Price match guarantee
  • Locally owned
  • Secure payments

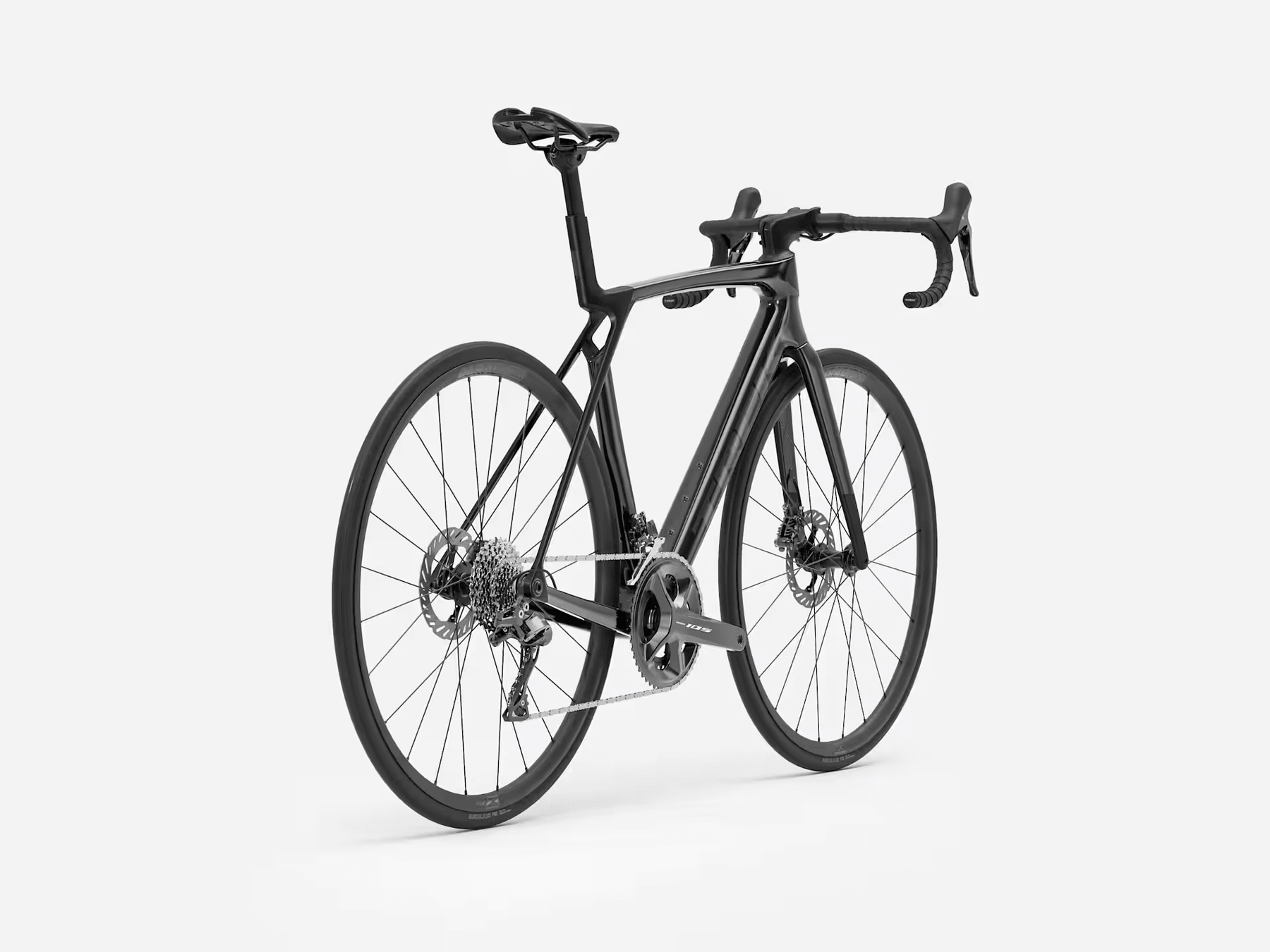

Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8 models, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing. A Shimano 105 groupset, alloy handlebars, and alloy wheels keep the price down while still delivering clean mechanical shifting you can trust.

  • It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing.
  • It's built to race, with geometry that keeps you quick on the sprints yet in control on fast descents.
  • A 12-speed Shimano 105 groupset keeps the price down while still delivering clean mechanical shifting you can trust.
  • The Madone Gen 8 can fit up to 32mm width tires for more comfort and better grip on the road.

Frameset

  • Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing,
    removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
  • Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight

  • Weight: ML - 8.64 kg / 19.05 lbs (with tubes)
  • Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Drivetrain

  • Shifter: Shimano 105 R7120, 12 speed
  • Front derailleur: Shimano 105 R7100, braze-on, down swing
  • Rear derailleur: Shimano 105 R7100, 36T max cog

  • *Crank:
  1. Size: XS, S - Shimano 105 R7100, 50/34, 165mm length
  2. Size: M, ML - Shimano 105 R7100, 50/34, 170mm length
  3. Size: L, XL - Shimano 105 R7100, 50/34, 172.5mm length

  • Bottom bracket: Praxis, T47 threaded, internal bearing
  • Cassette: Shimano 105 7101, 11-34, 12 speed
  • Chain: Shimano SLX M7100, 12 speed
  • Max chainring size: 1x: 54T, 2x: 56/43

Wheels

  • Hub front: Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
  • Skewer front: Bontrager Switch chamfered thru axle
  • Hub rear: Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
  • Skewer rear: Bontrager Switch chamfered thru axle, removable lever
  • Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
  • Tire: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120tpi, 700x28mm
  • Tire part: Bontrager TLR sealant, 180 ml/6 oz
  • Max tire size: 32mm (as measured, see manual for details)

Components

  • Saddle: Bontrager Aeolus Elite, austenite rails, 145mm width
  • Seatpost: Madone aero carbon seatpost, 0mm offset, short length

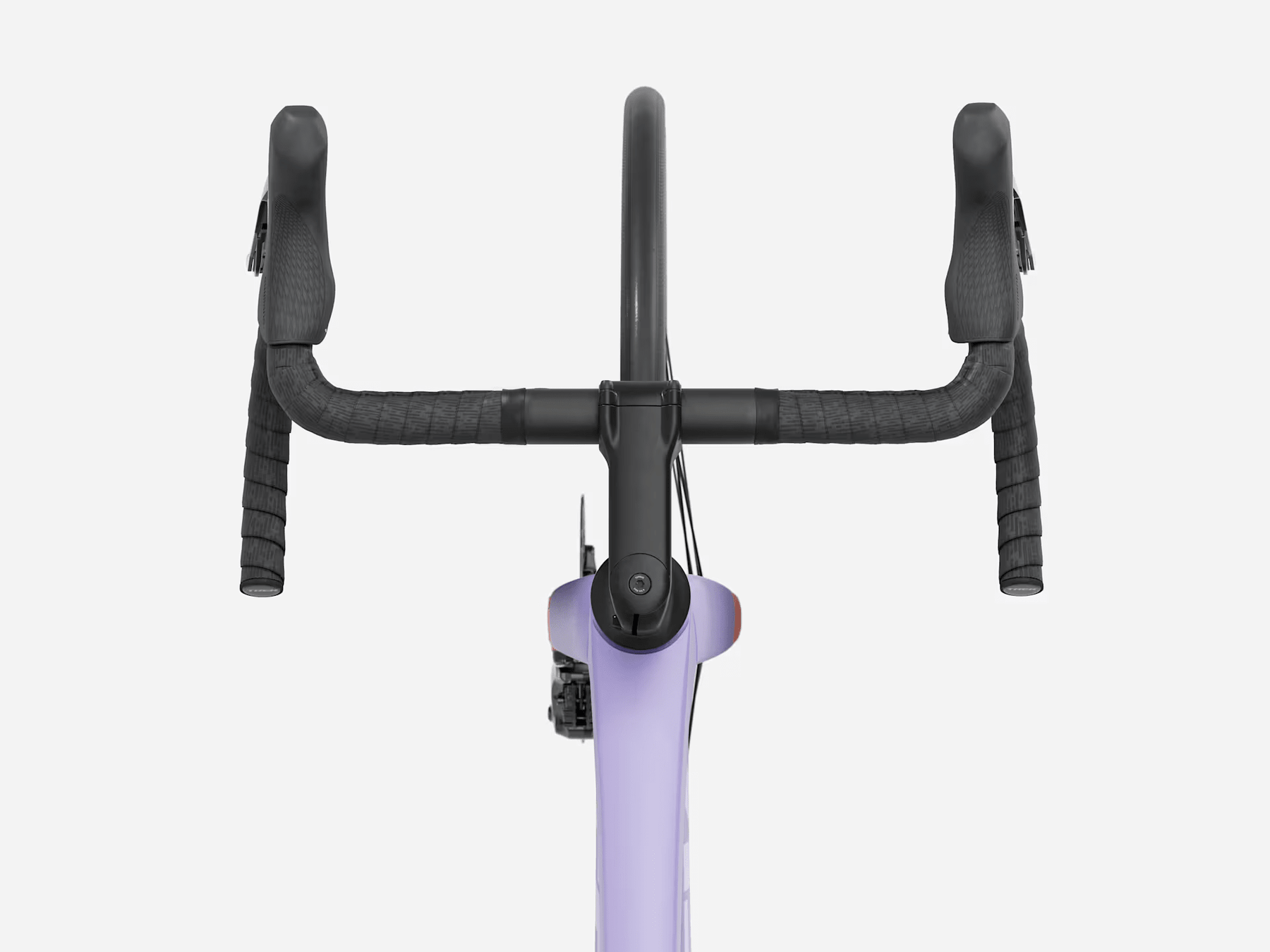

  • *Handlebar:
  1. Size: XS - Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
  2. Size: S, M - Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
  3. Size: ML, L - Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
  4. Size: XL - Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width

  • Handlebar tape: Trek EcoTack

  • *Stem:
  1. Size: XS - Trek RCS Pro, -7 degree, 80mm length
  2. Size: S, M - Trek RCS Pro, -7 degree, 90mm length
  3. Size: ML, L - Trek RCS Pro, -7 degree, 100mm length
  4. Size: XL - Trek RCS Pro, -7 degree, 110mm length

  • Brake: Shimano 105 hydraulic disc, flat mount
  • Brake rotor: Shimano CL700, centerlock, 160mm
  • Rotor size: Max brake rotor sizes: 180mm front, 160mm rear

 *Subject to change without notice

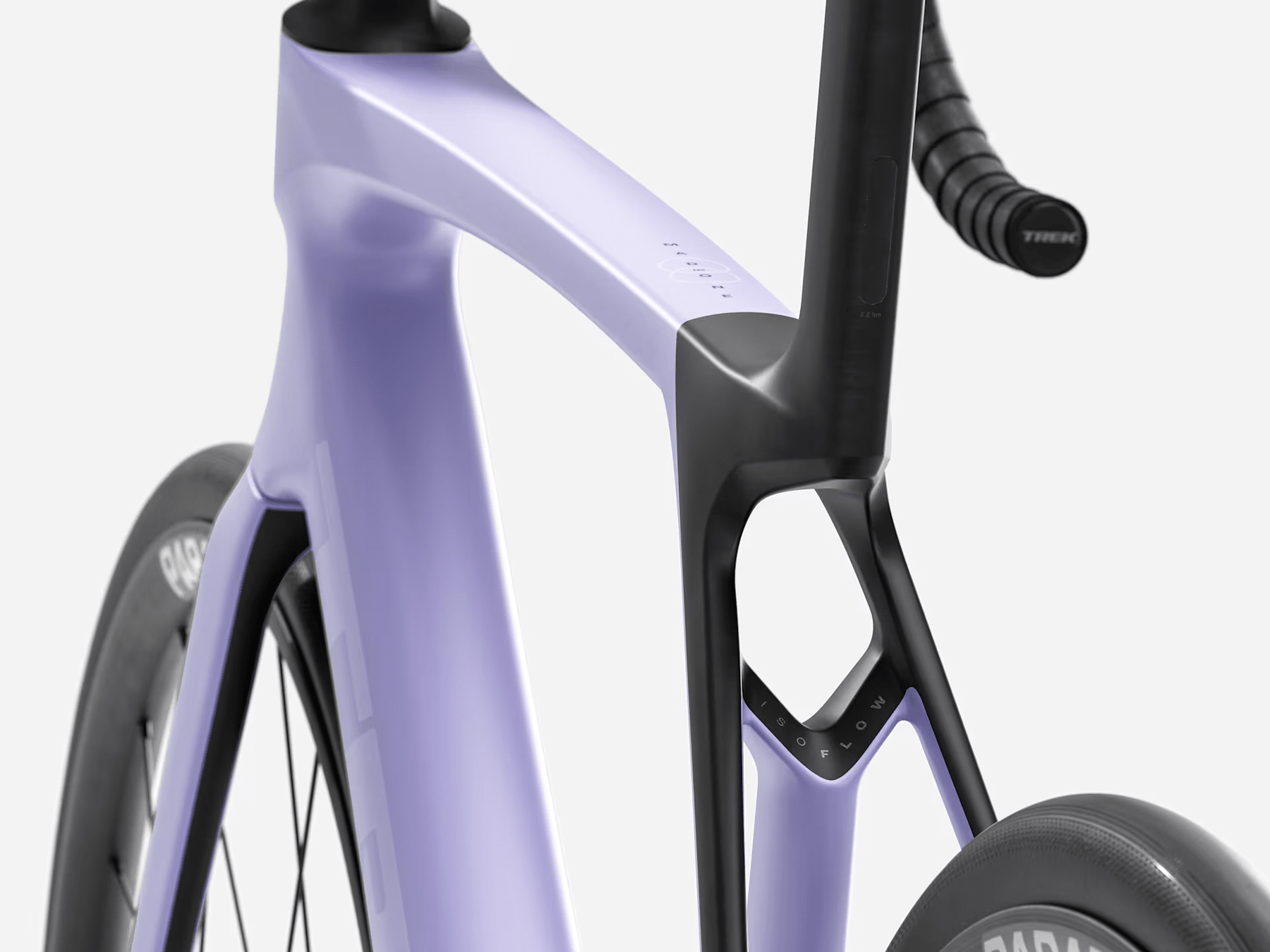

80% more vertically compliant IsoFlow

Trek refined their race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger longer.

Redefines what fast looks like

Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness climbers crave. Plus, the bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.

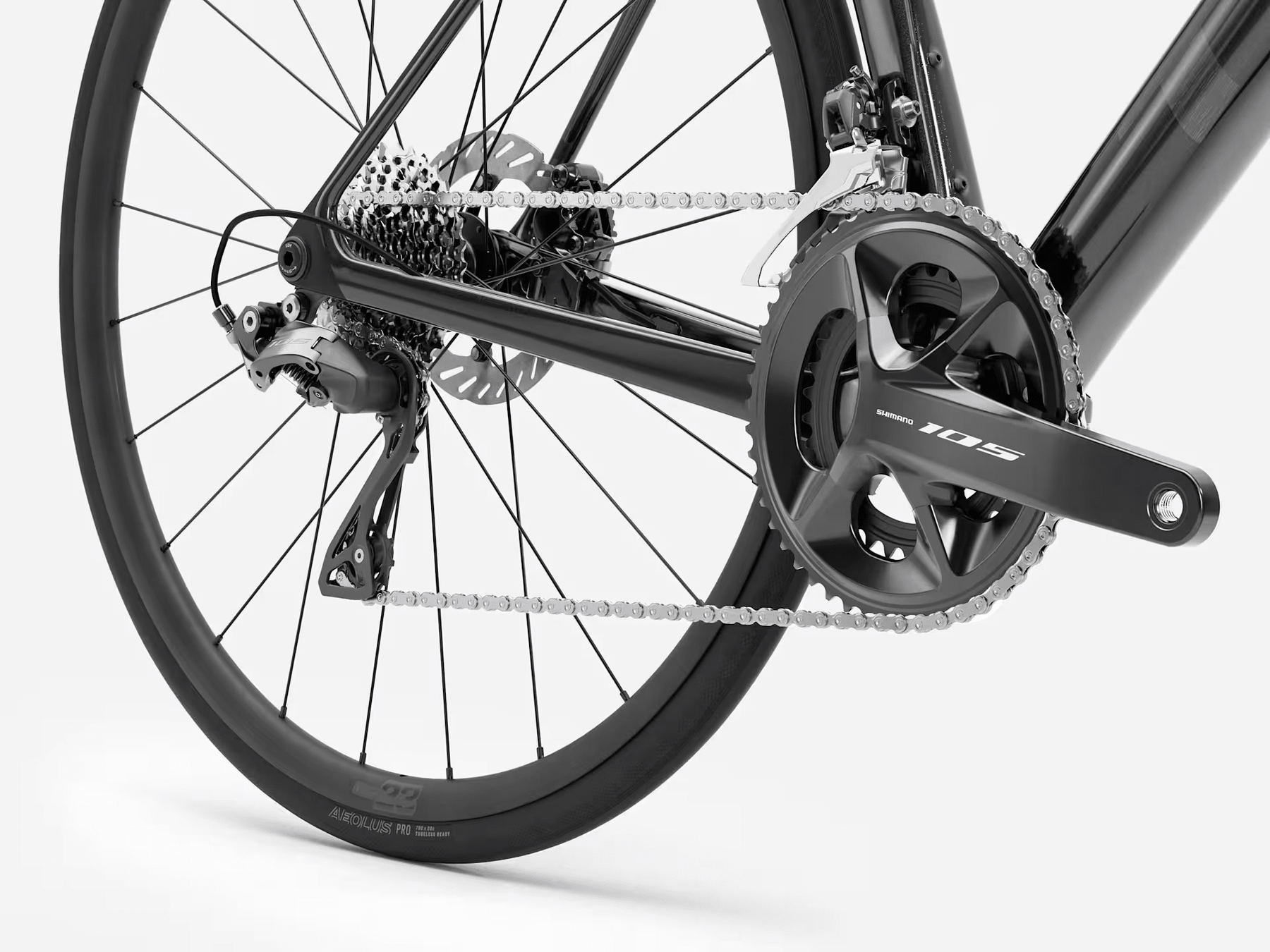

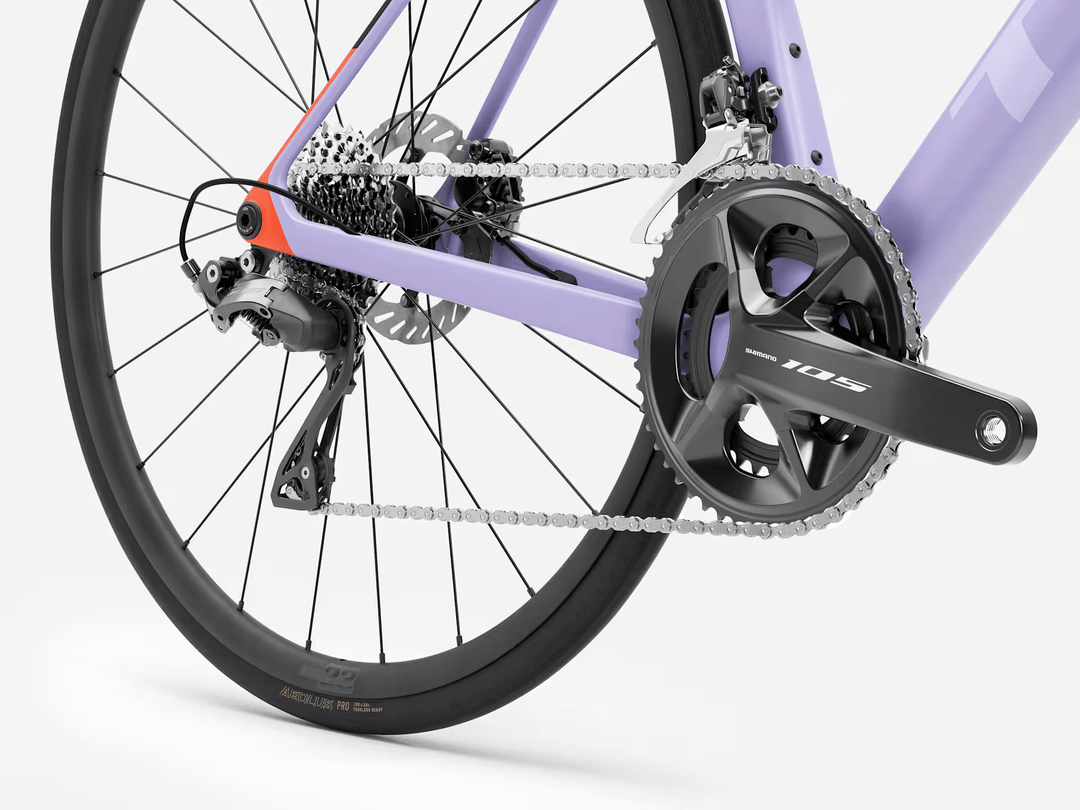

Shimano 105 R7100 12-Speed Drivetrain

SHIMANO 105 reinvigorates road cycling with its completely refreshed interface and premium 12-speed mechanical shifting.

  • The new ergonomic Dual-Control Lever design fits a wide range of hand sizes and shapes while reducing the distance from the hood to the lever. This enhances leverage and delivers better control with less effort
  • With a new piston design, race-ready braking is now available for even more riders. The new SHIMANO 105 braking system allows riders to progress in their cycling journey by learning the joys of braking and pushing their limits.

With shift technology inherited from mechanical Ultegra and Dura-Ace, Shimano 105 gives you top-shelf shifting at a budget friendly price. Whether you're commuting year-round or training for the big race, Shimano 105 is a workhorse drivetrain that won't hold you back as you grow in the sport.

Related Products
More from Trek
More from Trek Road Bikes
Domane AL 5 Gen 4
Trek
Domane SL 5 Gen 4
Trek
Domane AL 4 Gen 4
Trek

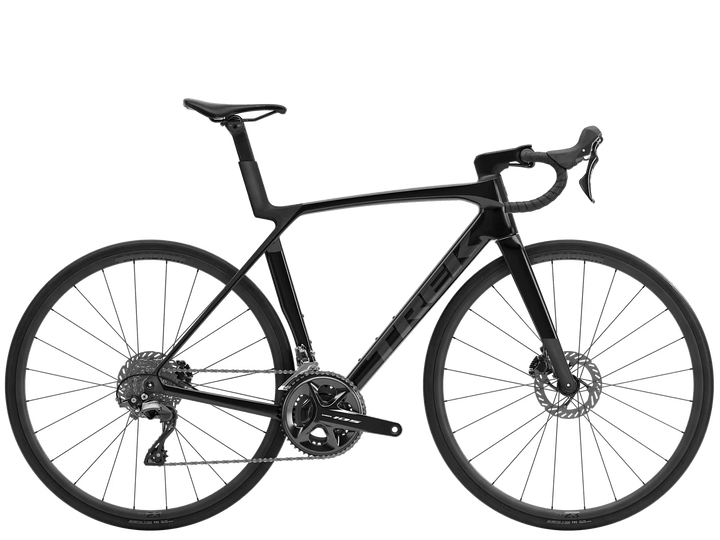

Madone SL 5 Gen 8
