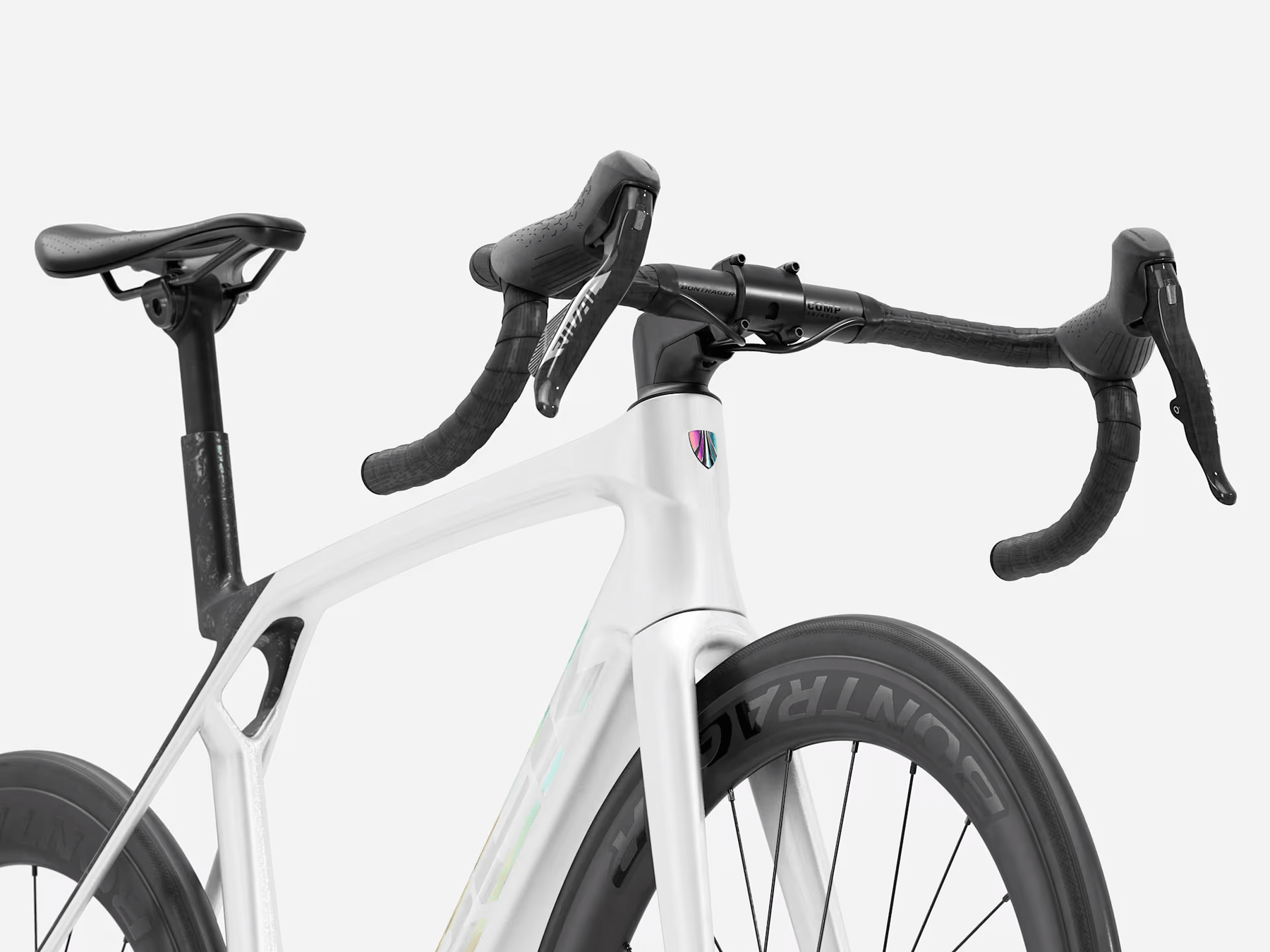

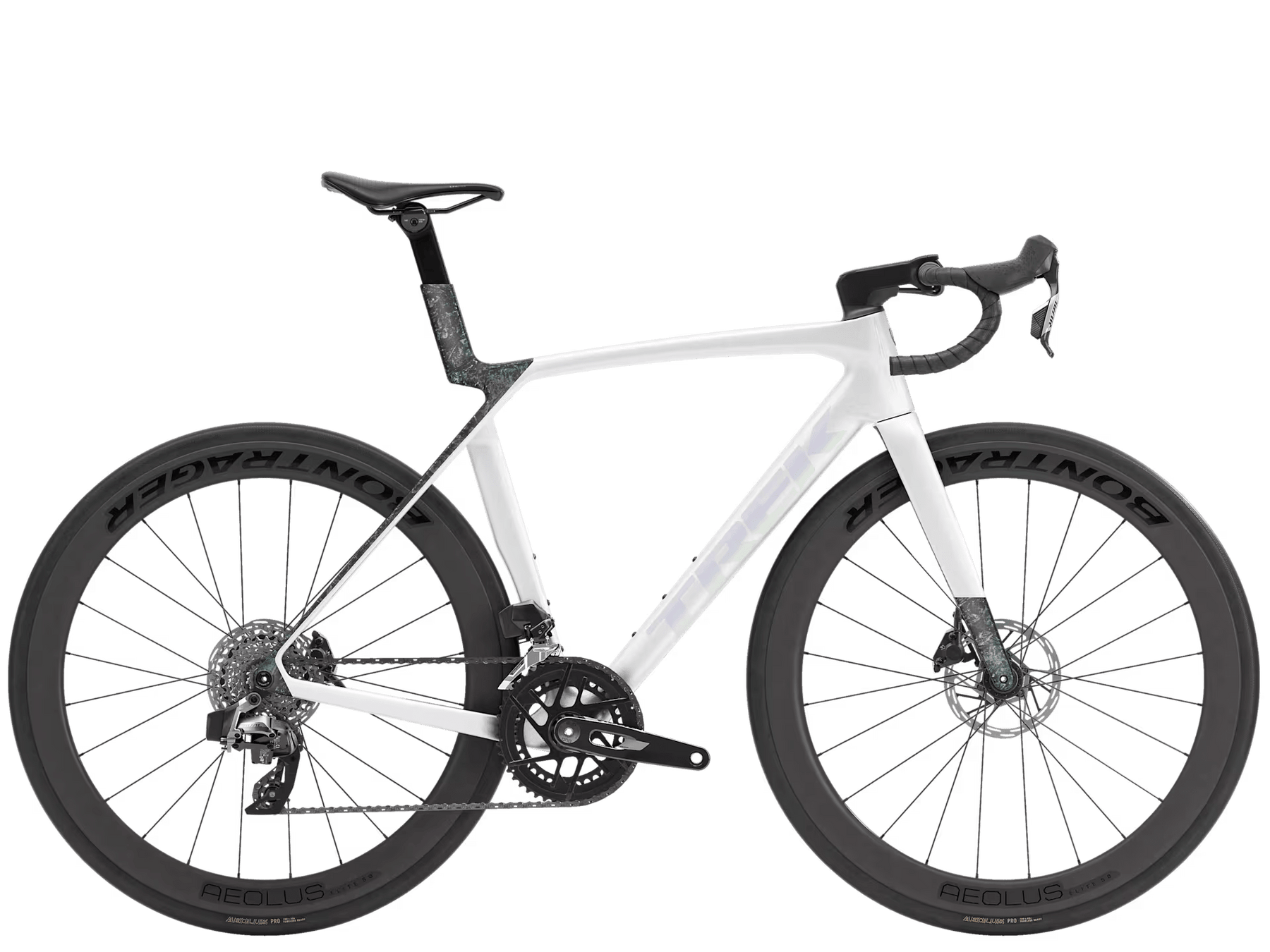

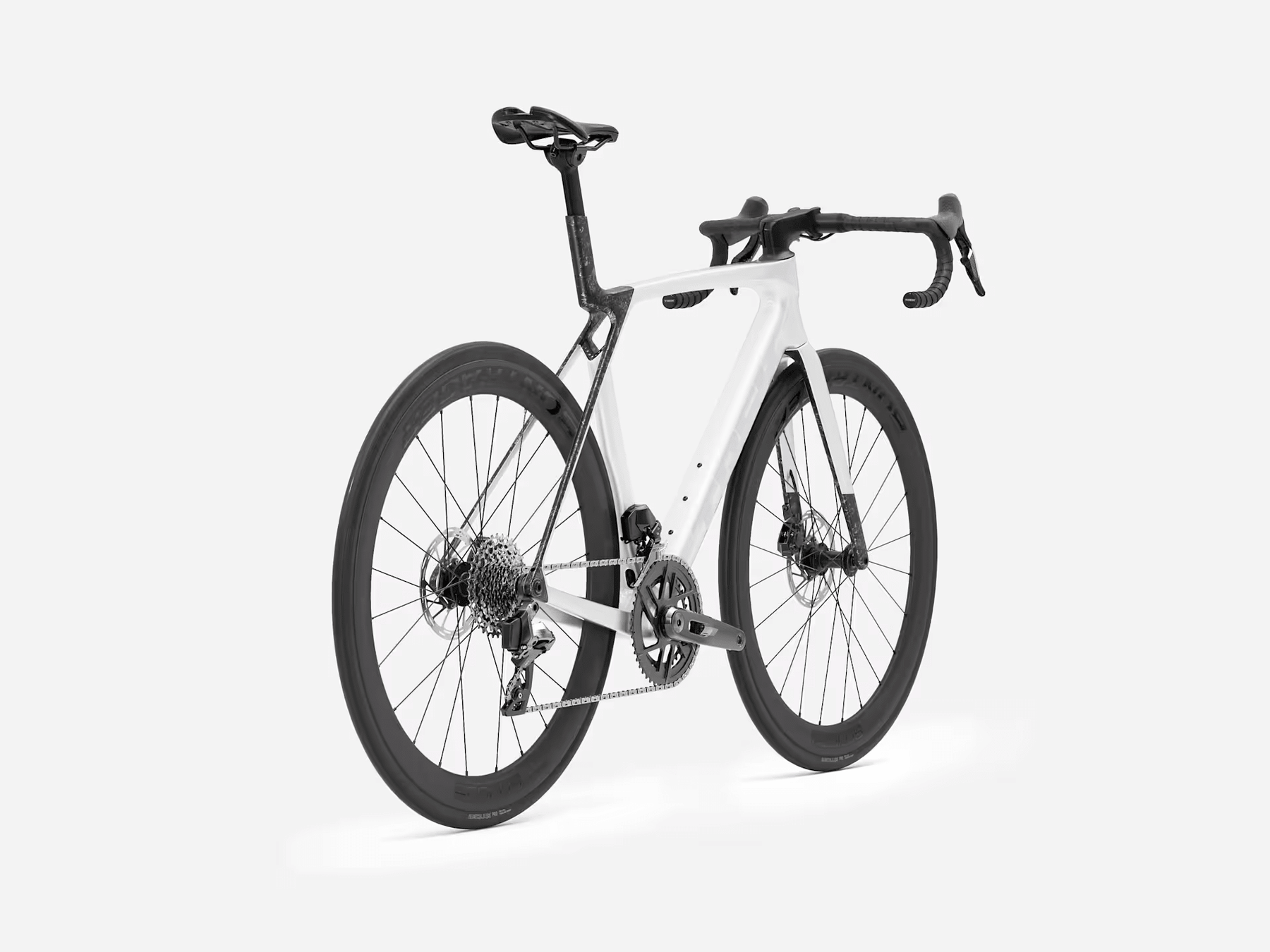

Madone SL 6 AXS Gen 8

• Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimize aerodynamics around the whole bike
• A more economical 500 Series OCLV Carbon frame and new tube shaping shave weight where it matters most to help you fly up climbs
• Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents
• You get lightning-fast shifts that stay crisp and clean thanks to SRAM Rival AXS E1 electronic groupset

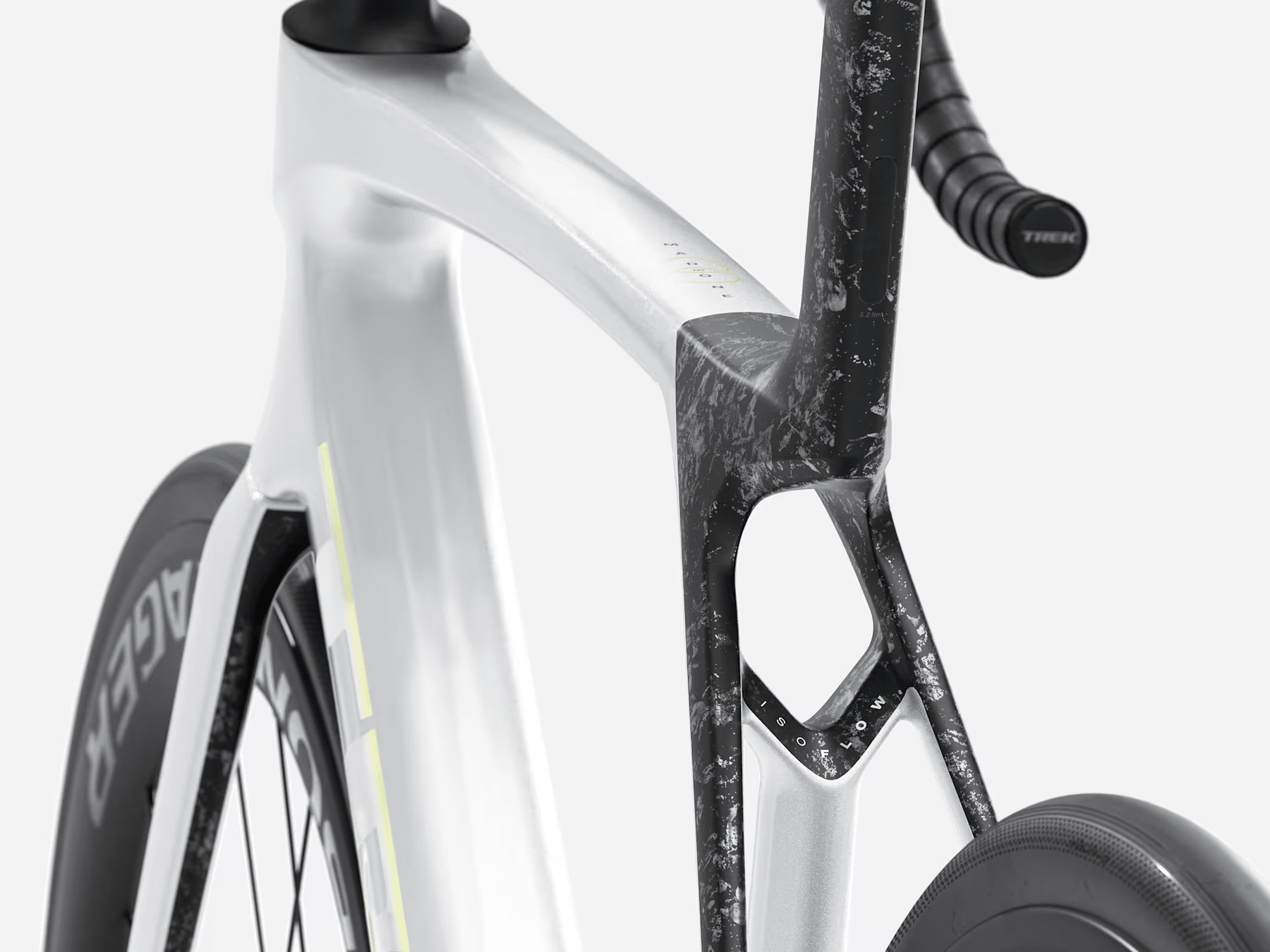

• Lightweight, race-focused IsoFlow comfort tech helps you ride stronger longer without sacrificing weight or aerodynamics
• This bike comes set up tubeless — a first in Trek performance road history

Frameset

• Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
• Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight

• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system

• Battery: SRAM eTap battery pack (with charger)

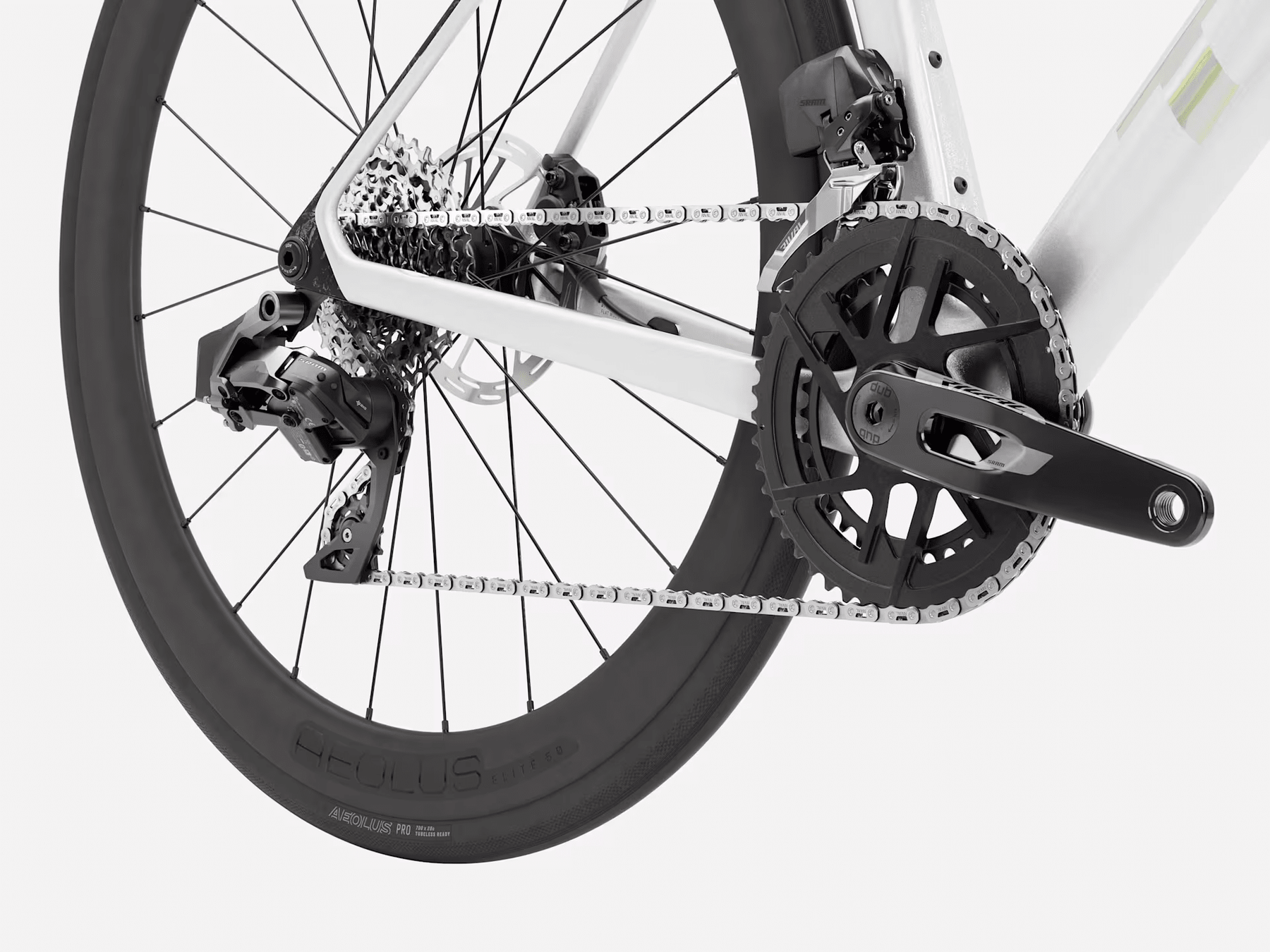

Drivetrain

• Shifter: SRAM Rival AXS, 12 speed
• Front derailleur: SRAM Rival AXS, braze-on
• Rear derailleur: SRAM Rival AXS, 36T max cog

• *Crank

1. Size: XS, S - SRAM Rival AXS, 48/35, DUB, 165mm length
2. Size: M, ML - SRAM Rival AXS, 48/35, DUB, 170mm length
3. Size: L, XL - SRAM Rival AXS, 48/35, DUB, 172.5mm length

• Bottom bracket: SRAM DUB, T47 threaded, internal bearing
• Cassette: SRAM XG-1250, 10-36, 12 speed
• Chain: SRAM Rival E1, 12/13 speed
• Max chainring size: 1x: 54T, 2x: 56/43

Wheels

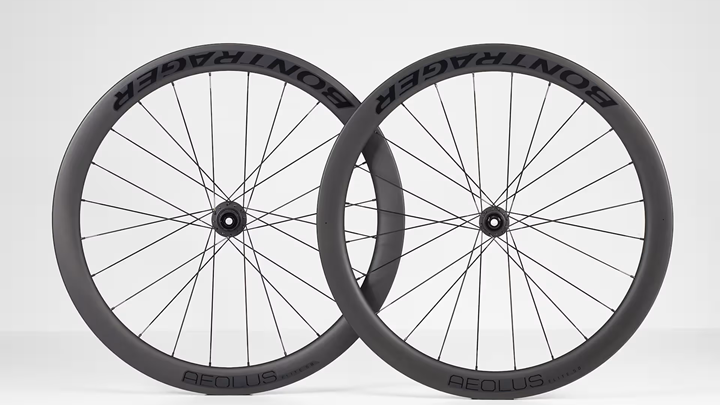

• Wheel front: Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
• Wheel rear: Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth, Sram XDR freehub, 142x12mm thru axle
• Skewer front: Bontrager Switch chamfered thru axle, removable lever
• Skewer rear: Bontrager Switch chamfered thru axle, removable lever
• Tire: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120tpi, 700x28mm
• Tire part: Bontrager TLR sealant, 180 ml/6 oz
• Rim strip: Bontrager TLR
• Max tire size: 32mm (as measured, see manual for details)

Components

• Saddle: Bontrager Aeolus Elite, austenite rails, 145mm width
• Seatpost: Madone aero carbon seatpost, 0mm offset, short length

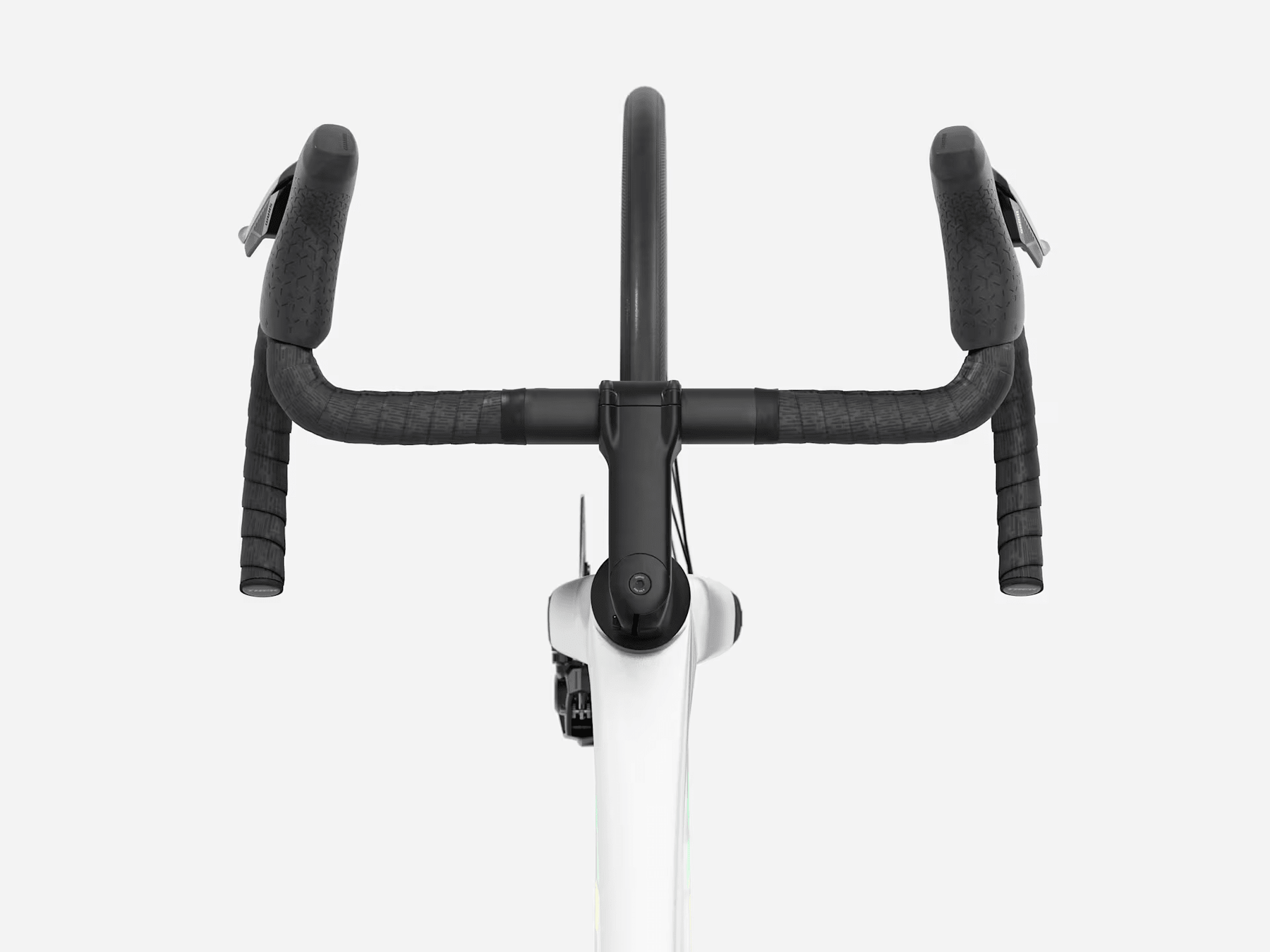

• *Handlebar

1. Size: XS - Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
2. Size: S, M - Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
3. Size: ML, L - Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
4. Size: XL - Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width

• Handlebar tape: Trek EcoTack

• *Stem

1. Size: XS - Trek RCS Pro, -7 degree, 80mm length
2. Size: S, M - Trek RCS Pro, -7 degree, 90mm length
3. Size: ML, L - Trek RCS Pro, -7 degree, 100mm length
4. Size: XL - Trek RCS Pro, -7 degree, 110mm length

• Brake rotor: SRAM Paceline, rounded, centerlock, 160mm
• Rotor size: Max brake rotor sizes: 180mm front, 160mm rear

 *Subject to change without notice
