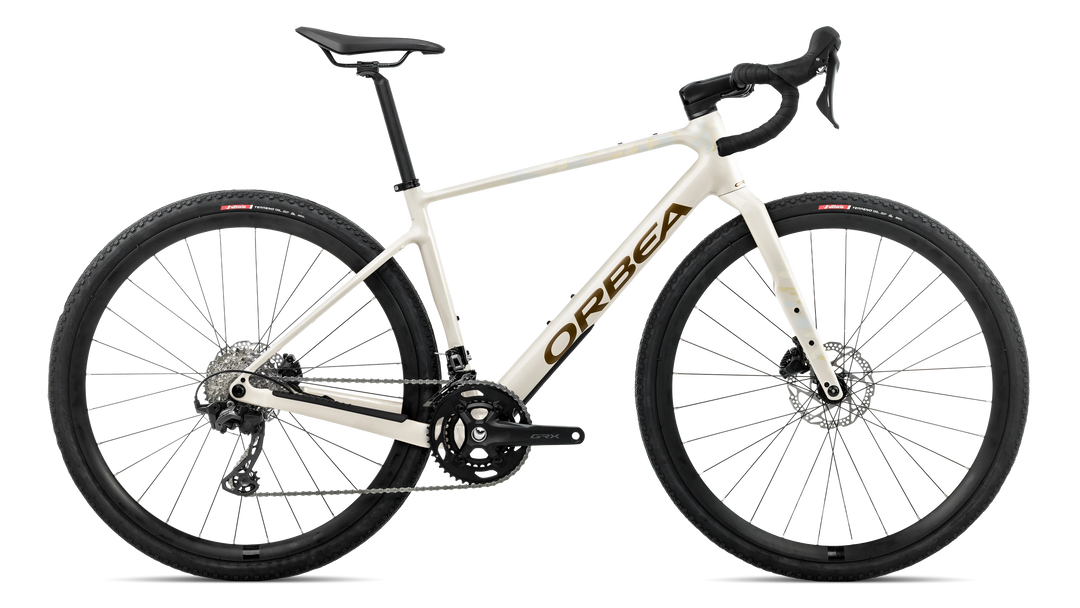

Terra H30
Orbea

Terra H30

UPC: 8434446289668
Buy a Bike - Save 15% off Regular Price Cycling Accessories, Apparel, and Gear!
Colour — Ivory White/Metal Olive Green
Size
Size chart
Price
Save
/

Pairs well with
Frame:
Orbea Terra Hydro disc, aluminum
Fork:
Orbea Terra ICR, full carbon
Tires:
Vittoria Terreno T50 Gravel Sport 700x45c
Wheels:
Alloy, Tubeless, 700c, 21c
Rear Derailleur:
Shimano GRX RX820
Brakes:
Shimano RX410 Hydraulic Disc
Crankset:
2x - Shimano GRX RX610 30x46t
Cassette:
Shimano HG710 11-36t 12-Speed
Stem/Handlebar:
OC Road Performance RP23 / OC Gravel GR31-R
Tire Clearance:
700c x 50
Sizes:
XS, SM, MD, LG,XL, XXL
Weight (lbs/kg):
n/a
  • Price match guarantee
  • Locally owned
  • Secure payments

Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike.

Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight.

There is a wide world out there and Terra is ready to explore it with you.

  • Hydroformed Aluminum Frame: We manipulate the shapes and wall-thickness of our aluminum tubing to increase strength and resistance to unwanted flex. Many of the tubes are butted to save weight in the middle of the tubes, away from the stress of the joints and the weld zones. Using aluminum technologies as advanced as our carbon manufacturing ensures our aluminum bikes are never second-best.

  • OC Gravel Handlebar: This simple and elegant ergonomic solution elevates the tops and drops of the traditional road bar, so your neck and shoulders can relax a bit more, focusing on a better ride ahead. Increase endurance with a position that enhances comfort. Flared drop bars give more control when descending as well as more leverage for those difficult climbs

  • Terra Carbon Fork: The Terra fork uses a robust crown, rounded blade profile and longer fork legs plus our best OMR carbon monocoque construction to offer the best combination of comfort, tire clearance and torsional stiffness

Frameset

  • Frame: Orbea Terra Hydro disc, hydroformed triple butted aluminum, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube
  • Fork: Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 2x100mm, thread M12x2 P1,MMS multi mount system, fender ready
  • Headset: FSA 1-1/2" Integrated Aluminum Cup

Drivetrain

  • Crankset: Shimano GRX RX610 30x46t
  • Shifters: Shimano GRX RX610
  • Cassette: Shimano HG710 11-346 12-Speed
  • Rear derailleur: Shimano GRX RX820
  • Front derailleur: Shimano GRX RX820
  • Chain: Shimano M6100

Cockpit

  • Handlebar: OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
  • Stem: OC Road Performance RP23, -5º

Brakes

  • Brakes: Shimano RX410 Hydraulic Disc

Wheels

  • Wheels: Alloy, Tubeless, 700c, 21c
  • Tires: Vittoria Terreno T50 mixed Gravel Sport Rigid 700x45c
  • Front Wheel Axle: Orbea Thru Axle 12x100mm M12x2 P1 Solid
  • Rear Wheel Axle: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

Components

  • Seatpost: SP 0.2 Carbon, 27.2mm, Setback 20
  • Saddle: Fizik Terra Argo X7 Aluminium Rail 140mm

Accessories

  • Mudguard: N/A
  • Handlebar Tape: Orbea Eva

* Subject to change without notice.
