UPC: 196625131554
Colour Satin Brushed Aluminum/Cast Blue
Size
Size chart
 Size  Rider Height
 XS - S1

150 - 160 cm

4'11" - 5'3"

 SM - S2

157 - 173 cm

5'2" - 5'8"

 MD - S3

165 - 180 cm

5'5" - 5'11"

 LG - S4

173 - 188 cm

5'8" - 6'2"

 XL - S5

178 - 193 cm

5'10" - 6'4"

 XXL - S6

188 - 203 cm

6'2" - 6'8"


Price
Regular price $5,899.99
Regular price $6,999.95 Sale price $5,899.99
Save 16%
/

Pairs well with

Frame:
M5 Alloy chassis and rear-end
Fork:
FOX FLOAT 38 Factory
Rear Suspension:
FOX DHX Factory
Tires:
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear: Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 2Bliss Ready, 27.5x2.3"
Wheels:
Roval Traverse
Rear Derailleur:
Shimano SLX, M7100, SGS, 12-speed
Brakes:
TRP DH-R EVO, 4-piston caliper
Seatpost:
PNW Loam OE Dropper
Stem / Handlebar:
Deity, 35mm clamp, 35mm length / Deity, Racepoint, 5-degree upsweep, 9-degree backsweep, 810 width, S2: 25mm rise: S3-S6: 38mm rise
Weight (lbs/kg):
37.26 lbs / 16.90 kg (Size S4)
Sizes:
S2, S3, S4, S5, S6
  • Price match guarantee
  • Locally owned
  • Secure payments

Stumpjumper 15 Alloy is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you?  Check, check, check.

KINEMATICS PERFECTED: As the quintessential trail bike, Stumpjumper 15 Alloy balances efficiency and optimal bump force management. For the anti-squat on Stumpjumper 15 Alloy, Specialized struck a balance between the previous Stumpjumper and Stumpjumper EVO, as both had excellent pedaling characteristics.

HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough.

RIDE YOUR WAY: The Stumpjumper 15 Alloy seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style and any terrain. The head angle and bottom bracket can be fine-tuned for stability or clearance.

FORM FOLLOWS FUN: We can make a frame as stiff as we want, but there’s such a thing as too stiff. To be one with the bike requires engineered compliance in the frame. Specialized engineered the M5 Alloy chassis—front end, rear end, and the link between them—as a single unit that hits the stiffness target we established for trail riding.

WHEEL SIZE: All coil-sprung models come with mixed wheels.

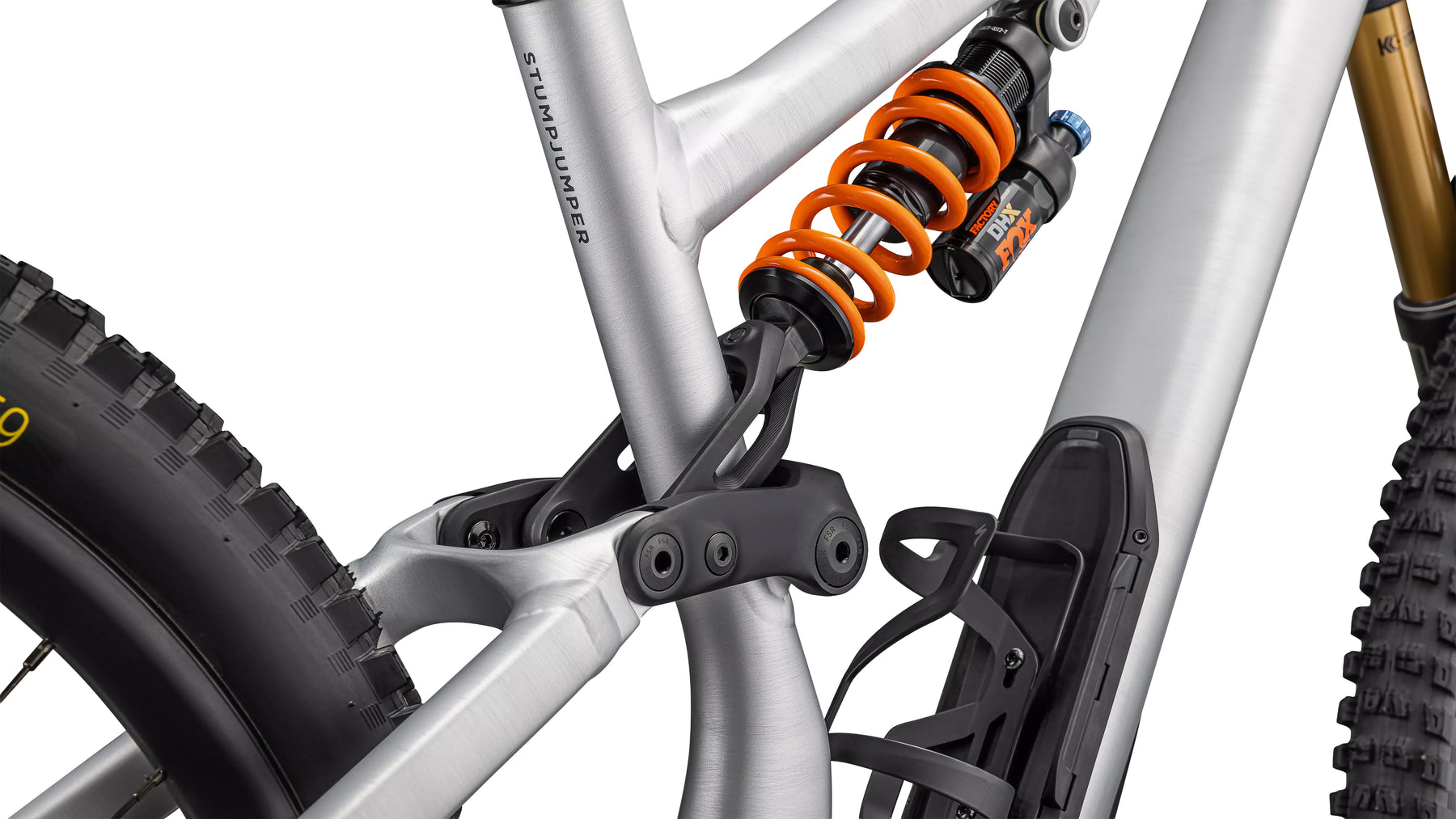

WHEEL CHOICE: With aftermarket link shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected.

CARRY IT ALL: SWAT on Stumpjumper 15 elevates downtube storage, an innovation we pioneered.

MORE RELENTLESS THAN YOU: Specialized's full-suspension bikes are built to be relentless, designed to endure years of hard riding, and backed by the best support and programs to keep you on the trail. Their unbeatable lifetime, no-questions-asked replacement suspension pivot bearings to the original owner is just one way they've got you covered.

  • All-new M5 alloy frame with SWAT door integration
  • Roval Traverse alloy wheels with DT Swiss hubs
  • Ride Dynamics Tuned FOX DHX Factory coil shock
  • Beefy FOX FLOAT 38 Factory fork with GRIP X2 damper
  • Performance-focused and durable Shimano SLX drivetrain
  • Big stopping power from TRP DH-R EVO 4-piston brakes
  • Adjustable travel PNW LOAM dropper post
  • Lifetime replacement of suspension pivot bearings to the original owner

Frameset

Frame: M5 Alloy chassis and rear-end, Trail Geometry, SWAT™
Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel

Seat Binder: Alloy, 38.6mm

Suspension

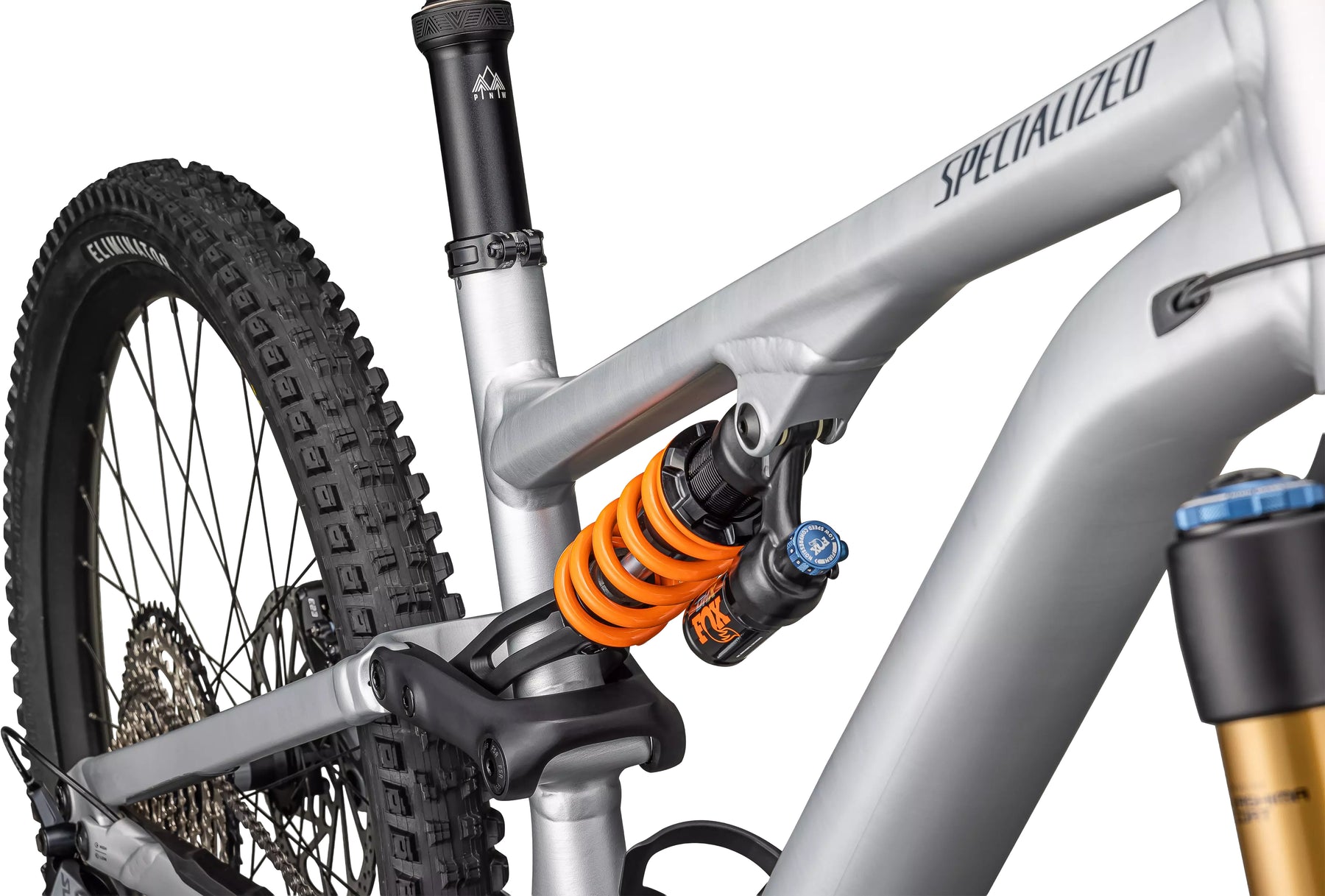

Rear Shock: FOX DHX Factory, Ride Dynamics Trail Tune,
210x55mm, S2: 400lbs, S3: 450lbs, S4: 500bs, S5: 550lbs, S6: 600lbs

Fork: FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS
rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel

Brakes

Front Brake: TRP DH-R EVO, 4-piston caliper, hydraulic disc,
220mm

Rear Brake: TRP DH-R EVO, 4-piston caliper, hydraulic disc,
203mm

Drivetrain

Chain: Shimano SLX, M7100, 12-speed

Bottom Bracket: Shimano, BB-MT801, Threaded

Crankset: Shimano SLX, M7120, 32T ring, 55mm chainline,
S2-S3:165mm, S4-S6: 170mm

Rear Derailleur: Shimano SLX, M7100, SGS, 12-speed

Cassette: Shimano SLX, CS-M7100, 12-speed, 10-51t

Shift Levers: Shimano SLX, M7100, 12spd

Wheels & tires

Rims: Roval Traverse, hookless alloy, 30mm inner width,
tubeless ready, Front: 29, Rear: 27.5

Front Hub: DT Swiss 370, 15x110mm, 28h

Front Tire: Butcher, GRID TRAIL casing, GRIPTON® T9
compound, 2Bliss Ready, 29x2.3"

Rear Hub: DT Swiss 370, 12x148mm, 32h

Rear Tire: Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7
compound, 2Bliss Ready, 27.5x2.3"

Spokes: Sapim Force

Inner Tubes: Standard, Presta valve

Cockpit

Saddle; Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm,
S3-S6: 143mm

Stem: Deity, 35mm clamp, 35mm length

Grips: Deity, Knuckleduster, Black

Handlebars: Deity, Racepoint, 5-degree upsweep, 9-degree
backsweep, 810 width, S2: 25mm rise: S3-S6: 38mm rise

SeatPost: PNW Loam OE Dropper, tool-less travel adjust,
Range lever, 34.9, S2: 150mm, S3: 170mm, S4-S6: 200mm

Accessories

SWAT: SWAT internal downtube storage

Product details

Product ID: 257786

Weight

Weight: 16.90 kg (37 lb, 4.1 oz)

Weight Size: S4



Unlock Your Ride with Tunable Geo

Stumpjumper 15 boasts the planet's most capable trail geometry. With six-way adjustability, tailor your ride to perfectly match your style and terrain. Explore Specialized's interactive Geo Finder to pinpoint your ideal setting.

Go To Geometry Finder

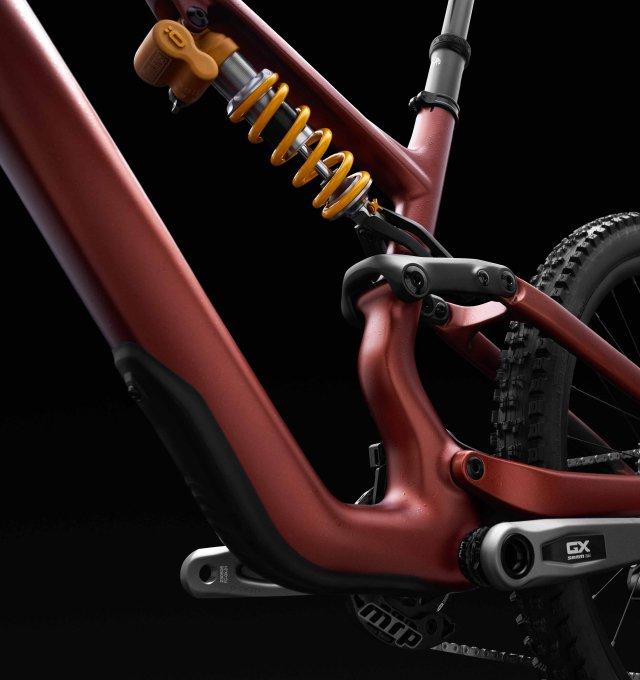

Form Follows Fun

We can make a frame as stiff as we want, but there's such a thing as too stiff. To be one with the bike requires engineered compliance in the frame. Specialized engineered the FACT 11M carbon and M5 Alloy chassis - front end, rear end, and the link between them - as a single unit that hits the stiffness target they established for trail riding.

Kinematics Perfected

As the quintessential trail bike, Stumpjumper 15 balances efficiency and optimal bump force management. For the anti-squat on Stumpjumper 15, Specialized struck a balance between the precious Stumpjumper and Stumpumper EVO, as both had excellent pedaling characteristics.
