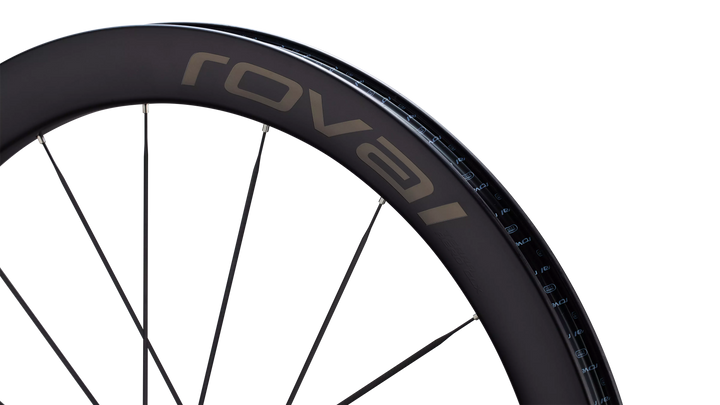

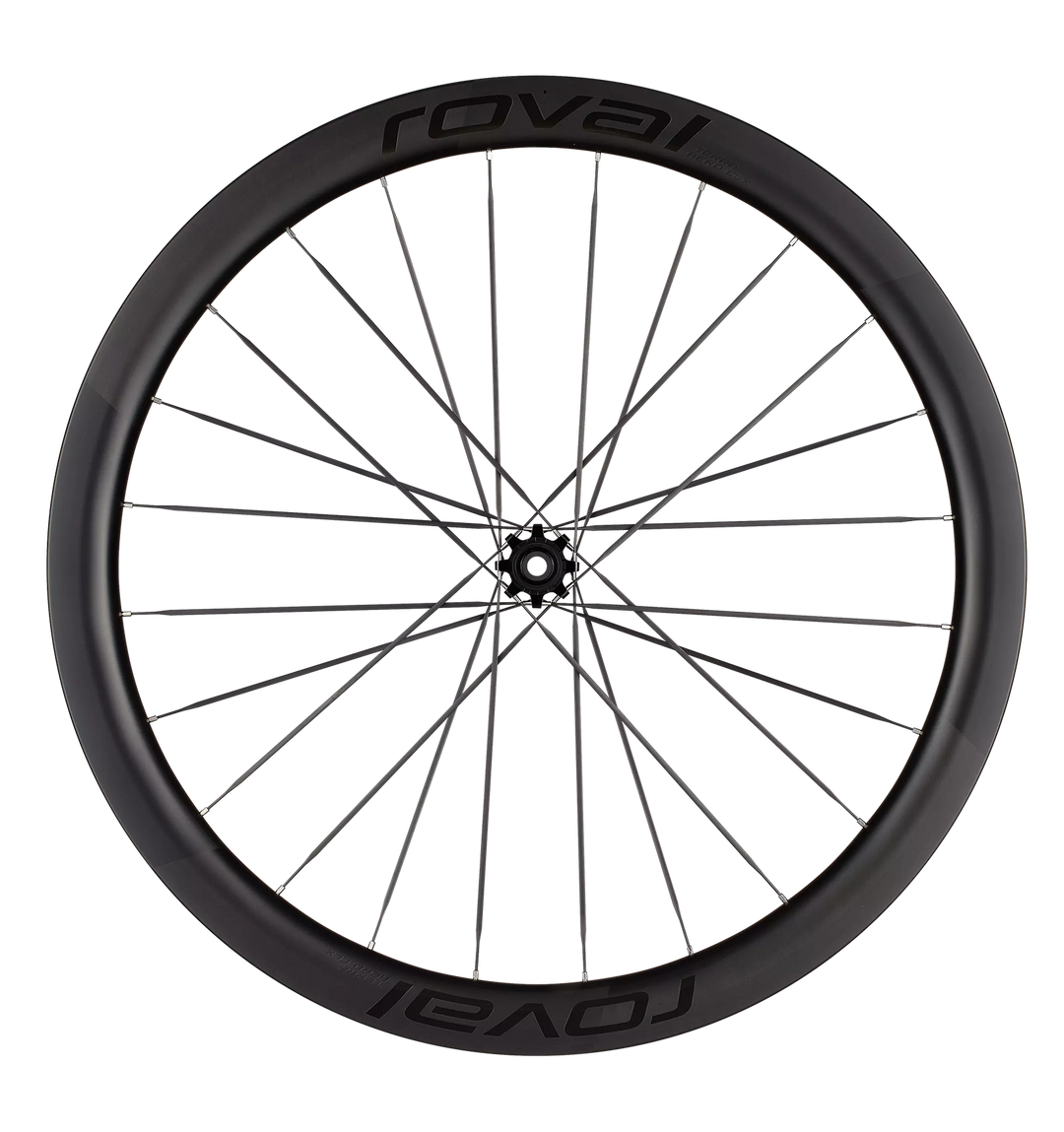

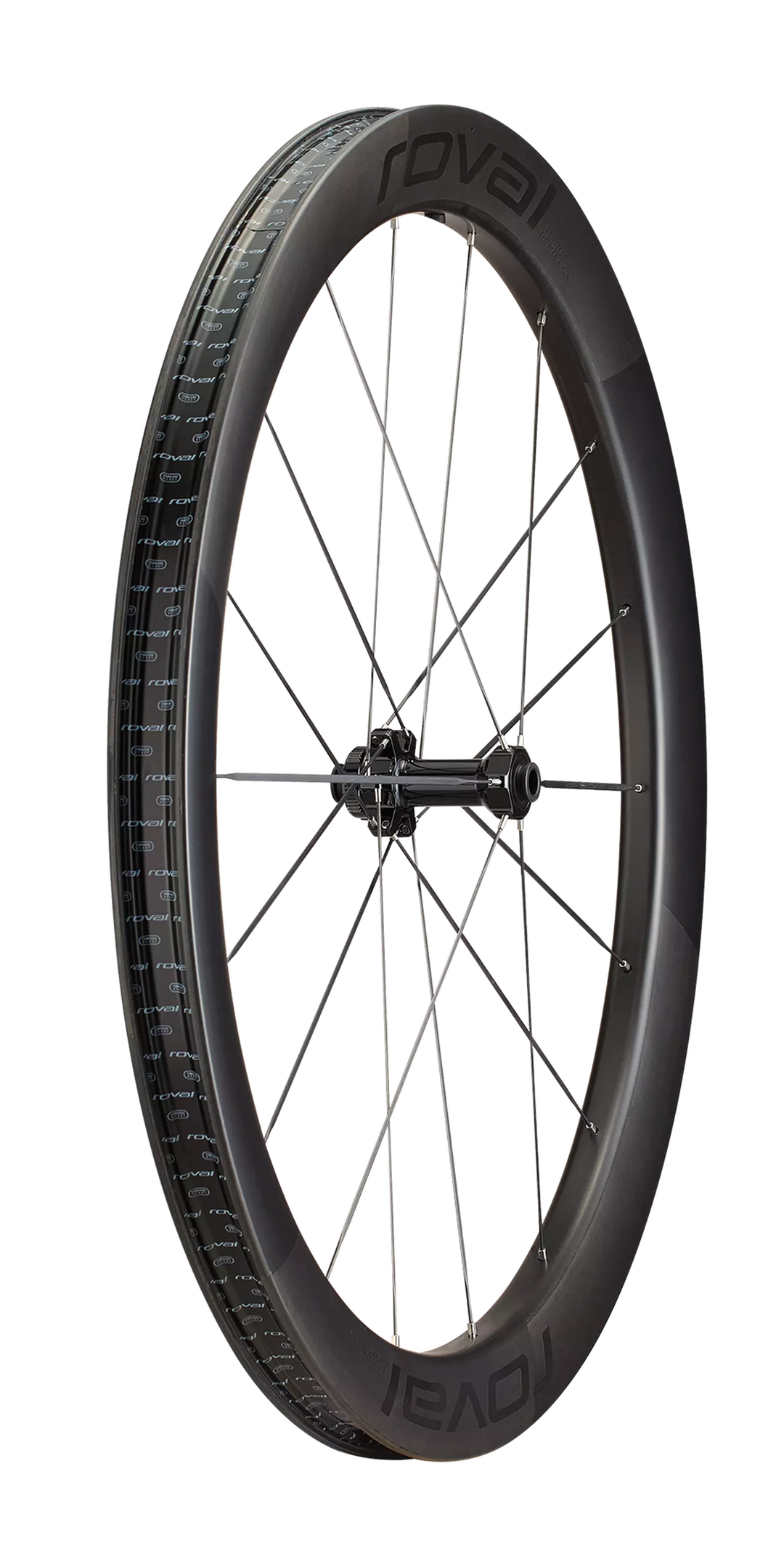

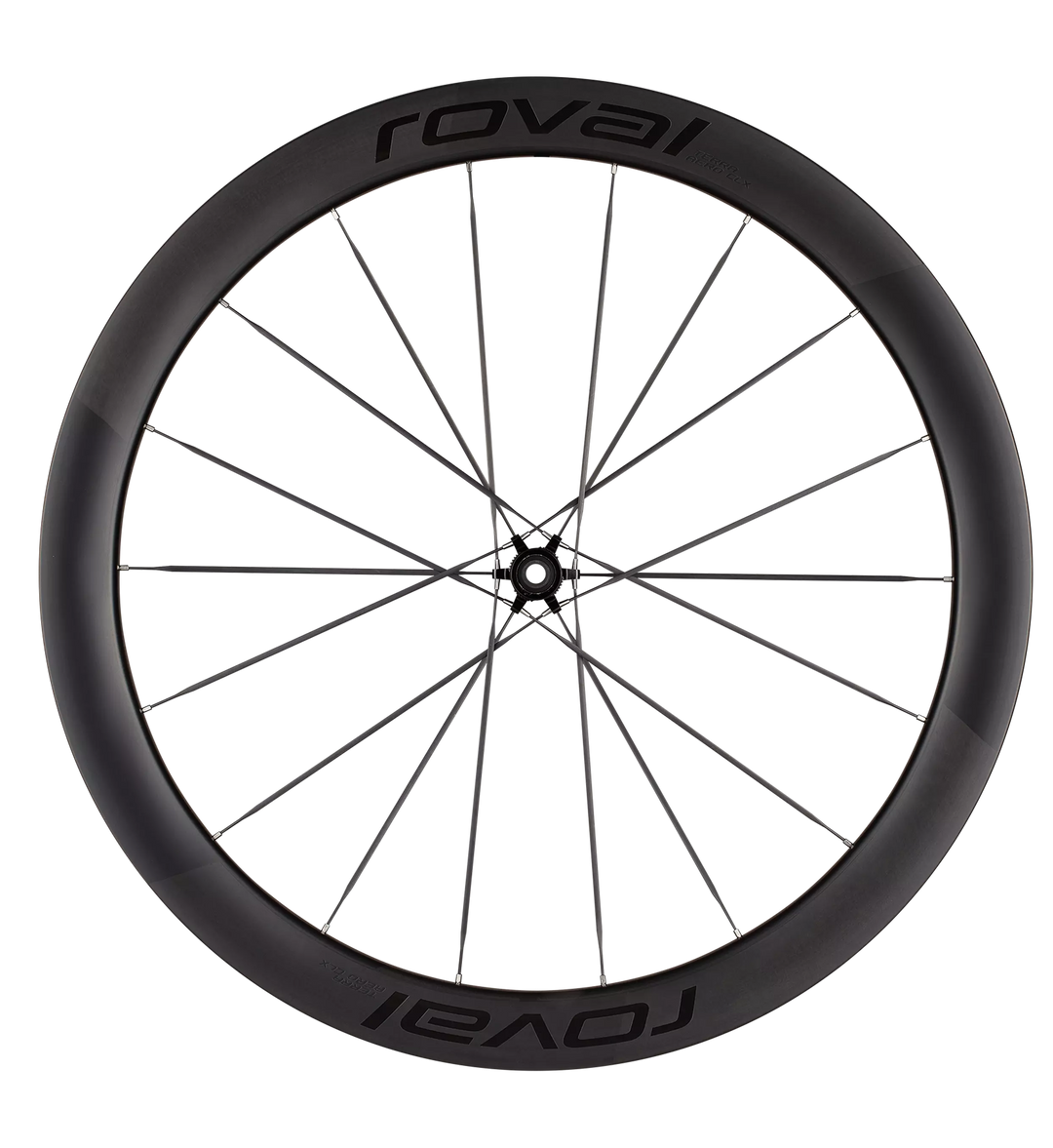

Roval Terra Aero CLX Carbon Wheel - 700c

• Weight: 1,340g with tape & valves

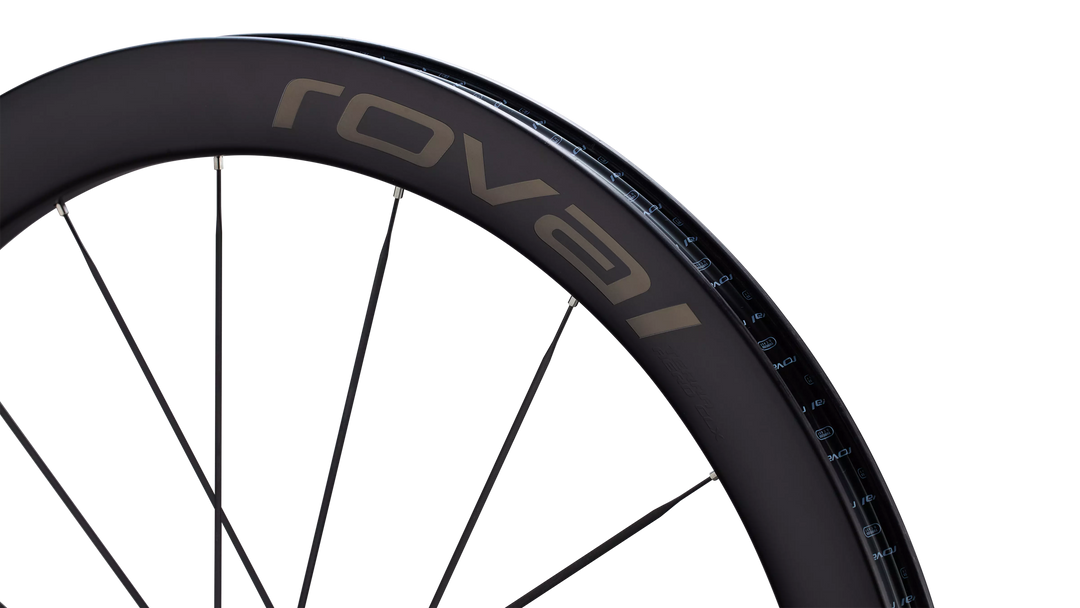

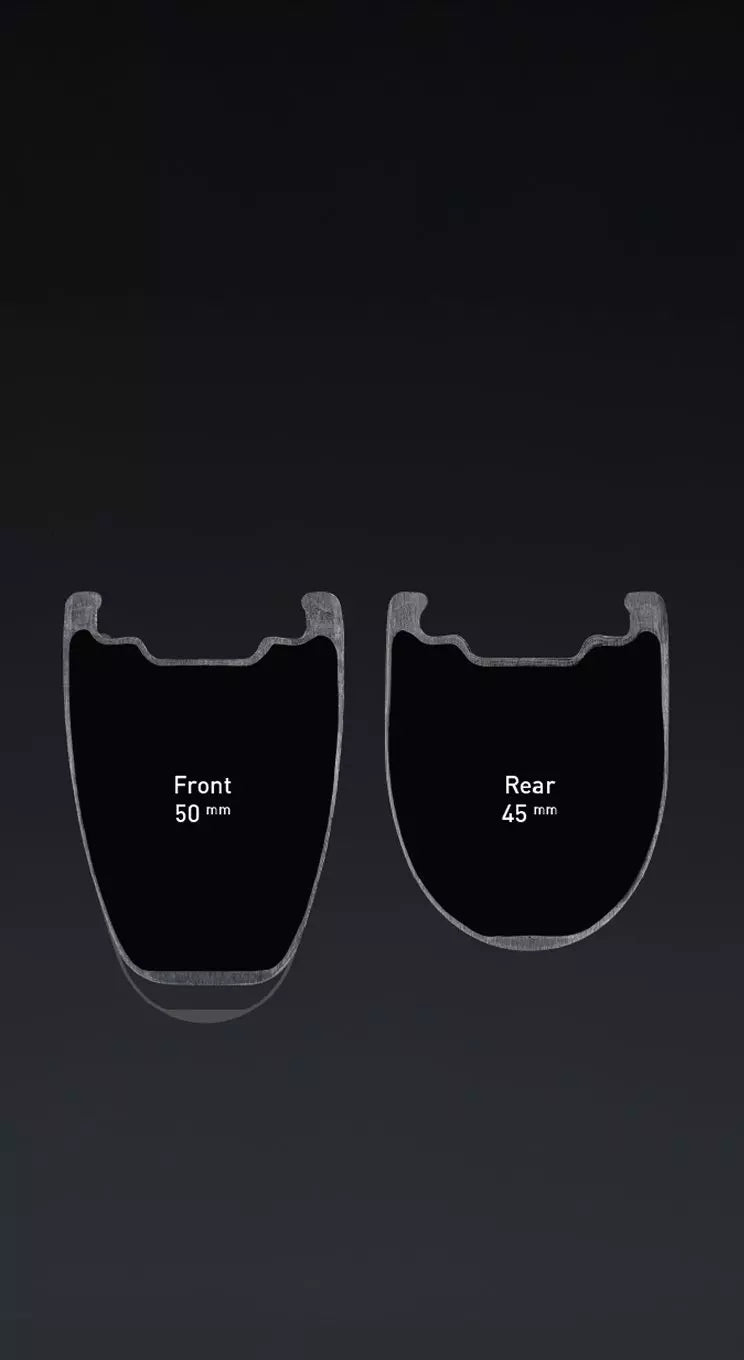

• Rim Depth & Width: 50mm (Front) / 45mm (Rear) external, 38.5mm internal width
• Hub & Engagement: DT Swiss 180 EXP internals, 36T
• Spokes: Roval Aero Composite Spokes by ARRIS

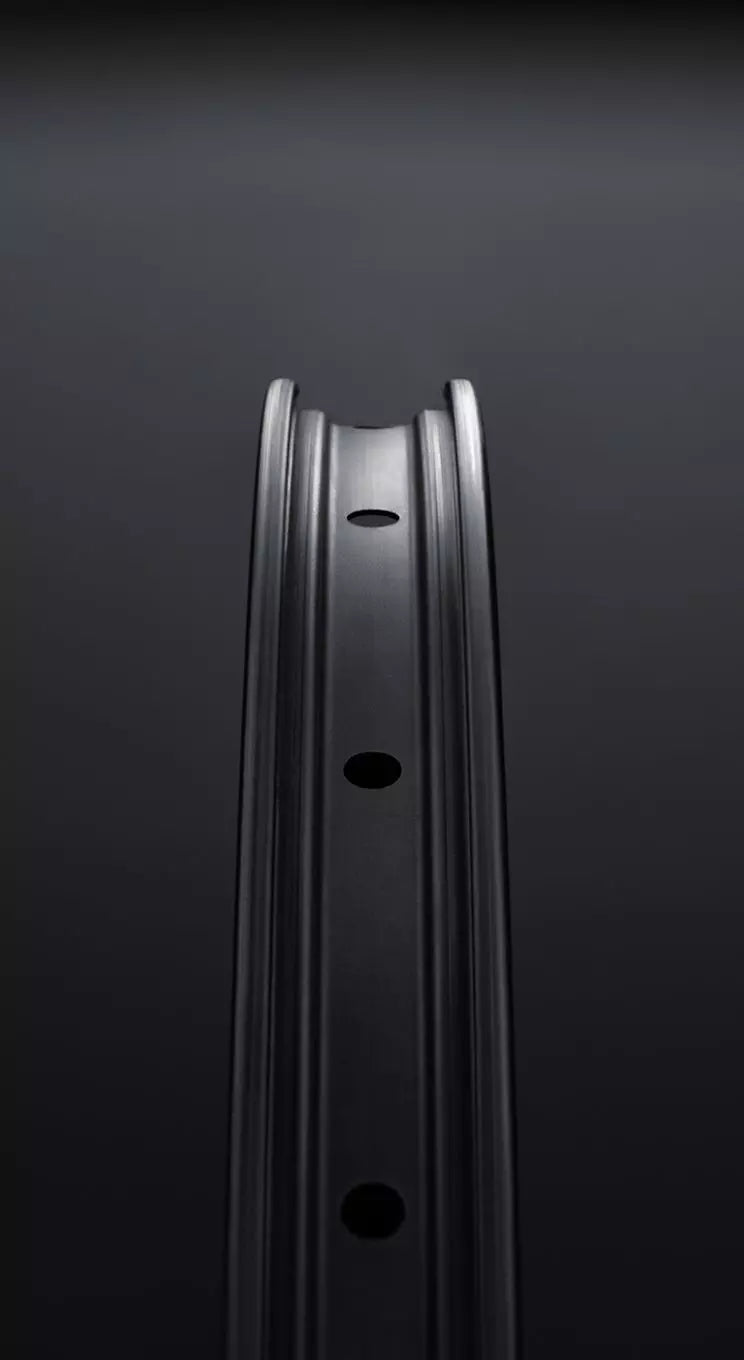

Rims

• Wheel Size / ETRTO: 622 × 27 (700c)
• Tubeless Compatibility: Yes
• Insert Compatibility: Yes
• Brake Compatibility: Disc (Centerlock)
• Rim Construction: Carbon Clincher Hooked
• Valve Stem Length: Roval Tubeless Valve, Alloy 70mm (Front) 60mm (Rear)
• Hole Count: Front - 18H, Rear: 24H

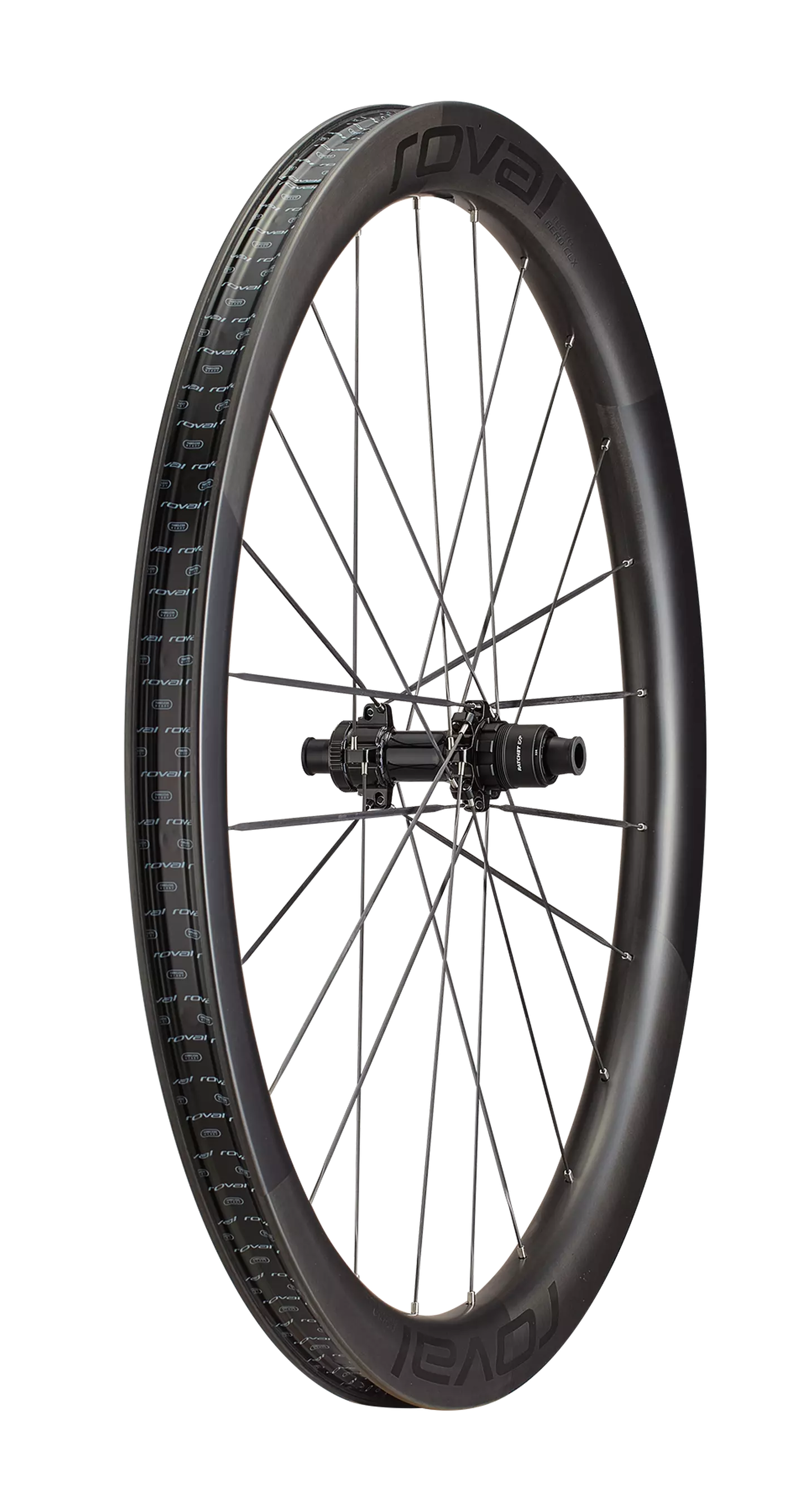

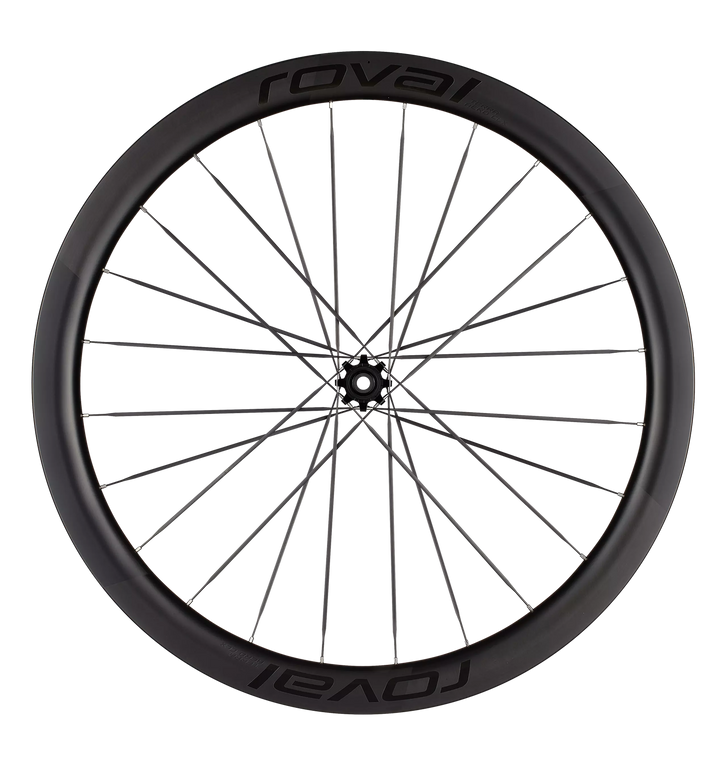

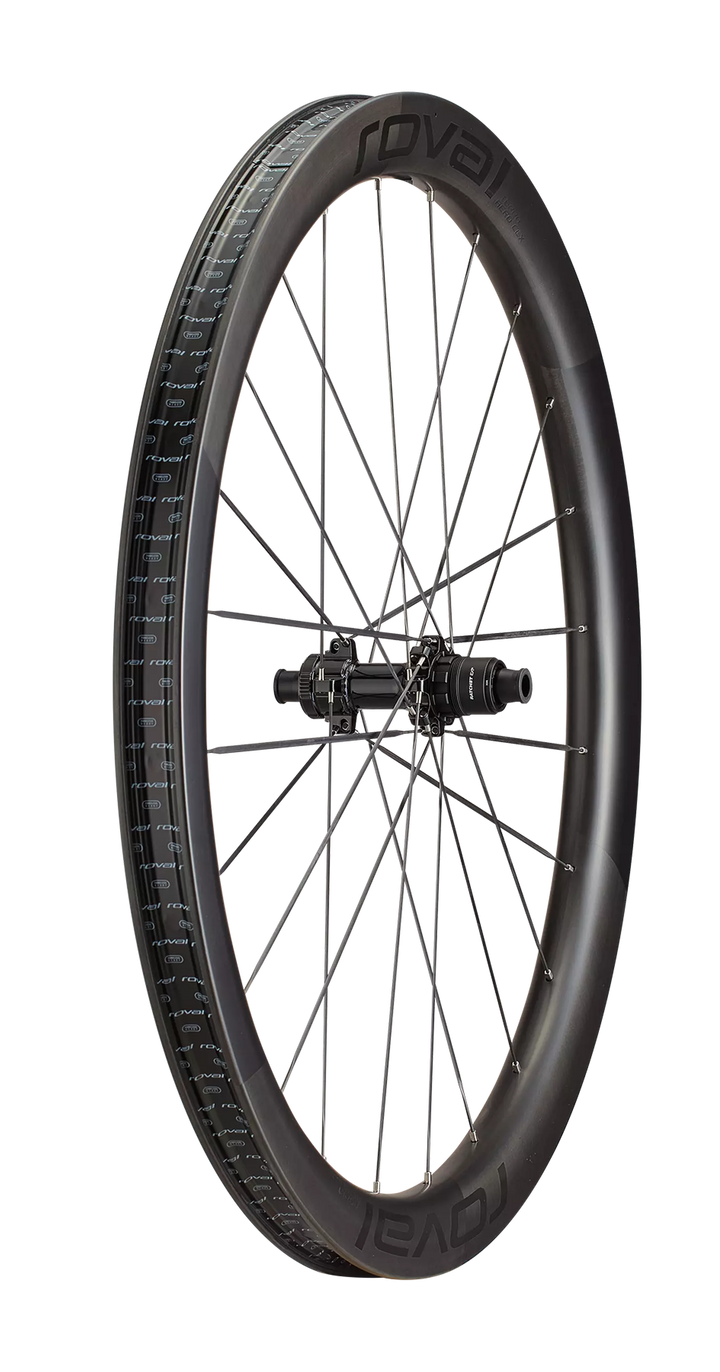

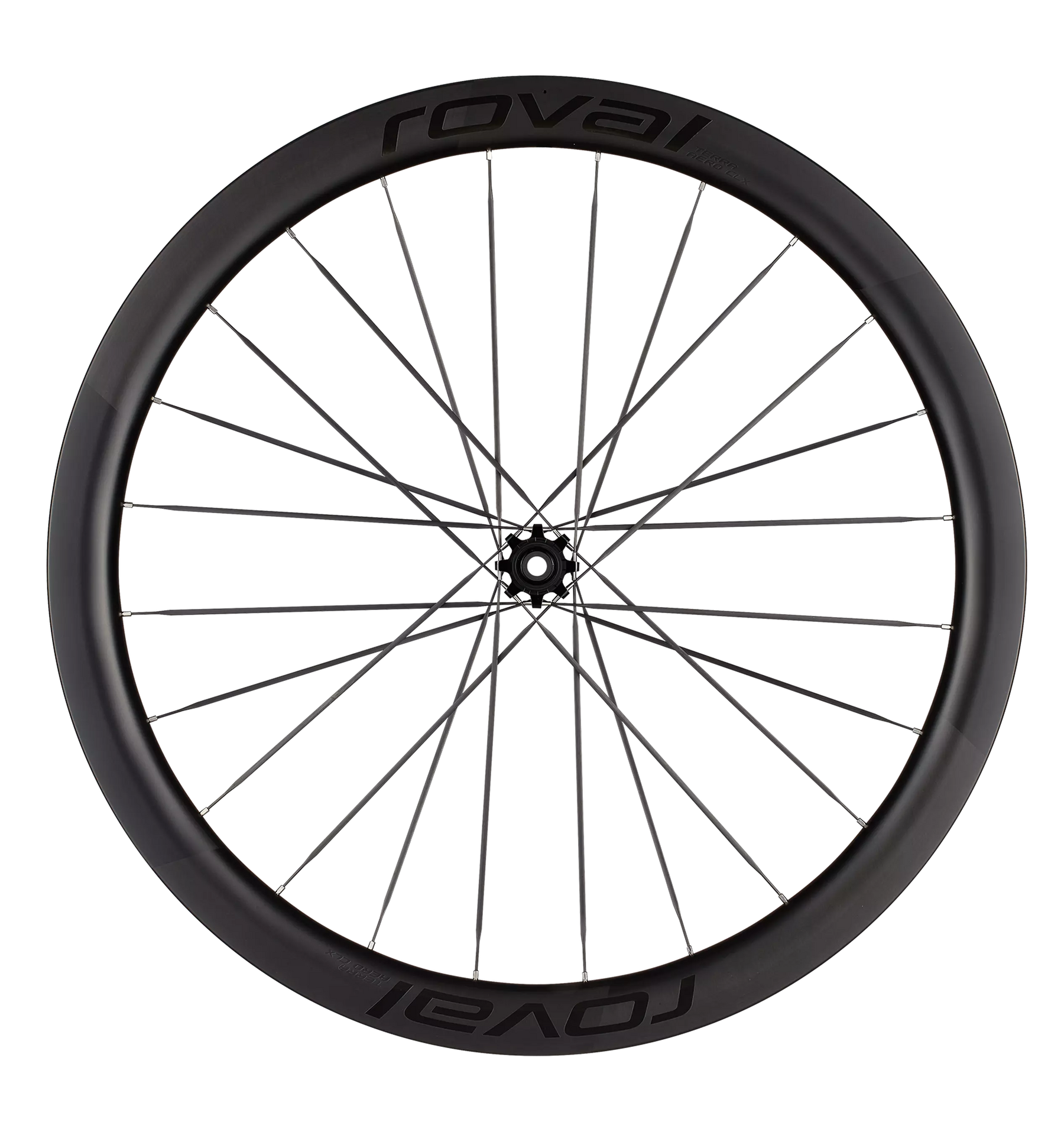

• Rear Rim: Terra Aero CLX Carbon Clincher Rear, 700c (CR2571)

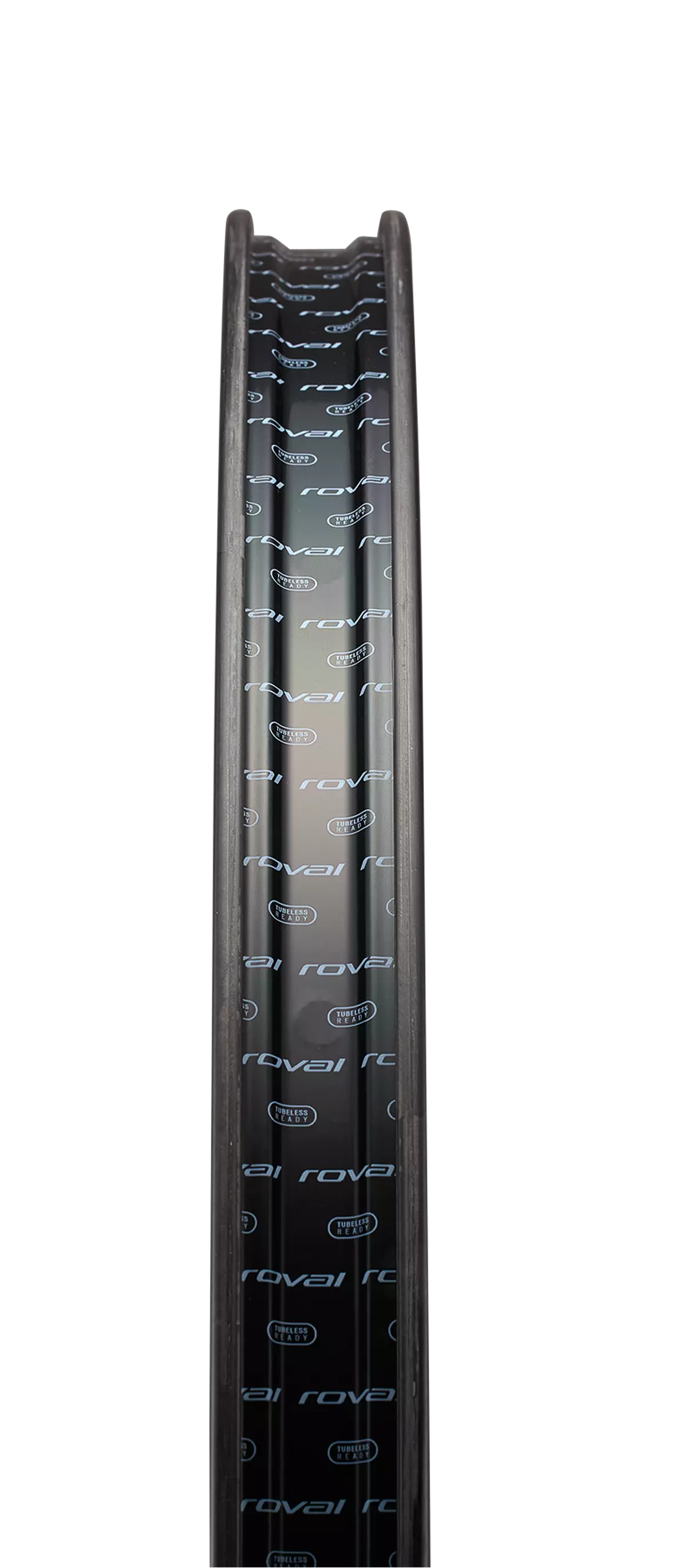

• Rear Rim Dimensions: Depth - 45mm, External Width (at widest point): 38.4mm, Internal Width: 27mm, Bead Hook Width: 5.38mm

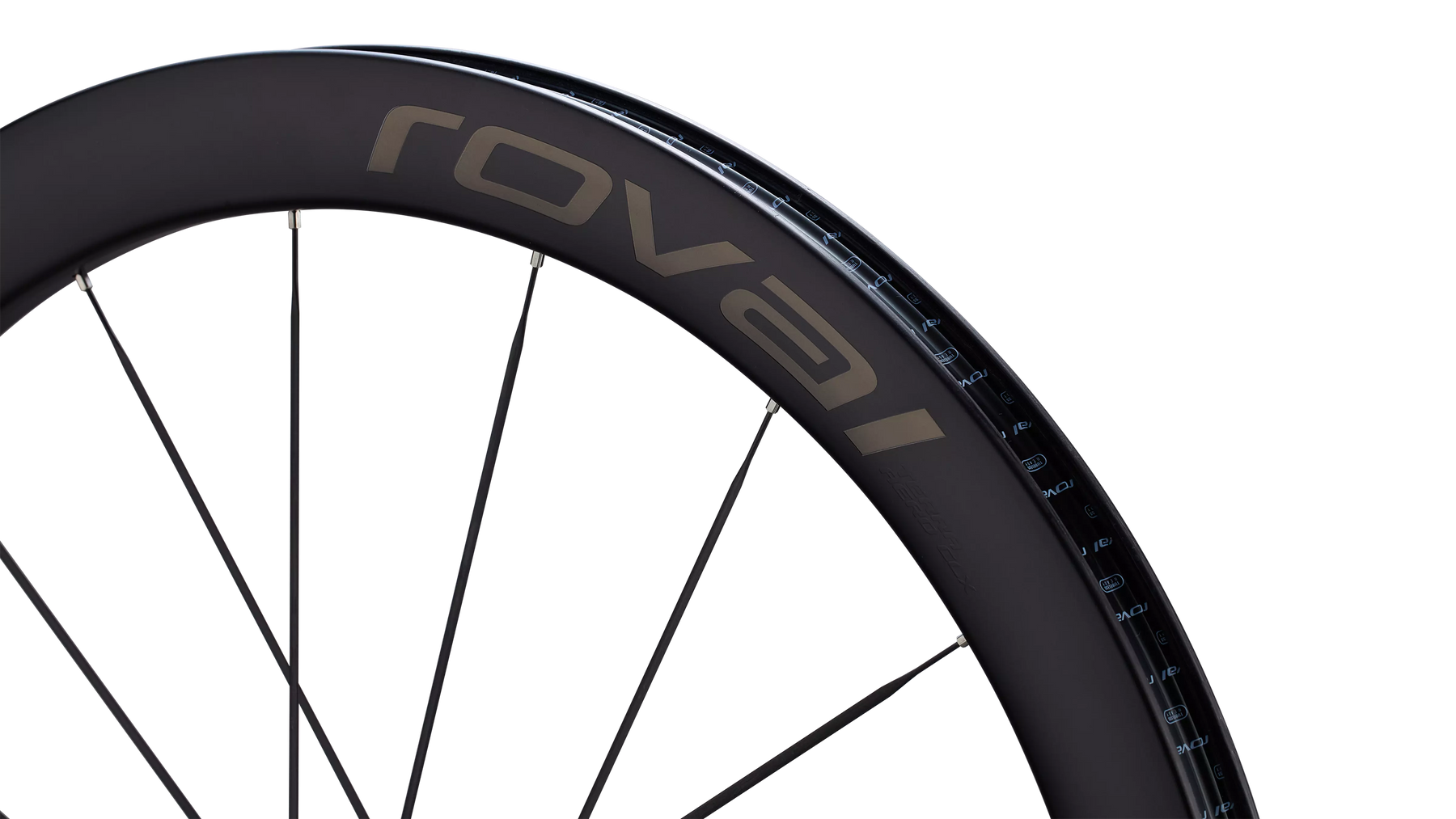

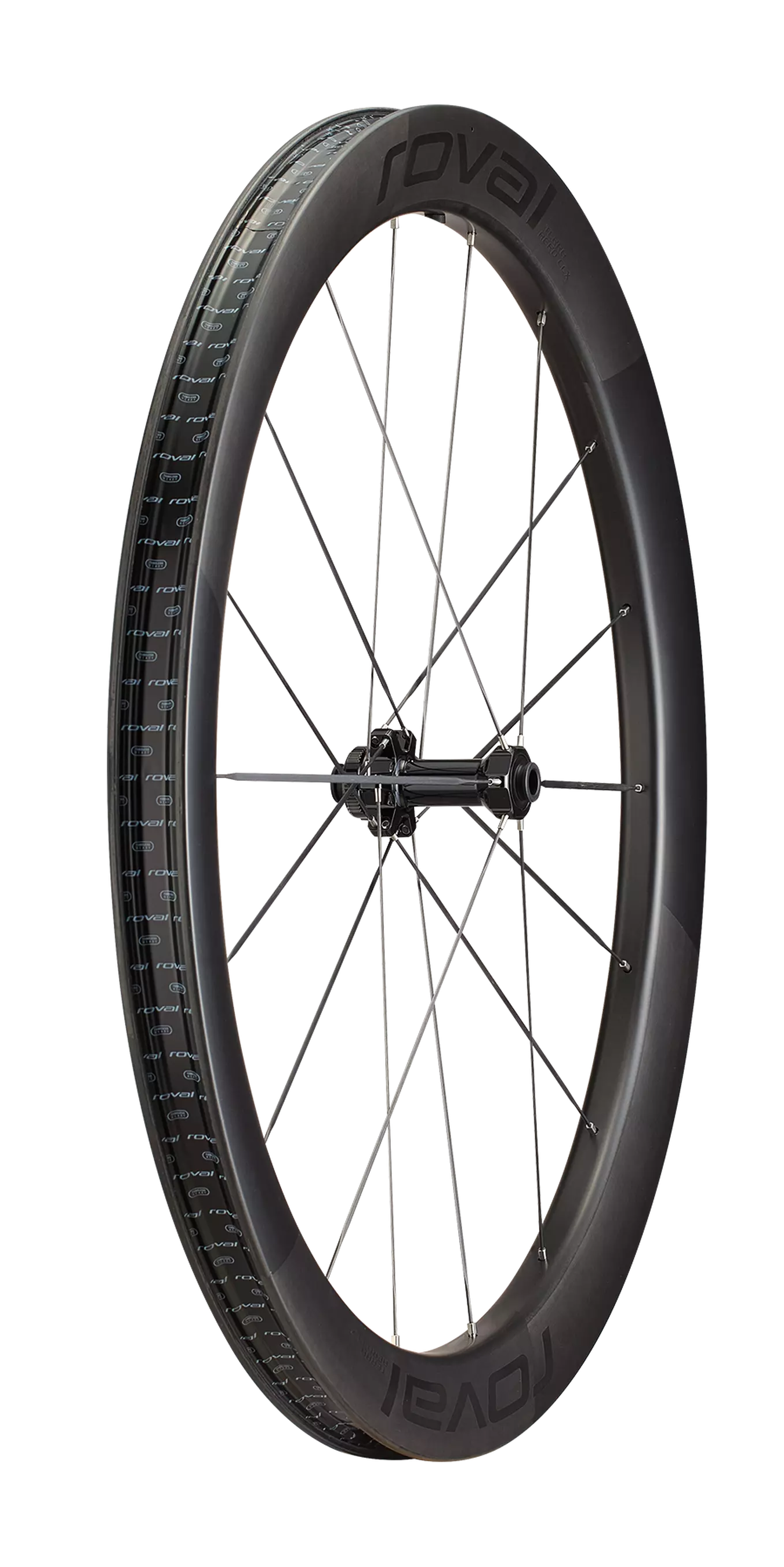

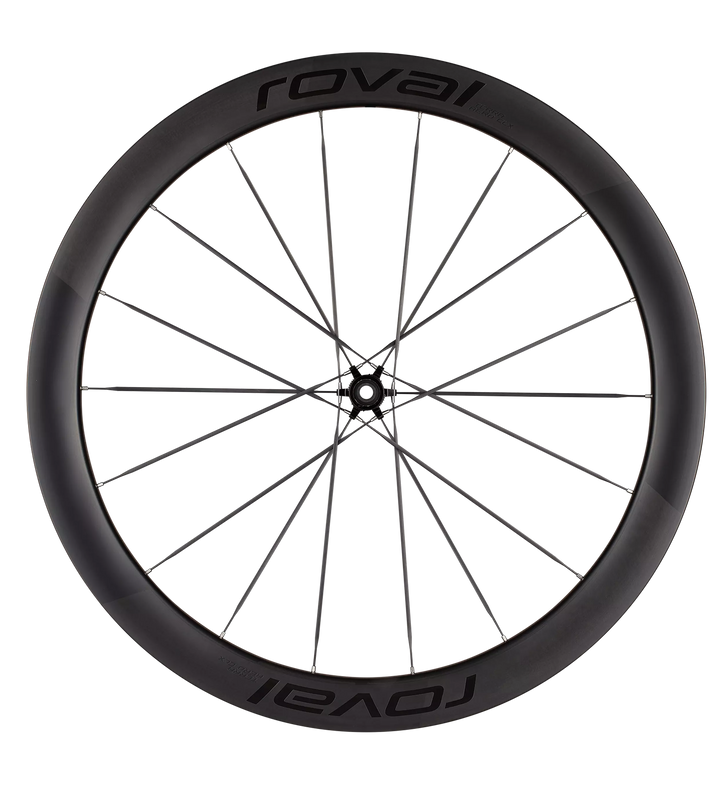

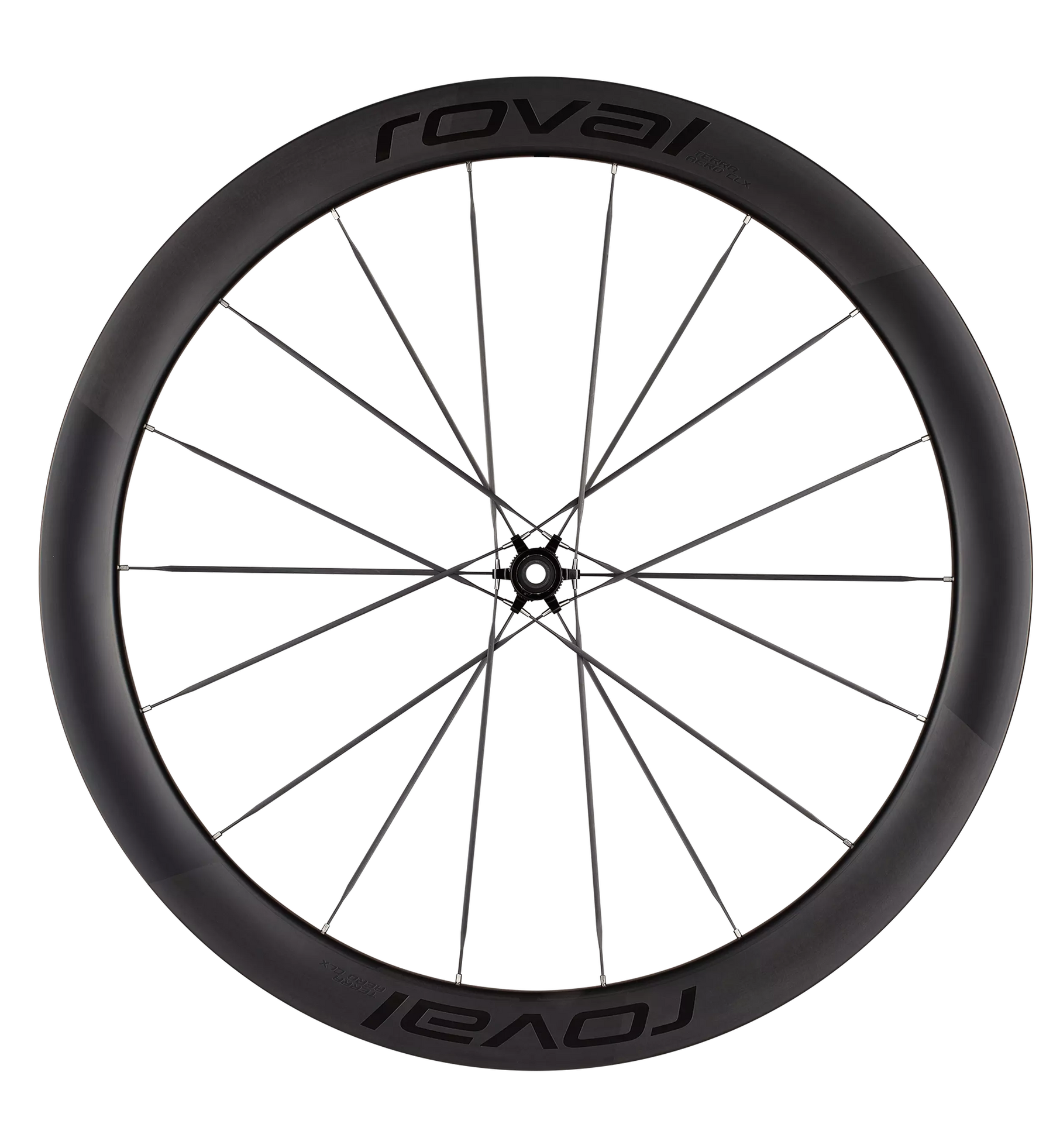

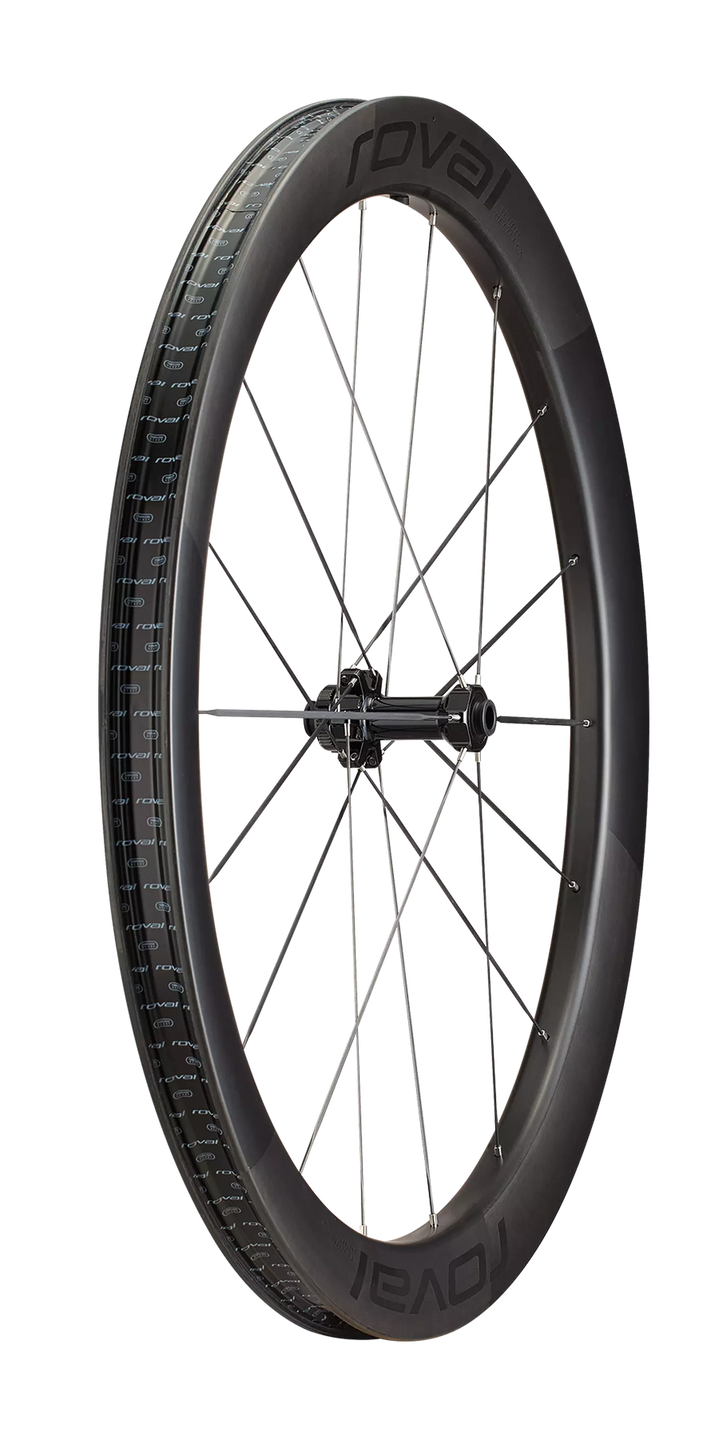

• Front Rim: Terra Aero CLX Carbon Clincher, 700c (CR2570)

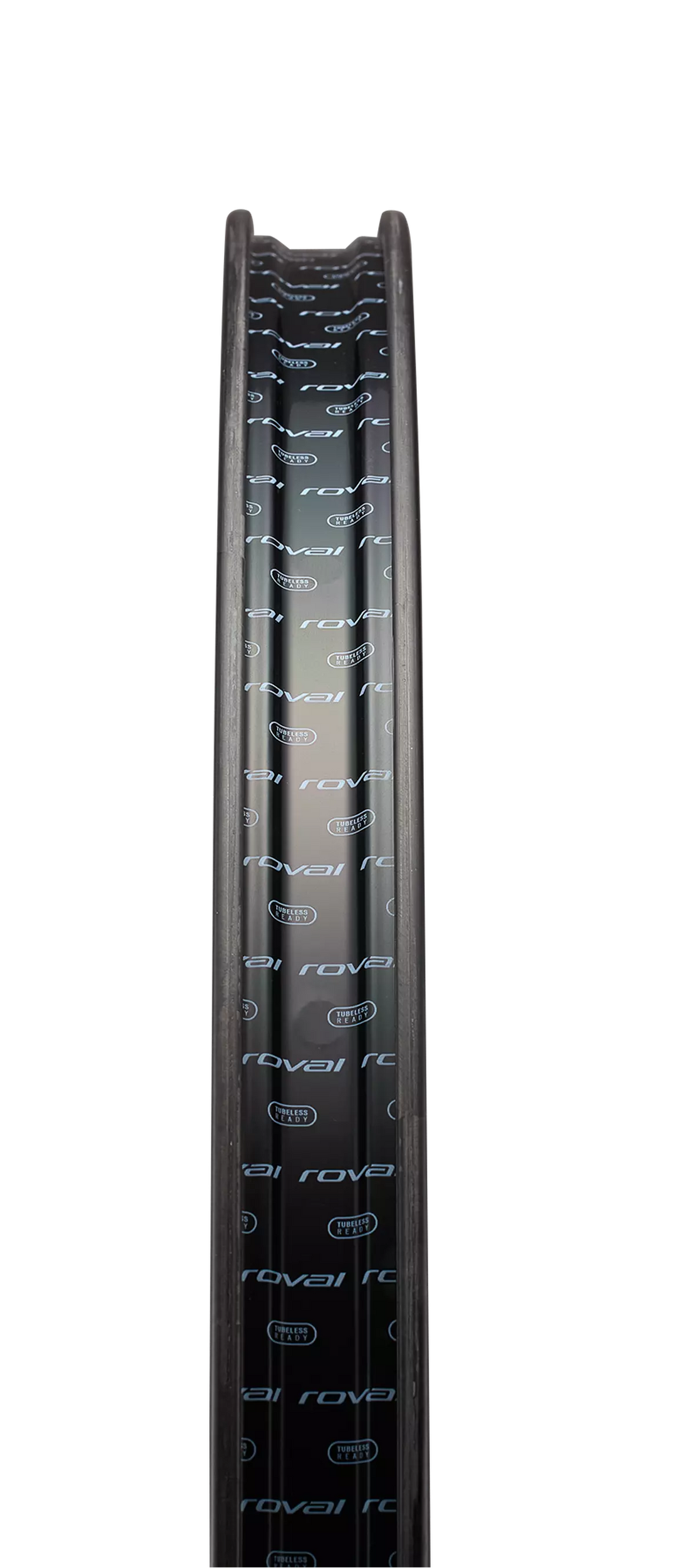

• Front Rim Dimensions: Depth - 50mm, External Width (at widest point): 38.5mm, Internal Width: 27mm, Bead Hook Width: 5.38mm

Hubs

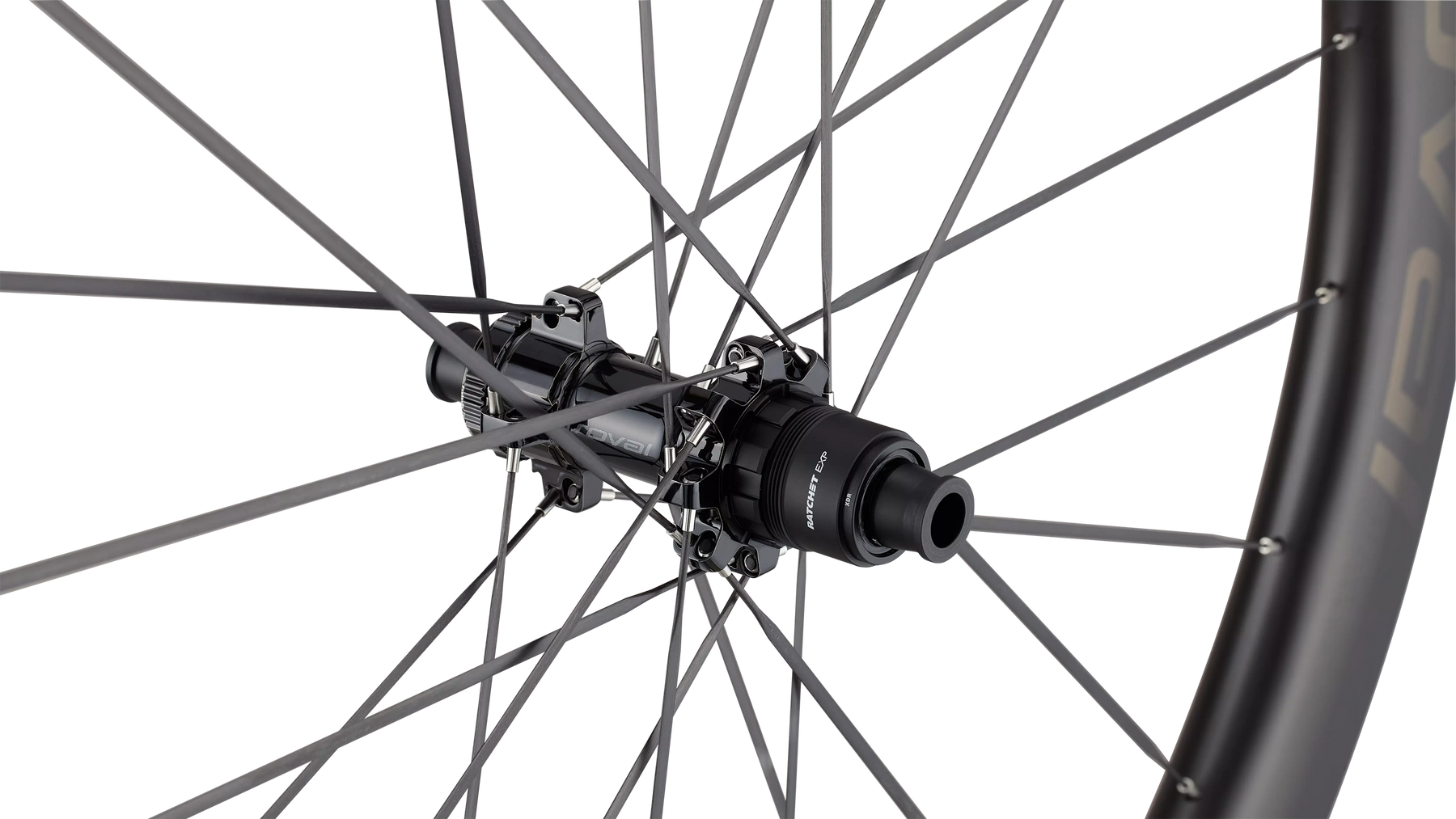

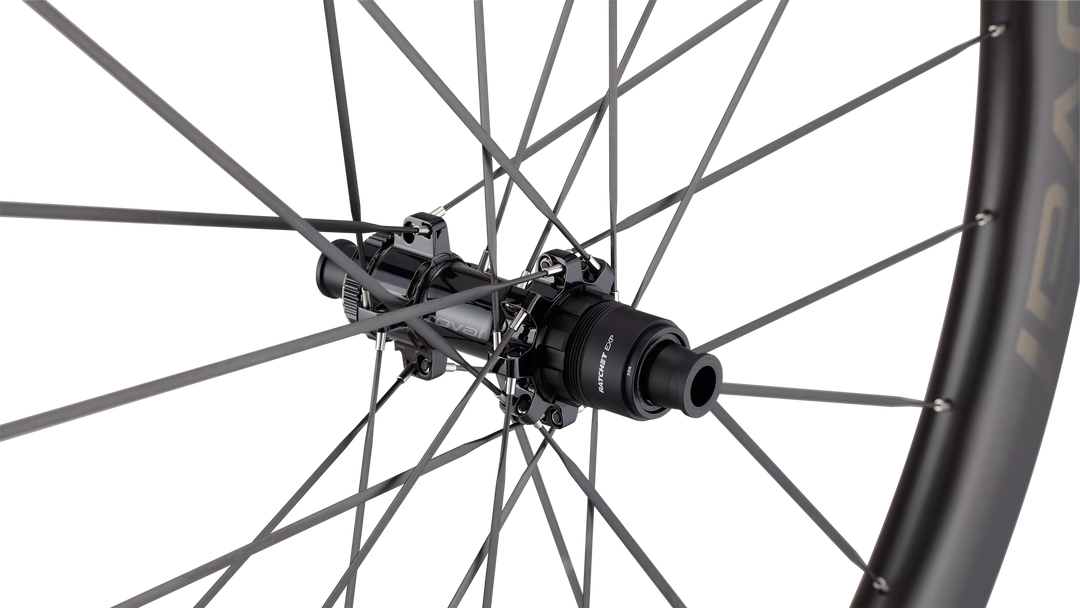

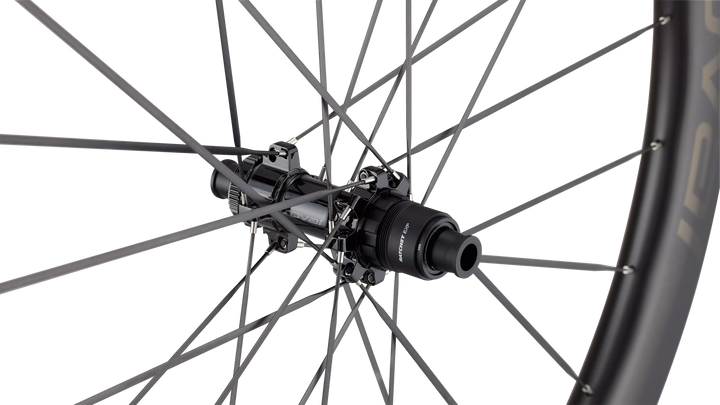

• Rear Hub: Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
• Rear Freehub Body: DT Swiss Ratchet EXP (36T ): Sram XD-R
• Rear Hub Bearing: DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7mm), NDS: 6802 (15 x 24 x 5mm)

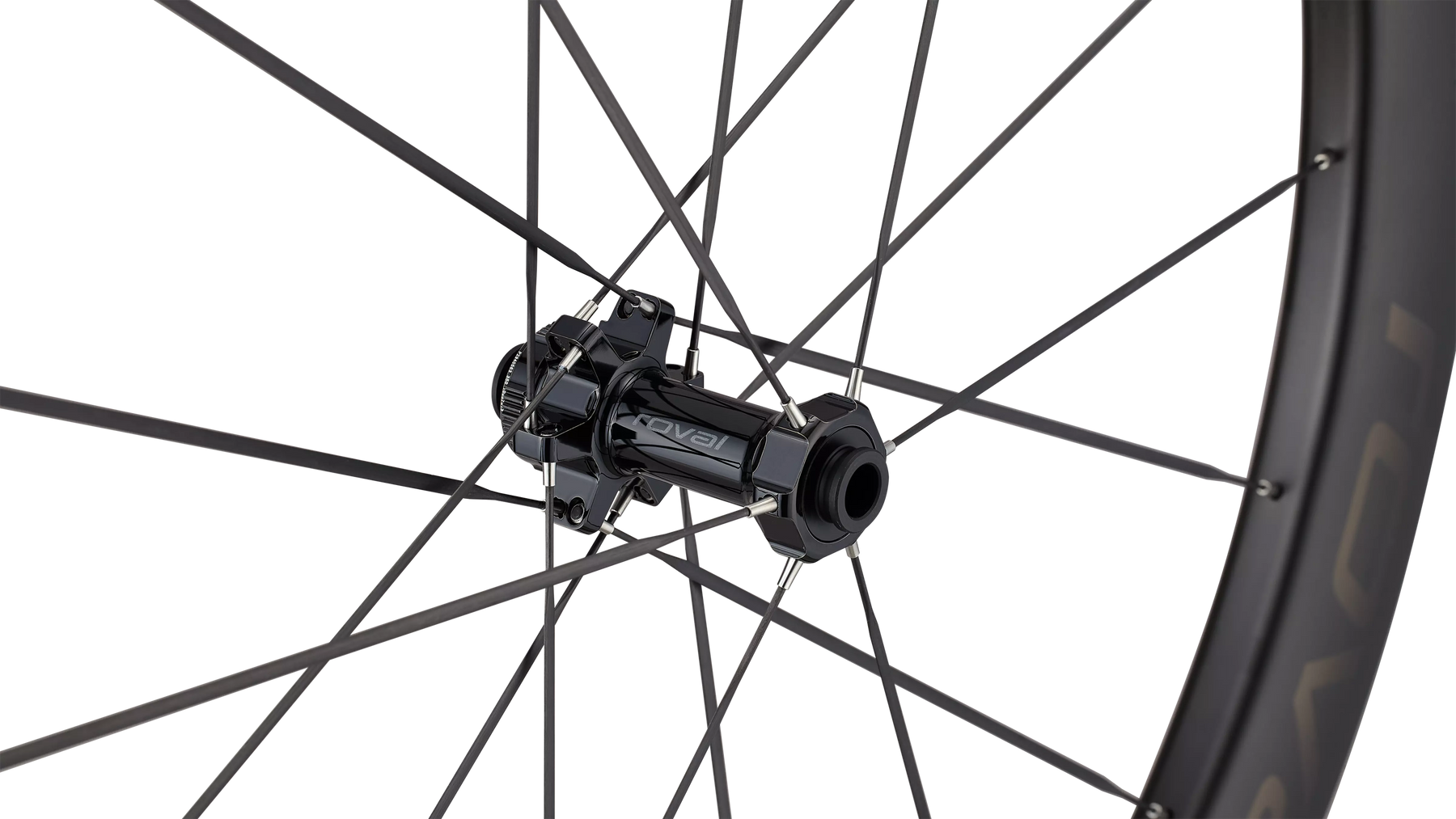

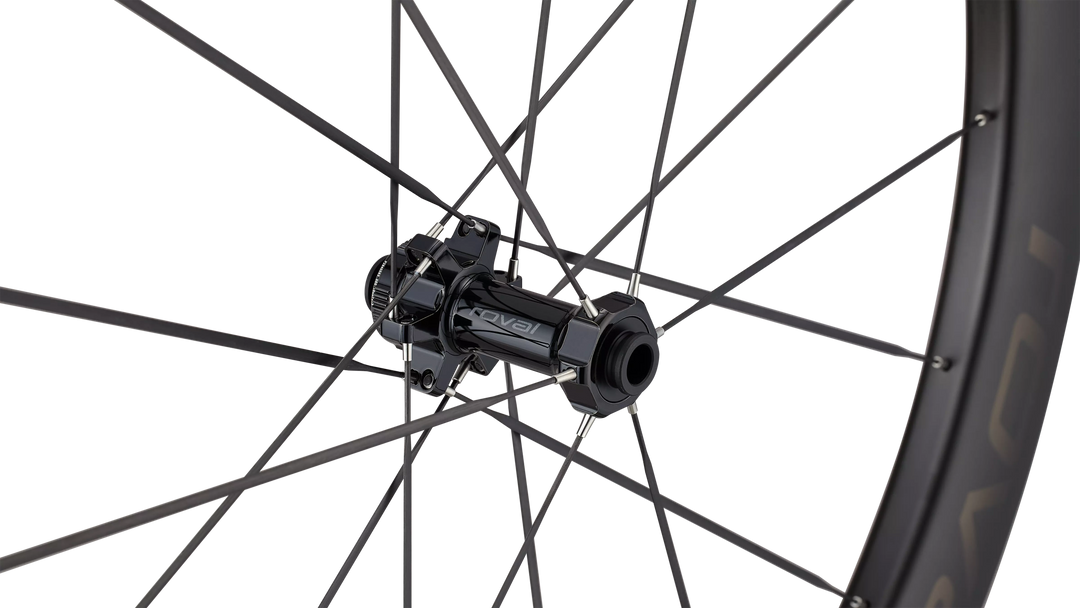

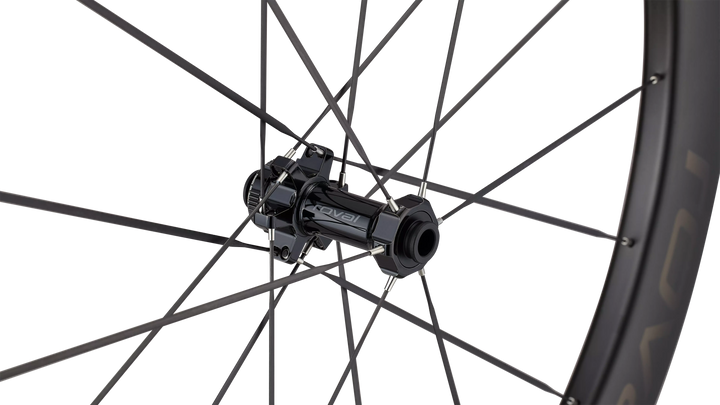

• Front Hub: Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)
• Front Hub Bearing: DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5mm), NDS: 6802 (15 x 24 x 5mm)

Spokes & nipples

• Nipples: ARRIS MK4 Spoke Nipple Alloy, 6mm
• Rear SpokesRoval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 280mm, NDS: 276mm)
• Rear Lacing Pattern: One-Cross / Three-Cross (2:1), Not Tucked
• Front Spokes: Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 264mm, NDS: 274mm)
• Front Lacing Pattern: Two-Cross / Radial (2:1), Not Tucked

Tire info

• Tubeless Tape Width: 30mm
• Tire Type: Clincher Tubeless and Clincher Tube Type
• Design Tire: Tracer TLR 45mm
• Approved Tire Widths: 35mm-60mm (2.2")
• Max Pressure: 35mm – 70psi​, 36-45mm – 55psi​, 46-50mm – 45psi​, 51-60mm - 40psi

Weight

• Wheelset Weight: 1340g (with valves and tape)
• Rear Weight: 700g (with valves and tape)
• Front Weight: 640g (with valves and tape)

General

• Warranty: Limited Lifetime Warranty
• Assembly Method: Hand Built
• Weight Limit: 275 lbs / 125 kg
• Certifications:I SO 5775-2, UCI Approved
• E-bike Approved: No
• Extras: 4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub & end Caps (rear wheel only)
