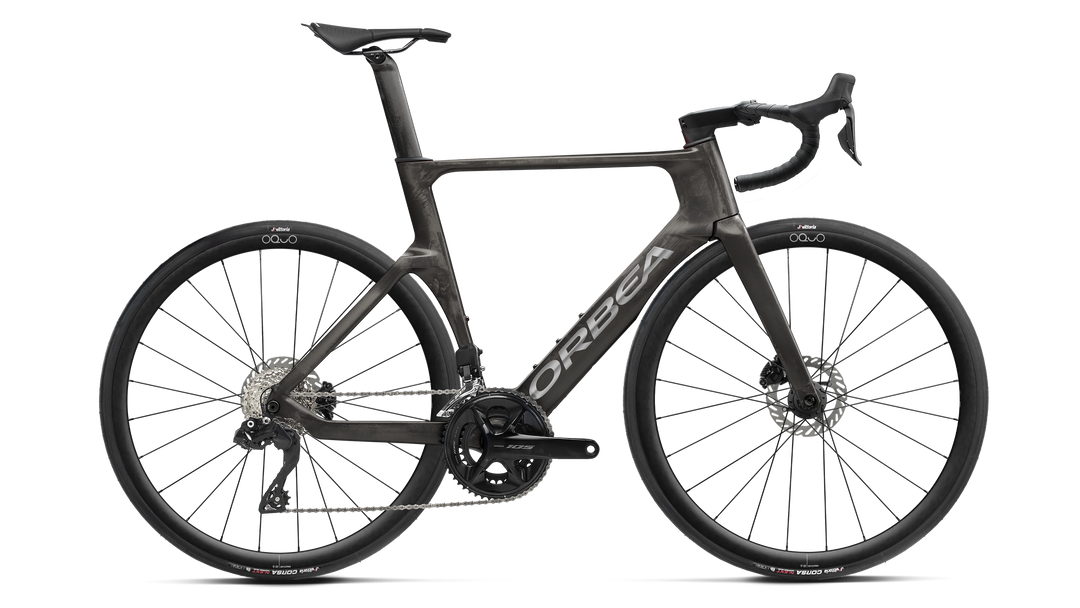

Orca Aero M30iLTD with RA57 Wheel Upgrade
Orbea

Orca Aero M30iLTD with RA57 Wheel Upgrade

UPC: BBIK494364626S
Colour — Carbon Raw/Titanium
Size
Size chart
 Size  Rider Height
 47

155 - 160 cm

61.1" - 63.0"
 49

160 - 166 cm

63.0" - 65.4"
51

167-172 cm

65.7"-67.7"
 53

173-179 cm

68.1"-70.5"
 55

180-185 cm

70.9"-72.8"
 57

186–191 cm

73.2"-75.2"
 60

192–207 cm

75.6"-81.5"

Price
Save 39%
/

Pairs well with
Frame:
Orbea Orca Aero OMX Carbon Disc
Fork:
Orbea Orca Aero OMX ICR, 1-1/8" to 1-1/2" tapered
Tires:
Vittoria Corsa N.Ext G2.0 Foldable 700x28c
Wheels:
OQUO Road Performance RA57LTD
Rear Derailleur:
Shimano 105 Di2 R7150
Brakes:
Shimano R7170 Hydraulic Disc
Saddle:
Prologo Scratch-M5 Pas T2.0 size 140mm
Stem / Handlebar:
OC Road Performance RP10 / OC Road Aero RA11 Carbon
Tire Clearance:
35mm
Sizes:
53
Weight (lbs/kg):
n/a
  • Price match guarantee
  • Locally owned
  • Secure payments

Long Live Aero

It’s hard to beat the sensation of power that comes from a great aero bike. What rider is ambivalent about a machine that is designed to give back free watts? Is there a competitor who doesn’t grasp every last advantage in the battle for speed?

Orca Aero is built for pure speed and efficiency, with aerodynamic shaping, exceptional power transfer, and razor-sharp handling. Its race-focused geometry puts you in the perfect position to push harder, ride faster, and hold nothing back.

Advanced Aerodynamics
With up to 15 watts saved at 40 km/h, the advantage is real. Aligning the frame with the airflow, optimizing cross-sections, smoothing transitions and myriad other improvements mean a big reduction in drag.

Power and Precision
A frame that's stiff in the right places transfers more of your power to the rear wheel and delivers precise, responsive handling when it matters most.

Dynamic Race Handling
Race-focused geometry and ergonomics put you in the perfect place to perform at any speed.

Premium OQUO Wheels
The perfect complement to Orca Aero, wheter you prioritise lightness, aerodynamics, or the ideal balance of both.

Toolbox behind the front wheel
The age-old question of where to carry essential tools, tubes and identification is answered by the integrated Toolbox behind the front wheel. Like the bottle cage, the Toolbox is not only useful but aerodynamically beneficial.

Frameset

  • Fork
    Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.

  • Frame
    Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible.

  • Headset
    FSA 1-1/2" Integrated Aluminium Cup

Drivetrain

  • Crankset
    Shimano 105 R7100 36x52t

  • Shifters
    Shimano Di2 R7170

  • Cassette
    Shimano 105 R7100 11-34t 12-Speed

  • Rear derailleur
    Shimano 105 Di2 R7150

  • Front derailleur
    Shimano 105 Di2 R7150

  • Chain
    Shimano M6100

Cockpit

  • Handlebar
    OC Road Aero RA11 Carbon, Reach 80, Drop 125

  • Stem
    OC Road Performance RP10, -8º

Brakes

  • Brakes
    Shimano R7170 Hydraulic Disc

  • Rotors
    160mm Front /160mm Rear

Wheels

  • Wheels
    Oquo Road Performance RA57LTD

  • Tires
    Vittoria Corsa N.Ext G2.0 Foldable 700x28c

  • Front Wheel Axle
    Orbea Thru Axle 12x100mm M12x2 P1 Lite

  • Rear Wheel Axle
    Orbea Thru Axle 12x142mm M12x2 P1 Lite

Components

  • Saddle
    Prologo Scratch-M5 Pas T2.0 size 140mm

  • Seatpost
    OC Road Aero RA10 Carbon Ultralight, SB0/25, w/Micro tilt adjustment

Accessories

  • Handlebar Tape
    Orbea Anti-Slippery/Shock Proof

  • Hydration
    OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10

  • Storage
    OC Aero Toolbox TB01PP

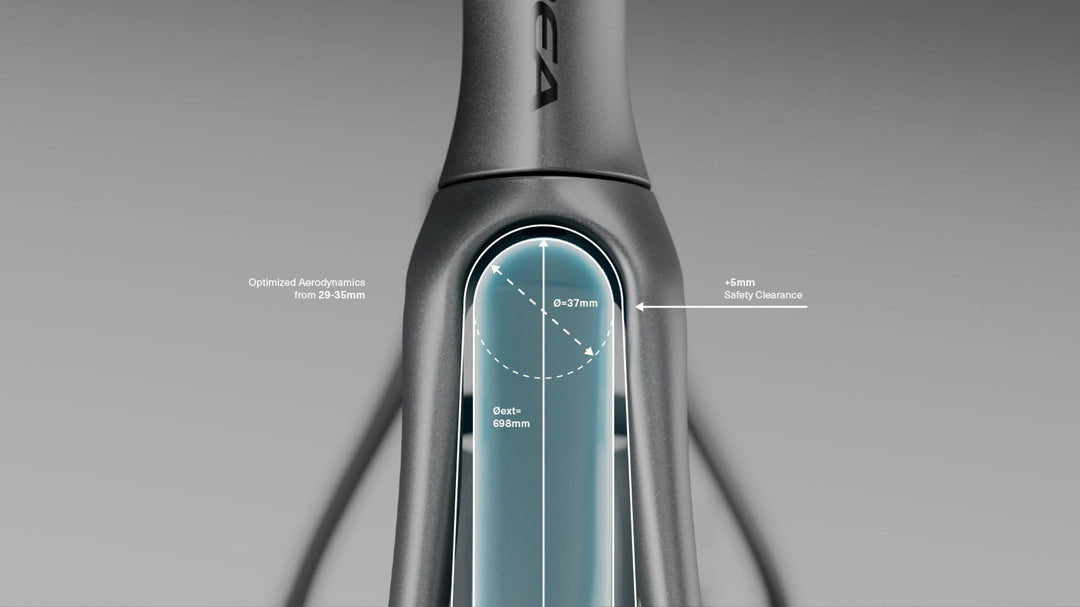

Room to Go Faster

Optimised around the fast, grippy 29-35mm tyres trusted by the pro peloton, with clearance for wider, more compliant options. A total of 37 mm (35C*), plus a 5 mm safety margin, reaches the upper limits of UCI race-legal road design, future-proofing the frame for evolving tire choices without sacrificing race focus.

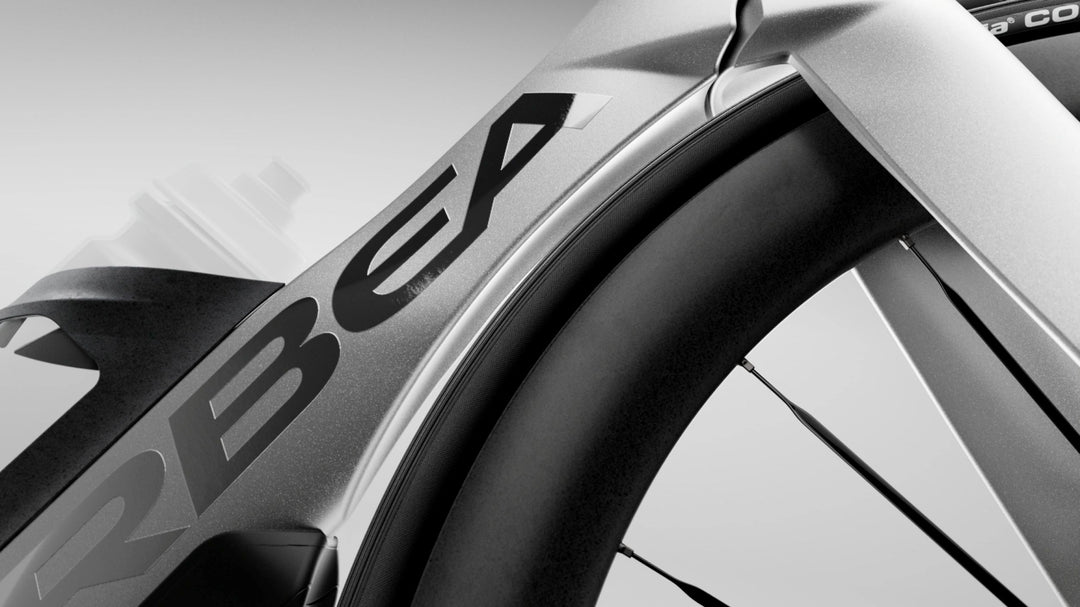

Engineered as One System

Aerodynamic performance is the result of engineering every element to work together as a single system. That means optimising interfaces between components and creating modern aero solutions, turning essential components into aerodynamic advantages.

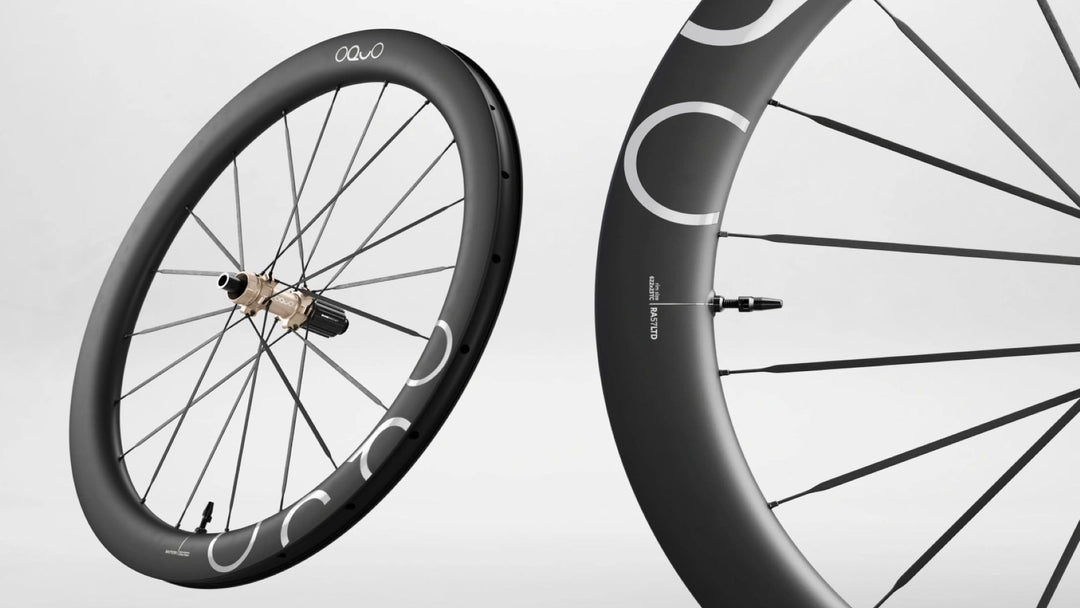

Wheels Selected for Speed

Stiff, lightweight and aerodynamic to deliver top performance on the flat and in sprints. The RA57LTD CS wheel has a 57 mm rim with an internal width of 23 mm. The carbon spokes increase stiffness for explosive accelerations, while their 5.2 mm flat profile yields aerodynamic gains. The optimized rim profile reduces rolling resistance and increases stability in crosswinds. All at a highly competitive weight of just 1373 g.
