Trek

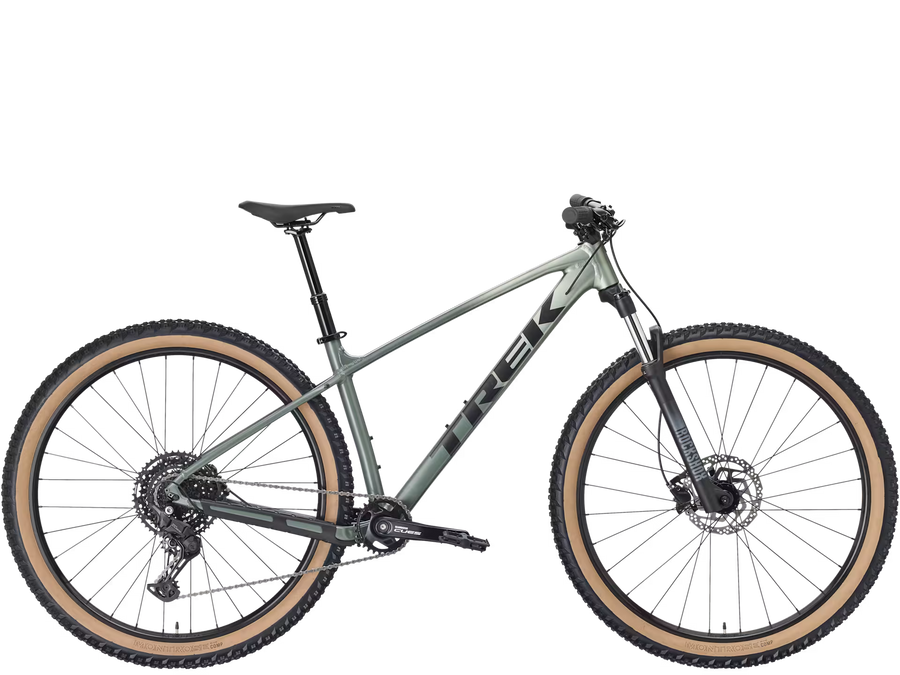

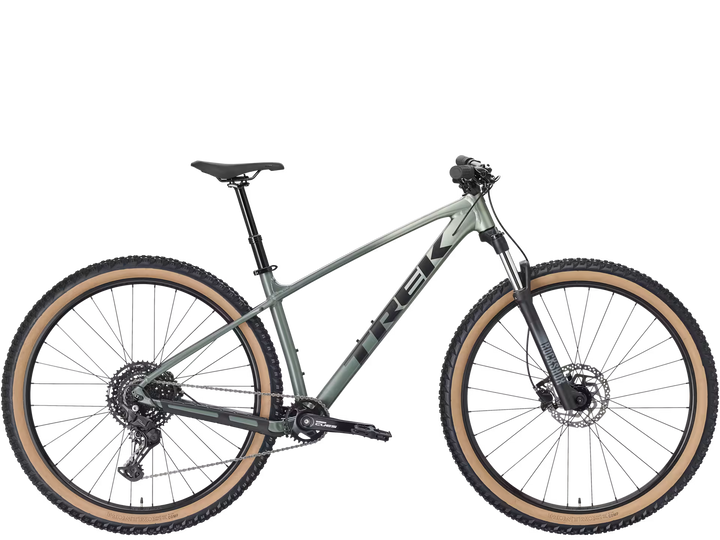

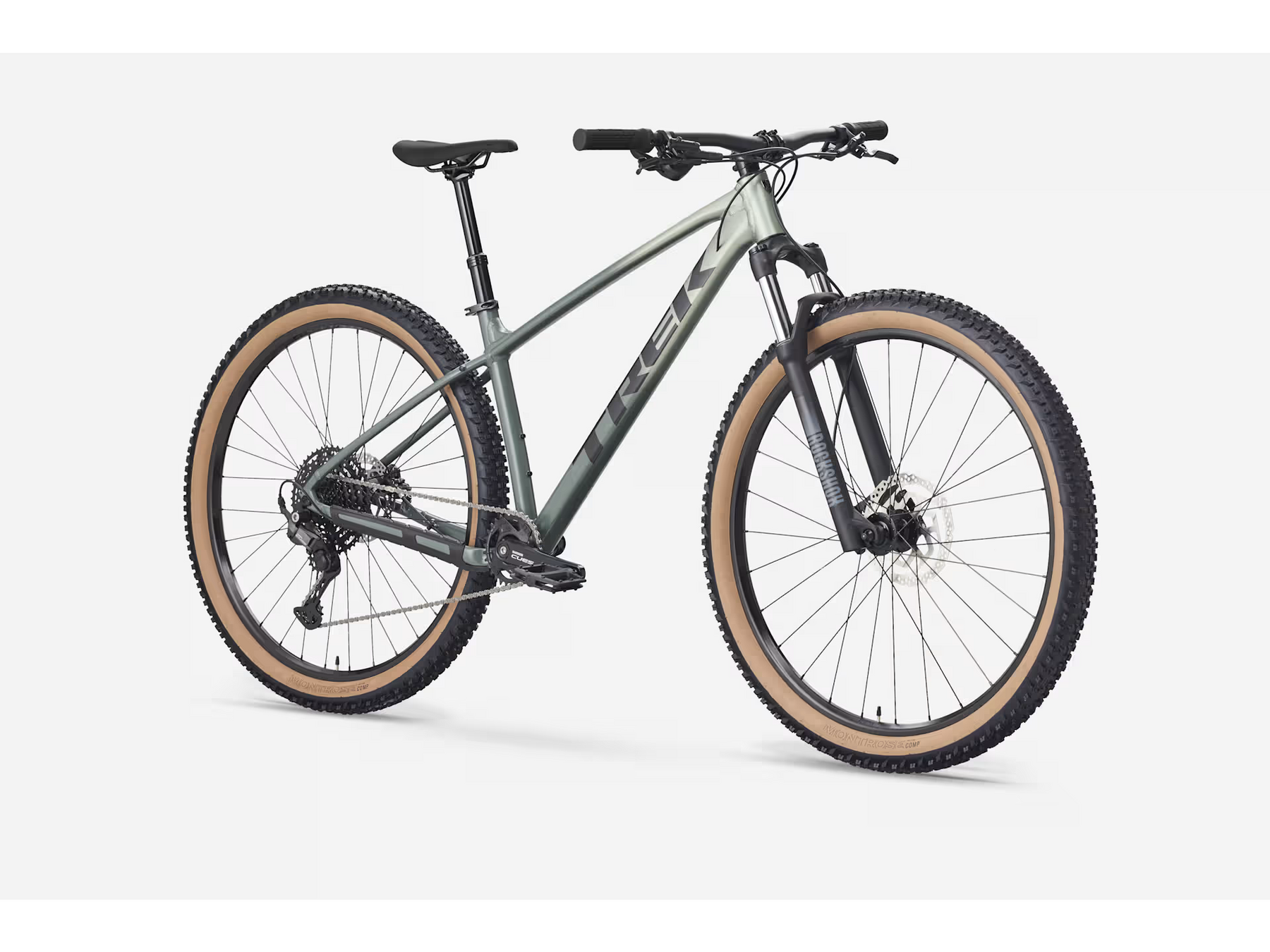

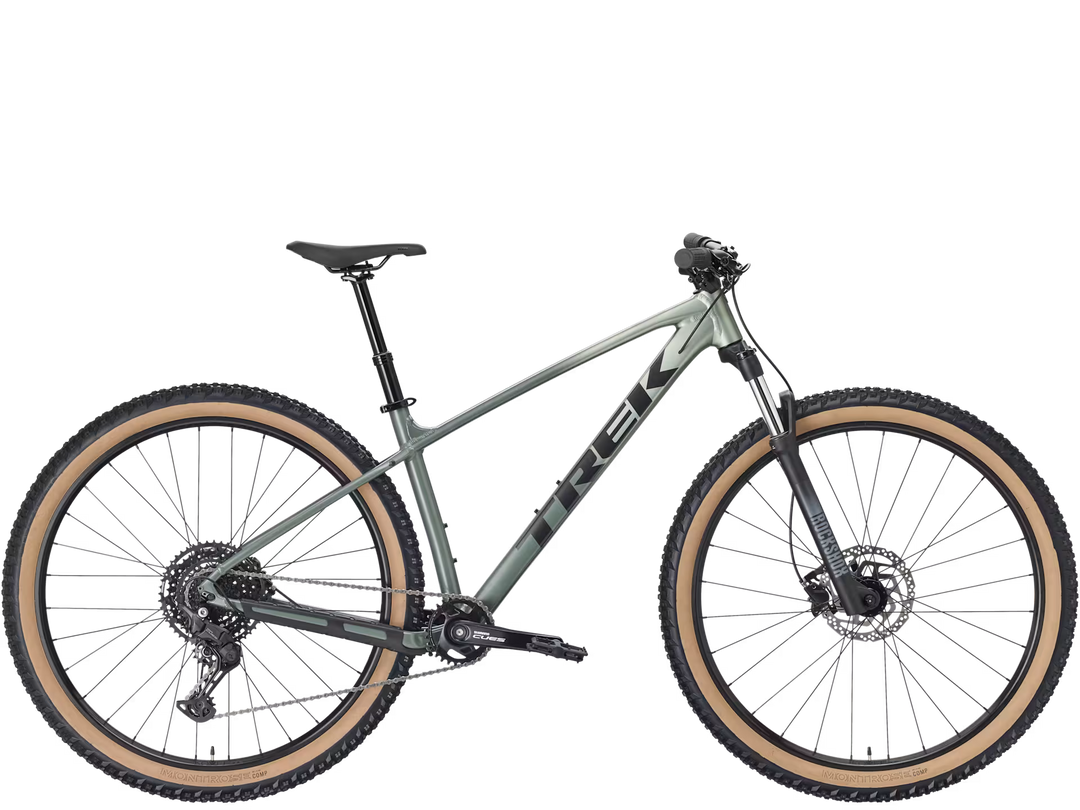

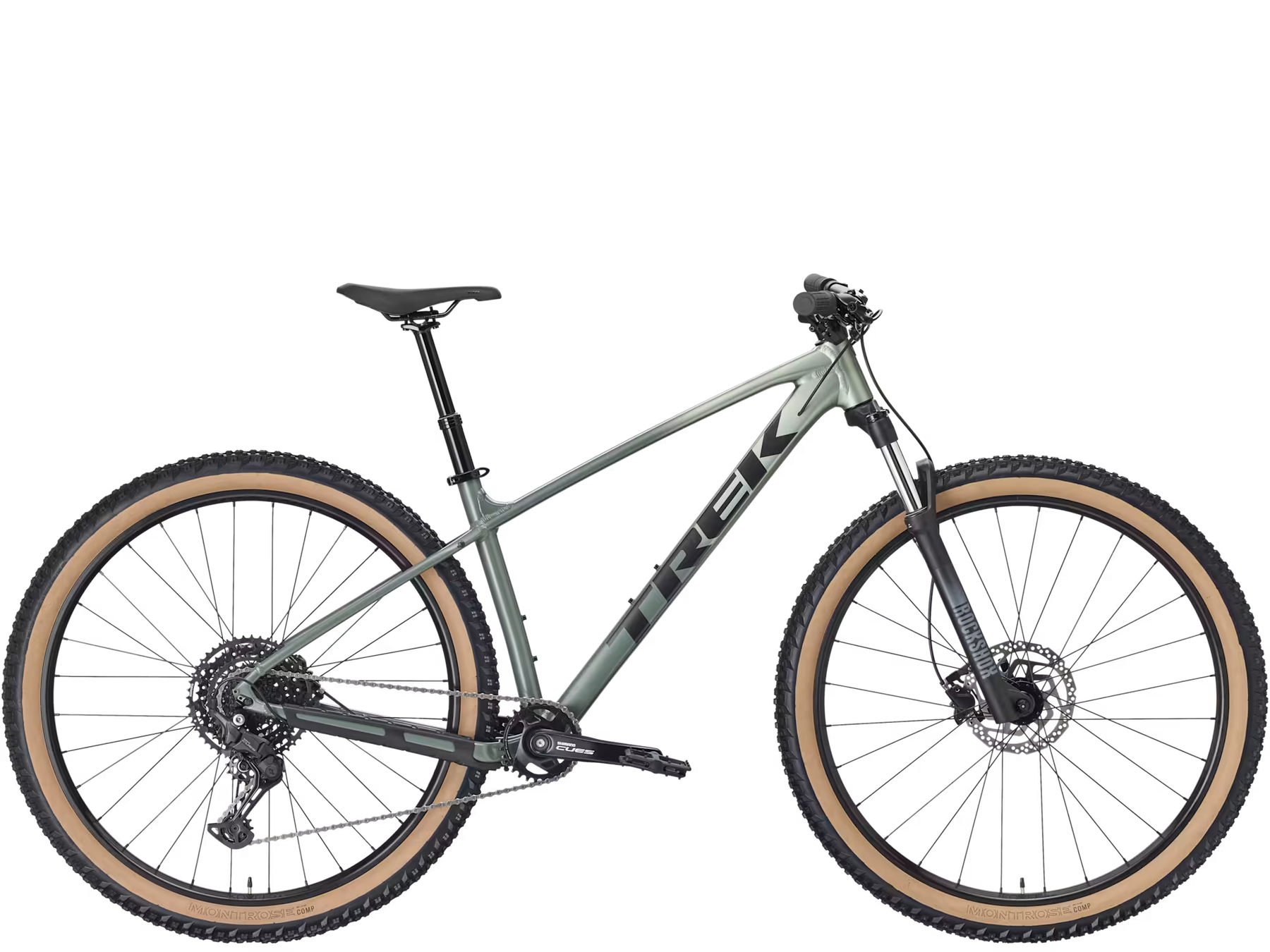

Marlin 6 Gen 3

UPC: 197216252450
Color — Matte Lichen/Keswick Green Fade
Size
Size chart
 Size  Rider Height  Inseam
 XS

145 - 155 cm

4'9" - 5'1"



69 - 73 cm

27" - 29"
 S

155 - 165 cm

5'1" - 5'5"



74 - 78 cm

29" - 31"
 M

165 - 176 cm

5'5" - 5'9"



79 - 83 cm

31" - 33"
ML

173 - 180 cm

5'8" - 5'11"



81 - 86 cm

32" - 34"
L

177 - 188 cm

5'10" - 6'2"



84 - 89 cm

33" - 35"
XL

188 - 195 cm

6'2" - 6'5"



89 - 91 cm

35" - 36"
 XXL

195 - 203 cm

6'5" - 6'8"



91 - 97 cm

36" - 38"


Price
Save
/

Pairs well with
Frame:
Alpha Silver Aluminum
Fork:
RockShox Judy, coil spring
Rear Suspension:
None
Tires:
Bontrager Montrose comp (Size: XS , SM) 27.5x2.40"
(Size: M , ML , L , XL , XXL) 29x2.40"
Wheels:
Rim: Bontrager Kovee
Rear Derailleur:
Shimano CUES U6000 GS
Brakes:
Shimano MT200 hydraulic disc
Seatpost:
TranzX JD-YSI34
Stem / Handlebar:
Bontrager Comp / Bontrager alloy
Weight (lbs/kg):
MD - 33.0 lbs / 15.0 (with tubes)
Sizes:
XS, SM, MD, ML, LG, XL, XXL
  • Price match guarantee
  • Locally owned
  • Secure payments

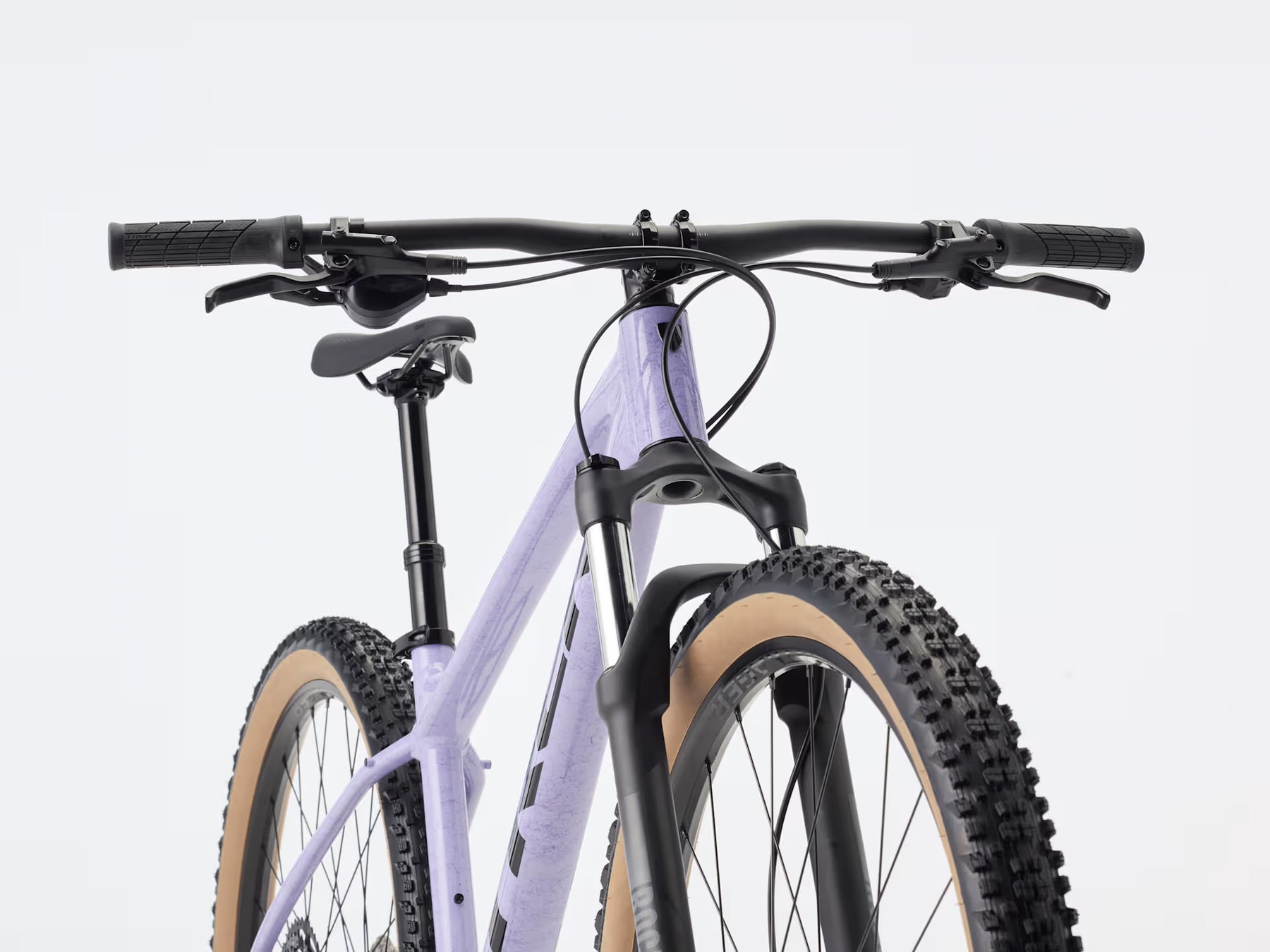

Marlin 6 is the perfect ride for progressing your skills on the trails.

Its updated slacker frame geometry makes it easier to control on descents while the upgraded suspension fork takes the edge off bumpy trails.

Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

The 2026 Marlin 6 Gen 3 features a lightweight aluminum frame, 100mm RockShox Judy front suspension fork that cushions rocks, roots, and bumps in the trail, 10-speed fuss-free Shimano CUES shifting, and the serious stopping power of hydraulic disc brakes.

Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount

Wheel size:
- Size XX-Small: 26-inch
- Sizes X-Small – Small: 27.5-inch
- Sizes Medium – XX-Large: 29-inch

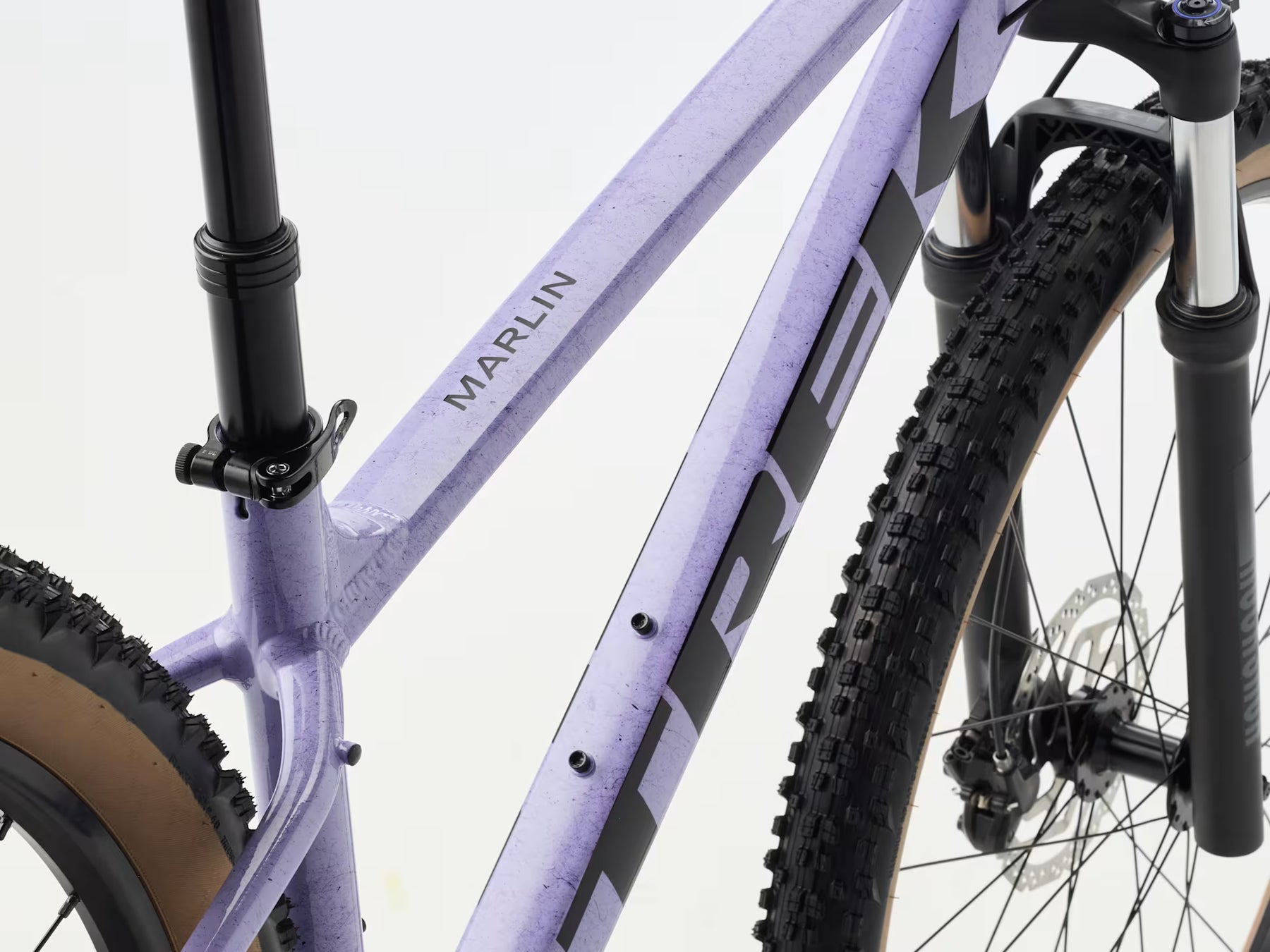

Frame

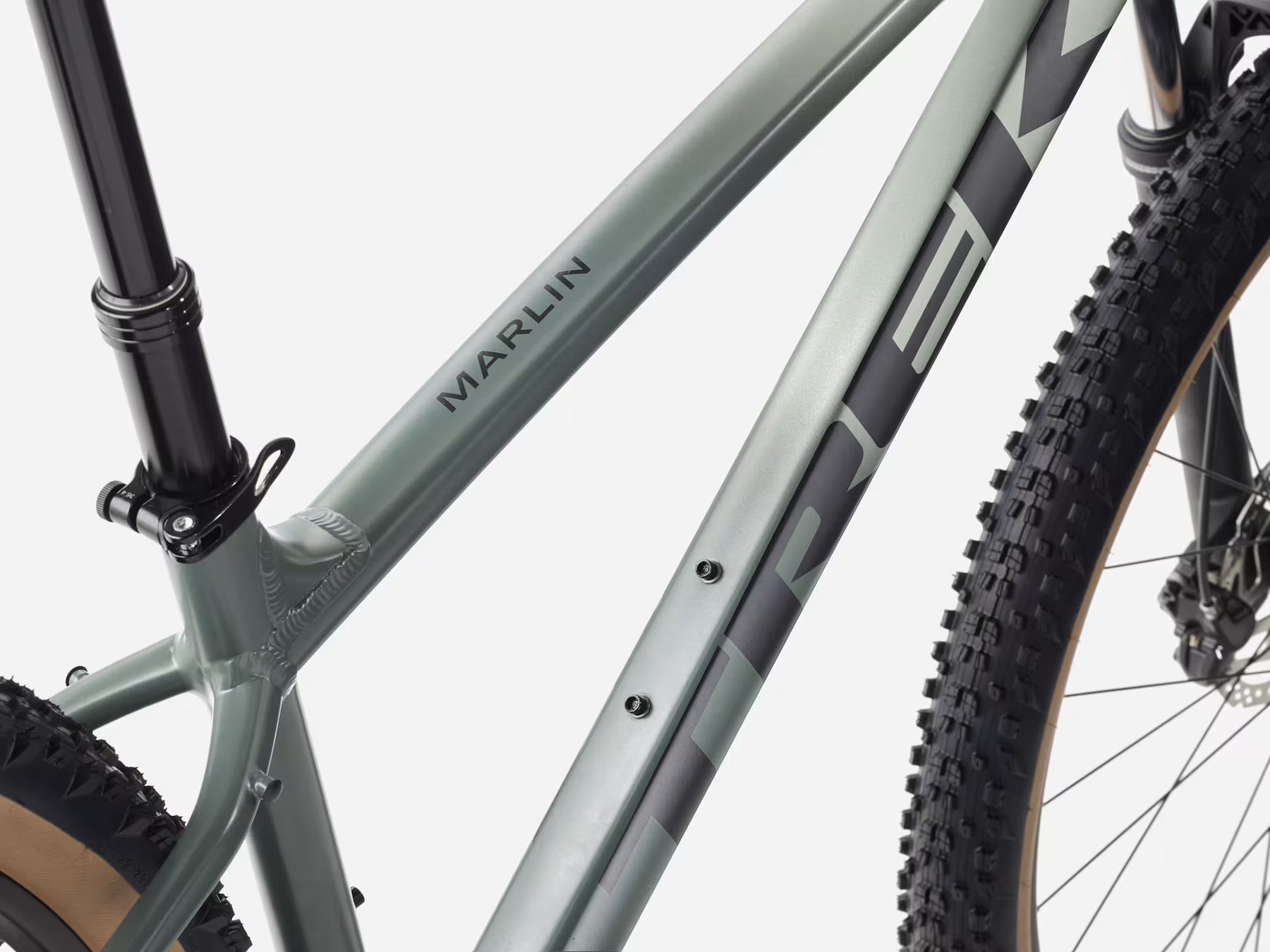

  • Size: XS Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
  • Size: S, M, ML, L, XL, XXL Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

Fork

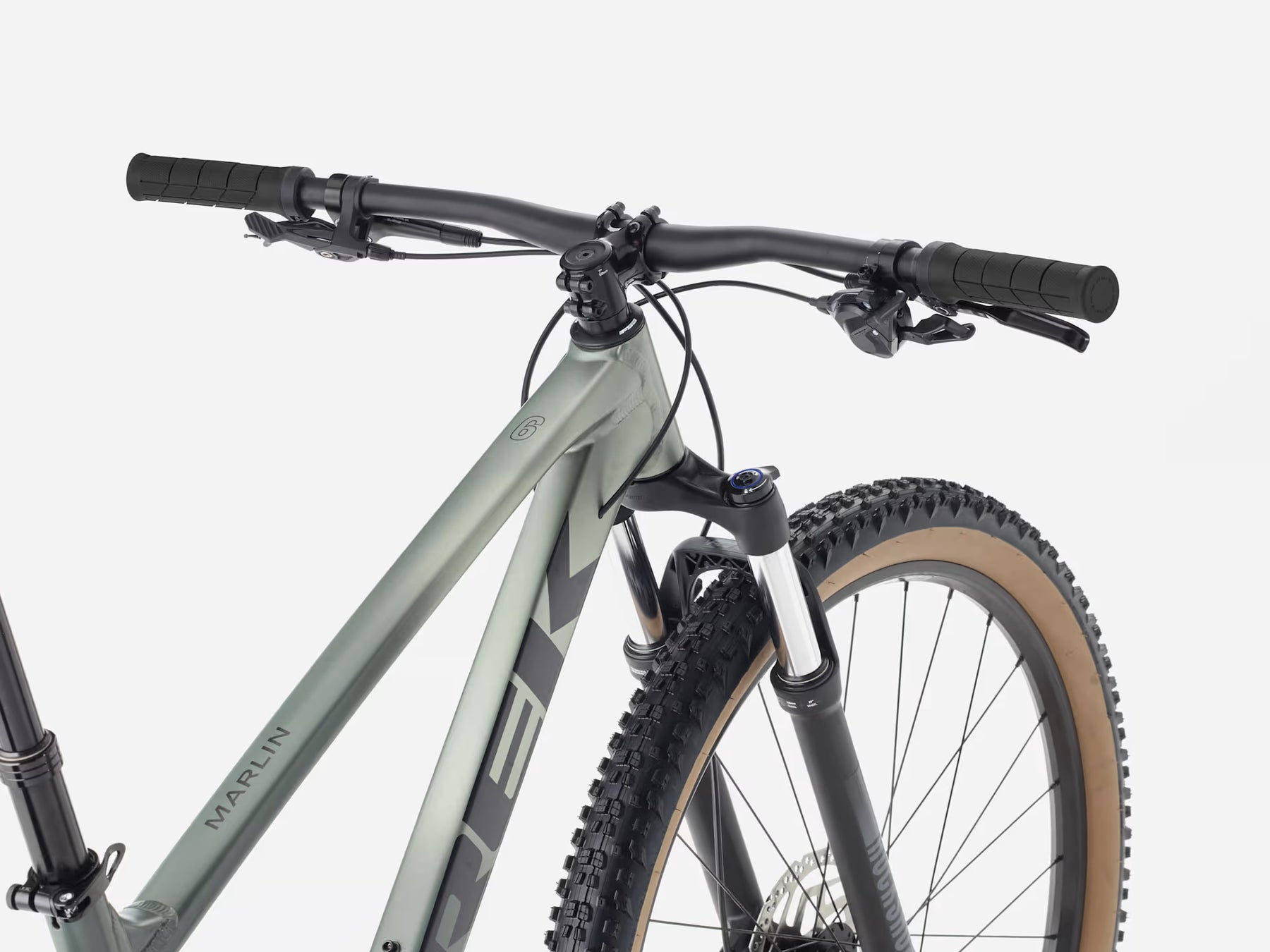

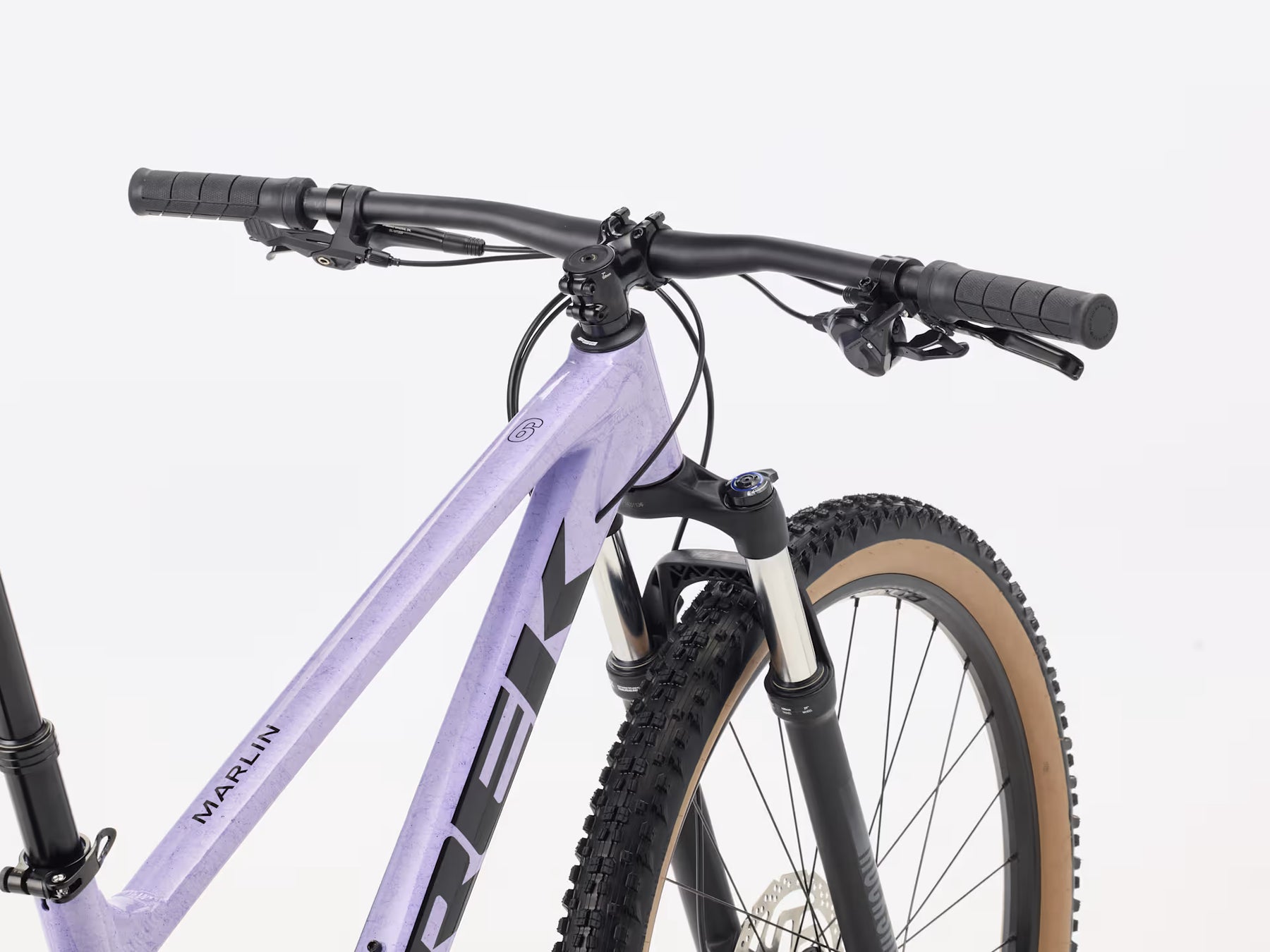

  • Size: XS, S RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
  • Size: M, ML, L, XL RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel

Rims

  • Size: XS , S , M , ML , L , XL - Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
  • Size: M , ML , L , XLBontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve

Hubs

  • Front: Formula DC-20, alloy, 6-bolt, 100 mm
  • Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm

Tires

  • Size: XS, S Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"
  • Size: M, ML, L, XL, Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40"

Bottom Bracket

  • Shimano, 73mm, threaded cartridge, 122.5mm spindle

Crankset

  • Size: S, M, ML Shimano U4000, 30T chainring, 170mm length
  • Size: L, XL Shimano U4000, 30T chainring, 175mm length

Shifters

  • Shimano U6000, 10 speed

Rear Derailleur

  • Shimano CUES U6000 GS

Cassette/Freewheel

  • Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed

Chain

  • Shimano LG500

Brakes

  • Shimano MT200 hydraulic disc

Rotors

  • Size: XS , S , M , ML , L , XL - Shimano RT26, 6-bolt, 160mm
  • Size:M , ML , L , XLShimano RT26, 6-bolt, 180mm

Handlebars

  • Size: XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width
  • Size: S Bontrager alloy, 31.8mm, 15mm rise, 720mm width
  • Size: M, ML, L, XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width

Tape/Grips

  • Trek Line Comp, nylon lock-on

Stem

  • Size: XS, S Bontrager Comp, 31.8mm, 7 degree, 35mm length
  • Size: M, ML, L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
  • Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length

Headset

  • Semi-integrated, 1-1/8"

Seatpost

  • Size: XS, S - TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
  • Size: MD - TranzX JD-YSI34, 125mm travel, internal routing, 31.6mm, 405mm length
  • Size: ML, L, XL - TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length

Saddle

  • Bontrager Verse Short, stainless steel rails

Pedals

  • VP-536 nylon platform

* Subject to change without notice.

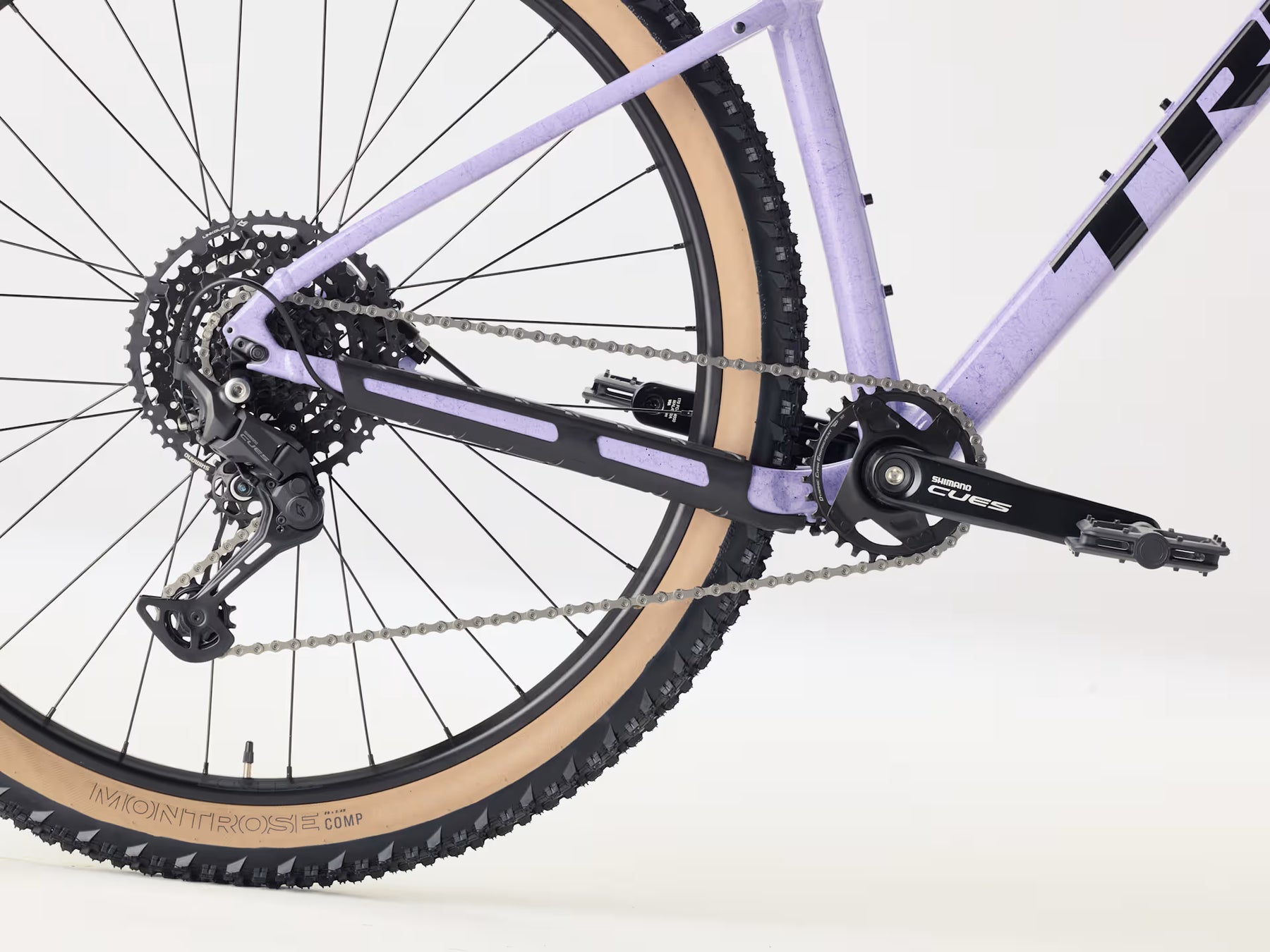

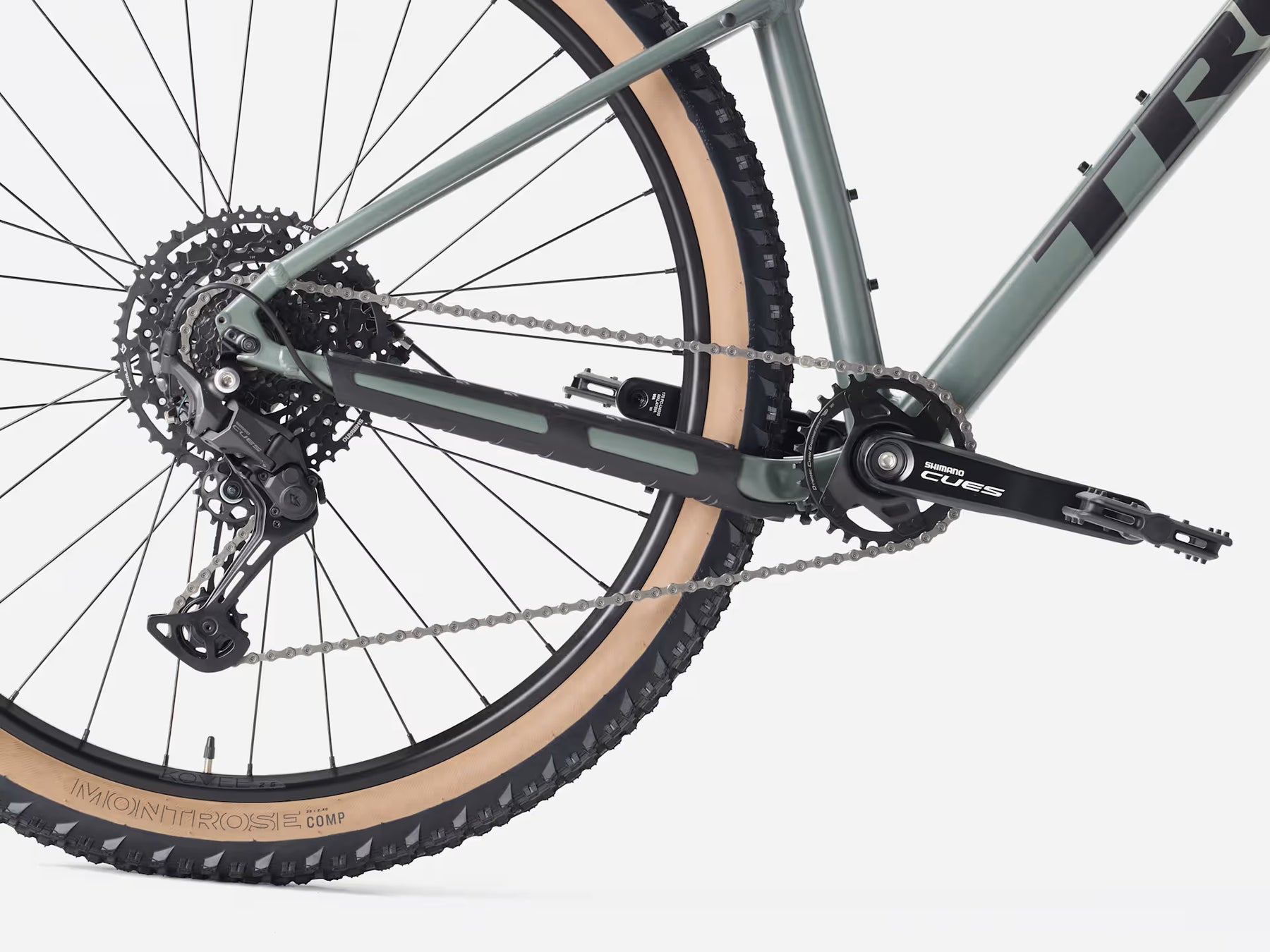

1x10 speed Shimano CUES Drivetrain

10-speed fuss-free Shimano CUES shifting, and the serious stopping power of hydraulic disc brakes.

Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette, and chainrings.

Fully Guarded Chainstay

Full-length, full-coverage guards on the chainstay protect your frame and keep your ride quiet.

Rack and Fender Compatible

Rack and fender mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter.
