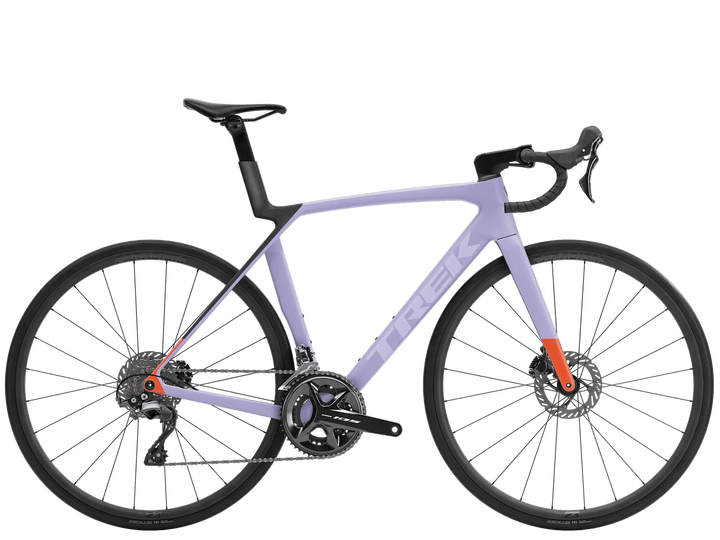

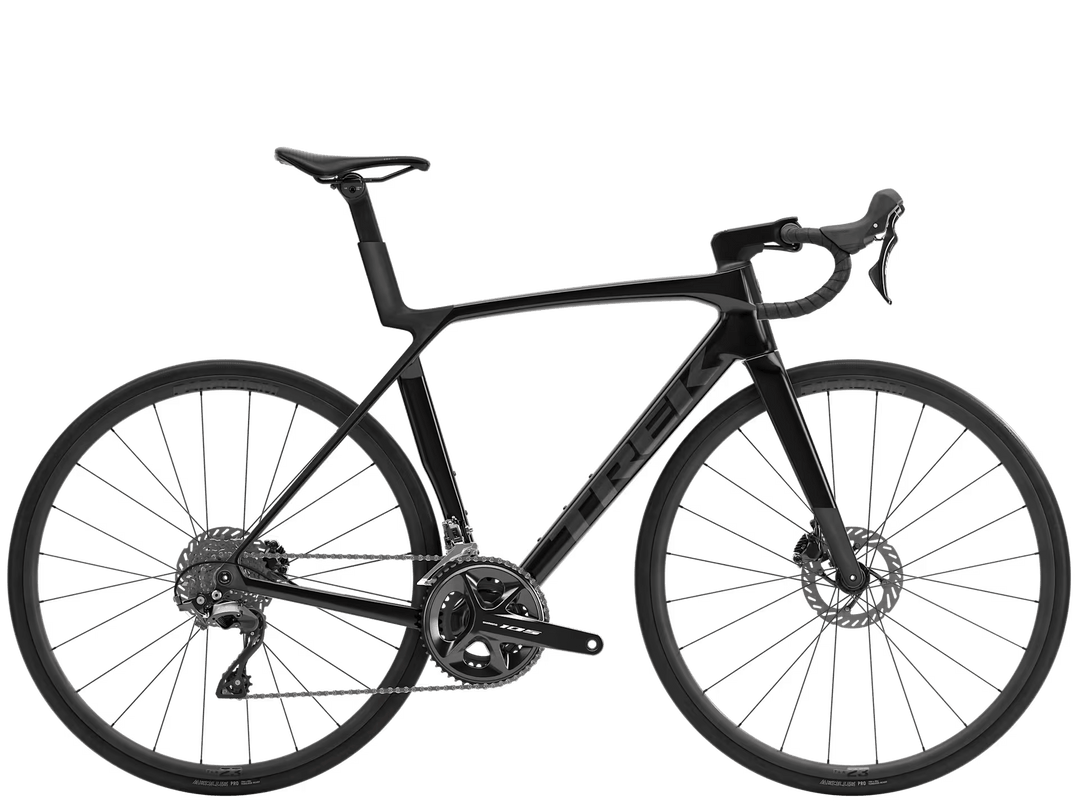

Madone SL 5 Gen 8 with Carbon Wheel Upgrade

Madone SL 5 Gen 8 (Colour) — Matte Lavender Haze/Deep Smoke
Madone SL 5 Gen 8 (Size)
Price
Save
/
Size chart
 Size  Rider Height  Inseam
 XS

143 - 158 cm

4'8" - 5'2"



67 - 74 cm

26" - 29"
 S

158 - 162 cm

5'2" - 5'4"



74 - 76 cm

29" - 30"
 M

162 - 173 cm

5'4" - 5'8"



76 - 81 cm

30" - 32"
 M/L

173 - 179 cm

5'8" - 5'10"



81 - 84 cm

32" - 33"
 L

179 - 188 cm

5'10" - 6'2"



84 - 88 cm

33" - 35"
 XL

188 - 213 cm

6'2" - 7'0"



88 - 100 cm

35" - 39"

Pairs well with
Frame:
500 Series OCLV Carbon
Fork:
Madone Gen 8 full carbon
Tires:
Bontrager Aeolus Pro, 700x28mm
Wheels:
Bontrager Aeolus Elite 35 Carbon Disc
Rear Derailleur:
Shimano 105 R7100
Brakes:
Shimano 105 hydraulic disc
Saddle:
Bontrager Aeolus Elite
Stem / Handlebar:
Trek RCS Pro / Bontrager Comp
Tire Clearance:
32mm (as measured)
Sizes:
XS, SM, MD, ML, LG, XL
Weight (lbs/kg):
ML - 19.05 lbs / 8.64 kg
(with tubes and original aluminum Bontrager Paradigm 23 wheels)
  • Price match guarantee
  • Locally owned
  • Secure payments

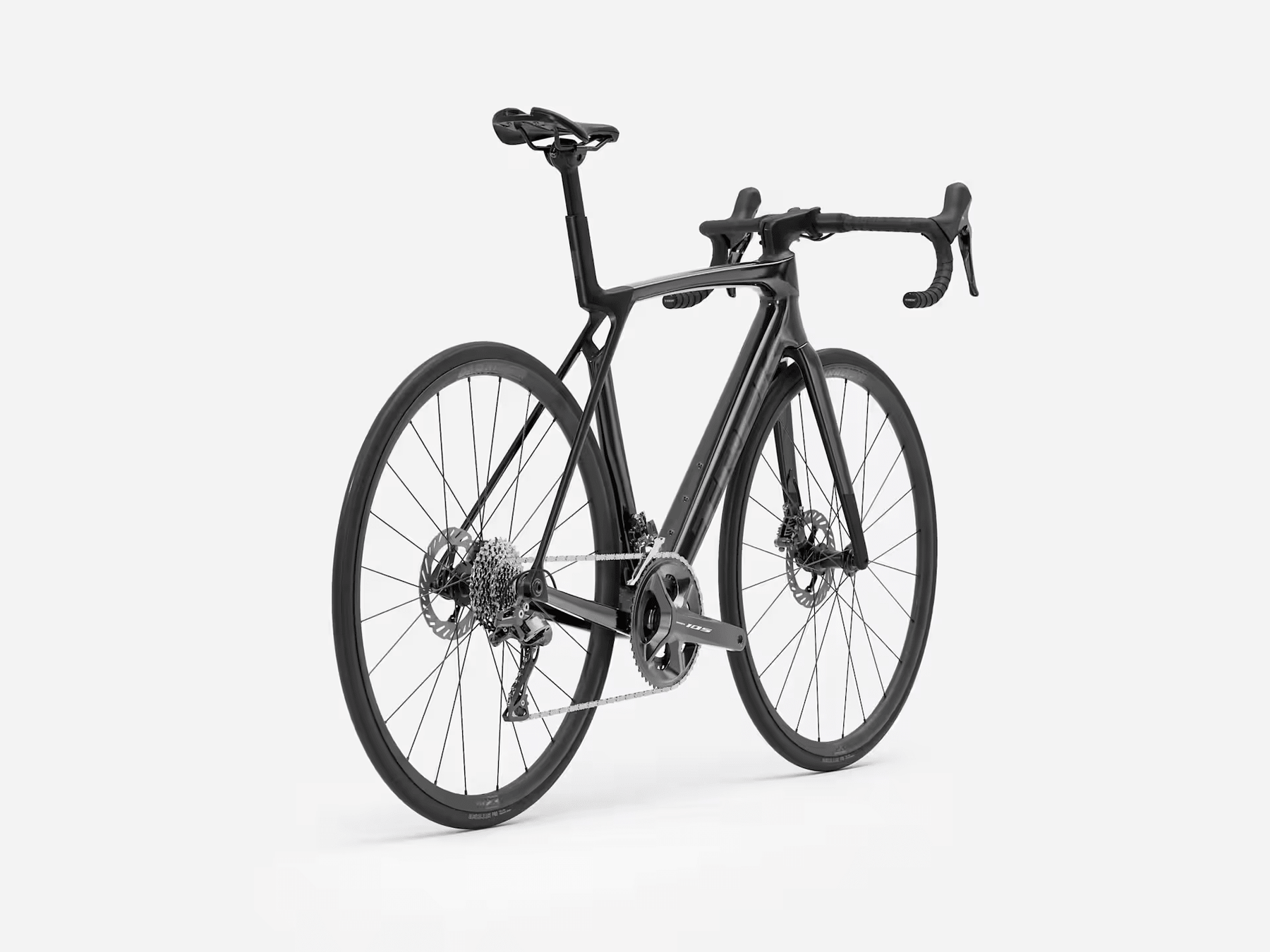

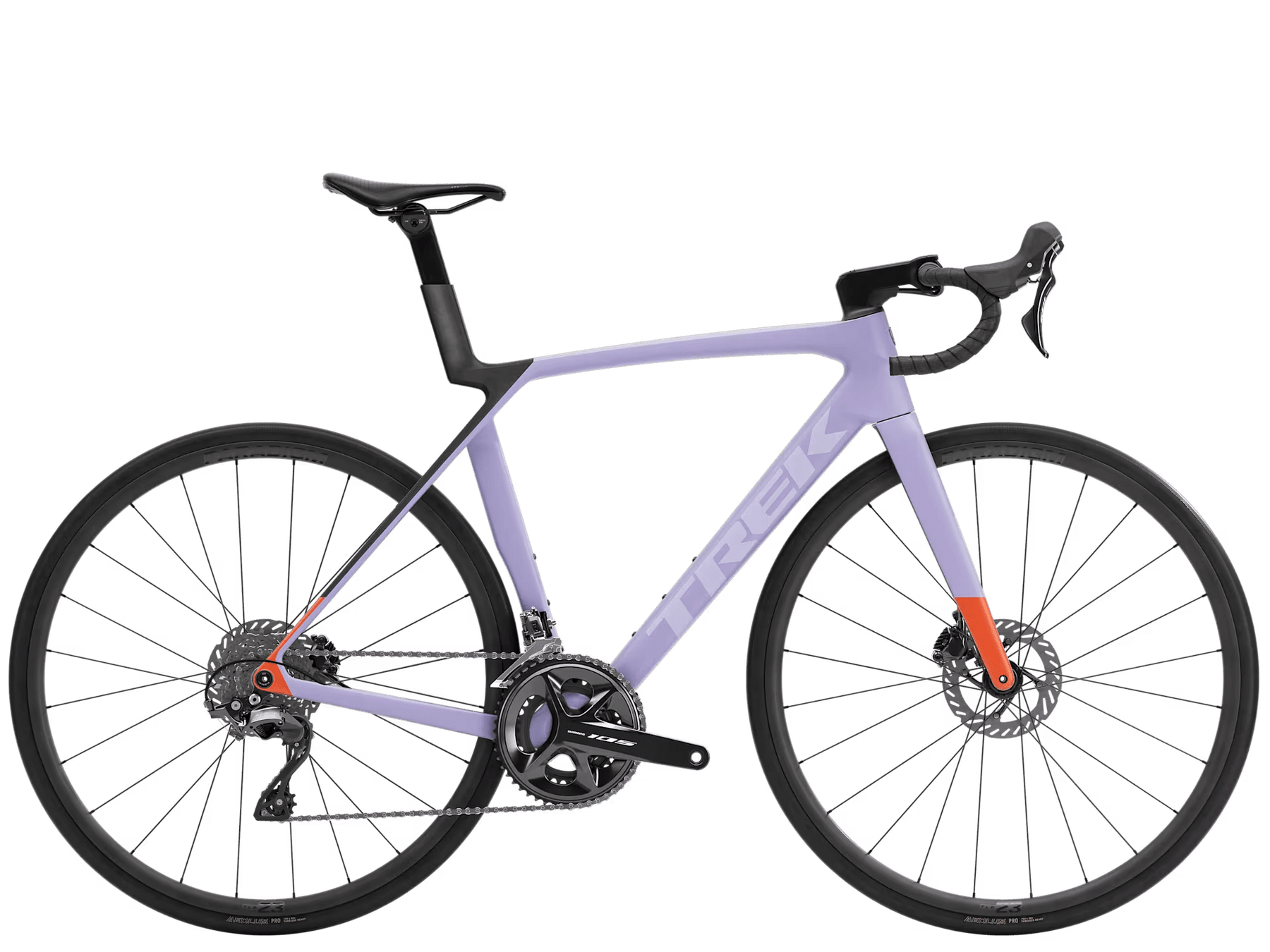

Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8 models, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing. A Shimano 105 groupset, alloy handlebars, and alloy wheels keep the price down while still delivering clean mechanical shifting you can trust.

Unlock the speed and performance of a carbon wheel upgrade with Aeolus Elite 35 TLR. This full carbon, tubeless-ready, disc brake road wheel balances durability, weight, and aerodynamics for outstanding performance that doesn't break the bank. A proven shape with a 35mm depth and the added versatility of disc brake hubs make this the perfect high-performance, high-value carbon road wheel.



  • It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing.
  • Full carbon, tubeless-ready, disc brake Bontrager Aeolus Elite 35 wheels balance durability, weight, and aerodynamics for outstanding performance
  • It's built to race, with geometry that keeps you quick on the sprints yet in control on fast descents.
  • A 12-speed Shimano 105 groupset keeps the price down while still delivering clean mechanical shifting you can trust.
  • The Madone Gen 8 can fit up to 32mm width tires for more comfort and better grip on the road.

Frameset

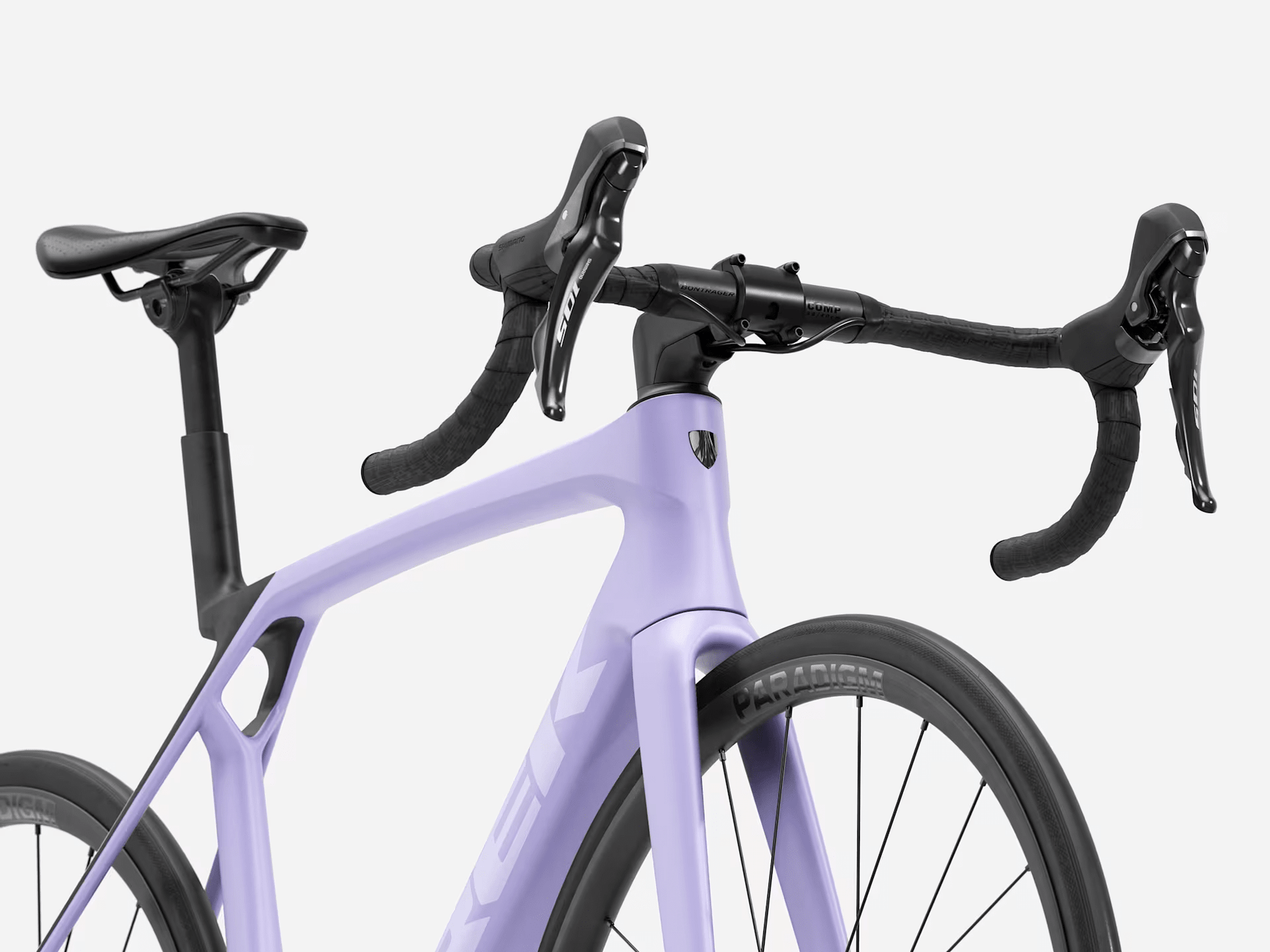

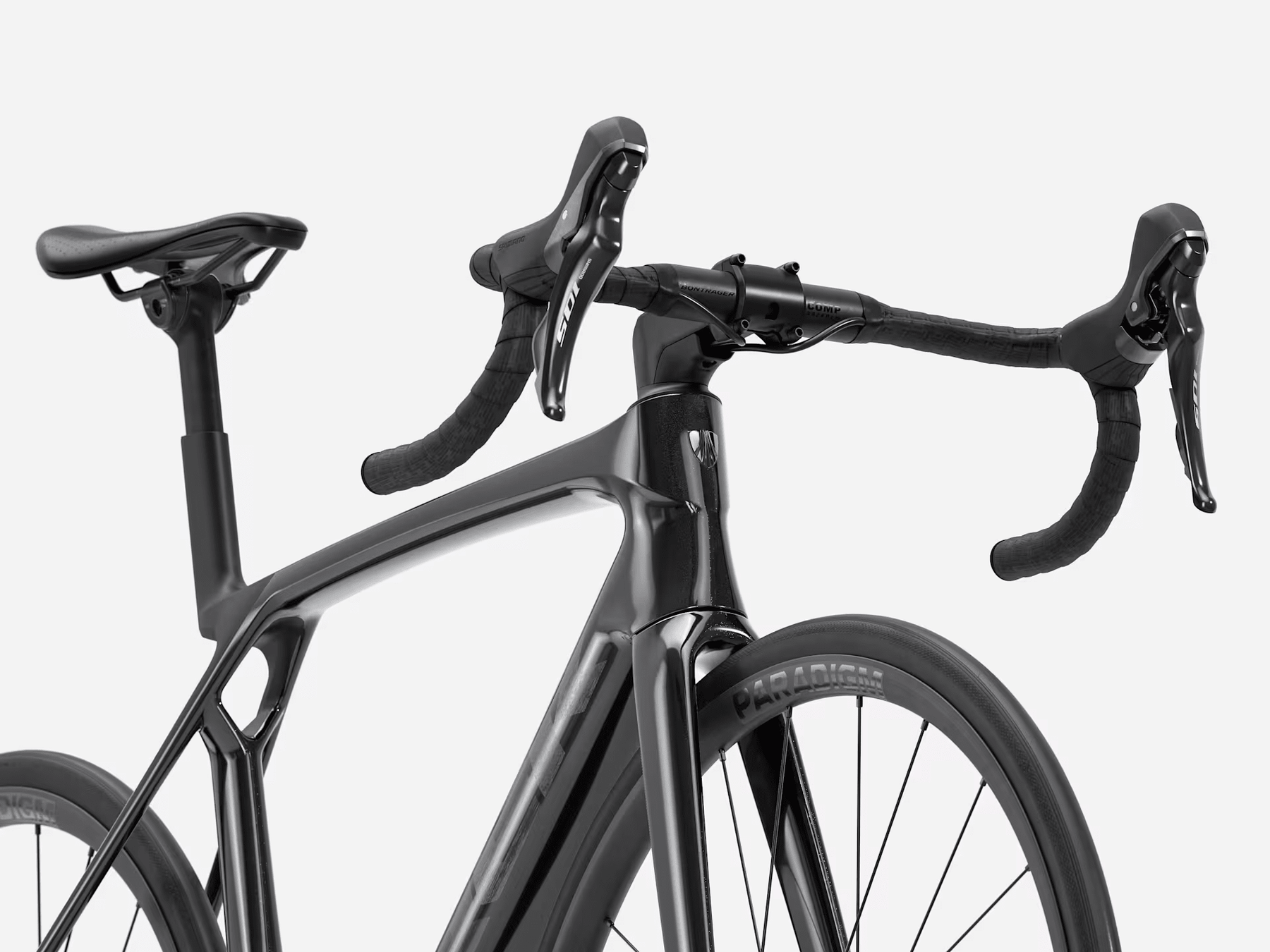

  • Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing,
    removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
  • Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight

  • Weight: ML - 8.64 kg / 19.05 lbs (with stock wheels and not with Aeolus Elite 35 carbon wheelset)
  • Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

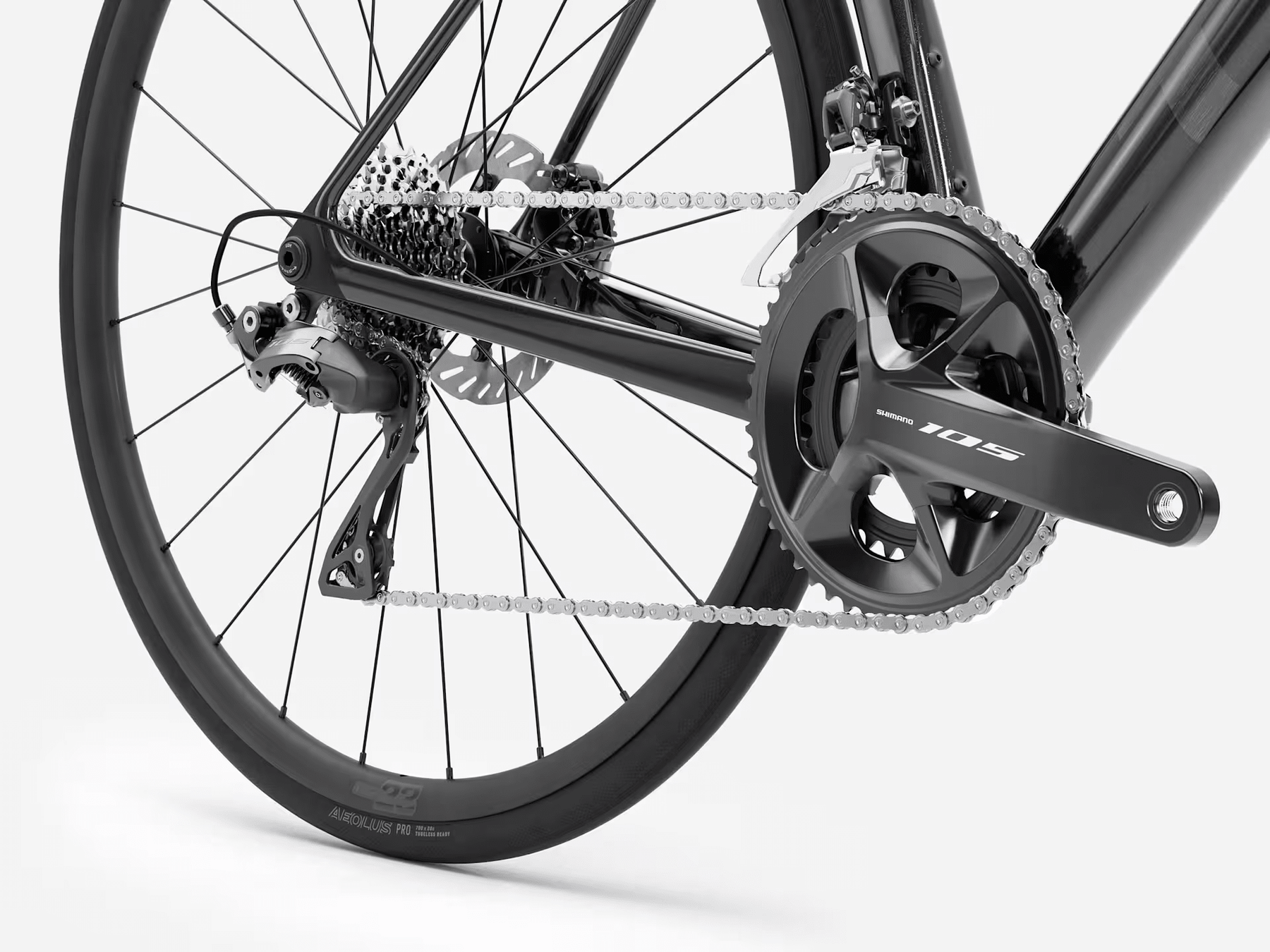

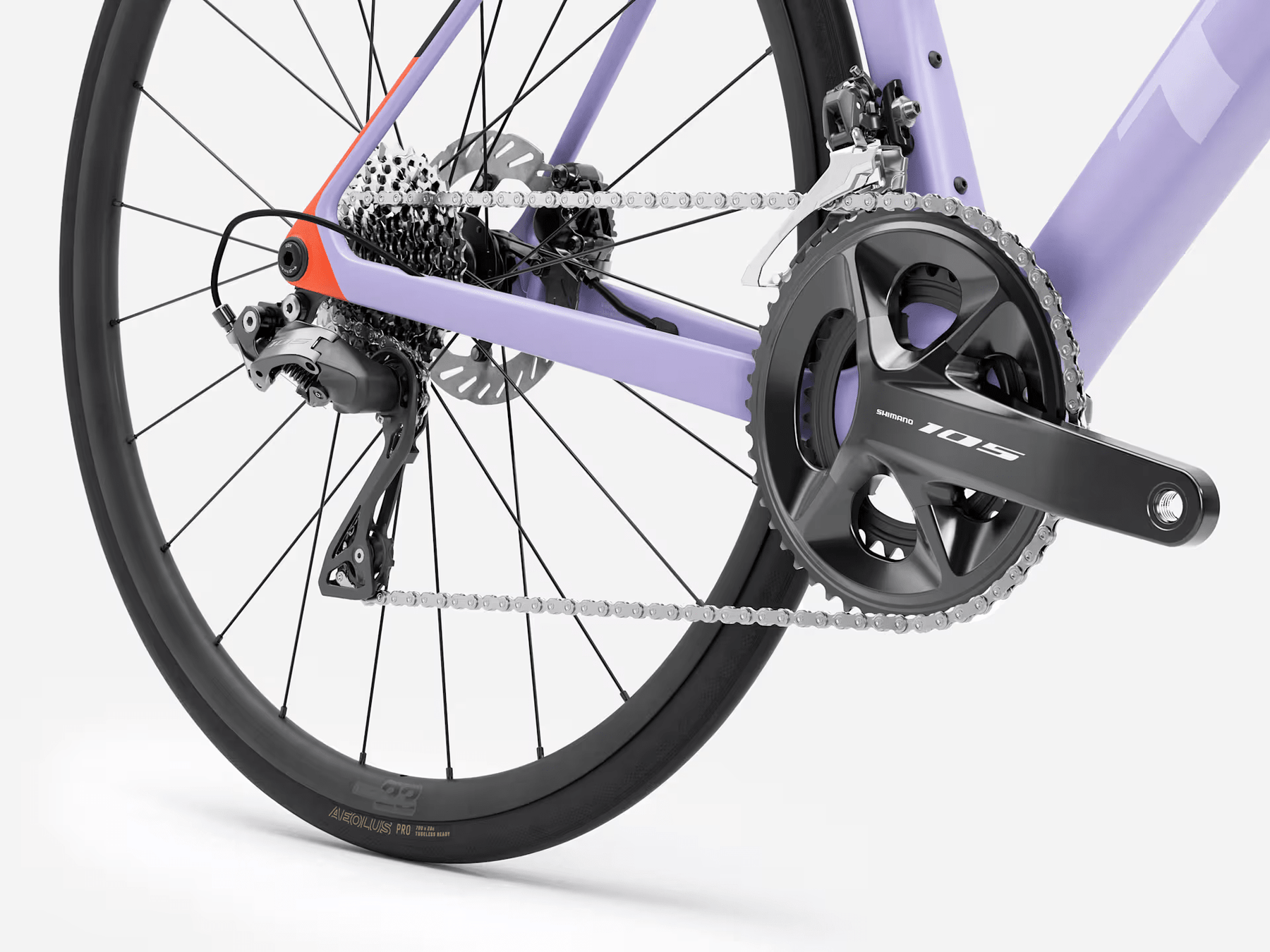

Drivetrain

  • Shifter: Shimano 105 R7120, 12 speed
  • Front derailleur: Shimano 105 R7100, braze-on, down swing
  • Rear derailleur: Shimano 105 R7100, 36T max cog

  • *Crank:
  1. Size: XS, S - Shimano 105 R7100, 50/34, 165mm length
  2. Size: M, ML - Shimano 105 R7100, 50/34, 170mm length
  3. Size: L, XL - Shimano 105 R7100, 50/34, 172.5mm length

  • Bottom bracket: Praxis, T47 threaded, internal bearing
  • Cassette: Shimano 105 7101, 11-34, 12 speed
  • Chain: Shimano SLX M7100, 12 speed
  • Max chainring size: 1x: 54T, 2x: 56/43

Wheels

  • Hub front: Center lock disc hubs, 100x12mm thru axle
  • Skewer front: Bontrager Switch chamfered thru axle
  • Hub rear: Center lock disc hubs, Bontrager 24 point engagement, 3-pawl hub. Compatible with Shimano 10/11/12 speed, SRAM 10/11 freehubs, 12sp XDR available separately, 142x12mm thru axle
  • Skewer rear: Bontrager Switch chamfered thru axle, removable lever
  • Rim: Bontrager OCLV carbon, Tubeless Ready, 24-hole, 27mm outer width, 19.5mm inner width, Presta valve
  • Tire: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120tpi, 700x28mm
  • Tire part: Bontrager TLR sealant, 180 ml/6 oz
  • Max tire size: 32mm (as measured, see manual for details)

Components

  • Saddle: Bontrager Aeolus Elite, austenite rails, 145mm width
  • Seatpost: Madone aero carbon seatpost, 0mm offset, short length

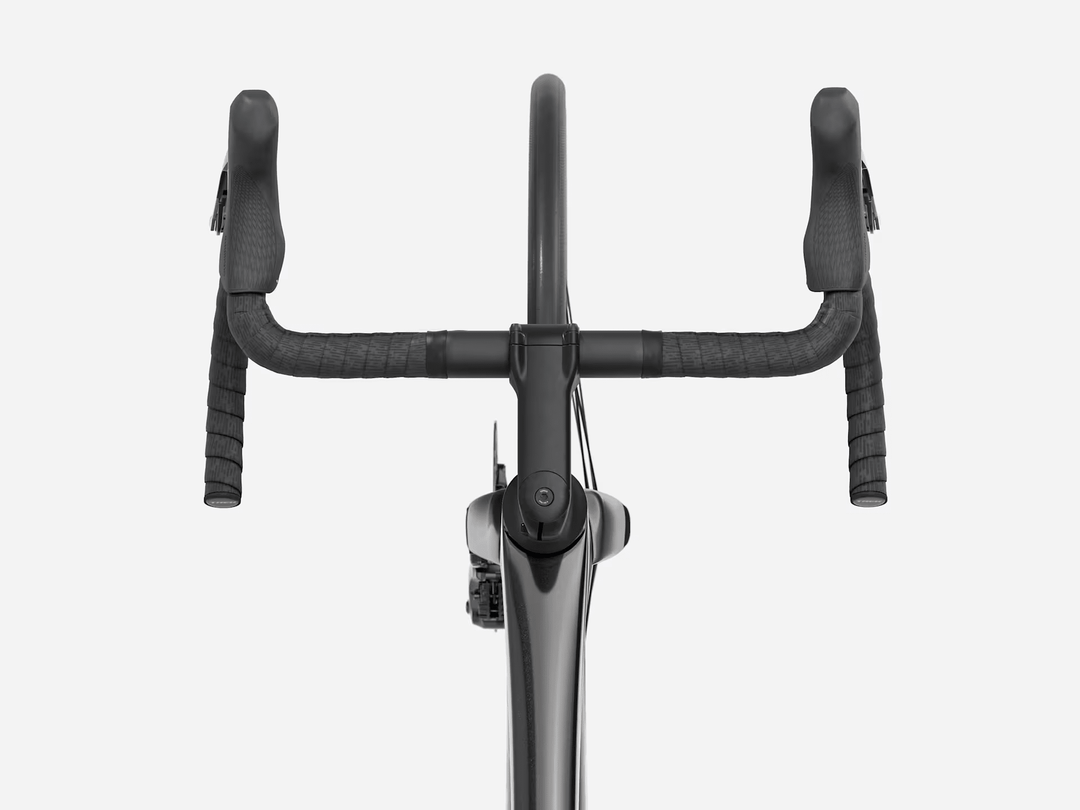

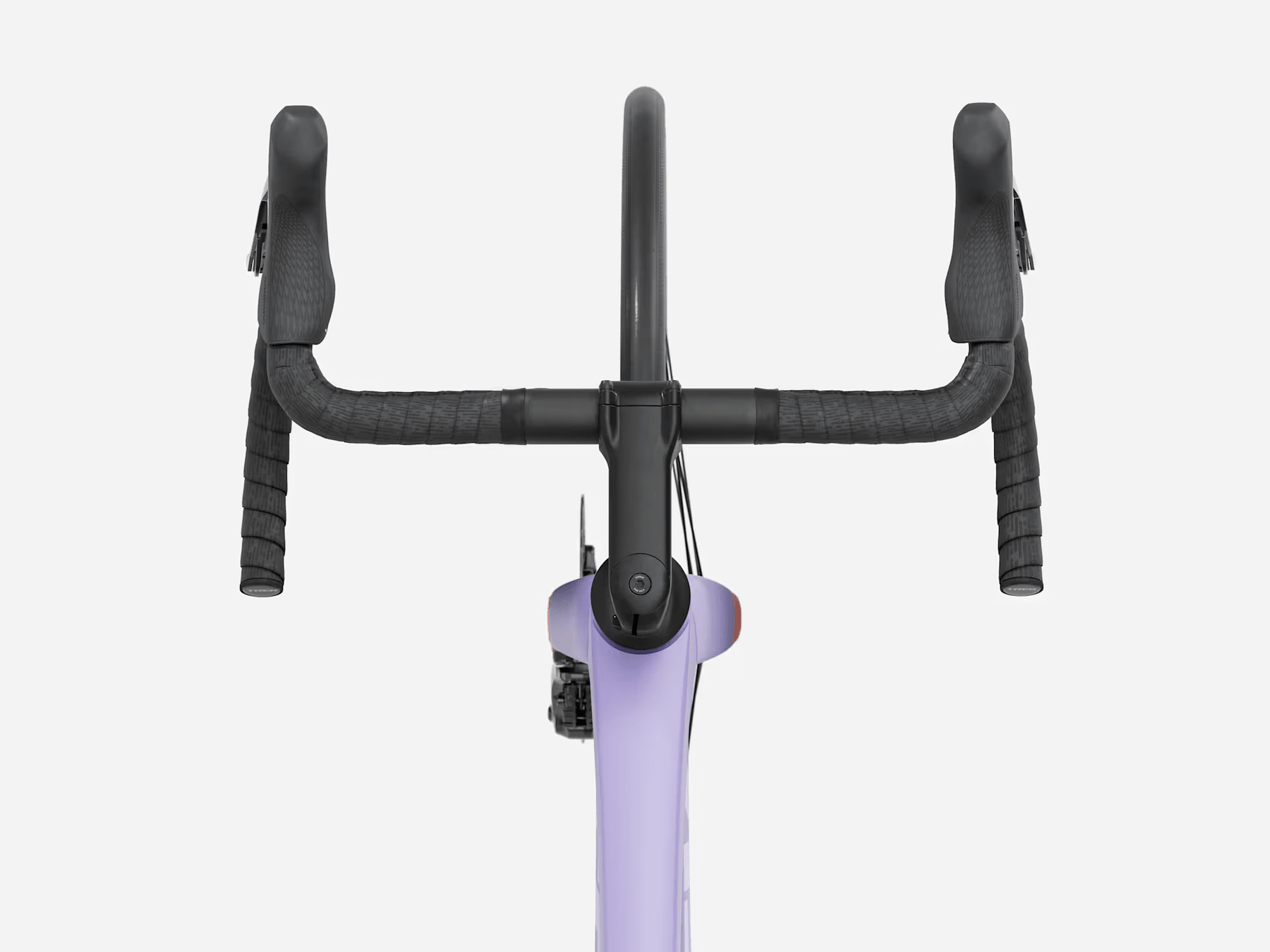

  • *Handlebar:
  1. Size: XS - Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
  2. Size: S, M - Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
  3. Size: ML, L - Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
  4. Size: XL - Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width

  • Handlebar tape: Trek EcoTack

  • *Stem:
  1. Size: XS - Trek RCS Pro, -7 degree, 80mm length
  2. Size: S, M - Trek RCS Pro, -7 degree, 90mm length
  3. Size: ML, L - Trek RCS Pro, -7 degree, 100mm length
  4. Size: XL - Trek RCS Pro, -7 degree, 110mm length

  • Brake: Shimano 105 hydraulic disc, flat mount
  • Brake rotor: Shimano CL700, centerlock, 160mm
  • Rotor size: Max brake rotor sizes: 180mm front, 160mm rear

 *Subject to change without notice

Redefines what fast looks like

Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness climbers crave. Plus, the bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.

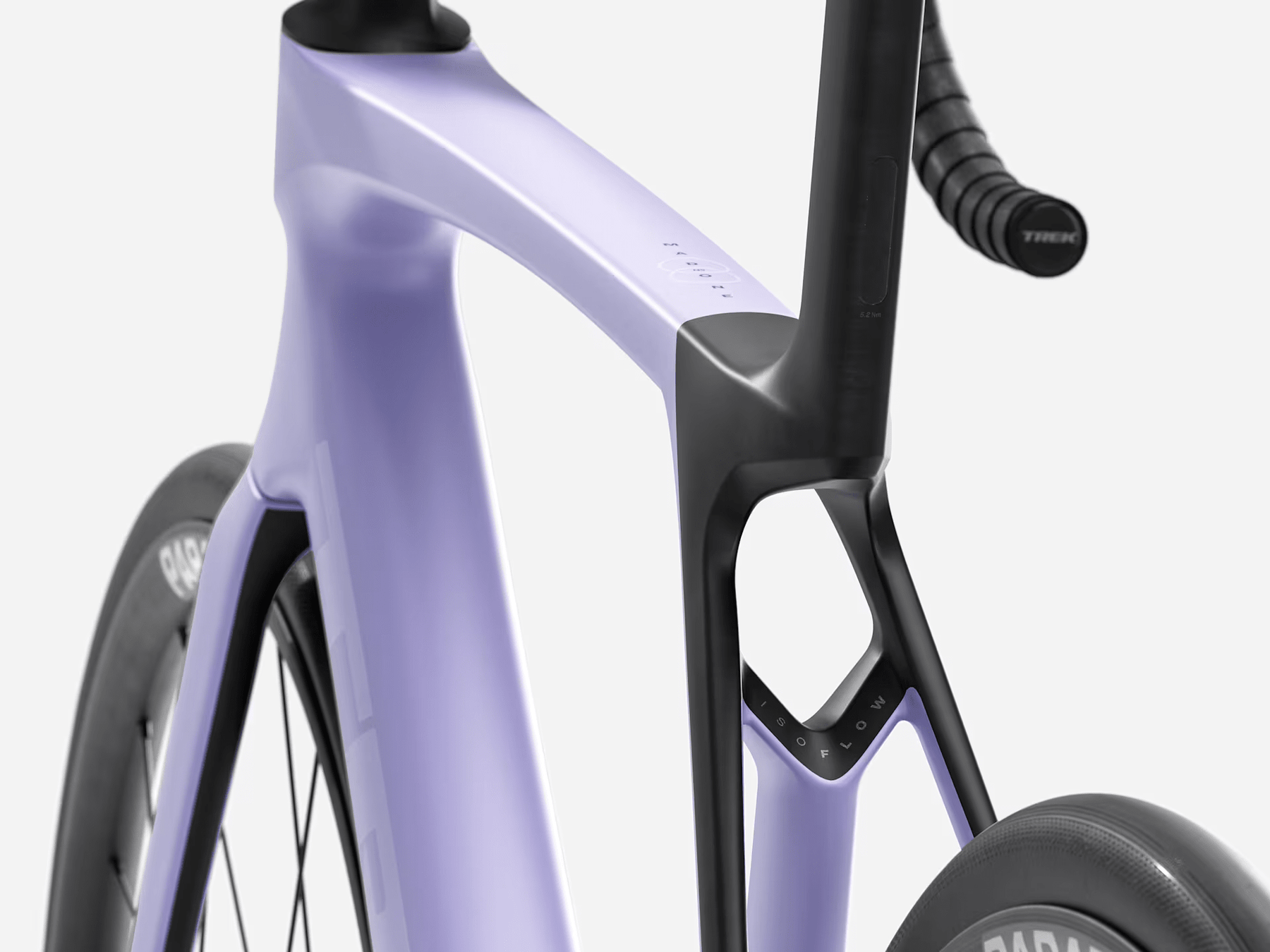

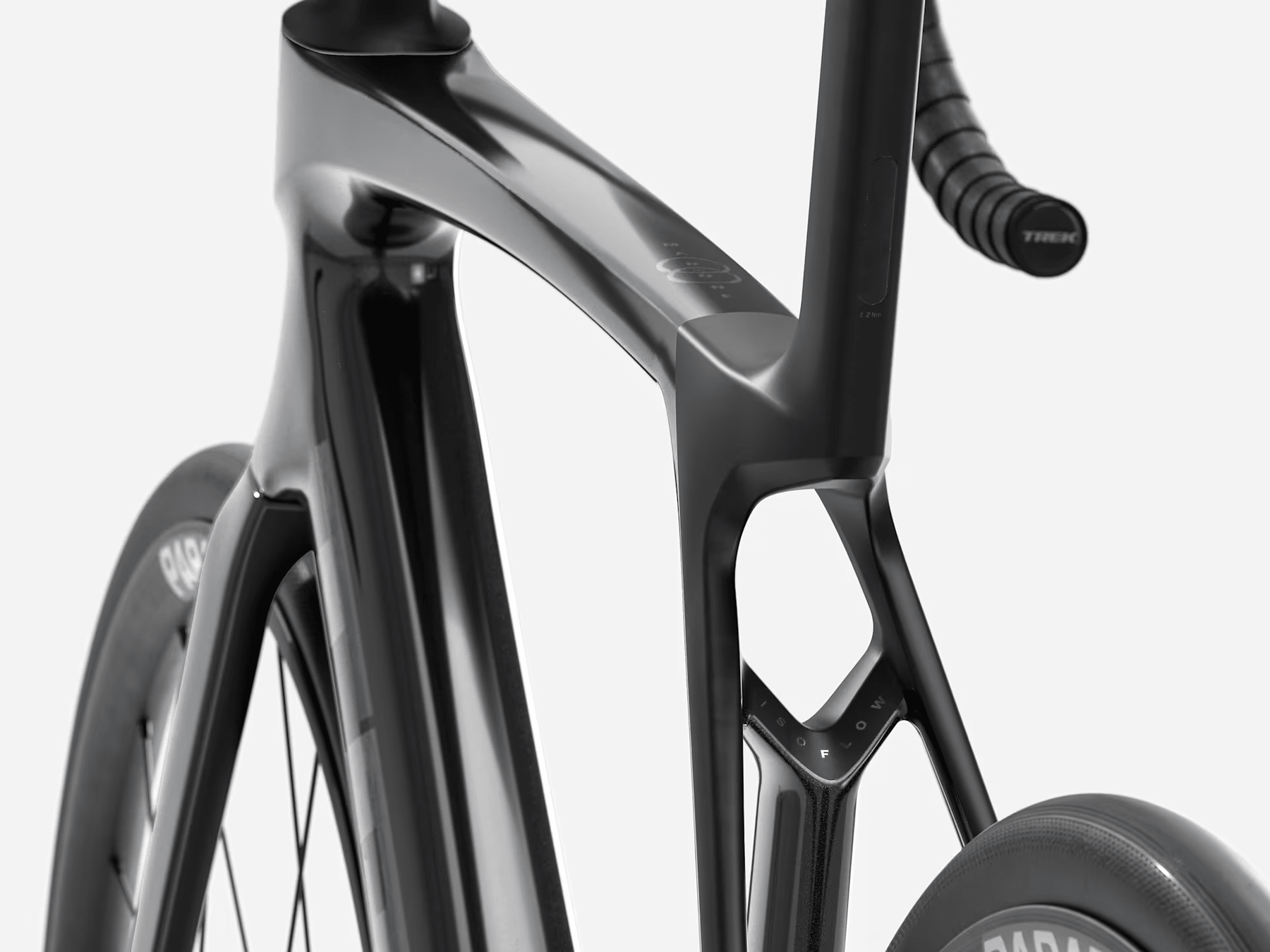

80% more vertically compliant IsoFlow

Trek refined their race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger longer.

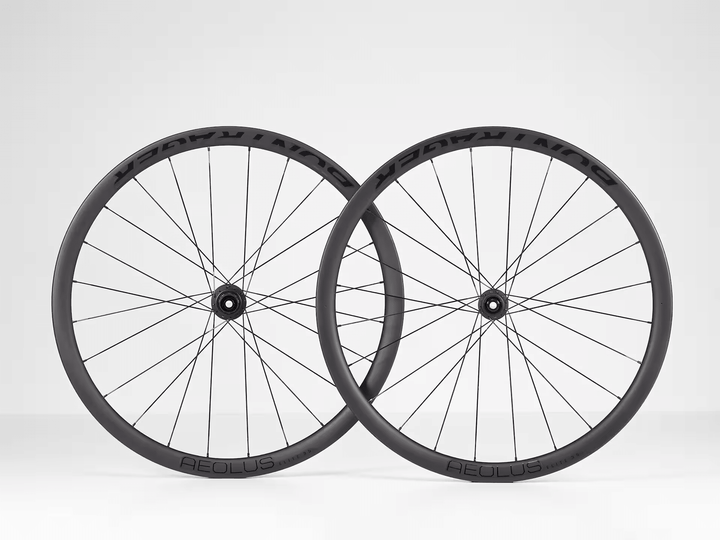

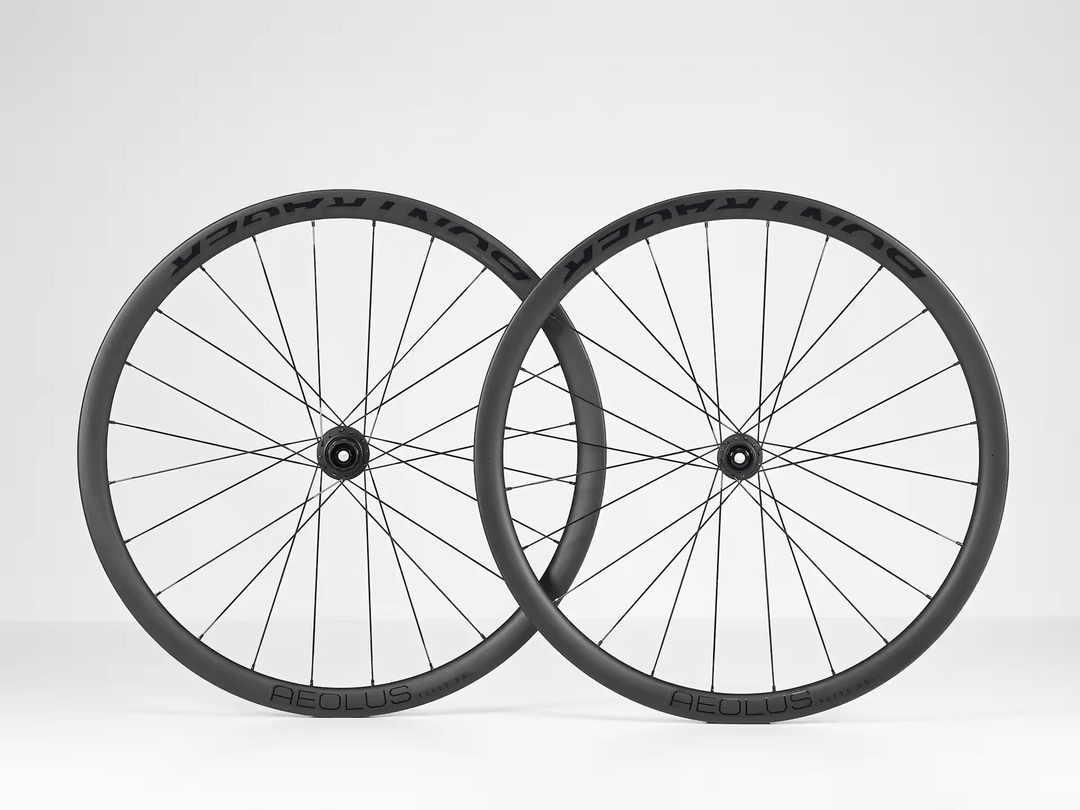

Bontrager Aeolus Elite 35 Carbon Wheels

A high-value, high-performance, full-carbon disc brake road wheel packed with all of the aero and performance benefits of a 35mm carbon rim.

  • OCLV Carbon offers an optimized blend of weight, strength, and durability
  • Tubeless Ready (TLR) rims allow for quick transition to tubeless system
  • 35mm depth OCLV Carbon rim (27mm outer, 19.5mm inner width) Grand Strada spokes 24/24, hex alloy nipples
  • Includes TLR rim strip, TLR valve, and traditional rim strip
  • Warrantied for life, no rider weight limit

All Bontrager carbon wheels are warrantied for life for the original purchaser and come with the added protection of Carbon Care. If you damage your wheels while riding in the first two years of ownership, we'll replace them. It’s that easy.
