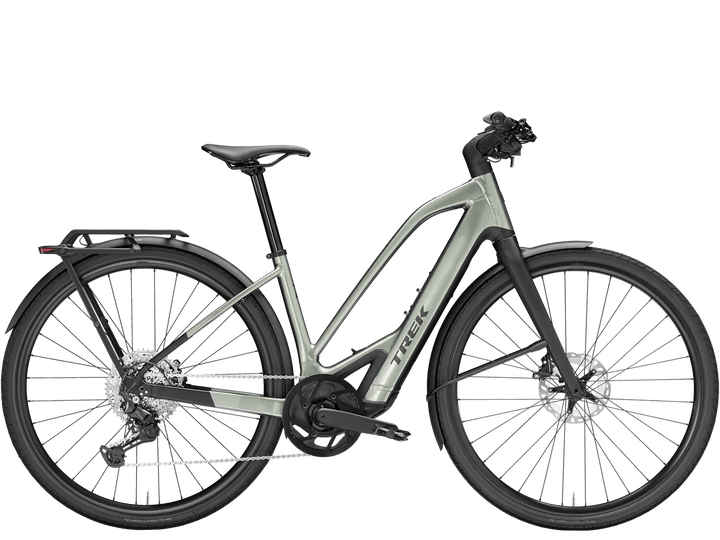

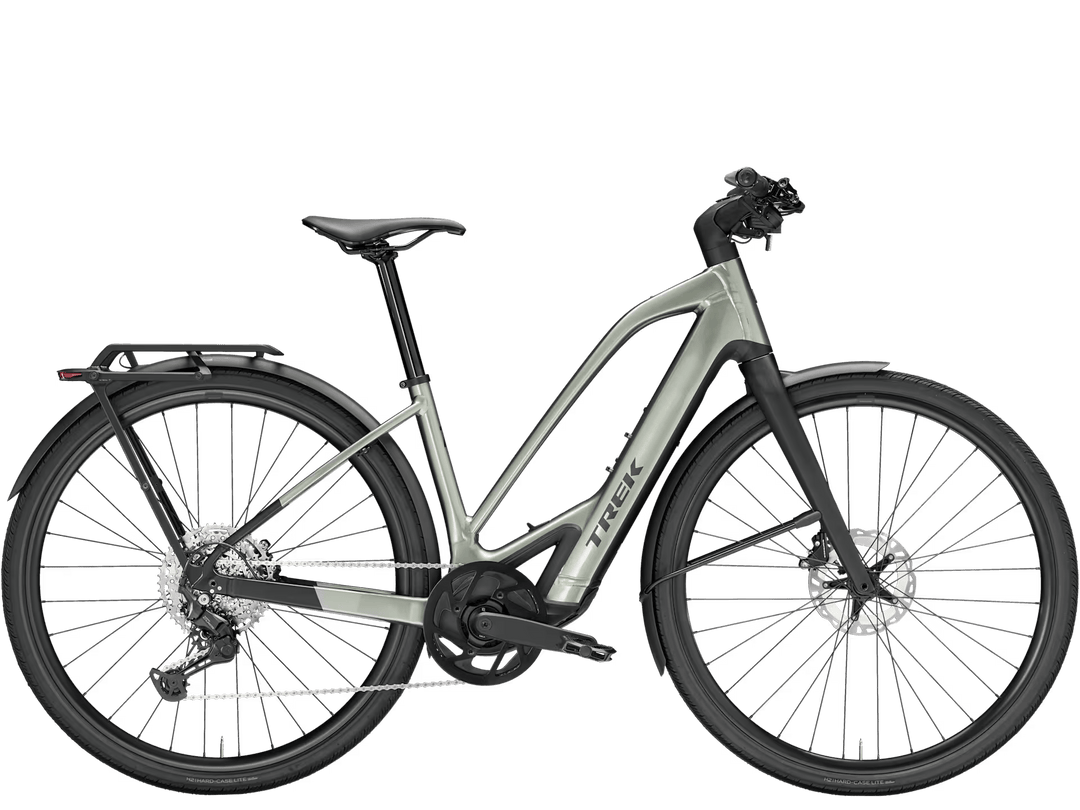

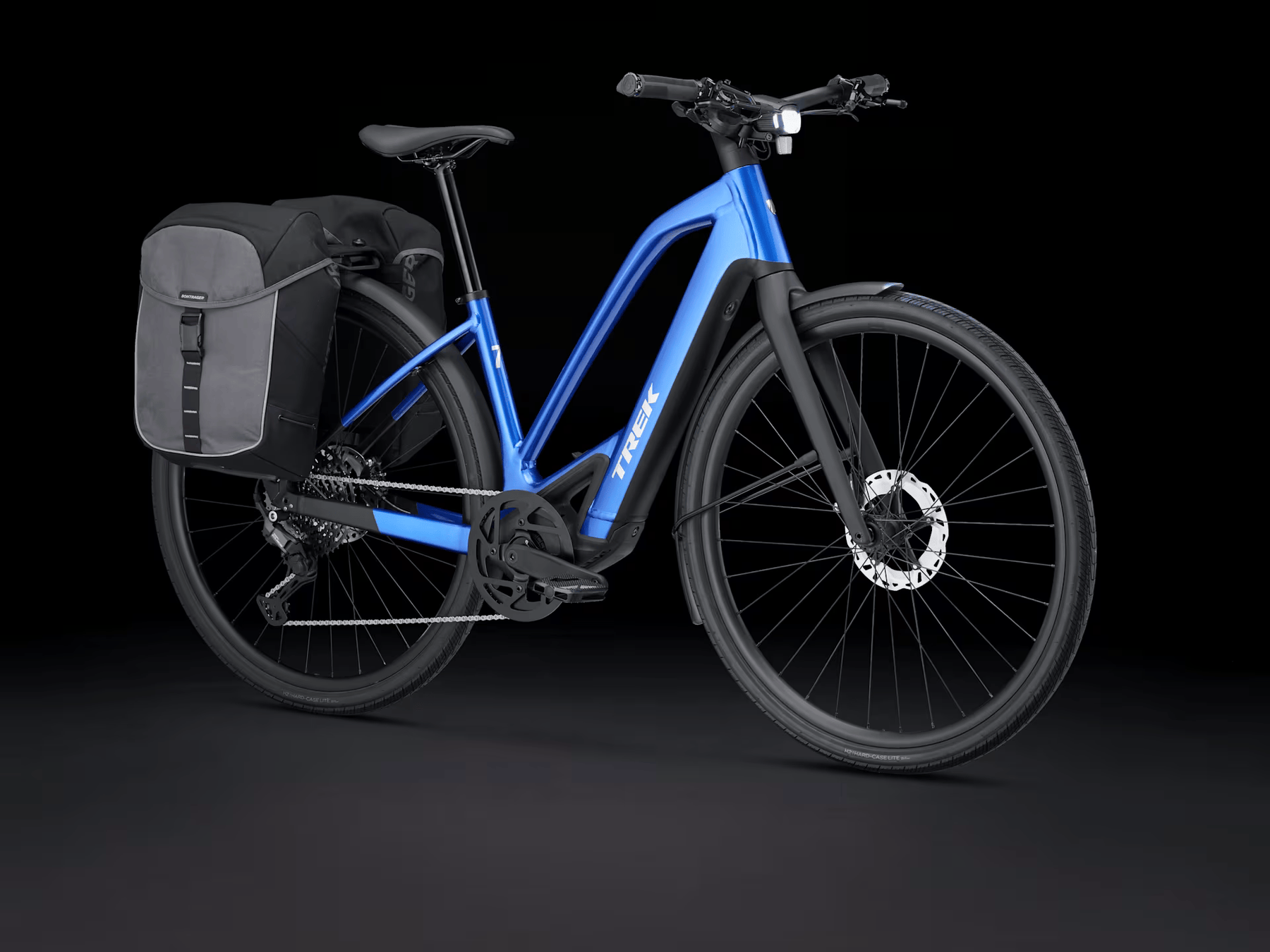

FX+ 7 Mid-step - E-Bike

• You get a bike that's not only beautiful to look at, but a dream to ride thanks to the quiet, natural-feeling assist

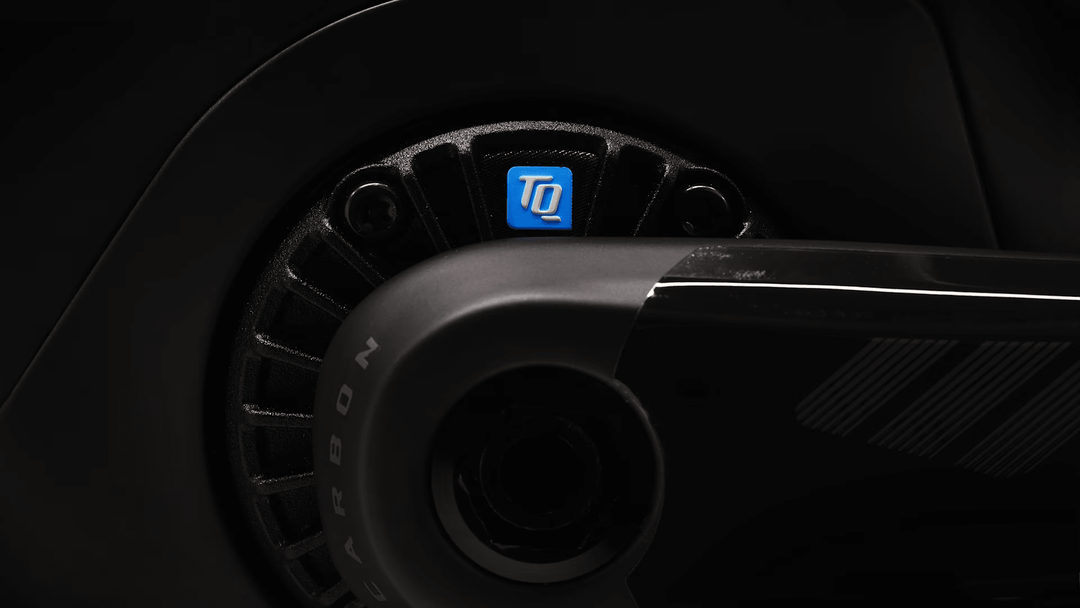

• TQ's HPR50 motor is lightweight, compact, quiet, and gives you just the boost you crave on steep hills

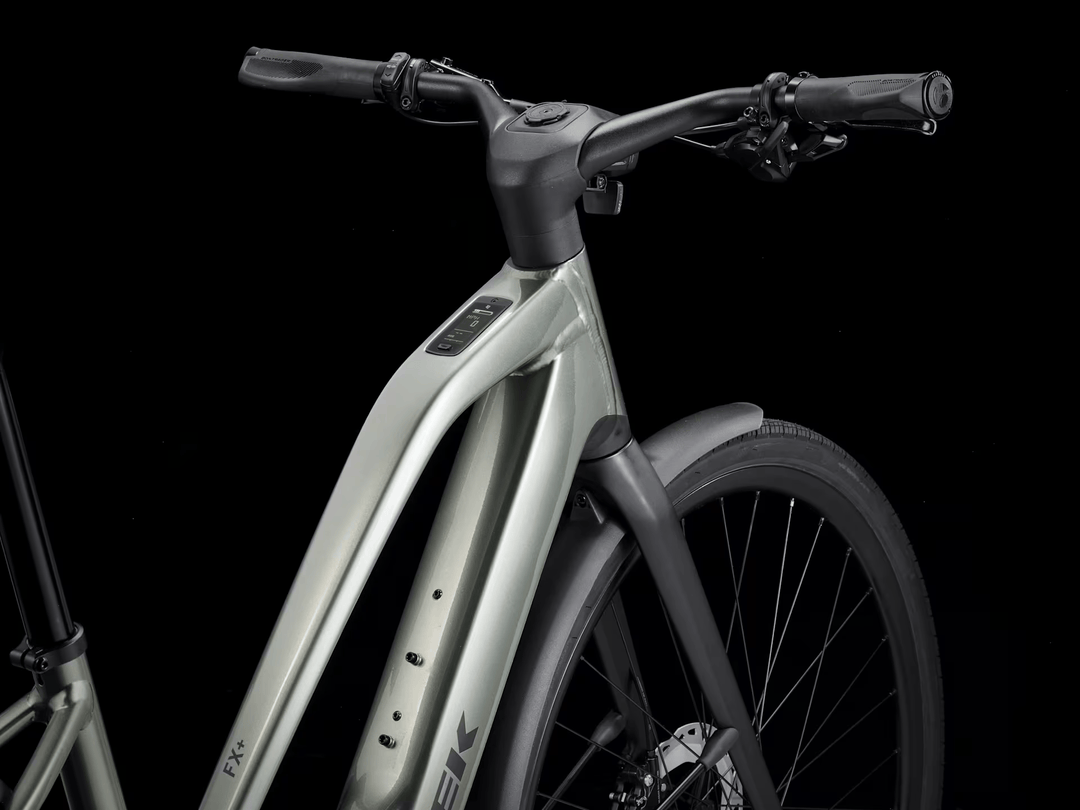

• Its midstep Alpha Platinum Aluminum frame keeps your cables and battery managed neatly inside

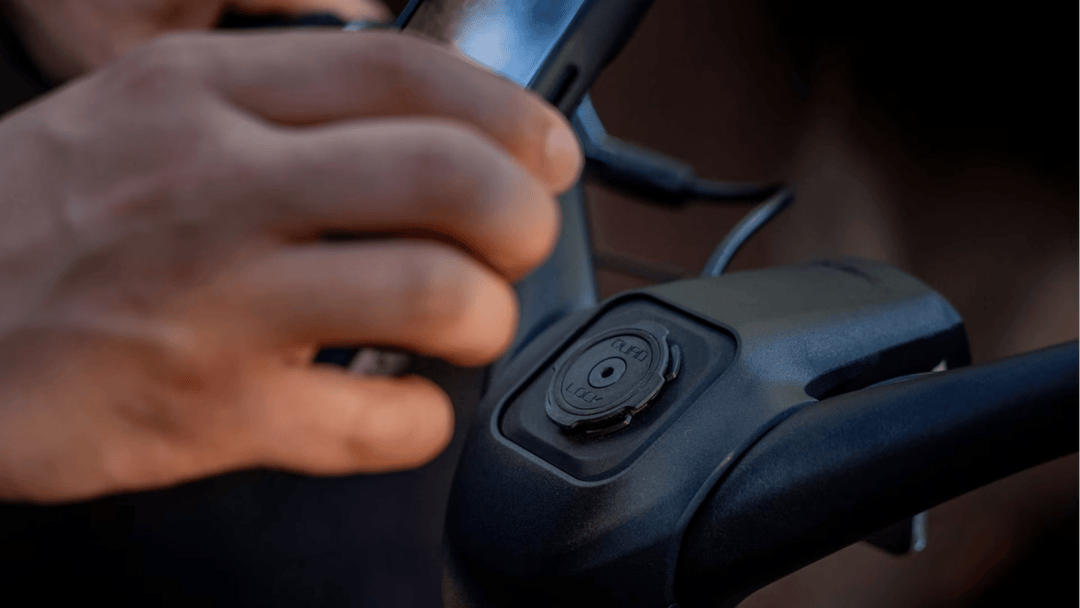

• Intuitive controls and a sleek, integrated display make toggling through modes and viewing ride data a breeze

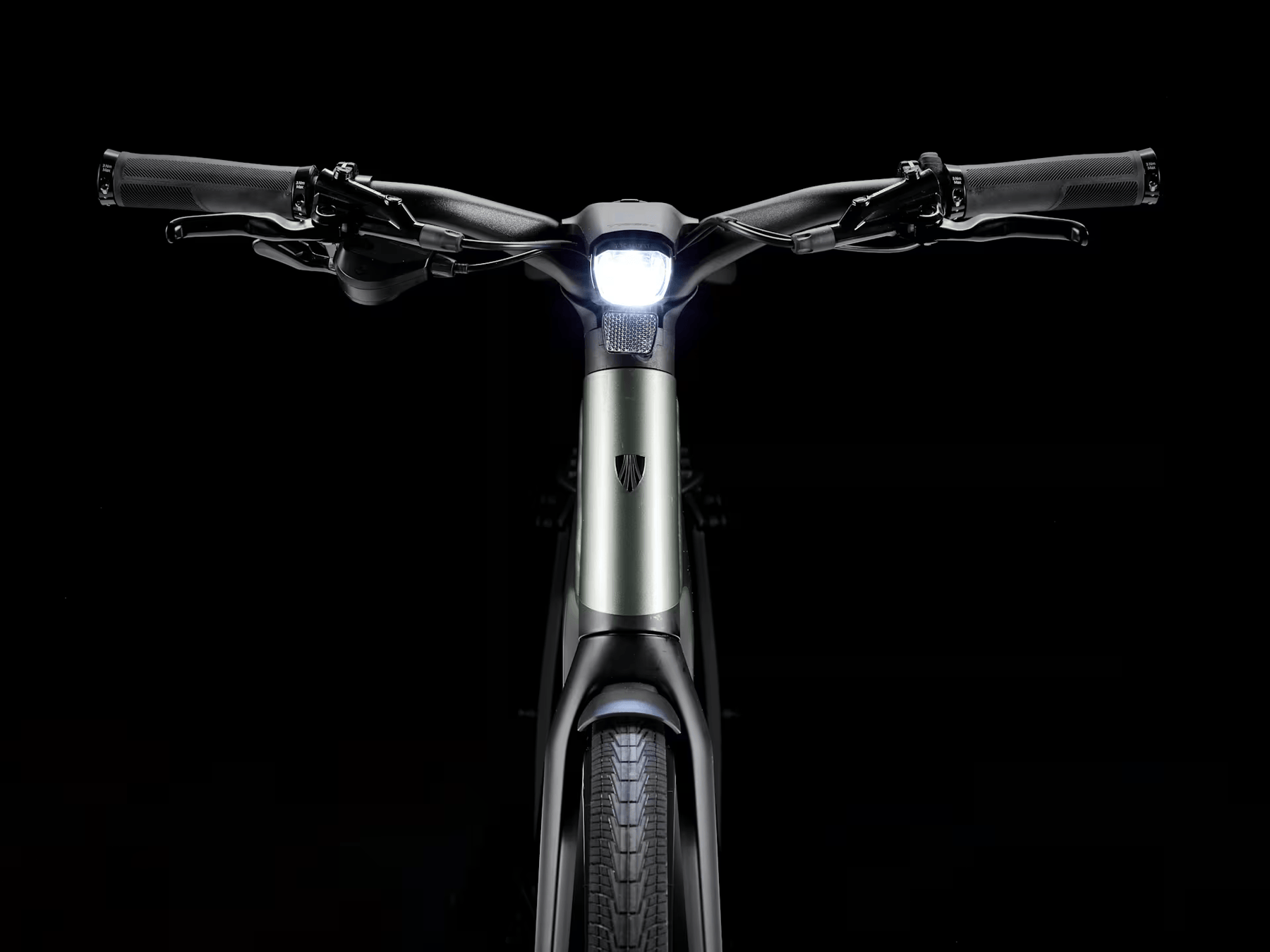

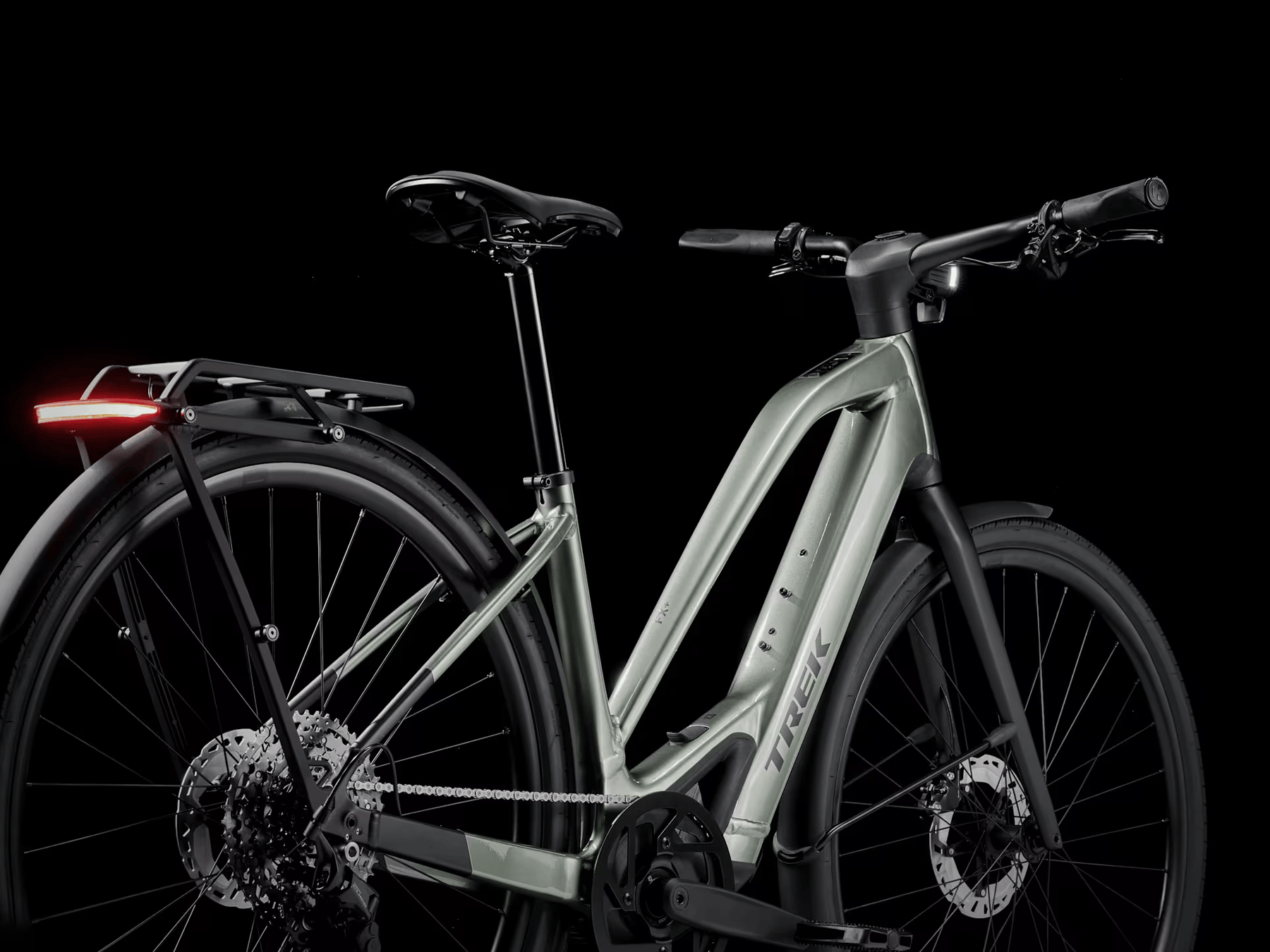

• It comes ready to roll with built-in front and rear lights, a kickstand, and a rear MIK rack with side mounting options

Frameset

• Frame: Alpha Platinum Aluminum, internal cable routing, dealer removable battery, rack & fender mounts, post mount disc, kickstand mount
• Fork: FX+ 7, carbon legs, hidden fender mounts, flat mount disc, internal routing, 100x12 thru axle

Wheels

• Hub front: Formula alloy, CenterLock disc, 100x12 mm thru-axle
• Skewer front: Bontrager Switch thru axle, removable lever
• Hub rear: Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
• Skewer rear: Bontrager Switch thru axle
• Rim: Bontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, Presta valve
• Spokes: 14g stainless steel, black
• Tire: Bontrager H2 Hard Case Lite, wire bead, 30 tpi, 700x40mm

E-system

• Battery: TQ 360Wh
• Charger: TQ 4A charger
• Computer: TQ LED display with Bluetooth & ANT+ connectivity
• Motor: TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

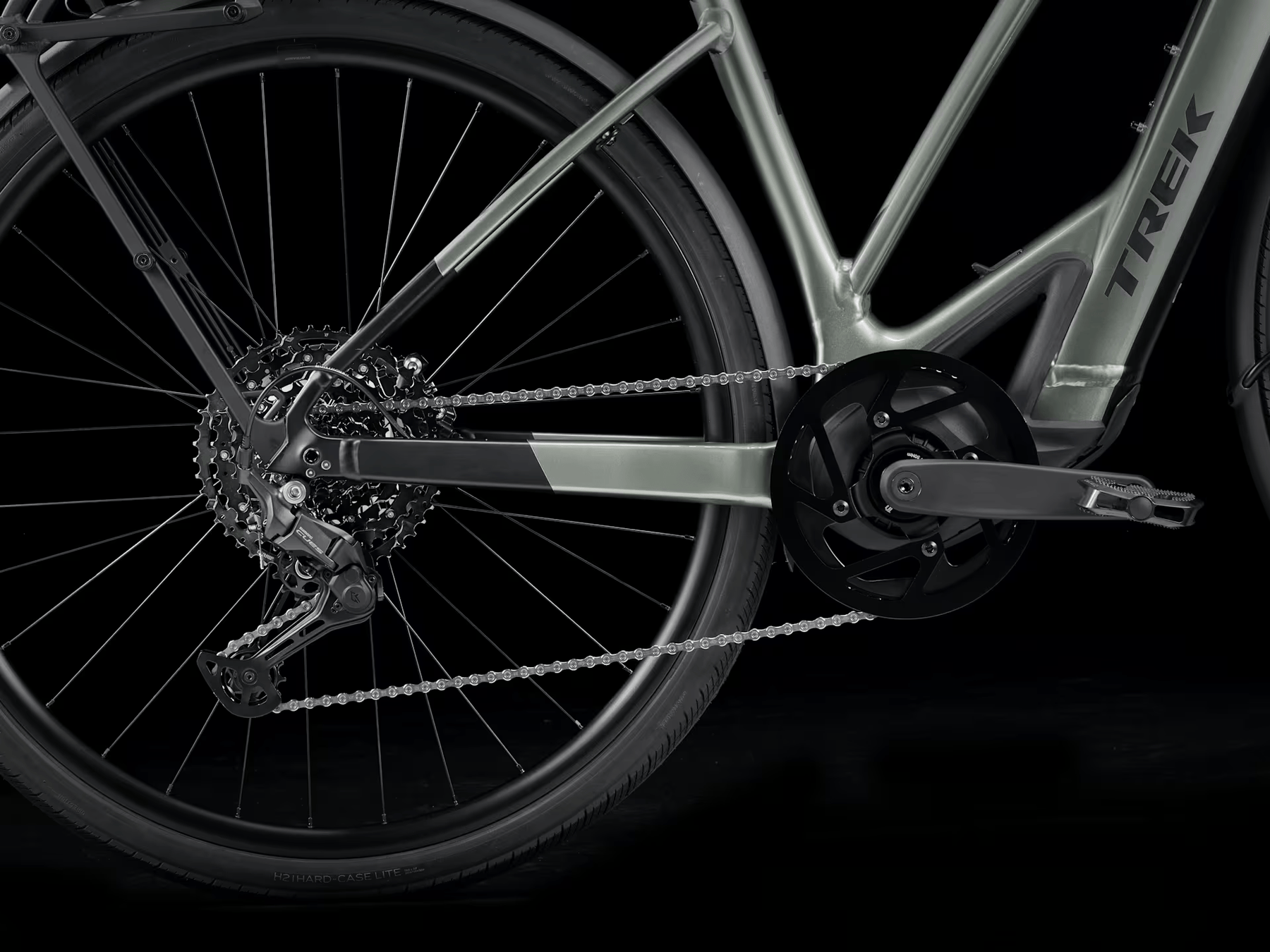

Drivetrain

• Shifter: Shimano U6000, 10 speed
• Rear derailleur: Shimano CUES U6000 GS
• Crank: ProWheel Alloy, 46T narrow-wide chainring, 170mm arm length ISIS spline
• Cassette: Shimano CUES LG400, LINKGLIDE, 11-48, 10 speed
• Chain: Shimano LG500, 9/10/11 speed
• Pedal: Bontrager City pedals

Components

• Saddle: Bontrager Verse Comp, steel rails, 165mm width
• Seatpost: Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length
• *Handlebar/stem (integrated):

1. Size XS, S, M: Bontrager Integrated handlebar/stem, 15mm virtual handlebar rise, 640mm width, 0 degree stem rise, 90mm stem (virtual) length
2. Size L: Bontrager Integrated handlebar/stem, 15mm virtual handlebar rise, 680 width, 0 degree stem rise, 90mm stem (virtual) length

• Grips: Trek Line Ergonomic Comp, lock-on
• Brake: Shimano hydraulic disc, RS600 lever, RS405 caliper
• *Brake rotor:

1. Size XS, M, L: Shimano SM-RT64, centerlock, 180mm
2. Size XS, M, L: Shimano RT-EM600, centerlock, 160mm

Accessories

• *Light:

1. Size XS, M, L: Spanninga GLOW XE for e-bike
2. Size XS, M, L: Herrmans H-Black MR9-E

• Kickstand: Adjustable length rear mount alloy kickstand
• Cargo rack: MIK-compatible alloy rear rack
• Fender: Trek FX+ 7 Rear Fender

Weight

• Weight: M - 18.70 kg / 41.23 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
