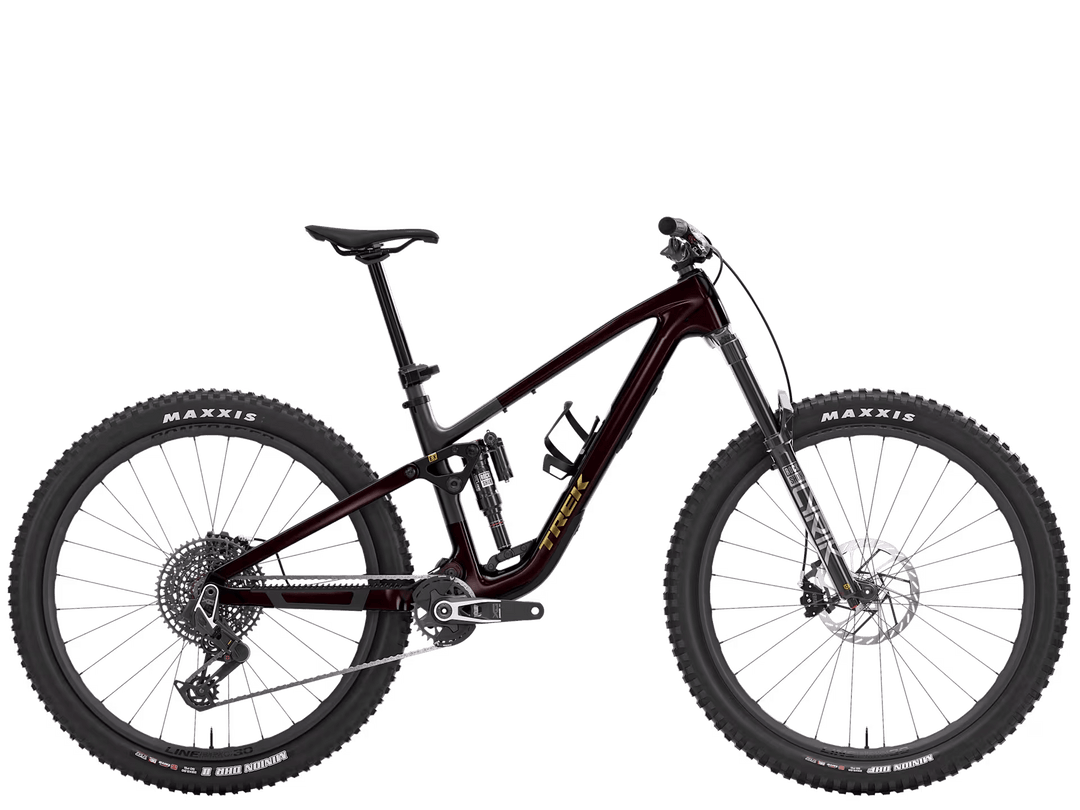

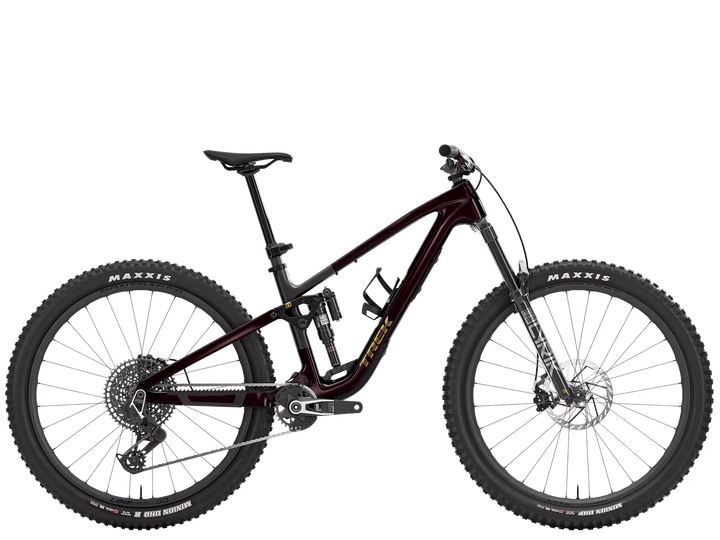

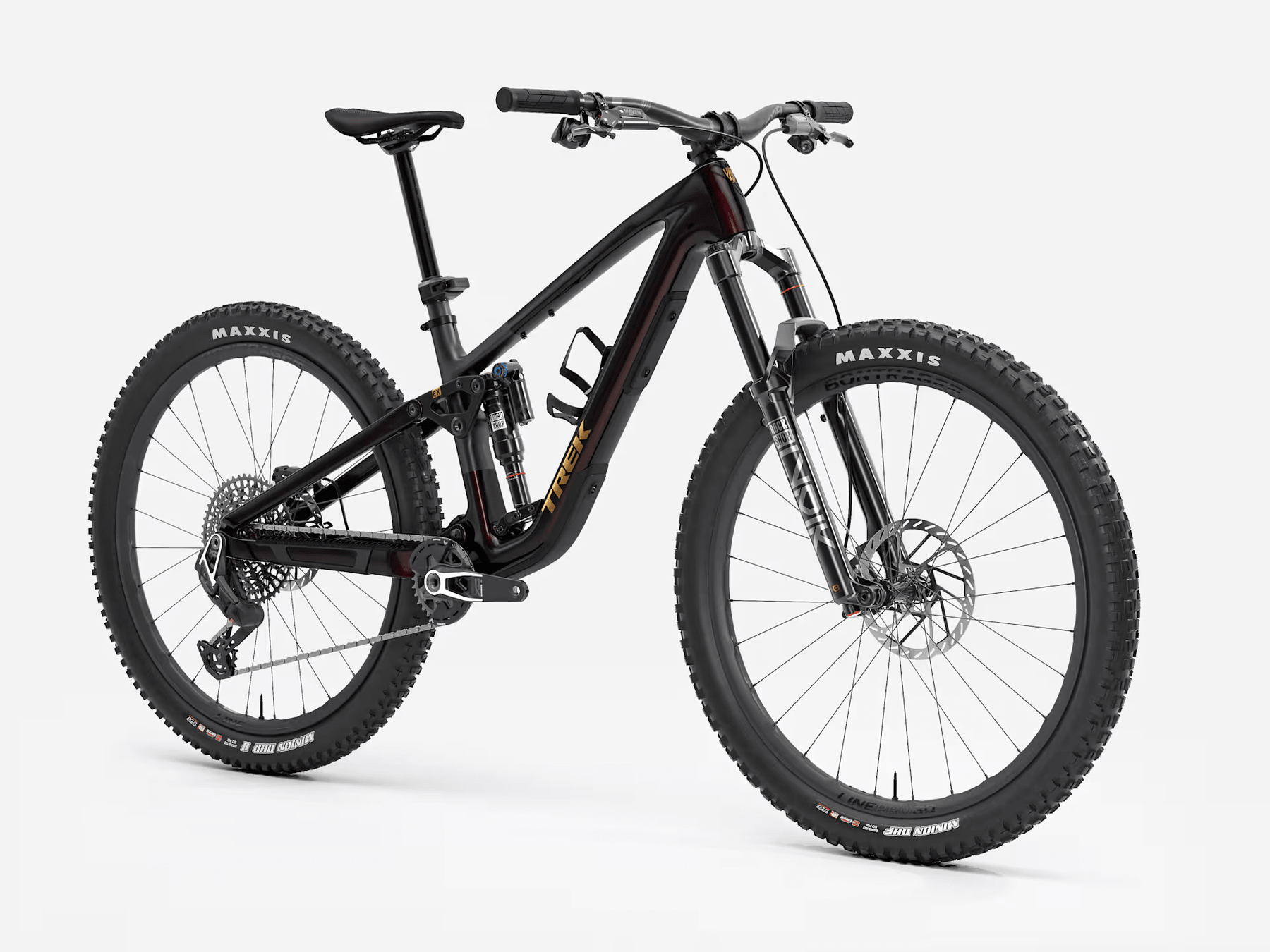

Fuel EX 9.9 X0 AXS Gen 7

• Featuring a RockShox Deluxe Ultimate shock and Lyrik Ultimate fork (145mm, 150mm) to give you the travel you need for rowdy roots and jump lines
• OCLV Mountain Carbon frame
• SRAM wireless X0 Eagle AXS 12-speed transmission
• SRAM Maven Silver 4-piston brakes keep you stopping on a dime
• OCLV Mountain Carbon Bontrager Line Pro 30 wheels
• RockShox Reverb AXS wireless dropper post









Frameset

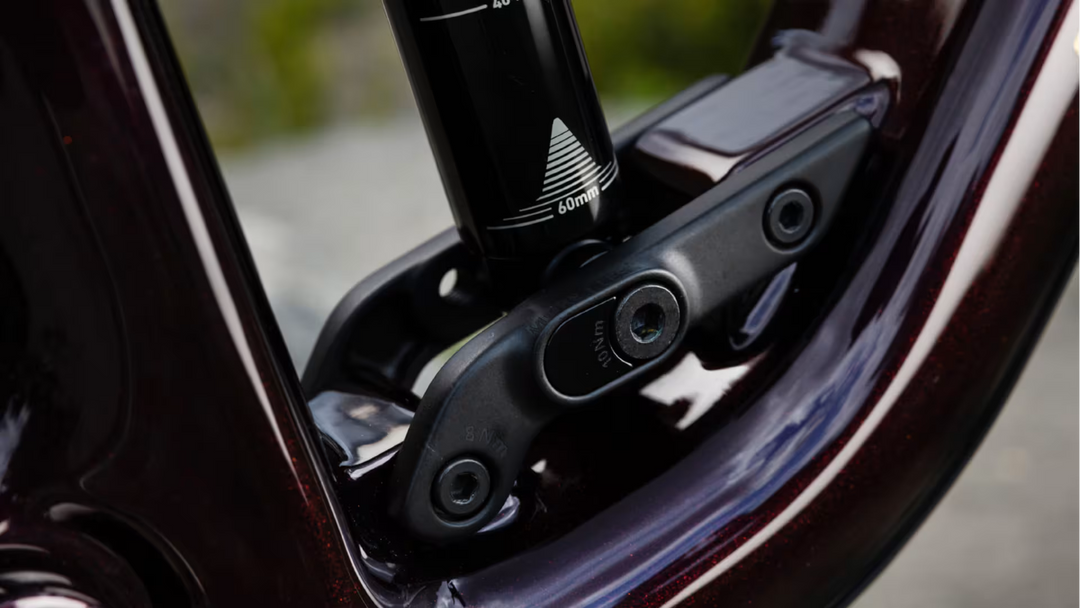

• Frame: OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
• Fork: RockShox Lyrik Ultimate, DebonAir+ w/ ButterCups, Charger 3.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel

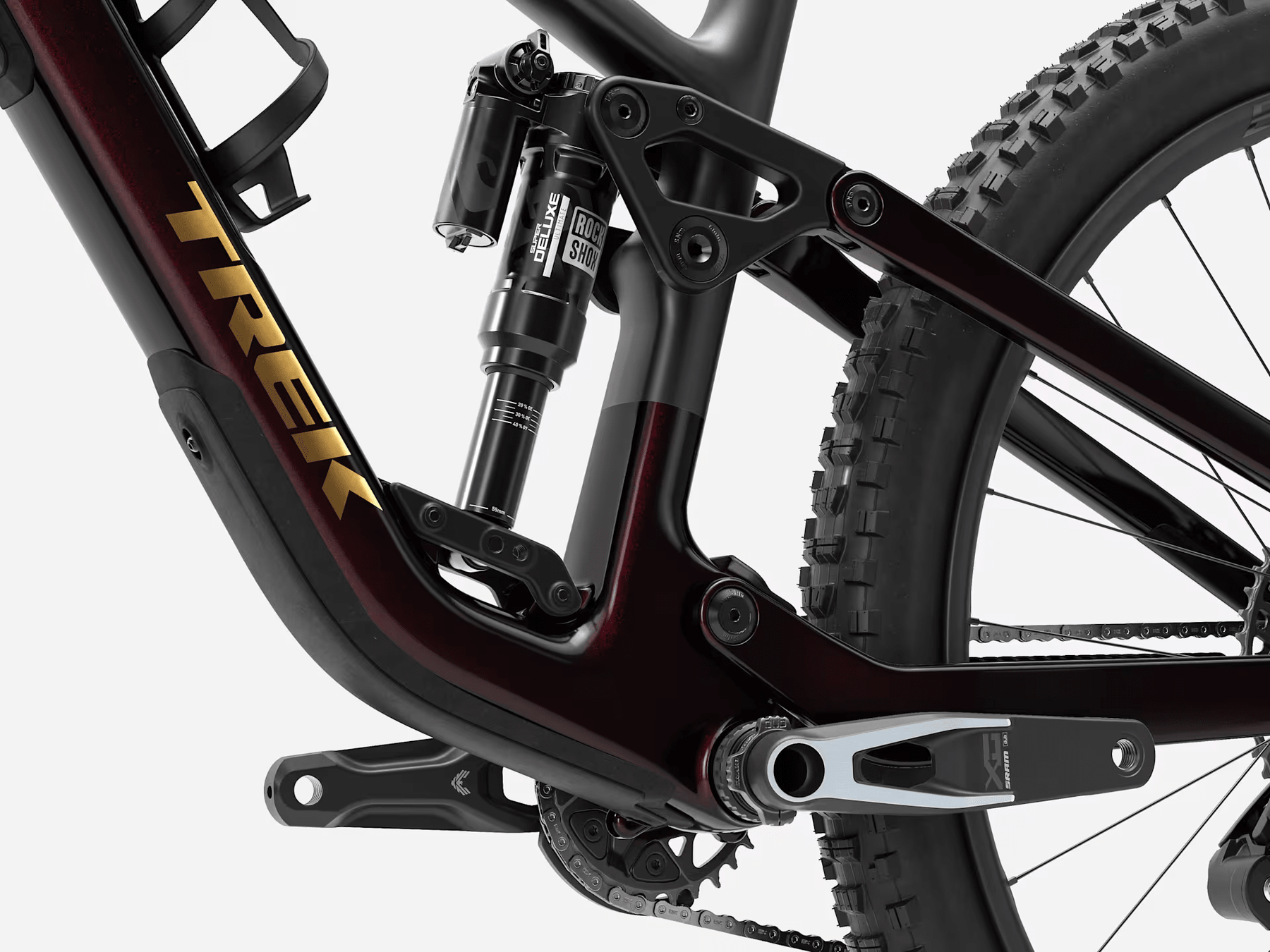

• Shock: RockShox Deluxe Ultimate RC2T, 205mm x 60mm
• Max compatible fork travel: 170mm

Wheels

• Wheel front: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"

• *Wheel rear

1. Size: S - Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 27.5"
2. Size: M, L, XL, XXL - Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29"

• Skewer rear: Bontrager Switch thru axle, removable lever

• *Tire:

1. Size: S, M, L, XL, XXL - Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''
2. Size: S - Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''
3. Size: M, L, XL, XXL - Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''

• Tire part: Bontrager TLR sealant, 180 ml/6 oz
• Max tire size: Frame: 29x2.50", Fork: See manufacturer

E-system

• Battery: SRAM AXS battery pack (with charger)

Drivetrain

• Shifter: SRAM AXS pod

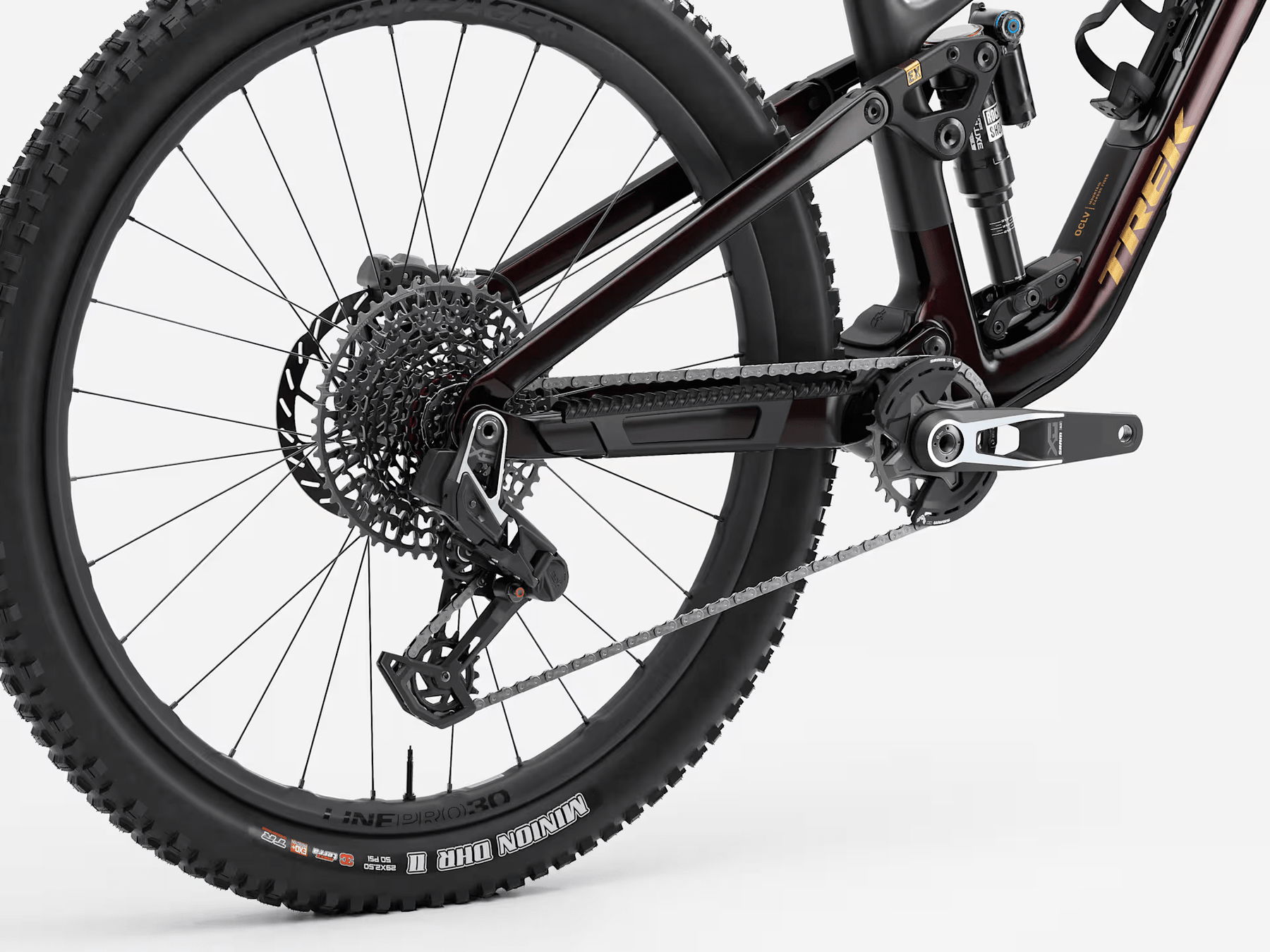

• Rear derailleur: SRAM X0 Eagle AXS, T-Type
• Crank: SRAM X0 Eagle, DUB, 30T, T-Type, 55mm chainline, 170mm length
• Bottom bracket: SRAM DUB MTB Wide, 73mm, BSA threaded
• Cassette: SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
• Chain: SRAM X0 Eagle, T-Type, 12 speed
• Max chainring size: 1x: 34T round, 32T oval, min 30T, 32T oval

Components

• Saddle: Verse Short Pro, carbon rails, 145mm width

• *Seatpost:

1. Size: S - RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 442mm length
2. Size: M - RockShox Reverb AXS, 175mm travel, wireless, 34.9mm, 492mm length
3. Size: L, XL, XXL - RockShox Reverb AXS, 200mm travel, wireless, 34.9mm, 542mm length

• Handlebar: Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width
• Grips: Trek Line Elite, lock-on
• Stem: Race Face Turbine R, 35mm, 0 degree, 40mm length

Brake

• SRAM Maven Silver 4-piston hydraulic disc

• *Brake rotor:

1. Size: S, M, L, XL, XXL - SRAM HS2, 6-bolt, 180mm
2. Size: S, M, L, XL, XXL - SRAM HS2, 6-bolt, 200mm

• Rotor size: Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight

• Weight: MD - 31.05 lbs / 14.08 kg (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

*Subject to change without notice
