Trek

Domane+ SL 7 AXS - E-Bike

UPC: 197216475583
Buy a Bike - Save 15% off Regular Price Cycling Accessories, Apparel, and Gear!
Colour — Mother of Pearl/Silver Marble
Size
Size chart
 Size  Rider Height  Inseam
XS

143 - 158 cm

4'8" - 5'2"



67 - 74 cm

26" - 29"
S

158 - 162 cm

5'2" - 5'4"



74 - 76 cm

29" - 30"
M

164 - 173 cm

5'4" - 5'8"



76 - 81 cm

30" - 32"
M/L

173 - 179 cm

5'8" - 5'10"



81 - 84 cm

32" - 33"
L

179 - 188 cm

5'10" - 6'2"



84 - 88 cm

33" - 35"
XL

188 - 213 cm

6'2" - 7'0"



88 - 100 cm

35" - 39"

Price
Save
/

Pairs well with
  • Price match guarantee
  • Free shipping over $74.00*
  • Locally owned
  • Secure payments
Frame:
500 Series OCLV Carbon, UDH
Fork:
Domane+ Carbon, Tapered Steerer
Motor:
TQ-HPR40
Battery:
TQ 360Wh
Controller:
TQ colour LED display (Bluetooth, ANT+)
Tires:
Bontrager Kwaremont RSL, TLR, 700x35mm
Wheels:
Bontrager Aeolus Pro 37, TLR
Brakes:
SRAM Force AXS E1
Tire Clearance:
40mm
Sizes:
SM, MD
Weight (lbs/kg):
26.7lbs / 12.11kg (Based on 56cm size, with Tubeless setup)

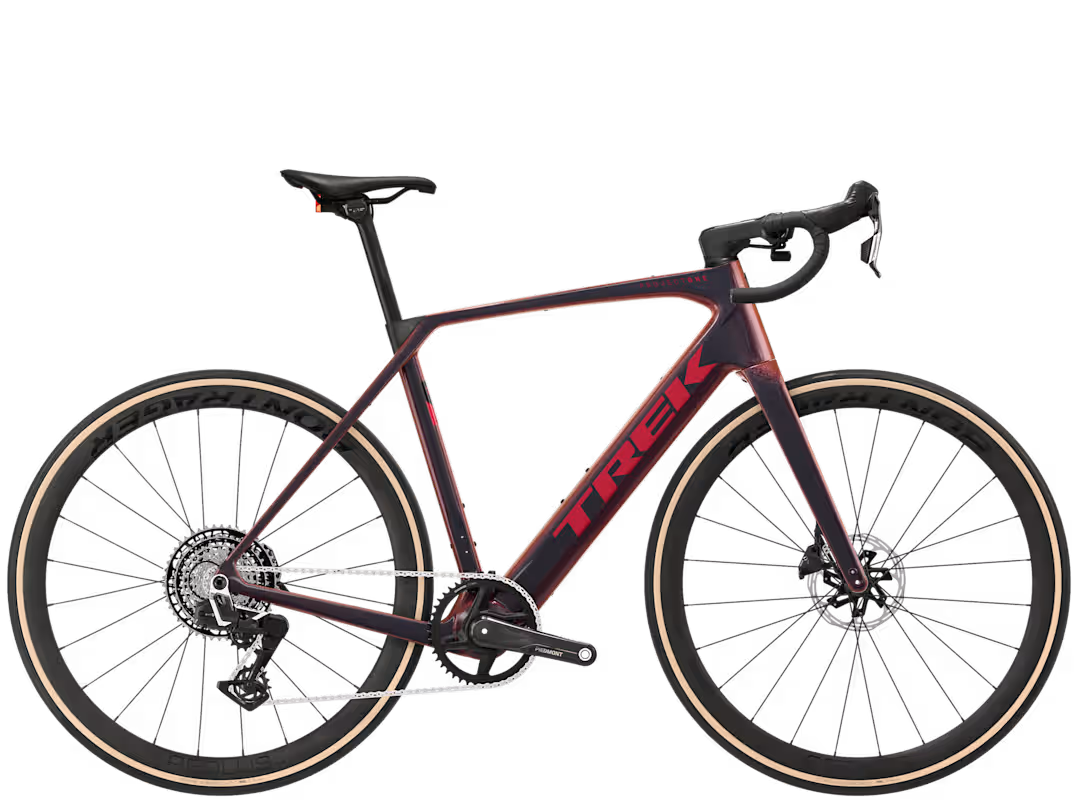

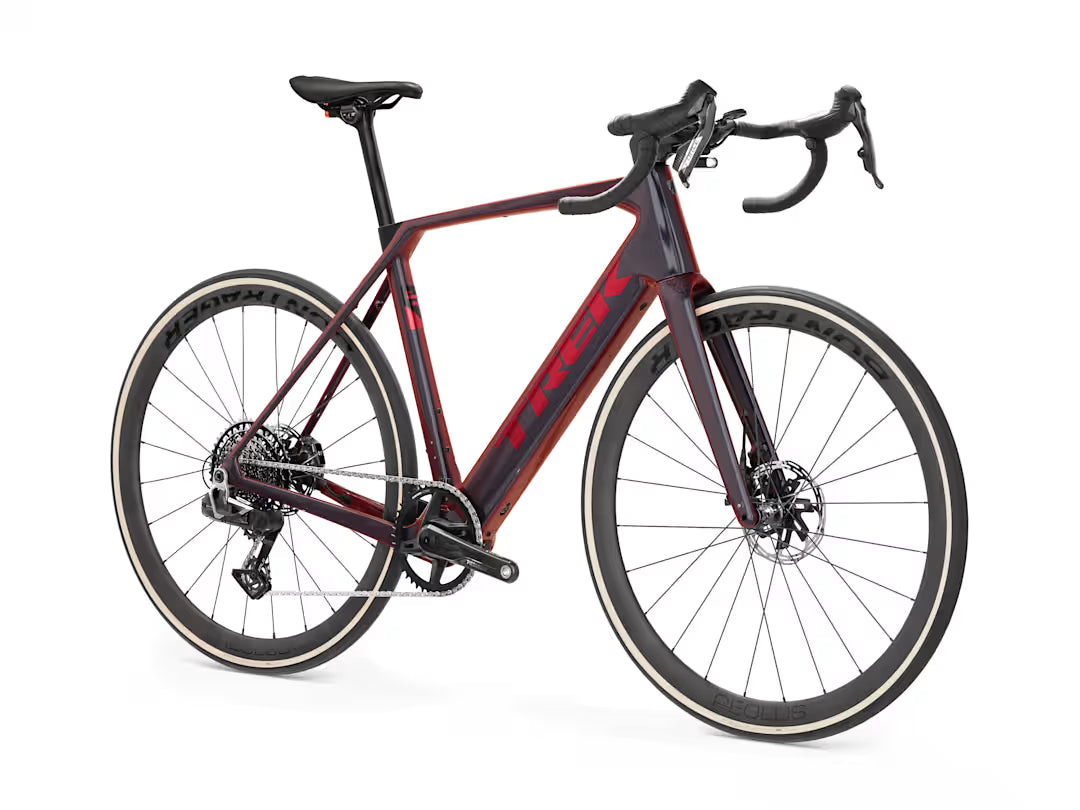

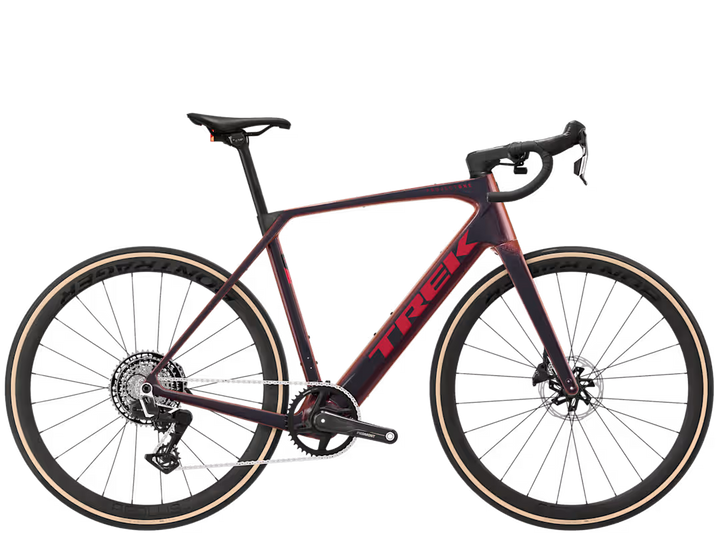

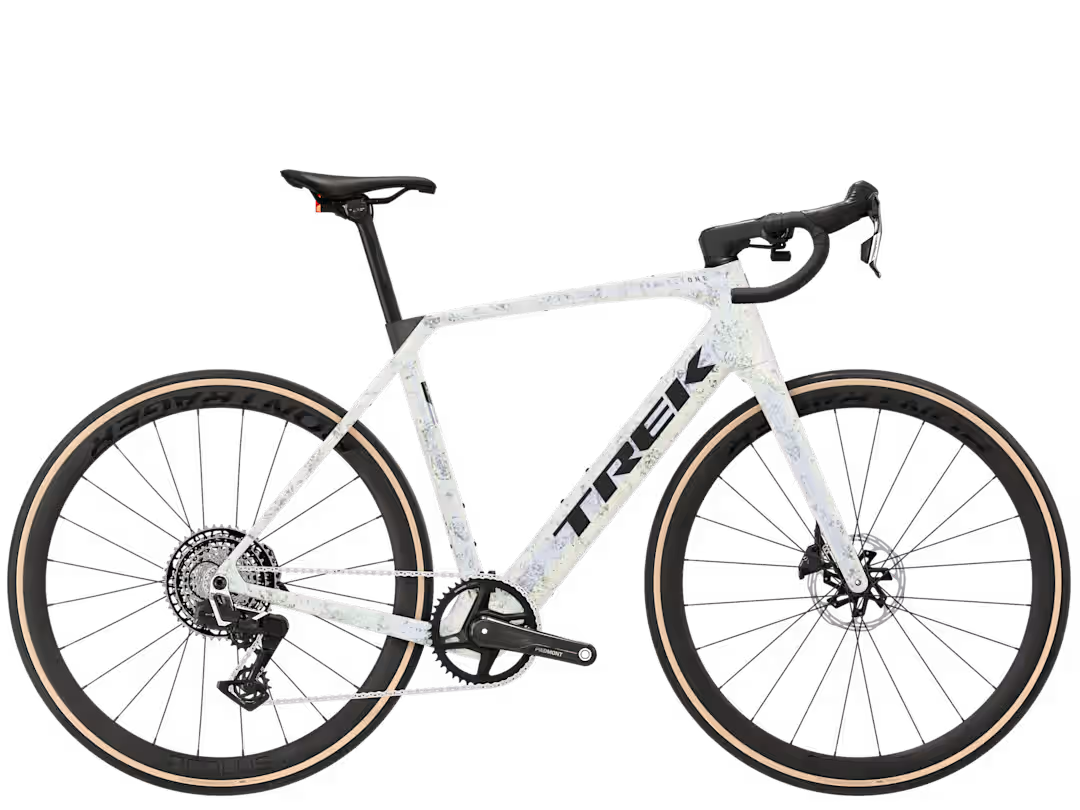

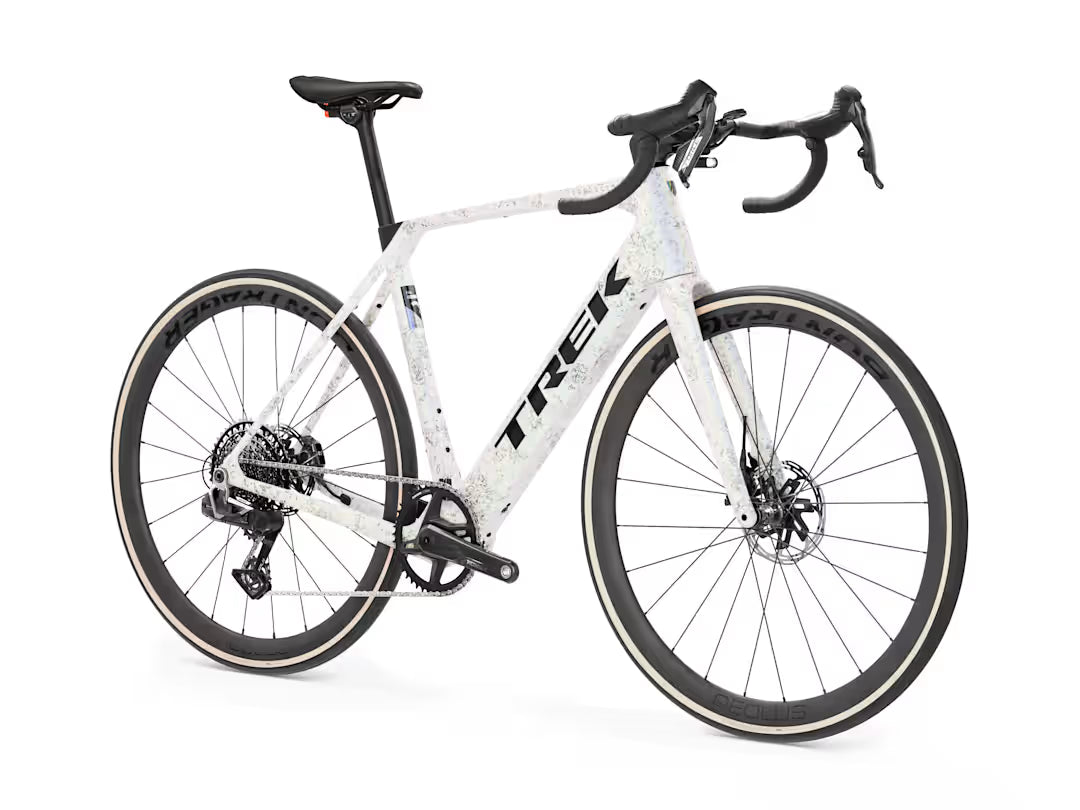

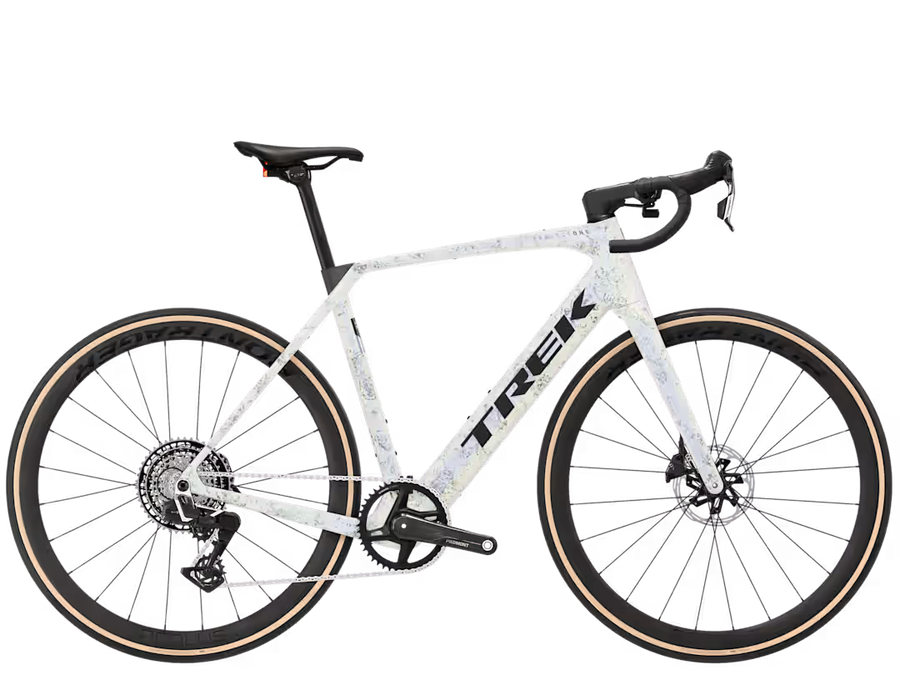

Domane+ SL 7 AXS is a lightweight carbon e-road bike that blends smooth endurance performance with a natural-feeling boost. Its 500 Series OCLV Carbon frame pairs with a quiet, integrated TQ system that adds subtle support on climbs and long rides without changing the feel of the road. A SRAM Force AXS drivetrain delivers crisp wireless shifting, and Aeolus Pro 37 carbon wheels keep the ride fast, stable, and comfortable mile after mile.

Frameset
Frame

  • 500 Series OCLV Carbon, TQ drive system, tapered head tube, integrated frame bag mounts, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle

Fork

  • Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm chamfered thru axle

E-system
Battery

  • TQ 360Wh

Charger

  • TQ 4A charger

Controller

  • TQ colour LED display with Bluetooth & ANT+ connectivity

Motor

  • TQ-HPR40, 40 Nm, 200 watt peak power

E-bike Classification

  • Class 1

Max assist speed

  • 32 km/h

Drivetrain
Shifter

  • SRAM Force AXS E1

Rear derailleur

  • SRAM Force XPLR AXS, 46T max cog

Crank arm:

  • Size: XS, S, M, ML
    E*thirteen Piedmont Race Carbon E*spec, 165mm length
  • Size: L, XL
    E*thirteen Piedmont Race Carbon E*spec, 170mm length

Chainring

  • SRAM X-SYNC, 44T, alloy

Cassette

  • SRAM Force XPLR XG-1371, 10-46, 13 speed

Chain

  • SRAM Force E1, 12/13 speed

Max chainring size

  • 1x: 48T

Wheels
Wheel front

  • Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle

Wheel rear

  • Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, SRAM XDR freehub, 142x12mm thru axle

Skewer front

  • Bontrager Switch chamfered thru axle

Skewer rear

  • Bontrager Switch chamfered thru axle, removable lever

Tire

  • Bontrager Kwaremont RSL, Tubeless Ready, GR puncture protection, aramid bead, 320 tpi, 700x35mm

Rim strip

  • Bontrager TLR

Tube

  • Pirelli P Zero SmarTube, TPU

Max tire size

  • 40mm without fenders, 35mm with fenders

Components

Saddle

  • Verse Short Pro, carbon rails, 145mm width

Seatpost

  • Bontrager RSL carbon, 27.2mm, 5mm offset

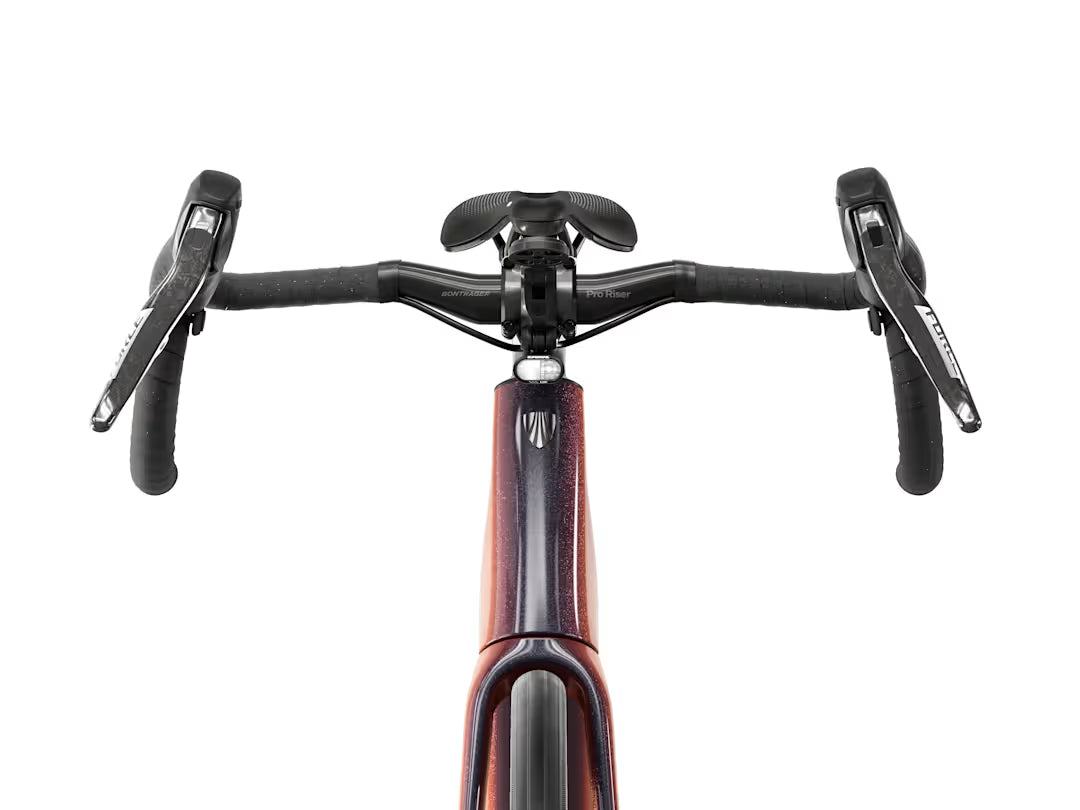

Handlebar:

  • Size: XS
    Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 36cm width
  • Size: S
    Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 38cm width
  • Size: M, ML
    Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 40cm width
  • Size: L, XL
    Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 42cm width

Handlebar tape

  • Trek gel cork

Stem:

  • Size: XS
    Trek RCS Pro, -7 degree, 80mm length
  • Size: S
    Trek RCS Pro, -7 degree, 90mm length
  • Size: M
    Trek RCS Pro, -7 degree, 100mm length
  • Size: ML, L
    Trek RCS Pro, -7 degree, 110mm length
  • Size: XL
    Trek RCS Pro, -7 degree, 120mm length

Brake rotor

  • SRAM Paceline X, rounded, centerlock, 160mm

Rotor size

  • Max brake rotor sizes: 160mm front & rear

Accessories

Rear Light

  • Trek Flare C, taillight

Front Light

  • SUPERNOVA SS MINI HEADLIGHT

Weight
Weight

  • ML - 11.47 kg / 25.29 lbs (with TLR sealant, no tubes)

Weight limit

  • This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.

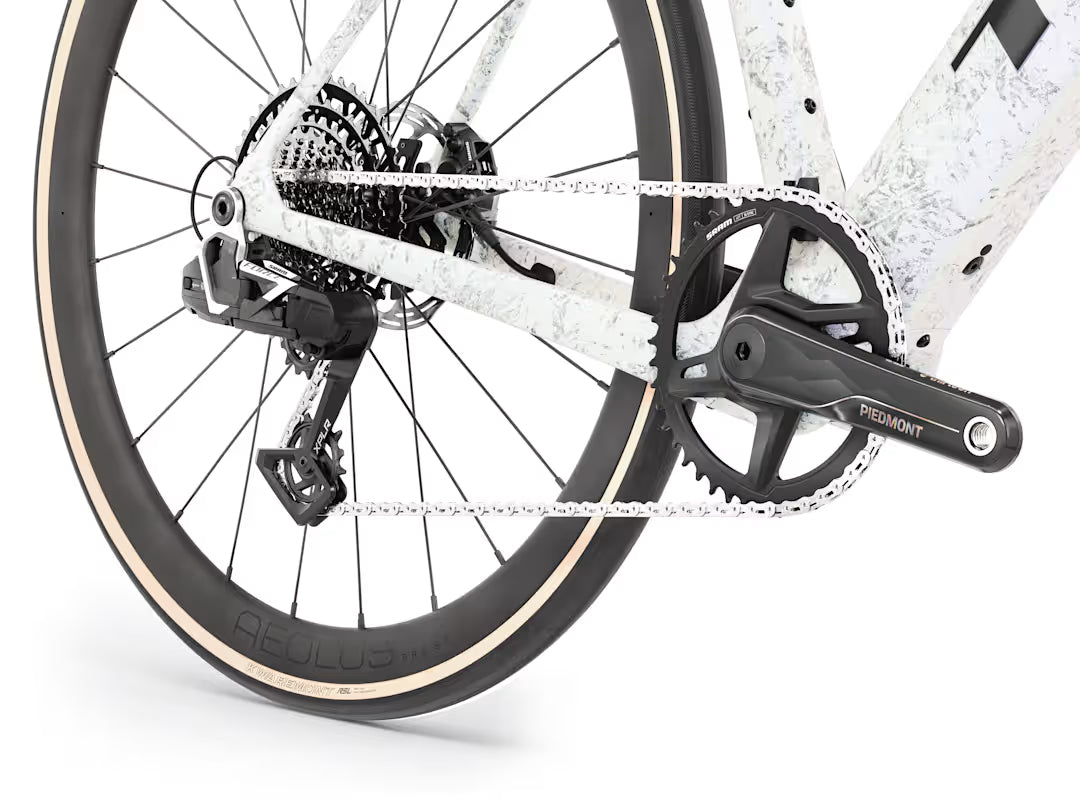

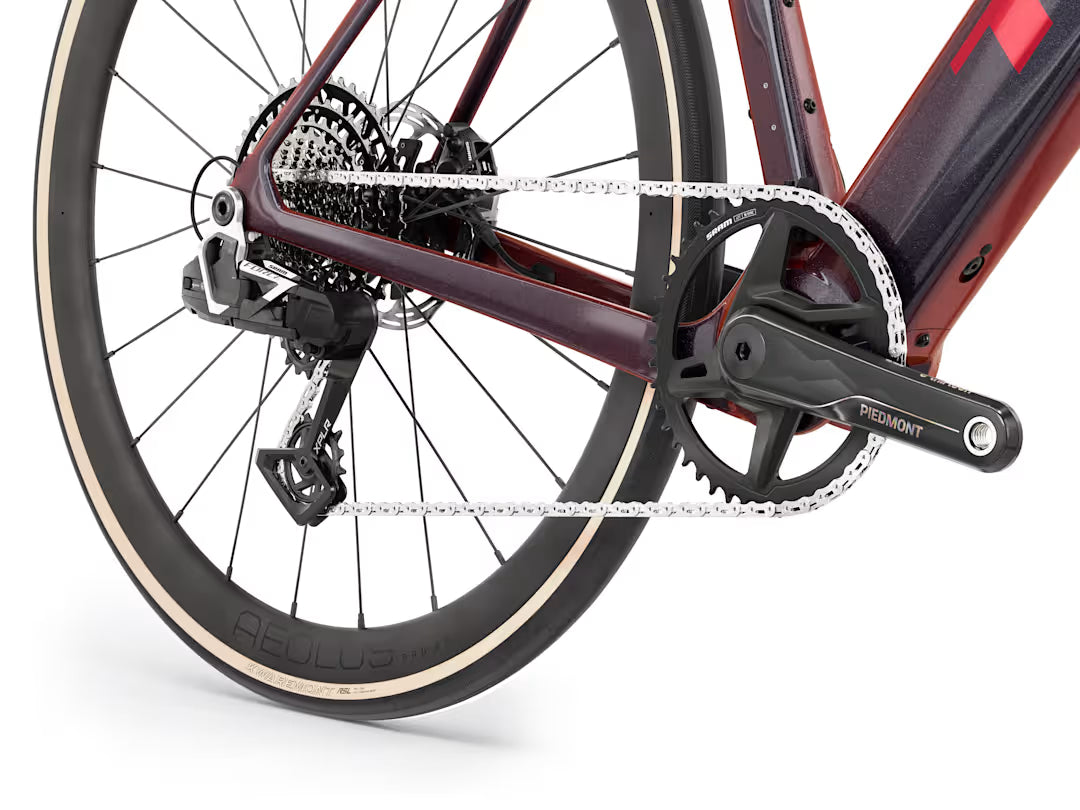

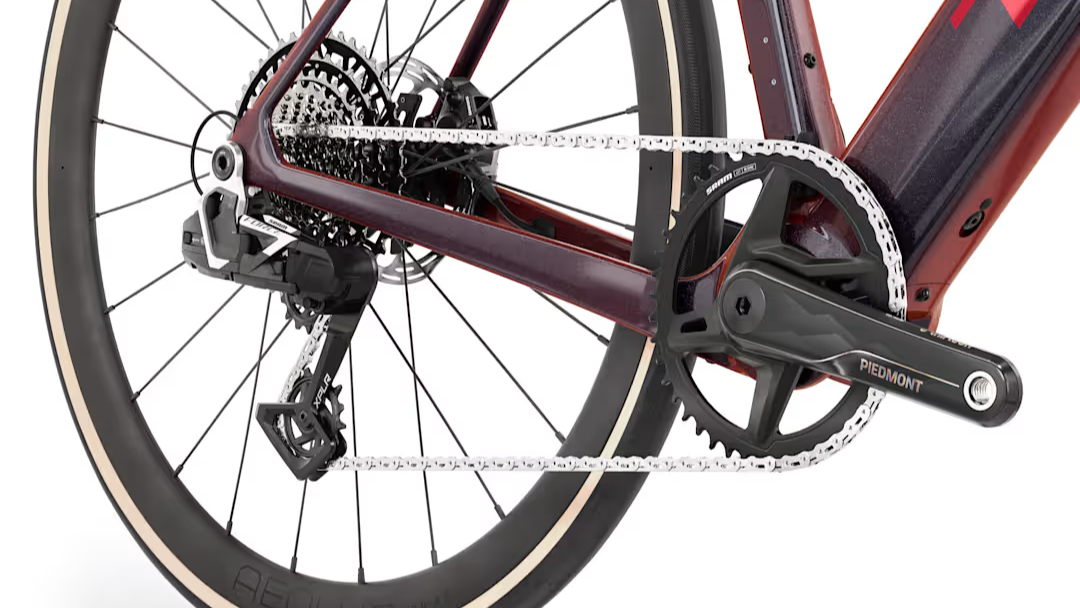

SRAM 1x13 Drivetrain

With 13-speeds on the cassette from this SRAM Force Drivetrain, this Domane+ is still plenty capable through its single chainring, offering low enough gears for climbs and high enough gear for high top speed!

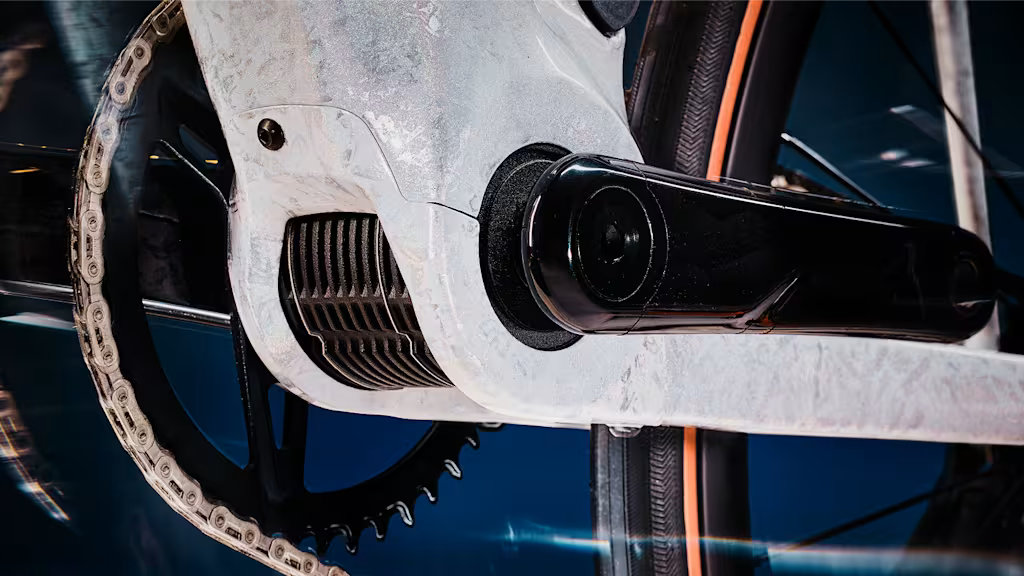

Light, quiet, natural-feeling TQ HPR40 e-system

The Domane+ Gen 5 features a TQ HPR40 motor that's lighter, smaller, and quieter to keep the bike light and the ride smooth and natural.

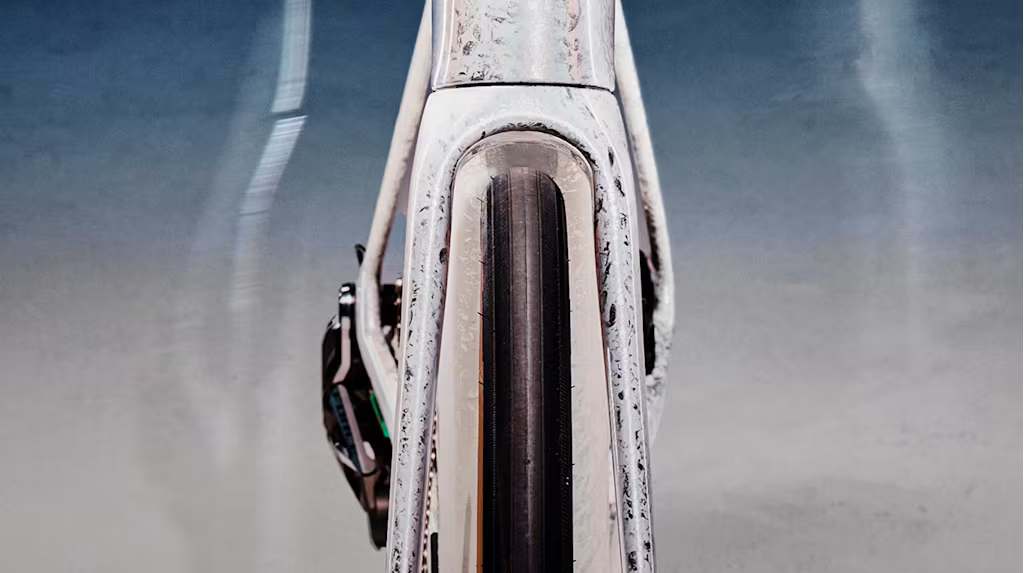

40mm Tire Clearance

While this Domane+ comes stock with 35mm wide tires, it is capable of fitting up to 40mm wide tires!

More volume means more comfort, grip, and confidence to venture from pavement to crushed gravel.
