Trek

Domane SL 5 Gen 5 With Carbon Wheel Upgrade

Buy a Bike - Save 15% off Regular Price Cycling Accessories, Apparel, and Gear!
Domane SL 5 Gen 5 (Colour) — Buff Beige
Domane SL 5 Gen 5 (Size)
Size chart
 Size  Rider Height  Inseam
XS

143 - 158 cm

4'8" - 5'2"



67 - 74 cm

26" - 29"
S

158 - 164 cm

5'2" - 5'5"



74 - 77 cm

29" - 30"
M

164 - 177 cm

5'4" - 5'10"



77 - 83 cm

30" - 33"
M/L

177 - 188 cm

5'10" - 6'2"



83 - 88 cm

33" - 35"
L

188 - 194 cm

6'2" - 6'4"



88 - 91 cm

35" - 36"
XL

194 - 203 cm

6'4" - 6'8"



88 - 100 cm

36" - 37"

Price
Save
/

Pairs well with
Frame:
500 Series OCLV Carbon
Fork:
Domane SL carbon, tapered
Tires:
Bontrager Kwaremont Pro, 120 tpi, 700x35mm
Wheels:
Bontrager Aeolus Elite 35 TLR Disc
Rear Derailleur:
Shimano 105 R7100
Brakes:
Shimano 105 R7120, Hydraulic
Saddle:
Verse Short Comp, steel
Stem / Handlebar:
Trek RCS / Bontrager Comp Rise
Tire Clearance:
40mm
Sizes:
XS, SM, MD, ML, LG, XL
Weight (lbs/kg):
n/a
  • Price match guarantee
  • Locally owned
  • Secure payments

The Domane SL 5 is a lightweight carbon endurance bike that blends all-day comfort with clean, modern simplicity.

Built from 500 Series OCLV Carbon, it features all-road 40mm tire clearance and a streamlined design that gets back to the essence of road riding.

A 12-speed Shimano 105 drivetrain delivers precise shifting and a sleek riser bar adds comfort without cluttering your front end, making it ready for long miles, big days, and light gravel detours.

Bundled with the Bontrager Aeolus Elite 35 Carbon Wheelset to shave off more weight, this bike is truly ready for all road conditions, be it your next Gran Fondo, or your local hills!

Frameset
Frame

  • 500 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle

Fork

  • Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle

Drivetrain
Shifter

  • Shimano 105 R7120, 12 speed

Front derailleur

  • Shimano 105 R7100, braze-on, down swing

Rear derailleur

  • Shimano 105 R71200, 12 speed

*Crank

  • Size: XS, S
    Shimano 105 R7100, 50/34, 160mm length
  • Size: M, ML
    Shimano 105 R7100, 50/34, 165mm length
  • Size: L, XL
    Shimano 105 R7100, 50/34, 170mm length

Bottom bracket

  • Praxis, T47 threaded, internal bearing, non-branded

Cassette

  • Shimano 105 7101, 11-34, 12 speed

Chain

  • Shimano SLX M7100

Max chainring size

  • 1x: 48T, 2x: 52T

Wheels

  • Bontrager Aeolus Elite 35 TLR Disc Carbon Rim Wheelset, 35mm deep, 19mm inner rim width, 24h, Bladed Spokes, HG Freehub body

Skewer front

  • Bontrager Switch chamfered thru axle

Skewer rear

  • Bontrager Switch chamfered thru axle, removable lever

Tire

  • Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid bead, 120 tpi, 700x35m

Tire part

  • Bontrager TLR sealant, 180ml / 6oz

Max tire size

  • 40mm (as measured, see manual for details)

Components
Saddle

  • Verse Short Comp, steel rails, 145mm width

Seatpost

  • Bontrager carbon, 27.2mm, 8mm offset, 330mm length

*Handlebar

  • Size: XS
    Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 36cm width
  • Size: S
    Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 38cm width
  • Size: M, ML
    Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 40cm width
  • Size: L, XL
    Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 42cm width

Handlebar tape

  • Trek gel cork

*Stem

  • Size: XS
    Trek RCS, -7 degree, 80mm length
  • Size: S
    Trek RCS, -7 degree, 90mm length
  • Size: M
    Trek RCS, -7 degree, 100mm length
  • Size: ML, L
    Trek RCS, -7 degree, 110mm length
  • Size: XL
    Trek RCS, -7 degree, 120mm length

Brake rotor

  • Shimano CL700, centerlock, 160mm

Rotor size

  • Max brake rotor sizes: 180mm front, 160 rear

Weight

  • n/a

Weight limit

  • This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.

New Riser bar

A more comfortable geometry with a higher effective stack. With the inclusion of a sleek riser bar that adds 20mm of rise, ride in a more upright and comfortable position without cluttering the front end of the bike

Clearance for 40mm Tires

With wider tire clearance, comes more air volume for your tires. This results in improved comfort, grip, and as a result, more confidence to venture through all road terrains, and even gravel roads!

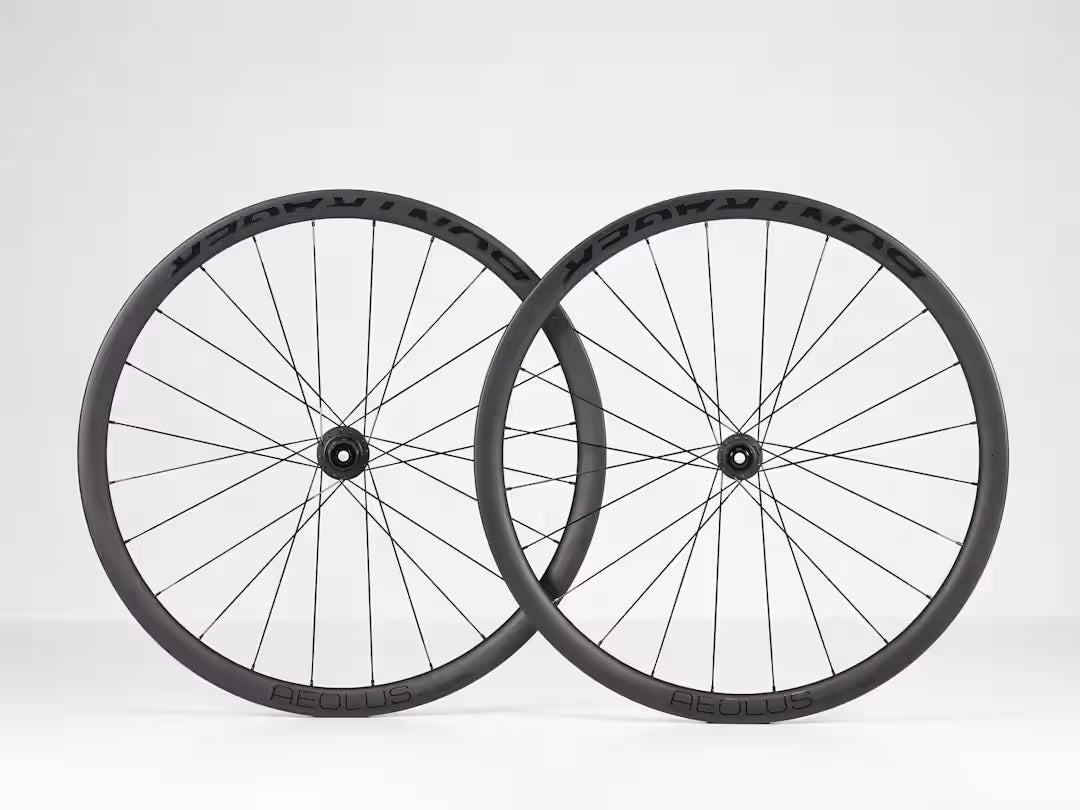

Aeolus Elite 35 TLR Carbon wheelset

Paired together with the 5th generation Domane, this wheelset makes this bike truly an all inclusive package that does not break the bank, ready to take on any road or hill that you can think of, and even gravel roads if you're feeling adventurous.
