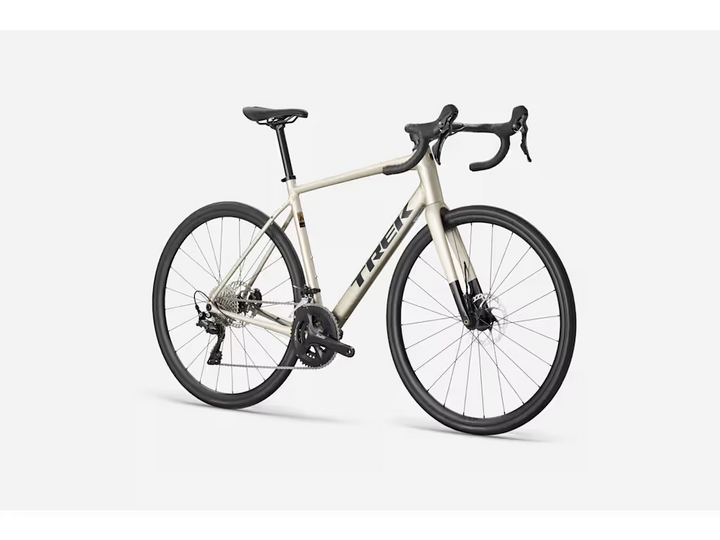

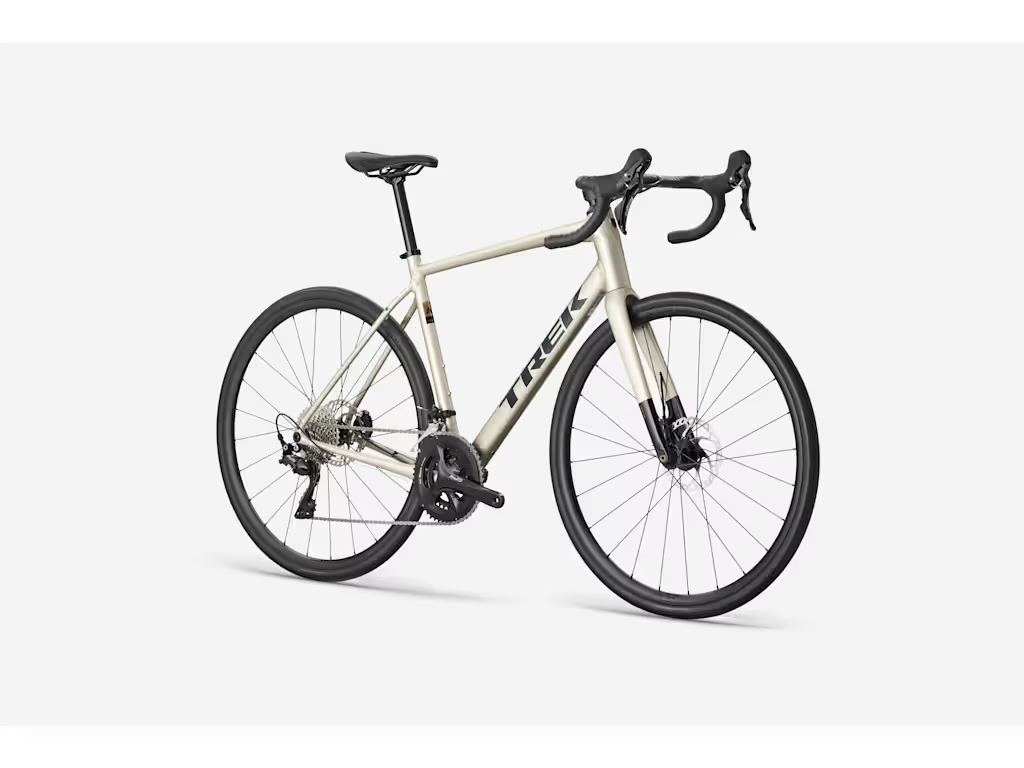

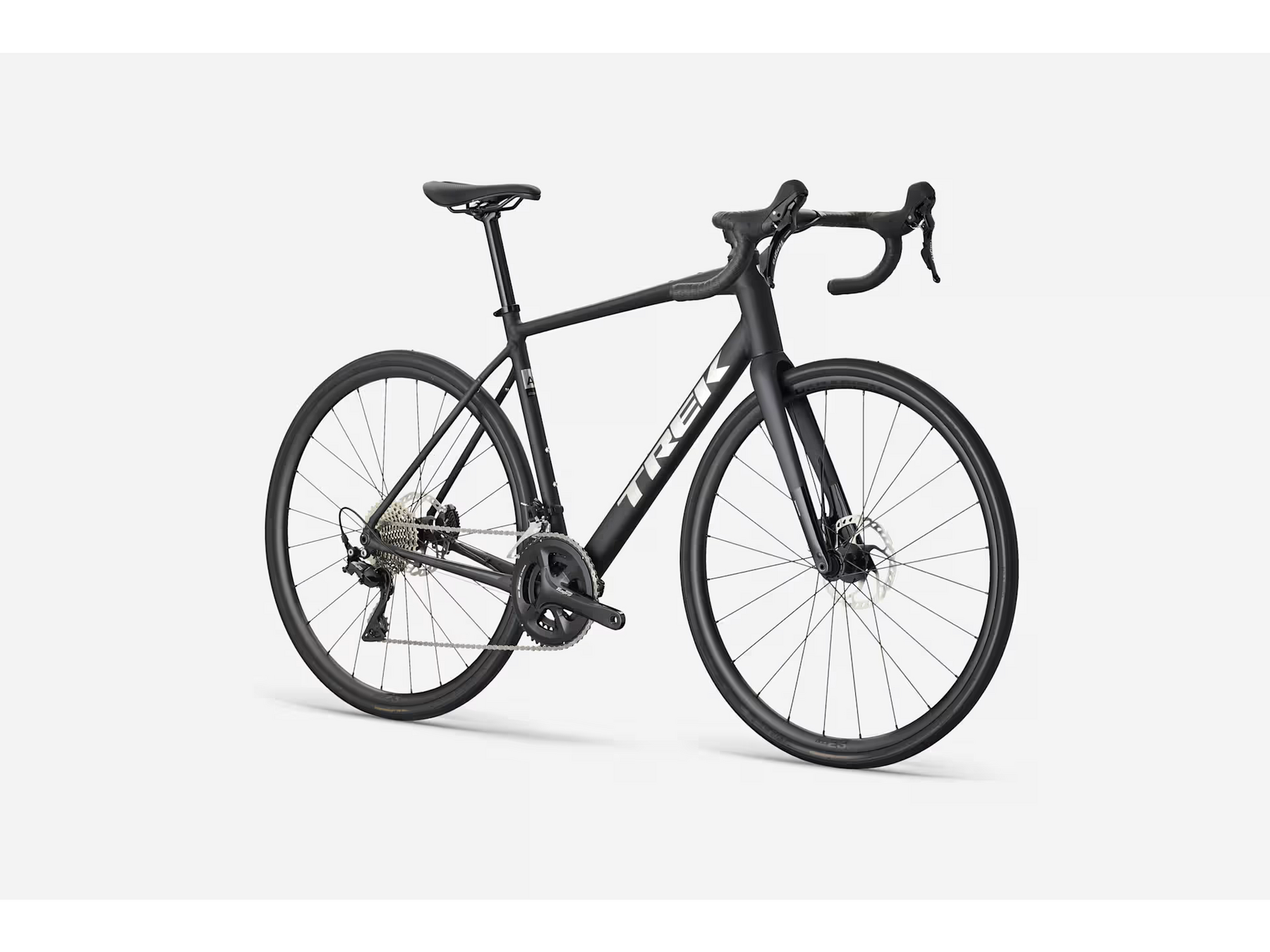

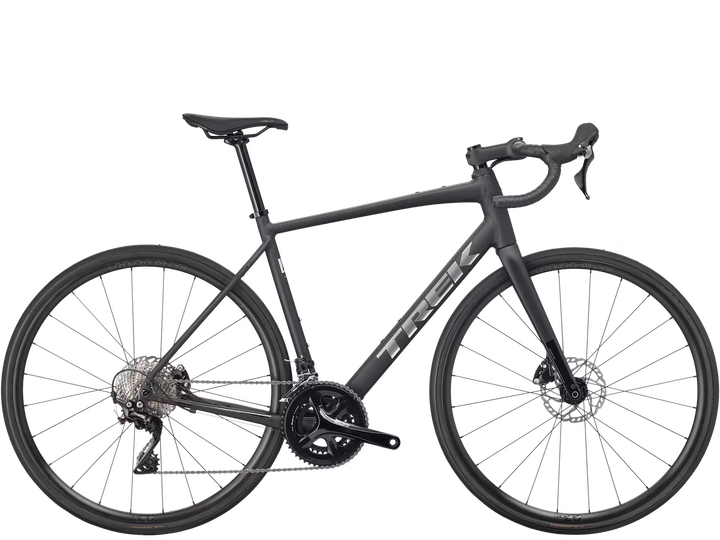

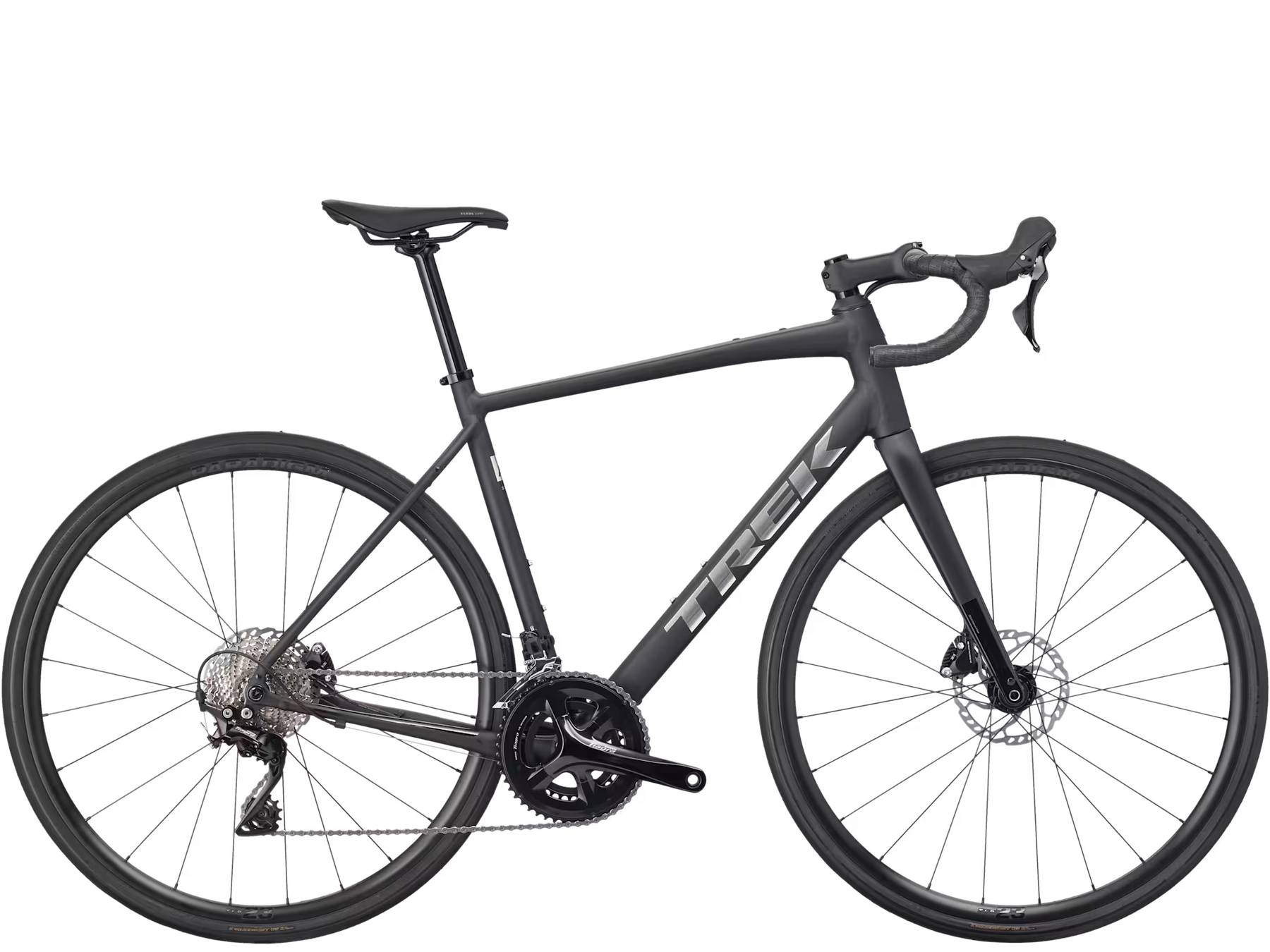

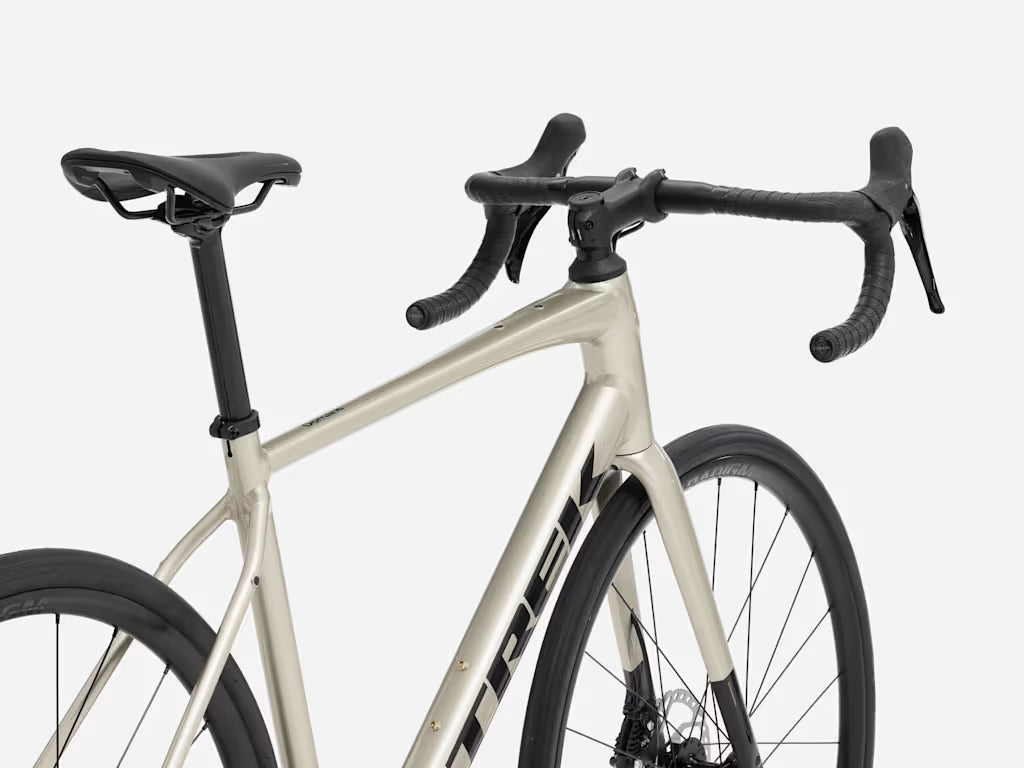

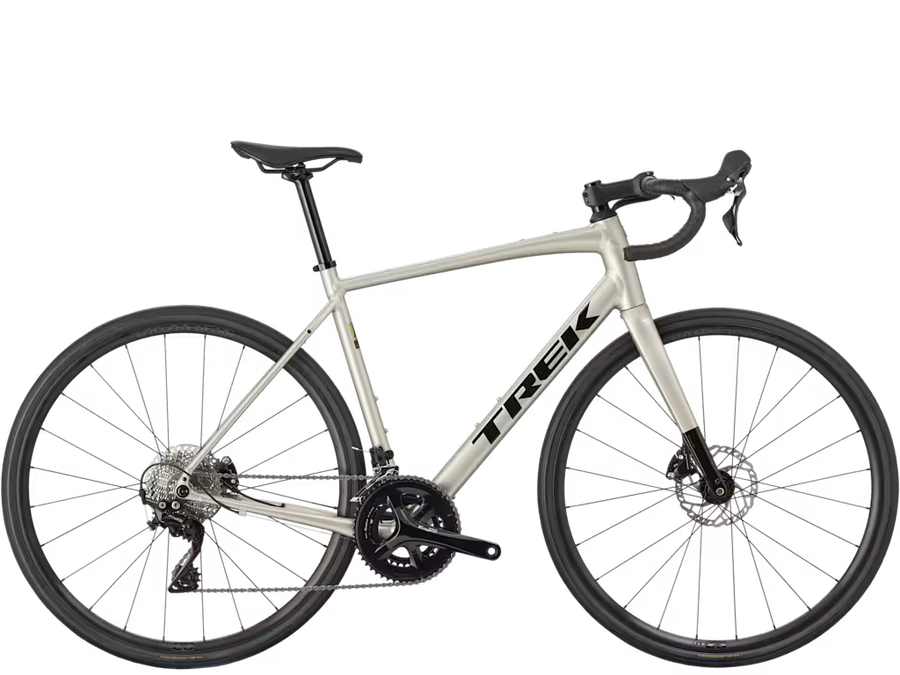

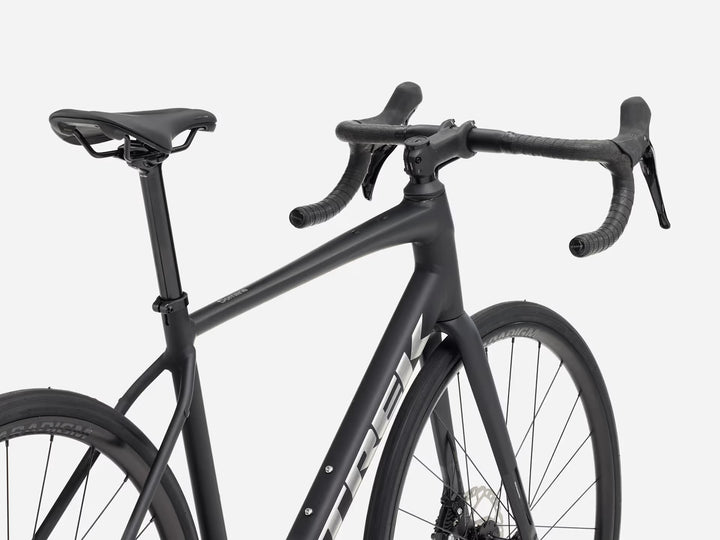

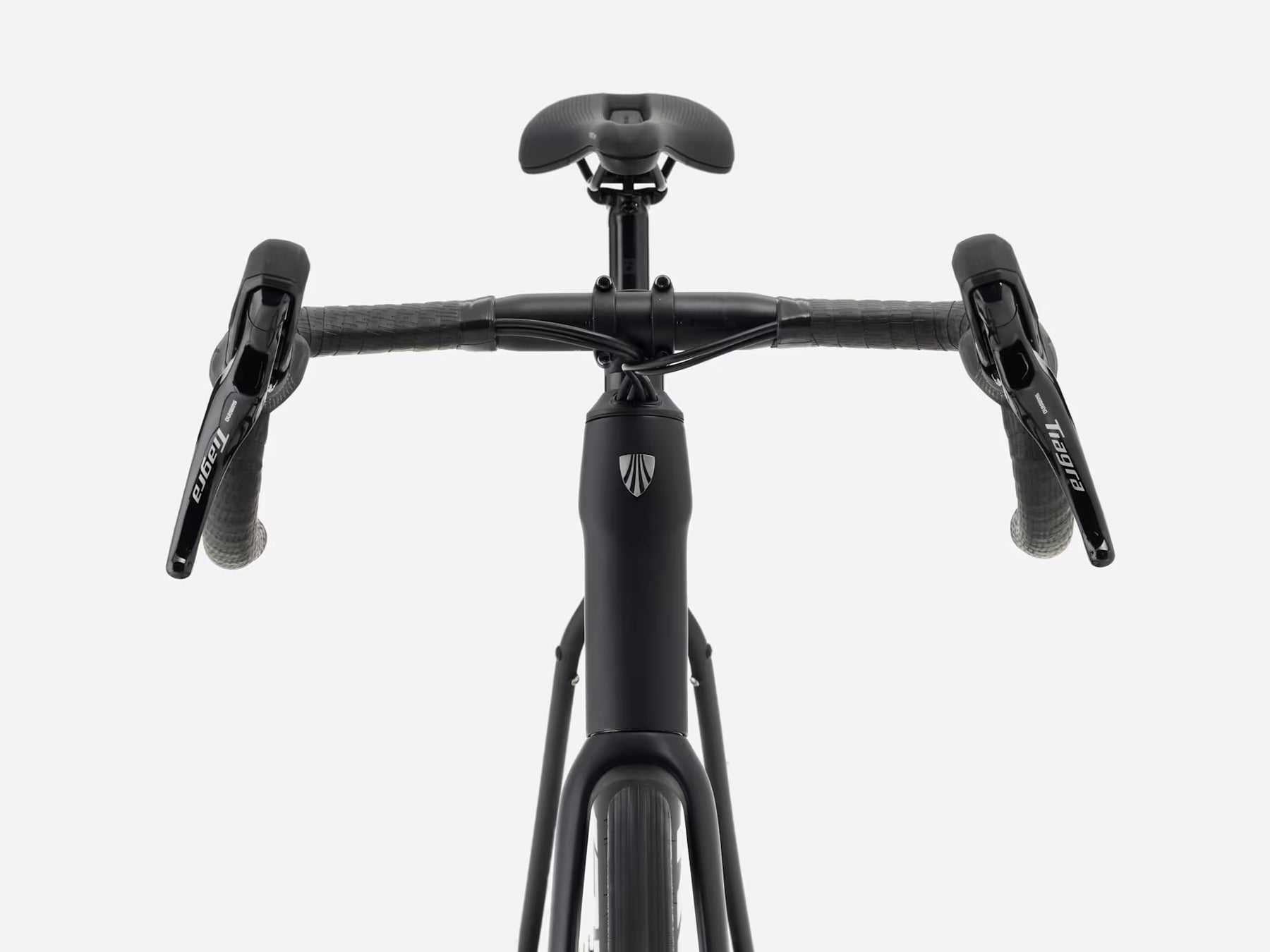

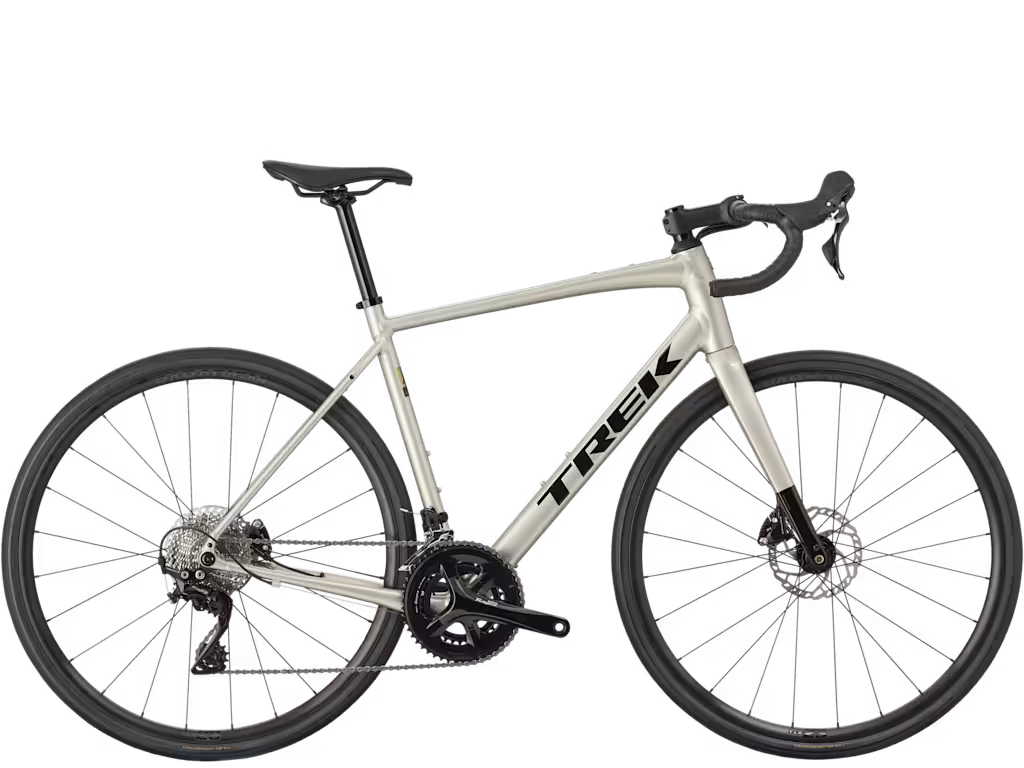

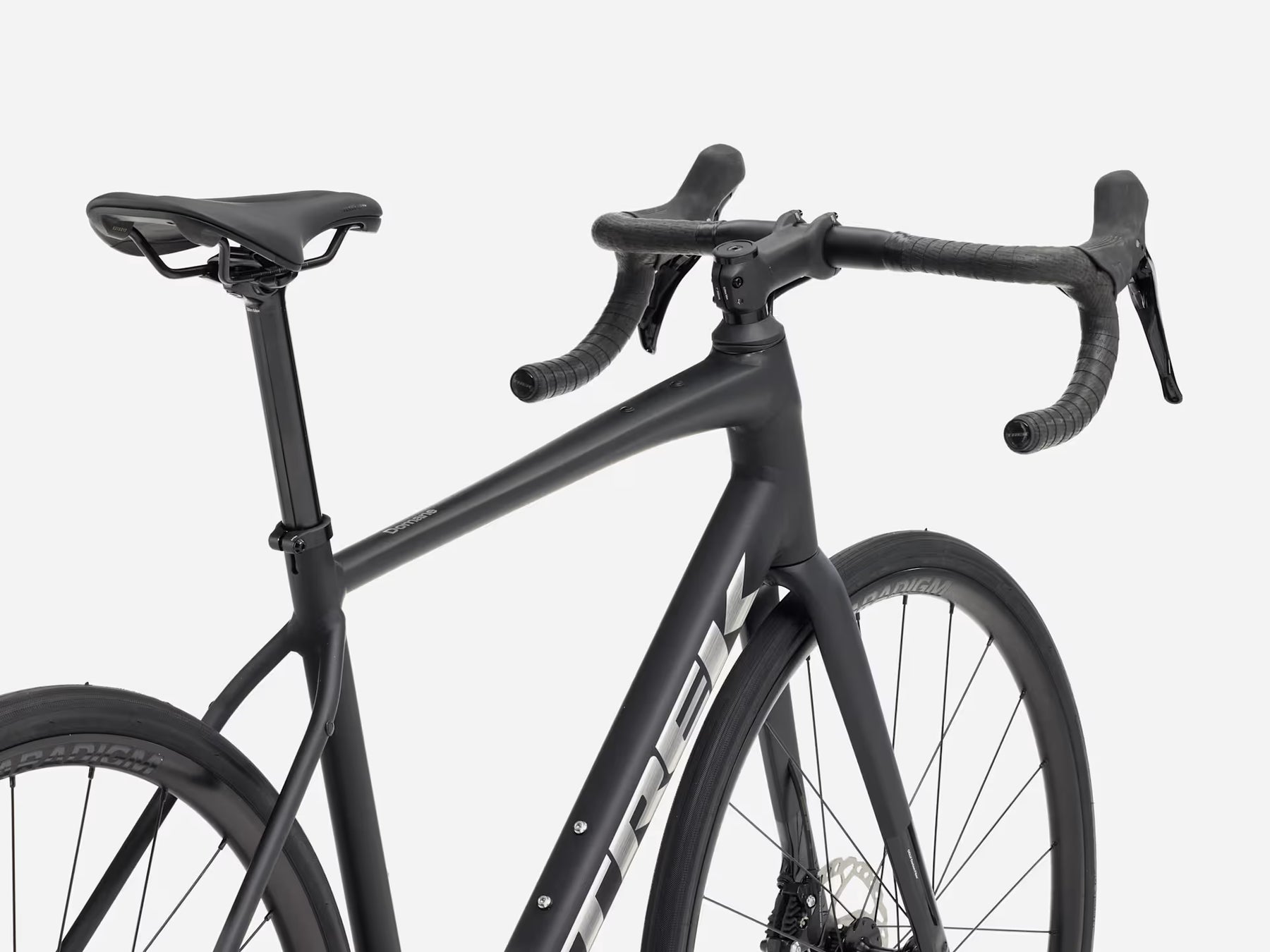

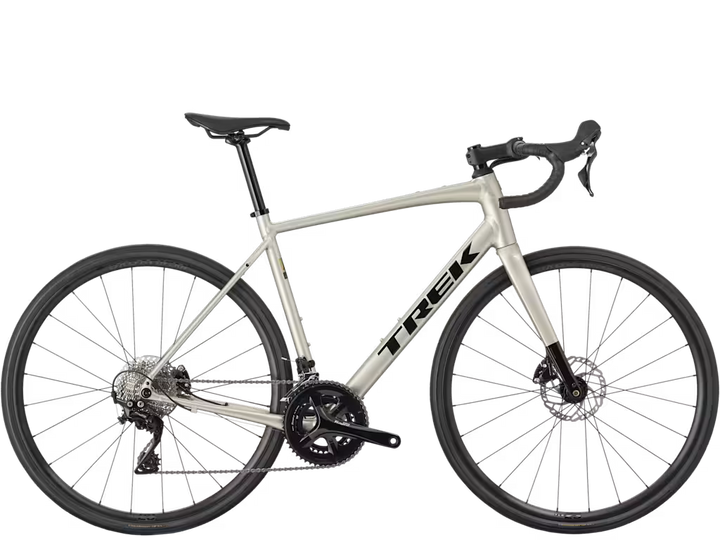

Domane AL 4 Gen 4

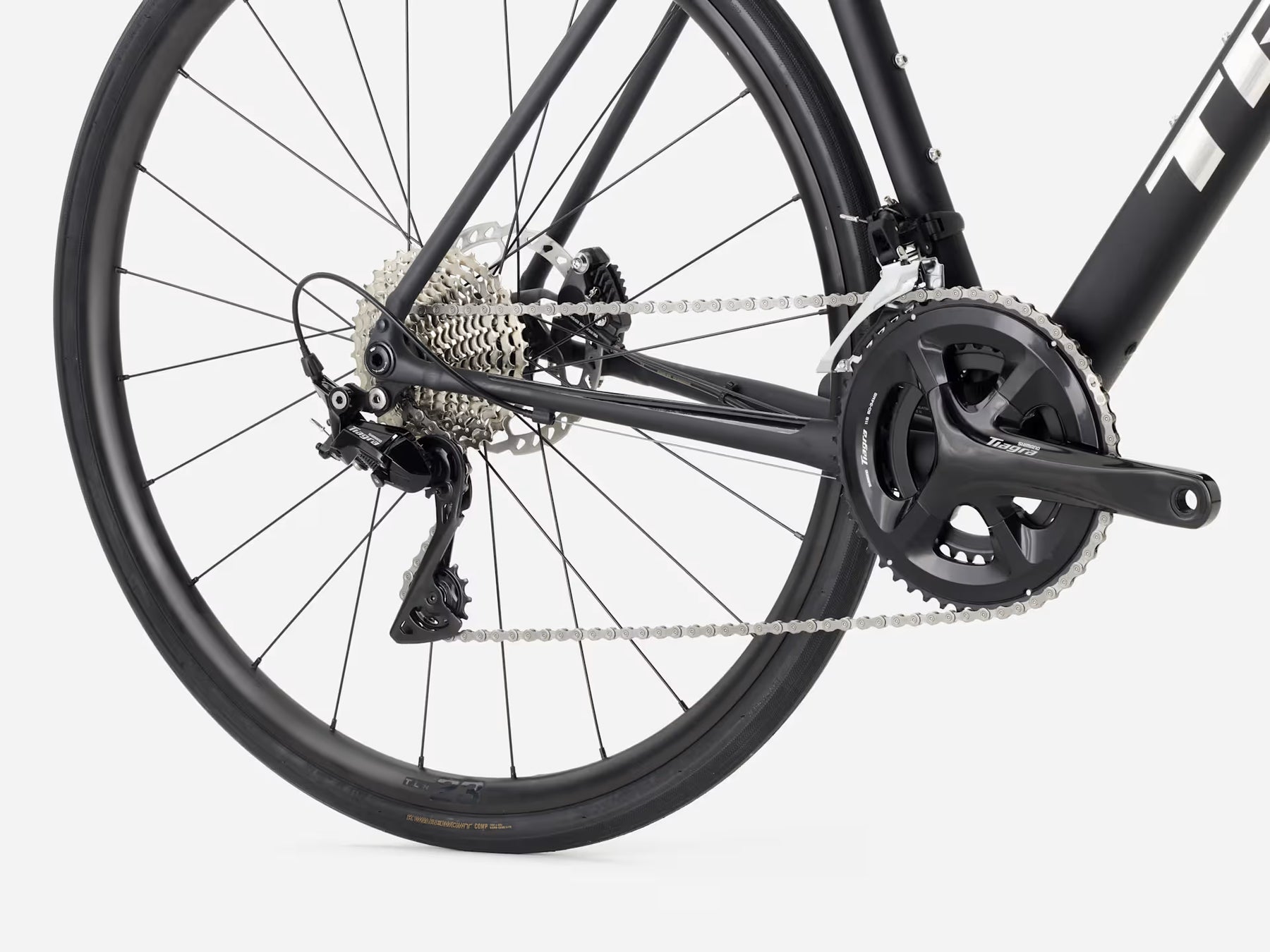

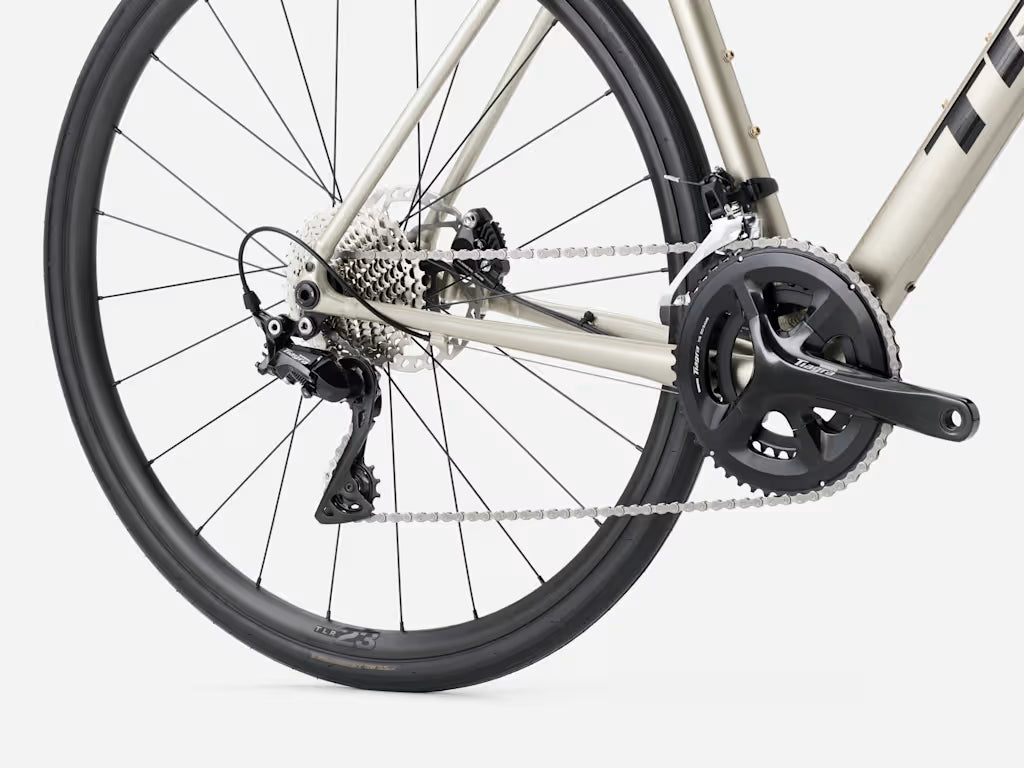

With a lightweight aluminum frame, clearance for larger tires, a 2x10-speed Shimano Tiagra drivetrain, top tube mounts, and an all-day road comfort geometry — Domane AL 4 is perfect for casual pedaling, group rides, fast commutes, and even venturing beyond paved paths to most gravel roads.

What do you get over the AL 2?

-A lighter weight 10-speed Shimano Tiagra drivetrain with a wider gear range for long days of riding in hilly terrain
-Shimano hydraulic disc brakes for stopping power in all conditions

Upgrade to the Domane AL 5 for a race-worthy 12-speed Shimano 105 drivetrain and an even wider range of gearing to tackle any road ride or light gravel ride.

Frame

• 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle

Fork

• Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Rims

• Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve

Hubs

• Front: Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
• Rear: Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle

Tires

• Bontrager Kwaremont Comp, Hardcase Lite, wire bead, 60 tpi, 700x32mm

Bottom Bracket

• Shimano RS501 BSA

Crankset

• Size 44, 49, 52, 54, 56: Shimano Tiagra 4000, 50/34, 165mm length
• Size 58, 61: Shimano Tiagra 4700, 50/34, 170mm length

Shifters

• Shimano Tiagra R4020, 11 speed

Front Derailleur

• Shimano Tiagra R4000

Rear Derailleur

• Shimano Tiagra R4000

Cassette/Freewheel

• Shimano RS400, 11-36, 11 speed

Chain

• Shimano LG500

Rotors

• Shimano RT66, 6-bolt, 160mm

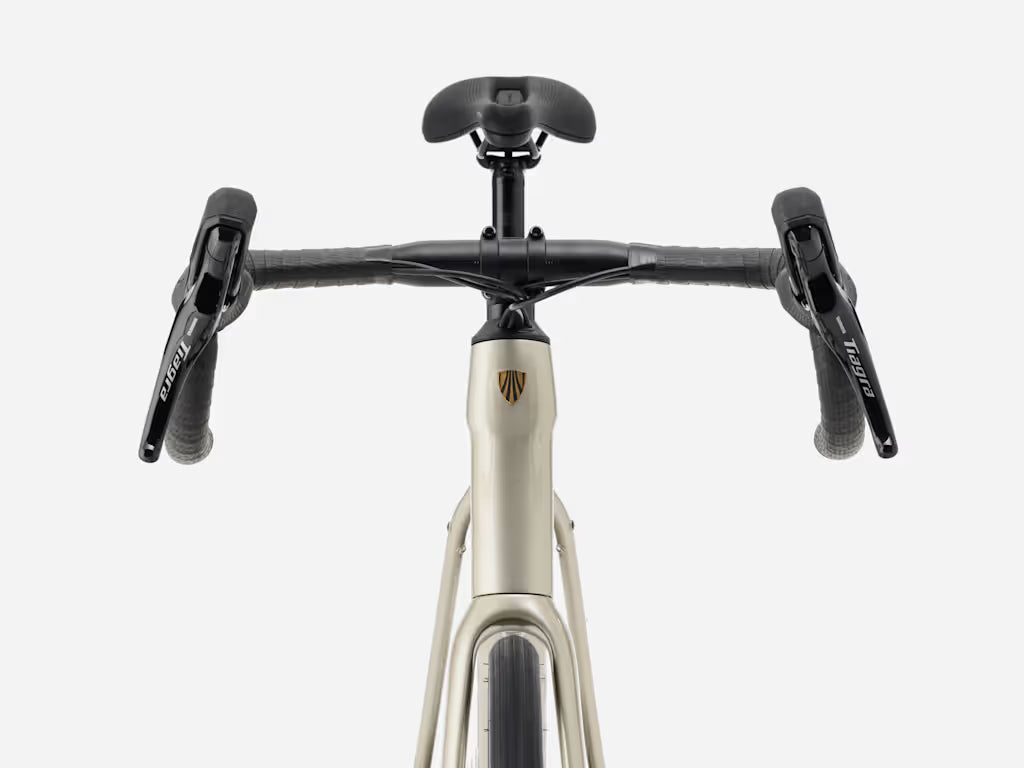

Handlebars

• Size 44: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drops width
• Size 49, 52: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drops width
• Size 54, 56, 58: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drops width
• Size 61: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drops width

Tape/Grips

• Trek EcoTack

Stem

• Size 44: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
• Size 49: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
• Size 52, 54: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
• Size 56, 58: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
• Size 61: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length

Seatpost

• Size 44, 49: Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
• Size 52, 54, 56, 58, 61: Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length

Saddle

• Verse Short, steel rails, 145mm width

Weight

• 56 - 10.10 kg / 22.27 lbs

Maximum rider weight

• This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
