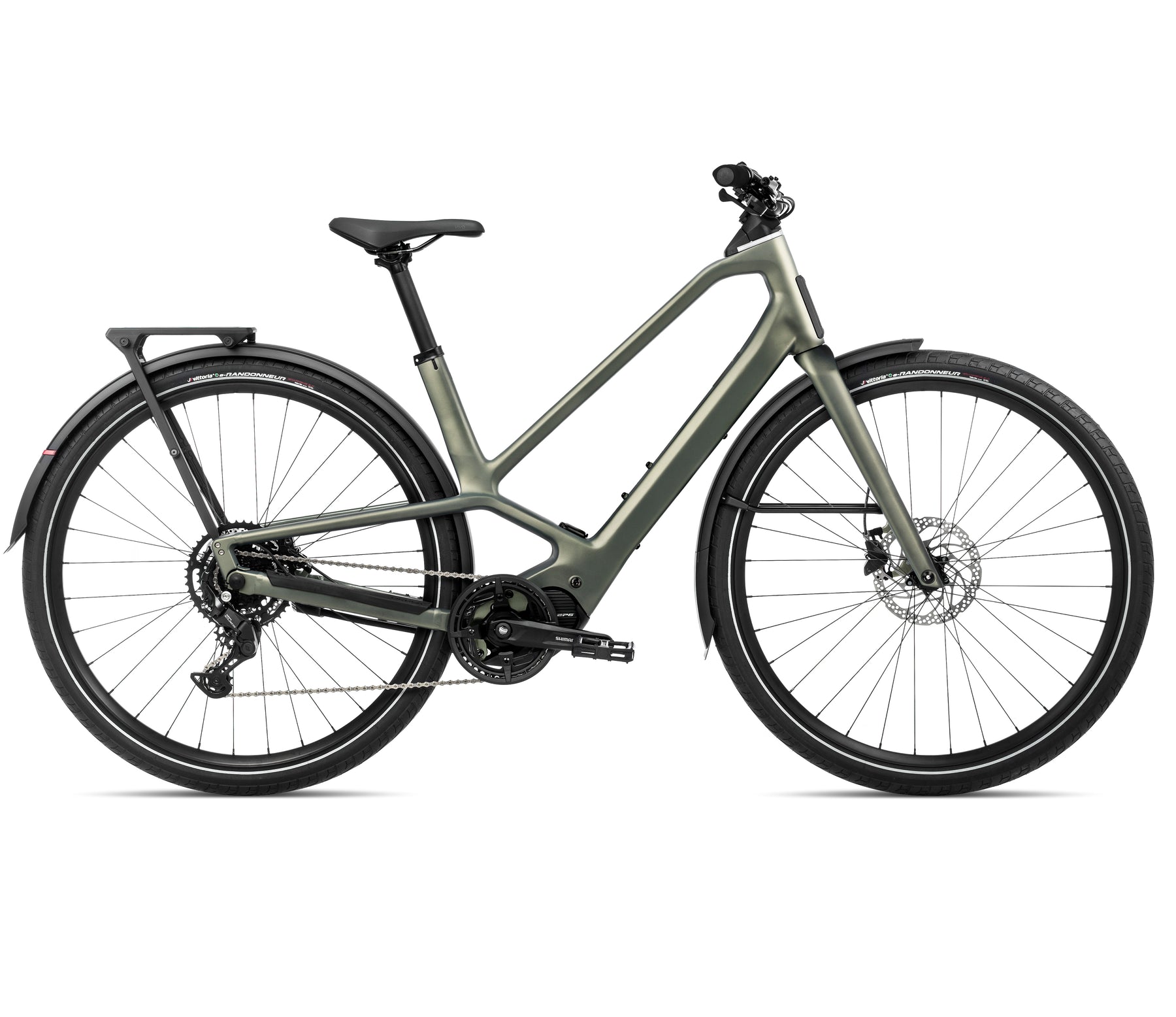

Diem 30 20mph - E-Bike

UPC: 8434446973659
Buy a Bike - Save 15% off Regular Price Cycling Accessories, Apparel, and Gear!
Colour — Spaceship Green (Matte)
Size
Size chart
 Size  Rider Height
SM

153 - 172 cm

60.2"-67.7"
MD

164 - 183 cm

64.6"-72.0"
LG

176 - 195 cm

69.3"-76.8"
XL

187 - 204 cm

73.6"-81.1"


Price
Save
/

Pairs well with
Frame:
Orbea Diem 2025
Fork:
Orbea Diem carbon fork
Motor:
Shimano EP600
Battery:
Orbea Internal 540Wh
Controller:
Shimano EN500
Tires:
Schwalbe Marathon, 50-622, Reflective Tape
Wheels:
Alloy, 26c, 32H
Brakes:
Shimano MT201 Hydraulic Disc
Tire Clearance:
n/a
Sizes:
SM, MD, LG, XL
Weight (lbs/kg):
n/a
  • Price match guarantee
  • Locally owned
  • Secure payments

Diem 30, the powerful urban e-bike, adds enjoyment to the A to B fun with 9 gears and Obea's light 540Wh battery.

  • UL 2849 Certified

Frameset

  • Frame: Orbea Diem 2025, Diamond glide, Hydroformed Alloy 6061, High Polished, OLD 135x9 / OLD 142x12, Orbea cockpit and equipment ecosystem, w/Custom Kickstand, Trailer compatible.
  • Fork: Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5, post mount disc mount, Thru Axle 12x100mm, thread M12x1. Long mudguards compatible.
  • Steerer tube: FSA 1-1/2" Integrated Aluminum Cup

E-bike

  • Battery: Orbea Internal 540Wh
  • RANGE EXTENDER: N/A
  • Motor: Shimano EP600
  • Display: Shimano EN500
  • CHARGER: Orbea 2.Generation eBike Smart charger 42V/2-4A

Drivetrain

  • Chainring: Alloy 40t w/chainguard
  • Crank: Shimano Steps EM600
  • Shifters: Shimano Cues SL-U4000
  • Cassette: Shimano CS-LG300 11-46t 9-Speed
  • Rear derailleur: Shimano Cues U4000 GS Shadow
  • Chain: KMC eGlide

Cockpit

  • Handlebar: Orbea Urban, Integ. light, Backsweep 30, Rise 50, Width 720

Brakes

  • Brakes: Shimano MT201 Hydraulic Disc
  • Brakes Configuration: N/A

Wheels

  • Wheels: Alloy, 26c, 32H
  • Tires: Schwalbe Marathon, 50-622, Reflective Tape

Accessories

  • Pedals: VP-836 Black with reflectors
  • Front rack: N/A
  • Rear rack: Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
  • Mudguard: Curana Apollo Orbit 60mm
  • Front Position Light: Orbea integrated, USB-C charging point
  • Front light: Supernova Starstream Pure, Low Beam
  • Rear light: Orbea Fender integrated, with alert light
  • Quick stand: Orbea Diem Integrated
  • Bell: Knog OI Classic

Components

  • Seatpost: Alloy, 31.6mm, Setback 0
  • Saddle: Selle Royal Vivo Ergo
