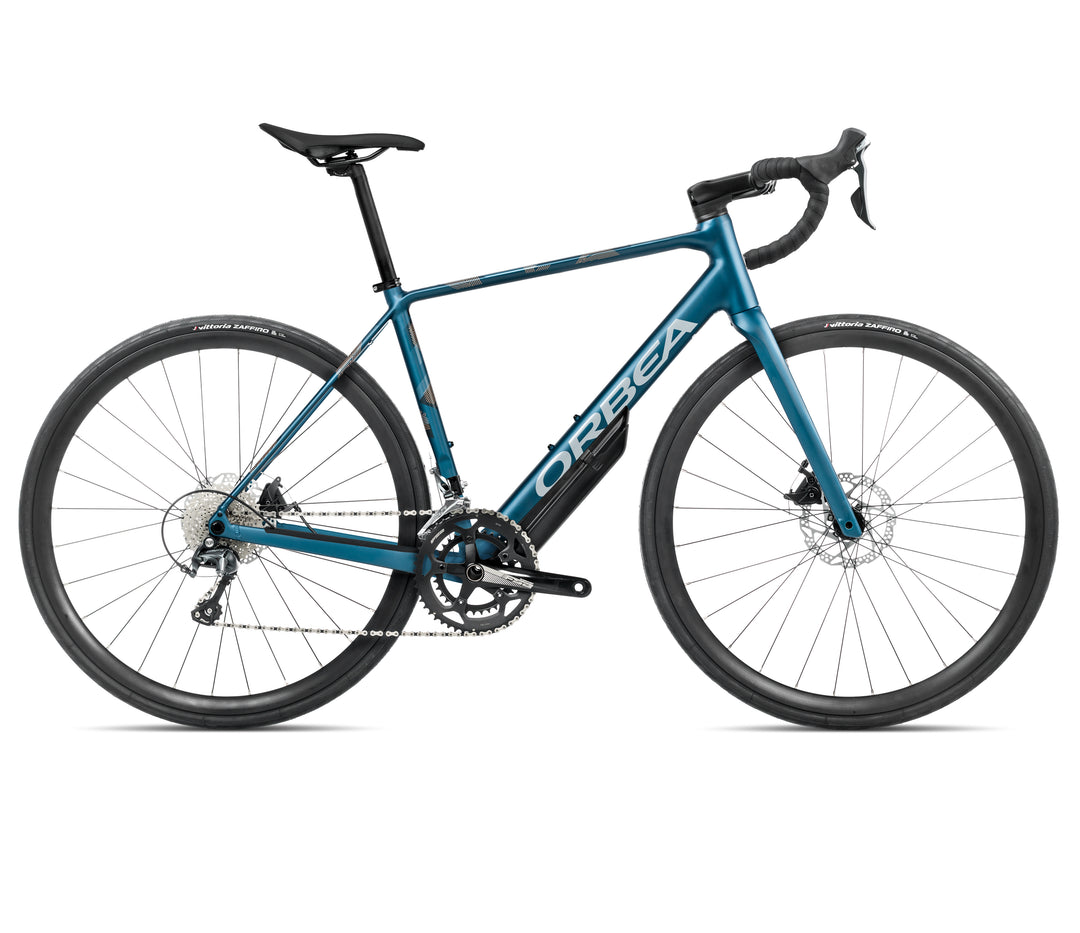

Avant H40
Orbea

Avant H40

UPC: 8434446957796
Colour — Slate Blue (Matt) - Halo Silver (Gloss)
Size
Size chart
 Size  Rider Height
 47

155 - 160 cm

61.1" - 63.0"
 49

160 - 166 cm

63.0" - 65.4"
51

167-172 cm

65.7"-67.7""
 53

173-179 cm

68.1"-70.5"
 55

180-185 cm

70.9"-72.8"
 57

186–191 cm

73.2"-75.2"
 60

192–207 cm

75.6"-81.5"


Price
Save 20%
/

Pairs well with
Frame:
Orbea Avant Hydro disc
Fork:
Orbea Avant Hydro 2025, full carbon
Tires:
Continental Grand Prix 700x30c
Wheels:
Alloy, Tubeless, 700c, 19c, 28H
Rear Derailleur:
Shimano Cues U6020 SGS Shadow
Brakes:
Shimano U6030 Hydraulic Disc
Saddle:
SD 0.1 145mm
Stem / Handlebar:
OC Road Performance RP23 / OC Road Performance RP31-R
Tire Clearance:
35mm (32mm with fenders)
Sizes:
47, 49, 51, 53, 55, 57, 60
Weight (lbs/kg):
n/a
  • Price match guarantee
  • Locally owned
  • Secure payments

A perfect companion, no matter how far the road takes you. Fill your water bottles every time you head out because with Avant's blend of speed and comfort, you could be out for a long ride.

  • Extra Storage: Leave the saddle bag at home with the made-to-measure Service box. There is space for necessities like tubes, CO2 cartridges, tire levers and house keys
  • Multi Mount System: Avant´s mounting points fit any market-standard mudguard and fenders
  • 35c Tire Clearance: Clearance for tires up to 35C (32C with a mudguard) means Avant handles confidently on rougher roads.

Frameset

  • Frame: Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2
    P1, Internal Cable Routing, SP 27,2mm, MMS system.
  • Fork: Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
  • Steerer tube: FSA 1-1/2" Integrated Aluminum Cup

Drivetrain

  • Crankset: Shimano Cues U6030 34x50t
  • Shifters: Shimano U6030
  • Cassette: Shimano CS-LG300 11-39t 10-Speed
  • Rear derailleur: Shimano Cues U6020 SGS Shadow
  • Front derailleur: Shimano Cues U6030
  • Chain: KMC X10

Cockpit

  • Handlebar: OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
  • Stem: OC Road Performance RP23, -5º

Brakes

  • Brakes: Shimano U6030 Hydraulic Disc
  • Brakes Configuration: N/A

Wheels

  • Wheels: Alloy, Tubeless, 700c, 19c, 28H
  • Tires: Continental Grand Prix Foldable 700x30c
  • Front Wheel Axle: Orbea Thru Axle 12x100mm M12x2 P1 Solid
  • Rear Wheel Axle: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

Components

  • Seatpost: SP 0.6, Alloy, 27.2mm, Setback 20
  • Saddle: SD 0.1 145mm

Accessories

  • Mudguard: N/A
  • Handlebar Tape: Orbea Eva
  • Storage: OC Toolbox TB03PP

Carbon Fork

The OMR carbon fork saves weight, and the carbon structure we use helps absorb vibrations without compromising rigidity under braking or hard cornering.

Advanced Alloy

Controlling the shapes and wall thickness of Orbea's aluminum tubing reduces weight, increases strength and limits unwanted flex. Using aluminum technologies as advanced as Orbea's carbon manufacturing ensures our aluminum bikes are never second-best.

Service Box

Leave the saddle bag at home with the made-to-measure Service box. There is space for necessities like tubes, CO2 cartridges, tire levers and house keys.
