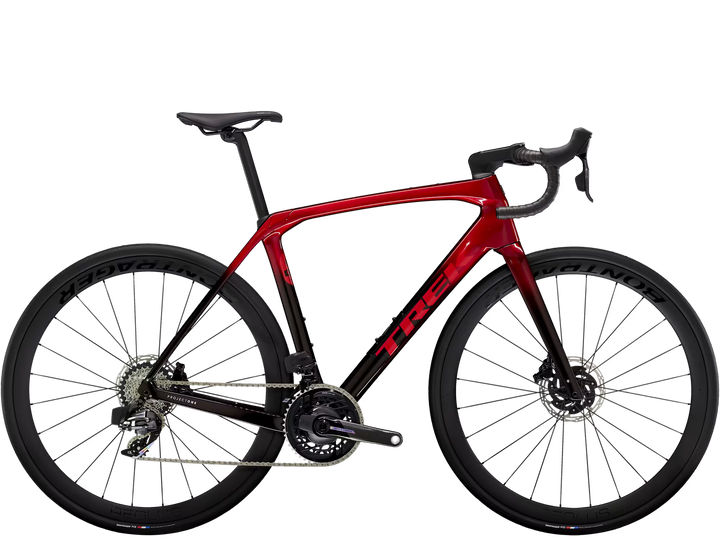

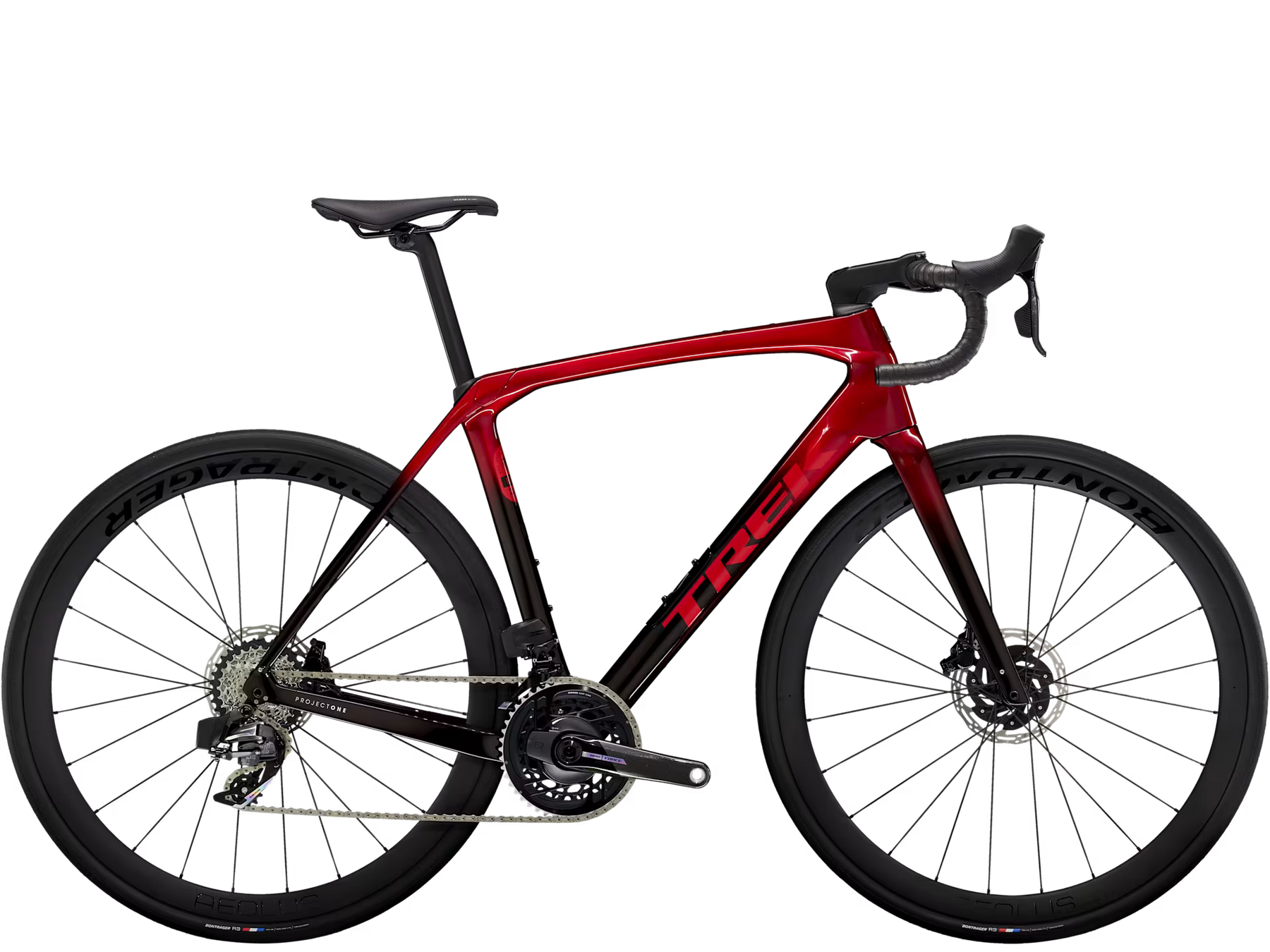

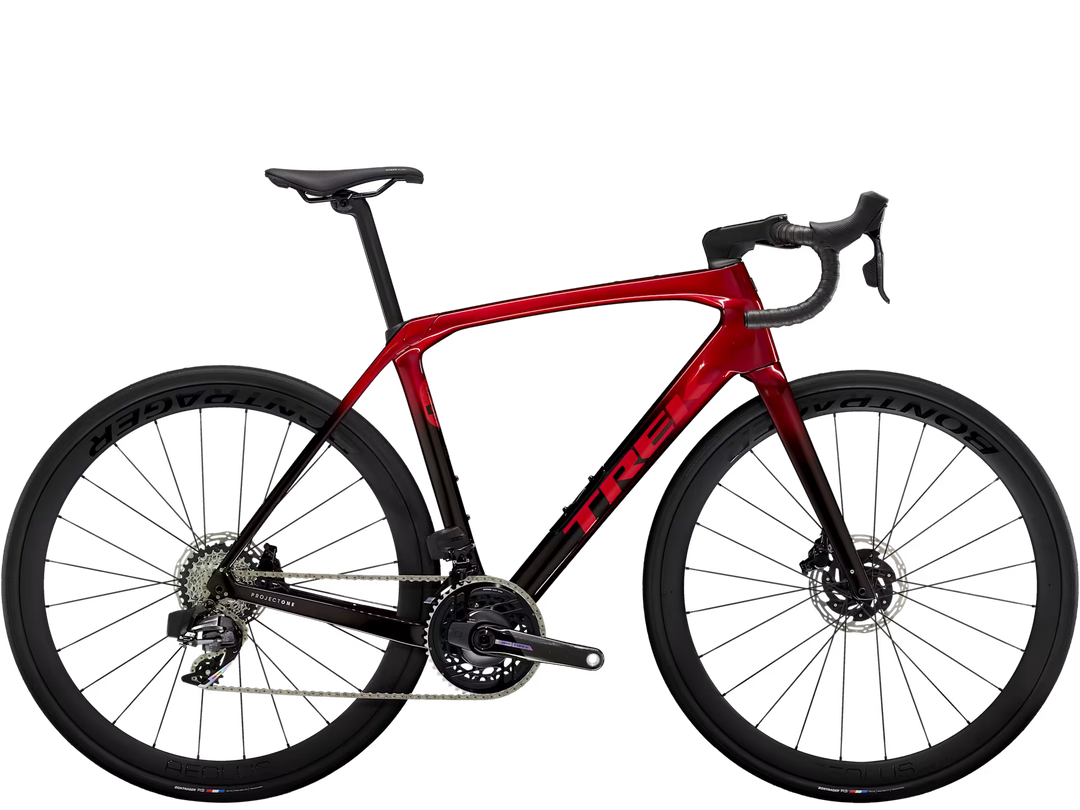

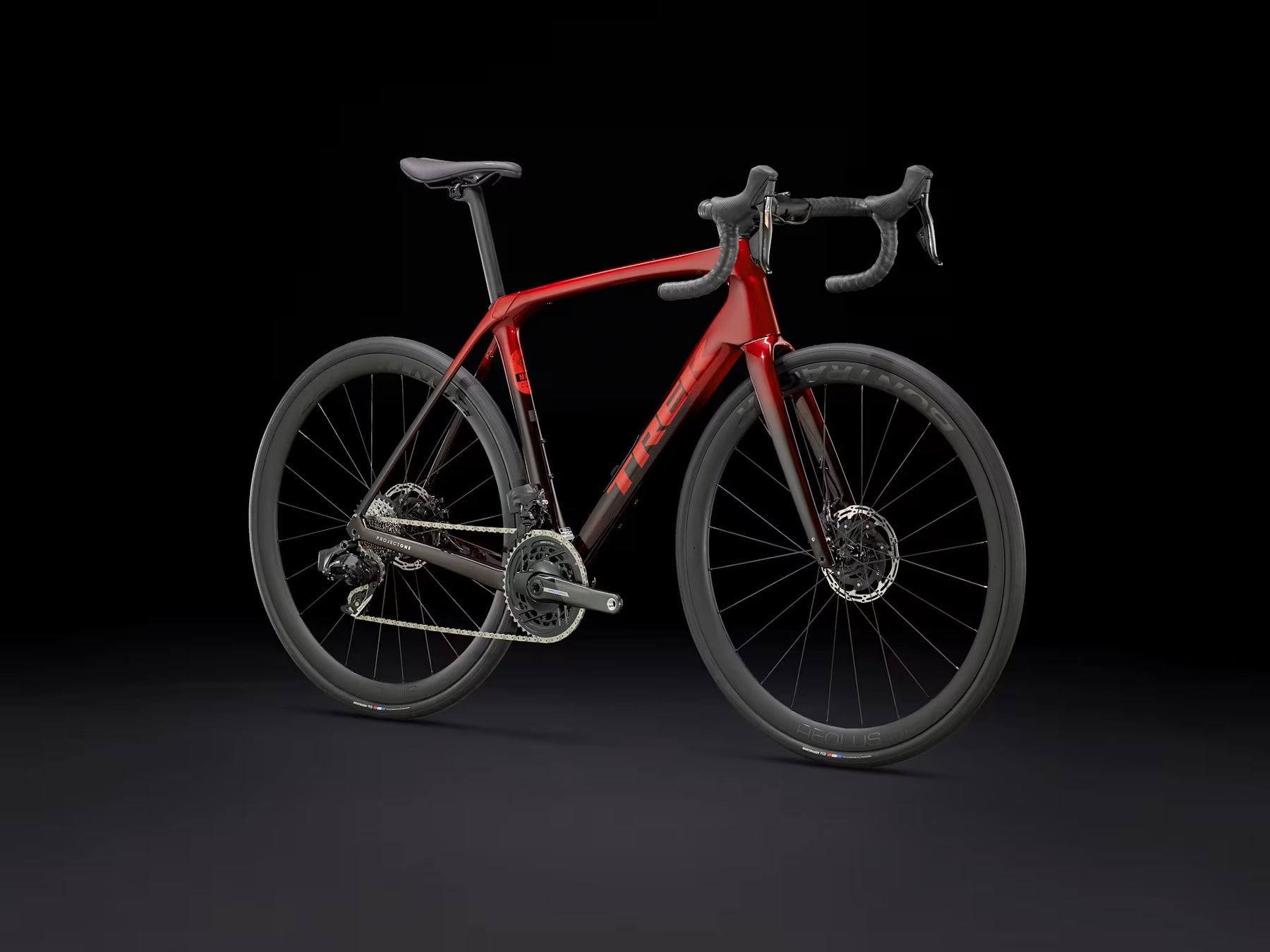

Domane SLR 7 AXS Gen 4

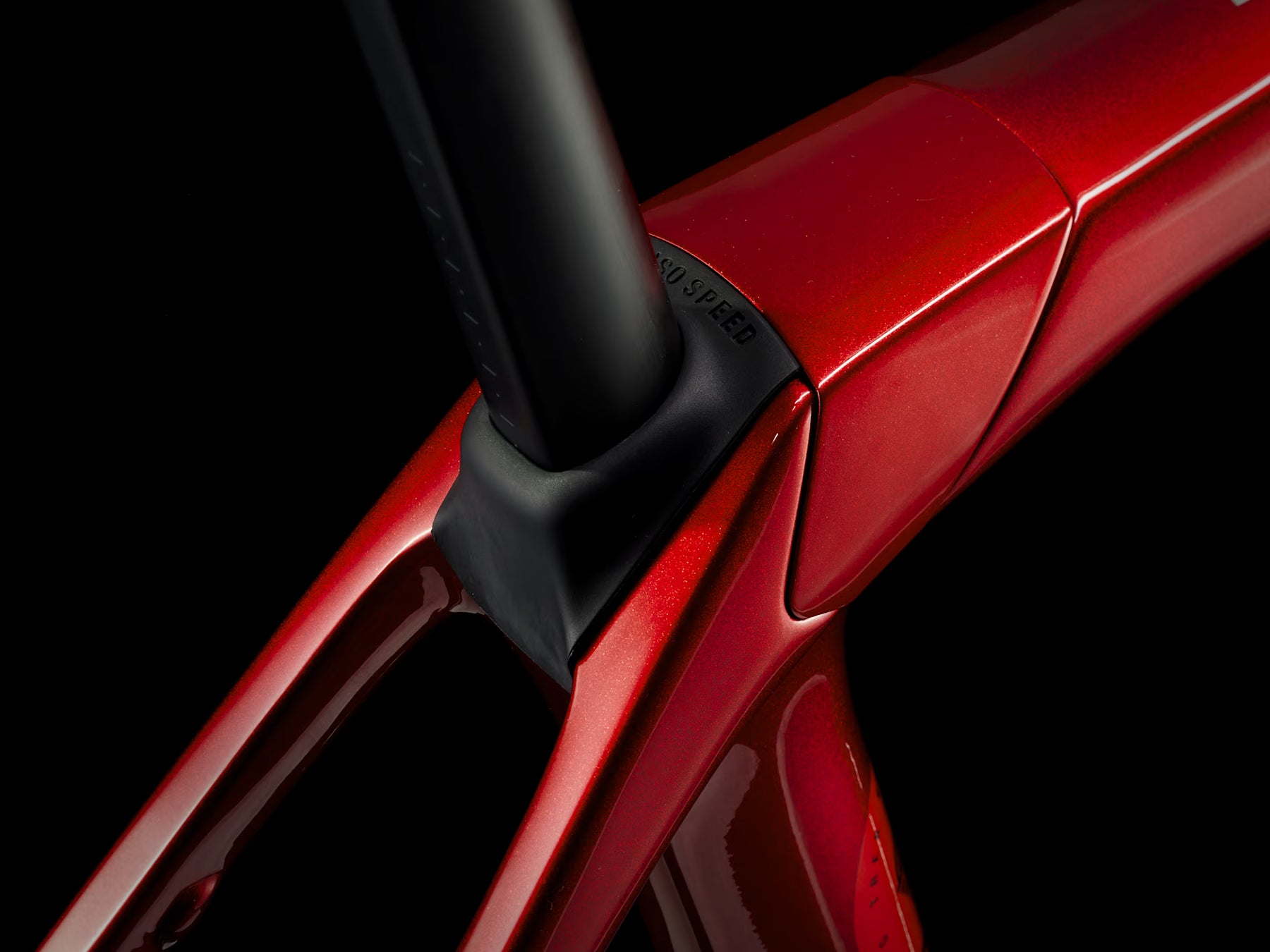

• Lightweight 800 Series OCLV Carbon frame with rear IsoSpeed

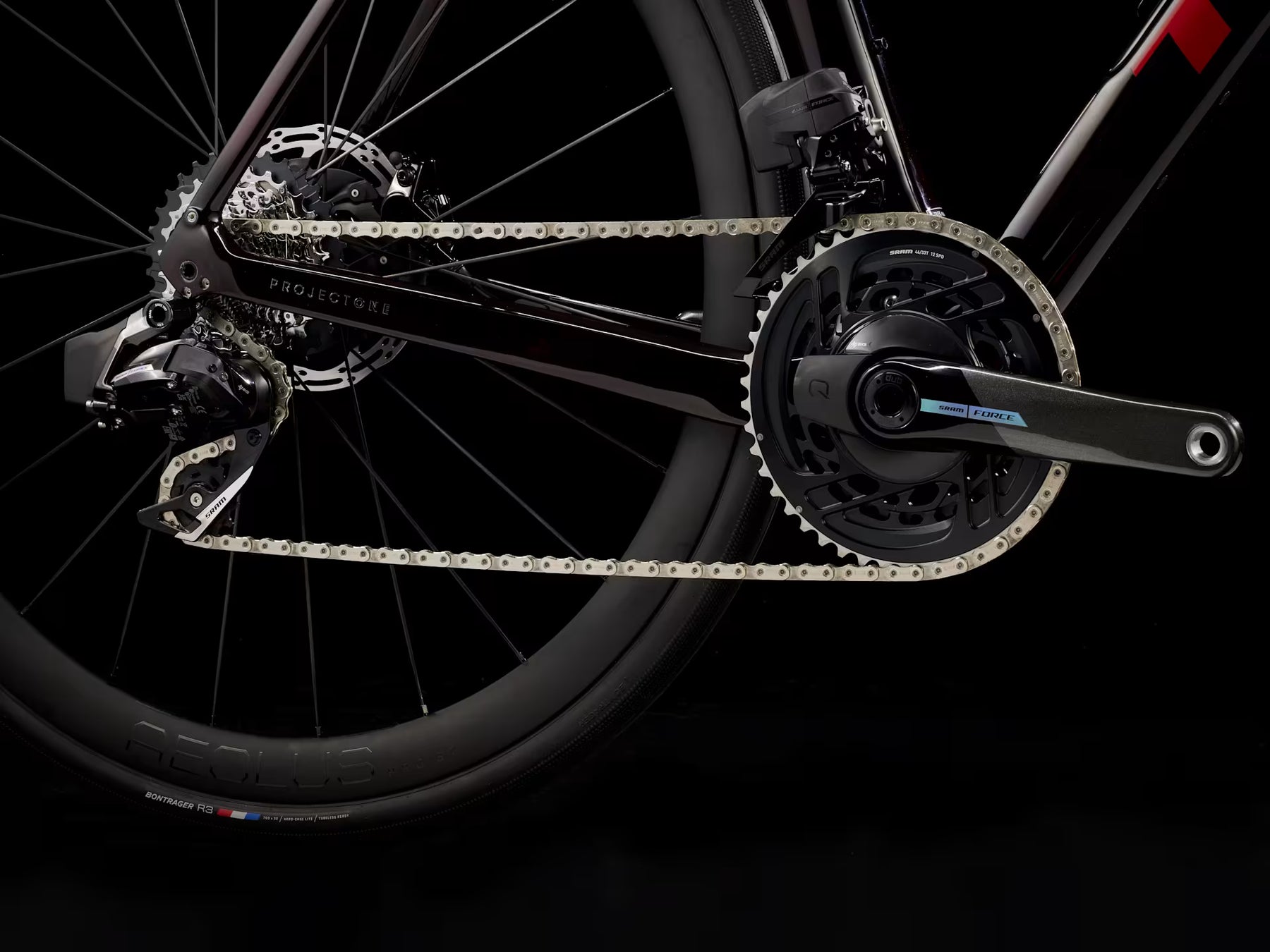

• Wireless SRAM Force AXS D2 electronic drivetrain for precision shifting

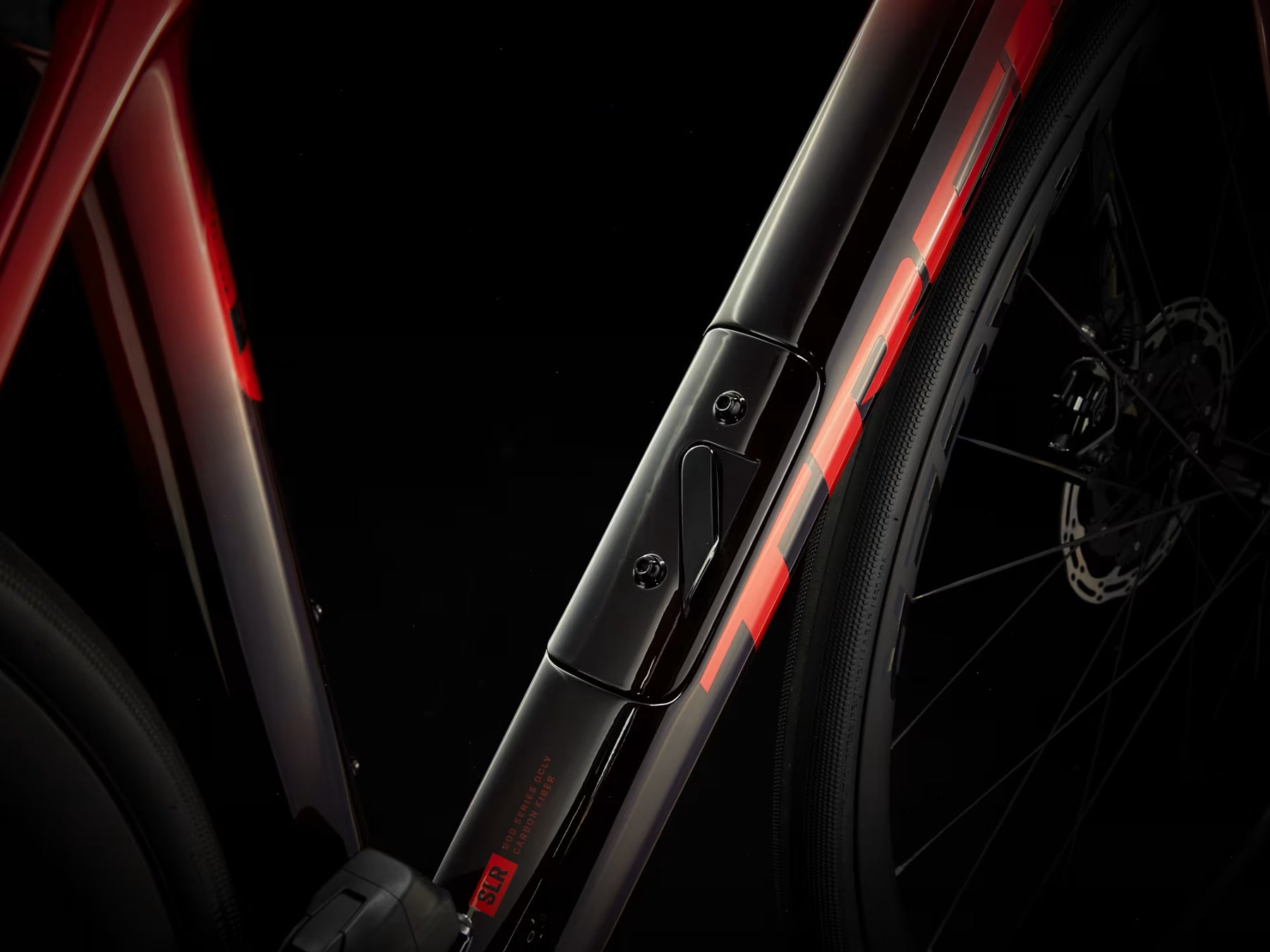

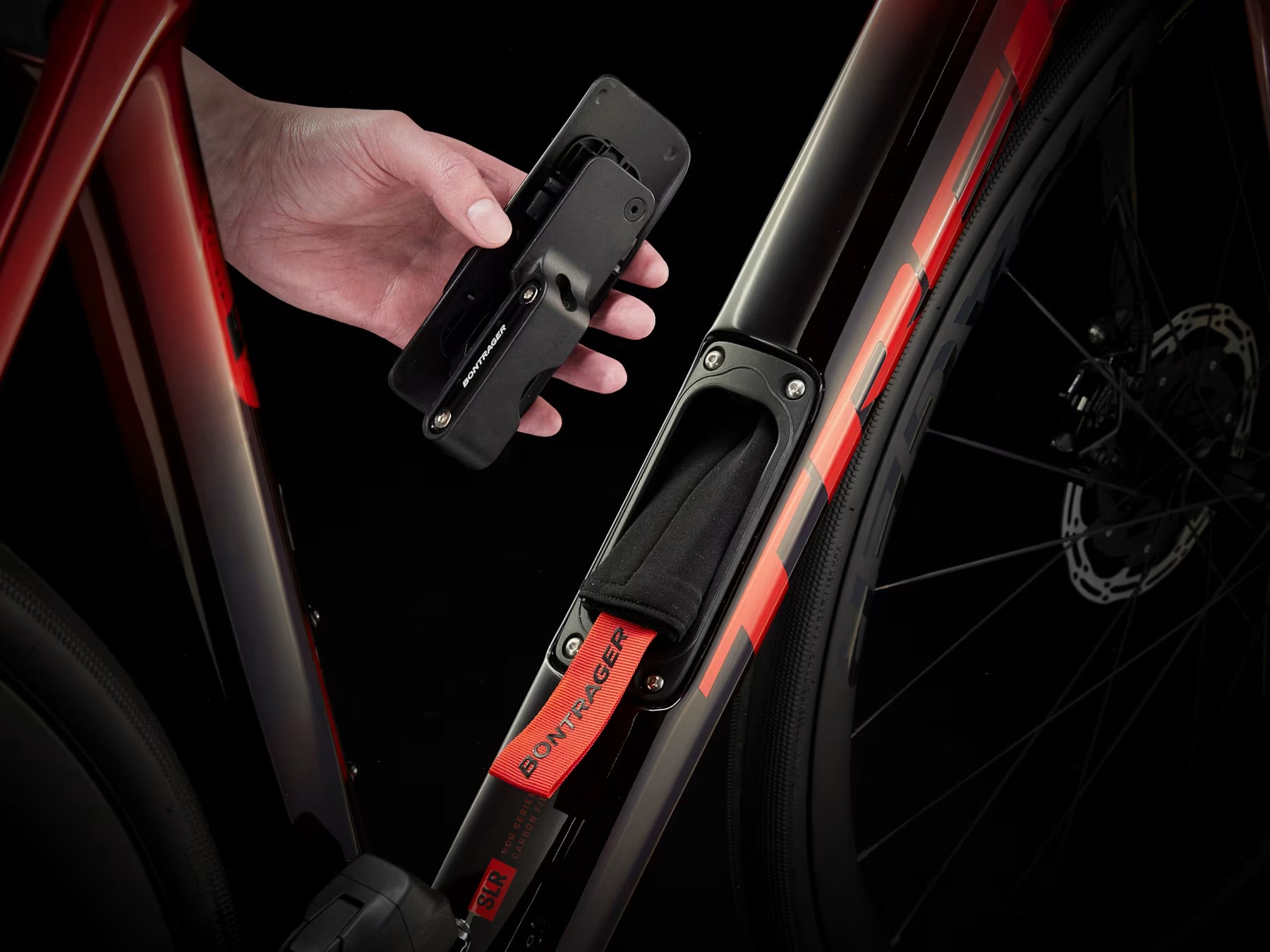

• Easy-access downtube storage compartment for stowing ride essentials
• The strong, lightweight Aeolus Pro 37 OCLV Carbon wheels allows for faster, more stable rim profiles—and the silky smooth hubs rolling on DT Swiss 350 internals deliver a quick-rolling ride wherever you roam.
• 38mm tire clearance to keep you floating on rough roads and light gravel.

Frameset

• Frame: 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
• Fork: Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle

Weight

• Weight: 56 - 8.29 kg / 18.28 lbs (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system

• Battery: SRAM AXS battery pack (with charger)

Drivetrain

• Shifter: SRAM Force AXS D2, 12 speed
• Front derailleur: SRAM Force AXS D2, braze-on
• Rear derailleur: SRAM Force AXS D2, 36T max cog
• *Crank: SRAM Force AXS D2, power meter, 46/33, DUB, 165mm length
• Bottom bracket: SRAM DUB, T47 threaded, internal bearing
• *Cassette: SRAM XG-1270, 10-36, 12 speed orSRAM Force XG-1270, 10-33, 12 speed
• Chain: SRAM Force, 12 speed
• Max chainring size: 1x: 48T, 2x: 52/36

Wheels

• Wheel front: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
• Wheel rear: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
• Skewer front: Bontrager Switch thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Tire: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
• Tire part: Bontrager TLR sealant, 180 ml/6 oz
• Rim strip: Bontrager TLR
• Max tire size: 38mm without fenders, 35mm with fenders

Components

• *Saddle: Verse Short Elite, hollow magnesium rails, 155mm width or Verse Short Pro, carbon rails, 155mm width
• *Seatpost: KVF aero carbon seatpost, 20mm offset, 280mm length
• *Handlebar: Bontrager Pro IsoCore VR-SF, 40cm
• Handlebar tape: Bontrager Supertack Perf tape
• *Stem: Trek RCS Pro, -7 degree, 80mm length

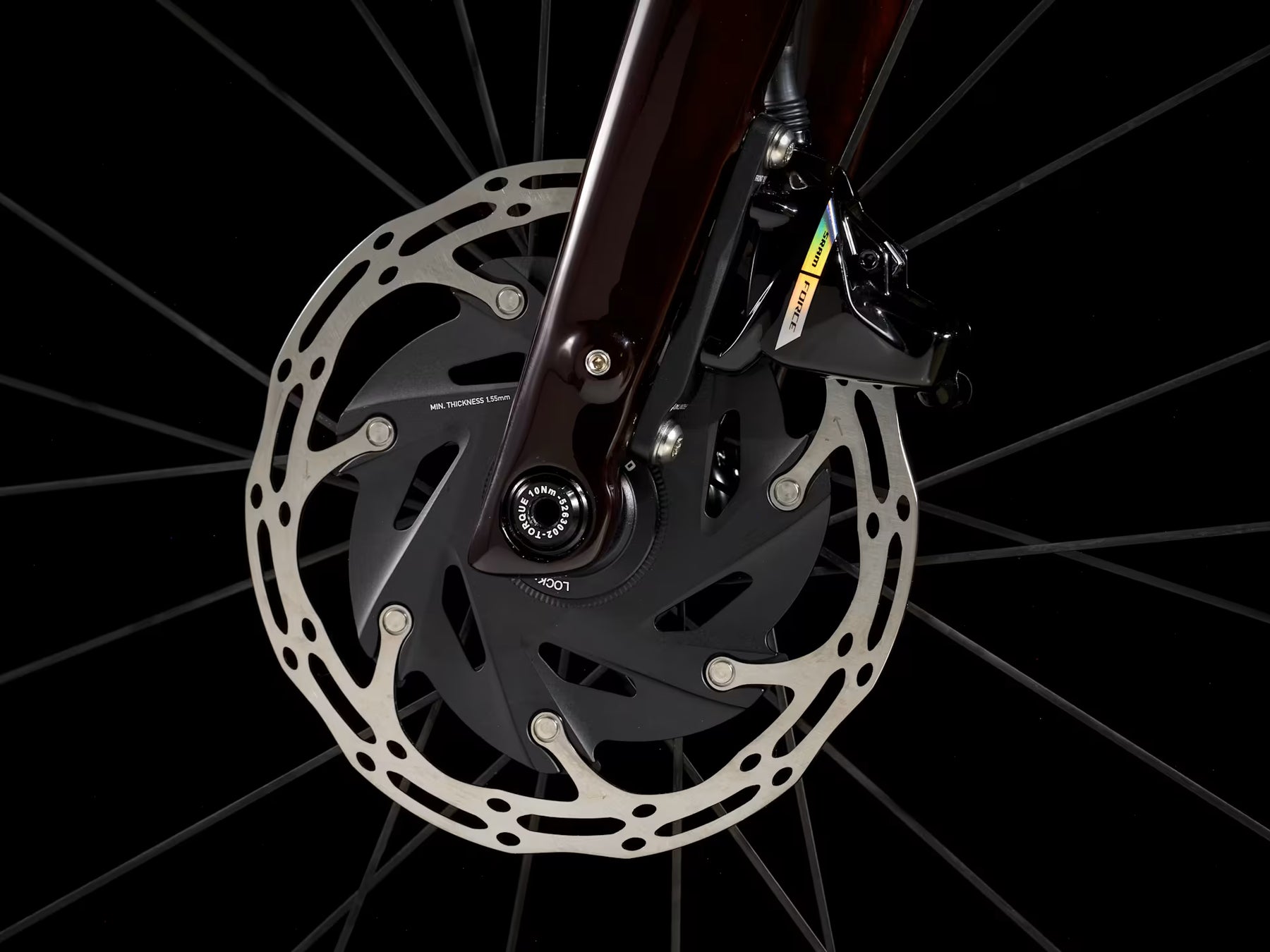

• Brake: SRAM Force AXS hydraulic disc, flat mount
• Brake rotor: SRAM CenterLine X, centerlock, round edge, 160mm
• Rotor size: Max brake rotor sizes: 160mm front & rear

Accessories

• Bag: Bontrager BITS Internal Frame Storage Bag

*Subject to change without notice
