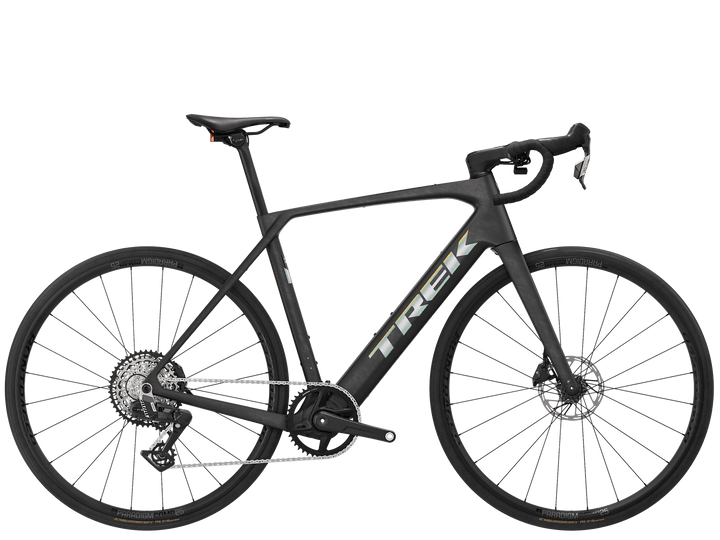

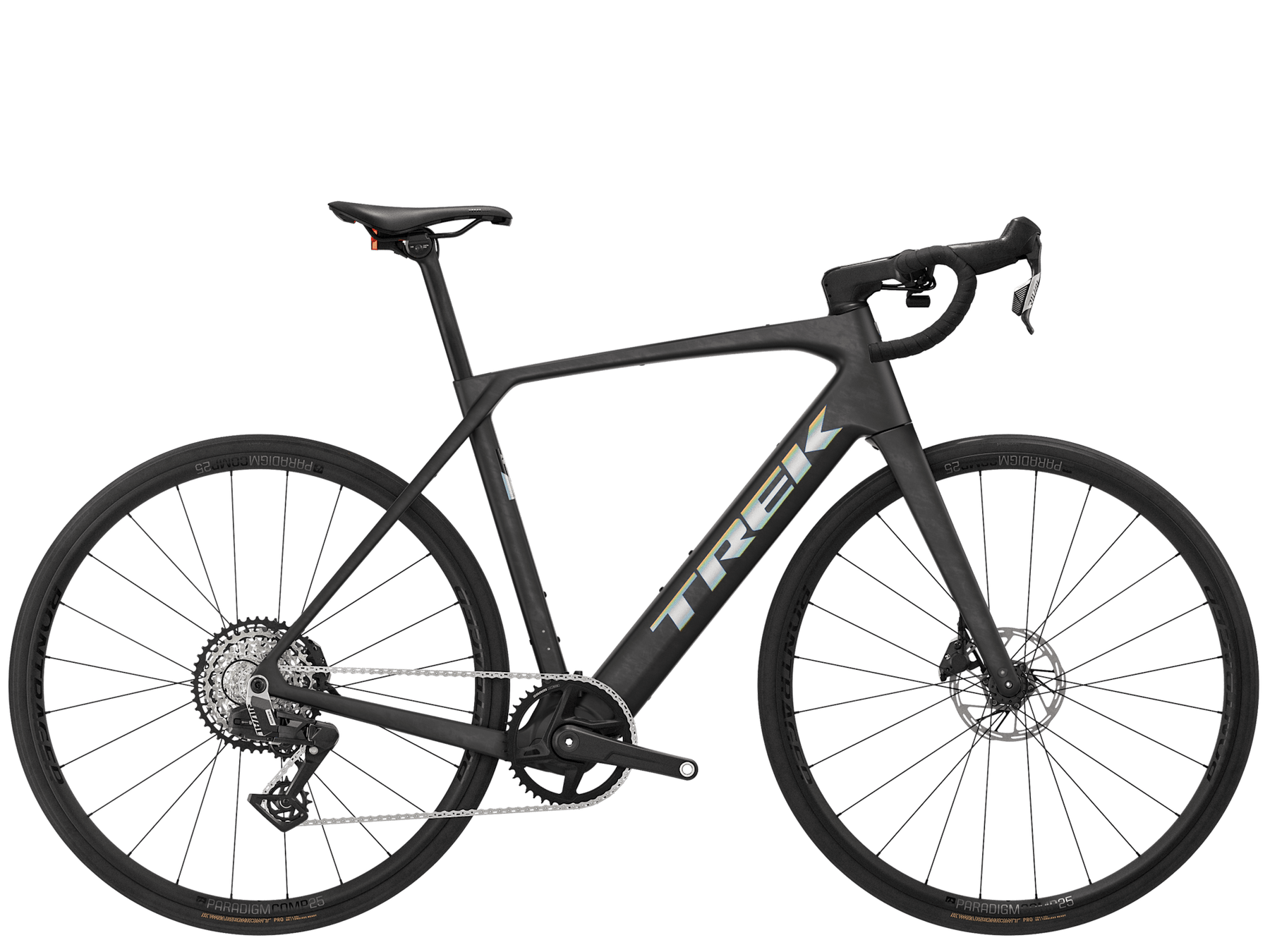

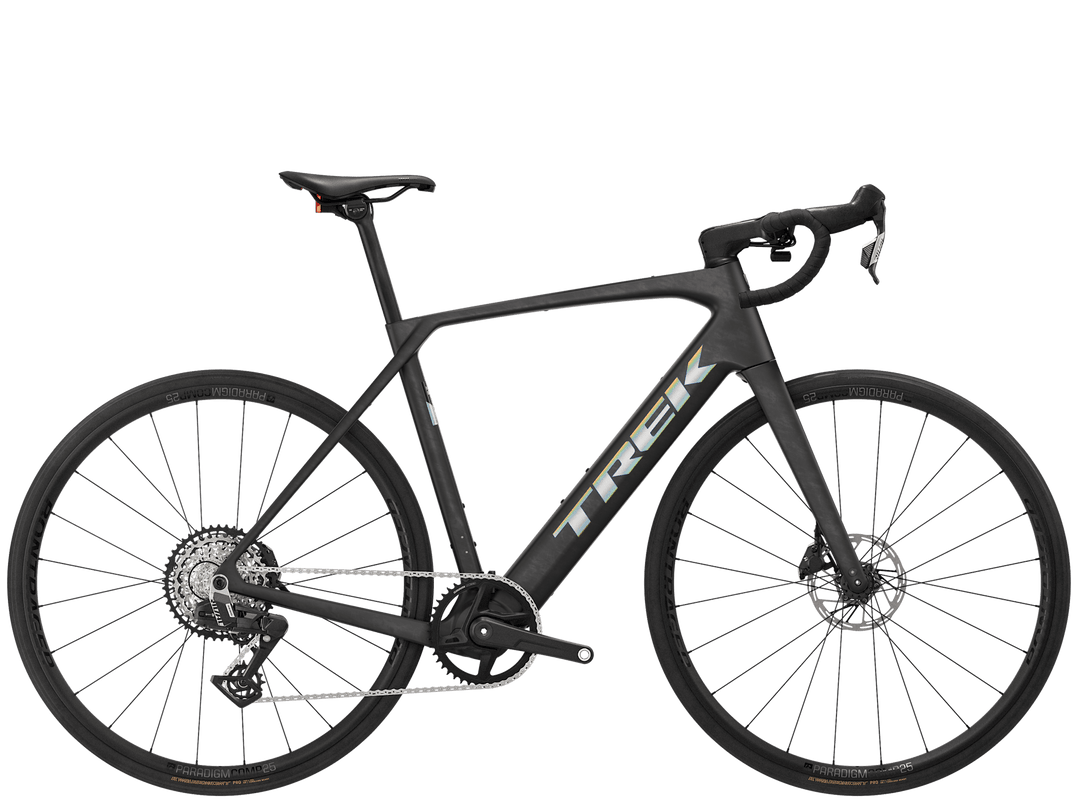

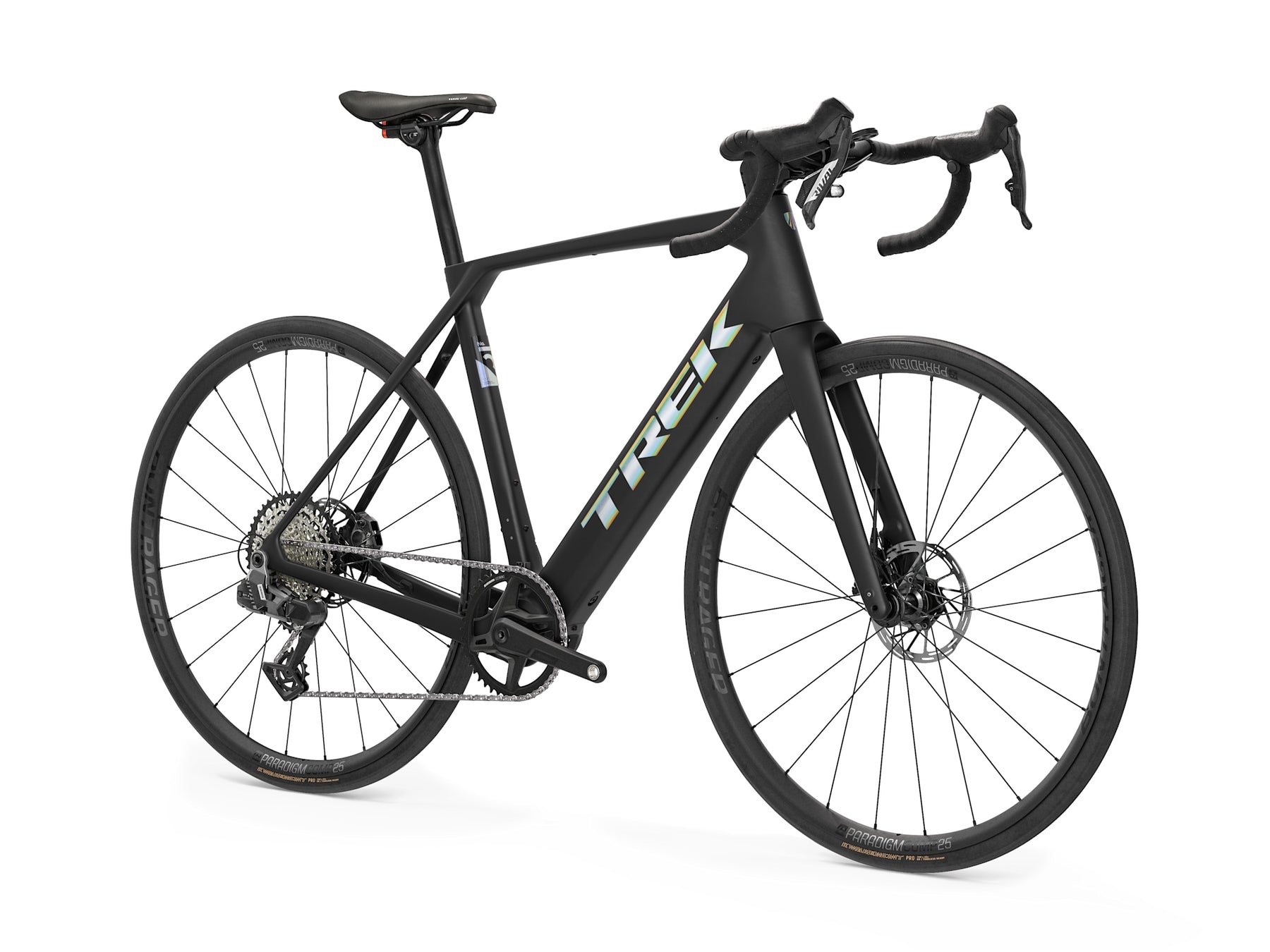

Domane+ SL 6 - E-Bike

• UL 2849 Certified

Frameset

• Frame: 500 Series OCLV Carbon, TQ drive system, tapered head tube, integrated frame bag mounts, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle
• Fork: Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm chamfered thru axle

Weight

• Weight: n/a
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system

• Battery: TQ 360Wh
• Charger: TQ 4A charger
• Computer: TQ LED display with Bluetooth & ANT+ connectivity
• Motor: TQ-HPR50, 40 Nm, 200 watt peak power

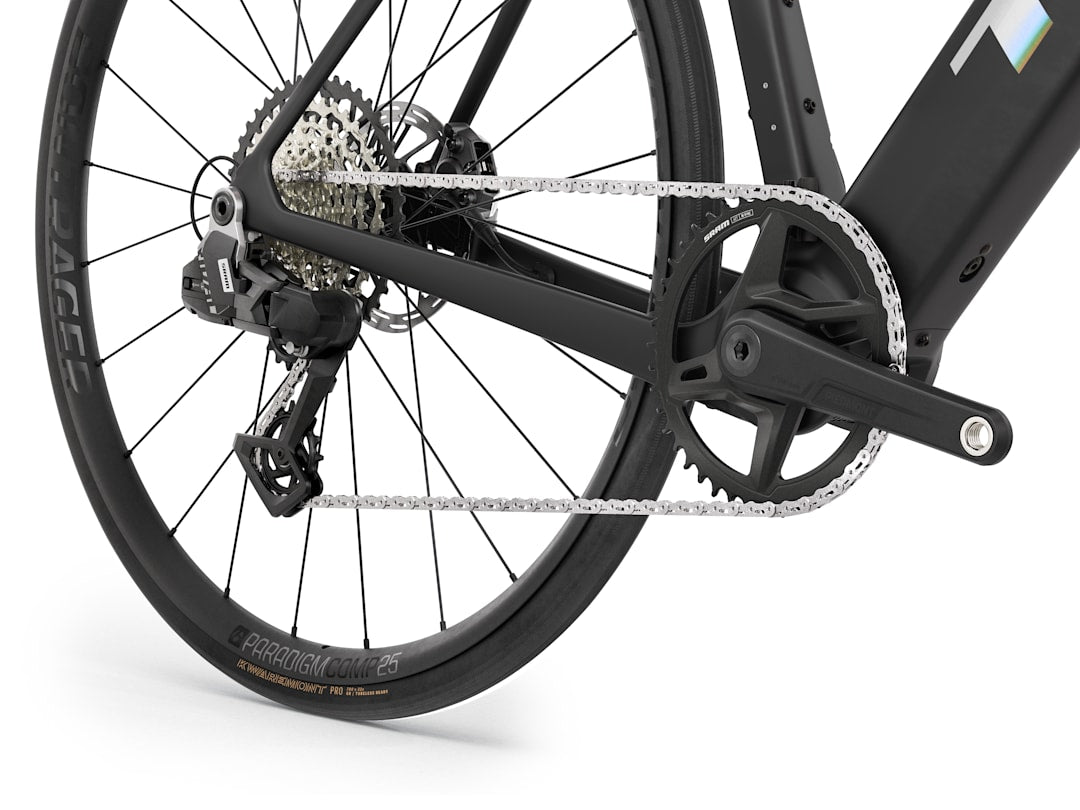

Drivetrain

• Shifter: SRAM Rival AXS E1
• Rear derailleur: SRAM Rival XPLR AXS, 46T max cog

• *Crank

1. Size: XS, S, M, ML: E*thirteen Piedmont Core E*spec, 165mm length
2. Size: L, XL: E*thirteen Piedmont Core E*spec, 170mm length

• Chain ring: SRAM ROAD CHAINRING, DIRECT MOUNT, X-SYNC, 44T E1
• Cassette: Sram Rival XPLR XG-1351, 10-46, 13 speed
• Chain: SRAM Rival E1, 12/13 speedd
• Max chainring size: 1x: 48T

Wheels

• Wheel front: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
• Wheel rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, SRAM XD-R 12-speed, 142x12 thru axle
• Skewer front: Bontrager Switch thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Tire: Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid bead, 120 tpi, 700x35mm
• Rim strip: Bontrager TLR
• Max tire size: 40mm without fenders, 35mm with fenders

Components

• Saddle: Verse Short Comp, steel rails, 145 width
• Seatpost: Bontrager RSL carbon, 27.2mm, 5mm offset

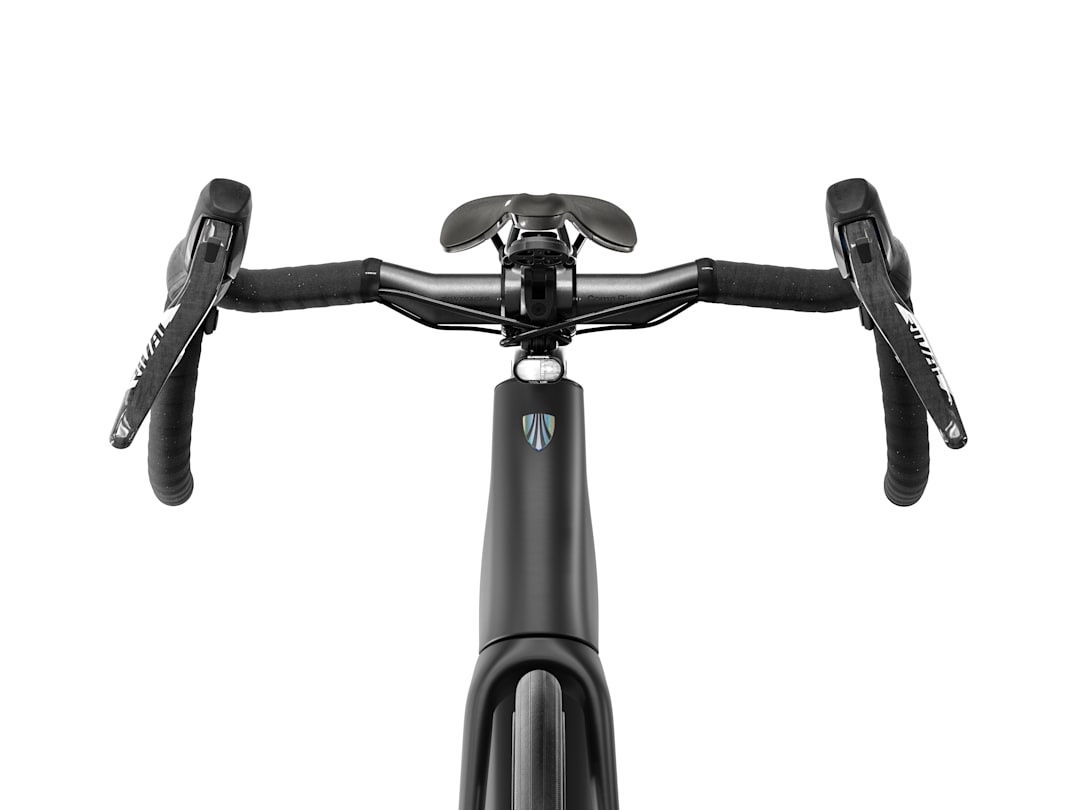

• *Handlebar:

1. Size: XS: Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 36cm width
2. Size: S: Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 38cm width
3. Size: M, ML: Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 40cm width
4. Size: L, XL: Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 42cm width

• Handlebar tape: Trek EcTack, Trek gel cork
• *Stem:

1. Size: XS: Trek RCS, -7 degree, 80mm length
2. Size: S: Trek RCS, -7 degree, 90mm length
3. Size: M, 58: Trek RCS, -7 degree, 100mm length
4. Size: ML, L: Trek RCS, -7 degree, 110mm length
5. Size: XLL: Trek RCS, -7 degree, 120mm length

• Brake rotor: SRAM Paceline, rounded, centerlock, 160mm
• Max brake rotor sizes: 160mm front & rear

*Subject to change without notice
