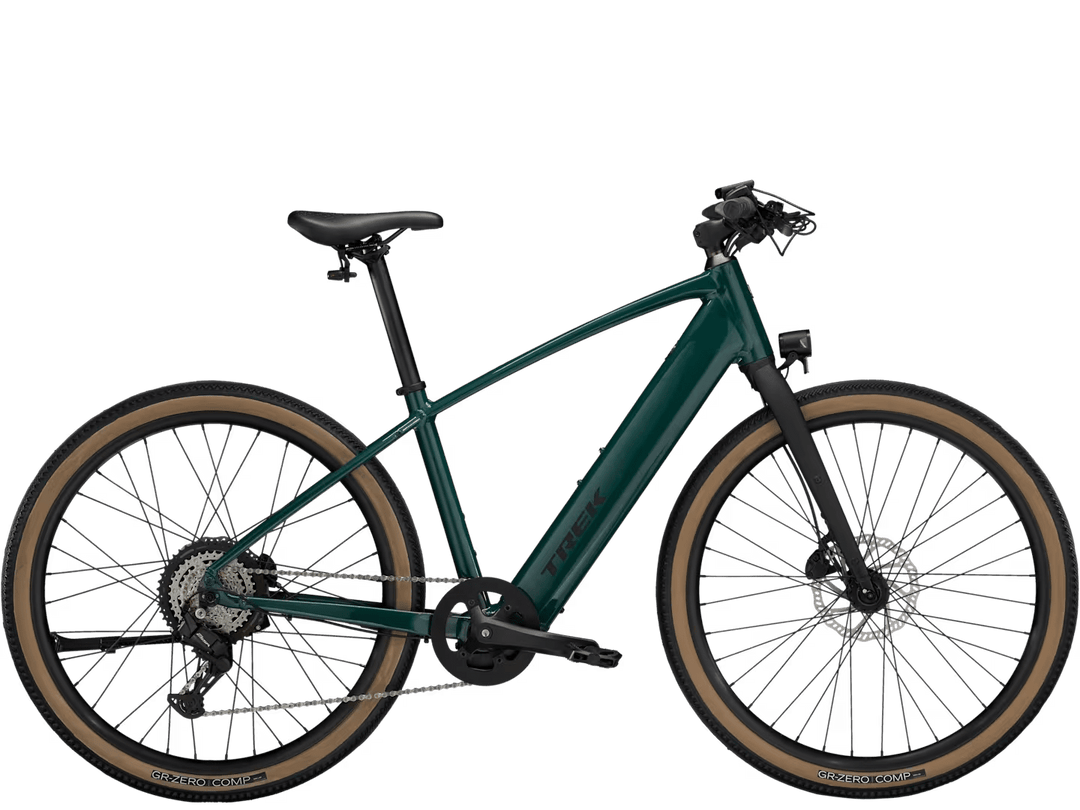

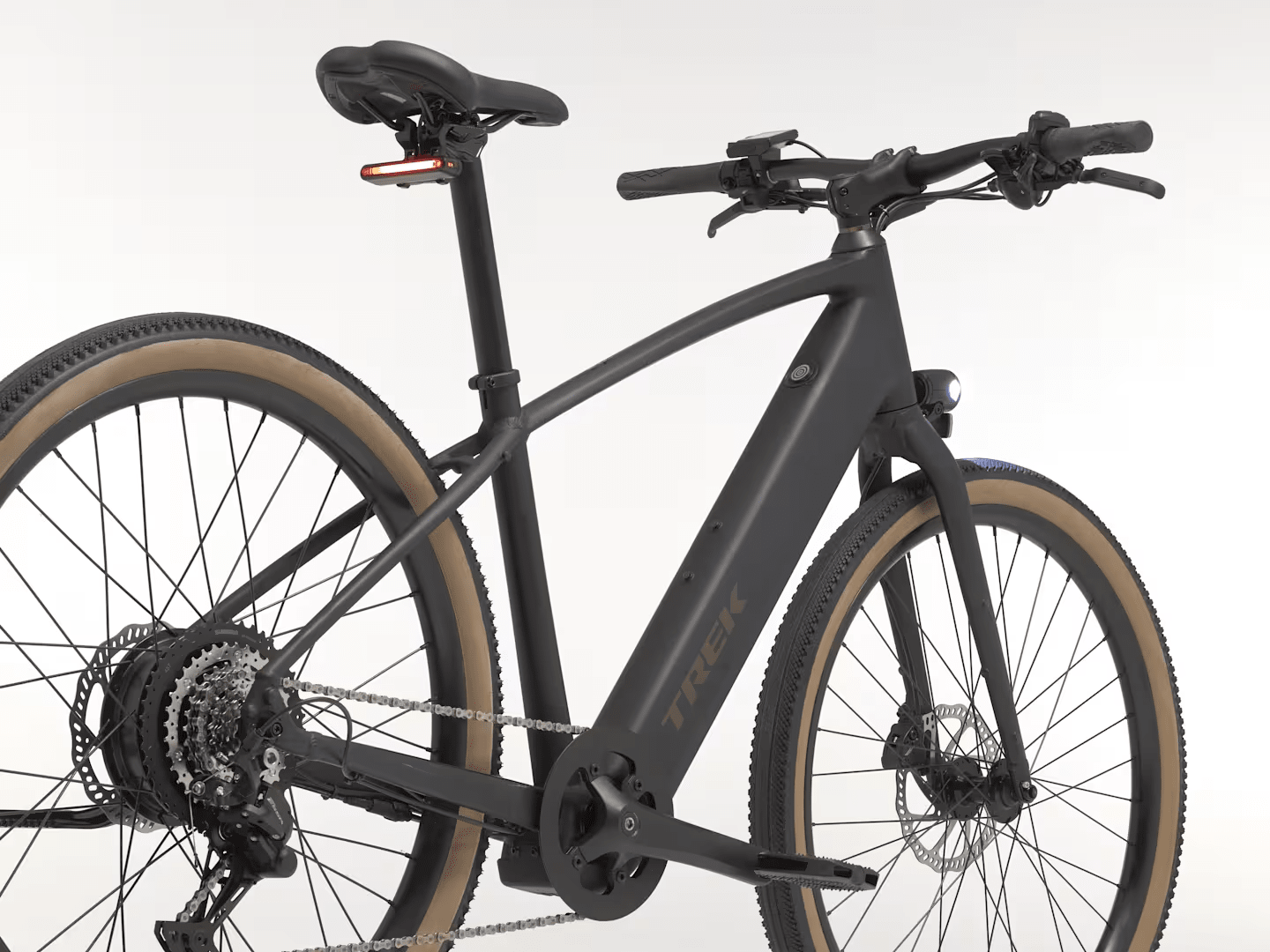

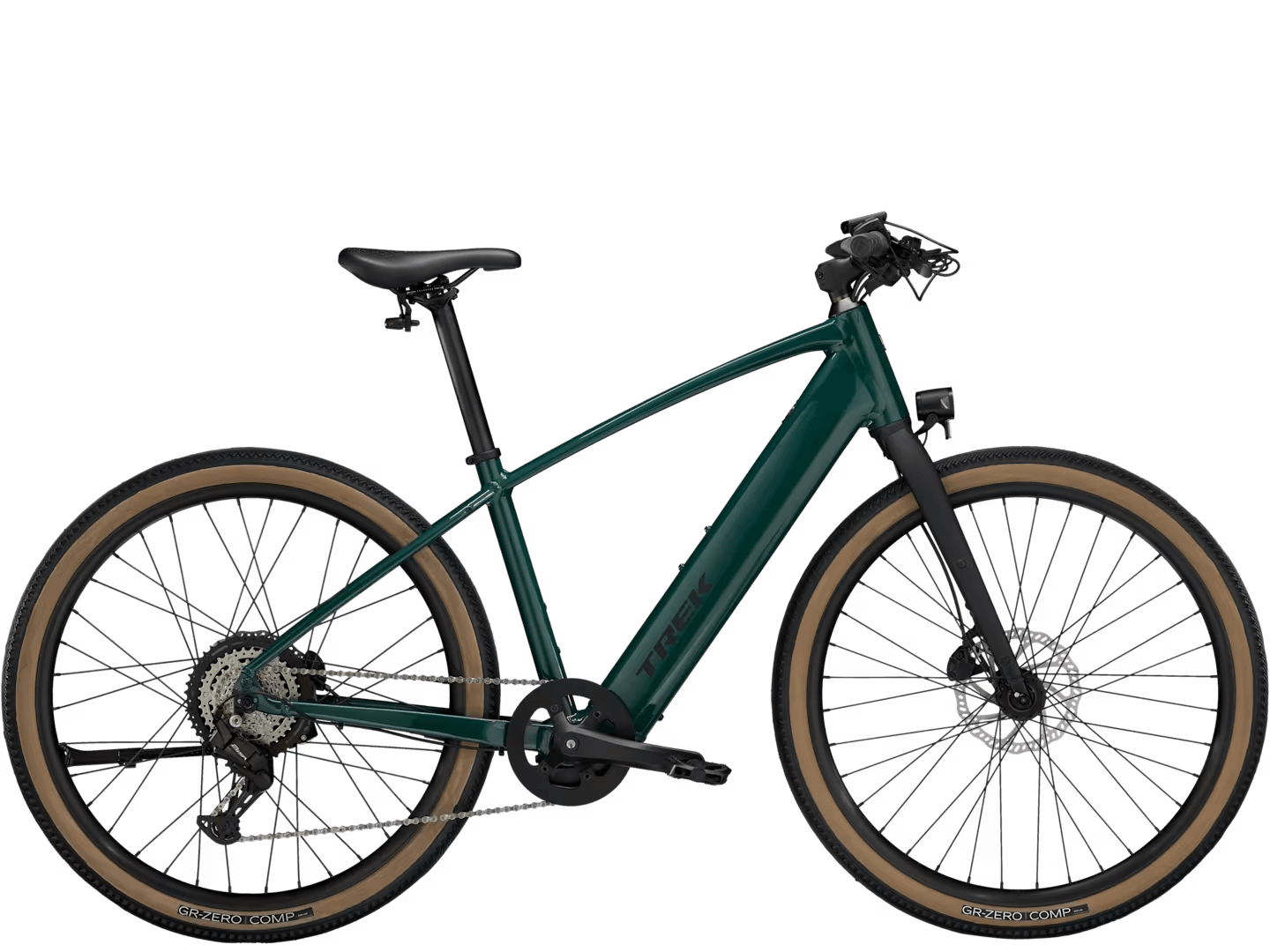

FX+ 1 - E-Bike

• You get the convenience of a throttle for accelerating and the smooth support of pedal assist while you ride
• The portable magnetic wall-mount charger makes getting your battery ready to ride a hassle-free process
• Wide, stable tires deliver tons of traction and confidence for riding through town, on paths, and on rail trails
• Integrated lights, turn signals, and brake light help you see and be seen wherever you roll

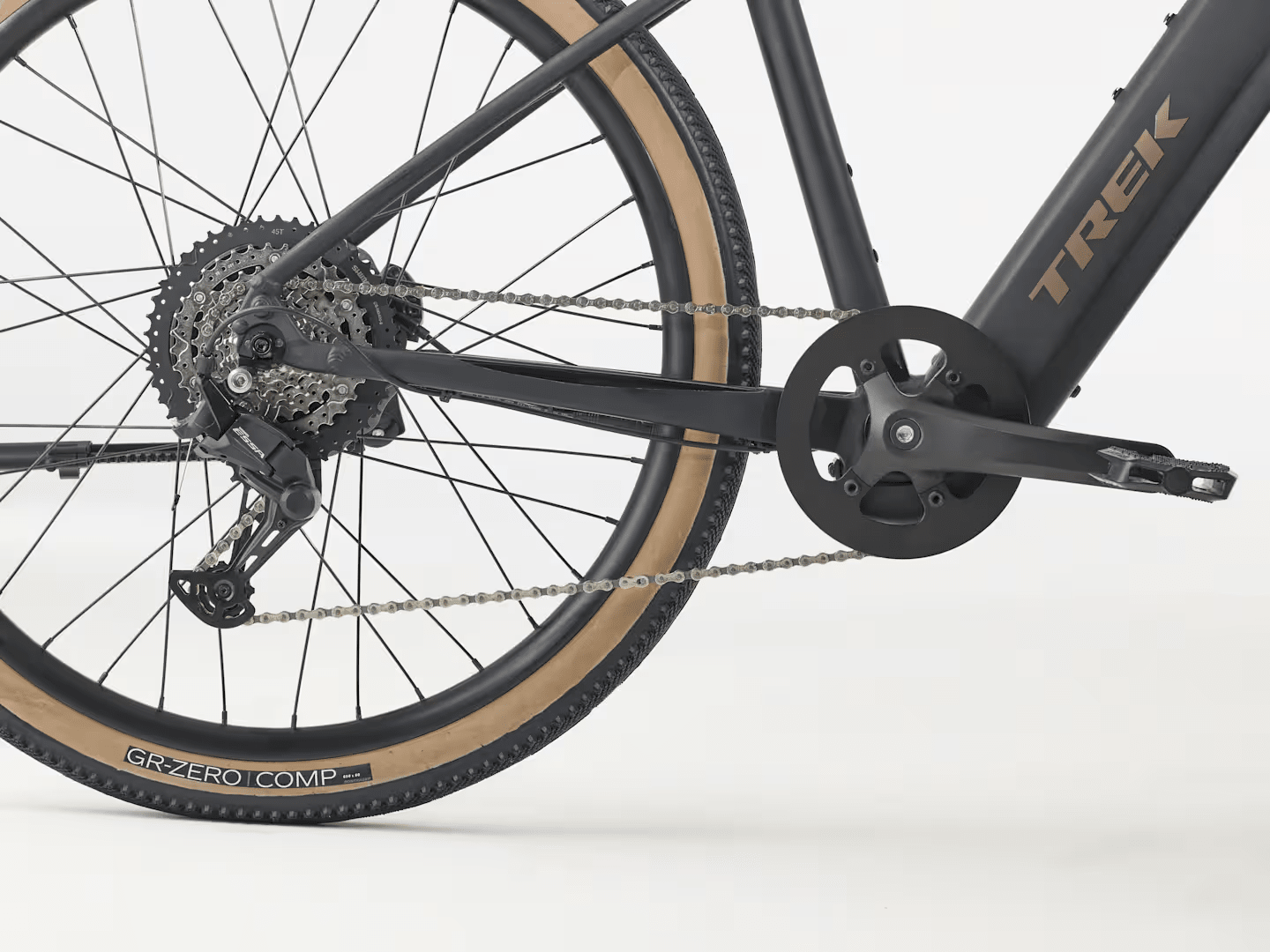

• You get low-maintenance, reliable shifting thanks to Shimano's 8-speed ESSA drivetrain

Frameset

• Frame: Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, flat mount disc brake, kickstand mount, 144.5mm OLD hub motor spacing
• Fork: Alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer

Wheels

• Hub front: Alloy low-flange w/6-bolt disc, 36h, w/QR
• Skewer front: 132x5mm QR, ThruSkew
• Rim: Alloy double wall, 36h
• Tire: Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm
• Max tire size: 650x50mm

E-system

• Battery: 540Wh, integrated in down tube
• Charger: Trek Easy Mag charger, 2.7A, 54.9V output, 100V-240V AC input
• Computer: LCD display
• Motor: Hub drive motor, 60 Nm, 500W, 36H, black

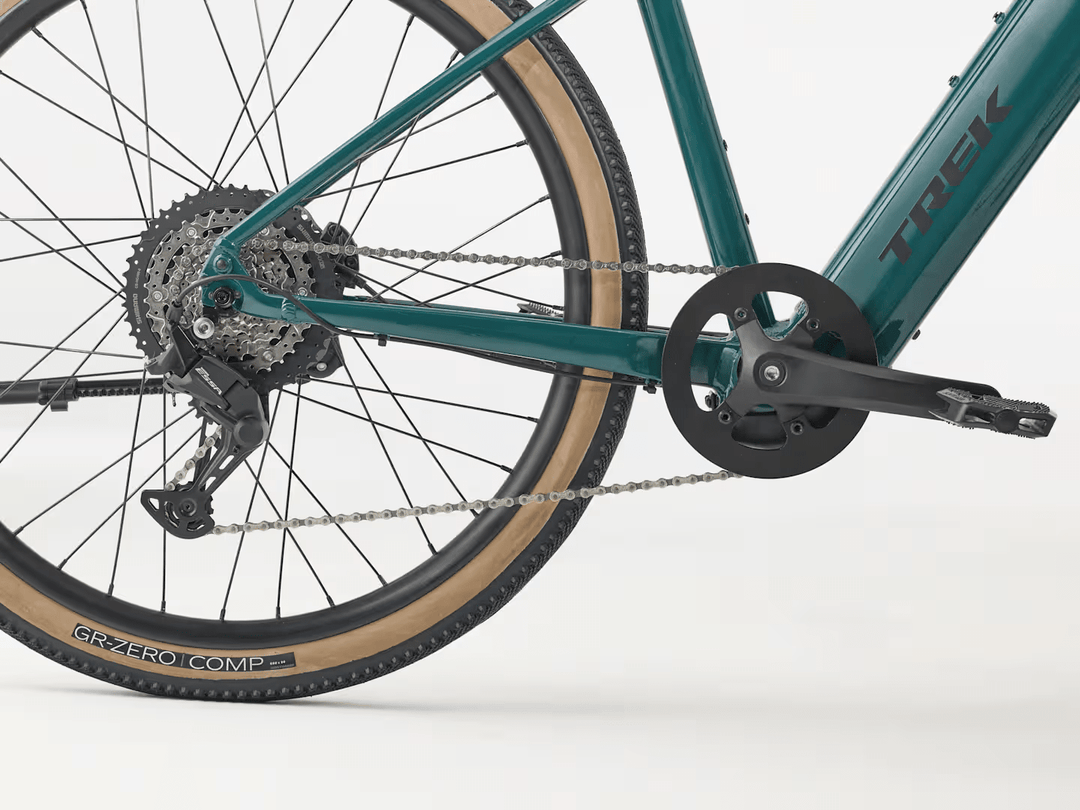

Drivetrain

• Shifter: Shimano M315, 8 speed
• Rear derailleur: Shimano ESSA U2000
• Crank: Alloy, 40T steel chainring, 170mm length
• Cassette: Shimano HG400, 11-45, 8 speed
• Chain: KMC Z8.3
• Pedal: Bontrager City pedals
• Max chainring size: 1x: 40T

Components

• Saddle: Bontrager Sport
• *Seatpost:

1. Size: S, M - Bontrager alloy, 31.6mm, 12mm offset, 330mm length
2. Size: L, XL - Bontrager alloy, 31.6mm, 12mm offset, 400mm length

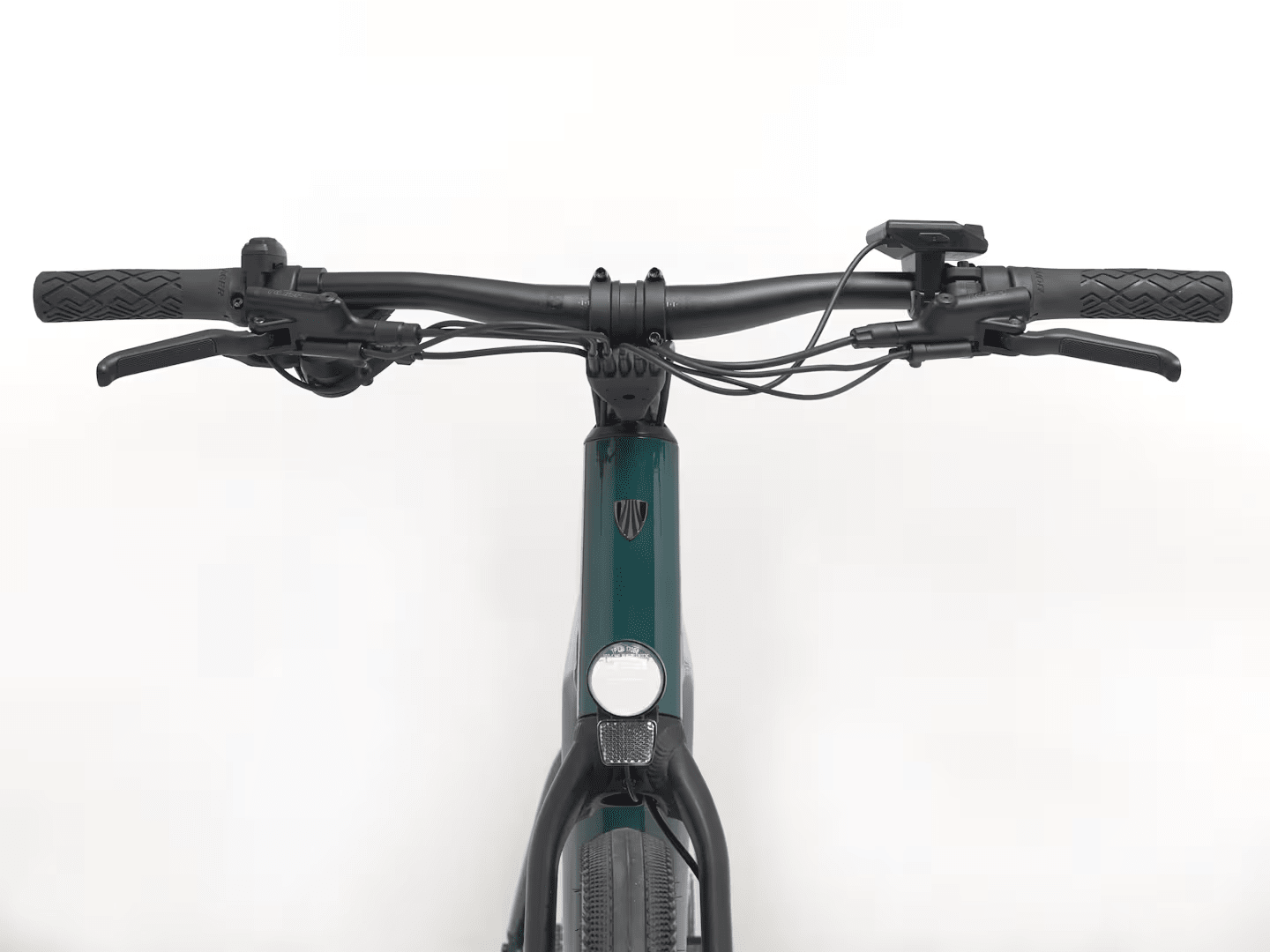

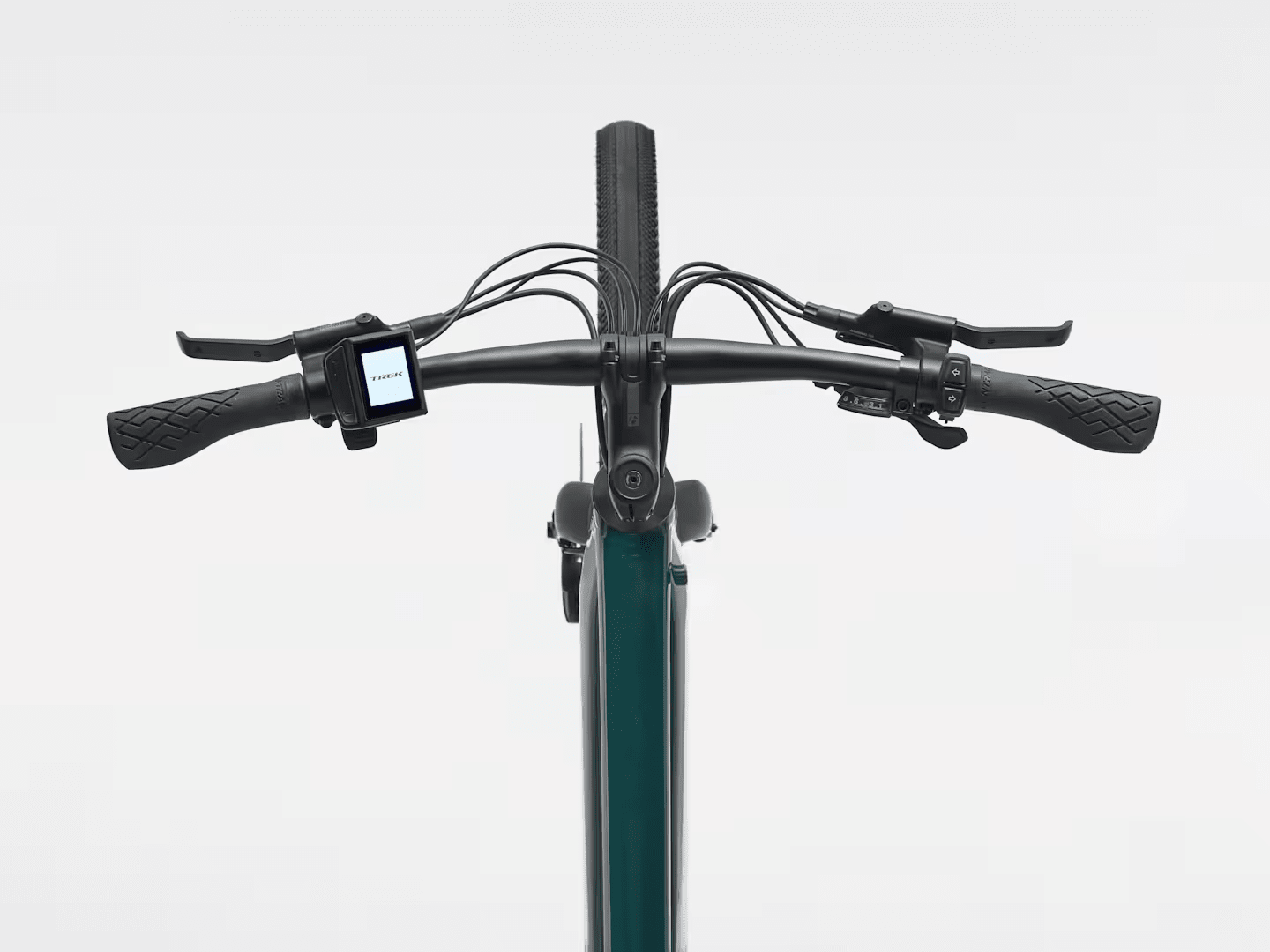

• *Handlebar:

1. Size: S, M - Bontrager alloy, 31.8mm, 15mm rise, 690mm width
2. Size: L, XL - Bontrager alloy, 31.8mm, 15mm rise, 720mm width

• Grips: Bontrager XR Endurance Comp, lock-on

• *Stem:

1. Size: S, M - Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
2. Size: L, XL - Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length

• Brake: Rush BH-286 hydraulic disc, 180mm rotor
• Rotor size: Max brake rotor sizes: 180mm front & rear

Accessories

• *Light:

1. Size: S, M, L, XL - Herrmans MR8, 180 lumen, 60 lux, LED headlight

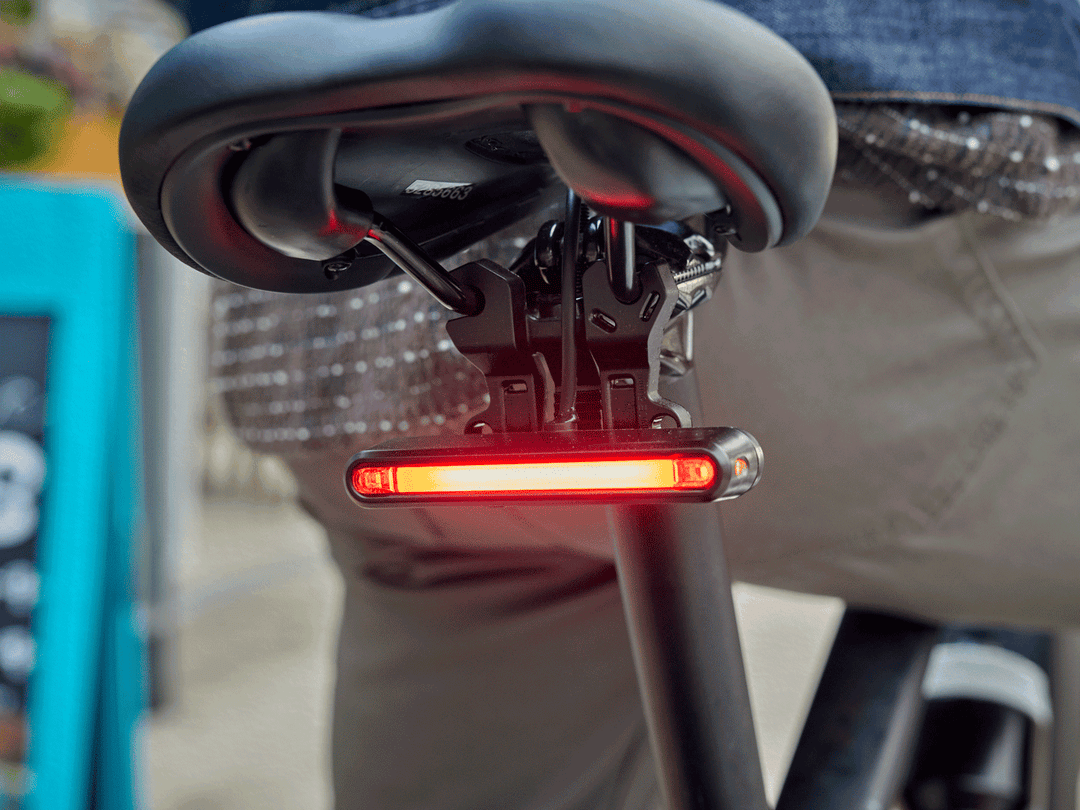

2. Size: S, M, L, XL - Sate-Lite M-15 with turn signal and brake light function

• Kickstand: Alloy, rear mount

Weight

• Weight: M - 22.10 kg / 48.73 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Please note that, based on component availability and other factors, specifications are subject to change without notice.
