Orbea

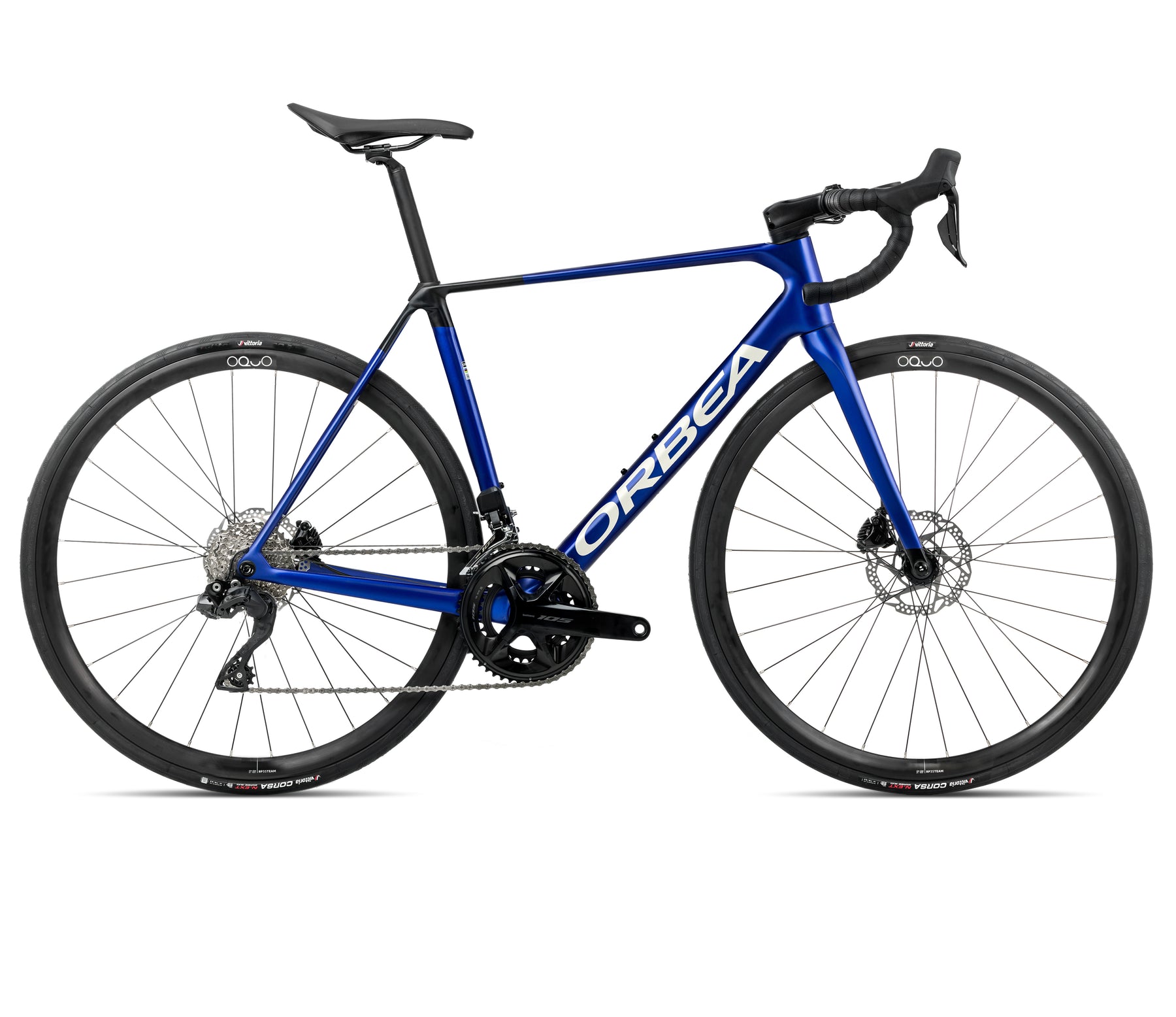

Orca M35i 105 Di2

UPC: 8434446986901

Colour — Cobalt Blue - Carbon Raw Matte Cobalt Blue - Carbon Raw Matte Escape Green - Carbon View Matte

Size 51 53 55 57

Price

~~$0.00~~

Save

/

Size chart

Size	Rider Height
47	155 - 160 cm 5'1" - 5'3"
49	160 - 166 cm 5'3" - 5'5"
51	167 - 172 cm 5'5" - 5'7"
53	173 - 179 cm 5'8" - 5'10"
55	180 - 185 cm 5'10" - 6'0"
57	186 - 191 cm 6'1" - 6'3"
60	192 - 207 cm 6'3" - 6'9"

Pairs well with

Orca M35i 105 Di2

Orbea

Frame:: Orbea Orca carbon OMR 2026
Fork:: Orbea Orca OMR ICR 2024
Tires:: Vittoria Corsa N.Ext G2.0 700x28c
Wheels:: Oquo Road Performance RP35TEAM
Rear Derailleur:: Shimano 105 Di2 R7150
Brakes:: Shimano R7170 Hydraulic Disc
Saddle:: Fizik Aliante R5
Stem / Handlebar:: OC Road Performance RP23 / OC Road Performance RP31
Tire Clearance:: 32mm
Sizes:: 47, 49, 51, 53, 55, 57, 60
Weight (lbs/kg):: n/a

Price match guarantee

Locally owned

Secure payments

Orca is Orbea's lightweight carbon climbing machine, made for those seeking the perfect partner with which to attack every mountain pass.

The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff.

Lightweight: Achieving Orca´s light weight required many marginal gains, focusing on the details and using the best materials across the range. Considering the bike as a package means working with component and wheel designers right from the start to optimize stiffness and weight.

Rigid In All The Right Places: Having the lightest bike is worth nothing if it isn’t stiff and efficient. When Orbea designed Orca, they started with a target rigidity to ensure that even the strongest climbers could be sure of efficient power transmission. Then they designed Orca to be as light as possible without compromising that number.
Frame Design: Orbea's clever frame design means that stiff doesn't have to be uncomfortable. Rounder frame sections help reduce vibrations, saving energy on longer rides and offering you an advantage on that final climb. Wider clearance allows for tires of up to 32mm- maximizing traction and compliance.

Frameset

Frame: Orbea Orca carbon OMR 2026, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread
M12x2 P1, internal cable routing.
Fork: Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
Steerer tube: FSA 1-1/2" Integrated Aluminum Cup

Drivetrain

Crankset: Shimano 105 R7100 34x50t
Shifters: Shimano Di2 R7170
Cassette: Shimano 105 R7100 11-34t 12-Speed
Rear derailleur: Shimano 105 Di2 R7150
Front derailleur: Shimano 105 Di2 R7150
Chain: Shimano M6100

Cockpit

Handlebar: OC Road Performance RP31, Reach 80, Drop 125
Stem: OC Road Performance RP23, -5º

Brakes

Brakes: Shimano R7170 Hydraulic Disc
Brakes Configuration: N/A

Wheels

Wheels: Oquo Road Performance RP35TEAM
Tires: Vittoria Corsa N.Ext G2.0 Foldable 700x28c
Front Wheel Axle: Orbea Thru Axle 12x100mm M12x2 P1 Hollow
Rear Wheel Axle: Orbea Thru Axle 12x142mm M12x2 P1 Hollow

Components

Seatpost: SP 0.2 Carbon, 27.2mm, Setback 20
Saddle: Fizik Aliante R5

Accessories

Handlebar Tape: Orbea Anti-Slippery/Shock Proof
Storage: OC Toolbox TB02PP

*Subject to change without notice

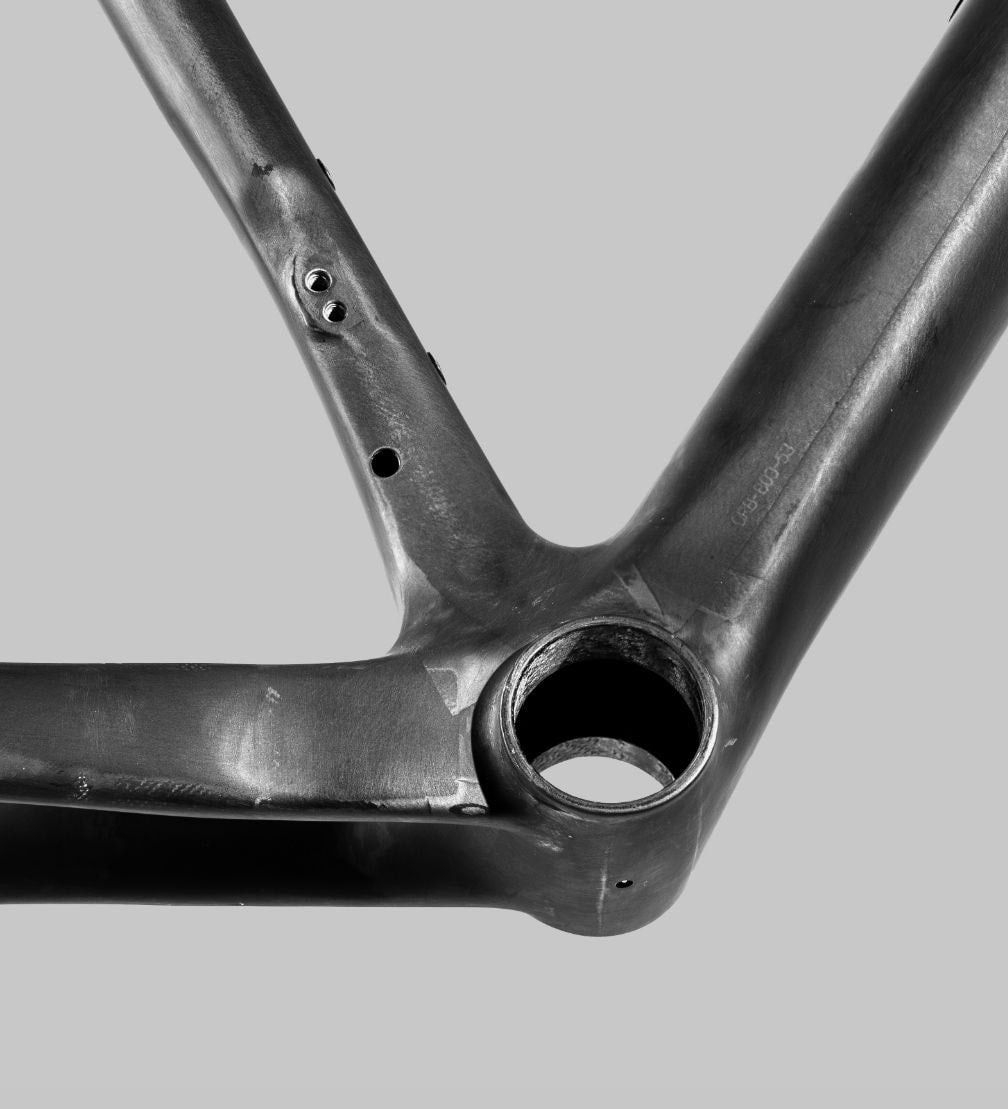

Powerspine

The lower spine of the frame handles the large majority of torsional and lateral loads.

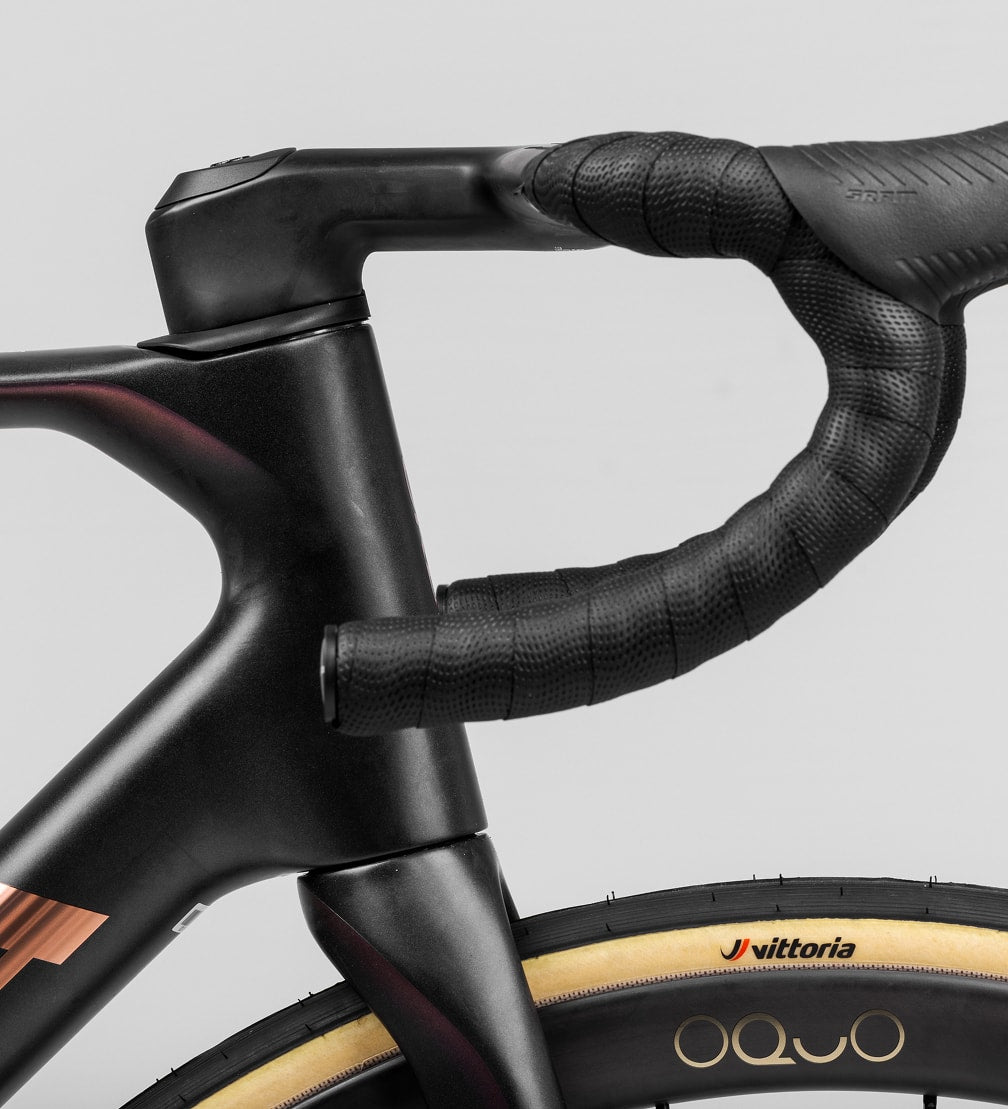

ICR Plus

Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems.

32mm Tire Clearance

Modern road riders have discovered the advantages of bigger tires on rougher surfaces.

Orca M35i 105 Di2

Pairs well with

Powerspine

ICR Plus

32mm Tire Clearance
