Denna H50 20mph - E-Bike
Orbea

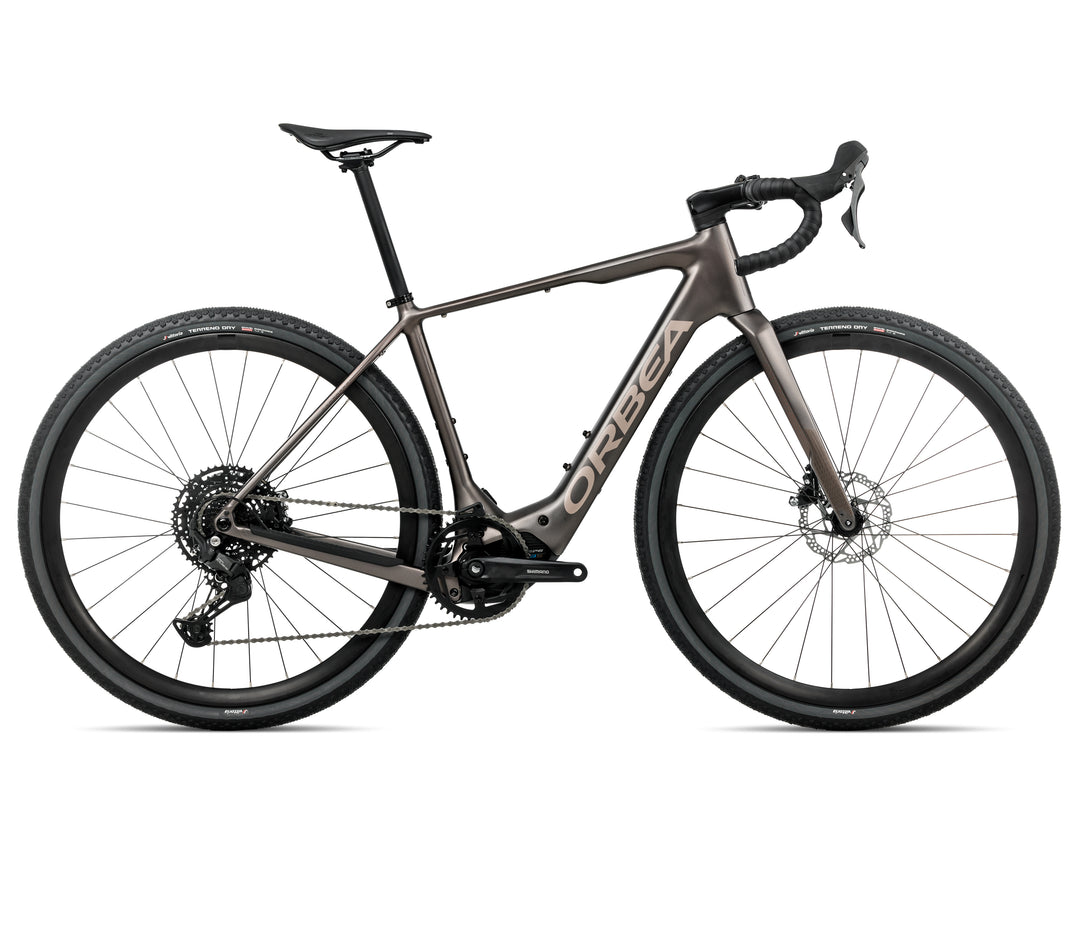

Denna H50 20mph - E-Bike

UPC: 8434446914423
Colour — Magnetic Bronze
Size
Price
Save
/
Size chart
 Size  Rider Height
XS

155 - 166 cm

61.1"-65.4"
SM

167 - 172 cm

65.7"-67.7"
MD

173 - 179 cm

68.1"-70.5"
LG

180 - 185 cm

70.9"-72.8"
XL

186 - 191 cm

73.2"-75.2"
XXL

192 - 207 cm

73.6"-81.5"


Pairs well with
Frame:
Orbea Denna
Fork:
Orbea Denna OMR ICR, full carbon
Motor:
Shimano EP600
Battery:
Orbea Internal 420Wh
Controller:
EN600-L
Tires:
Vittoria Terreno Dry Gravel 700x45c
Wheels:
Alloy, Tubeless, 700c, 21c
Brakes:
Shimano RS405 Hydraulic Disc
Tire Clearance:
n/a
Sizes:
XS, SM, MD, LG, XL, XXL
Weight (lbs/kg):
n/a
  • Price match guarantee
  • Locally owned
  • Secure payments

Denna is all about removing limits. Gravel-tuned assistance offers power for the steepest climbs, traction for the loosest surfaces and range for the longest rides. No matter the terrain, wide tire clearance and a frame designed for a smooth ride make big days in the saddle a pleasure.

  • UL 2849 Certified

Frameset

  • Frame: Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.
  • Fork: Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1
  • Steerer tube: FSA 1-1/2" Integrated Aluminum Cup

E-bike

  • Battery: Orbea Internal 420Wh
  • RANGE EXTENDER: N/A
  • Motor: Shimano EP600
  • CHARGER: Orbea 2.Generation eBike Smart charger 42V/2-4A
  • Remote: EN600-L

Drivetrain

  • Chainring: Alloy EP8 42t
  • Crank: Shimano Steps EM600
  • Shifters: Shimano U6030
  • Cassette: Shimano CS-LG300 11-48t 10-Speed
  • Rear derailleur: Shimano Cues U6000 GS Shadow
  • Chain: Shimano LG500
  • Chainguide: Orbea eBike chainguide

Cockpit

  • Handlebar: OC Gravel GR31, Reach 70, Drop 110
  • Stem: OC Road Performance RP23, -5º

Brakes

  • Brakes: Shimano RS405 Hydraulic Disc
  • Brakes Configuration: N/A

Wheels

  • Wheels: Alloy, Tubeless, 700c, 21c
  • Tires: Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
  • Front Wheel Axle: Orbea Thru Axle 12x100mm M12xP1 Hollow
  • Rear Wheel Axle: Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded

Components

  • Seatpost: SP 0.2 Carbon, 27.2mm, Setback 0
  • Saddle: Selle San Marco Shortfit 2.0 Start Up Off Road

Accessories

  • Mudguard: N/A
  • Handlebar Tape: Orbea Anti-Slippery/Shock Proof
