Orbea

Terra Race M31eLTD 1X

UPC: BBIK541982206S

Colour — Sunset Matte Sunset Matte

Size Medium Large

Price

~~$0.00~~

Save

/

Size chart

Size	Rider Height
XS	155 - 166 cm 61.1" - 65.4"
SM	167 - 172 cm 65.7 - 67.7"
MD	173 - 179 cm 68.1 - 70.5"
LG	180 - 185 cm 70.9 - 72.8"
XL	186 - 191 cm 73.2 - 75.2"
XXL	192 - 207 cm 75.6 - 81.5"

Pairs well with

New

Terra Race M31eLTD 1X

Orbea

Frame:: Terra carbon OMX
Fork:: Terra ICR, full carbon
Tires:: Vittoria Terreno T30 fine loose Gravel Endurance G2.0
Wheels:: Oquo Road Performance RP50LTD
Rear Derailleur:: Sram Rival XPLR AXS 13s
Brakes:: Sram RIVAL AXS Hydraulic Disc
Saddle:: Selle San Marco Shortfit 2.0 Start Up Off Road
Stem / Handlebar:: Integrated Bar and Stem OC SH-RA10
Tire Clearance:: 45mm
Sizes:: XS, SM, MD, LG, XL, XXL
Weight (lbs/kg):: 18.96 / 8.6 (Size: LG)

Price match guarantee

Locally owned

Secure payments

Terra Race is Orbea's lightweight carbon gravel racing bike, built for maximum speed and efficiency.

Frameset

Frame: Orbea Terra carbon OMX Disc, monocoque construction, HS 1,5", BB386EVO, 1X chain guide, power meter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout.
Fork: Orbea Terra ICR, full carbon, 1-1/8"-1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1
Steerer tube: FSA 1-1/2" Integrated Aluminium Cup

Drivetrain

Crankset: Sram Rival 1 XPLR Dub Wide 40t
Cassette: Sram XG-1351 XPLR 10-46t 13-Speed
Rear derailleur: Sram Rival XPLR AXS 13s
Chain: Sram Rival 12-13 Speed

Cockpit

Handlebar: Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125

Brakes

Brakes: Sram RIVAL AXS hydraulic disc
Brakes Configuration: N/A

Wheels

Wheels: Oquo Road Performance RP50LTD
Tires: Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x40c
Front Wheel Axle: Orbea Thru Axle 12x100mm M12xP1 Lite
Rear Wheel Axle: Orbea Thru Axle 12x142mm M12xP1 Lite

Components

Seatpost: OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle: Selle San Marco Shortfit 2.0 Start Up Off Road

Accessories

Handlebar Tape: Orbea Anti-Slippery/Shock Proof

*Subject to change without notice

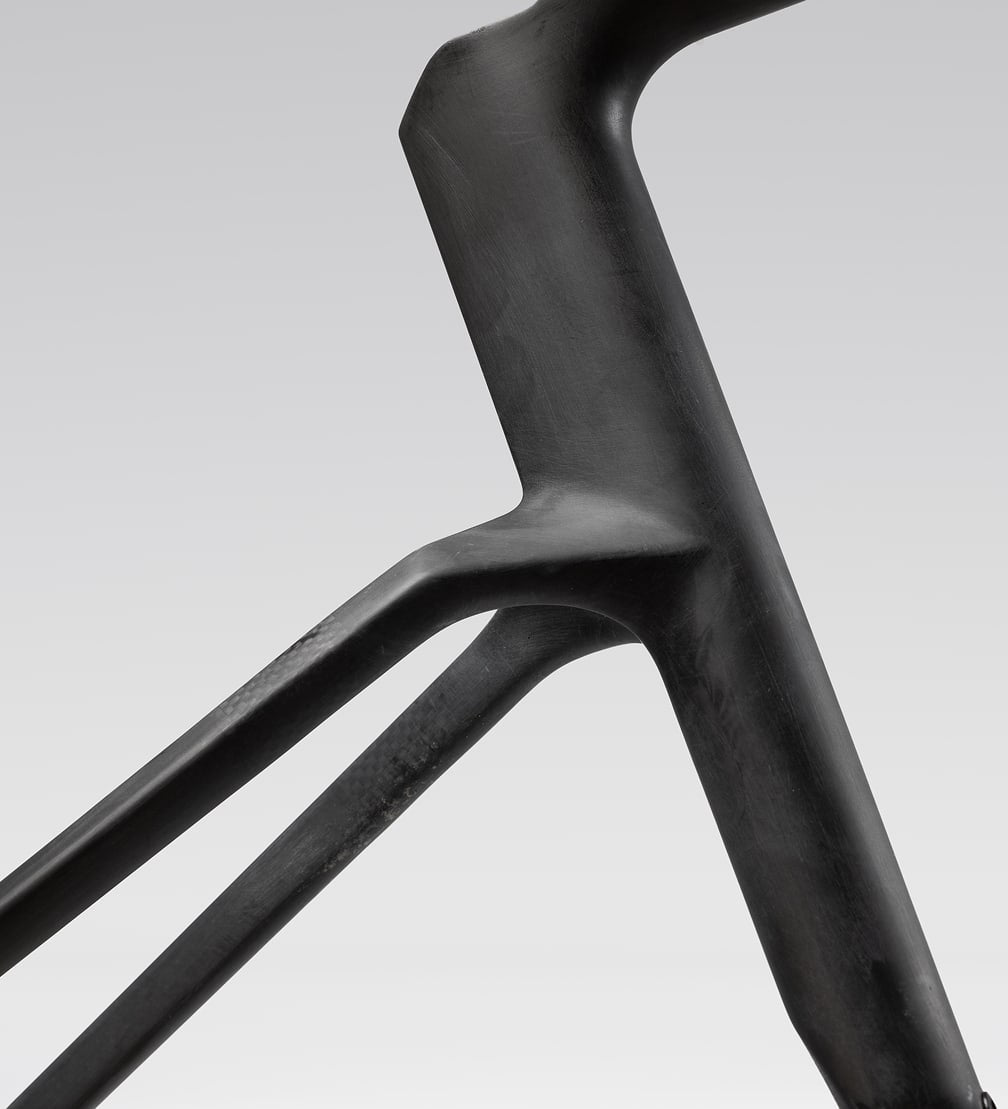

Lightest, strongest, OMX carbon

Speed starts with OMX: our lightest, stiffest carbon layup. By using fewer pieces and taking more time on each frame to reduce overlap, we are able to save 300 g without losing rigidity.

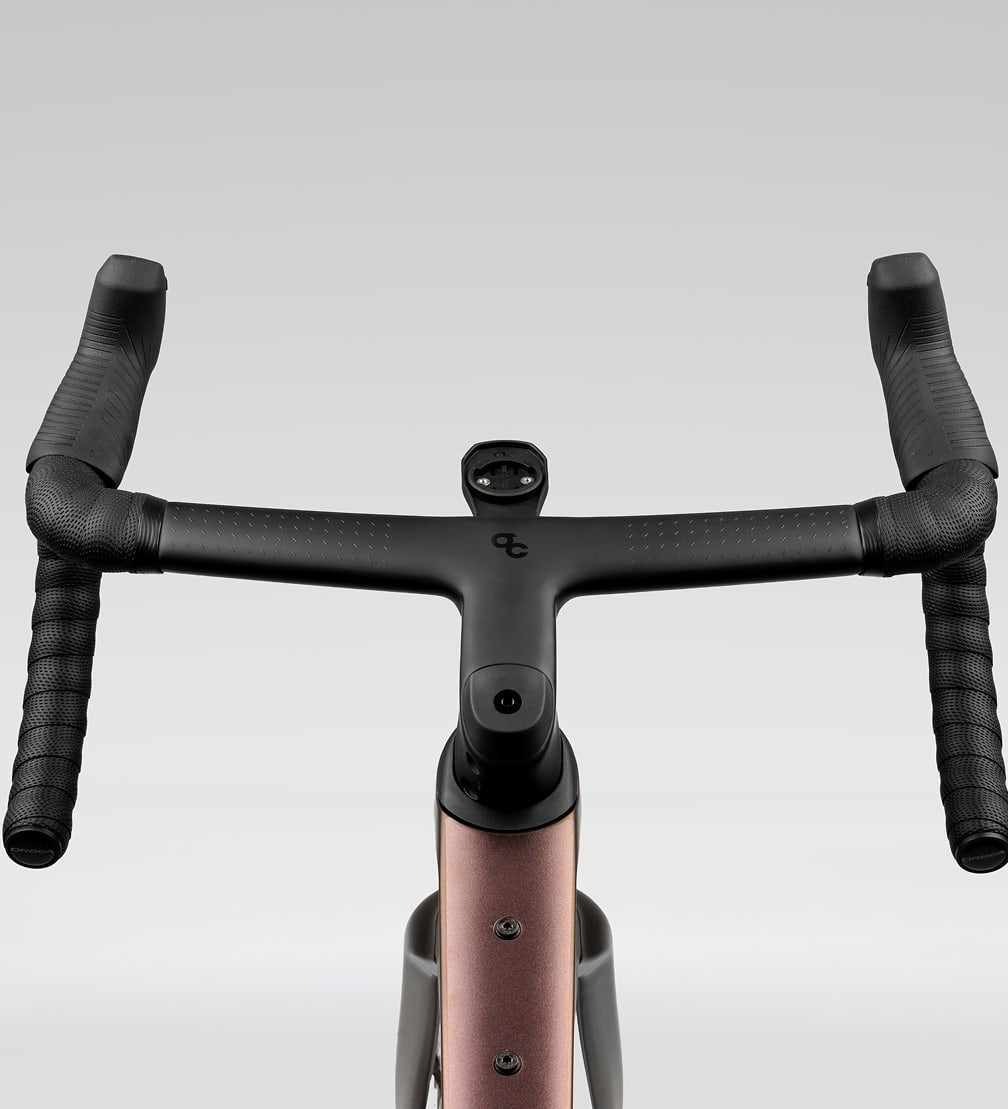

Aero Cockpit

An exceptionally light and aerodynamic integrated cockpit, with fully internal routing, ergonomic tops, and sprint-ready stiffness — all engineered for speed.

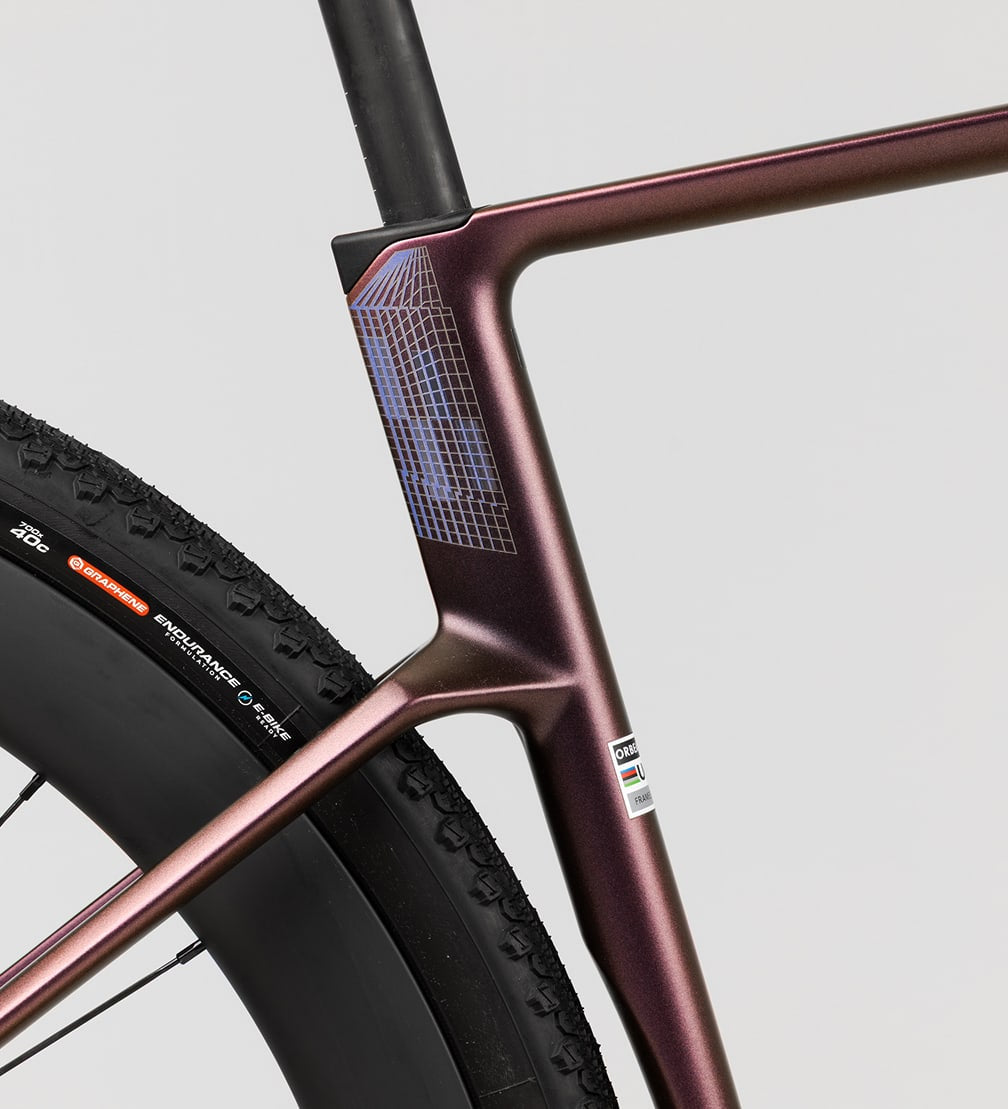

Vibration Damping Rear Triangle

Shaped for speed on rough ground, the rear triangle smooths out vibrations and keeps the rear wheel planted for maximum traction when the pace gets punchy.
