Madone SLR 7 Gen 8 - Lidl Trek

• New light and fast aero tube shaping paired with Trek's best 900 Series OCLV Carbon makes Gen 8 our lightest Madone Disc f/s ever and as light as the Émonda f/s.
• Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness climbers crave. Plus, the bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.
• Trek We refined our race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger longer.

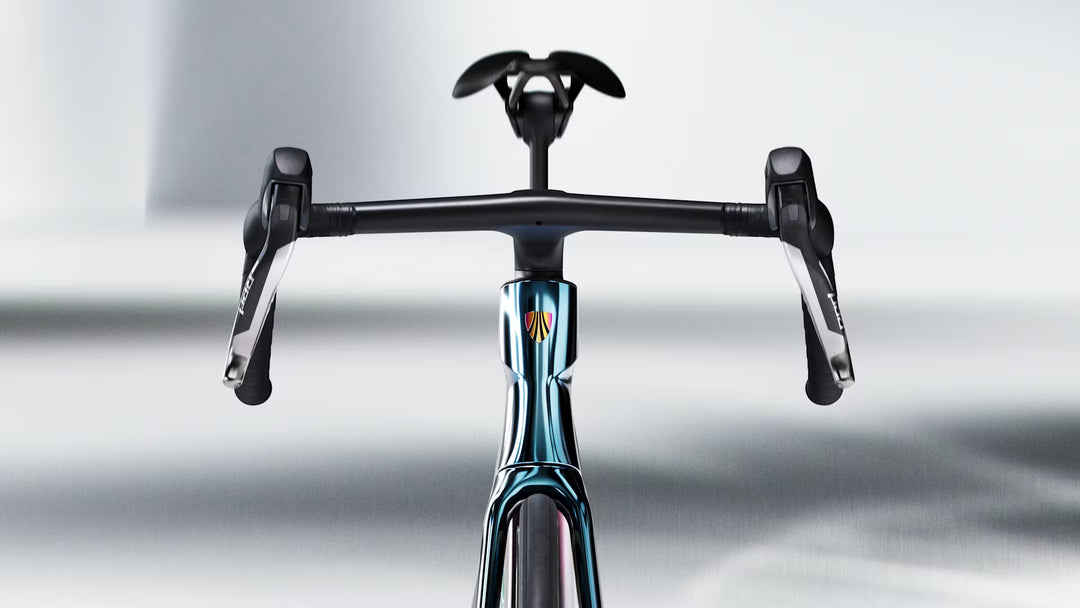

• A new one-piece bar/stem is lighter, more aeryodynamic, and more ergonomic than the previous version. Plus, the hoods are 3cm narrower than the drops so you can adjust your positioning to prioritize aerodynamics (in the hoods) or power (in the drops).
• Included RSL Aero Bottles and Cages were specifically designed along with the whole rider system to help make Madone even faster.
• Ultegra Di2 R8100 is Shimano's most inspired drivetrain, packed with innovative, game-changing features. HYPERGLIDE+ technology allows for crisp, seamless shifts both up and down the gear range, even during maximal efforts. The new Di2 shifting system introduces Shimano's exclusive wireless integrated circuit, and the move to a 12 speed cassette ensures you have all the gearing you need. Ergonomics and aerodynamics have been enhanced at every turn, and you can set up the drivetrain just the way you like it via Shimano’s user-friendly E-Tube app.

Frameset

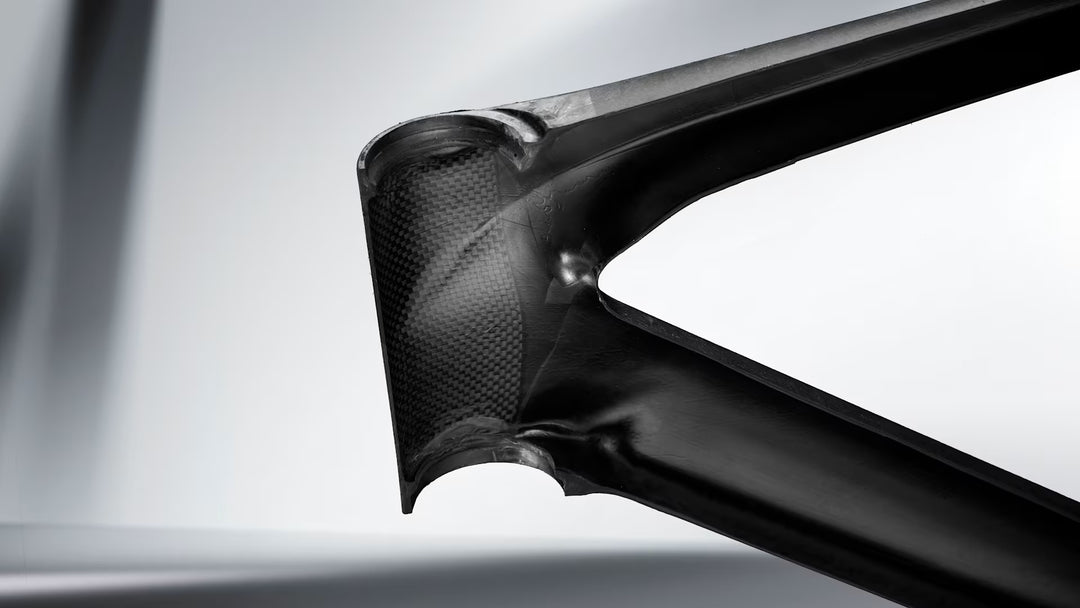

• Frame with Fork: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
• Fork: Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight

• Weight: ML - 7.52 kg / 16.58 lbs (with TLR sealant, no tubes, no bottles/cages)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system

• Battery: Shimano BT-DN300

Drivetrain

• Shifter: Shimano Ultegra R8170 Di2, 12 speed
• Front derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing
• Rear derailleur: Shimano Ultegra R8150 Di2, 34T max cog

• *Crank

1. Size: XS, S, M, ML: Shimano Ultegra R8100, 52/36, 165mm length
2. Size: XS, S: Shimano Ultegra R8100, 52/36, 160mm length
3. Size: M, ML, L, XL: Shimano Ultegra R8100, 52/36, 170mm length
4. Size: ML, L, XL: Shimano Ultegra R8100, 52/36, 172.5mm length
5. Size: XL: Shimano Ultegra R8100, 52/36, 175mm length

• Bottom bracket: Praxis, T47 threaded, internal bearing
• Cassette: Shimano Ultegra R8101, 11-30, 12 speed
• Chain: Shimano Ultegra/XT M8100, 12 speed
• Max chainring size: 1x: 54T, 2x: 56/43

Wheels

• Wheel front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle

• *Wheel rear

1. Size: XS, S, M, ML, L, XL: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru axle
2. Size: XS, S, M, ML, L, XL: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle

• Skewer front: Bontrager Switch chamfered thru axle
• Skewer rear: Bontrager Switch chamfered thru axle, removable lever

• *Tire

1. Size: XS, S, M, ML, L, XL: Pirelli P Zero Race, 120 tpi, tubeless compatible, 700x28mm
2. Size: XS, S, M, ML, L, XL: Pirelli P Zero Race TLR RS, 120 tpi, tubeless compatible, 700x28mm
3. Size: XS, S, M, ML, L, XL: Bontrager Aeolus RSL RD,
   Tubeless Ready, cotton construction, aramid bead, 170 tpi, 700x28mm

• Tire part: Bontrager TLR sealant, 180 ml/6 oz
• Tube: Pirelli P Zero SmarTube, TPU
• Max tire size: 32mm (as measured, see manual for details)

Components

• *Saddle:

1. Size: XS, S, M, ML, L, XL: Trek Aeolus Pro, carbon fiber rails, AirLoom lattice 145mm width
2. Size: XS, S, M, ML, L, XL: Bontrager Aeolus Pro, carbon rails, 145mm width

• Seatpost: Madone aero carbon seatpost, 0mm offset, short length

• *Handlebar/stem (integrated):

1. Size: XS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 35cm
   control width, 38cm drop width, 80mm stem length
2. Size: S: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm
   control width, 40cm drop width, 90mm stem length
3. Size: M: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm
   control width, 42cm drop width, 90mm stem length
4. Size: ML, L: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm
   control width, 42cm drop width, 100mm stem length
5. Size: XL: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm
   control width, 44cm drop width, 110mm stem length

• Handlebar tape: Trek EcoTack
• Brake: Shimano Ultegra hydraulic disc, flat mount
• Brake rotor: Shimano CL800, centerlock, 160mm
• Rotor size: Max brake rotor sizes: 180mm front, 160mm rear

 *Subject to change without notice
