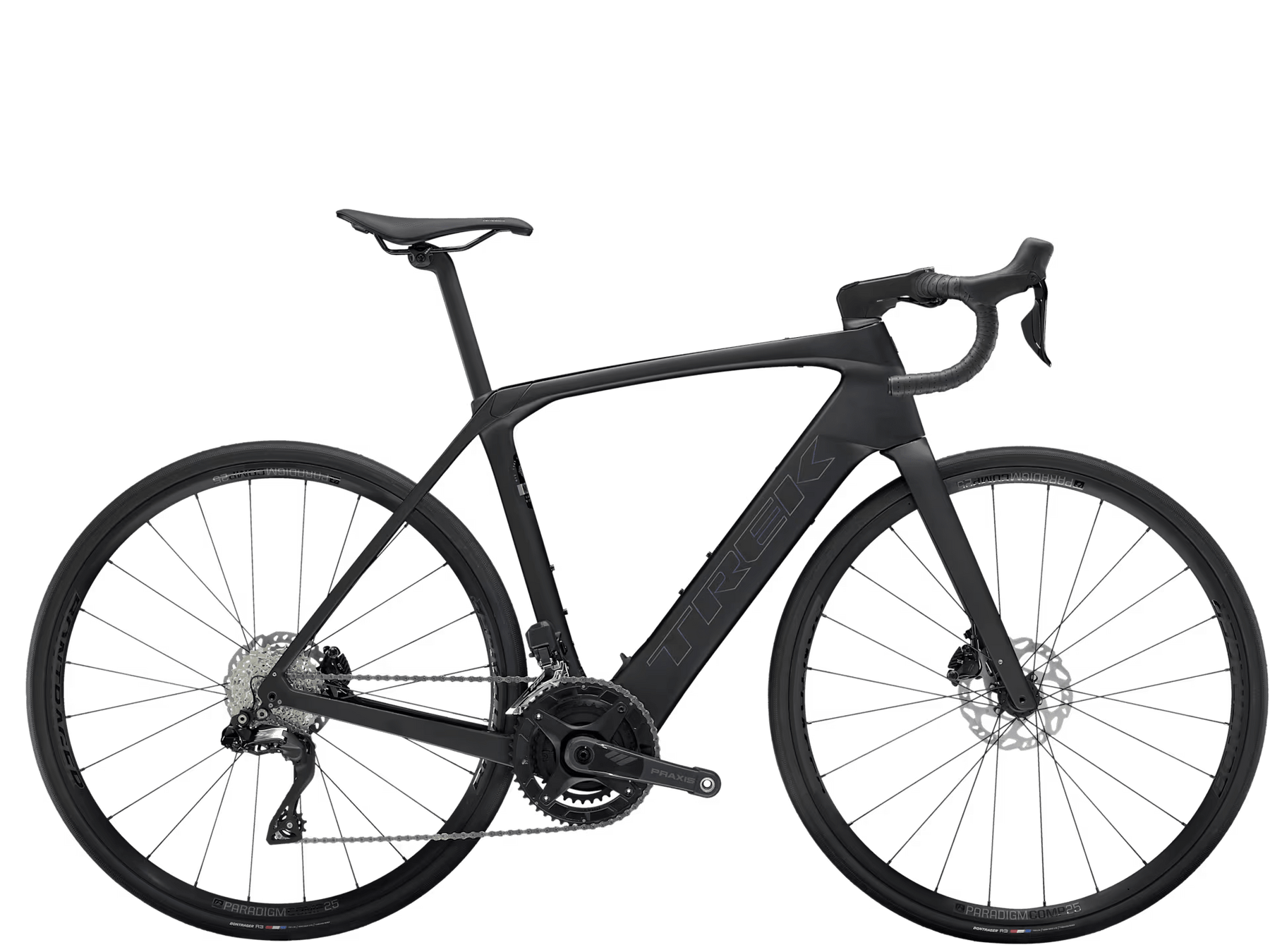

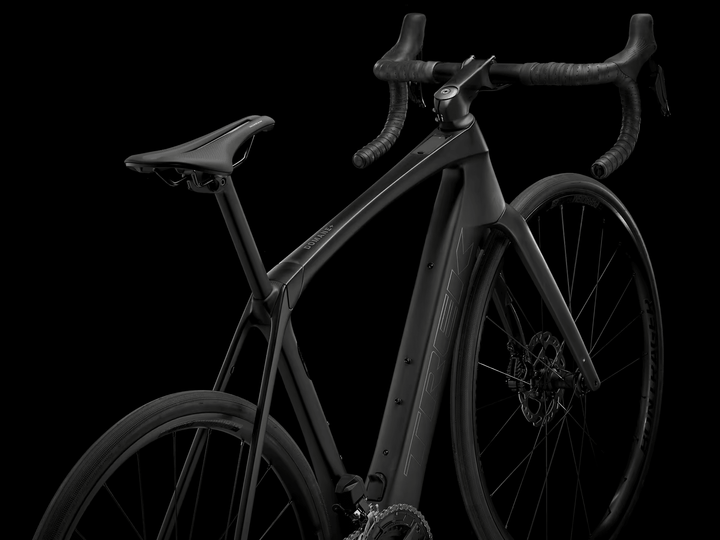

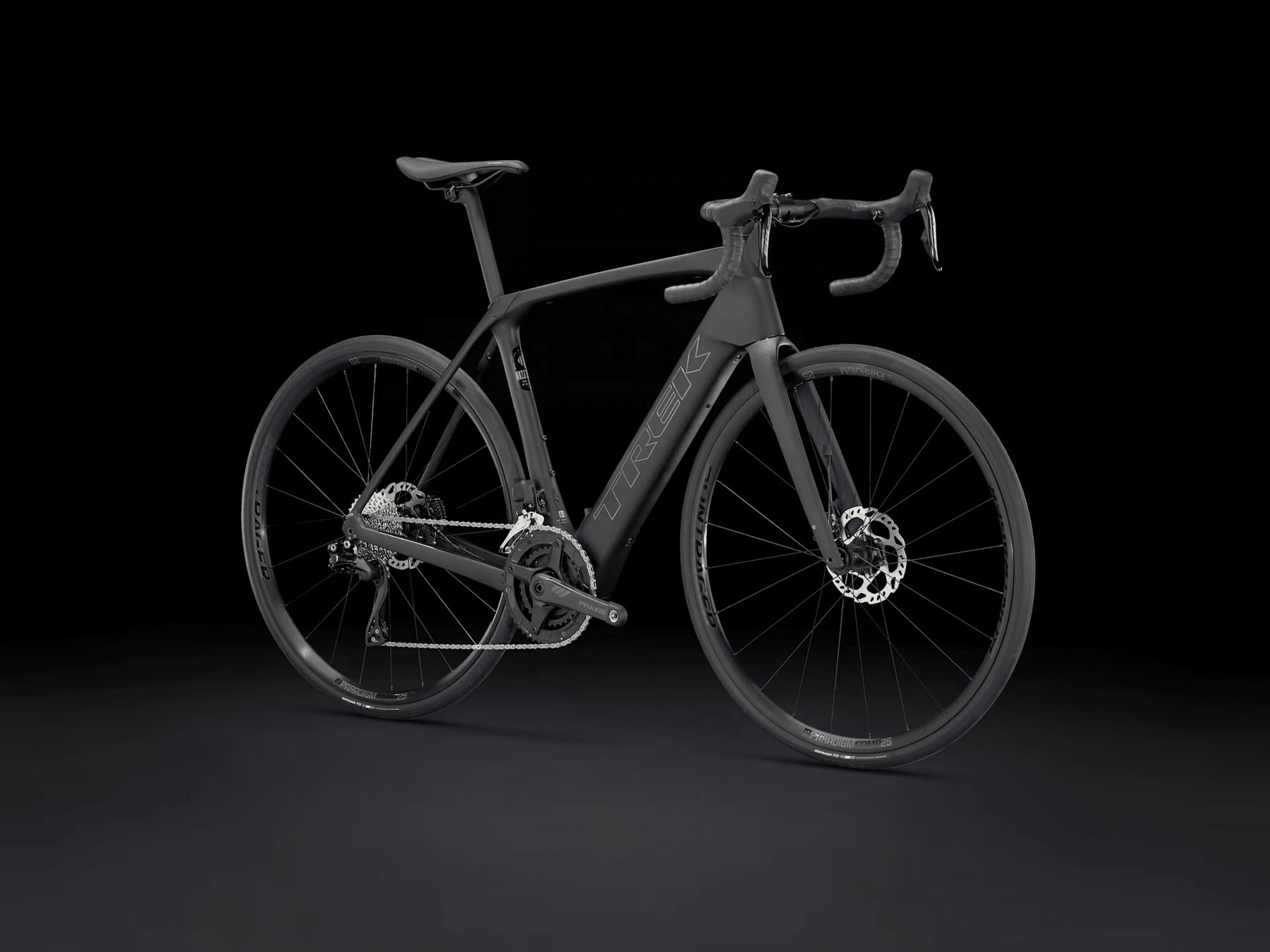

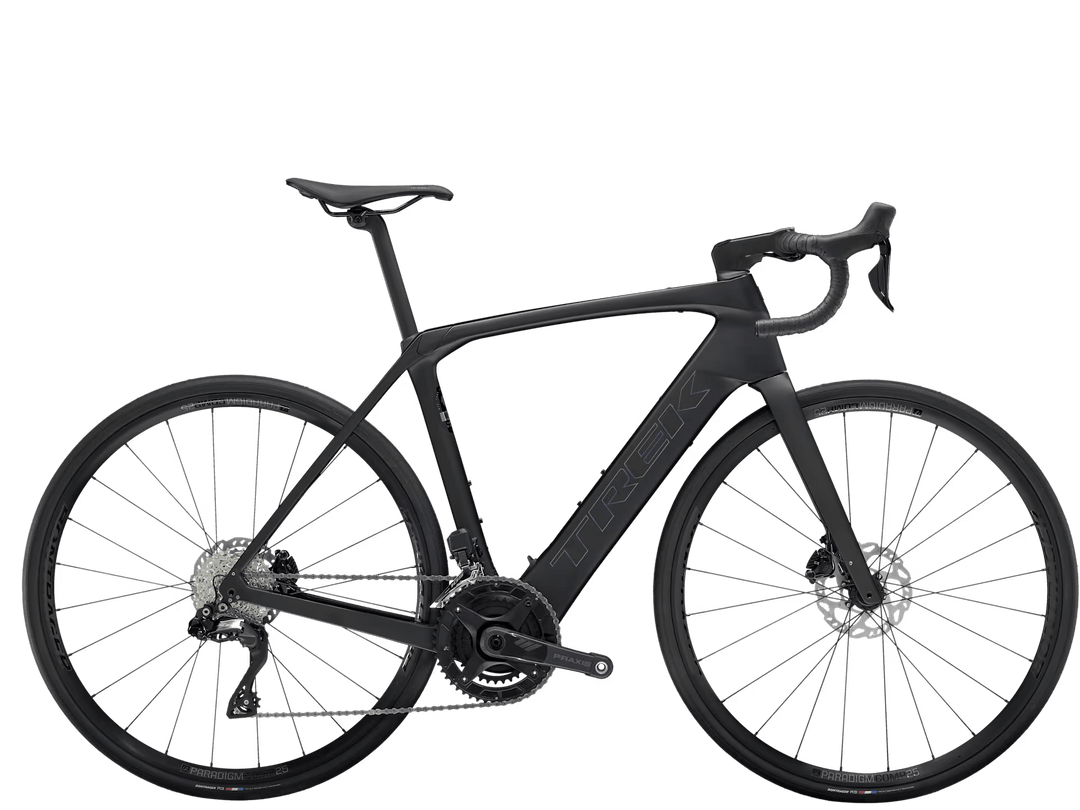

Domane+ SLR 6 - E-Bike

• UL 2849 Certified

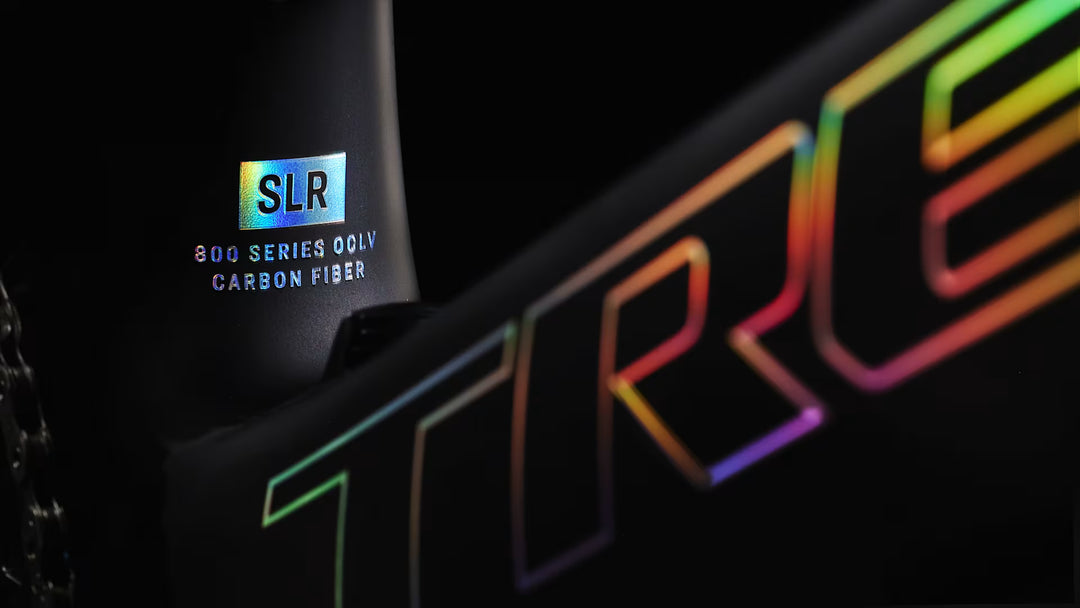

• The Domane+ SLR is Trek's lightest e-bike ever, thanks to our best and lightest 800 Series OCLV Carbon and a smart frame designed to shave weight.
• The TQ harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It's ultra-compact, whisper-quiet, and offers an unbelievably natural-feeling assist up to 32 kmh.
• With a shared Di2 platform inherited from Dura-Ace and Ultegra, sophisticated ergonomics, Shimano 105-optimized gear combinations, and an exceptional hydraulic disc brake system, Shimano 105 Di2 R7100 marks a new era of affordable, 12 speed electronic performance.
• This Domane+ SLR comes with 32mm smooth tires that roll fast on paved roads, but has clearance for up to 40mm tires to enjoy every road, from smooth tarmac to gravel.

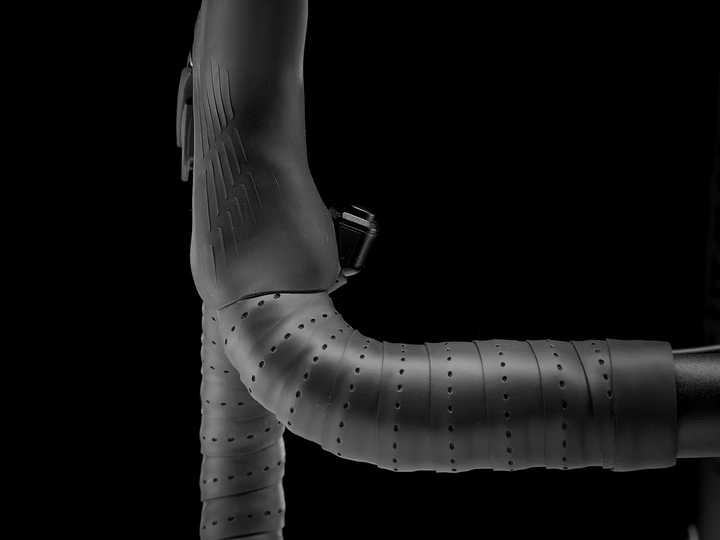

• A road-specific tune, narrow Q factor, and intuitive mode change buttons on the hoods make Domane+ SLR feel and handle like a traditional bike with the added benefits of electric.
• Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.
• An integrated 360Wh battery is hidden in the downtube and offers an impressive range of around 100 kilometers in Eco mode.
• Explore farther with an optional 160Wh Range Extender (Sold separately) that gives you an extended total range of around 145 kilometers in Eco mode. Want even more miles? The Trek Connect App lets you customize your assist to extend your range even more.

Frameset

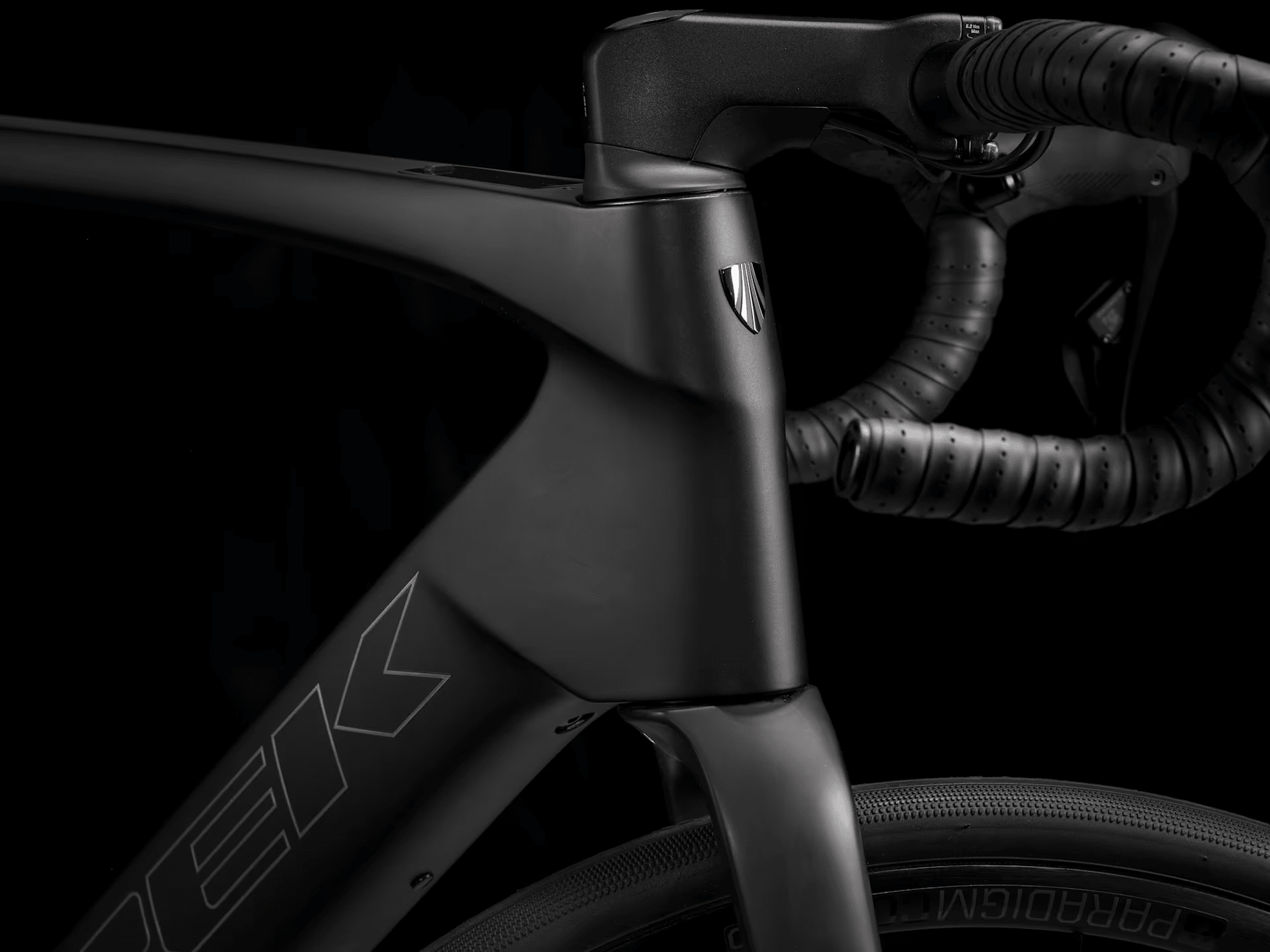

• Frame:: 800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle
• Fork: Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Weight

• Weight: 56 - 12.85 kg / 28.33 lbs (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system

• Battery: TQ 360Wh
• Charger: TQ 4A charger

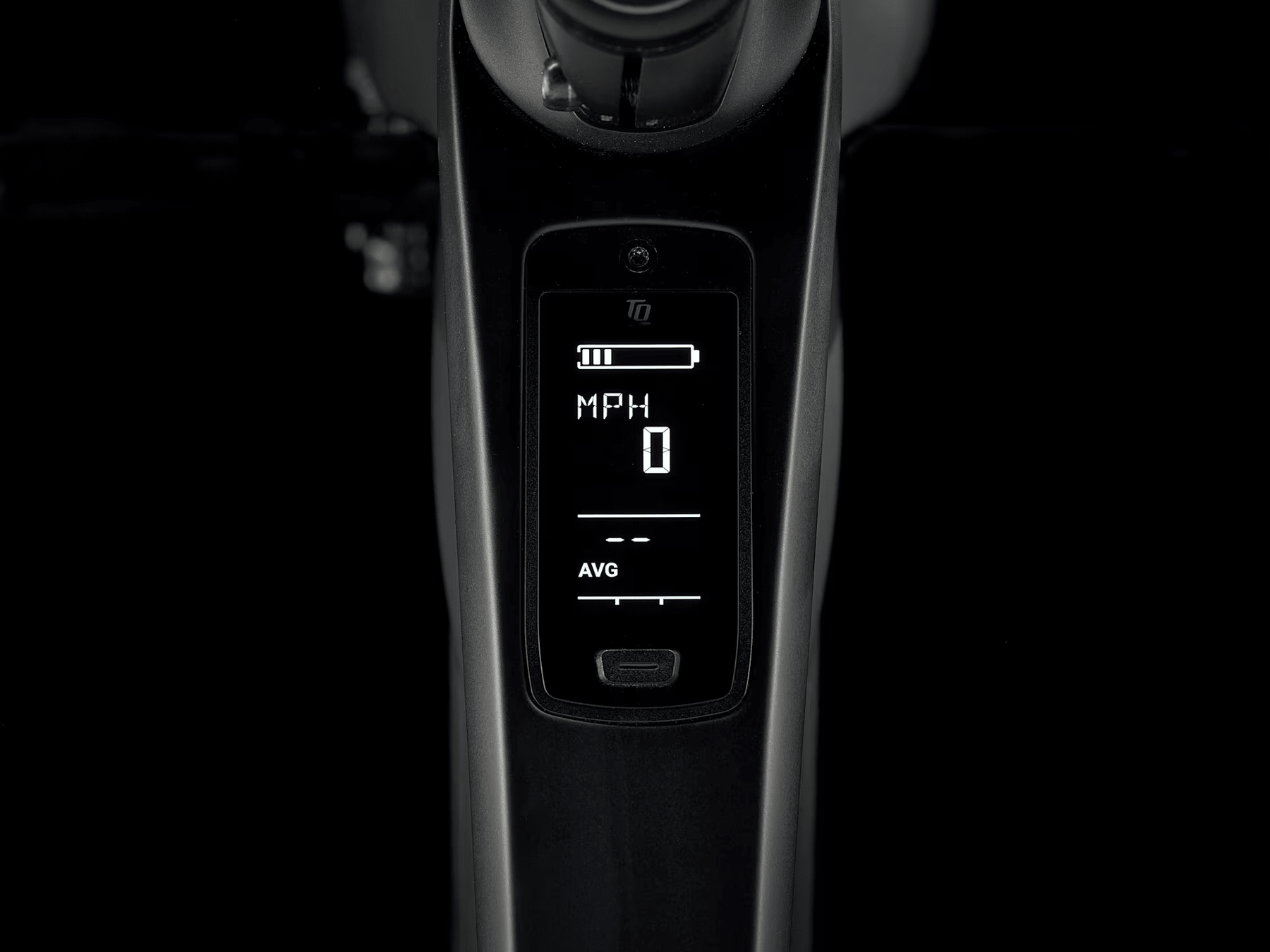

• Computer: TQ LED display with Bluetooth & ANT+ connectivity

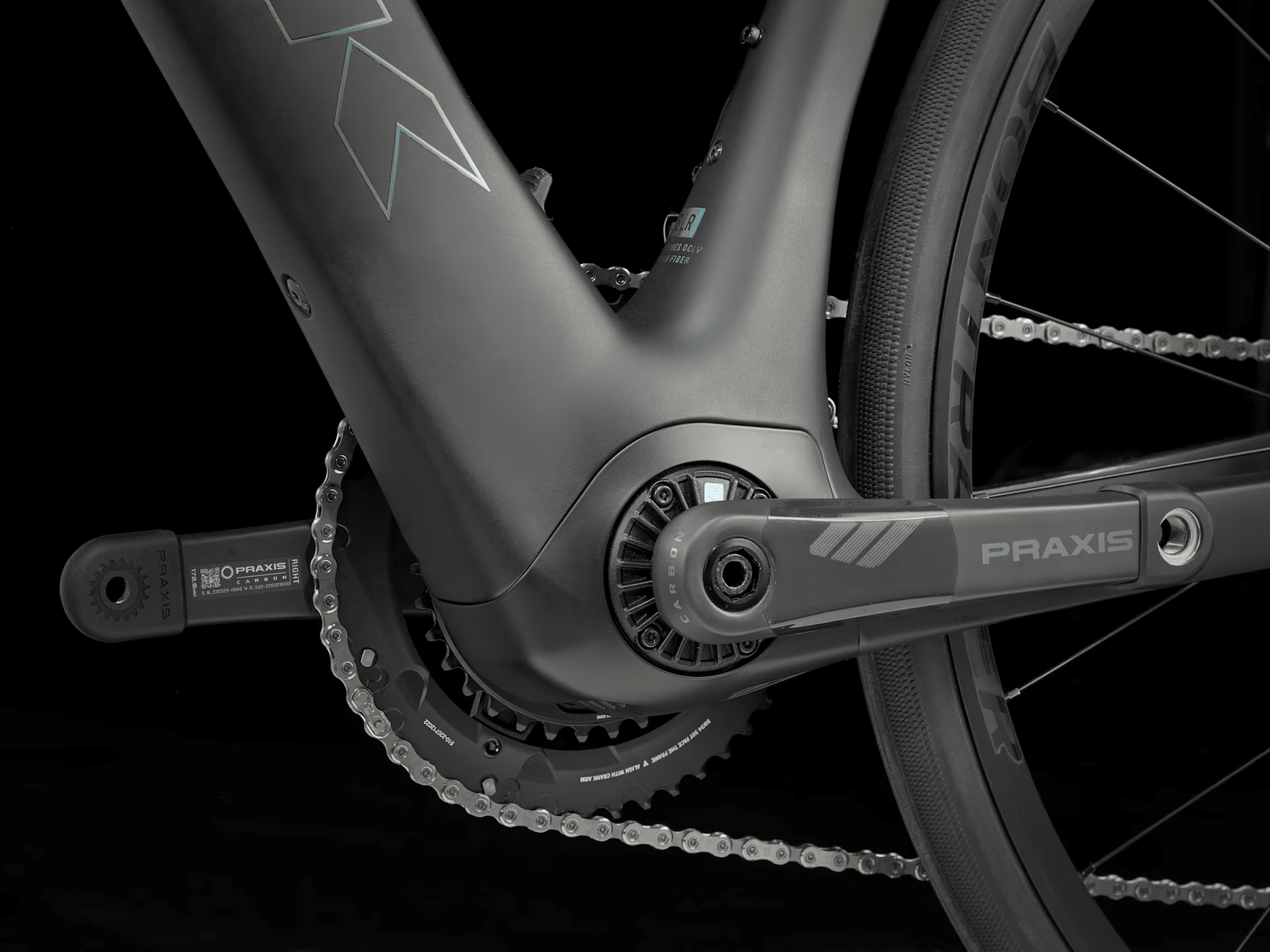

• Motor: TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
• E-bike Classification:: Class 1

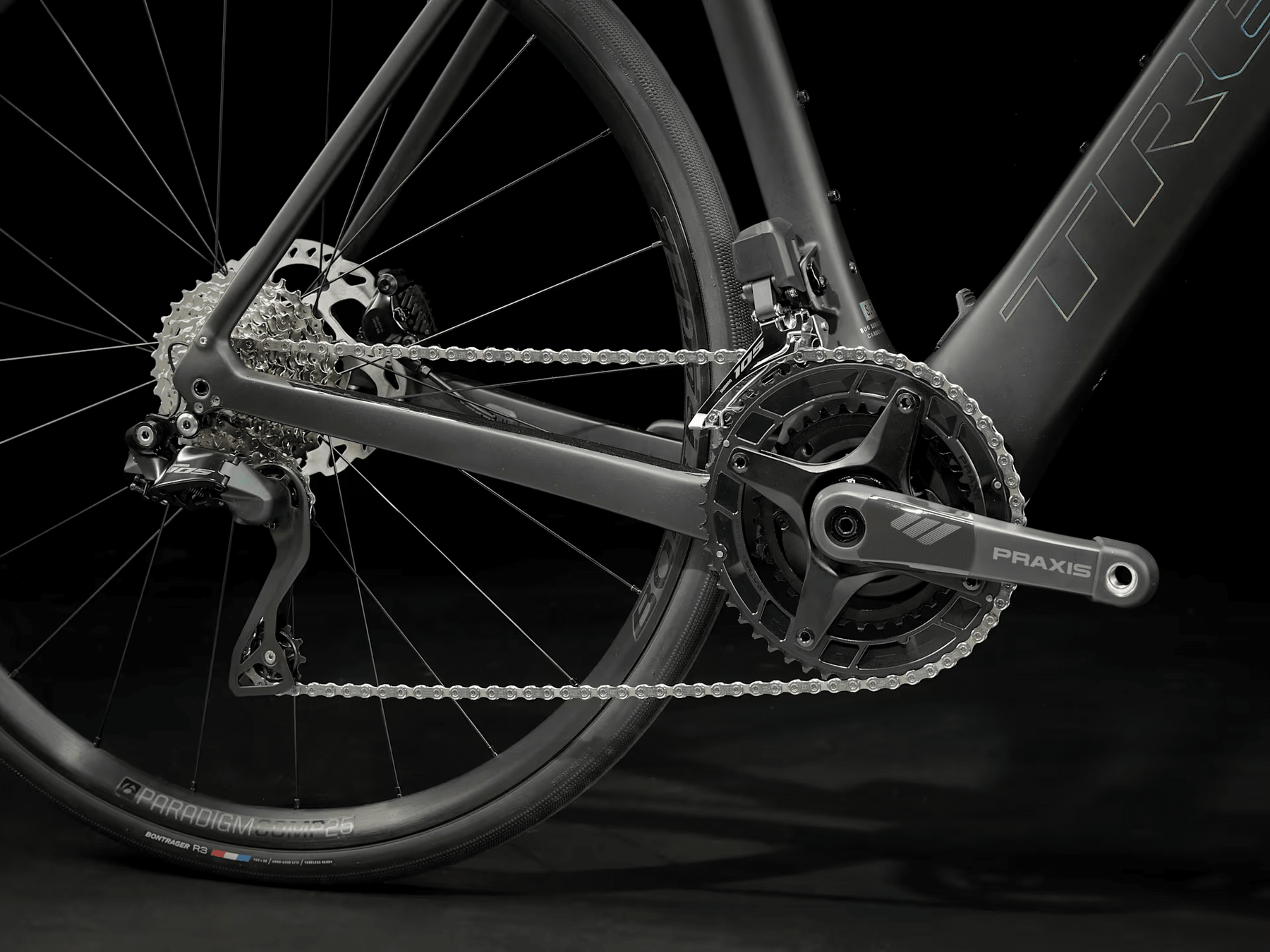

Drivetrain

• Shifter: Shimano 105 R7170 Di2, 12 speed
• Front derailleur: Shimano 105 R7150 Di2, braze-on, down swing
• Rear derailleur: Shimano 105 R7150 Di2, 36T max cog

• *Crank

1. Size: 50, 52: Praxis Carbon, 170mm length
2. Size: 54, 56: Praxis Carbon, 172.5mm length
3. Size: 58, 60, 62: Praxis Carbon, 175mm length

• Chain ring: Praxis, 50/34T, 12 speed
• Cassette: Shimano 105 7101, 11-34, 12 speed
• Chain: Shimano SLX M7100, 12 speed
• Max chainring size: 1x: 46T, 2x: 52/36

Wheels

• Wheel front: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
• Wheel rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle
• Skewer front: Bontrager Switch thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Tire: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
• Rim strip: Bontrager TLR
• Max tire size: 40mm without fenders, 35mm with fenders

Components

• *Saddle:

1. Size: 50, 52: Verse Short Elite, hollow magnesium rails, 155mm width
2. Size: 54, 56, 58, 60, 62: Verse Short Elite, hollow magnesium rails, 145mm width

• *Seatpost:

1. Size: 50, 52, 54, 56: KVF aero carbon seatpost, 20mm offset, 280mm length
2. Size: 58, 60, 62: KVF aero carbon seatpost, 20mm offset, 320mm length

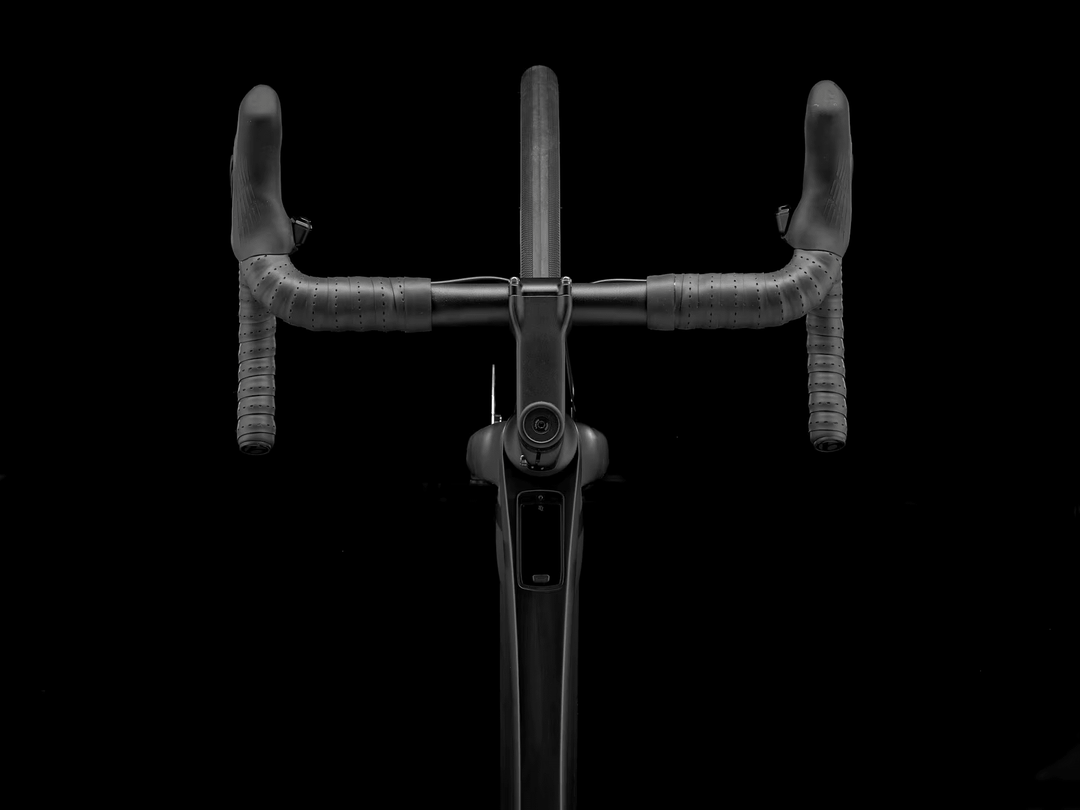

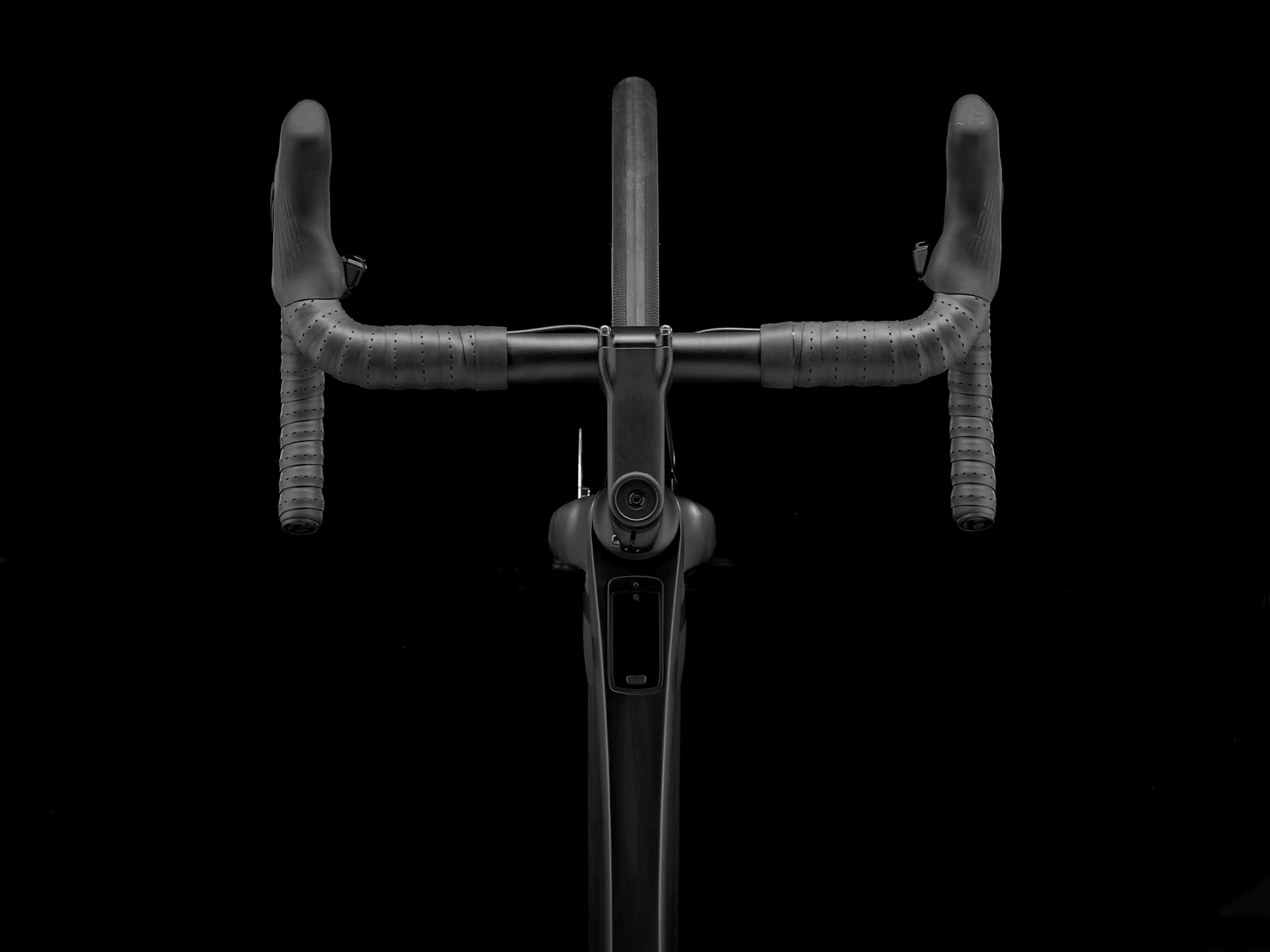

• *Handlebar:

1. Size: 50, 52: Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width
2. Size: 54, 56: Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width
3. Size: 58, 60, 62: Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width

• Handlebar tape: Bontrager Supertack Perf tape

• *Stem:

1. Size: 50: Trek RCS Pro, -7 degree, 80mm length
2. Size: 52, 54: Trek RCS Pro, -7 degree, 90mm length
3. Size: 56, 58: Trek RCS Pro, -7 degree, 100mm length
4. Size: 60, 62: Trek RCS Pro, -7 degree, 110mm length

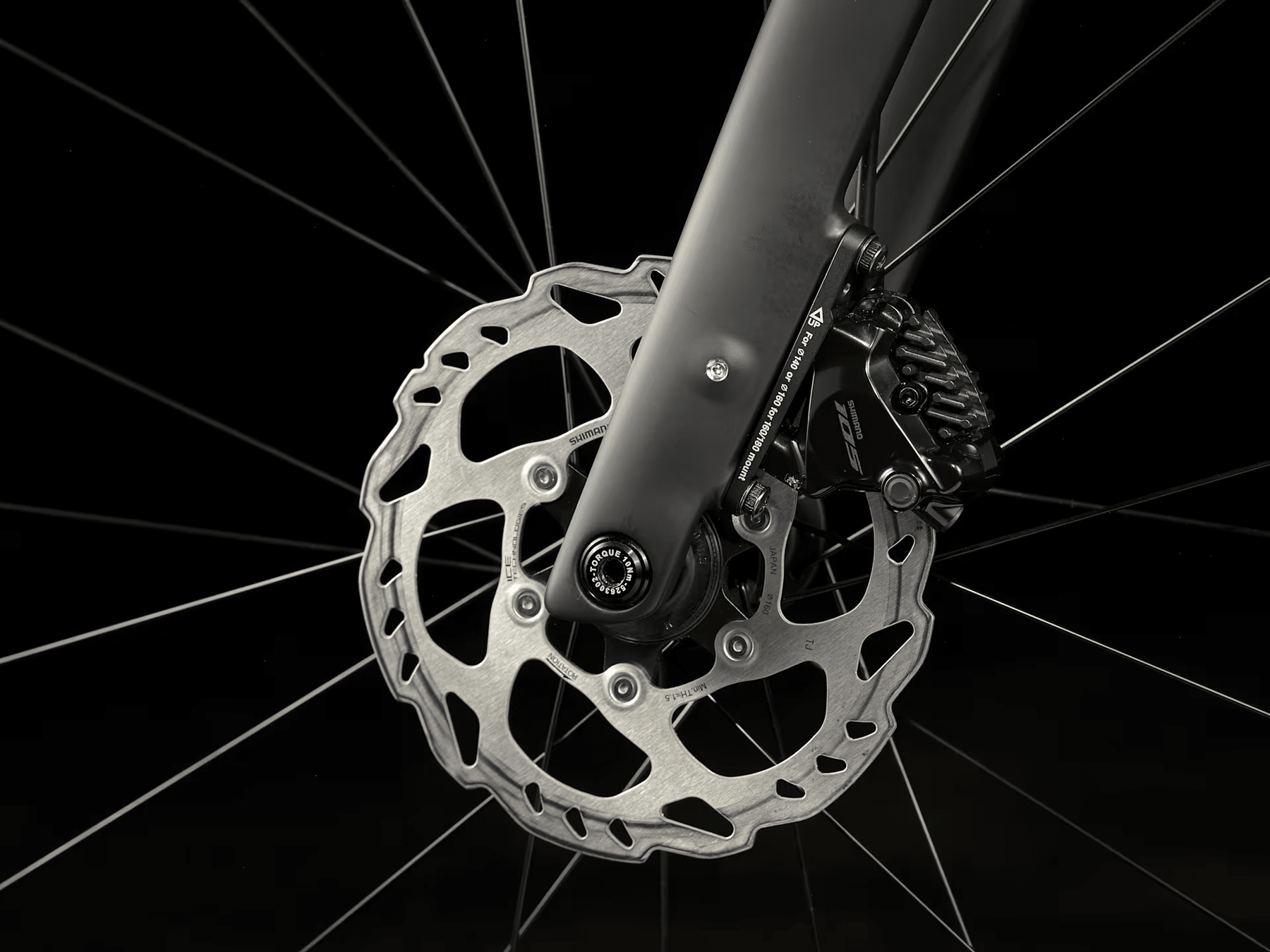

• Brake rotor: Shimano RT70, centerlock, 160mm
• Max brake rotor sizes: 180mm front, 160mm rear

*Subject to change without notice
