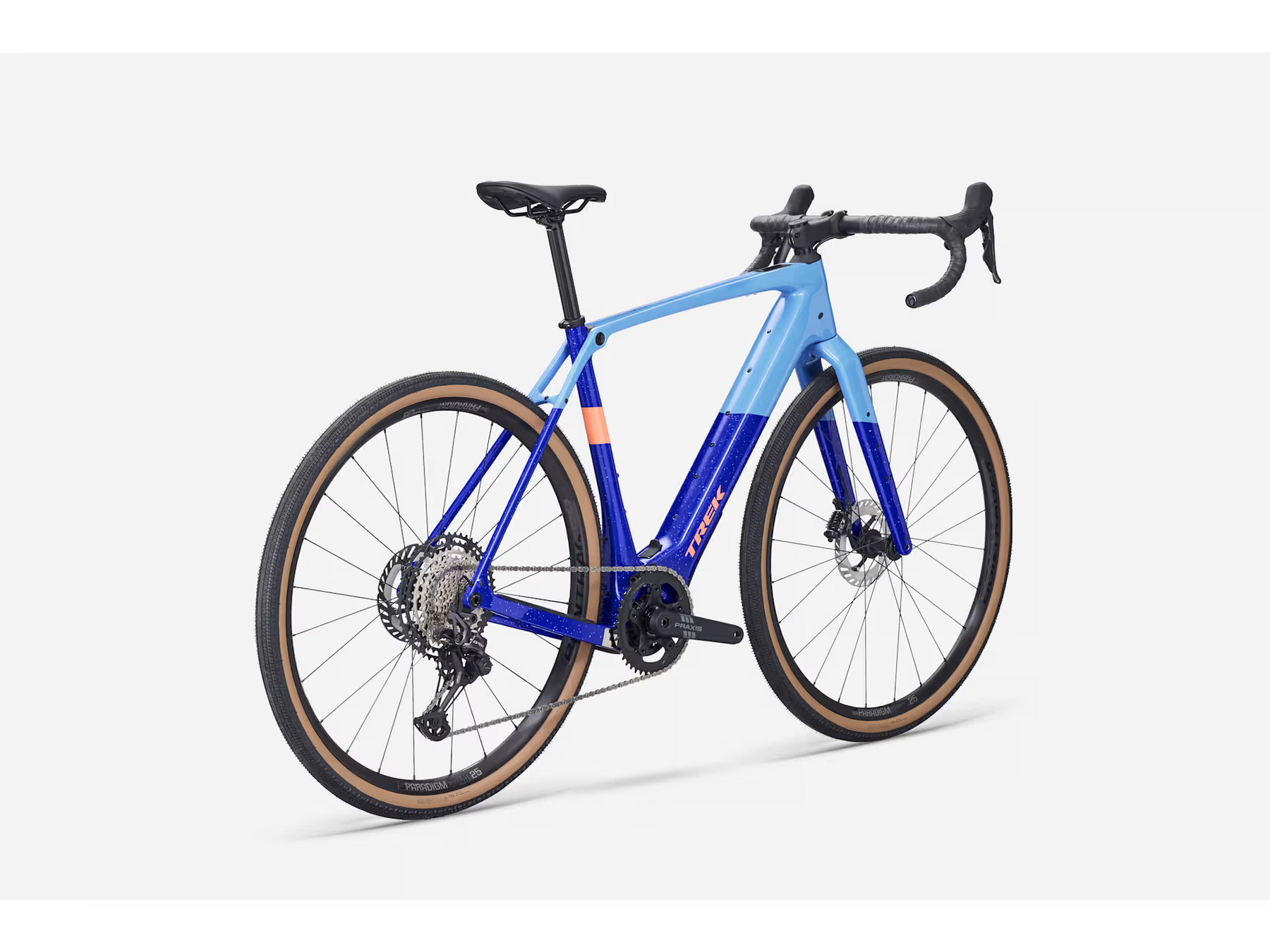

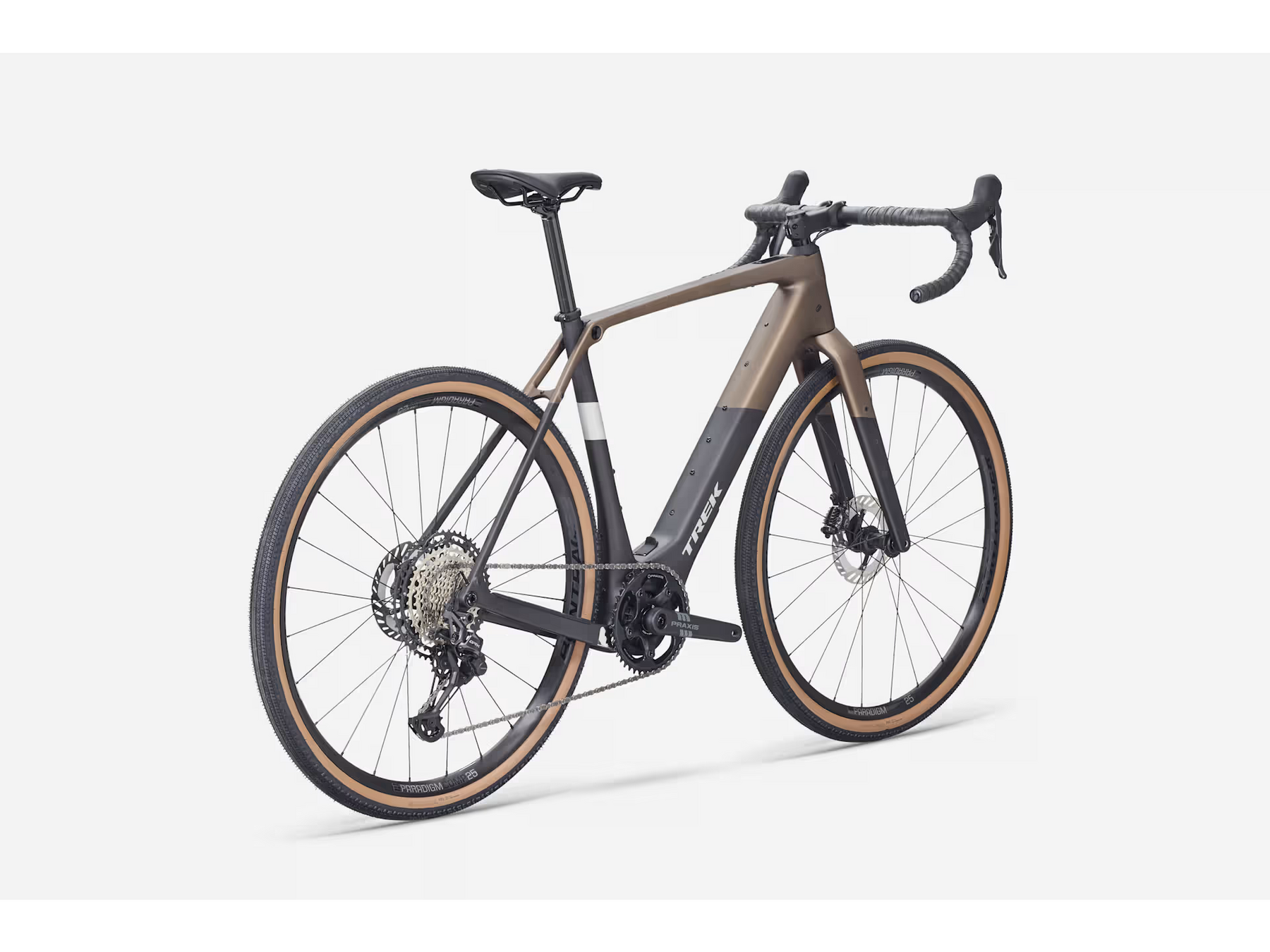

Checkpoint+ SL 5 - E-Bike With Carbon Wheel Upgrade

• UL 2849 Certified
• Shimano GRX was designed from the ground up for gravel adventure. With its gravel-specific ergonomics, optimized gearing options, rugged reliability, and quiet, stable drivetrain, GRX sets itself apart from the rest of the component world.

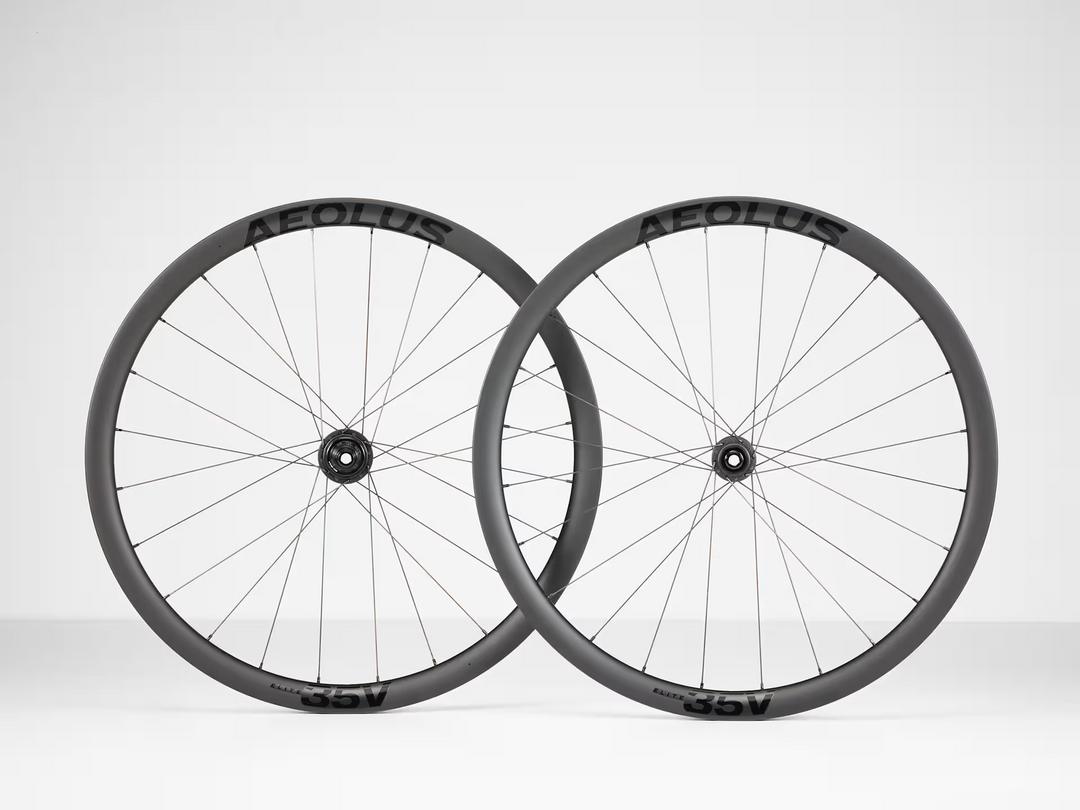

• The full-carbon, tubeless-ready Aeolus Elite 35V disc brake gravel wheel balances durability, weight, and aerodynamics for outstanding performance
• The industry-leading TQ HPR 60 harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio.
• Explore even farther with an optional 160Wh Range Extender that fits neatly in your bottle cage and gives you an extra 44% more range. (Sold Separately)
• IsoSpeed technology soaks up fatiguing bumps in the road so you can ride stronger longer.
• Confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position to tackle even the most epic, all-day adventures.
• Room for tires up to 50mm wide (as measured) lets you roll right over the big stuff.

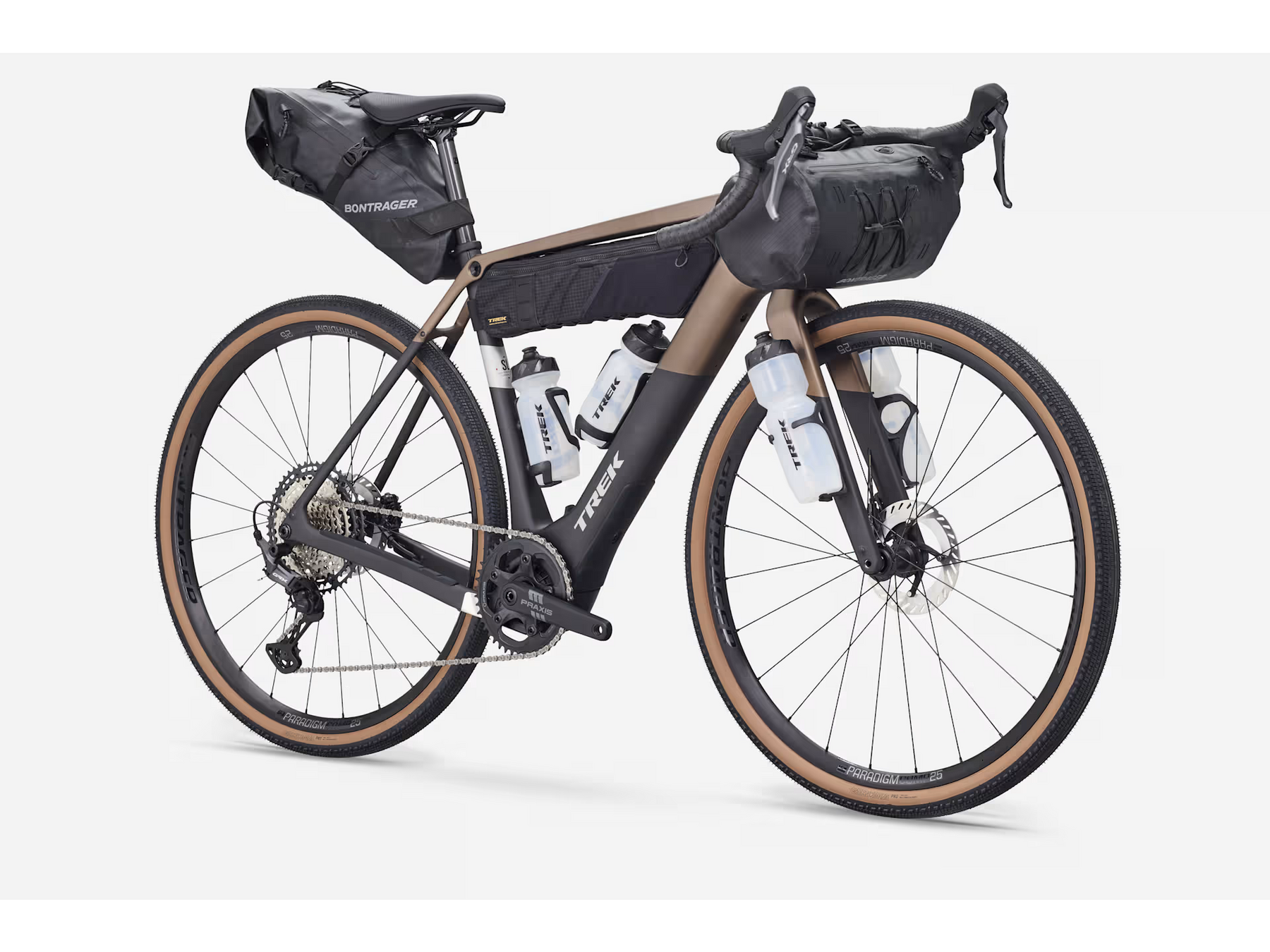

• Carry everything you need with mounts on the frame and fork for front and rear racks, fenders, and Adventure Frame and Triangle Bags. Plus, Checkpoint+ was designed to fit extra hydration in addition to all your bags.

Frameset

• Frame: 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm
  chamfered thru axle

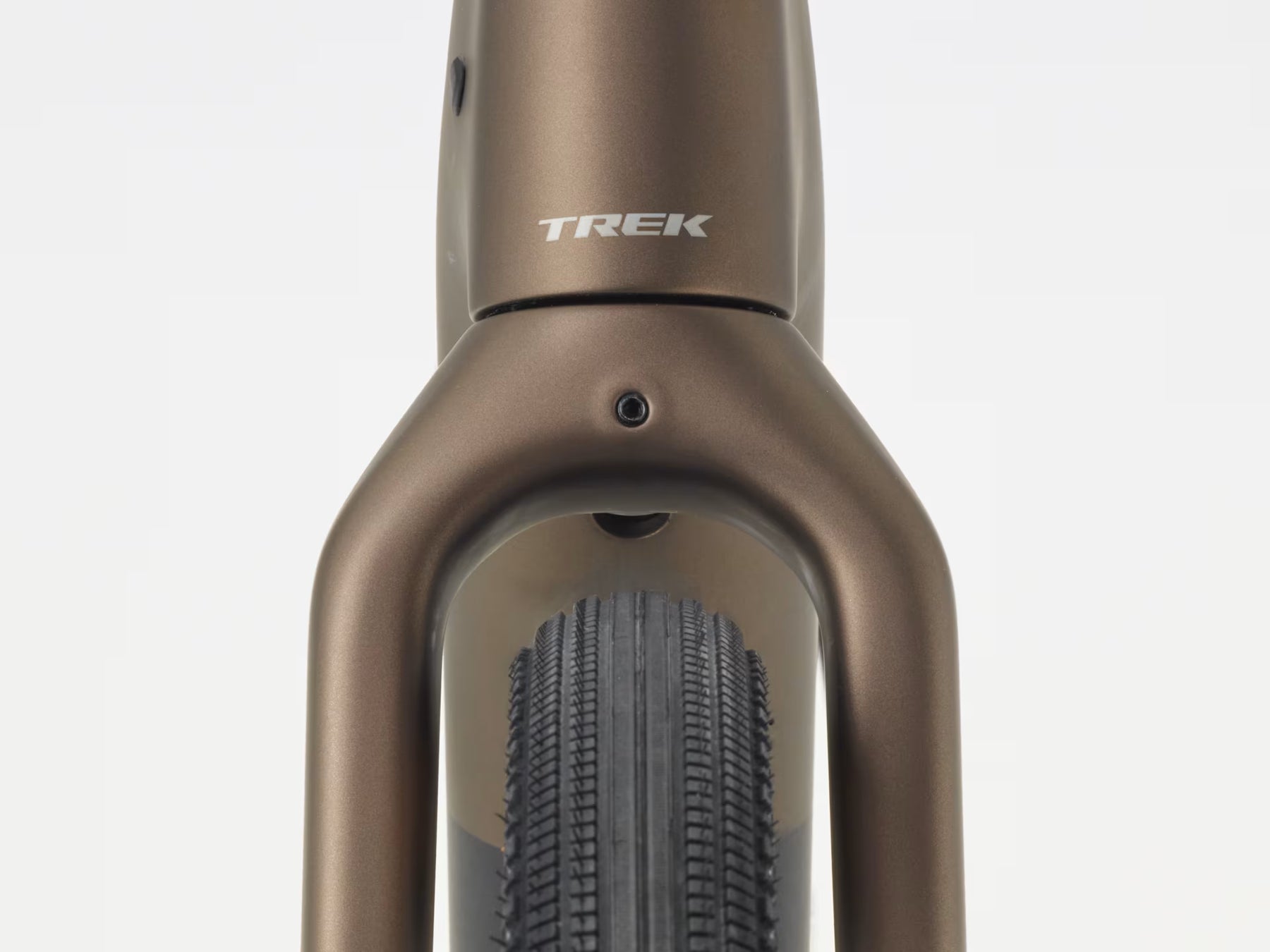

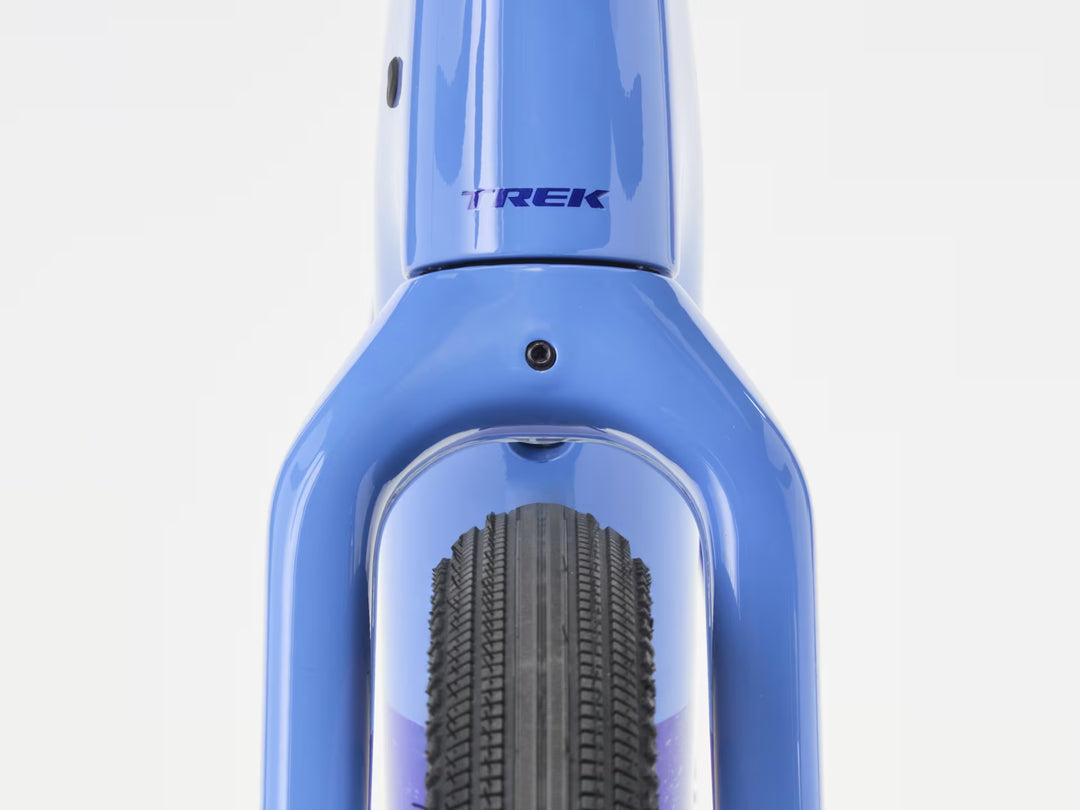

• Fork: Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle

Weight

• Weight: ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system

• Battery: TQ 360Wh
• Charger: TQ 4A charger
• Computer: TQ LED display with Bluetooth & ANT+ connectivity

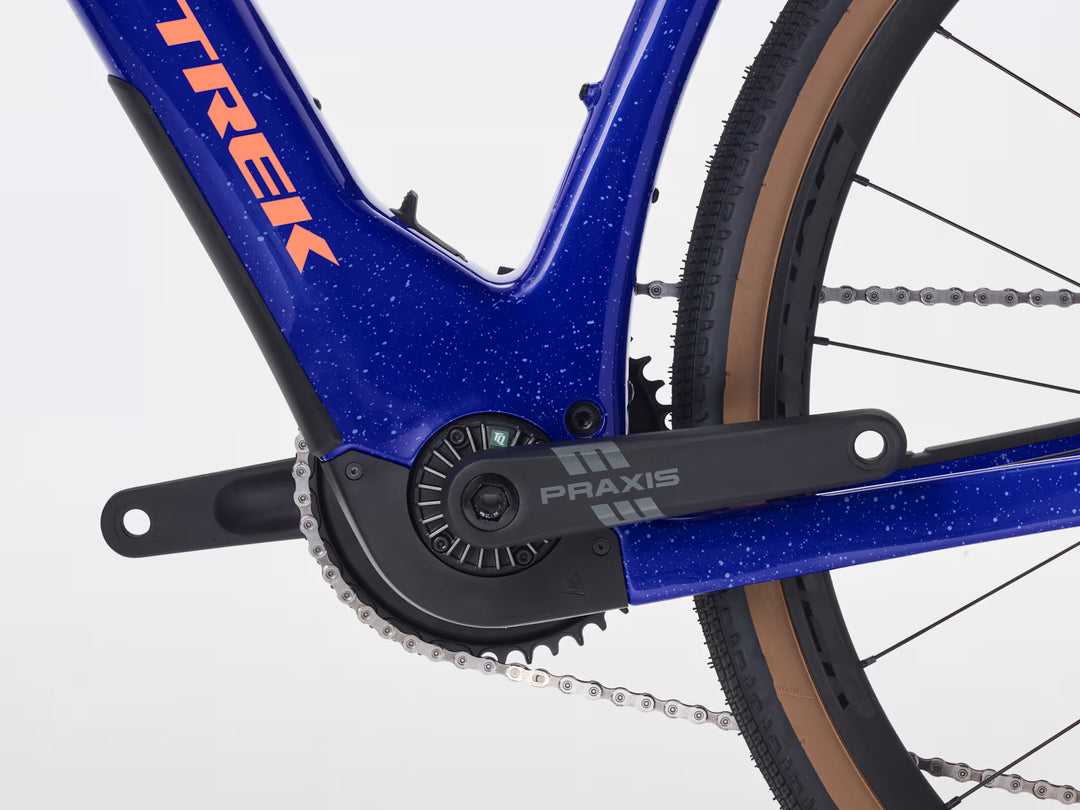

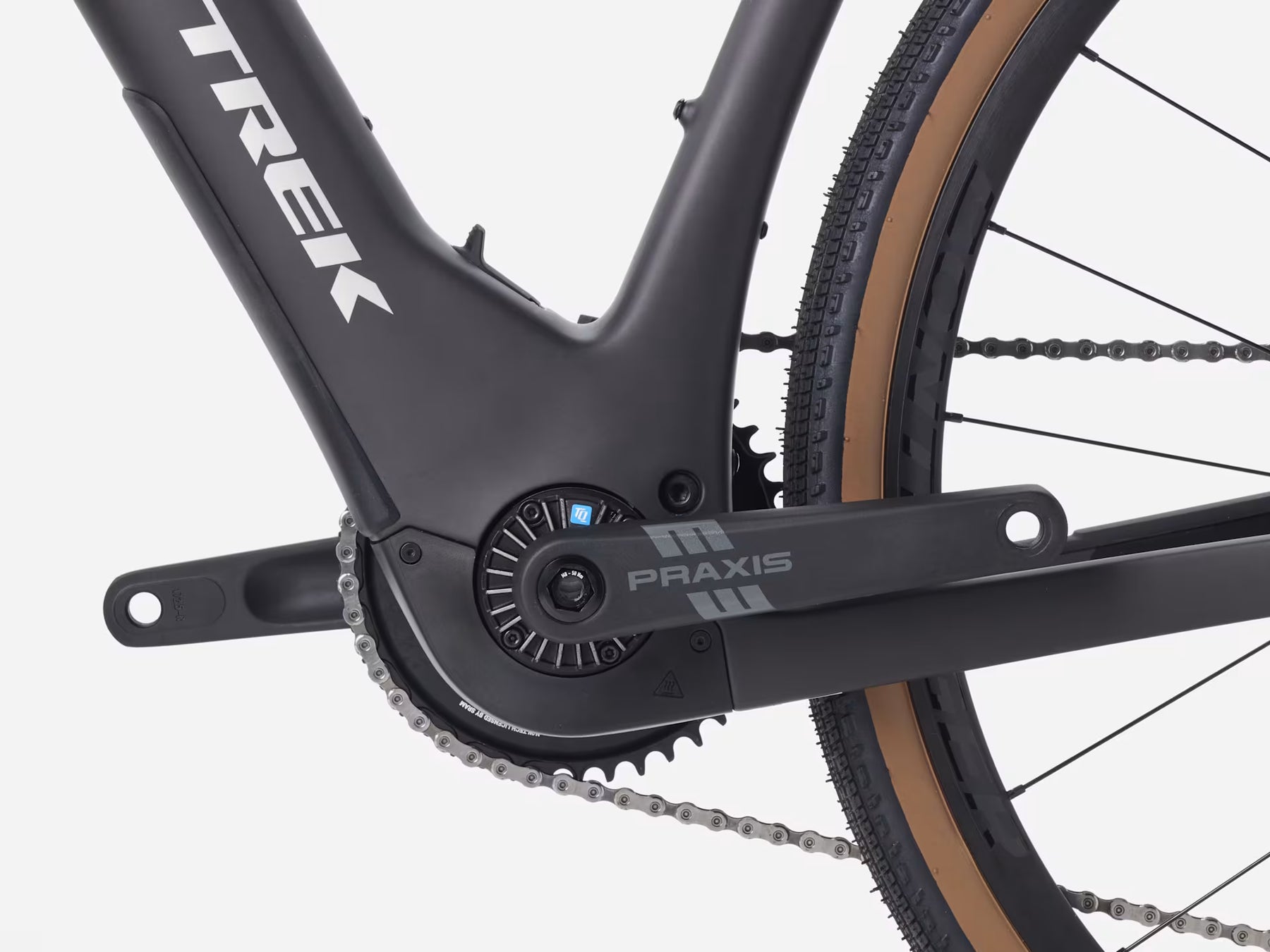

• Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power

Drivetrain

• Shifter: Shimano GRX RX820, 12 speed
• Rear derailleur: Shimano GRX RX822, 51T max cog

• *Crank:

1. Size: S, XS: Praxis Alloy, 165mm length
2. Size: M, ML: Praxis Alloy, 170mm length
3. Size: XL, L: Praxis Alloy, 172.5mm length

• Cassette: Shimano XT M8100, 10-51, 12 speed
• Chain: Shimano XT M8100, 12 speed
• Max chainring size: 1x: 44T

Wheels

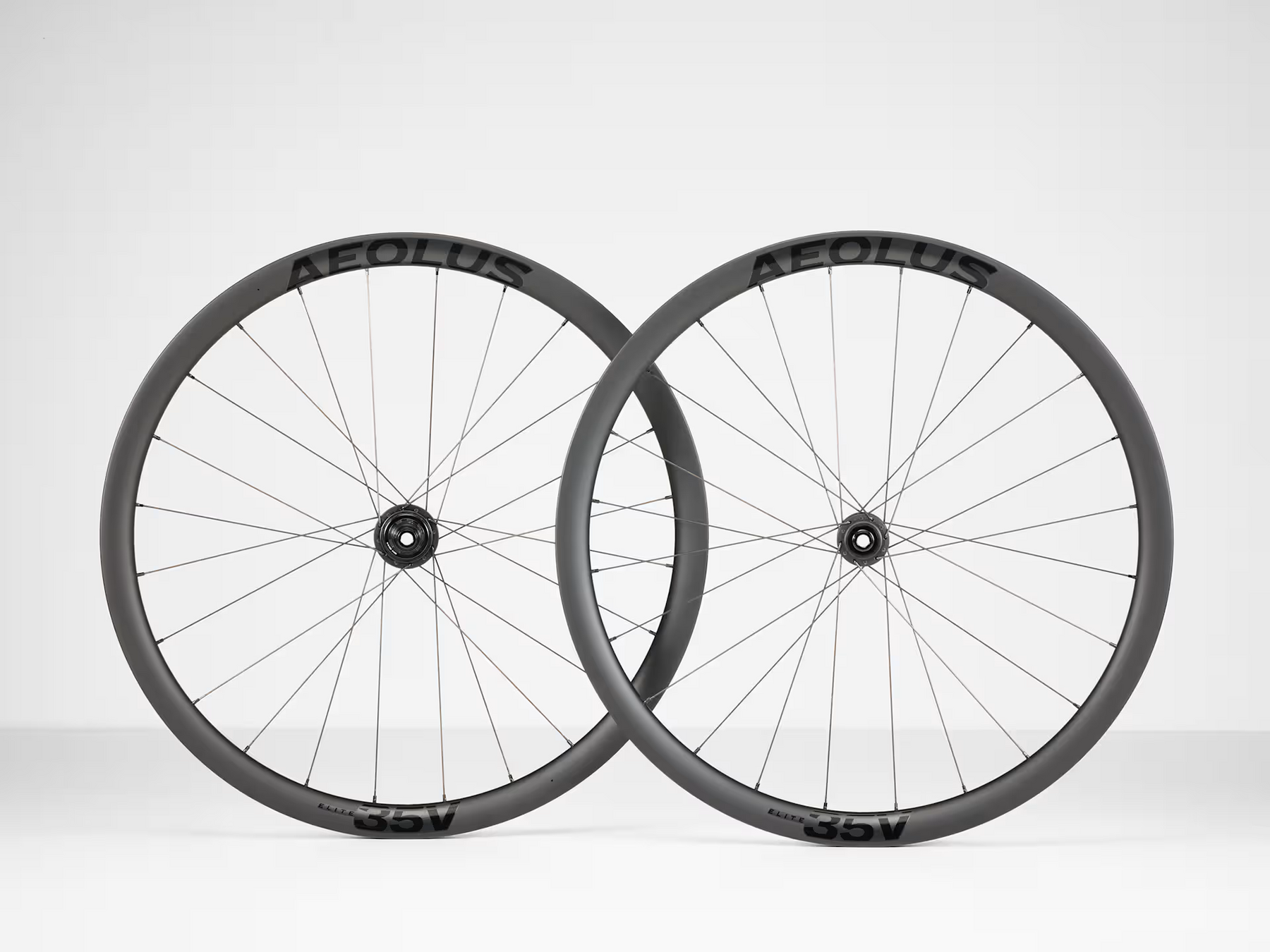

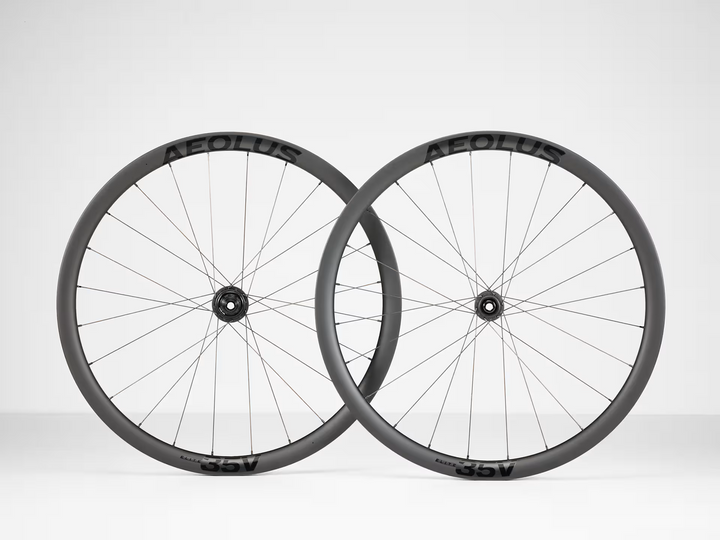

• Wheel front: Bontrager Aeolus Elite 35V TLR Disc Road Wheel, Tubeless Ready, 100x12 mm thru axle
• Wheel rear: Bontrager Aeolus Elite 35V TLR Disc Road Wheel, Tubeless Ready, 25mm rim width, 142x12 thru axle
• Skewer front: Bontrager Switch chamfered thru axle
• Skewer rear: Bontrager Switch chamfered thru axle, removable lever
• Tire: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
• Tire part: Bontrager TLR sealant, 180 ml/6 oz
• Rim strip: Bontrager TLR
• Max tire size: 50mm without fenders, 42mm with fenders (as measured, see manual for details)

Components

• Saddle: Verse Short Comp, steel rails, 145mm width
• Seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length

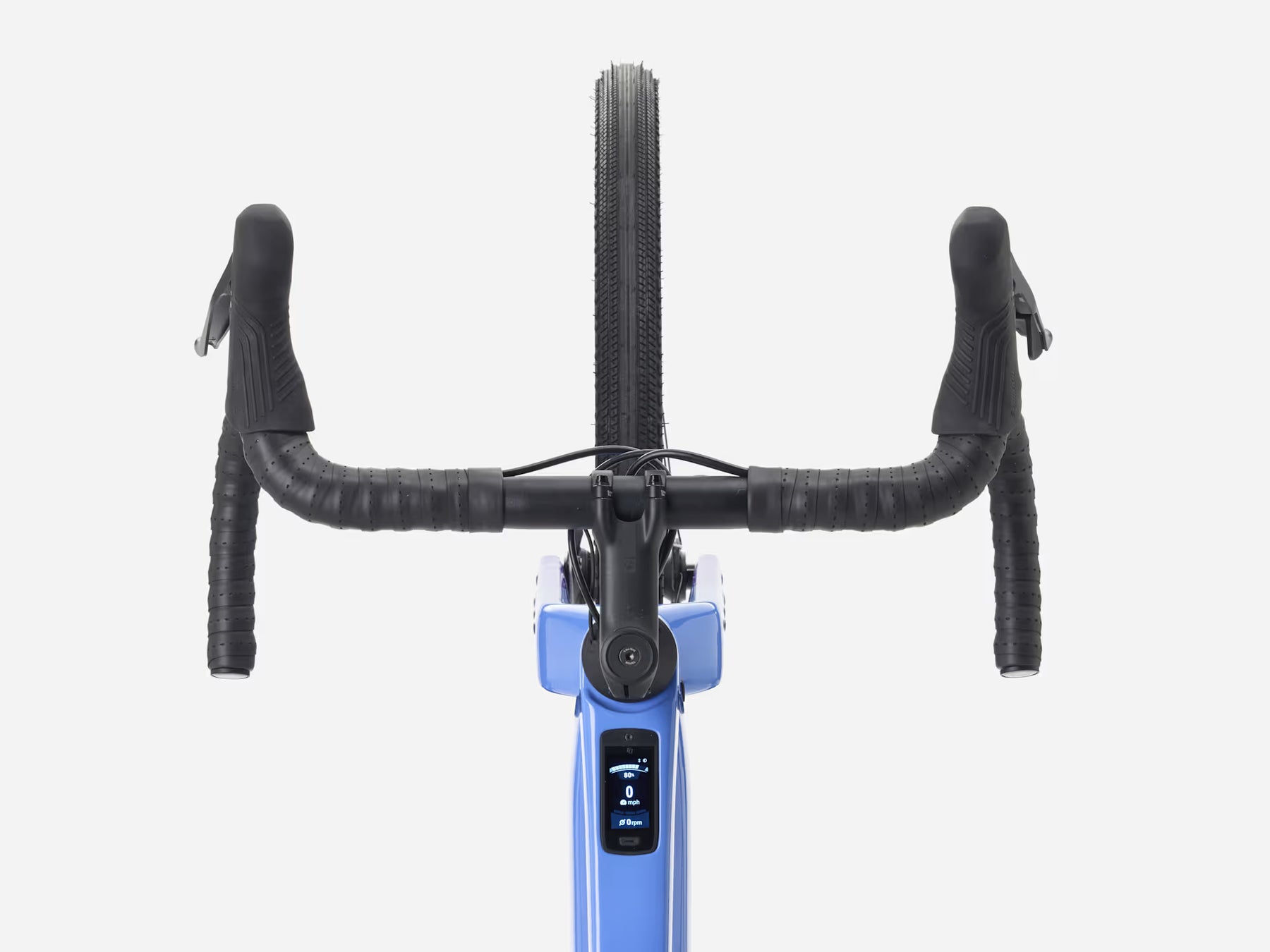

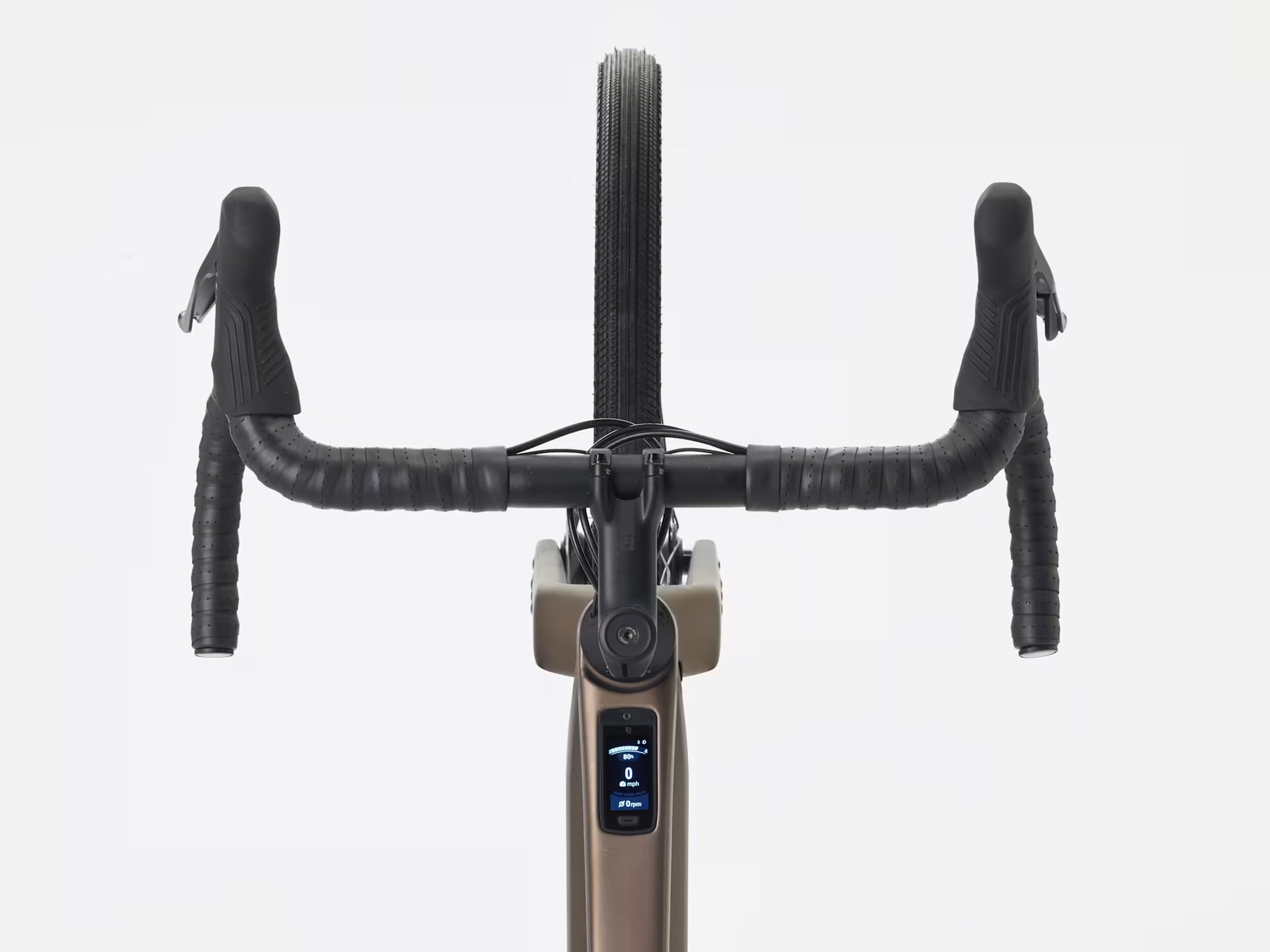

• *Handlebar

1. Size: S, XS - Bontrager Elite Gravel, alloy, 40cm width
2. Size: M, ML - Bontrager Elite Gravel, alloy, 42cm width
3. Size: L - Bontrager Elite Gravel, alloy, 44cm width
4. Size: XL - Bontrager Elite Gravel, alloy, 46cm width

• Handlebar tape: Bontrager Supertack Perf tape

• *Stem

1. Size: XS - Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
2. Size: S, M - Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
3. Size: L, ML - Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
4. Size: XL - Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length

• Brake rotor: Shimano CL800, centerlock, 160mm
• Brake lever: Shimano GRX RX820, 12 speed
• Rotor size: Max brake rotor sizes: 180mm front & rear

 *Subject to change without notice
