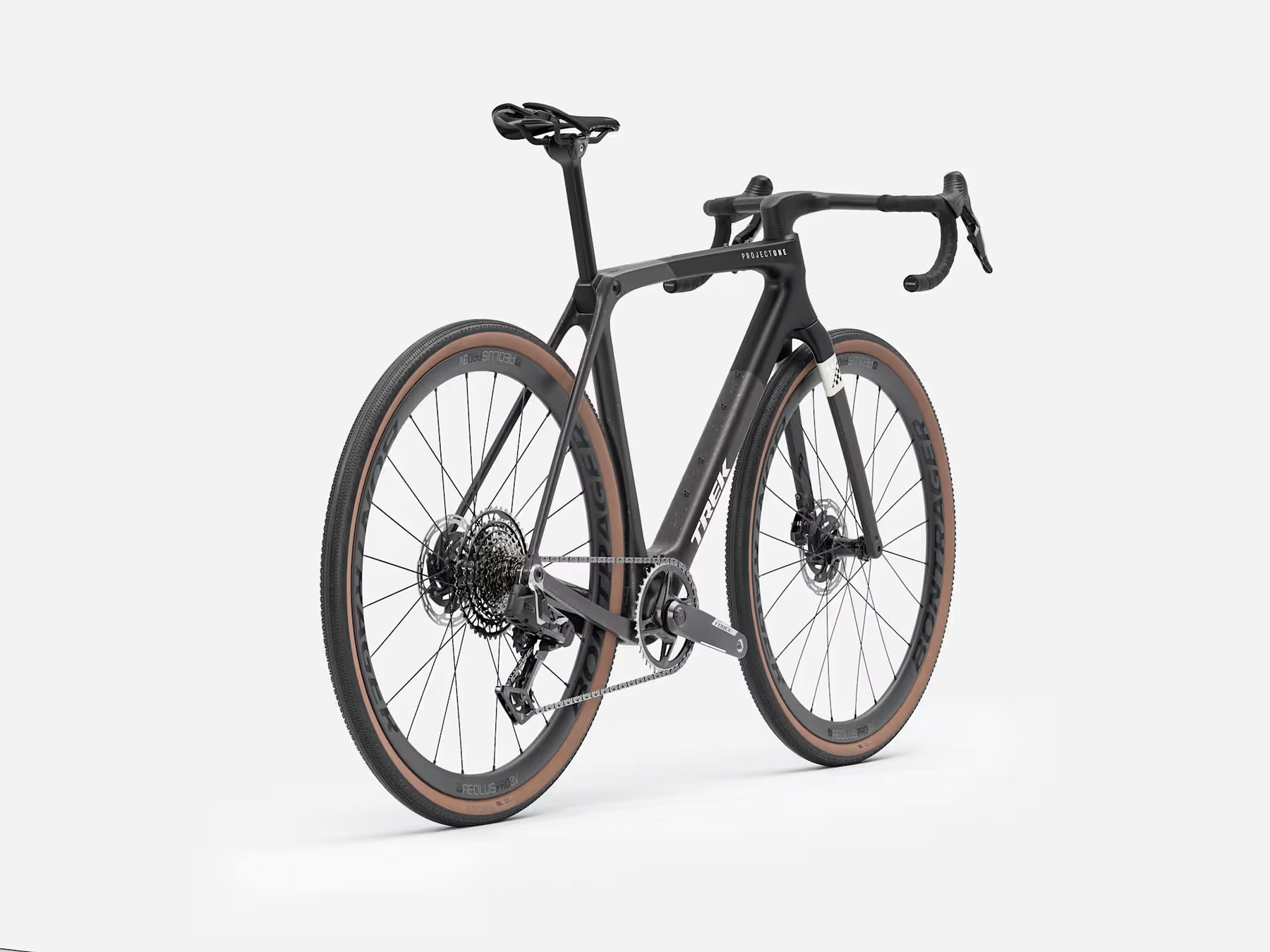

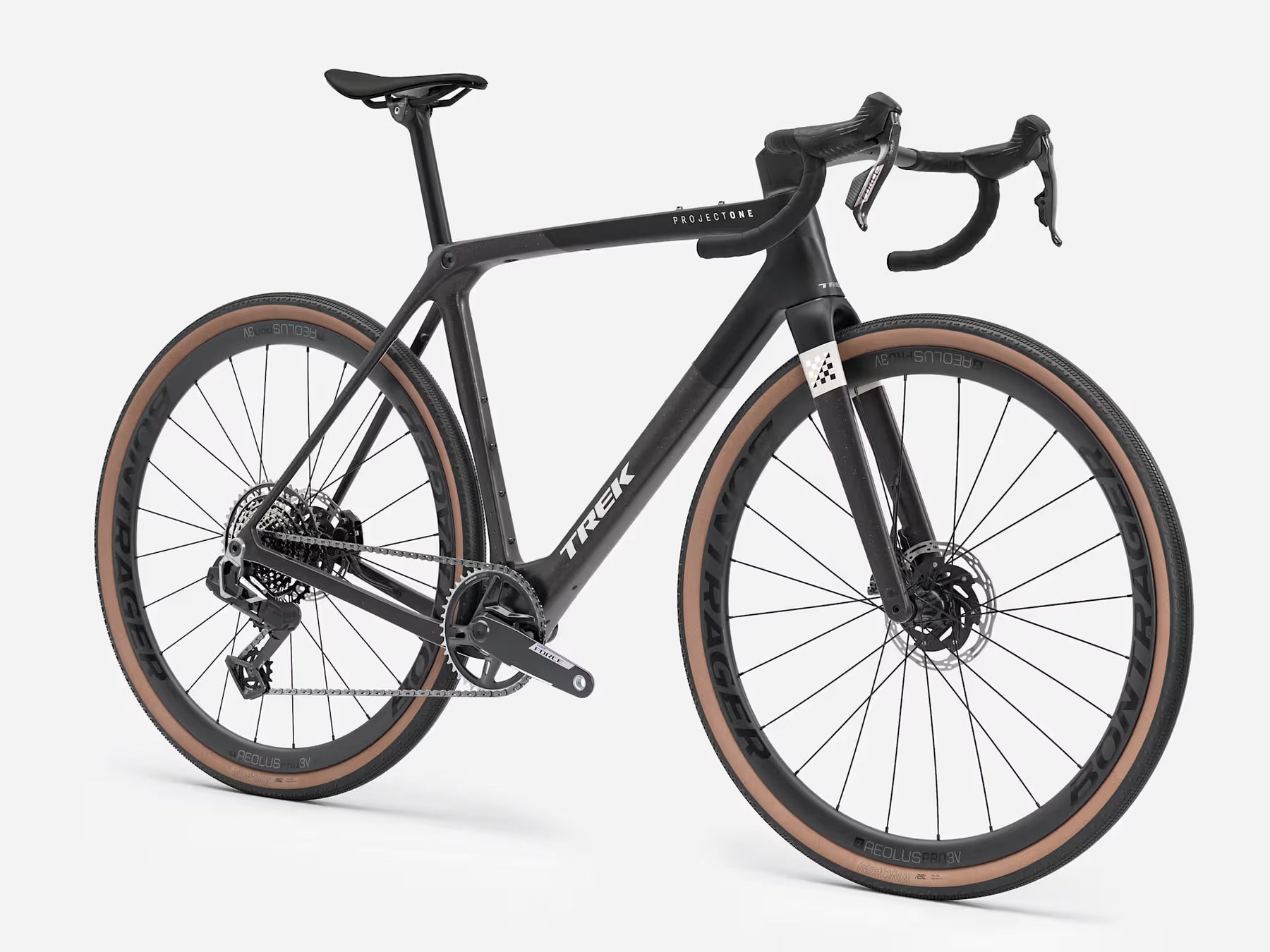

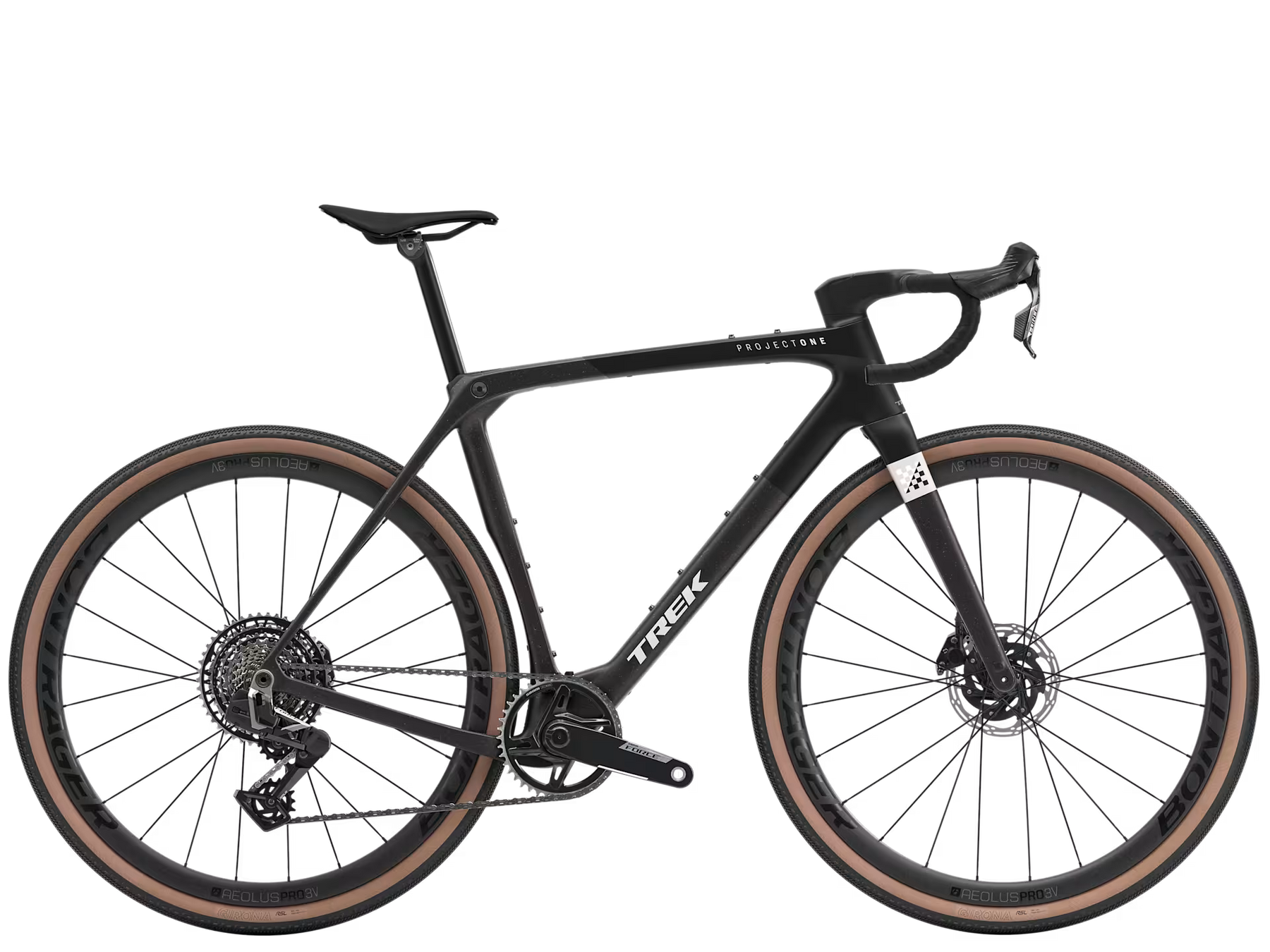

Checkmate SLR 7 AXS

• You're after a gravel bike that's made to soar right off the starting line with Full System Foil aero tube shapes and an aero-yet-ergonomic one-piece bar/stem
• Comfort isn't kicked to the side, thanks to road-smoothing IsoSpeed tech and clearance room for tires up to 45mm wide (as measured)
• New Gravel Race geometry keeps you tucked out of the wind and poised for the attack without compromising the fit you need for comfort through long miles
• A premium, ultra-light 800 Series OCLV Carbon frame helps you save energy by reducing road chatter
• It comes equipped with plenty of mounts to add Adventure Bags and carry all your race-day essentials

Frame

• 800
  Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

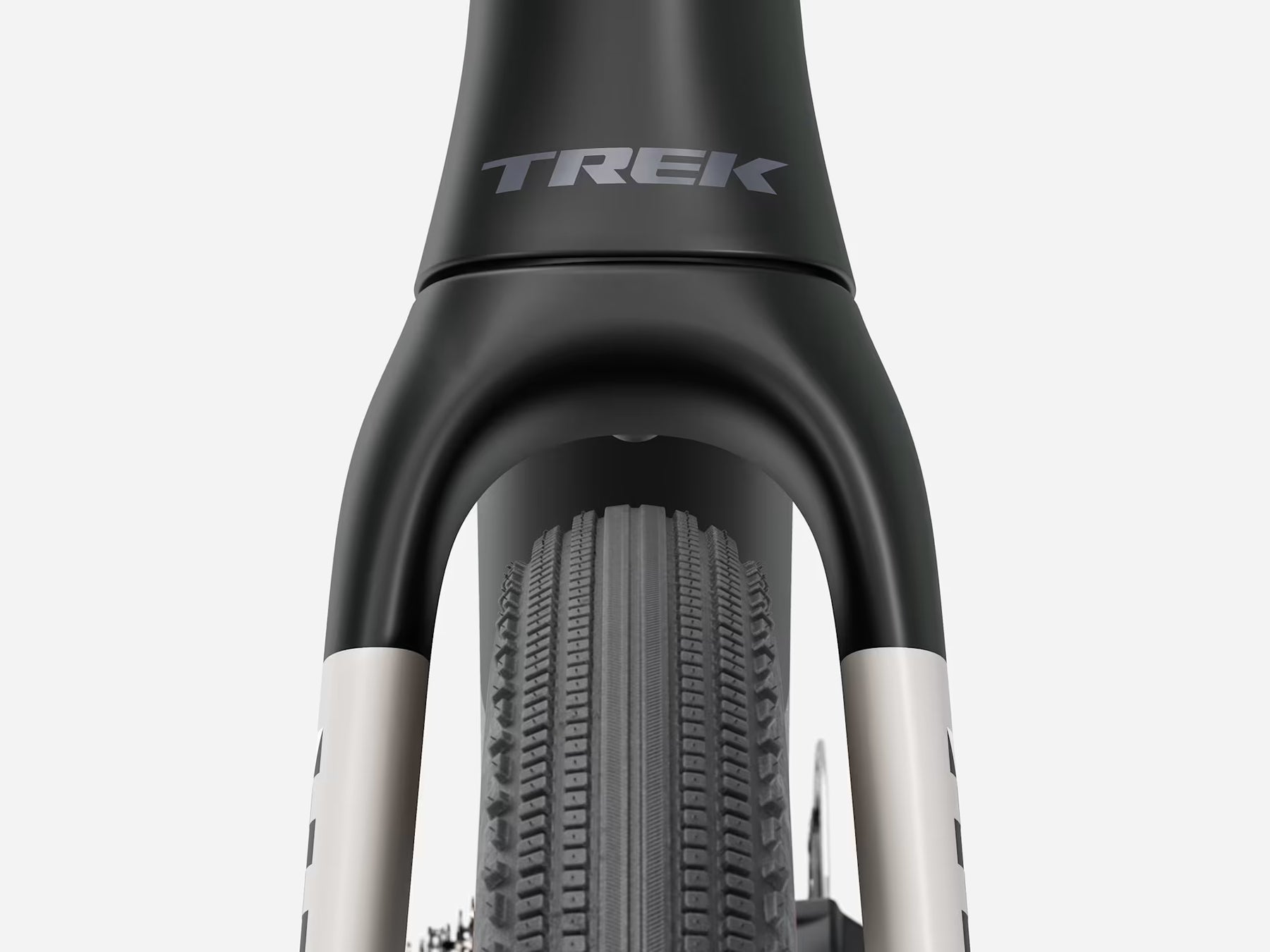

• Fork: Checkmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle

Weight

• Weight: ML - 8.47 kg / 18.68 lbs (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system

• Battery: SRAM AXS battery pack (with charger)

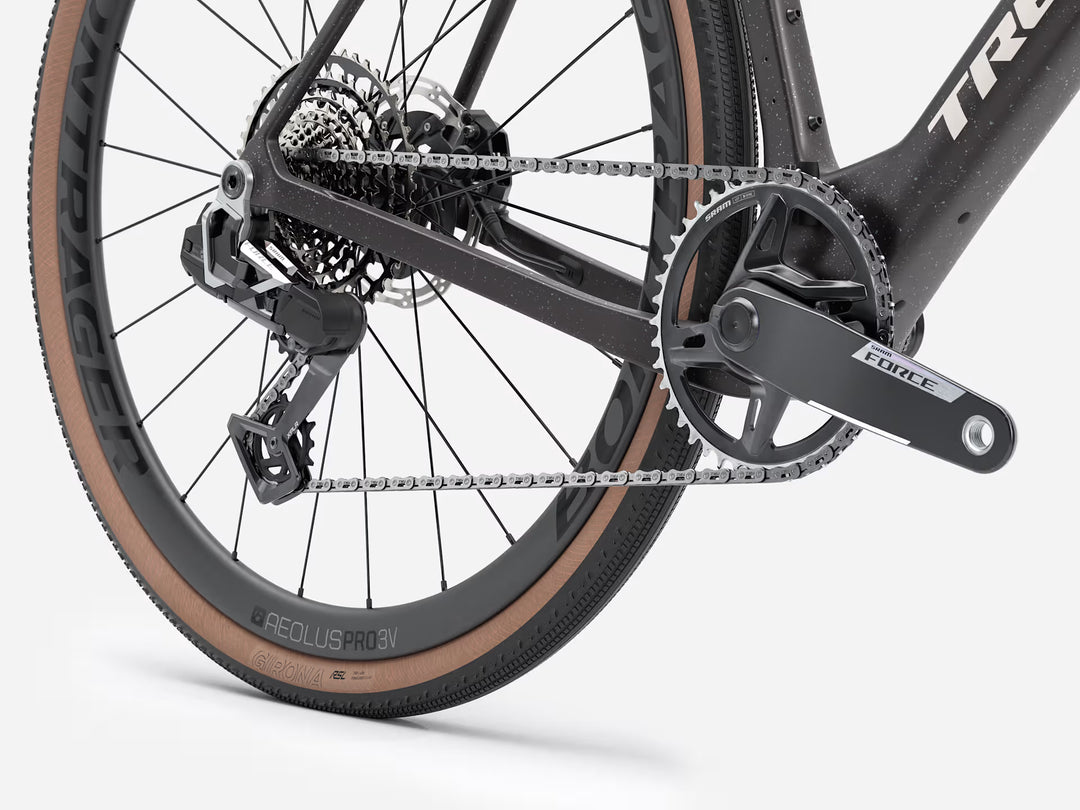

Drivetrain

• Shifter: SRAM Force AXS E1
• Rear derailleur: SRAM Force XPLR AXS, 46T max cog
• *Crank:

1. Size: XS, S SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 165mm length
2. Size: M, ML SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 170mm length
3. Size: L, XL SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 172.5mm length

• Bottom bracket: SRAM DUB Wide, T47 threaded, internal bearing
• Cassette: SRAM Force XPLR XG-1371, 10-46, 13 speed
• Chain: SRAM Force E1, 12/13 speed

Wheels

• Wheel front: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
• Wheel rear: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, SRAM XD-R driver, 142x12mm thru axle
• Skewer front: Bontrager Switch chamfered thru axle, removable lever
• Skewer rear: Bontrager Switch chamfered thru axle, removable lever
• Tire: Bontrager Girona RSL GR, Tubeless Ready, aramid bead, 220 tpi, 700x42mm
• Tire part: Bontrager TLR sealant, 180 ml/6 oz
• Rim strip: Bontrager TLR
• Max tire size: 45mm without fenders, 38mm with fenders (as measured, see manual for details)

Components

• *Saddle:

1. Trek Aeolus Pro, carbon fiber rails, AirLoom lattice 145mm width Bontrager Aeolus Pro, carbon rails, 145mm width

*Seatpost: KVF aero carbon seatpost, 5mm offset,
280mm length

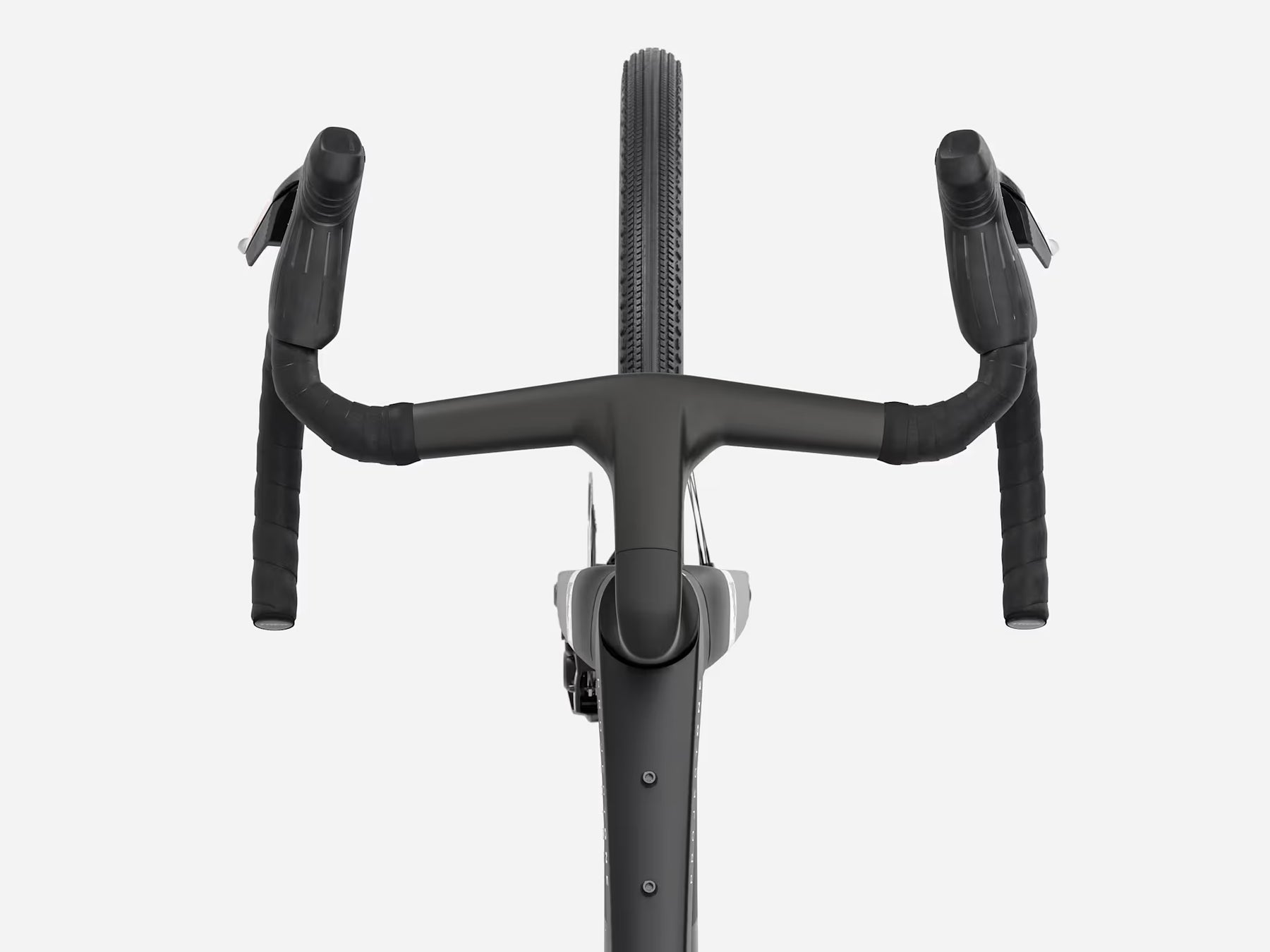

*Handlebar/stem (integrated)

1. Size: XS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 70mm stem length
2. Size: S: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 80mm stem length
3. Size: M: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length
4. Size: ML,L: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 100mm stem length
5. Size: XL: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length

• Brake rotor: SRAM CenterLine X, centerlock, round edge, 160mm
• Rotor size: Max brake rotor sizes: 180mm front & rear

Trek reserves the right to make changes to the product
information contained on this site at anytime without notice, including with respect to equipment, specifications, models, colors, materials, and pricing.

Due to supply chain issues, compatible parts may be substituted at any time
without notice.

Bike and frame weights are based off pre-production painted
frames at time of publication. Weights may vary in final production.
