Orbea

Terra H40

UPC: 8434446820625
Colour — Infinity Green/Ivory White
Size
Price
Save 0%
/
Size chart

Pairs well with
Frame:
Orbea Terra Hydro disc, aluminum
Fork:
Orbea Terra ICR, full carbon
Tires:
Vittoria Terreno Dry Gravel 700x38c
Wheels:
Alloy, Tubeless, 700c, 21c
Rear Derailleur:
Shimano RD-RX400
Brakes:
Shimano RX400 Hydraulic Disc
Saddle:
Prologo Akero AGX
Stem / Handlebar:
OC Road Performance RP22 / OC Gravel GR31-R
Tire Clearance:
700c x 45 or 650b x 50
Sizes:
XS, SM, MD, LG,XL, XXL
Weight (lbs/kg):
n/a
  • Price match guarantee
  • Locally owned
  • Secure payments

Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike.

Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight.

There is a wide world out there and Terra is ready to explore it with you.

  • Hydroformed Aluminum Frame: We manipulate the shapes and wall-thickness of our aluminum tubing to increase strength and resistance to unwanted flex. Many of the tubes are butted to save weight in the middle of the tubes, away from the stress of the joints and the weld zones. Using aluminum technologies as advanced as our carbon manufacturing ensures our aluminum bikes are never second-best.

  • OC Gravel Handlebar: This simple and elegant ergonomic solution elevates the tops and drops of the traditional road bar, so your neck and shoulders can relax a bit more, focusing on a better ride ahead. Increase endurance with a position that enhances comfort. Flared drop bars give more control when descending as well as more leverage for those difficult climbs

  • Terra Carbon Fork: The Terra fork uses a robust crown, rounded blade profile and longer fork legs plus our best OMR carbon monocoque construction to offer the best combination of comfort, tire clearance and torsional stiffness

Frameset

  • Frame: Orbea Terra Hydro disc, hydroformed triple butted aluminum, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal
    cable routing, 27,2mm seat tube, MMS system
  • Fork: Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 2x100mm, thread M12x2 P1
  • Steerer tube: FSA 1-1/2" Integrated Aluminum Cup

Drivetrain

  • Crankset: Shimano GRX RX600-10 30x46t
  • Shifters: Shimano ST-RX400
  • Cassette: Shimano Tiagra HG-500 11-34t 10-Speed
  • Rear derailleur: Shimano RD-RX400
  • Front derailleur: Shimano GRX RX400
  • Chain: KMC X10

Cockpit

  • Handlebar: OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
  • Stem: OC Road Performance RP22, -5º

Brakes

  • Brakes: Shimano RX400 Hydraulic Disc

Wheels

  • Wheels: Alloy, Tubeless, 700c, 21c
  • Tires: Vittoria Terreno Dry Gravel 700x38c
  • Front Wheel Axle: Orbea Thru Axle 12x100mm M12x2 P1 Solid
  • Rear Wheel Axle: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

Components

  • Seatpost: SP 0.2 Carbon, 27.2mm, Setback 20
  • Saddle: Prologo Akero AGX black rails size 155mm

Accessories

  • Mudguard: N/A
  • Handlebar Tape: Orbea Eva

* Subject to change without notice.

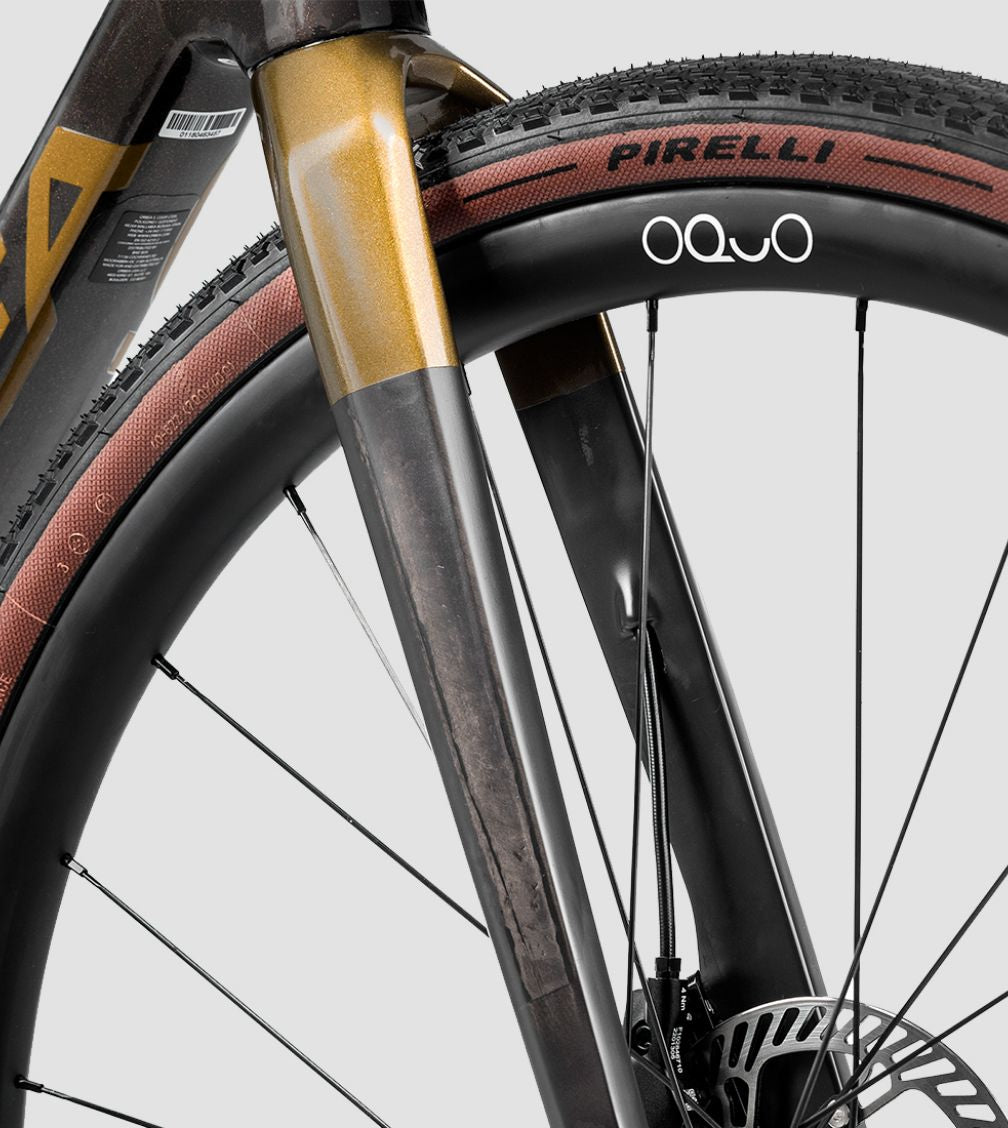

Tire Clearance

Terra can be mounted with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 treads for extreme durability and high-volume comfort if you need a bit more traction.

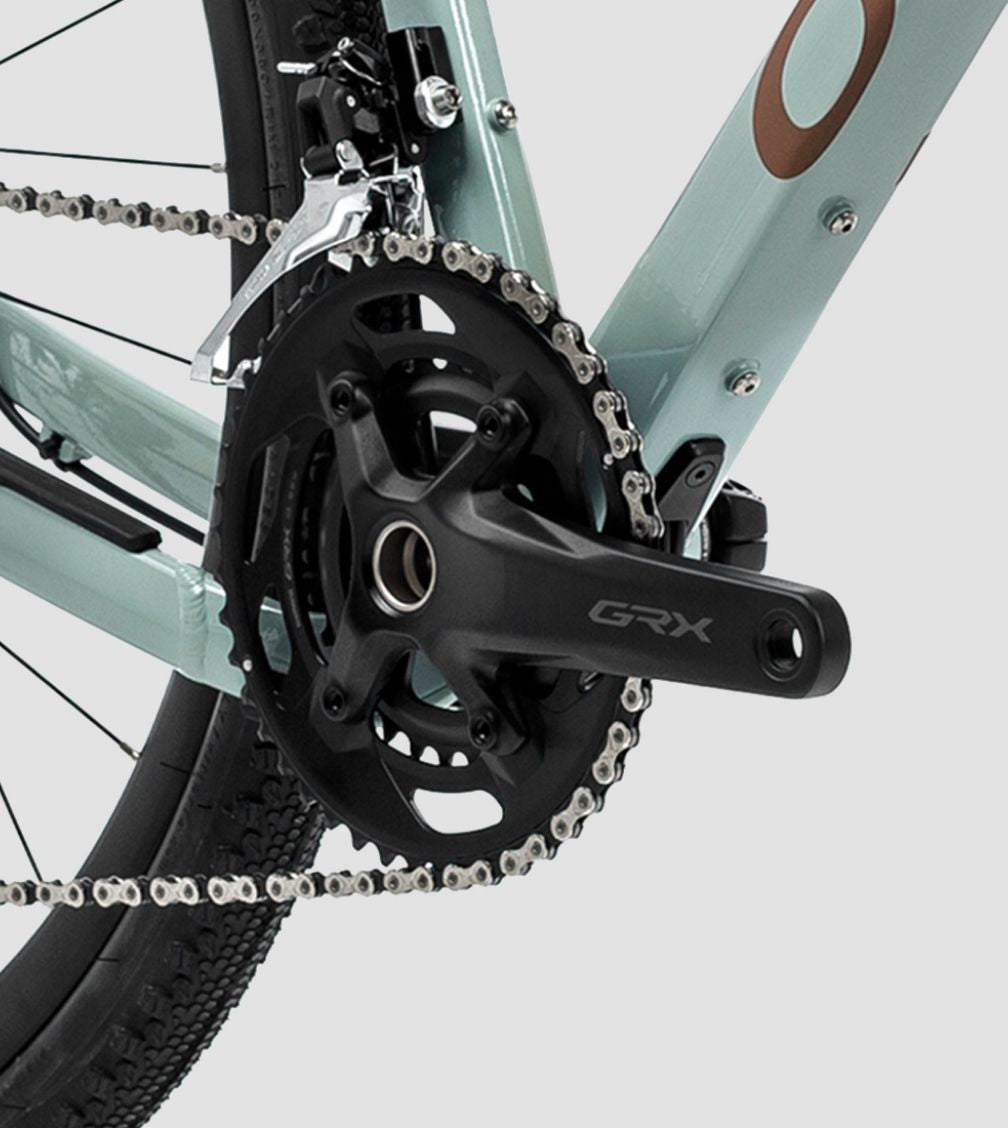

Drivetrain Compatibility

Designing their frame from the ground up gave Orbea the opportunity to tackle a problem which exist in many gravel frames. Namely giving a range of drivetrain options without compromising tire clearance.
