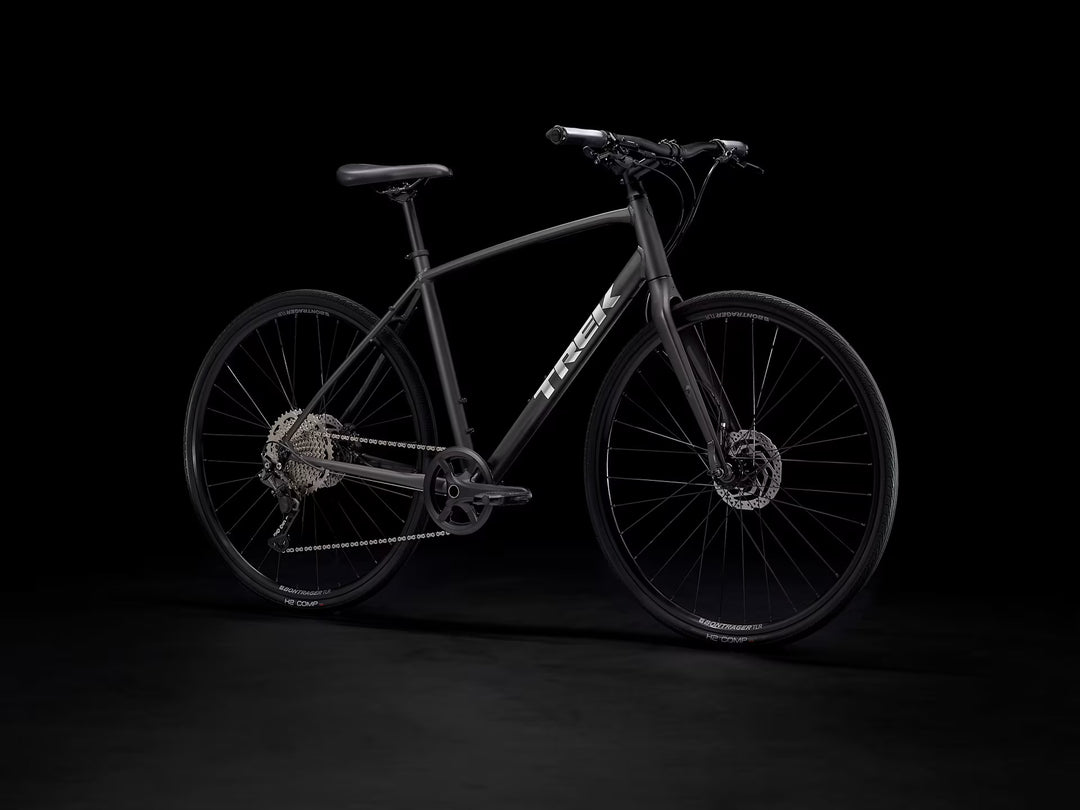

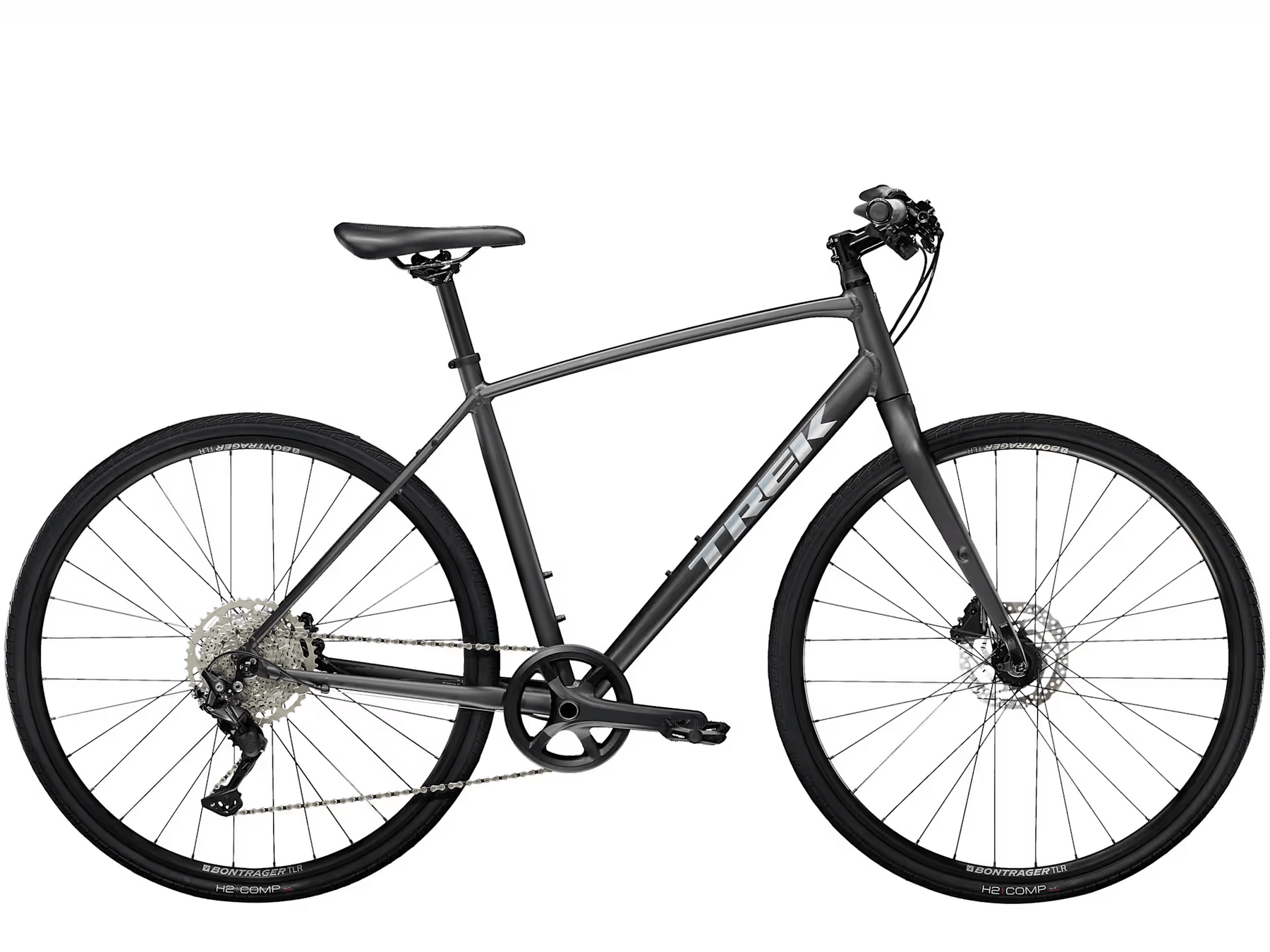

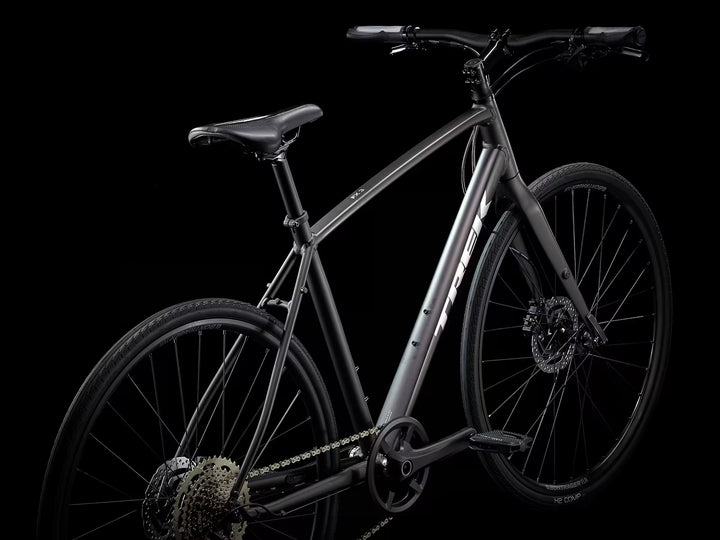

FX 3 Disc Gen 3

• The 1x drivetrain gives you all the gears you need and none you don’t

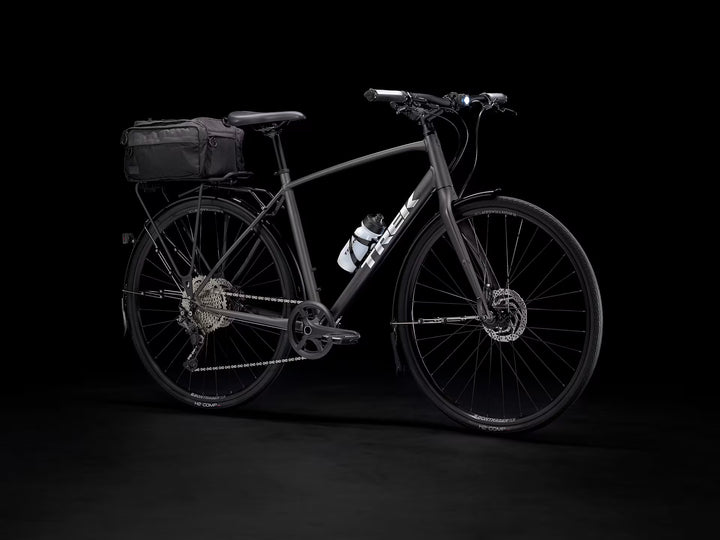

• It's easy to accessorize with a MIK rear rack, a kickstand, fenders, lights, and more!
• It's versatile and does whatever you want it to do, whether that's riding for fitness, commuting, or cruising to the farmer's market to pick up groceries

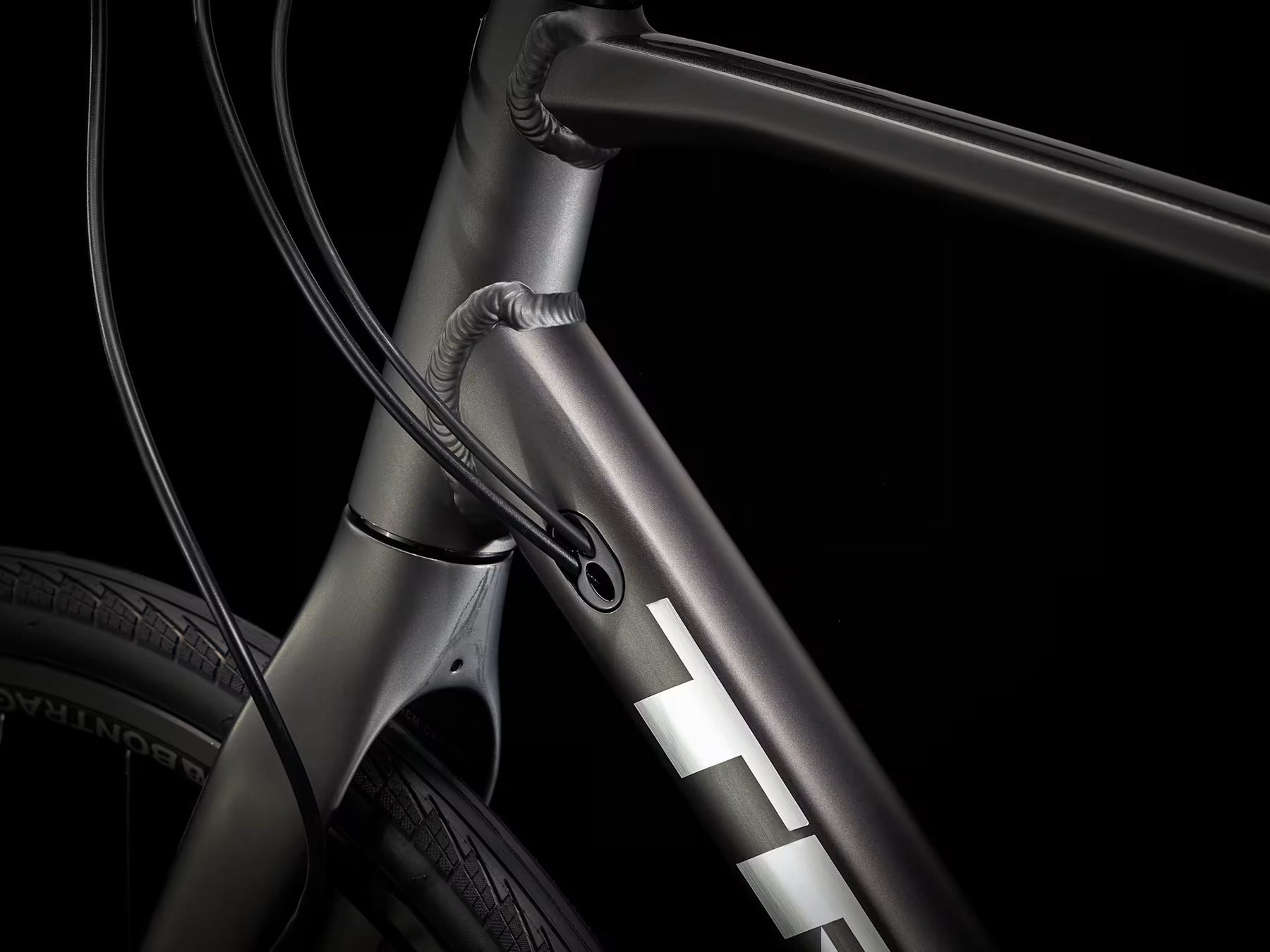

• The cables are routed internally, which protects them from the elements and adds to the bike's sleek look

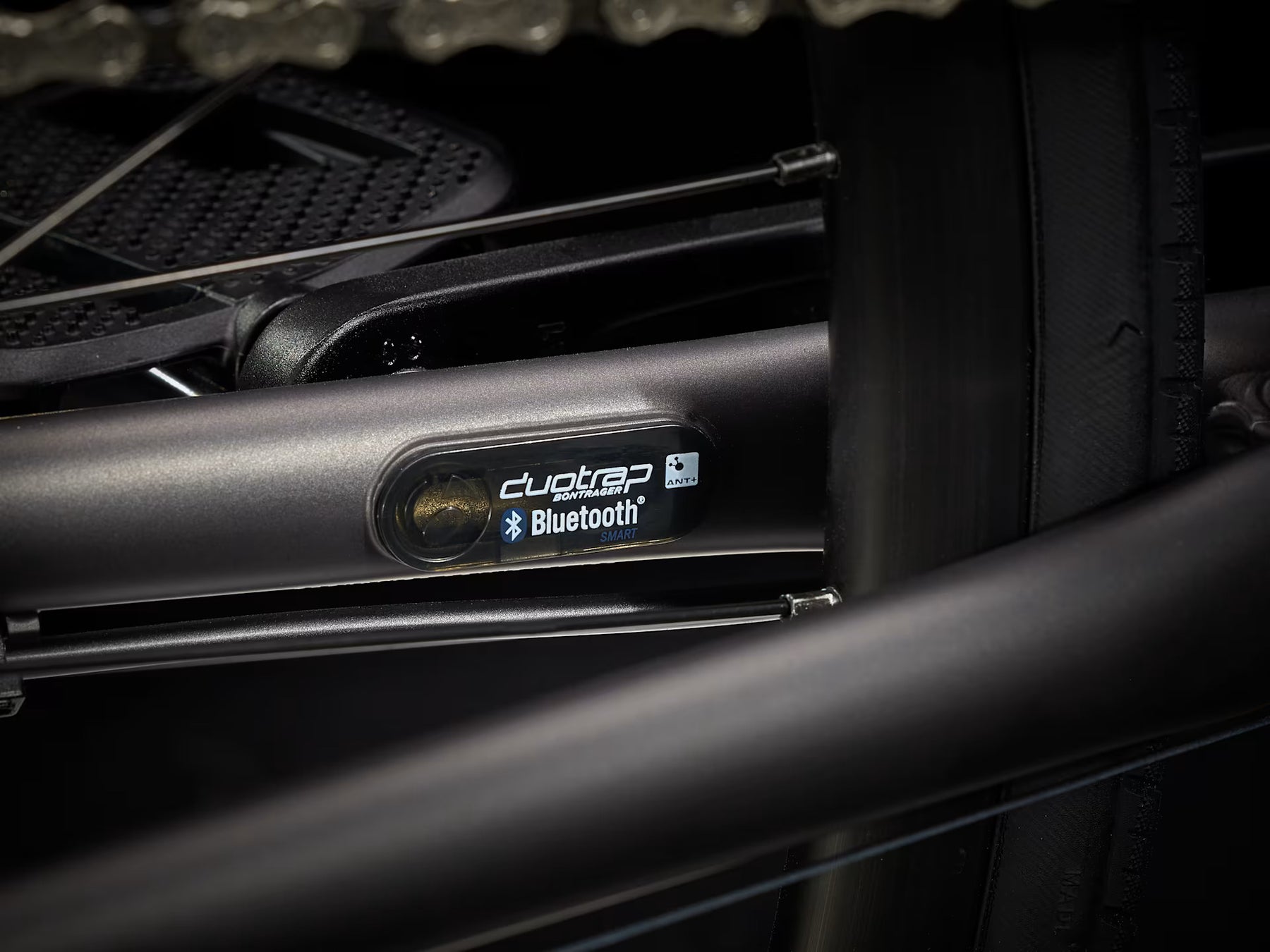

• You can pair FX with your smartphone and send your ride data to your favorite fitness app when you add DuoTrap S

Frameset

• Frame: Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
• Fork: FX Carbon, rack and fender mounts, flatmount disc, 405mm axle-to-crown, ThruSkew 5mm QR

Wheels

• Hub front: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
• Skewer front: 130x5mm QR, ThruSkew
• Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
• Skewer rear: 152x5mm QR

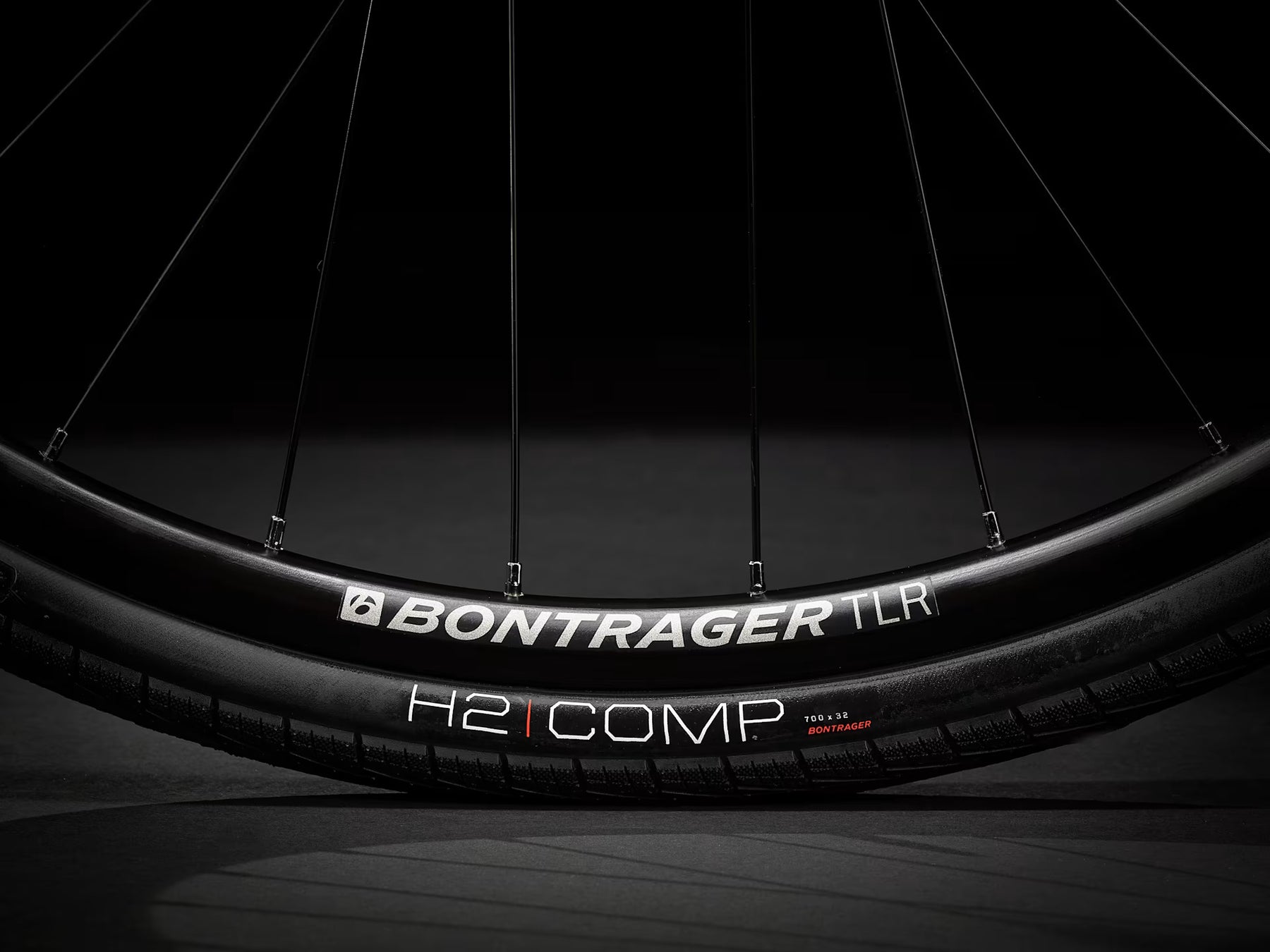

• Rim: Bontrager Tubeless Ready Disc, 32-hole, Presta valve
• Spokes: 14g stainless steel, black
• Tire: Bontrager H2 Comp, wire bead, 30tpi, 700x32mm
• Max tire size: 700x38mm without fenders, 700x35mm with fenders

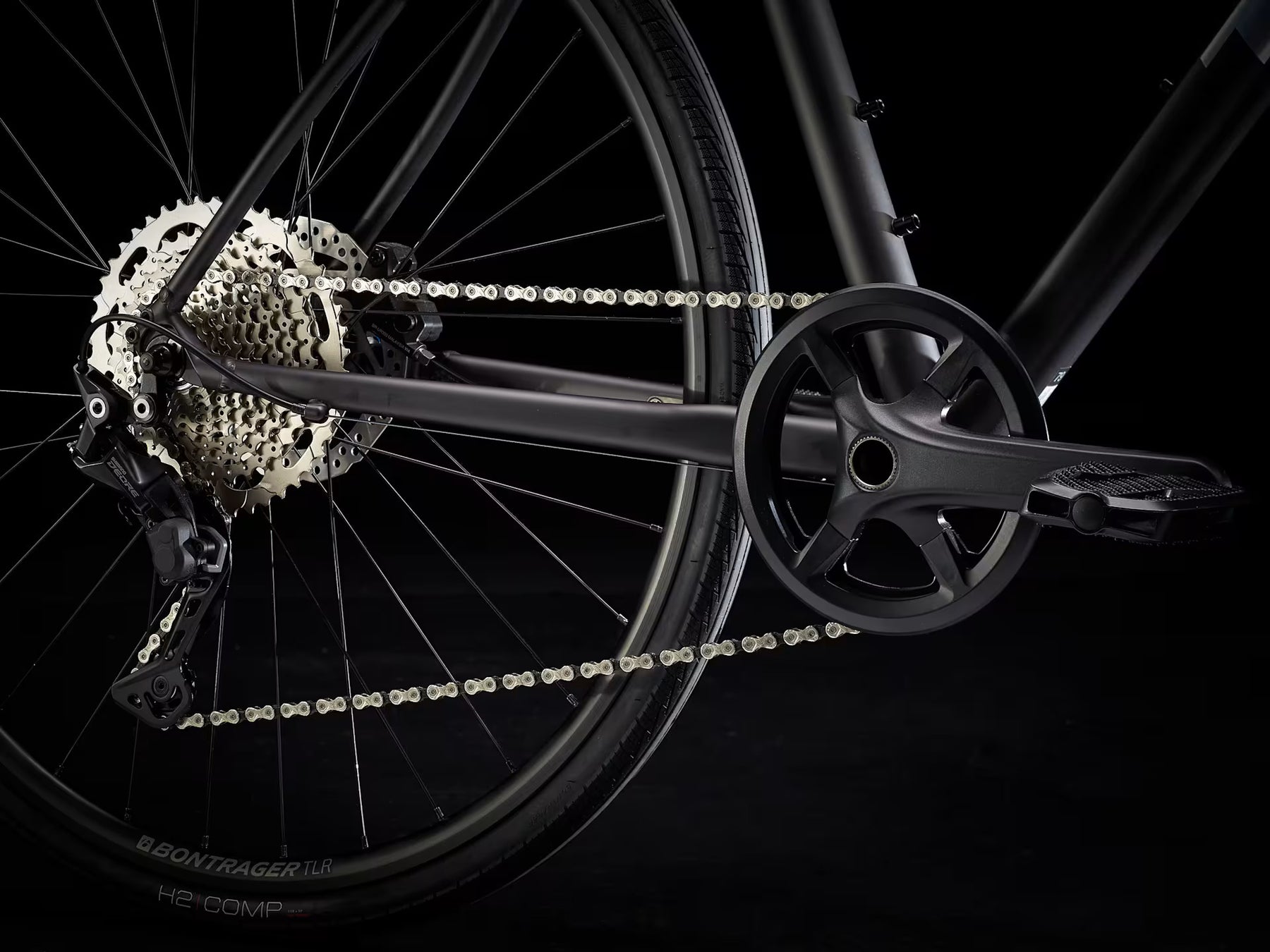

Drivetrain

• Shifter: Shimano Deore M4100, 10 speed
• Rear derailleur: Shimano Deore M5120, long cage
• *Crank

1. Size: XS, S, M: Prowheel alloy, 40T narrow-wide ring, 170 mm length
2. Size: L, XL, XXL: Prowheel alloy, 40T narrow-wide ring, 175 mm length

• Cassette: Shimano Deore M4100, 11-46, 10 speed
• Chain: KMC X10, 10 speed
• Pedal: Bontrager City pedals
• Max chainring size: 1x: 42T, 2x/3x: 48T

Components

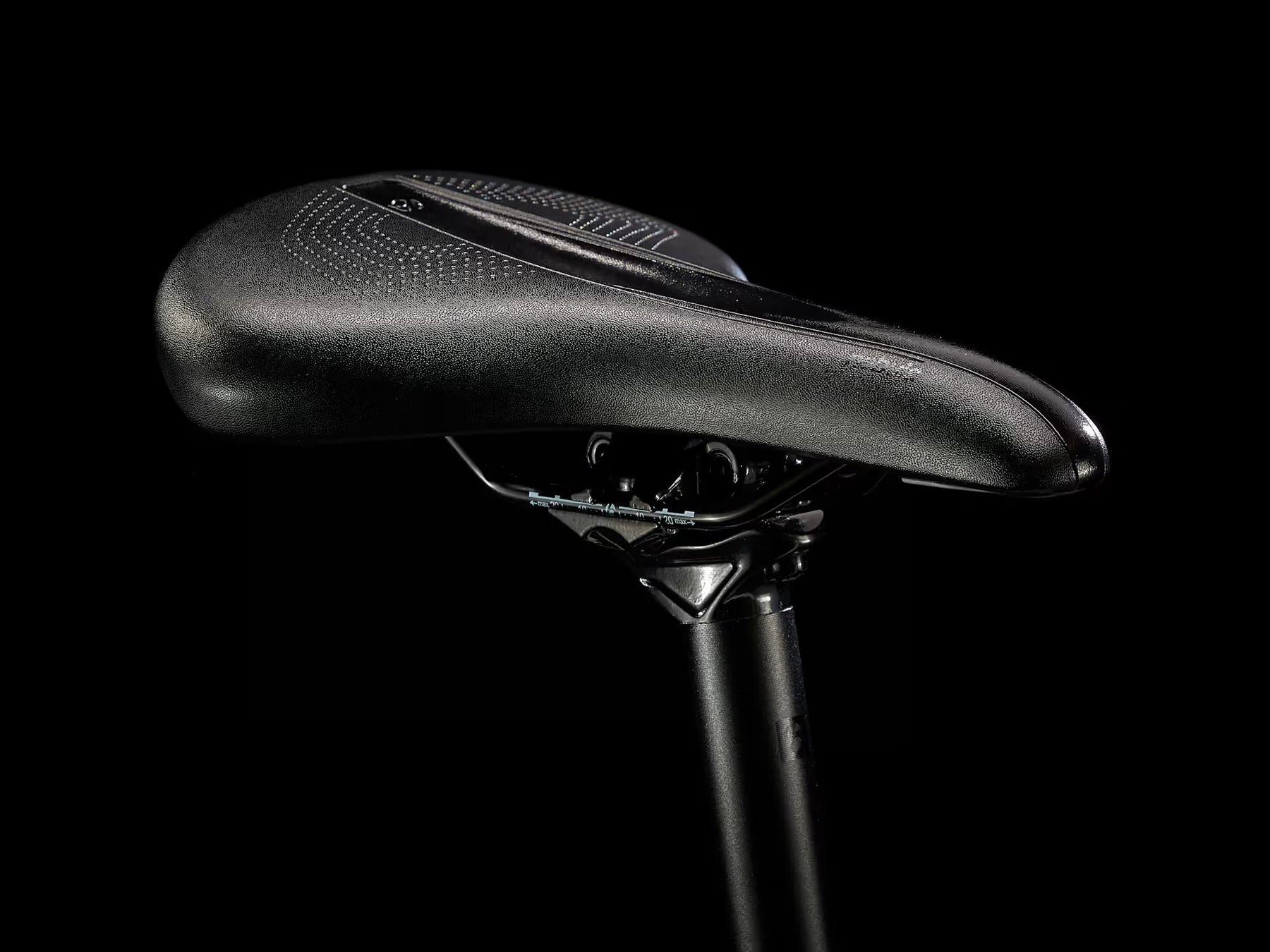

• Saddle: Bontrager H1
• Seatpost: Bontrager alloy, 27.2mm, 12mm offset, 330mm length
• *Handlebar:

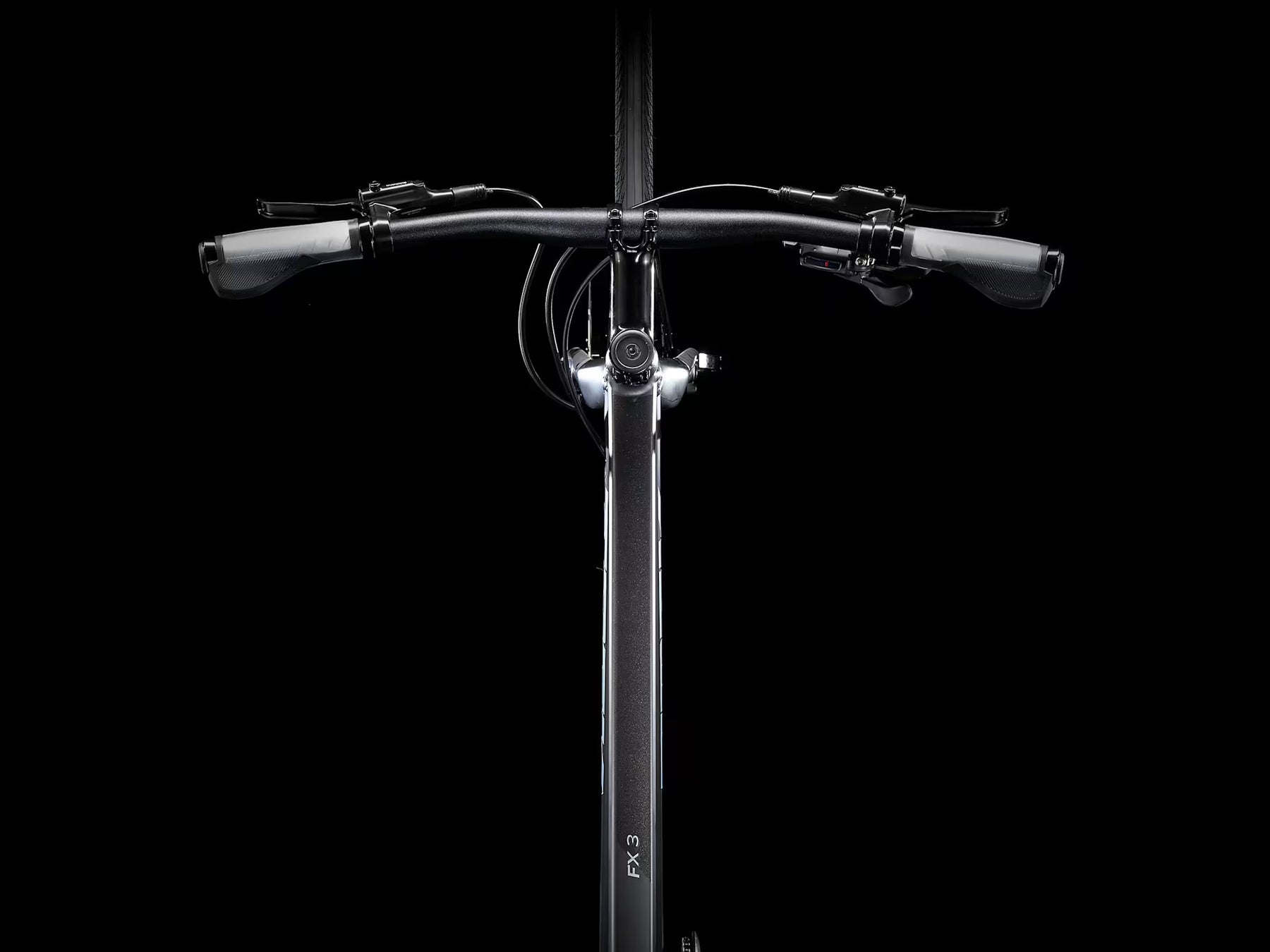

1. Size: XS, S, M: Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width
2. Size: L, XL, XXL: Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width

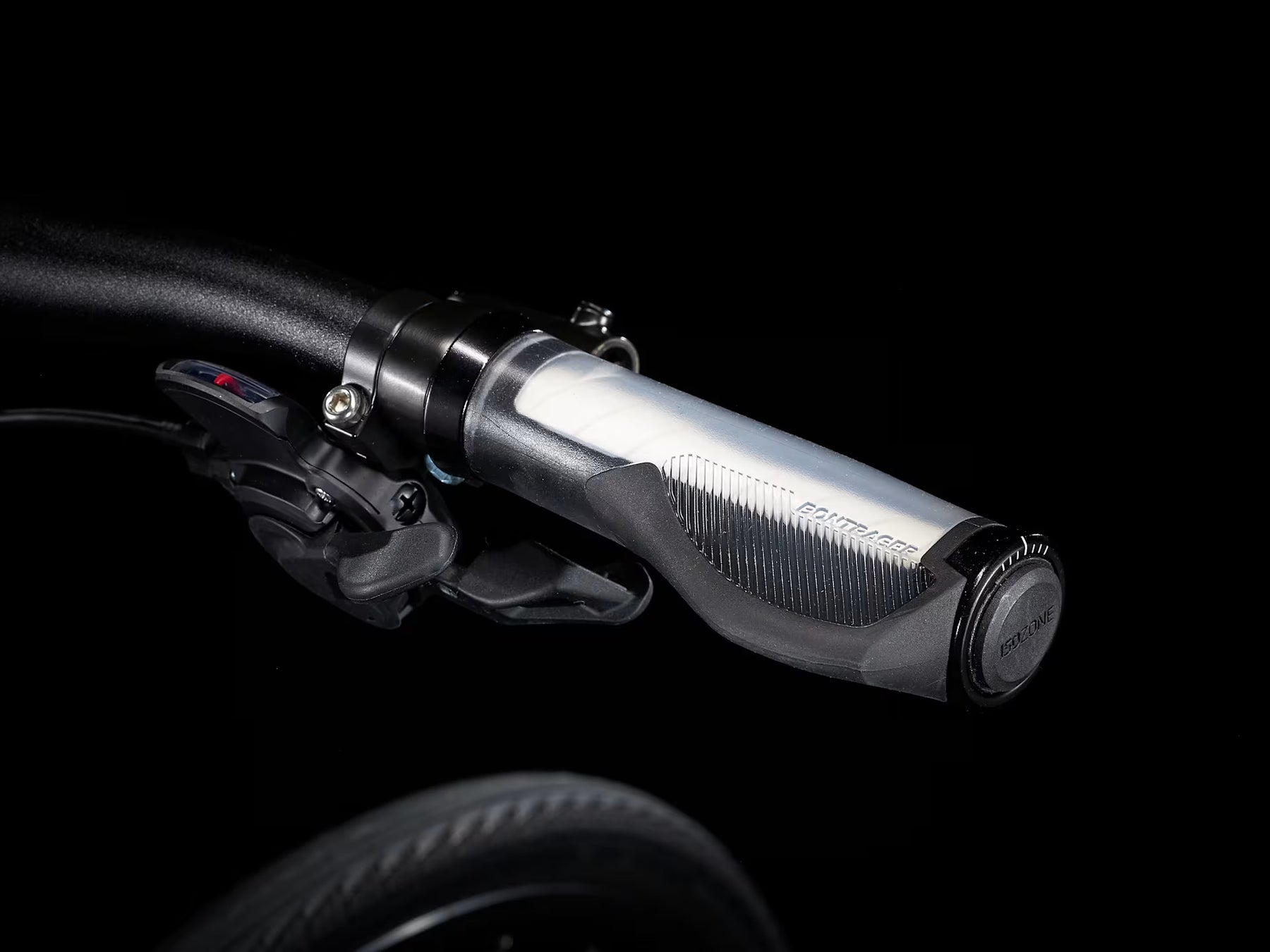

• Grips: Bontrager Satellite IsoZone Plus, lock-on, ergonomic
• *Stem:

1. Size: XS, S: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length
2. Size: M, L, XL, XXL: Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 100mm length

• Headset: 1 1/8" steel threadless

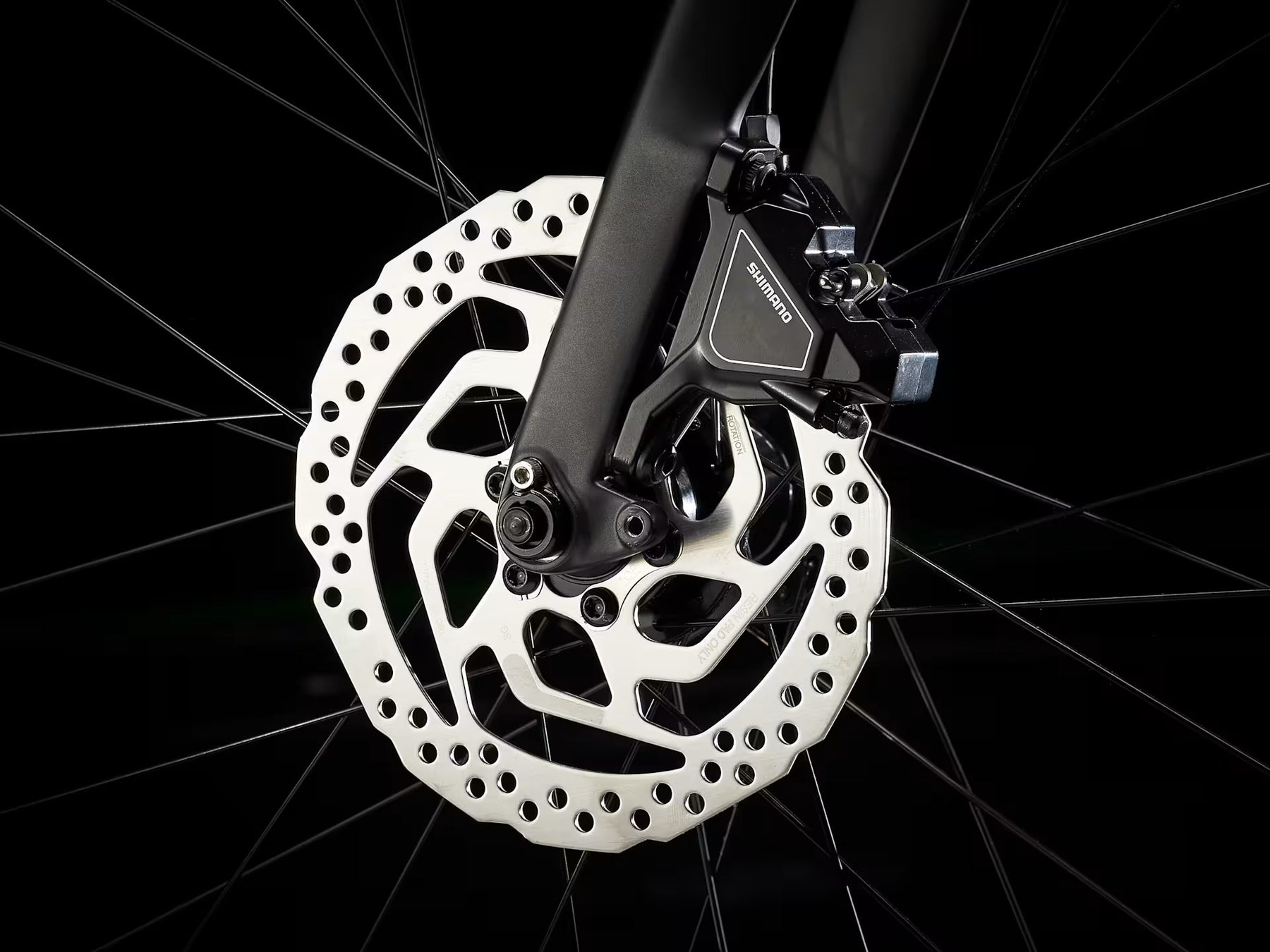

• Brake: Shimano hydraulic disc, MT201 lever, UR300 caliper
• Brake rotor: Shimano RT26, 6-bolt, 160mm
• Rotor size: Max brake rotor sizes: 160mm front & rear

Weight

• Weight: M - 11.38 kg / 25.09 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product
information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing.
Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
