Trek

Madone SL 7 Gen 8

UPC: 197216023883
Colour — Matte Lunar Silver
Size
Price
Save $0
/

Pairs well with
  • Price match guarantee
  • Free shipping over $49*
  • Locally owned
  • Secure payments
Size chart
 Size  Rider Height  Inseam
 XS

143 - 158 cm

4'8" - 5'2"



67 - 74 cm

26" - 29"
 S

158 - 162 cm

5'2" - 5'4"



74 - 76 cm

29" - 30"
 M

162 - 173 cm

5'4" - 5'8"



76 - 81 cm

30" - 32"
 M/L

173 - 179 cm

5'8" - 5'10"



81 - 84 cm

32" - 33"
 L

179 - 188 cm

5'10" - 6'2"



84 - 88 cm

33" - 35"
 XL

188 - 213 cm

6'2" - 7'0"



88 - 100 cm

35" - 39"

Frame:
500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork:
Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Tires:
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28mm
Wheels:
Front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle Rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle
Rear Derailleur:
Shimano Ultegra R8150 Di2, 34T max cog
Brakes:
BR-R8170 Shimano Ultegra Hydraulic Disc Brake
Saddle:
Bontrager Aeolus Elite
Stem / Handlebar:
Trek RCS Pro, -7 degree / Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop
Tire Clearance:
700c x32mm
Sizes:
XS, SM, MD, ML, LG, XL
Weight (lbs/kg):
ML - 17.38 / 7.88 (with TLR sealant, no tubes)

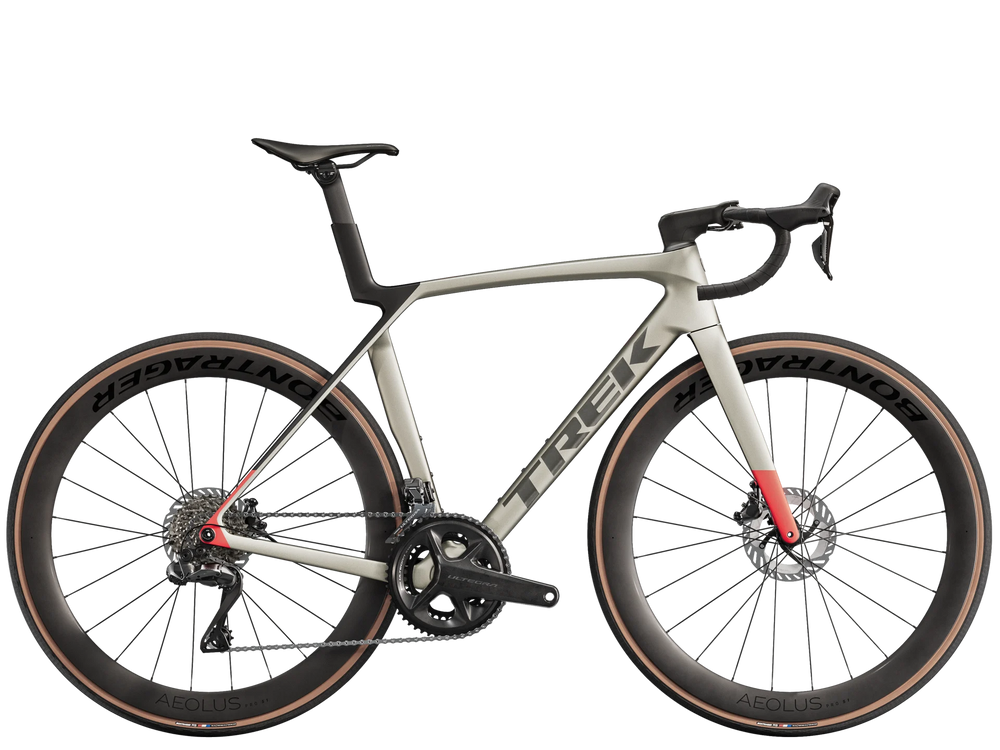

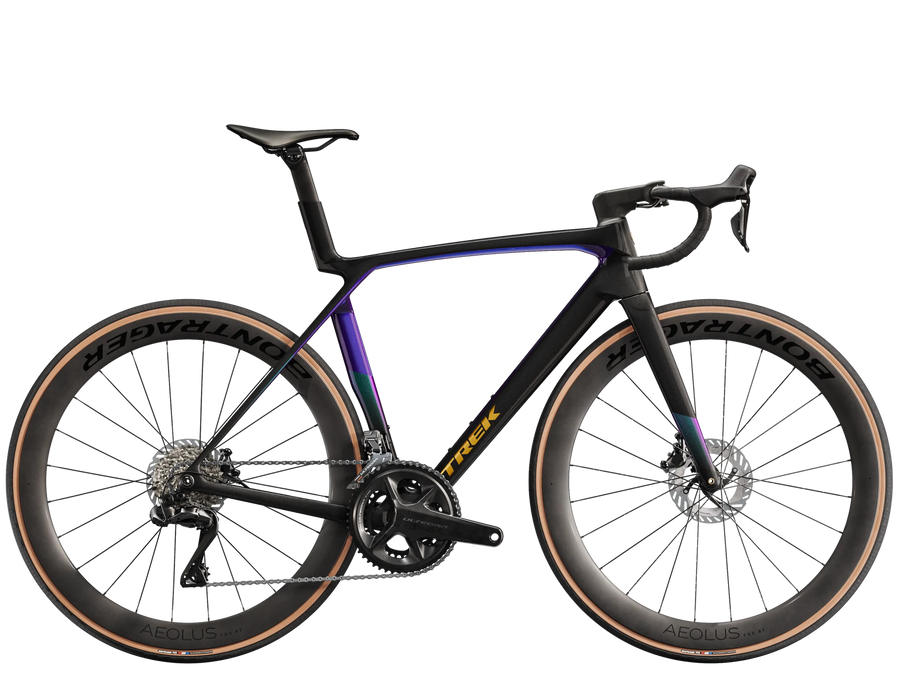

Madone SL 7 Gen 8 is a race-ready road bike built to give you the best of every world. Its featherweight build lets you soar up climbs, while aero geometry cuts drag on descents and IsoFlow keeps you comfortable through the miles.

  • Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimize aerodynamics around the whole bike

  • A more economical 500 Series OCLV Carbon frame and new tube shaping shave weight where it matters most to help you fly up climbs

  • Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents

  • You get lightning-fast precision shifts that are fully customizable thanks to Shimano's Ultegra Di2 drivetrain

  • Lightweight, race-focused IsoFlow comfort tech helps you ride stronger longer without sacrificing weight or aerodynamics

  • This bike comes set up tubeless — a first in Trek performance road history

Frame

  • 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle

Fork

  • Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Rims

  • Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready

Stem

  • Trek RCS Pro, -7 degree, 110mm length

Chain

  • Shimano Ultegra/XT M8100, 12 speed

Tires

  • Bontrager R3 Hard-Case Lite, aramid bead, 170 tpi, 700x28mm

Rotors

  • Shimano CL800, centerlock, 160mm

Saddle

  • Bontrager Aeolus Elite, austenite rails, 145mm width

Wheels

  • Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle /

Crankset

  • Shimano Ultegra R8100, 50/34, 175mm length

Shifters

  • Shimano Ultegra R8170 Di2, 12 speed

Handlebars

  • Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop

Bottom Bracket

  • Praxis, T47 threaded, internal bearing

Front Derailleur

  • Shimano Ultegra R8150 Di2, braze-on, down swing

Cassette/Freewheel

  • Shimano Ultegra R8101, 11-34, 12 speed

Rear Derailleur

  • Shimano Ultegra R8150 Di2, 34T max cog

As Fast As Madone Gen 7

Madone Gen 8 is 77 sec/hr faster than Émonda and as fast as the previous Madone* with new Full System Foil aero shapes that redefine what fast looks like.

*At 200W as a rider system (bike, rider, bottles/cages, and components)

Lighter And More Comfortable IsoFlow Tech

Madone Gen 8’s updated IsoFlow technology is even lighter and up to 80% more vertically compliant than before, absorbing road chatter so your customers can ride stronger longer.

Bontrager Aeolus Pro 51 Carbon Wheels

The versatile Aeolus Pro 51 delivers the latest Aeolus rim profiles for unmatched speed and stability performance at Pro-level prices.

The strong, lightweight Pro-level OCLV Carbon allows for faster, more stable rim profiles.

These Tubeless Ready rims feature a wider 23mm inner width that’s proven to roll with less drag add to the overall speed gains.

Silky-smooth hubs rolling on DT Swiss 350 internals deliver a fast and quick-rolling ride.

All Bontrager carbon wheels are warrantied for life for the original purchaser and come with the added protection of Carbon Care. If you structurally damage your wheels while riding in the first two years of ownership, we'll replace them. It’s that easy.
