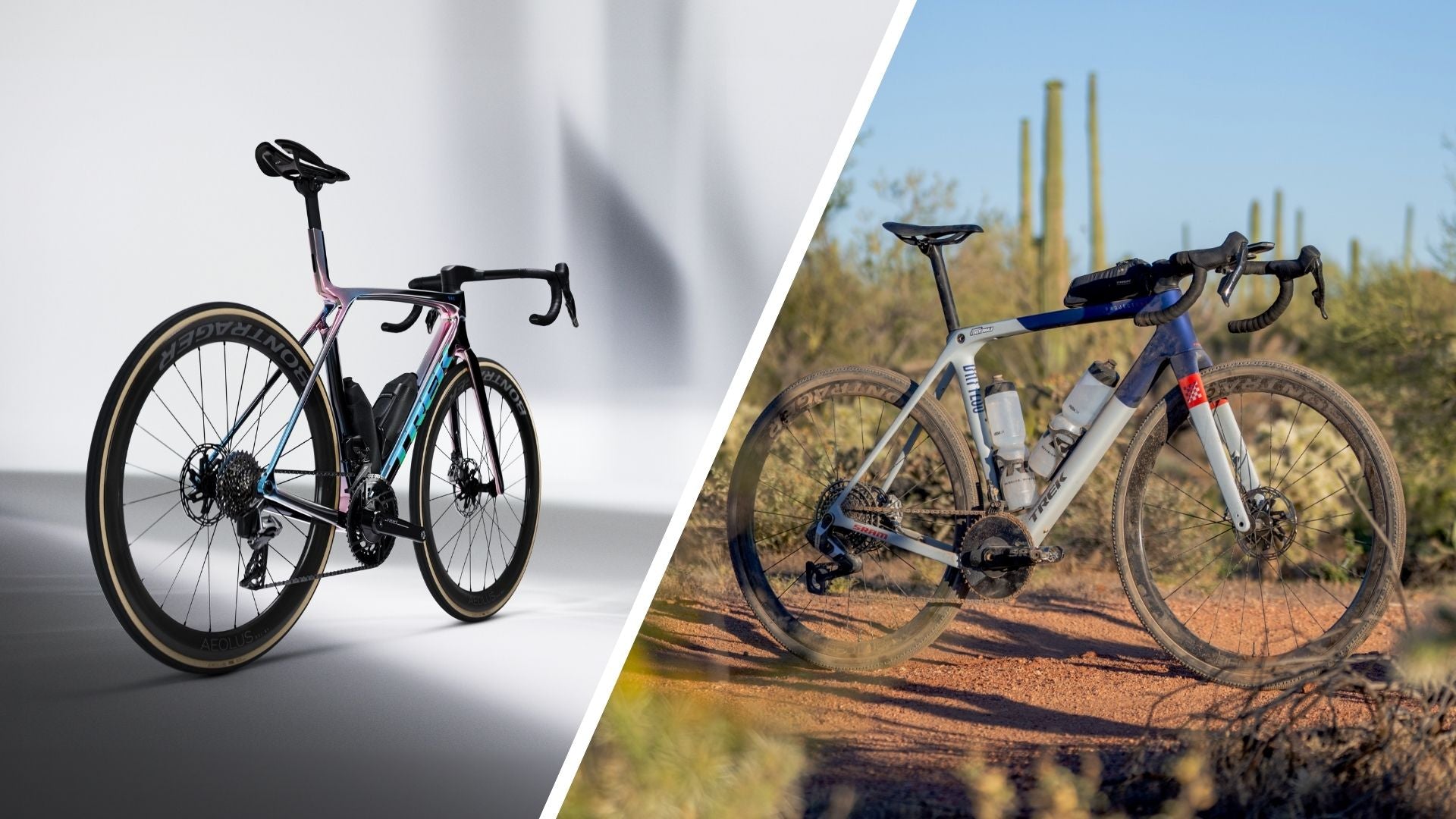

Road vs Gravel Bikes: A Technical Breakdown of What Sets Them Apart
The Gear Behind the Ride.
The difference between road and gravel riding isn’t just in the surface—it’s built into the bike itself. Frame geometry, tire size, gearing, and even the feel of the handlebars all contribute to how each discipline performs and what kind of riding experience it delivers.
Whether you’re choosing your first bike, thinking about switching styles, or trying to optimize for both road and gravel riding, understanding the key technical differences can help you make smarter decisions.
This post breaks down the essential bike specs and features that separate road bikes from gravel bikes—so you can match the right machine to the type of riding you want to do.
New to gravel or road riding? Start with Part 1 of this series for a breakdown of riding styles, mindset, and terrain.
1. Frame Geometry: Stability vs. Speed
Geometry is the foundation of how a bike feels and handles. It affects everything from comfort and responsiveness to how the bike handles climbs and descents.
| Spec | Road Bike | Gravel Bike |
|---|---|---|
| Head Tube Angle | Steeper (73–74°) | Slacker (69–72°) |
| Wheelbase | Shorter for sharper handling | Longer for stability on loose terrain |
| Bottom Bracket | Higher for aggressive cornering | Lower for planted handling |
| Reach & Stack | Lower stack, longer reach (aero) | Higher stack, shorter reach (comfort) |
- Road bikes feel more agile and quick, ideal for group riding and tarmac sprints.
- Gravel bikes are designed for control and comfort on varied surfaces, offering stability over tight maneuverability.
2. Drivetrain and Gearing: Efficiency vs. Versatility
The type of gearing you need depends on terrain, load, and cadence preferences.
Road Drivetrains:
- Setup: Typically 2x (e.g., 52/36T or 50/34T) with a tighter rear cassette (11–28T, 11–32T).
- Goal: Maintain consistent cadence and efficiency at high speeds on pavement.
- Pros: Smooth shifting with narrow gear steps.
- Cons: Limited low-end range for steep or mixed terrain.
Gravel Drivetrains:
- Setup: Often 1x (e.g., 40T with 10–50T cassette) or wide-range 2x (e.g., 46/30T with 11–34T).
- Goal: Handle steep climbs, soft surfaces, and long-range variability.
- Pros: Simpler shifting, greater range, more reliable in harsh conditions.
- Cons: Larger jumps between gears.
Key takeaway: Gravel bikes favour wide gearing to climb anything and adapt to mixed conditions. Road bikes are designed to use tighter ratios for optimized power transfer on consistent terrain.
3. Wheels and Tires: Speed vs. Grip
Road Wheels/Tires
- Size: 700c
- Width: 25–30mm
- Tread: Smooth or slick
- Pressure: 80–110 psi
- Focus: Low rolling resistance and aerodynamic efficiency
Gravel Wheels/Tires
- Size: 700c or 650b (for more tire volume)
- Width: 38–50mm+
- Tread: Knobby or semi-slick
- Pressure: 30–50 psi (tubeless preferred)
- Focus: Traction, comfort, and puncture resistance
Key takeaway: Wider, lower-pressure tires allow gravel bikes to float over rough surfaces, while narrow high-pressure tires keep road bikes fast and responsive on pavement.
4. Braking Systems: Modulation for the Mission
Disc Brakes Dominate Both Disciplines, but there are subtle differences:
| Spec | Road Bike | Gravel Bike |
|---|---|---|
| Brake Type | Hydraulic or mechanical disc | Hydraulic or mechanical disc |
| Rotor Size | Usually 140mm | Usually 160mm or larger |
| Brake Feel | Light modulation, less heat | More stopping power, better heat dissipation |
Gravel riders often face longer descents, heavier loads (bikepacking), or loose traction, so larger rotors and more robust modulation improve safety and control.
5. Frame Features and Mounts: Performance vs. Utility
Road Bikes
- Minimal mounts (one or two bottle cages)
- Focus on clean lines and low weight
- Prioritizes speed over utility
Gravel Bikes
- Mounts for:
- Extra bottles
- Racks and fenders
- Top tube bags and frame bags
- Often have frame clearance for larger tires and mud
Some gravel bikes also feature:
- Dropper posts for technical descents
- Suspension forks or compliance systems (like rear flex stays or dampers)
Key takeaway: Gravel bikes are built for adventure and adaptability. Road bikes are optimized for streamlined performance.
6. Choosing the Right Setup: One Bike or Two?
Whether you need separate bikes or a versatile hybrid depends on your goals.
You might benefit from two dedicated bikes if:
- You ride both disciplines regularly and want the best performance from each.
- You're racing or training seriously on road or gravel.
- You value having a specific tool for specific terrain.
A single do-it-all bike could work if:
- You ride recreationally and don’t mind making a few compromises.
- You prioritize versatility and adventure over pure speed.
- You use different wheelsets (e.g., slick tires for road, knobbies for gravel) to switch setups.
Pro tip: Many modern gravel bikes with endurance geometry and dual wheelsets can double as endurance road bikes with the right tires.
Conclusion: Match the Machine to the Mission
The proper bike setup can transform your experience, whether you're pushing watts on smooth tarmac or grinding up a remote fire road. Understanding how geometry, gearing, tires, and features affect performance enables you to make informed decisions—whether you're upgrading components, purchasing a new bike, or modifying your current one.
There's no one-size-fits-all solution, but when your bike is tuned to your terrain and riding goals, every kilometre feels better.
