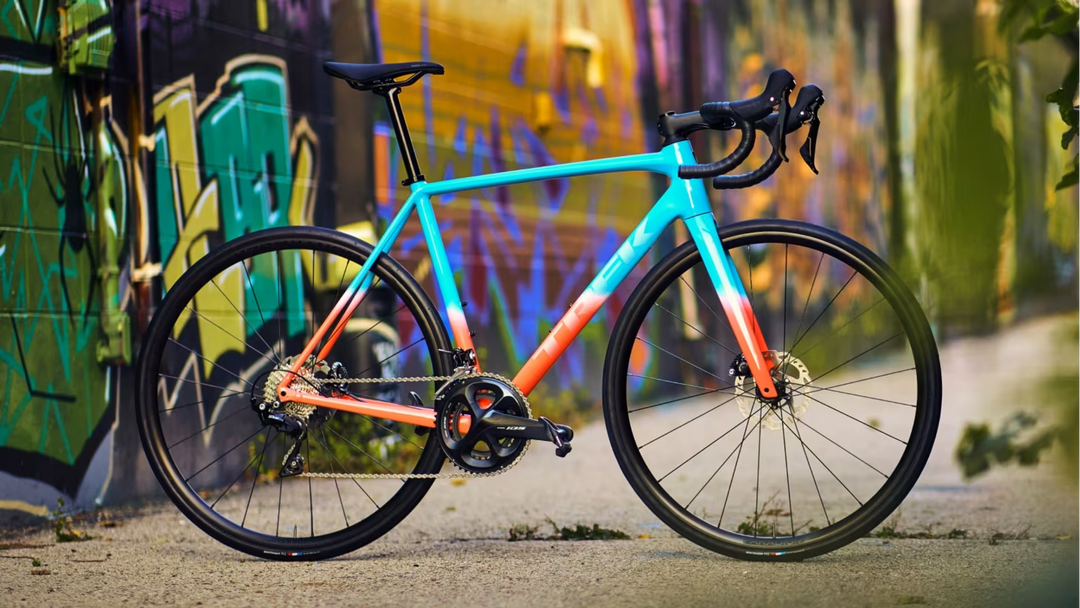

Émonda ALR 5

• This ultralight alloy frame is designed for racing and packs in super tidy cable routing

• It climbs fast, corners on rails, and descends with confidence

• Kammtail tube shapes help make Émonda ALR even faster than before

• It shares the geometry of our highest-end carbon Émonda race bikes, and it gives you a ride quality that stands up in every way to far more expensive carbon bikes

• Internal cable routing extends the life of your cables and adds to the bike's sleek look

Frame

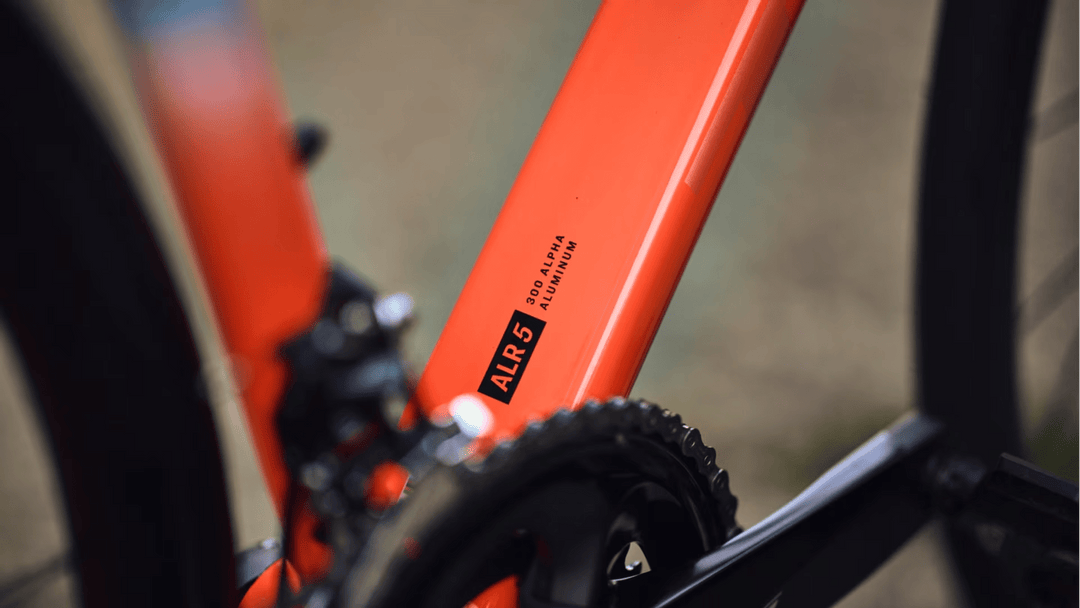

• Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12mm thru axle

Fork

• Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle

Hubs

• Front: Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
• Rear: Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle

Rims

• Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve

Stem

• Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length

Chain

• Shimano SLX M7100, 12 speed

 Tires

• Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm

Brakes

• Shimano 105 hydraulic disc, flat mount

Rotors

• Shimano RT70, centerlock, 160mm

Saddle

• Verse Short Comp, steel rails, 145mm width

Crankset

• Shimano 105 R7100, 50/34, 175mm length

Seatpost

• Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length

Shifters

• Shimano 105 R7120, 12 speed // Shimano 105 R7120, 12 speed

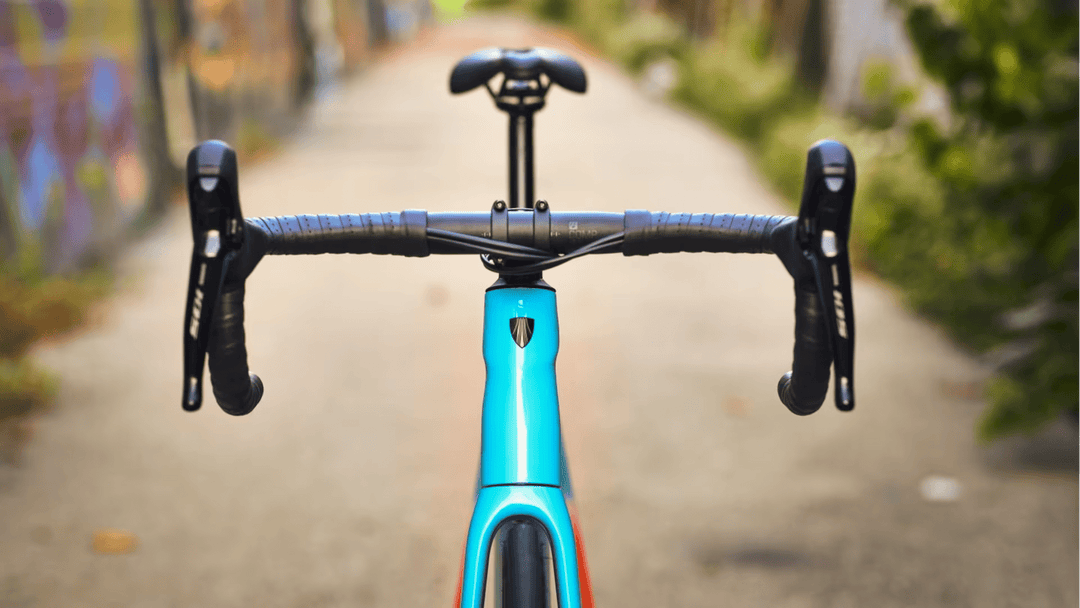

Handlebars

• Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width

Tape/Grips

• Bontrager Supertack Perf tape

Rear Derailleur

• Shimano 105 R7100, 36T max cog

Cassette/Freewheel

• Shimano 105 7101, 11-34, 12 speed

Bottom Bracket

• Praxis, T47 threaded, internal bearing

Front Derailleur

• Shimano 105 R7100, braze-on, down swing

* Subject to change without notice.
