Avant H40

UPC: 8434446814631

Colour — Magnetic Bronze/Cosmic Bronze Magnetic Bronze/Cosmic Bronze

Size 49 51 53 55

Price

~~$2,399.99~~

Save $0

/

Low stock - 1 item left
Backordered, shipping soon

Pickup currently unavailable at Orléans

Check availability at other stores

Avant H40

Magnetic Bronze/Cosmic Bronze / 55

Orléans

Pick up currently unavailable

2016 10th Line Road
Unit 1
Ottawa ON K4A 3W3
Canada

+13437802070

Stittsville

Pick up currently unavailable

5607 Hazeldean Road
Ottawa ON K2S 0P5
Canada

+16138313604

Westboro

Pickup available, usually ready in 2-4 days

203 Richmond Road
Ottawa ON K1Z 6W4
Canada

+16137921170

Size chart

Size	Rider Height
47	155 - 160 cm 61.1" - 63.0"
49	160 - 166 cm 63.0" - 65.4"
51	167-172 cm 65.7"-67.7""
53	173-179 cm 68.1"-70.5"
55	180-185 cm 70.9"-72.8"
57	186–191 cm 73.2"-75.2"
60	192–207 cm 75.6"-81.5"

Pairs well with

Avant H40

Orbea

Frame:: Orbea Avant Hydro disc, hydroformed triple butted aluminium
Fork:: Orbea Avant Hydro 2025, full carbon
Tires:: Vittoria Zafiro V Rigid bead 700x28c
Wheels:: Alloy, Tubeless, 700c, 19c, 28H
Rear Derailleur:: Shimano Tiagra 4700 GS
Brakes:: Jagwire RideRever Mechanical Disc
Saddle:: Fizik Aliante R5
Stem / Handlebar:: OC Road Performance RP22 / OC Road Performance RP31-R
Tire Clearance:: 35mm (32mm with fenders)
Sizes:: 47, 49. 51, 53, 55, 57, 60
Weight (lbs/kg):: n/a

Price match guarantee

Locally owned

Secure payments

A perfect companion, no matter how far the road takes you.

Fill your water bottles every time you head out because with Avant's blend of speed and comfort, you could be out for a long ride.

Extra Storage: Leave the saddle bag at home with the made-to-measure Service box. There is space for necessities like tubes, CO2 cartridges, tire levers and house keys

Multi Mount System: Avant´s mounting points fit any market-standard mudguard and fenders

35c Tire Clearance: Clearance for tires up to 35C (32C with a mudguard) means Avant handles confidently on rougher roads.

Frameset

Frame: Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.
Fork: Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
FSA 1-1/2" Integrated Aluminium Cup

Drivetrain

Crankset: FSA Omega Megaexo 34x50t
Shifters: Shimano Tiagra ST-4700
Cassette: Sun Race CSMS1 11-34t 10-Speed
Rear derailleur: Shimano Tiagra 4700 GS
Front derailleur: Shimano Tiagra 4700
Chain: KMC X10

Cockpit

Handlebar: OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
Stem: OC Road Performance RP22, -5º

Brakes

Brakes: Jagwire RideRever Mechanical Disc

Wheels

Wheels: Alloy, Tubeless, 700c, 19c, 28H
Tires: Vittoria Zafiro V Rigid bead 700x28c
Front Wheel Axle: Orbea Thru Axle 12x100mm M12x2 P1 Solid
Rear Wheel Axle: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

Components

Seatpost: SP 0.6, Alloy, 27.2mm, Setback 20
Saddle: Fizik Aliante R5

Accessories

Handlebar Tape: Orbea Eva
Storage: OC Toolbox TB03PP

* Subject to change without notice.

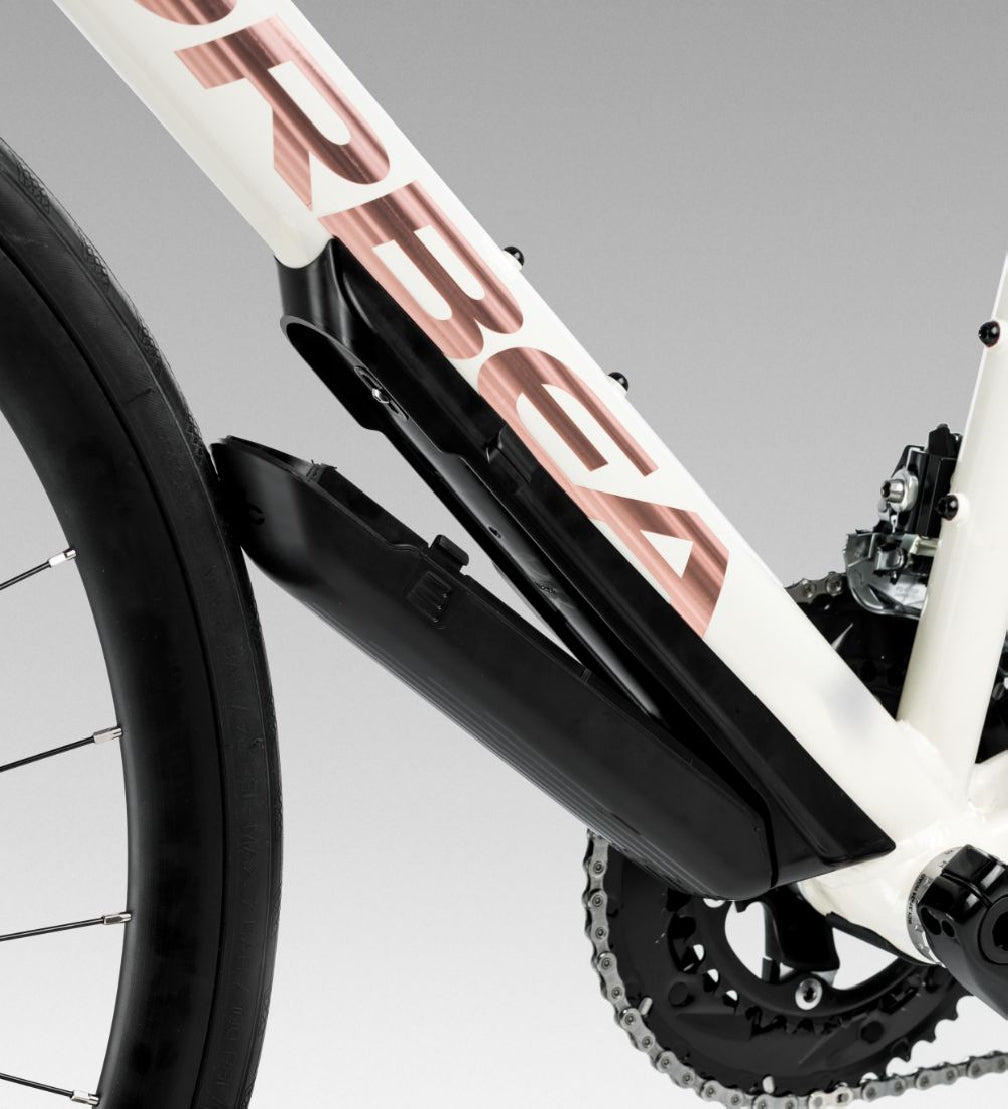

Service Box

Leave the saddle bag at home with the made-to-measure Service box. There is space for necessities like tubes, CO2 cartridges, tire levers and house keys.

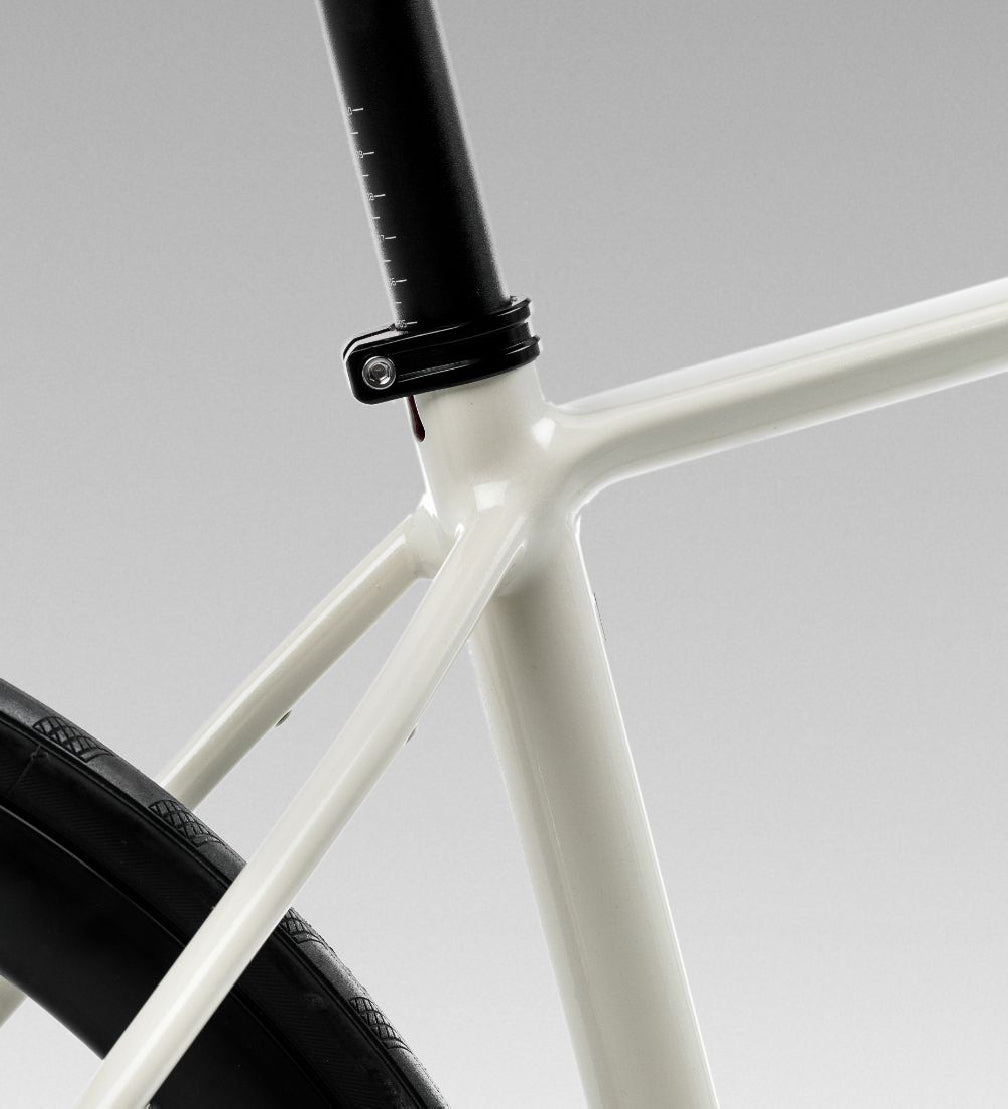

Advanced Alloy

Controlling the shapes and wall thickness of Orbea's aluminum tubing reduces weight, increases strength and limits unwanted flex. Using aluminum technologies as advanced as Orbea's carbon manufacturing ensures our aluminum bikes are never second-best.

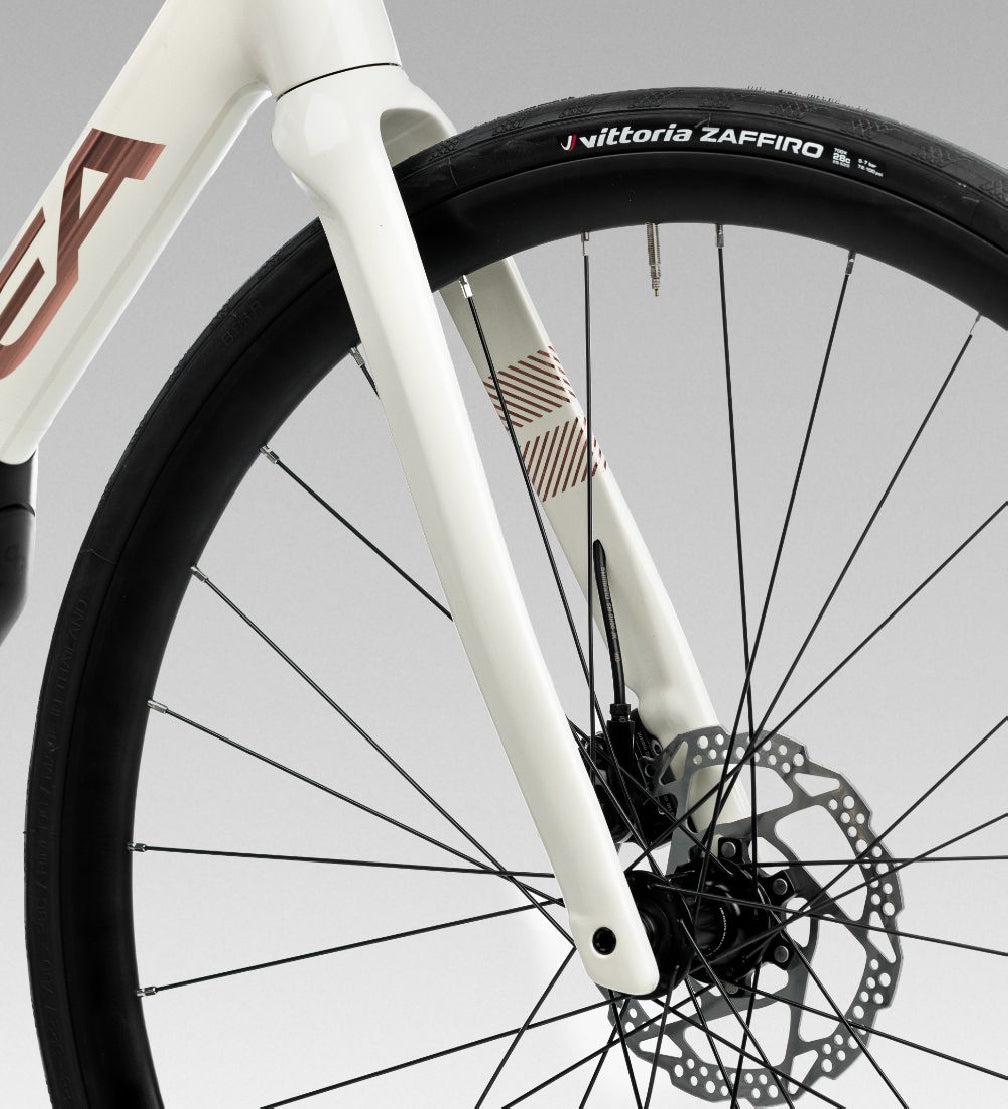

Carbon Fork

The OMR carbon fork saves weight, and the carbon structure we use helps absorb vibrations without compromising rigidity under braking or hard cornering.
