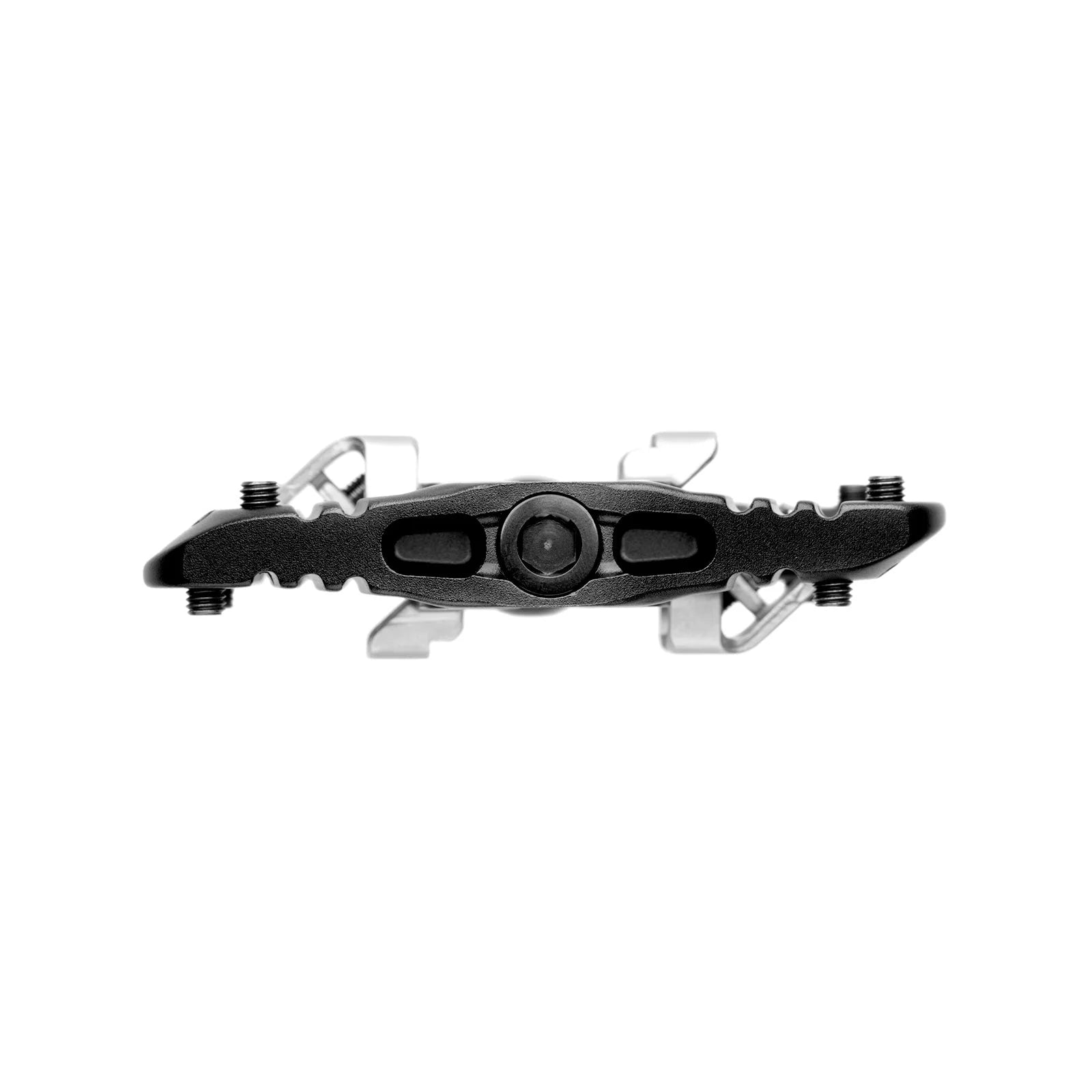

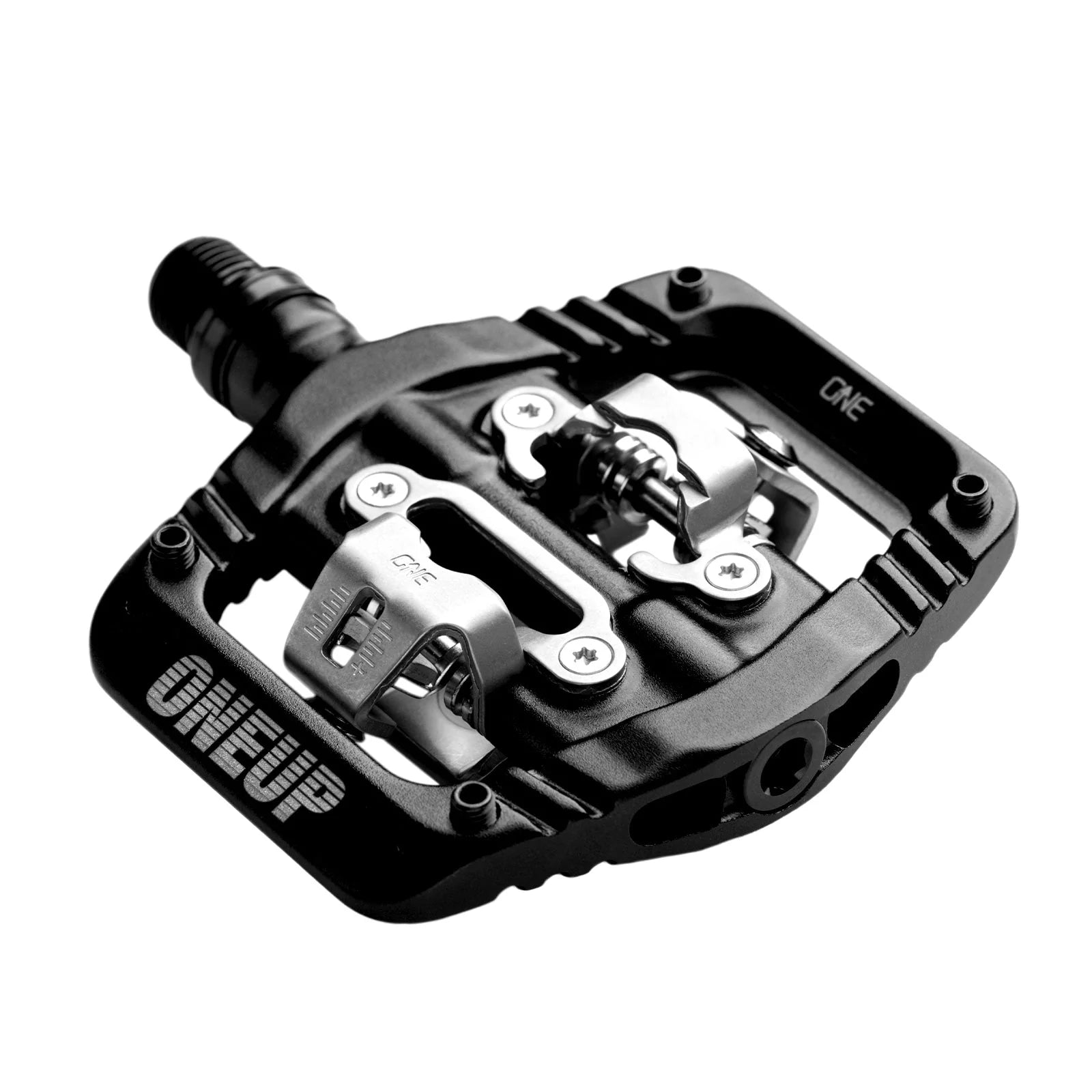

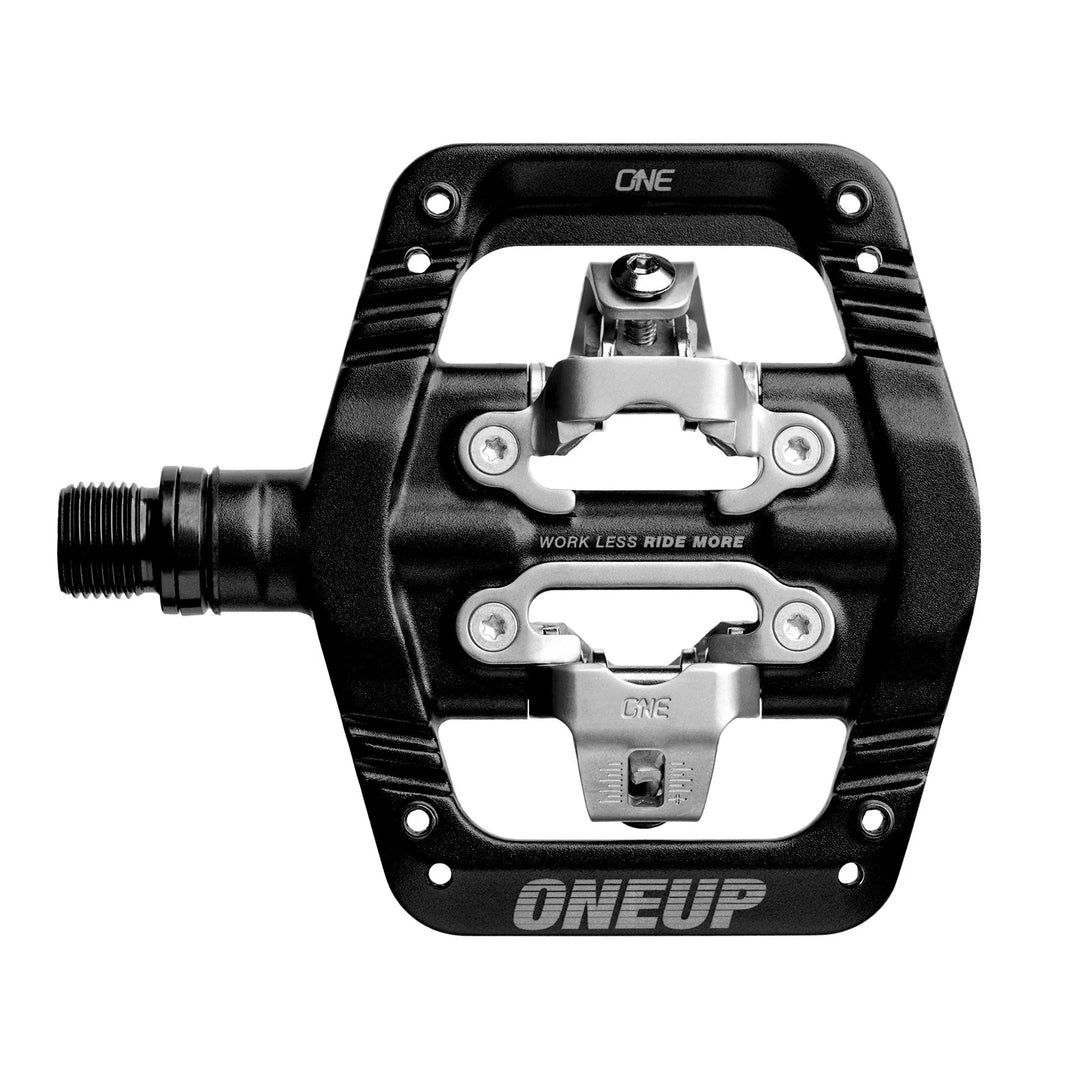

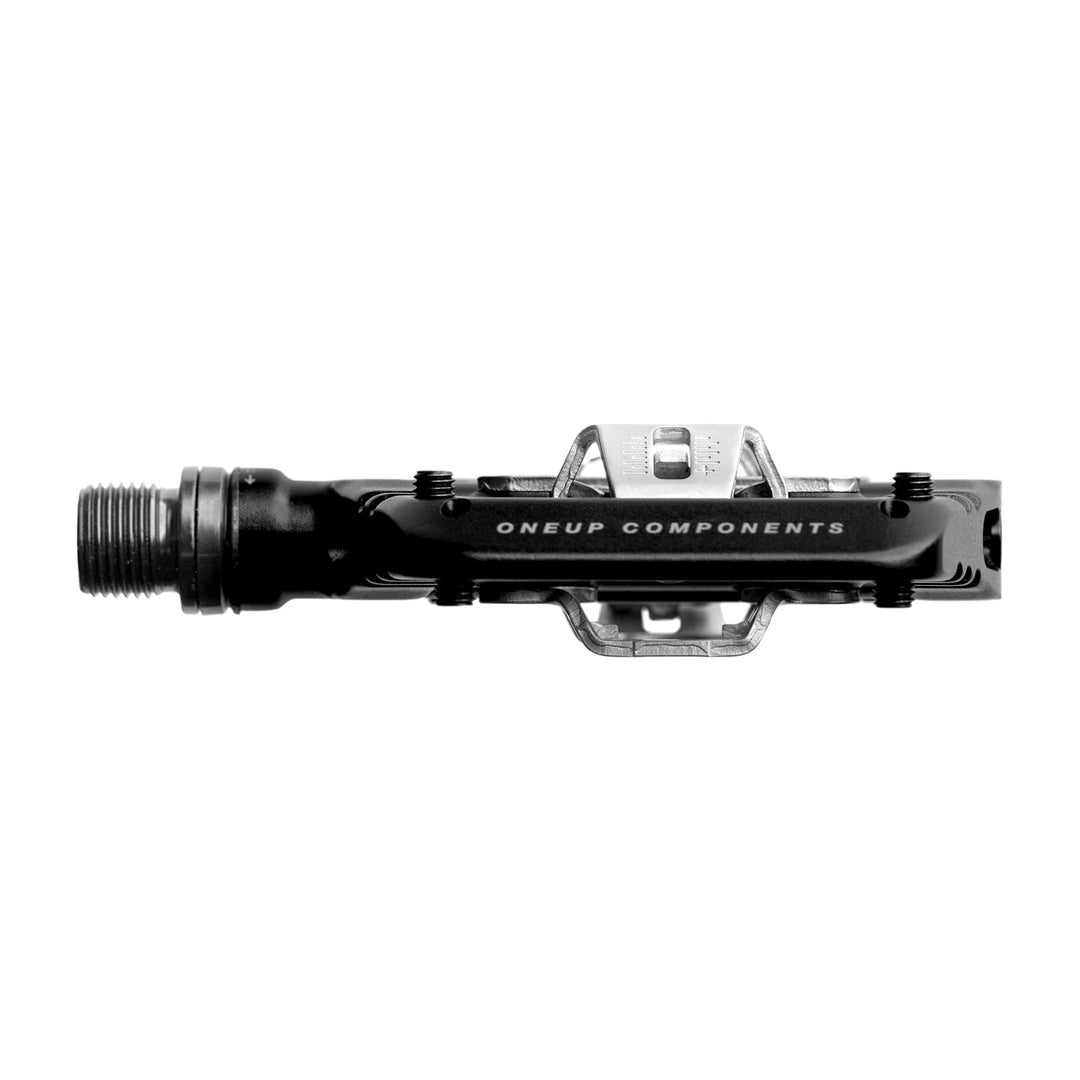

Clip Pedals

Things you Should Know

• Comes with SPD compatible cleats and 1mm cleat spacers for shoe fit tuning.
• Hollow, removable traction pins offer fine-tuning of grip and support, with a mud-clearing design that can be installed or removed from either side of the pedal.
• Included Pedal Bearing Nut Tool allows you to easily disassemble, clean, and grease your axle system.
• Custom, Stainless Steel, SPD Compatible Binding offers a locked-in feel with no unwanted play, and works with OneUp's own cleats and Shimano SPD cleats.
• 5 degrees of float and 12 degree release angle.
• 1 year manufacturer warranty.
• Wide-range release tension adjustability is secure enough for racers, yet forgiving enough for beginners, with an indicator to easily match the tension on all four bindings.

• Weight:410g with pins (4 pins per side)
• Thickness:14.4mm (body), 26.8mm (binding)
• Size:80mm x 90mm (W x L)
• Stance width:57.5mm (center of clip to outside of crank face)
• Float: 5° (12° release angle)
• Cleats:SPD™Compatible (includes 1mm cleat spacers for shoe fit tuning )
• Bearing configuration:Inboard igus Bushing and 3x outboard sealed cartridge bearings
• Axle:Chromoly Steel with Black ED coating
• Pins:Hollow M5x8mm threaded pins (self cleaning hex through hole)
