UPC: 601842802298
Colour — Crimson
Size
Price
Save $2,850
/
  • In stock, ready to ship
  • Backordered, shipping soon
Size chart
 Size  Rider Height  Inseam
 XS

145 - 155 cm

4'9" - 5'1"



69 - 73 cm

27" - 29"
 S

155 - 165 cm

5'1" - 5'5"



74 - 78 cm

29" - 31"
 M

165 - 176 cm

5'5" - 5'9"



79 - 83 cm

31" - 33"
ML

173 - 180 cm

5'8" - 5'11"



81 - 86 cm

32" - 34"
L

177 - 188 cm

5'10" - 6'2"



84 - 89 cm

33" - 35"
XL

188 - 195 cm

6'2" - 6'5"



89 - 91 cm

35" - 36"
 XXL

195 - 203 cm

6'5" - 6'8"



91 - 97 cm

36" - 38"


Pairs well with
Frame:
OCLV Mountain Carbon
Fork:
Fox Rhythm 36, 150mm travel
Rear Suspension:
Fox Performance Float X, 185mm x 55mm

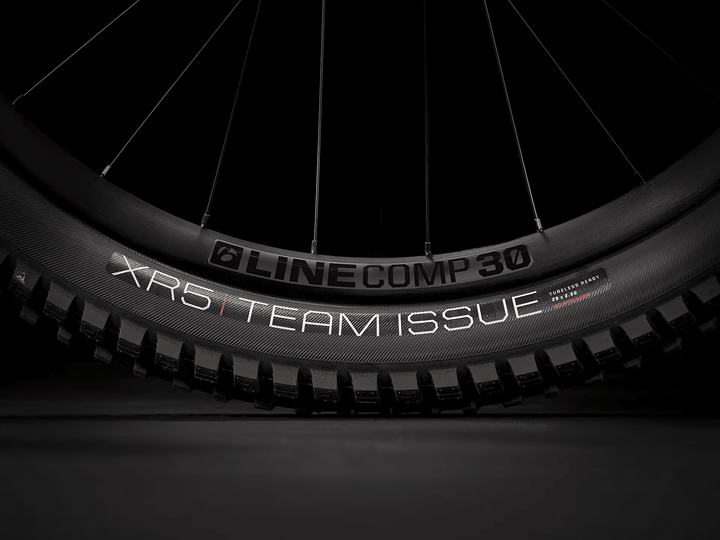

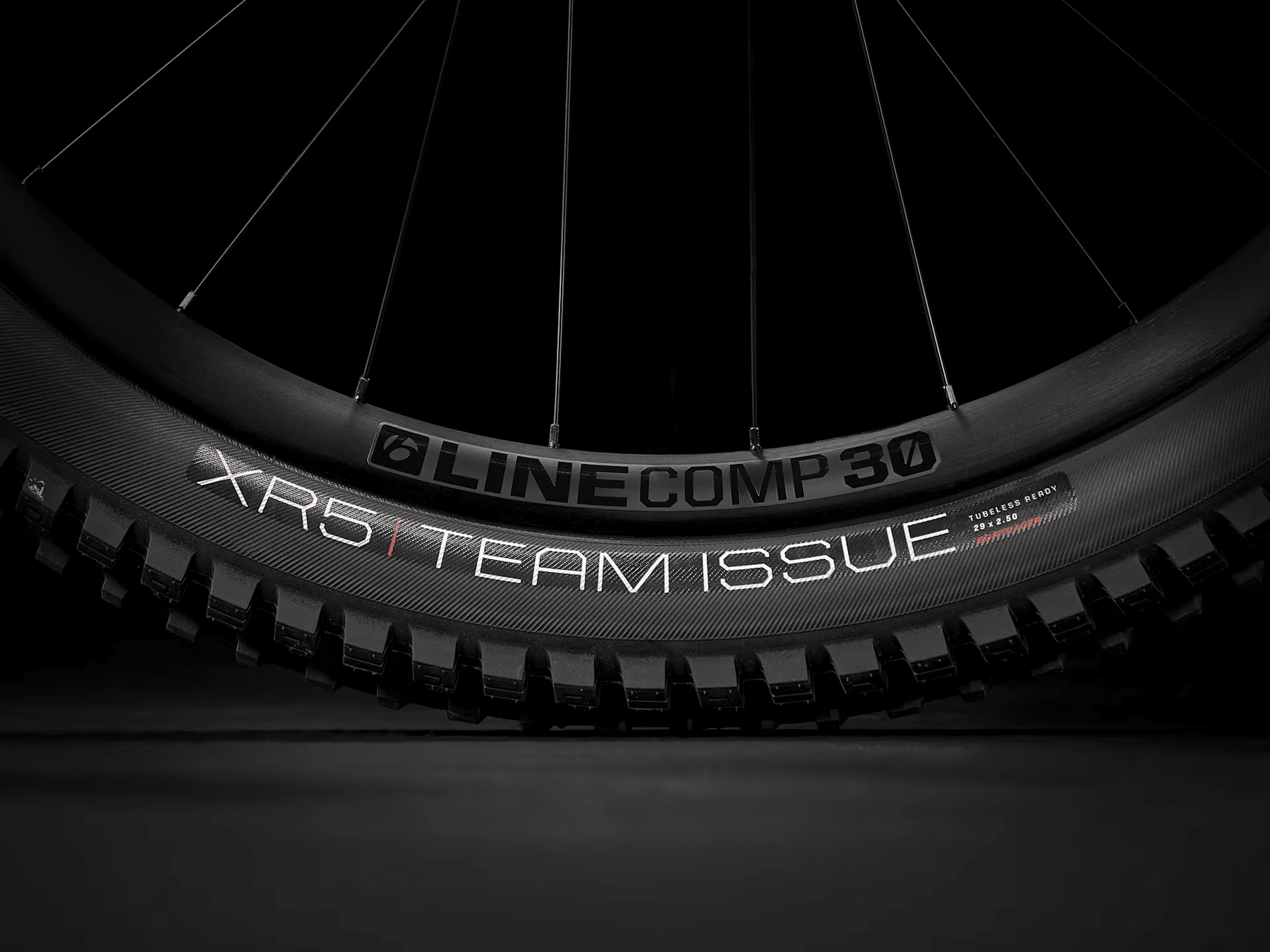

Tires:
XR5 Team Issue, 29 x 2.50"
Wheels:
Bontrager Line Comp 30, 29''
Rear Derailleur:
Shimano XT M8100
Brakes:
Shimano M6120 4-piston hydraulic disc
Seatpost:
TranzX JD-YSP39
Stem / Handlebar:
Bontrager Elite / Bontrager Line
Weight (lbs/kg):
M - 32.55 lbs / 14.76 kg (with TLR sealant, no tubes)
Sizes:
MD
  • Price match guarantee
  • Locally owned
  • Secure payments

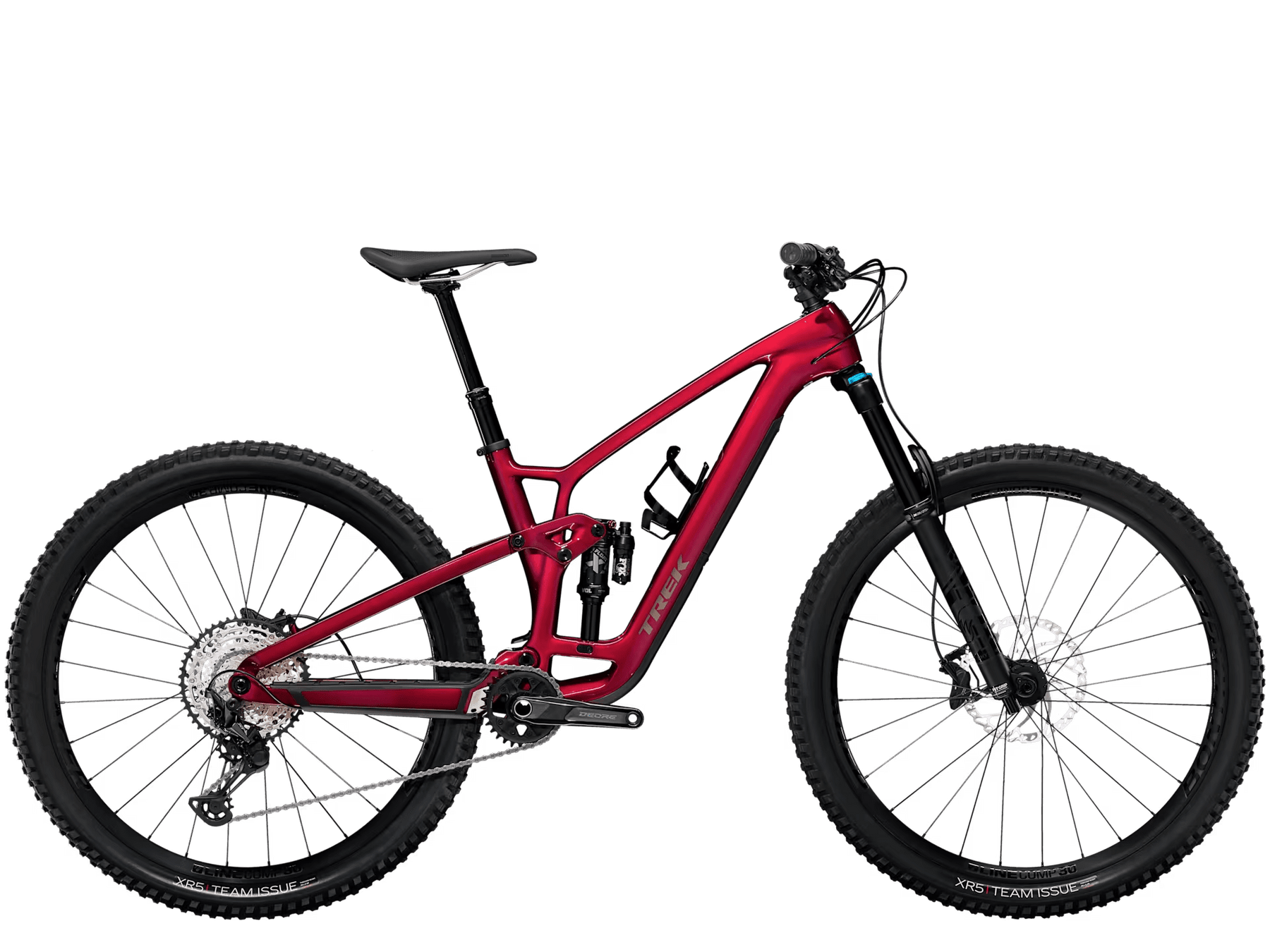

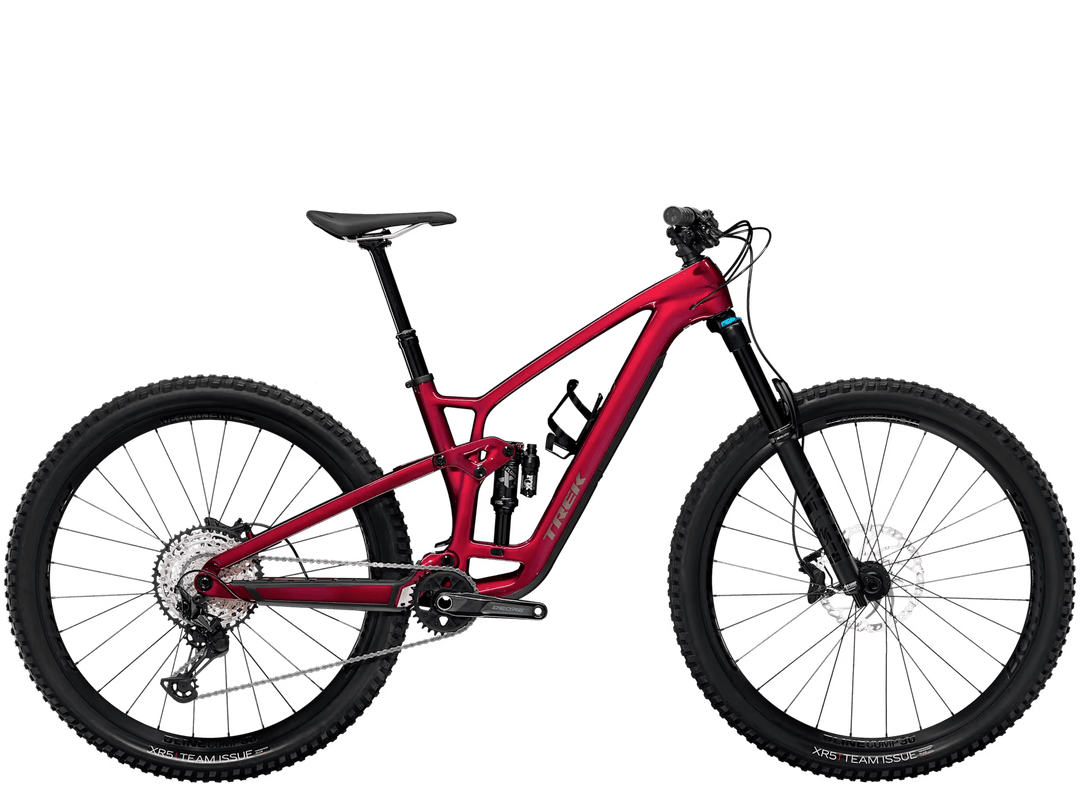

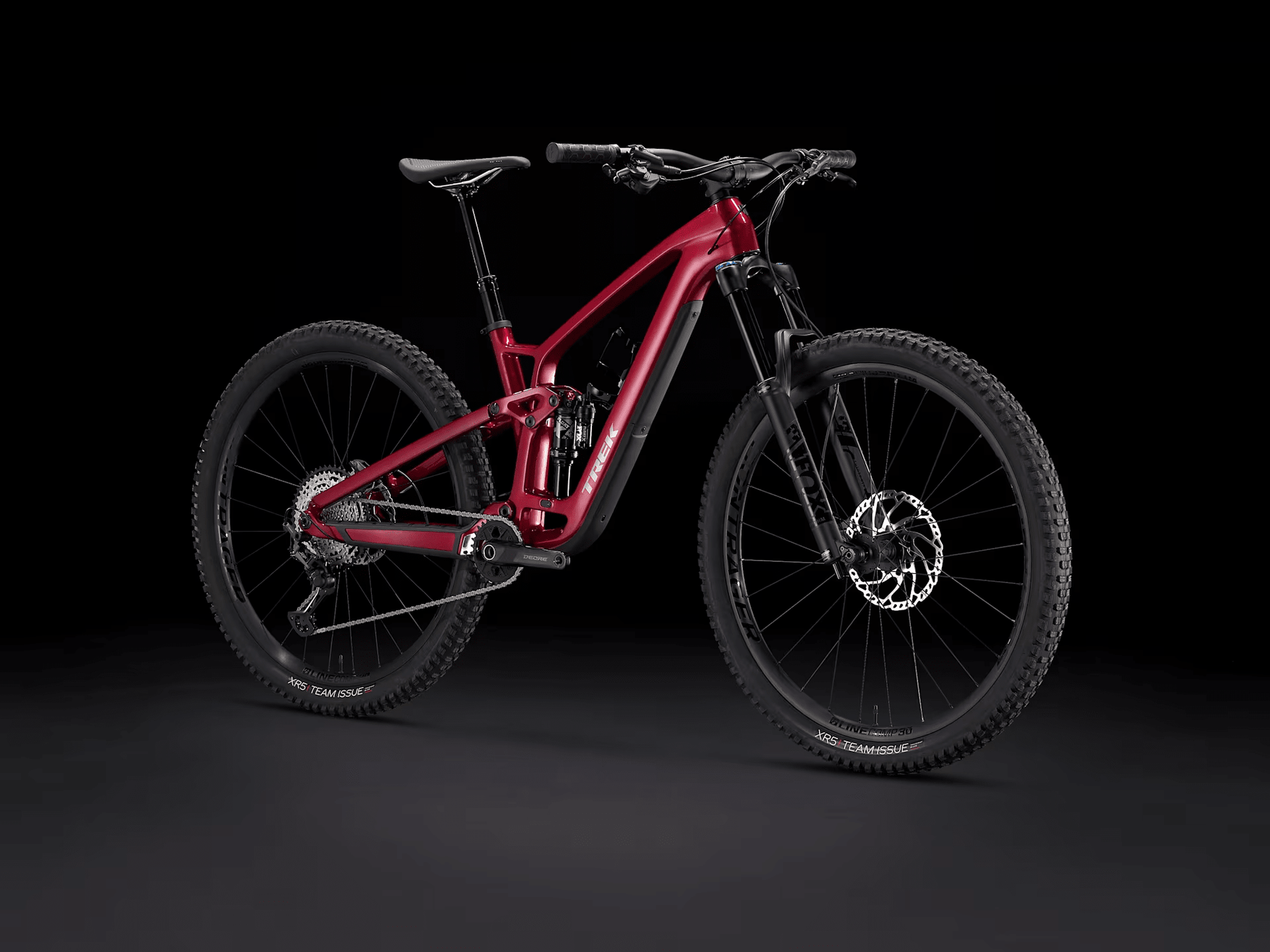

Fuel EX 9.7 is an all-mountain ripper that rolls in with the best balance of performance and pocket-friendly components, without skimping on the good stuff.

It features a lightweight carbon frame, plus a cherry-picked blend of Shimano SLX and XT components that balance price and ride quality, plus, the ultra-smooth handling of a FOX 150mm front and 140mm rear suspension.

Frameset

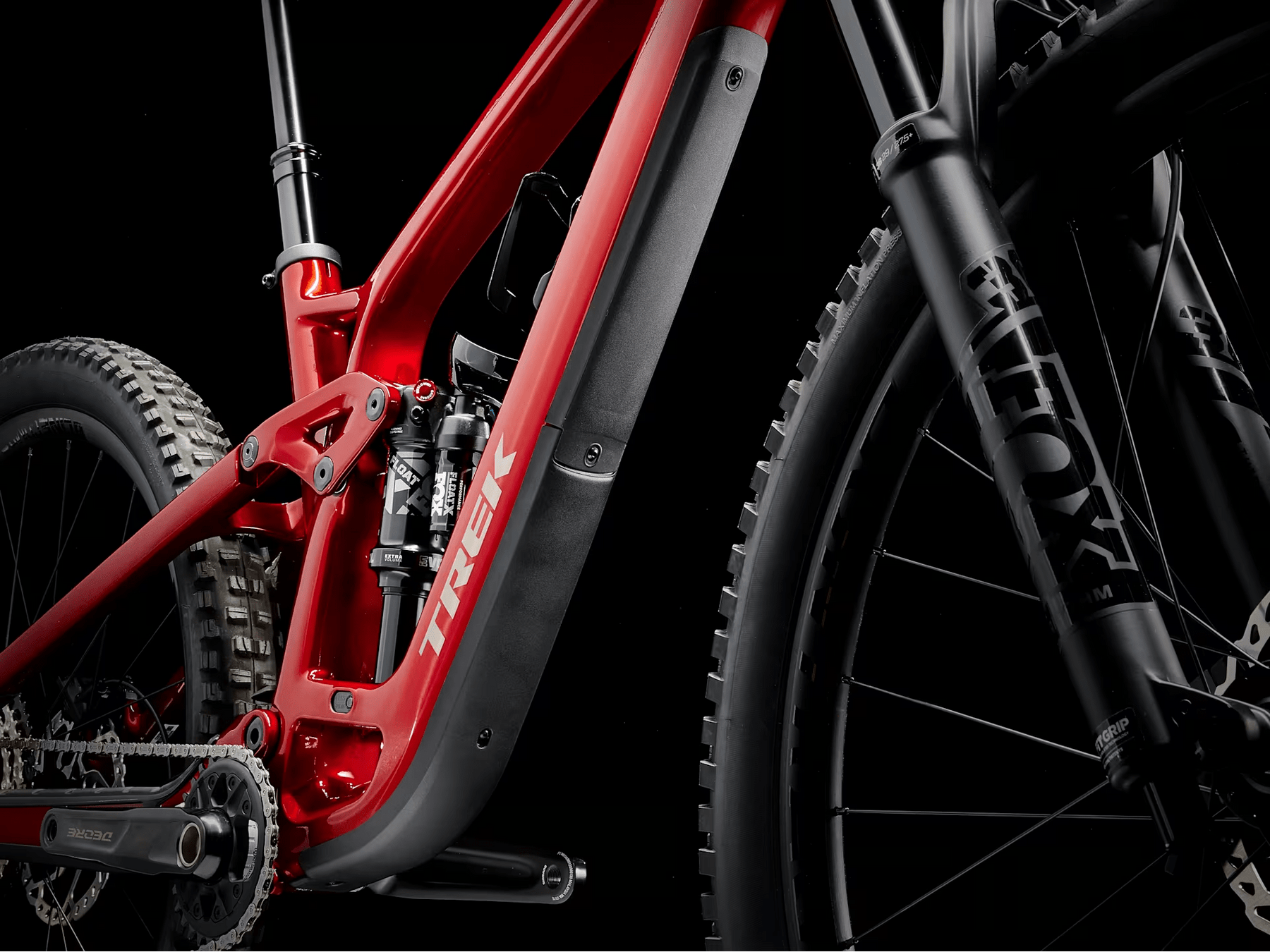

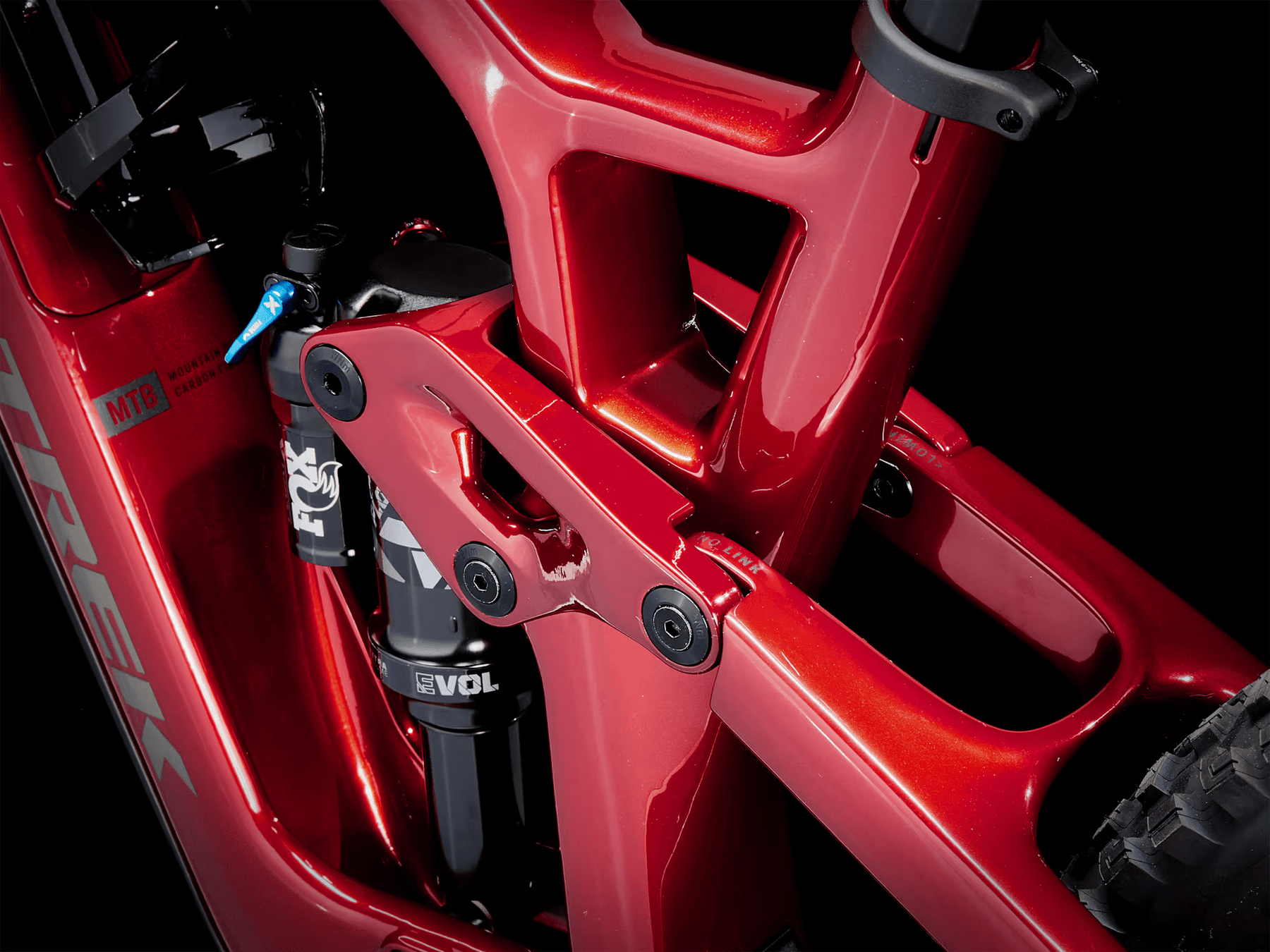

  • Frame: OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
  • Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel

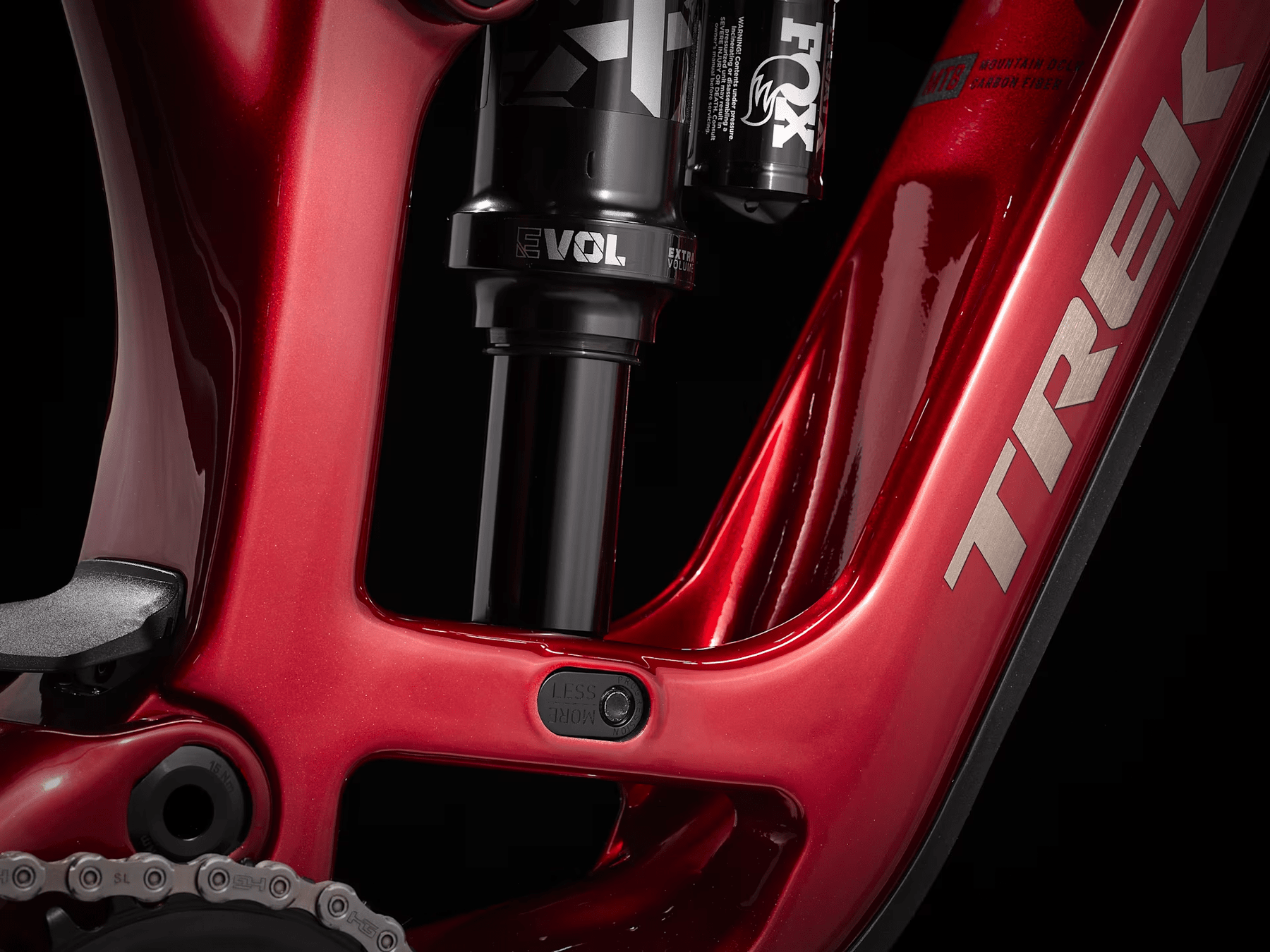

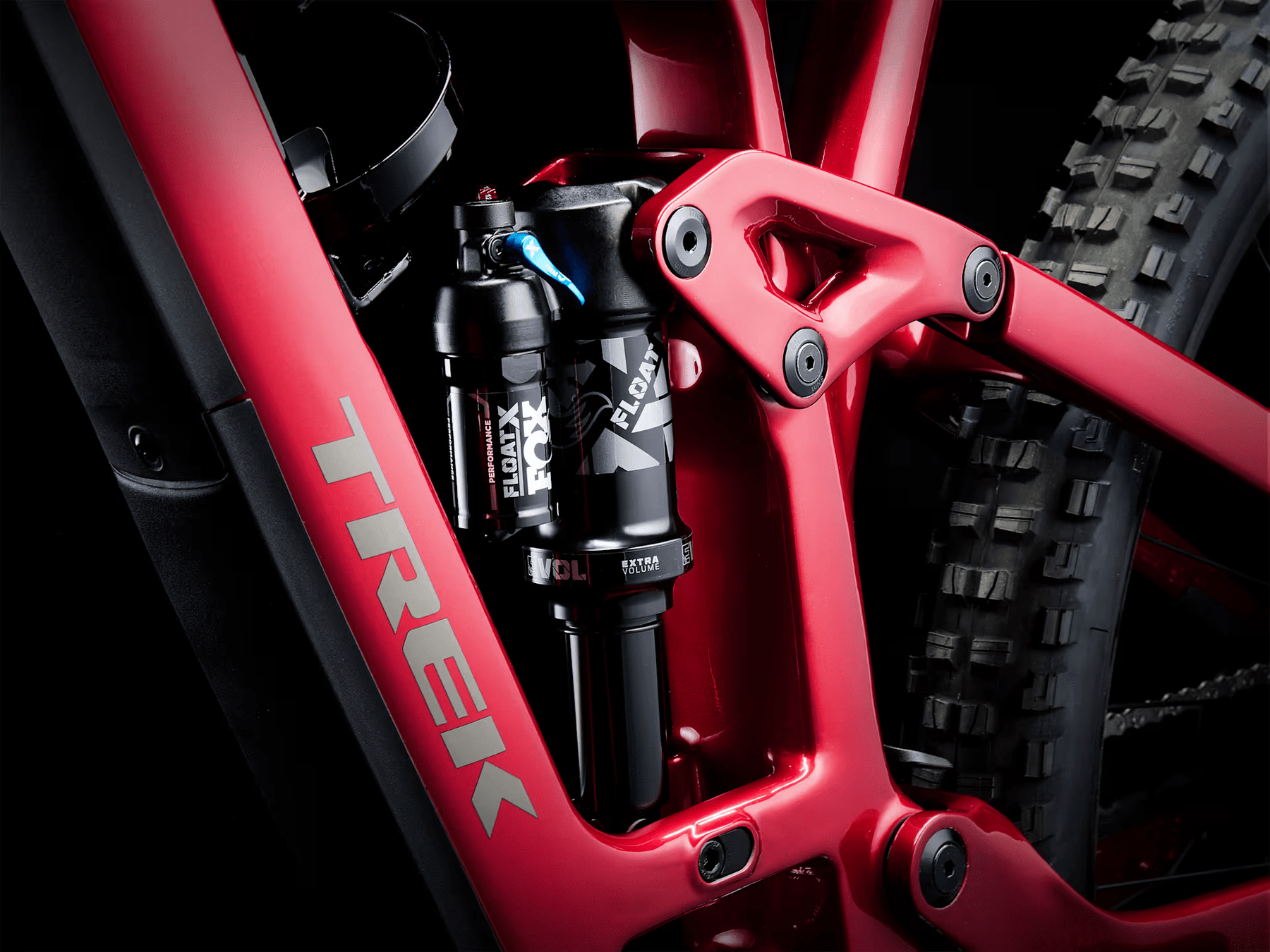

  • Shock: Fox Performance Float X, 2-position damper, 185mm x 55mm
  • Max compatible fork travel: 160mm

Wheels

  • Wheel front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
  • Wheel rear: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
  • Wheel rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
  • Wheel rear: Bontrager Line Comp 30, High Strength 6000 Series Aluminum rim, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29''
  • Skewer rear: Bontrager Switch thru axle, removable lever
  • Rim: Bontrager Line Comp 30, Tubeless Ready
  • Rim strip: Bontrager TLR
  • Max tire size: Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer

Drivetrain

  • Shifter: Shimano SLX M7100, 12 speed

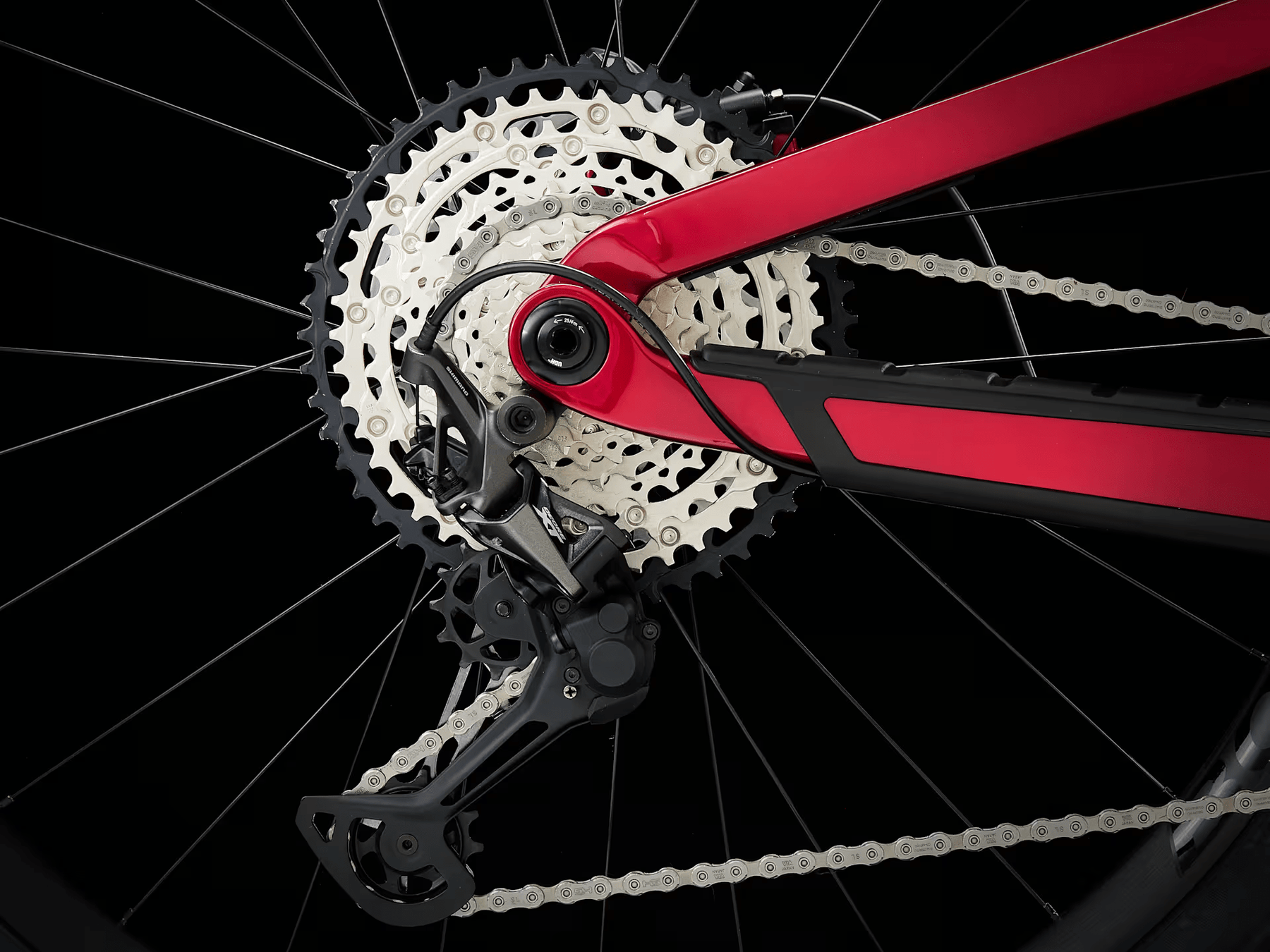

  • Rear derailleur: Shimano XT M8100, long cage
  • Crank: Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
  • Bottom bracket: Shimano SM-BB52, 73mm, threaded external bearing
  • Cassette: Shimano SLX M7100, 10-51T, 12 speed
  • Chain: Shimano SLX M7100, 12 speed
  • Max chainring size: 1x: 34T round, 32T oval, min 28T

Components

  • Saddle: Bontrager Arvada, hollow chromoly rails, 138 mm width
  • Seatpost: TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
  • Handlebar: Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
  • Grips: Bontrager XR Trail Elite, nylon lock-on
  • Stem: Bontrager Elite, 35mm, 0 degree, 45mm length

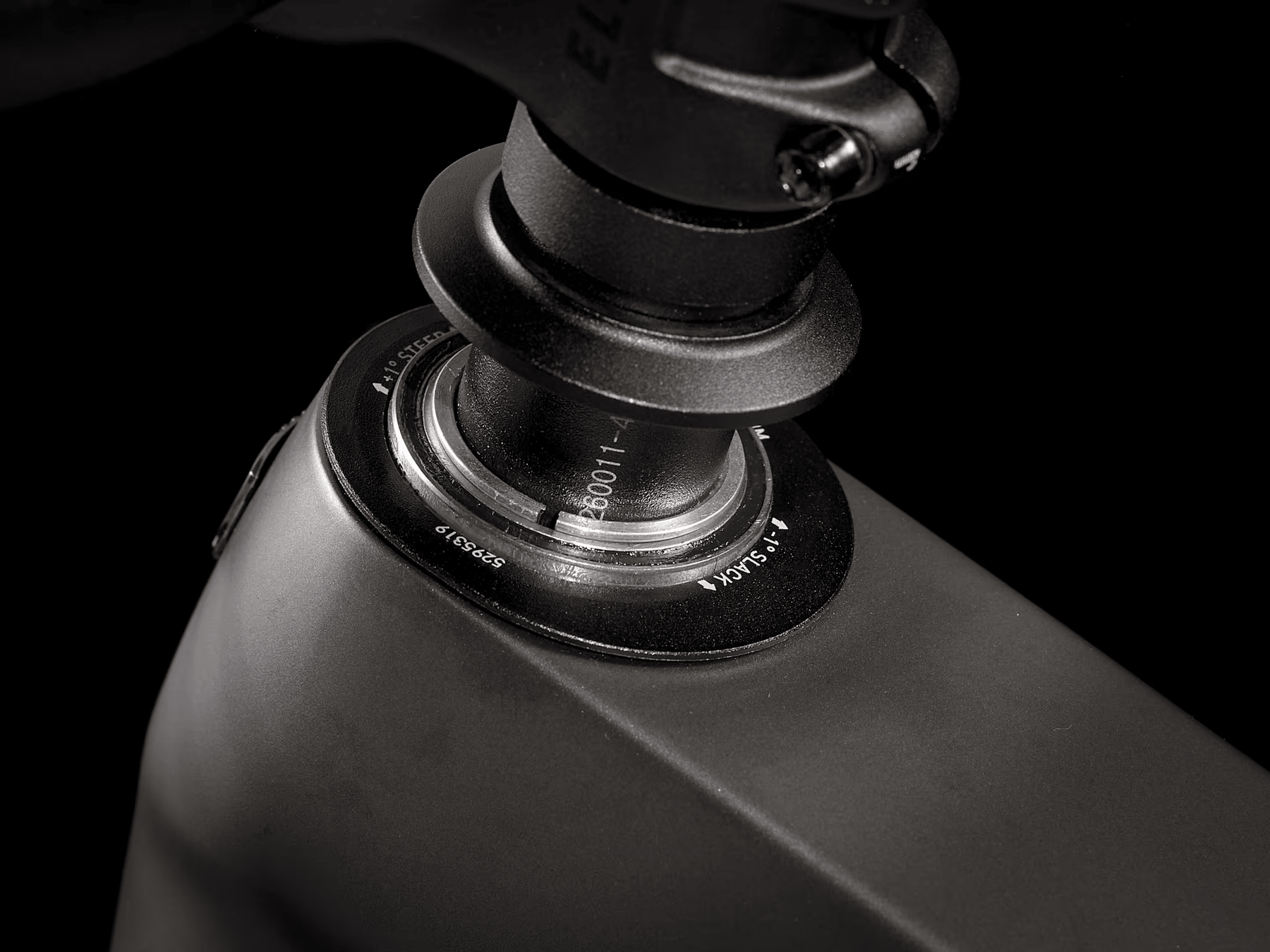

  • Headset: Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
  • Brake: Shimano M6120 4-piston hydraulic disc
  • Brake rotor: Shimano RT66, 6-bolt, 203mm
  • Rotor size: Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Accessories

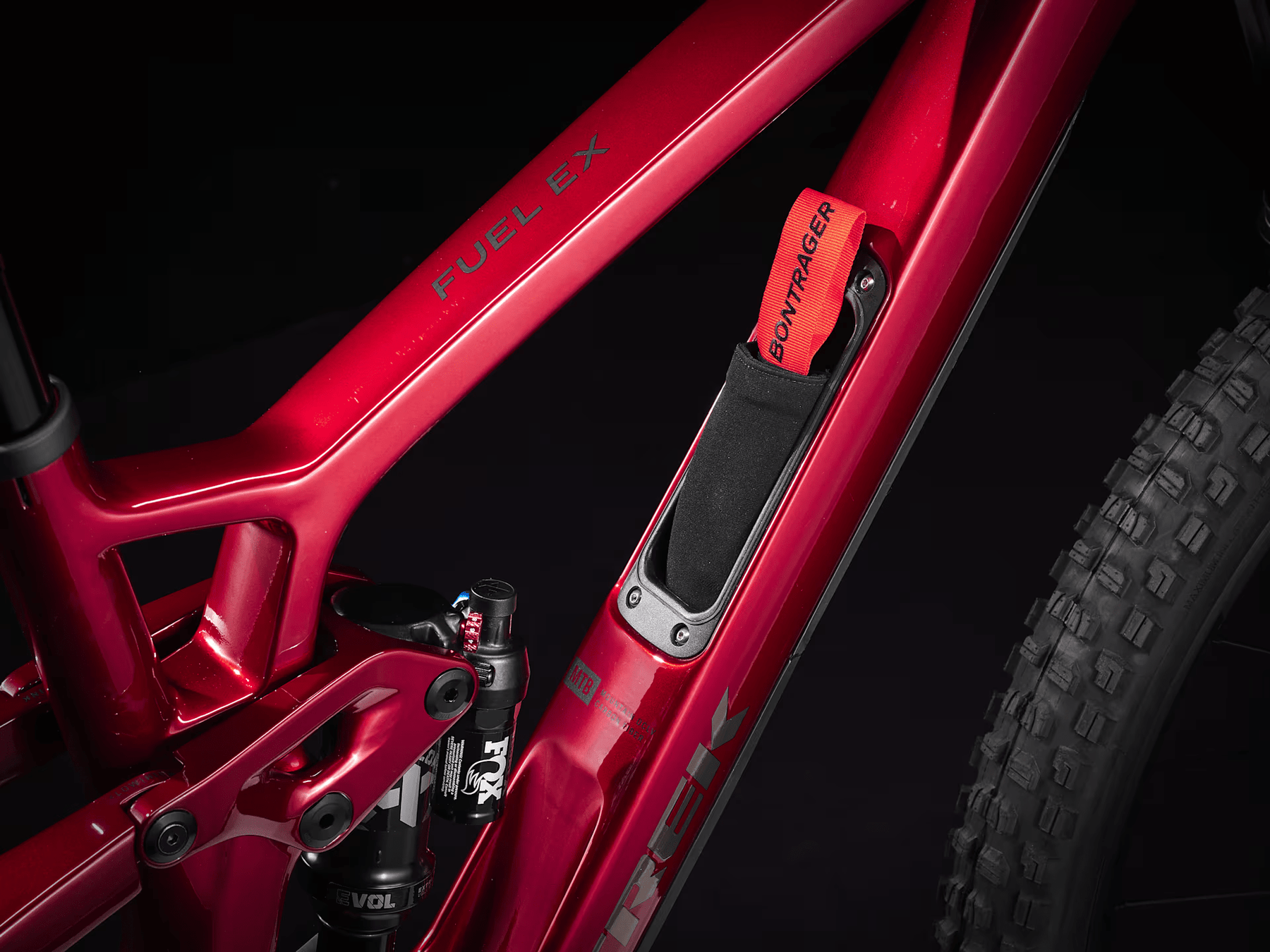

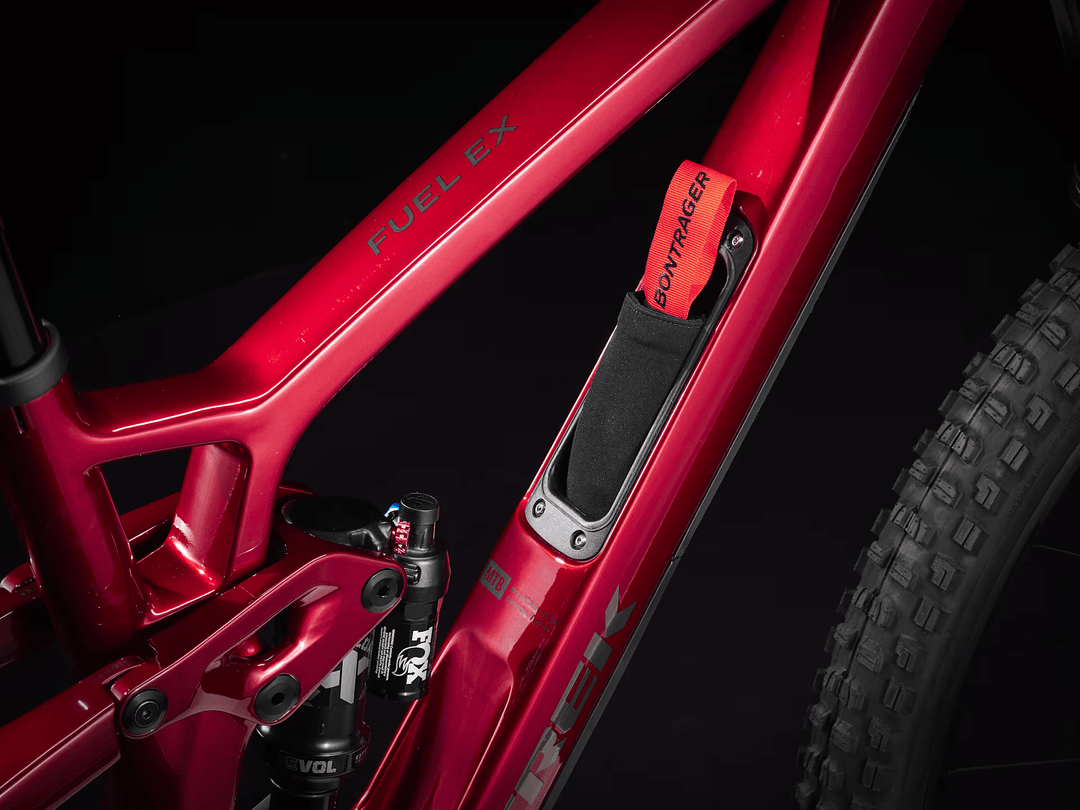

  • Bag: Bontrager BITS Internal Frame Storage Bag

Weight

  • Weight: M - 14.76 kg / 32.55 lbs (with TLR sealant, no tubes)
  • Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

* Subject to change without notice.
