Orca M30i 105 Di2
Orca M30i 105 Di2
Orca M30i 105 Di2
Orca M30i 105 Di2
Orca M30i 105 Di2
Orca M30i 105 Di2
Orca M30i 105 Di2
Orca M30i 105 Di2

Orca M30i 105 Di2

UPC: 8434446815898
Colour — Ivory White/Burgundy
Size
Price
Save $0
/
  • Low stock - 1 item left
  • Backordered, shipping soon
Size chart
 Size  Rider Height
 47

155 - 160 cm

61.1" - 63.0"
 49

160 - 166 cm

63.0" - 65.4"
51

167-172 cm

65.7"-67.7""
 53

173-179 cm

68.1"-70.5"
 55

180-185 cm

70.9"-72.8"
 57

186–191 cm

73.2"-75.2"
 60

192–207 cm

75.6"-81.5"


Pairs well with
Frame:
Orbea Orca carbon OMR 2024
Fork:
Orbea Orca OMR ICR 2024, full carbon
Tires:
Vittoria Zafiro V Rigid bead 700x28c
Wheels:
Alloy, Tubeless, 700c, 19c, 28H
Rear Derailleur:
Shimano 105 Di2 R7150
Brakes:
Shimano R7170 Hydraulic Disc
Saddle:
Fizik Aliante R5
Stem / Handlebar:
OC Road Performance RP22 / OC Road Performance RP31-R
Tire Clearance:
32mm
Sizes:
47, 49, 51, 53, 55, 57, 60
Weight (lbs/kg):
n/a
  • Price match guarantee
  • Locally owned
  • Secure payments

Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top. The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff.

The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff. Welcome the ultimate climbing machine!

  • Lightweight: Achieving Orca´s light weight required many marginal gains, focusing on the details and using the best materials across the range. Considering the bike as a package means working with component and wheel designers right from the start to optimize stiffness and weight.

  • Rigid In All The Right Places: Having the lightest bike is worth nothing if it isn’t stiff and efficient. When Orbea designed Orca, we started with a target rigidity to ensure that even the strongest climbers could be sure of efficient power transmission. Then they designed Orca to be as light as possible without compromising that number.

  • Frame Design: Orbea's clever frame design means that stiff doesn't have to be uncomfortable. Rounder frame sections help reduce vibrations, saving energy on longer rides and offering you an advantage on that final climb. Wider clearance allows for tires of up to 32mm- maximizing traction and compliance.



Frameset

  • Frame: Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread
    M12x2 P1, internal cable routing.
  • Fork: Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
  • Steerer tube: FSA 1-1/2" Integrated Aluminium Cup

Drivetrain

  • Crankset: Shimano 105 R7100 34x50t
  • Shifters: Shimano Di2 R7170
  • Cassette: Shimano 105 R7100 11-34t 12-Speed
  • Rear derailleur: Shimano 105 Di2 R7150
  • Front derailleur: Shimano 105 Di2 R7150
  • Chain: Shimano M6100

Cockpit

  • Handlebar: OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
  • Stem: OC Road Performance RP22, -5º

Brakes

  • Brakes: Shimano R7170 Hydraulic Disc

Wheels

  • Wheels: Alloy, Tubeless, 700c, 19c, 28H
  • Tires: Vittoria Zafiro V Rigid bead 700x28c
  • Front Wheel Axle: Orbea Thru Axle 12x100mm M12x2 P1 Hollow
  • Rear Wheel Axle: Orbea Thru Axle 12x142mm M12x2 P1 Hollow

Components

  • Seatpost: SP 0.2 Carbon, 27.2mm, Setback 20
  • Saddle: Fizik Aliante R5

Accessories

  • Handlebar Tape: Orbea Anti-Slippery/Shock Proof

* Subject to change without notice.

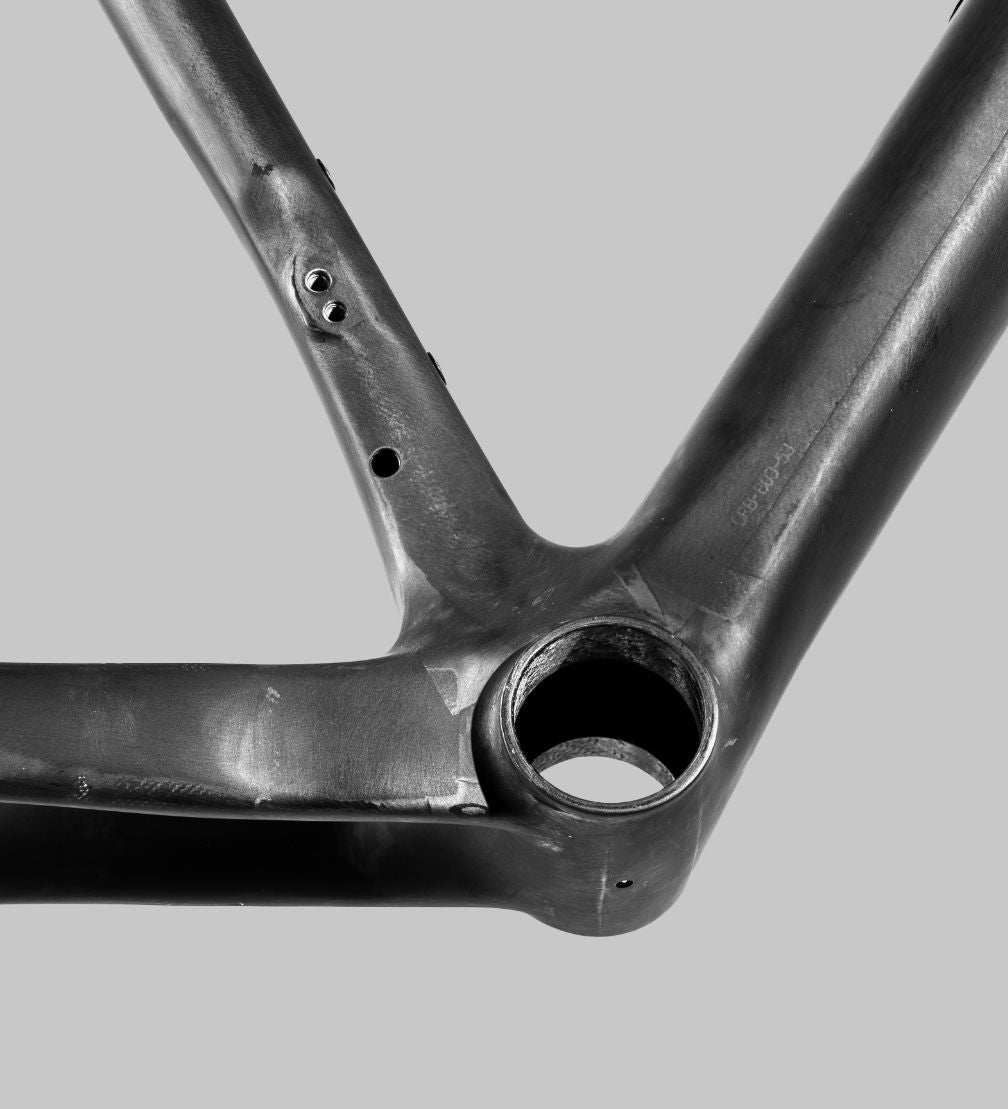

Powerspline

The lower spine of the frame handles the large majority of torsional and lateral loads.

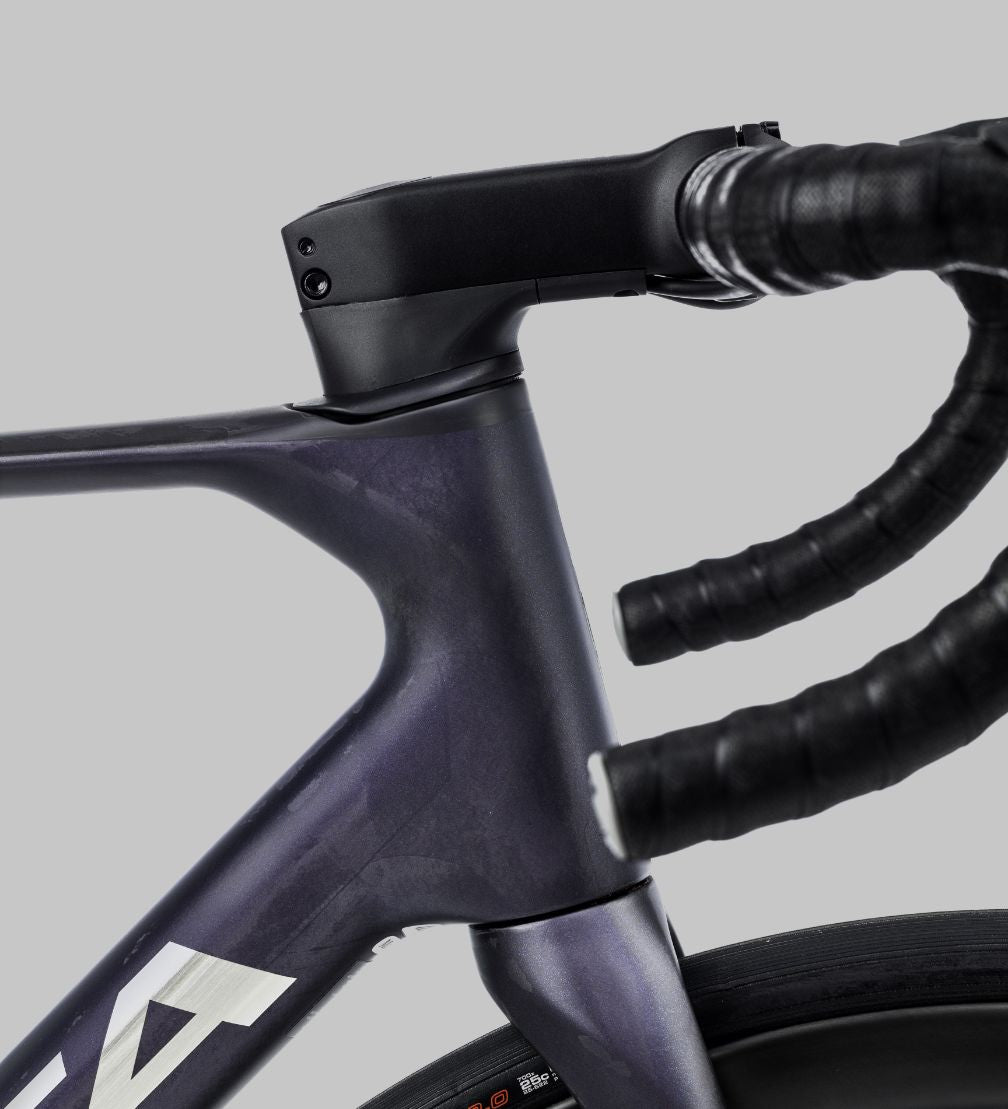

Internal Cable Routing

Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems.

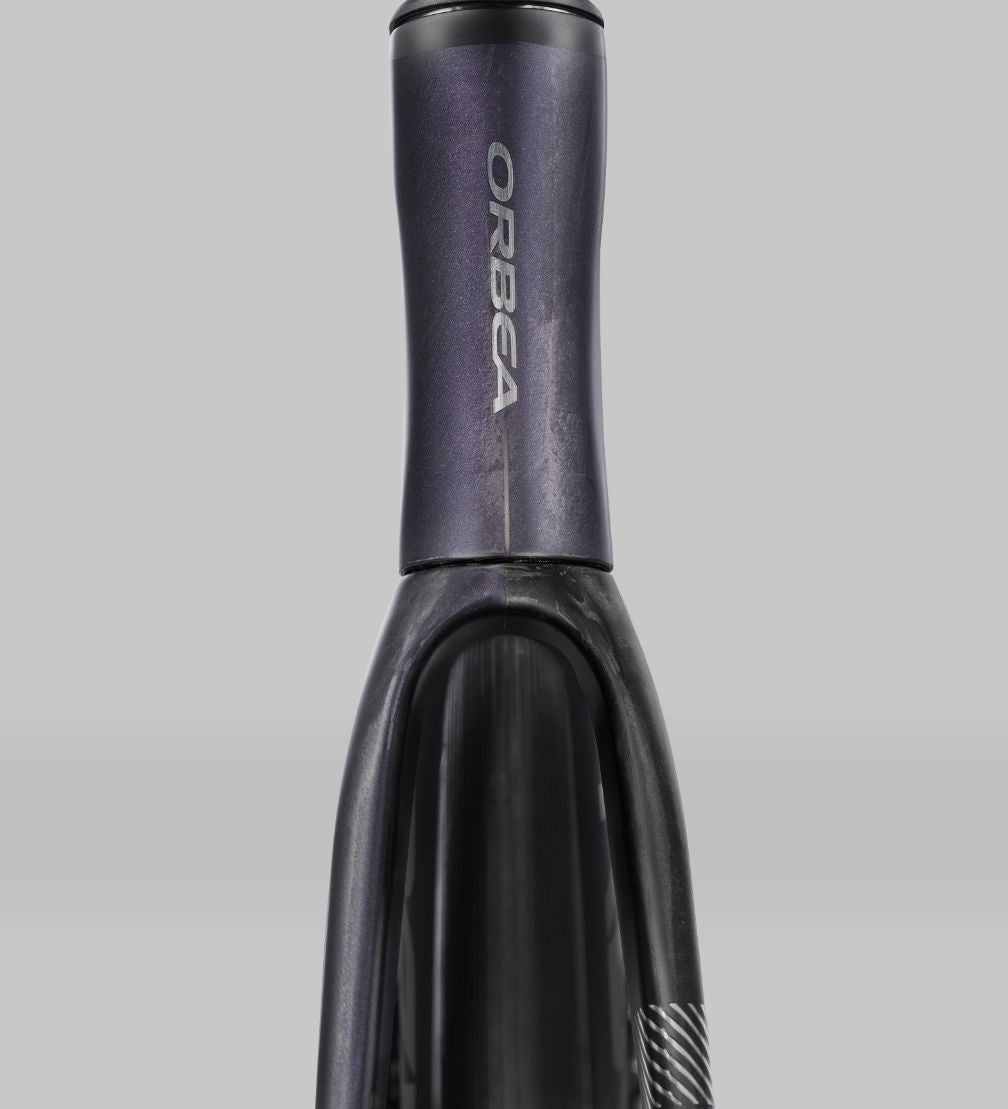

32mm Tire Clearance

Modern road riders have discovered the advantages of bigger tires on rougher surfaces.
